PostPosted: Sat Jan 25, 2014 6:05 pm    Post subject: Reply with quote

My fellow Texan, any updates yet? I'm going to be closing in on you soon, I finally got my '60 down here and have been busy. If you're ever in Arlington, give me a shout.
_________________
My 1960 Ragtop bug build

http://www.thesamba.com/vw/forum/viewtopic.php?t=565565&highlight=1960

Wanted: 1960 truck lid & rear fenders
Back to top
View user's profile Send private message Gallery Classifieds Feedback
sportin-wood
Samba Member


Joined: September 12, 2010
Posts: 1909
Location: Texas
sportin-wood is offline

PostPosted: Sun Mar 23, 2014 1:43 pm    Post subject: Reply with quote

Sorry for the long time span in between progress updates. The fact of the matter is that too many life matters took a priority (hard to believe, I know!!) to my progress, not to mention the lovely cold weather most of us had to endure this season. Having to work on my bug outdoors didn't help either. Enough whining...

Okay, so I did have some time to work on trying to get my axle nuts off. A breaker bar and socket didn't work, neither did an air impact wrench. So after soaking the nuts for weeks with Kroil Oil, I decided to try the angle iron technique I've read about.

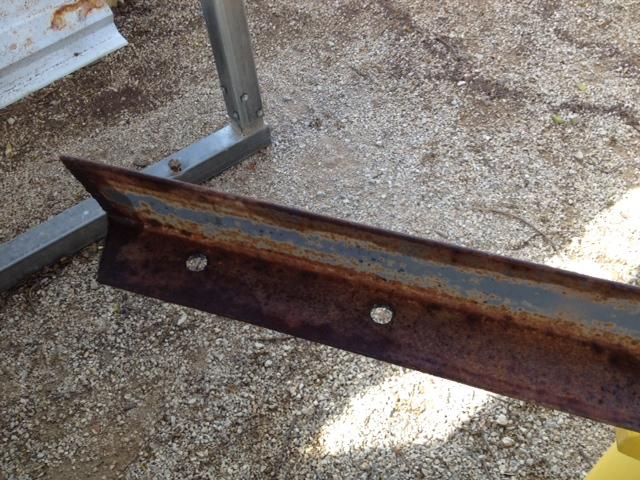

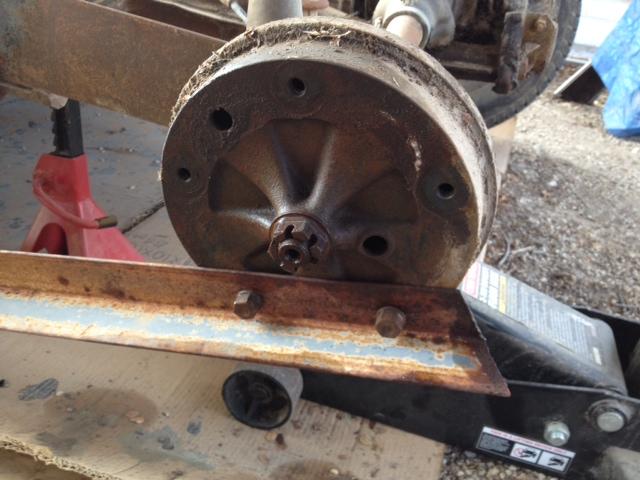

I found a 5' scrap piece of 1/8" angle iron. After making a cardboard template from one of the wheels, I marked and drilled two 1/2" holes, breaking 3 drill bits in the process. Make sure you drill the correct side of the angle iron for this to work! Wink

Image may have been reduced in size. Click image to view fullscreen.

_________________
.
Paused 66 project bug
.
"Relax, all right? My old man is a television repairman. He's got this ultimate set of tools. I can fix it." --- Jeff Spicoli
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
sportin-wood
Samba Member


Joined: September 12, 2010
Posts: 1909
Location: Texas
sportin-wood is offline

PostPosted: Sun Mar 23, 2014 1:44 pm    Post subject: Reply with quote

With 2 lug nuts tightly secured...
Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

_________________
.
Paused 66 project bug
.
"Relax, all right? My old man is a television repairman. He's got this ultimate set of tools. I can fix it." --- Jeff Spicoli
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
sportin-wood
Samba Member


Joined: September 12, 2010
Posts: 1909
Location: Texas
sportin-wood is offline

PostPosted: Sun Mar 23, 2014 1:47 pm    Post subject: Reply with quote

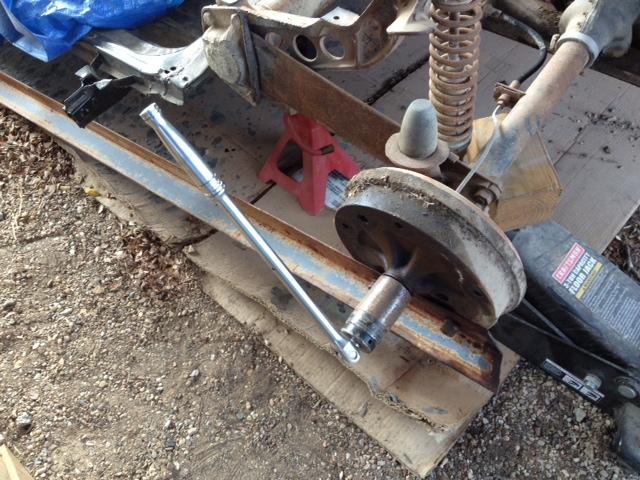

First tried with the breaker bar, but got nowhere..
Image may have been reduced in size. Click image to view fullscreen.

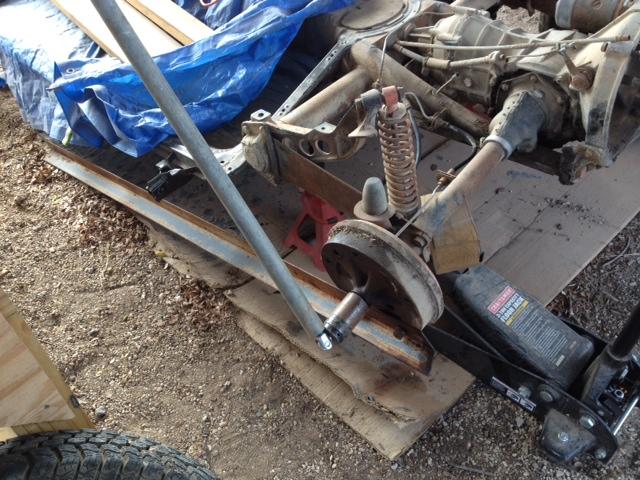

Then I added a 4' long cheater bar....
Image may have been reduced in size. Click image to view fullscreen.


And PRESTO!! Both sides loosened up nicely after putting some weight on the bar. Something to be said about leverage, for sure!!

So when I have more time, I'm going to take the drums apart and see what's going on inside, then take the transmission off to take it to get rebuilt.
_________________
.
Paused 66 project bug
.
"Relax, all right? My old man is a television repairman. He's got this ultimate set of tools. I can fix it." --- Jeff Spicoli
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
pondoras box
Samba Member


Joined: March 22, 2004
Posts: 1153
Location: Eerie PA
pondoras box is offline

PostPosted: Tue Mar 25, 2014 5:34 am    Post subject: Reply with quote

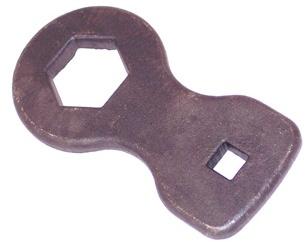

You need one of these in your tool box, in fact every VW guy needs one.


Image may have been reduced in size. Click image to view fullscreen.



Just put it one and hit the flats with a 5 pound sledge hammer, just lightly at first you will be surprised how little force you have to hit it with to get it to break free. It acts like an impact driver. You can re-use the nut afterwards.

I have done the 4 foot cheater bar before with good results until my 36mm Craftsman socket exploded into 4 pieces. The breaker bar slammed into my shin resulting in a nice hematoma a dent in the side of my bug and a lot of choice words. These things are cheap, less than 10 bucks and come in both the 36mm bug and the larger 46mm for 64 and later buses.
_________________
Looking for anything from Hal Casey Motors out of Hamburg New York, from license plate surrounds to matchbooks.
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
sportin-wood
Samba Member


Joined: September 12, 2010
Posts: 1909
Location: Texas
sportin-wood is offline

PostPosted: Tue Mar 25, 2014 7:10 pm    Post subject: Reply with quote

pondoras box wrote:
You need one of these in your tool box, in fact every VW guy needs one.


Been there, done that! I had tried exactly as you described - 5lb sledge hammer and all. The tool actually started to flatten on the edges where I was hitting it. Ended up throwing the piece of crap away. I really think spraying the penetrating oil frequently, allowing it to soak in really made all the difference in the world.
_________________
.
Paused 66 project bug
.
"Relax, all right? My old man is a television repairman. He's got this ultimate set of tools. I can fix it." --- Jeff Spicoli
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
lo-lo55
Samba Member


Joined: April 08, 2004
Posts: 61
Location: christchurch New Zealand
lo-lo55 is offline

PostPosted: Wed Mar 26, 2014 12:32 am    Post subject: Reply with quote

Watch that pin in the breaker bar too! Thought I had free'd up a nut when it screeched then hit the ground...pin nowhere to be seen. Thought where the f#@k has it gone then then heard it bounce off the roof of the house! Must have flown straight past my head, have a mk3 golf factory wheel brace (bent bar with 1/2 in drive end) and big socket that works a treat with pipe on it.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
EA812
Samba Member


Joined: December 07, 2008
Posts: 1223
Location: North central, CT
EA812 is offline

PostPosted: Fri Mar 28, 2014 11:40 am    Post subject: Reply with quote

sportin-wood wrote:
First tried with the breaker bar, but got nowhere..
Image may have been reduced in size. Click image to view fullscreen.


Then I added a 4' long cheater bar....
Image may have been reduced in size. Click image to view fullscreen.


And PRESTO!! Both sides loosened up nicely after putting some weight on the bar. Something to be said about leverage, for sure!!

So when I have more time, I'm going to take the drums apart and see what's going on inside, then take the transmission off to take it to get rebuilt.


That's a great homemade tool for sure. Get your self a TORQUE TOOL FLYWHEEL & DRUM PLATE KIT http://www2.cip1.com/productdetails.asp?productcode=acc-c10-7036 its a great tool for stuff like that and getting the drum back on tight. I love the fact that it does more than one job!

I have to tell ya, taking the trans out at this point would be a breeze. I just did it for the second time and having it out in the open like that would have made the job a little better.
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
EverettB Premium Member
Administrator


Joined: April 11, 2000
Posts: 68767
Location: Phoenix, AZ
EverettB is offline

PostPosted: Fri Mar 28, 2014 5:49 pm    Post subject: Reply with quote

sportin-wood wrote:
First tried with the breaker bar, but got nowhere..
Image may have been reduced in size. Click image to view fullscreen.


Then I added a 4' long cheater bar....
Image may have been reduced in size. Click image to view fullscreen.


And PRESTO!! Both sides loosened up nicely after putting some weight on the bar. Something to be said about leverage, for sure!!

So when I have more time, I'm going to take the drums apart and see what's going on inside, then take the transmission off to take it to get rebuilt.


I always use a cheater bar to put it on and off, if you can get it off without that usually the nut was too loose. Or you are heavy enough to put the required weight on it.

When you have to jump on a 6' bar or cut off the nut, that's when shit gets real.
_________________
How to Post Photos
Everett Barnes - [email protected] | My wanted ads
"Water is the only drink for a wise man" | "Communication prevents complaints"
Stop dead photo links! Post your photos to The Samba Gallery!
Back to top
View user's profile Send private message Send e-mail Visit poster's website Facebook Instagram Gallery Classifieds Feedback
sportin-wood
Samba Member


Joined: September 12, 2010
Posts: 1909
Location: Texas
sportin-wood is offline

PostPosted: Fri Mar 28, 2014 10:33 pm    Post subject: Reply with quote

EA812 wrote:
...its a great tool for stuff like that and getting the drum back on tight. I love the fact that it does more than one job!

I have to tell ya, taking the trans out at this point would be a breeze. I just did it for the second time and having it out in the open like that would have made the job a little better.


I've planned on purchasing one of those tools. Just waiting until I get further along in the project. So I've decided to say "f*ck it, I'm taking the tranny off myself". I think I have enough resources to get me through it with The Samba, books, Bug Me Videos, etc. What the hell, right?? Wink

EverettB wrote:
I always use a cheater bar to put it on and off, if you can get it off without that usually the nut was too loose. Or you are heavy enough to put the required weight on it.

When you have to jump on a 6' bar or cut off the nut, that's when shit gets real.


Dude, I have enough weight to surpass the required weight and then some! Laughing It was surprisingly easier than I thought it would be. Going to get the rear brakes apart and boxed & labeled next.
_________________
.
Paused 66 project bug
.
"Relax, all right? My old man is a television repairman. He's got this ultimate set of tools. I can fix it." --- Jeff Spicoli
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
sportin-wood
Samba Member


Joined: September 12, 2010
Posts: 1909
Location: Texas
sportin-wood is offline

PostPosted: Sun Mar 30, 2014 3:36 pm    Post subject: Reply with quote

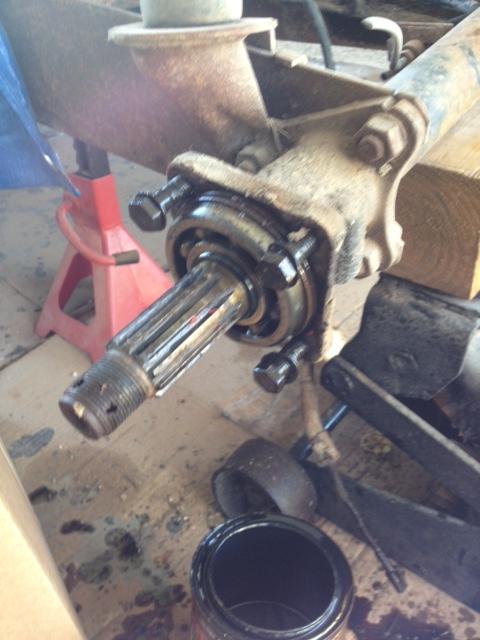

Made some time to remove the rear brake components. Gave me hell, but I did it...well, all except the axle bearings. Anyone suggest the best tool for the removal?


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.

_________________
.
Paused 66 project bug
.
"Relax, all right? My old man is a television repairman. He's got this ultimate set of tools. I can fix it." --- Jeff Spicoli


Last edited by sportin-wood on Sat Apr 12, 2014 7:36 pm; edited 1 time in total
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
mrmdls
Samba Member


Joined: April 27, 2013
Posts: 410
Location: New Brunswick, Canada
mrmdls is offline

PostPosted: Mon Mar 31, 2014 6:51 am    Post subject: Reply with quote

When you replace the rear axle seals, do yourself a huge favor and get a German seal kit. I just replaced the seals on my 67, and I tried the cheap ones first. Only a single washer was included which was much thinner than the original, the quality of the rubber was terrible and it leaked like a sieve. The German kit contains both washers of original thickness,and the quaity of the rubber was great.

edited for spelling
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
sportin-wood
Samba Member


Joined: September 12, 2010
Posts: 1909
Location: Texas
sportin-wood is offline

PostPosted: Mon Mar 31, 2014 8:45 am    Post subject: Reply with quote

mrmdls wrote:
When you replace the rear axle seals, do yourself a huge favor and get a German seal kit. I just replaced the seals on my 67, and I tried the cheap ones first. Only a single washer was included which was much thinner than the original, the quality of the rubber was terrible and it leaked like a sieve. The German kit contains both washers of original thickness,and the quaity of the rubber was great.

edited for spelling


Good advice, thanks. I have decided to replace all necessary parts with German-made products (when available), especially those as inexpensive as seals, hoses, rubber, etc. As far as other German-made items that are just too costly for me right now (fuel pump, muffler, etc.), I can probably make due with something else. Not going whole-hog with spending, that's for sure!

Just ordered a bearing puller online. Thinking I may need to grind down or modify the "hook" parts if they don't fit into the bearing slots...
_________________
.
Paused 66 project bug
.
"Relax, all right? My old man is a television repairman. He's got this ultimate set of tools. I can fix it." --- Jeff Spicoli
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
sportin-wood
Samba Member


Joined: September 12, 2010
Posts: 1909
Location: Texas
sportin-wood is offline

PostPosted: Sat Apr 12, 2014 7:51 pm    Post subject: Reply with quote

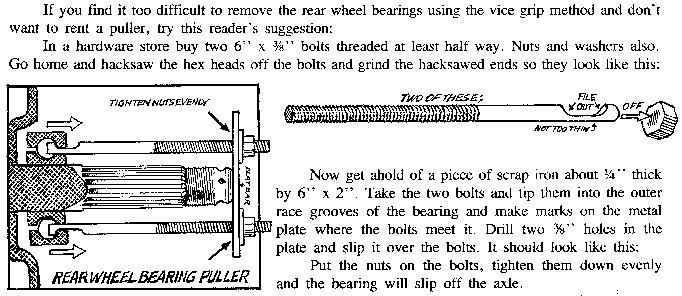

Ordered a bearing puller online and it ended up being crap. Couldn't even modify it to work, so I decided to try this technique I saw in a forum (and the vice-grip method didn't work either):

Image may have been reduced in size. Click image to view fullscreen.

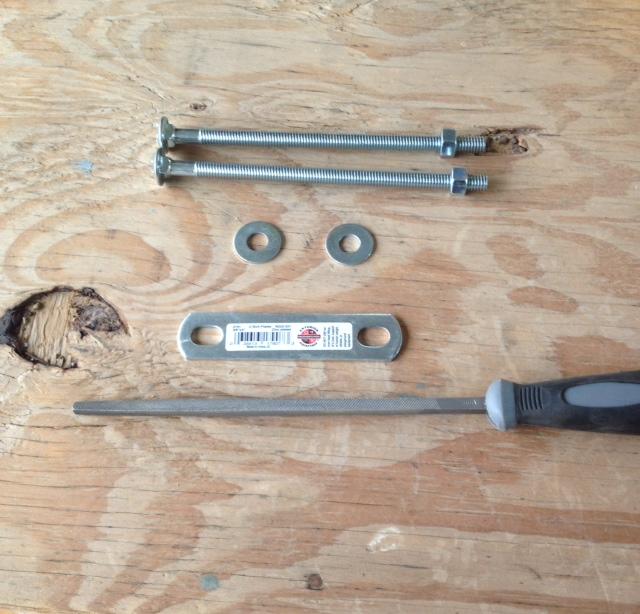

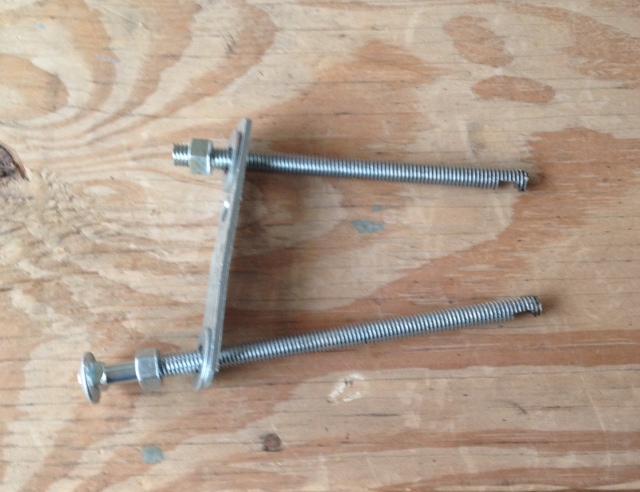

Purchased 2- 7" x 3/8" bolts, 2 nuts. 2 washers, and a u-bolt bracket that I ended up having to drill a 3/8" hole closer than what it came with in order to keep the bolts closer together. The little notches were filed off with a square file.
Image may have been reduced in size. Click image to view fullscreen.


I cut one of the heads off a bolt. I found that cutting off both (as the 1st illustration says to) wasn't necessary.
Image may have been reduced in size. Click image to view fullscreen.

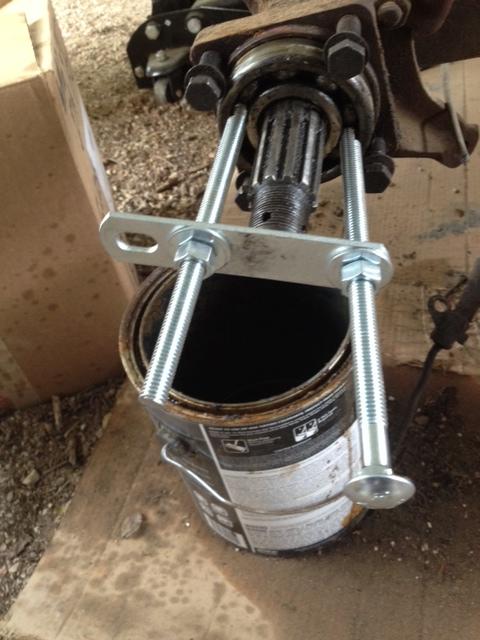

I probably could have drilled the new hole a little closer together, but this ended up working good.
Image may have been reduced in size. Click image to view fullscreen.

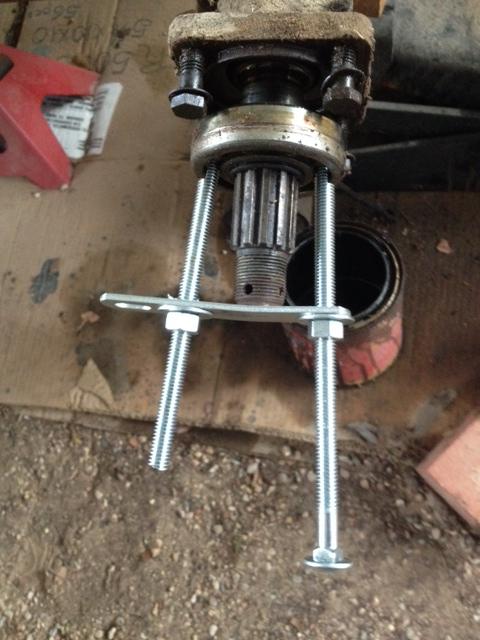

After alternating turns on the nuts, little by little and...TA-DA! We have bearing separation! This was a small victory but was good to have completed and for less than $5 in materials, it was a bargain.
Image may have been reduced in size. Click image to view fullscreen.

_________________
.
Paused 66 project bug
.
"Relax, all right? My old man is a television repairman. He's got this ultimate set of tools. I can fix it." --- Jeff Spicoli


Last edited by sportin-wood on Sun Apr 13, 2014 6:21 am; edited 1 time in total
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
mrmdls
Samba Member


Joined: April 27, 2013
Posts: 410
Location: New Brunswick, Canada
mrmdls is offline

PostPosted: Sat Apr 12, 2014 8:01 pm    Post subject: Reply with quote

Your homemade bearing puller is pretty darn slick. I'll be putting that away in some notes for when I need to do mine. Thanks for sharing!
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
sportin-wood
Samba Member


Joined: September 12, 2010
Posts: 1909
Location: Texas
sportin-wood is offline

PostPosted: Sun Apr 13, 2014 6:20 am    Post subject: Reply with quote

mrmdls wrote:
Your homemade bearing puller is pretty darn slick. I'll be putting that away in some notes for when I need to do mine. Thanks for sharing!


Thanks! I think it would have made things easier for me if I had found something like this beforehand, so I hope maybe it'll help someone else. Smile
_________________
.
Paused 66 project bug
.
"Relax, all right? My old man is a television repairman. He's got this ultimate set of tools. I can fix it." --- Jeff Spicoli
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
sportin-wood
Samba Member


Joined: September 12, 2010
Posts: 1909
Location: Texas
sportin-wood is offline

PostPosted: Mon May 12, 2014 9:46 pm    Post subject: Reply with quote

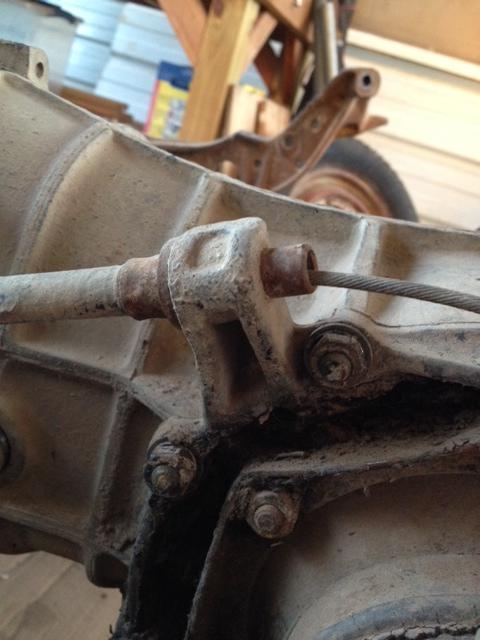

Ran into a snag trying to disconnect all necessary items that keep the transmission from being pulled away...like the Bowden tube. This thing would not budge, and I was afraid of breaking the bracket...

Image may have been reduced in size. Click image to view fullscreen.

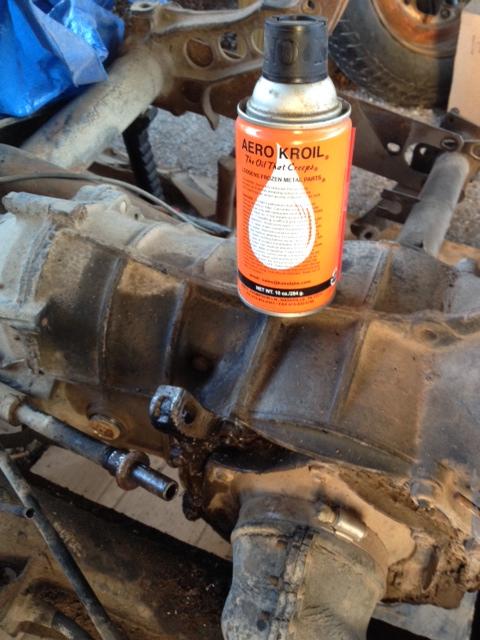

After soaking it with Kroil Oil for about a week, and applying indirect heat and gripping the tube side with vice grips, it finally came out.

Image may have been reduced in size. Click image to view fullscreen.

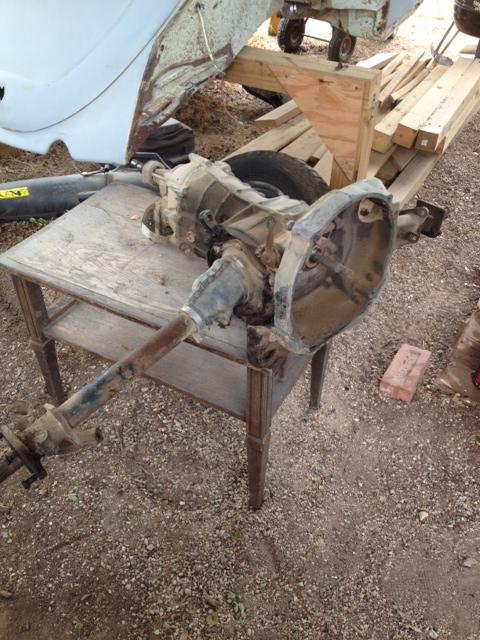

Next step will be to drop the transmission, remove the axles, and get a rebuilt replacement to put in its place....
_________________
.
Paused 66 project bug
.
"Relax, all right? My old man is a television repairman. He's got this ultimate set of tools. I can fix it." --- Jeff Spicoli
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
EA812
Samba Member


Joined: December 07, 2008
Posts: 1223
Location: North central, CT
EA812 is offline

PostPosted: Wed May 14, 2014 10:55 am    Post subject: Reply with quote

Look at you go, your winning all the big battles! I broke the bracket that holds the boden tube the first time and the homemade bearing tool is real tricky. It worked the first time I tried but fell apart on me for the next car. That's some good work on this project;)
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
sportin-wood
Samba Member


Joined: September 12, 2010
Posts: 1909
Location: Texas
sportin-wood is offline

PostPosted: Sun May 25, 2014 12:43 pm    Post subject: Reply with quote

Got a few minutes and some cool weather to make my first attempt at transmission removal. Don't know what I'd do without the Bug Me Videos!! Everything went fairly smooth. The axle boots (2 different types, 1 original German) were both shot to heck. There was about an inch of crud build-up on the transmission supports...I'm thinking almost 50 years worth.

Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.

_________________
.
Paused 66 project bug
.
"Relax, all right? My old man is a television repairman. He's got this ultimate set of tools. I can fix it." --- Jeff Spicoli
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
sportin-wood
Samba Member


Joined: September 12, 2010
Posts: 1909
Location: Texas
sportin-wood is offline

PostPosted: Tue Jun 03, 2014 6:46 pm    Post subject: Reply with quote

Has anyone else had the heck of a time with removing the C-clips that hold the axle shafts in place?

Image may have been reduced in size. Click image to view fullscreen.


I had seen threads where people filed down needle nose pliers like this one I bought at Harbor Freight (didn't want to screw up my good ones!)

Image may have been reduced in size. Click image to view fullscreen.


Only problem is that it wouldn't grip the clip enough to allow me to take it out. The hold on the C-clip kept slipping off. VERY frustrating...until one of the tips of the pliers eventually broke off, and that was that.

I ended up buying one of these online:

Image may have been reduced in size. Click image to view fullscreen.


Best investment I could have made (eBay $24). Worked like a charm, had both C-clips taken off along with the axles within 5 or 10 minutes.

Image may have been reduced in size. Click image to view fullscreen.


Next step is getting my rebuilt tranny on Saturday. Very Happy
_________________
.
Paused 66 project bug
.
"Relax, all right? My old man is a television repairman. He's got this ultimate set of tools. I can fix it." --- Jeff Spicoli
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
Display posts from previous:
Reply to topic    Forum Index -> Reader's Rides All times are Mountain Standard Time/Pacific Daylight Savings Time
Page: Previous  1, 2, 3, 4, 5, 6, 7, 8, 9  Next
Page 5 of 9


Jump to:
You cannot post new topics in this forum
You cannot reply to topics in this forum
You cannot edit your posts in this forum
You cannot delete your posts in this forum
You cannot vote in polls in this forum

About | Help! | Advertise | Donate | Premium Membership | Privacy/Terms of Use | Contact Us | Site Map
Copyright © 1996-2020, Everett Barnes. All Rights Reserved.
Not affiliated with or sponsored by Volkswagen of America | Forum powered by phpBB
