 Posted: Wed May 09, 2012 1:07 pm Post subject: Back Seat - Attach Carpet |
 |
|
I'm prepping for connecting the backseat backrest carpet to the luggage tray portion of the carpet kit. I don't have the metal strip that connects the two pieces of carpet together (see gallery image below).
Does anyone know where to purchase one of those? Anyone know the part # for it?
Also, how does it actually connect? In the picture below, I don't see the black metal strip. Does it connect underneath? Maybe that is a different year backseat below.
I don't have the parts in front of me at the moment (well, I don't even own the metal strip as mentioned above), but I'm guessing you put both pieces of carpet underneath that metal strip and then screw it into the fiber board that is connected to the backseat backrest. Is that correct?
Thanks everyone!
_________________
'66 Beetle Project & My 1983.5 SVX Powered Vanagon Westfalia
http://www.vwblvd.com/
YouTube Channel
http://www.youtube.com/user/wolfywho
1966 VW Beetle - Body Removal - One Person - Remove Body Chassis Bug - (2x Speed)
http://www.youtube.com/watch?v=RAe4wcvIp1E |
|
| Back to top |
|
 |
wolfywho
Samba Member
Joined: April 17, 2009
Posts: 502
|
| Posted: Wed May 09, 2012 1:12 pm Post subject: |
|
|

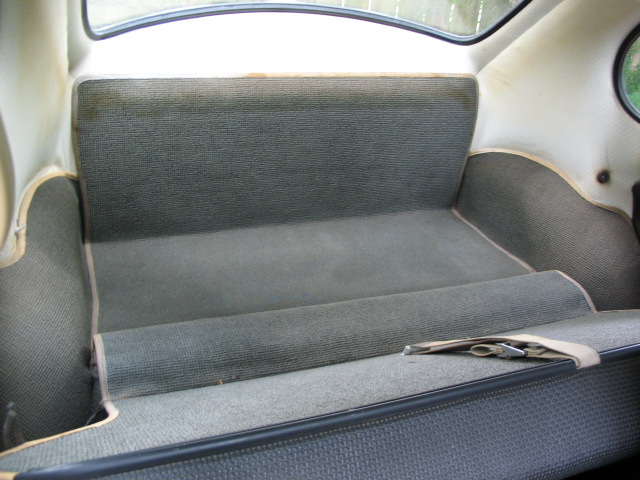

Just found these pics...

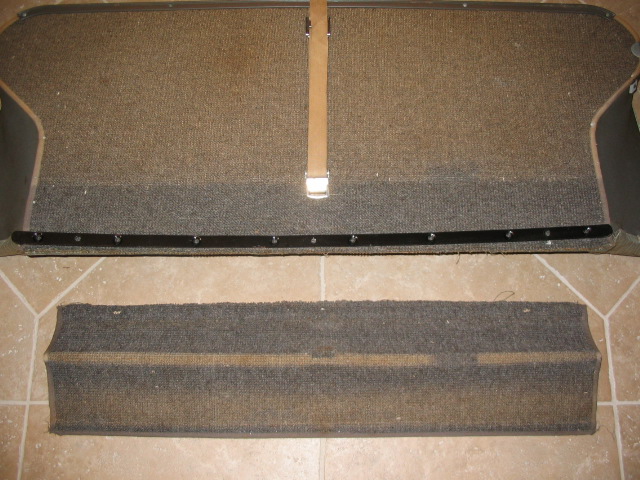

This one looks like the metal strip is hidden, and the piece of carpet that attaches to the rear luggage tray folds over top of it. That's probably the answer right there.
This doesn't seem "correct".
_________________
'66 Beetle Project & My 1983.5 SVX Powered Vanagon Westfalia
http://www.vwblvd.com/
YouTube Channel
http://www.youtube.com/user/wolfywho
1966 VW Beetle - Body Removal - One Person - Remove Body Chassis Bug - (2x Speed)
http://www.youtube.com/watch?v=RAe4wcvIp1E |
|
| Back to top |
|
|
61SNRF
Samba Member
Joined: March 29, 2009
Posts: 4656
Location: Whittier 90602
|
| Posted: Wed May 09, 2012 6:09 pm Post subject: |
|
|
| wolfywho wrote: |
This doesn't seem "correct".
|
Yes, it is. That is the way my the original carpet is in my '66.
The two pieces of carpet are sandwiched under the metal strip.
I will say that on mine the carpet on the back of the seat is on top of the small piece that goes on the bottom, but that is a minor detail.
The small piece's loose end then gets stuck into the channel on the front edge of the package shelf just like the picture.
I usually refer people to this guy when they ask about the availability of some obscure part. Here has a ton of this sort of thing. Just check his ad's or call and ask if they have one...
http://www.thesamba.com/vw/classifieds/search.php?username=dutchboyvw%40yahoo.com
_________________
-Bruce
An ounce of prevention is worth a pound of cure. |
|
| Back to top |
|
|
wolfywho
Samba Member
Joined: April 17, 2009
Posts: 502
|
| Posted: Wed May 09, 2012 8:08 pm Post subject: |
|
|
| 61SNRF wrote: |
Yes, it is. That is the way my the original carpet is in my '66.
The two pieces of carpet are sandwiched under the metal strip.
I will say that on mine the carpet on the back of the seat is on top of the small piece that goes on the bottom, but that is a minor detail.
|
Excellent. Thanks for that.
| 61SNRF wrote: |
The small piece's loose end then gets stuck into the channel on the front edge of the package shelf just like the picture.
|
Ok, cool. That's how mine is sitting right now waiting for me to attach it to the seat.
Will do. Thanks for the tip.
_________________
'66 Beetle Project & My 1983.5 SVX Powered Vanagon Westfalia
http://www.vwblvd.com/
YouTube Channel
http://www.youtube.com/user/wolfywho
1966 VW Beetle - Body Removal - One Person - Remove Body Chassis Bug - (2x Speed)
http://www.youtube.com/watch?v=RAe4wcvIp1E |
|
| Back to top |
|
|
RareAir
Samba Member
Joined: May 11, 2002
Posts: 14577
Location: 18 miles North of the border
|
| Posted: Wed May 09, 2012 10:00 pm Post subject: |
|
|
If you're in need of the carpet channel clamping strip, which I belive is the part you're missing, it's spot welded to the luggage compartment floor. I have one I just removed from a car. $20 and it's yours. But shipping costs from California might make it less feasible.
_________________
1947 Typ 11a
1954 Typ 117
1956 Typ 151
1959 Typ 117
1959 Typ 265
1961 356B
1966 Typ 151
1966 Typ 241 |
|
