Posted: Tue Jul 31, 2012 9:47 pm Post subject: 1958 Rag, Resto-Rod Build "El Mirage meets The Autobahn |
|
|
Thought I'd start out with a little info about myself and this project.
I am a gear head and VW guy, have been since I caught my first one...a 61 Beetle at the ripe old age of 14. That was almost 33 years ago. Since that time I've owned many VWs and just as many Hot Rods. I have a taste for things that are not main-stream. While all the other teenagers were building Camaros and Mustangs...I was learning about horizontally opposed air-cooled engines.
I've always built full and mostly stock bodied Bugs but I've recently got this wild hair to create something truly unique.
Think outside the box for a moment, "What if Ferdinand Porsche met Ed Iskenderian in college and became best friends?", "What if they combined their talents and created a one off, performance prototype Beetle? Sort of El Mirage meets the Autobahn, if you will.
I build cars at a higher level of finish, so this car wont be "Rat Rod Flat Black with seat springs showing"...It will be a proper pan off, nut and bolt resto-rod with a nod to it's German heritage but with a vintage Hot Rod flair.
I appreciate what "purists" do to preserve these cars and respect the work highly, so I will channel some of their passion when building this.
I love uncovering original factory marked parts from big balls of grease and crust, it's sort of an automotive archeology. It is truly touching history.
I will use as many original parts as possible just as Dr. Porsche and Isky would have back in the day. I will create parts when possible and keep the aftermarket purchases to an absolute minimum.
I have contemplated this build for quite some time and since I am partial to earlier bodies, I searched and found a good candidate that will allow me to cut and modify an earlier car that would have otherwise never seen the streets again. This 58 was truly sitting on death row, outside, next to a barn, with weeds up to the door handles. It was going one last round on Craigslist before being dragged to the crusher.
The day I showed up to get the old rag it was pouring down rain. The PO was a truck driver and was on the road and also didn't inform me of any issues with loading it. His elderly wife was the only one home. She took my money, pointed in the direction of the barn it was next to and slammed the door.
When I tried to move the old VW I quickly found that the front brakes and steering linkage were stuck, so it wouldn't roll nor steer. I tried the electric winch on the trailer, but wasn't strong enough to pull the bug with the wheels locked. Needless to say, I was 3 1/2 hours from home, pissed and soaking wet.
Luckily, I had my Dad along with me, we ended up disconnecting the trailer and blocking the trailer wheels so it wouldn't roll, hooked a long tow strap from my truck, over the trailer and to the VW. I pulled the VW (with the front wheels locked), onto the trailer with my truck. Looking at it optimistically, it's a good thing it was raining because the mud and wet ramps helped to let it slide on.
I was angry, cold and tired by the time we got it loaded, but I couldn't take my eyes off the little VW in my rear view mirror all the way back. By the time I got home, I had a soft spot in my heart for Franky, as he is now fondly known. If you are reading this and are a true VW guy (or gal) then you probably understand how these little cars take on a personality, if not, stay tuned and you will understand by the end of this build.

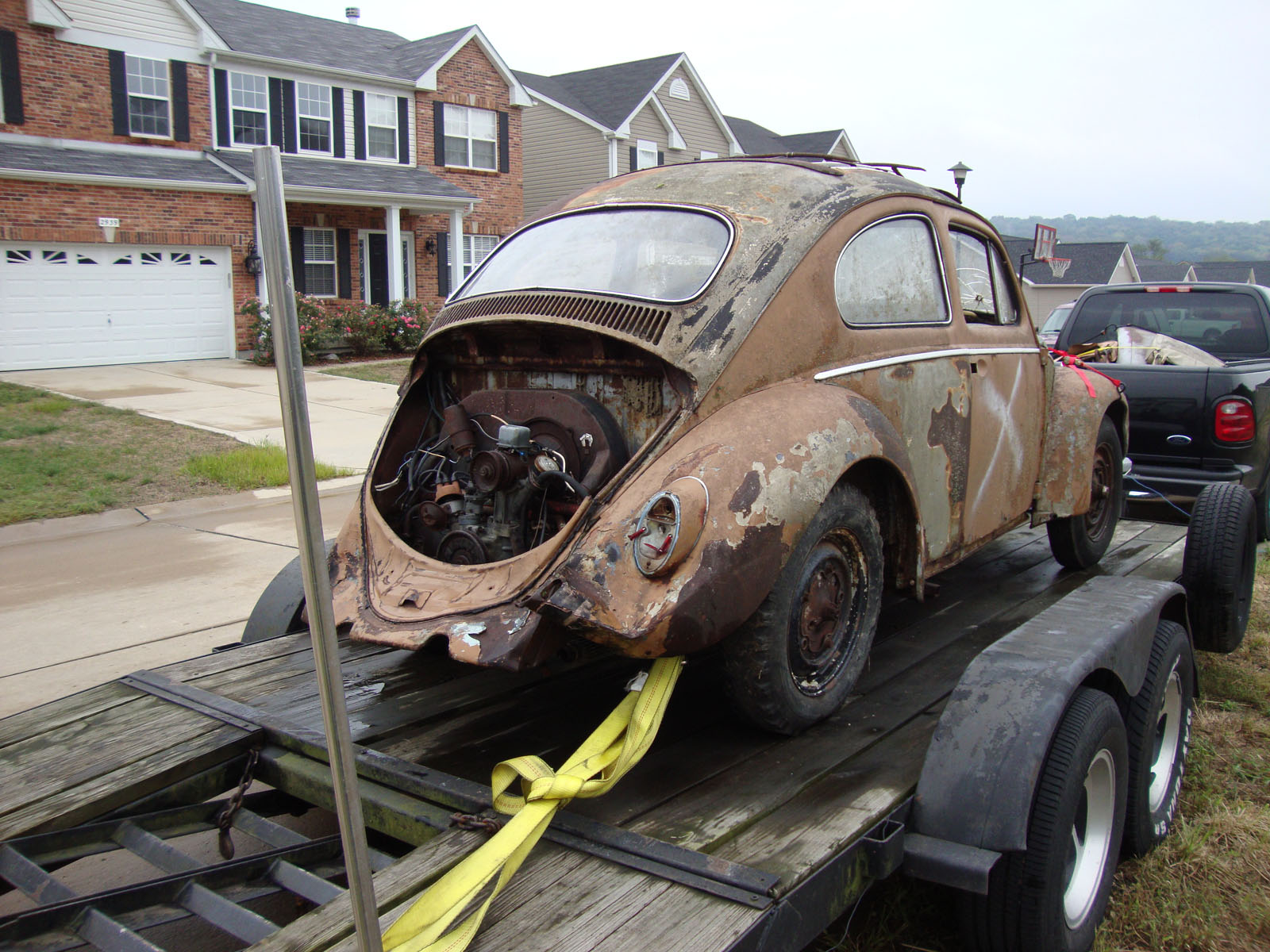

Here he is, Franky, in all his rusted glory...ready to go under the torch and be brought back to life. Enjoy the build.
[/img]
_________________ 1956 Oval
and a barn full of VW parts
1956 Oval build thread
https://www.thesamba.com/vw/forum/viewtopic.php?t=...mp;start=0
1962 Single Cab Restoration
http://www.thesamba.com/vw/forum/viewtopic.php?p=7959298#7959298
1967 Beetle Restoration
http://www.thesamba.com/vw/forum/viewtopic.php?t=495269&highlight=larrys
Last edited by Fifty-Eight Rag on Mon Sep 03, 2012 6:57 pm; edited 2 times in total |
|
Back to top |
|
 |
rgdedge Samba Member

Joined: October 17, 2006 Posts: 863 Location: Seymour, TN
|
Posted: Wed Aug 01, 2012 4:27 am Post subject: |
|
|
Cool.I built mine from a parts car headed to the crusher also. We drive it everywhere. It is not a trailer queen.
Tim |
|
Back to top |
|
 |
dschup Samba Member

Joined: July 17, 2008 Posts: 299 Location: Kyle, TX
|
Posted: Wed Aug 01, 2012 6:01 am Post subject: |
|
|
This should be good, can't wait to see more.  |
|
Back to top |
|
 |
vaughn bros. Samba Member

Joined: October 13, 2003 Posts: 2398 Location: Hickory, NC
|
Posted: Wed Aug 01, 2012 6:19 am Post subject: |
|
|
Perfect Donor Car. Look at that radio delete! I agree on doing one with a quality hot rod persuasion. We are trying to build a quality one too! Subscribed.  |
|
Back to top |
|
 |
Fifty-Eight Rag Samba Member

Joined: September 07, 2011 Posts: 936 Location: St. Louis, MO
|
Posted: Wed Aug 01, 2012 8:04 am Post subject: |
|
|
As you can see, most of the cool early stuff has already been robbed from this car before I got it. It has the wrong fenders and lights and it also has the wrong hood.

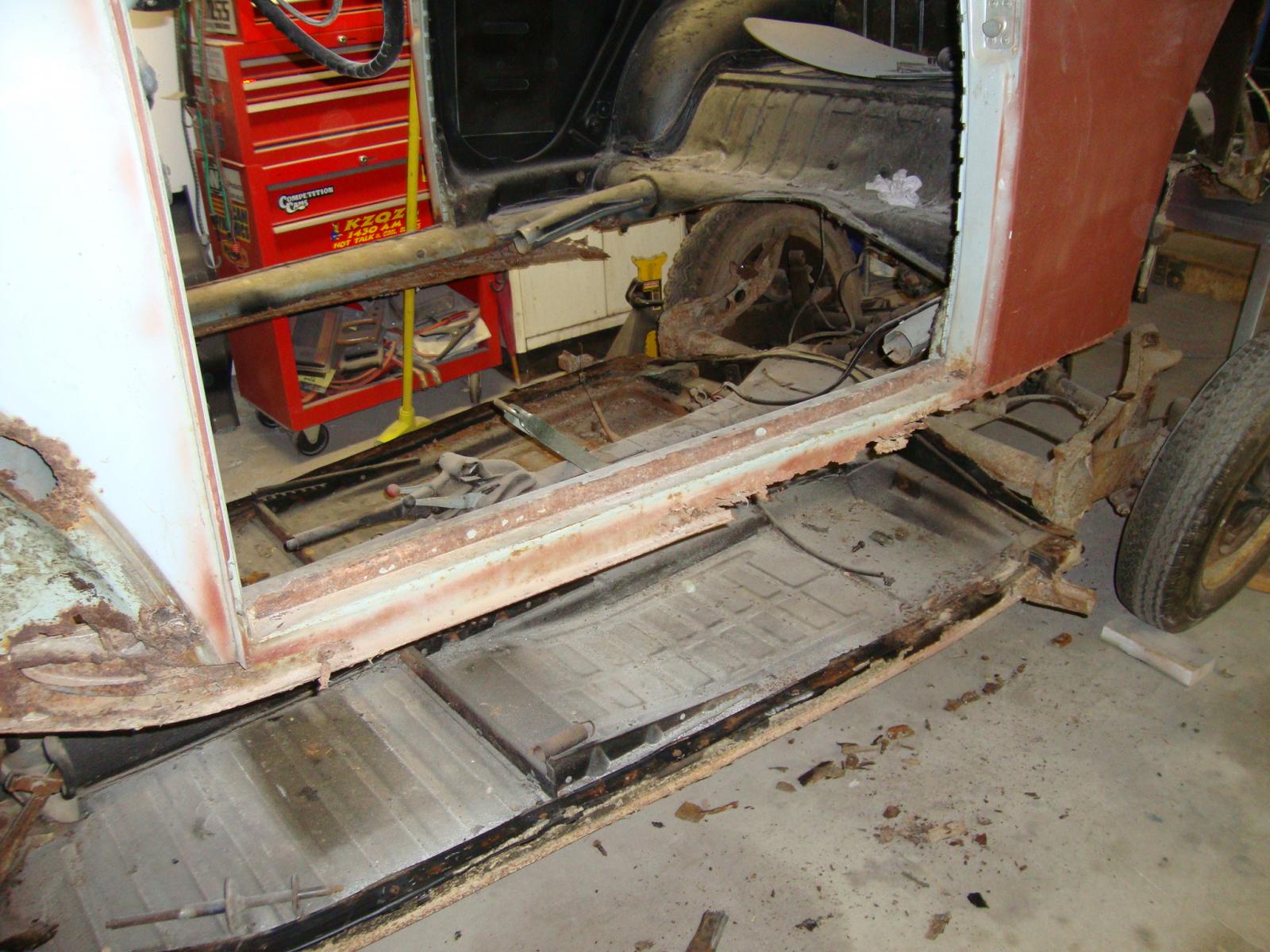

The left rear C pillar is hurt pretty bad from a prior accident and was repaired poorly, so I wont feel bad about chopping that top.
Looks like the only cool stuff remaining is the original doors (minus the Ice Picks), the original steering column (minus the correct wheel), the original ash tray (minus the faceplate), the original radio delete (minus the cast trim)...so you can see it is a prime candidate for this project.
I have plans for a modified dash so I will probably pass the 1958 specific parts remaining on to a correct restoration project where they belong.
I will incorporate the doors and stock gas tank into this build to retain that early flavor.
_________________ 1956 Oval
and a barn full of VW parts
1956 Oval build thread
https://www.thesamba.com/vw/forum/viewtopic.php?t=...mp;start=0
1962 Single Cab Restoration
http://www.thesamba.com/vw/forum/viewtopic.php?p=7959298#7959298
1967 Beetle Restoration
http://www.thesamba.com/vw/forum/viewtopic.php?t=495269&highlight=larrys
Last edited by Fifty-Eight Rag on Mon Sep 03, 2012 7:28 pm; edited 1 time in total |
|
Back to top |
|
 |
drscope Samba Member

Joined: February 19, 2007 Posts: 15273 Location: Baltimore, Maryland USA
|
Posted: Wed Aug 01, 2012 10:47 am Post subject: |
|
|
Nice save!
Be prepared to hear crap about cutting up a good car from folks who don't understand what you had to start with.
Sounds like you have a decent plan and know which way you want to go. Keep us posted! _________________ Mother Nature is a Mean Evil Bitch! |
|
Back to top |
|
 |
vw_partsguy Samba Member

Joined: January 28, 2012 Posts: 105 Location: Glendale AZ
|
Posted: Wed Aug 01, 2012 11:48 am Post subject: |
|
|
I think the ratchet strap is holding the body together!!
Cool project, that car needs some love, build the coolest car for YOU not for everyone else. -Louie
Fifty-Eight Rag wrote: |
As you can see, most of the cool early stuff has already been robbed from this car before I got it. It has the wrong fenders and lights but since I'm V-Roddin it that wont be an issue. It also has the wrong hood.
The left rear C pillar is hurt pretty bad from a prior accident and was repaired poorly, so I wont feel bad about chopping that top.
Looks like the only cool stuff remaining is the original doors (minus the Ice Picks), the original steering column (minus the correct wheel), the original ash tray (minus the faceplate), the original radio delete (minus the cast trim)...so you can see it is a prime candidate for this project.
I have plans for a modified dash so I will probably pass the 58 specific parts remaining on to a correct restoration project where they belong.
I will incorporate the doors and stock gas tank into this build to retain that early flavor.
|
_________________ 2018 MK7.5 GTI “Pearl”
2017 MK7 GTI "Sparrow"
2000 Eurovan "Chuggs"
1997 Jetta Jazz "JJ"
2002 Jetta Variant "Jazzy"
1967 Beetle "Buddy" Deceased
1989 Golf GTI Montana green Deceased
1967 Beetle "Mr Blue" Deceased |
|
Back to top |
|
 |
Fifty-Eight Rag Samba Member

Joined: September 07, 2011 Posts: 936 Location: St. Louis, MO
|
|
Back to top |
|
 |
VOLKSWAGNUT Fastest VW Belt Changer

Joined: October 14, 2007 Posts: 11126 Location: Flippin' a Belt........ .... Off-n-On ... NC USA
|
Posted: Wed Aug 01, 2012 11:50 am Post subject: |
|
|
rgdedge wrote: |
Cool.I built mine from a parts car headed to the crusher also. We drive it everywhere. It is not a trailer queen.
Tim |
Mine too!!!
vaughn bros. wrote: |
Perfect Donor Car. Look at that radio delete! I agree on doing one with a quality hot rod persuasion. We are trying to build a quality one too! Subscribed.  |
Yeah...
Be sure to keep the bullet holed weathered windshield.... you cant fake shit as cool as that.......easily......  _________________ aka Ken {o\!/o}
Its your vehicle- stop askin' for approval-do what YOU like for cryin' out loud
Better to roll em' how you want and wear em' out-than lettin' em' rot out
Its about the going not the showing
Rebuilt to drive not decorate
WANTED: Local Eatin' Joints, Triple D for TheSamba contributions here http://www.thesamba.com/vw/forum/viewtopic.php?t=570510
Search "VOLKSWAGNUT" on YouTube since you cant watch a "certain" BELT change video round here
Usually and often edited |
|
Back to top |
|
 |
Fifty-Eight Rag Samba Member

Joined: September 07, 2011 Posts: 936 Location: St. Louis, MO
|
Posted: Wed Aug 01, 2012 1:28 pm Post subject: |
|
|
I have actually been working on this car for a few months and just now decided to make a build thread...so I will start posting pics of the build so far and get everyone up to date over the next few days.

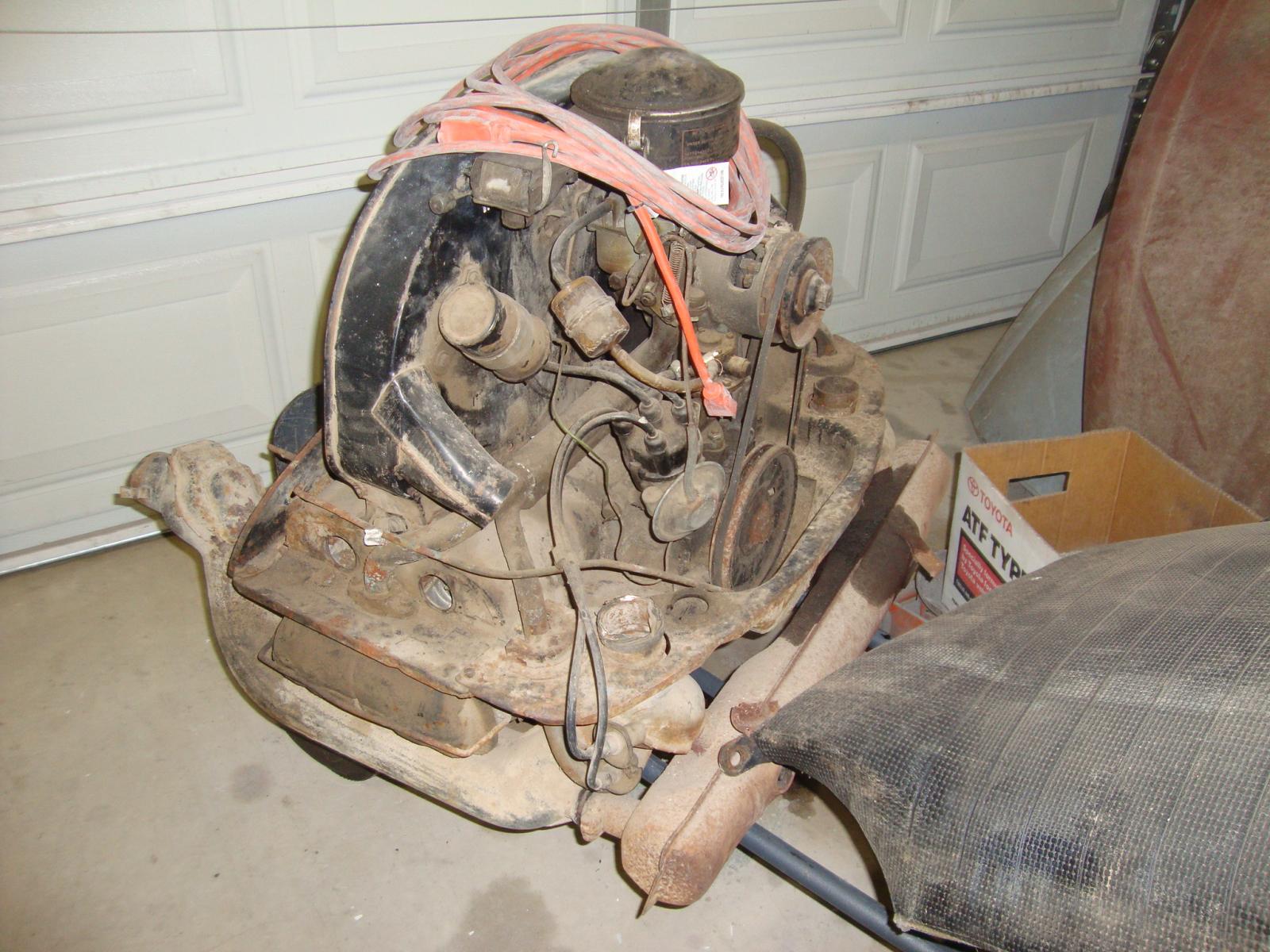

The 58 had a locked up 1500 or 1600 in it and the split case trans doesn't seem to shift too well as it sits...the car had been sitting outside as-is for many years in the Midwest...it's pretty crusty.
I decided that on my budget I would try to find another car as a donor parts car to keep costs down. I found a rusty 67 that was used as a sort of dune buggy on Craigslist that had a decent pan and good trans. The original 1500 was blown up but the guy threw in a 1961 40hp that turns freely. I have under $900 in both cars and the engine.
I got the 67 body off the pan and started evaluating.
_________________ 1956 Oval
and a barn full of VW parts
1956 Oval build thread
https://www.thesamba.com/vw/forum/viewtopic.php?t=...mp;start=0
1962 Single Cab Restoration
http://www.thesamba.com/vw/forum/viewtopic.php?p=7959298#7959298
1967 Beetle Restoration
http://www.thesamba.com/vw/forum/viewtopic.php?t=495269&highlight=larrys
Last edited by Fifty-Eight Rag on Wed Aug 01, 2012 8:35 pm; edited 1 time in total |
|
Back to top |
|
 |
drscope Samba Member

Joined: February 19, 2007 Posts: 15273 Location: Baltimore, Maryland USA
|
Posted: Wed Aug 01, 2012 1:54 pm Post subject: |
|
|
If nothing else the 67 will give you a donor roof skin and door tops for you top chop. You need those to stretch the roof and door tops depending on how you go about it.
You can also use the 67 transmission.
Up front you now have options. The 58 is a link pin beam and the 67 is a ball joint beam. The 2 are not normally interchangable. But on a volksrod, if you are going with a beam extender, you can get 1 that will allow you to use a ball joint beam on a link pin frame head and vice versa. _________________ Mother Nature is a Mean Evil Bitch! |
|
Back to top |
|
 |
jtwaller Samba Member

Joined: January 30, 2012 Posts: 345 Location: HIDEAWAY, TX
|
Posted: Wed Aug 01, 2012 2:44 pm Post subject: |
|
|
A cool way to extend the front end is to flip the beam around. I saw it on a vrod the last show. Made me take a double look at first. This may be an old way of doing it, but it was a first for me. _________________ 1967 Daily Driver
..[-_-_-_-]..
*/l_____l\*
( O \ ! / O )
1973 Thing
1969 Squareback
1967 Bug
1968 Bug
1971 Bug
mark tucker wrote: |
the more you stroke it the better it feals.bore it out while your there, you will like it if you do it corectly. watch out for the ones that are used and abused, they can be headaches.well all of them can be headaches. |
|
|
Back to top |
|
 |
flyboat Samba Member
Joined: April 21, 2010 Posts: 2752 Location: Bath NC
|
Posted: Wed Aug 01, 2012 4:59 pm Post subject: |
|
|
always glad to see a revival. Looking forward to the finished piece. _________________ 79 super Vert
62 Ragtop Bug
66 tintop Westy
Porsche 914
09 Z06 Vette track car |
|
Back to top |
|
 |
drscope Samba Member

Joined: February 19, 2007 Posts: 15273 Location: Baltimore, Maryland USA
|
Posted: Wed Aug 01, 2012 5:48 pm Post subject: |
|
|
jtwaller wrote: |
A cool way to extend the front end is to flip the beam around. I saw it on a vrod the last show. Made me take a double look at first. This may be an old way of doing it, but it was a first for me. |
Caster becomes a real problem when you do it like this. Ackerman is totally off the charts. And most of the cars done that way are no fun to drive. In fact they are scary as hell!
An extender lets you go 8 or 10 inches and keeps most of the important geometry where you need it. Ackerman is about the only thing effected.
Of course you could also say to heck with either beam and go with a Speedway I beam front axle. Not a bad kit but the anchor point for the radius rods needs to really be beefed up if you go that route. They are prone to failure. The rest of the kit is pretty good stuff. _________________ Mother Nature is a Mean Evil Bitch! |
|
Back to top |
|
 |
Fifty-Eight Rag Samba Member

Joined: September 07, 2011 Posts: 936 Location: St. Louis, MO
|
Posted: Wed Aug 01, 2012 7:21 pm Post subject: |
|
|
drscope wrote: |
jtwaller wrote: |
A cool way to extend the front end is to flip the beam around. I saw it on a vrod the last show. Made me take a double look at first. This may be an old way of doing it, but it was a first for me. |
Caster becomes a real problem when you do it like this. Ackerman is totally off the charts. And most of the cars done that way are no fun to drive. In fact they are scary as hell!
An extender lets you go 8 or 10 inches and keeps most of the important geometry where you need it. Ackerman is about the only thing effected.
Of course you could also say to heck with either beam and go with a Speedway I beam front axle. Not a bad kit but the anchor point for the radius rods needs to really be beefed up if you go that route. They are prone to failure. The rest of the kit is pretty good stuff. |
I totally agree about the wacky driving on the flipped axle. Beam extender or Speedway/ Early Ford is the way to go.

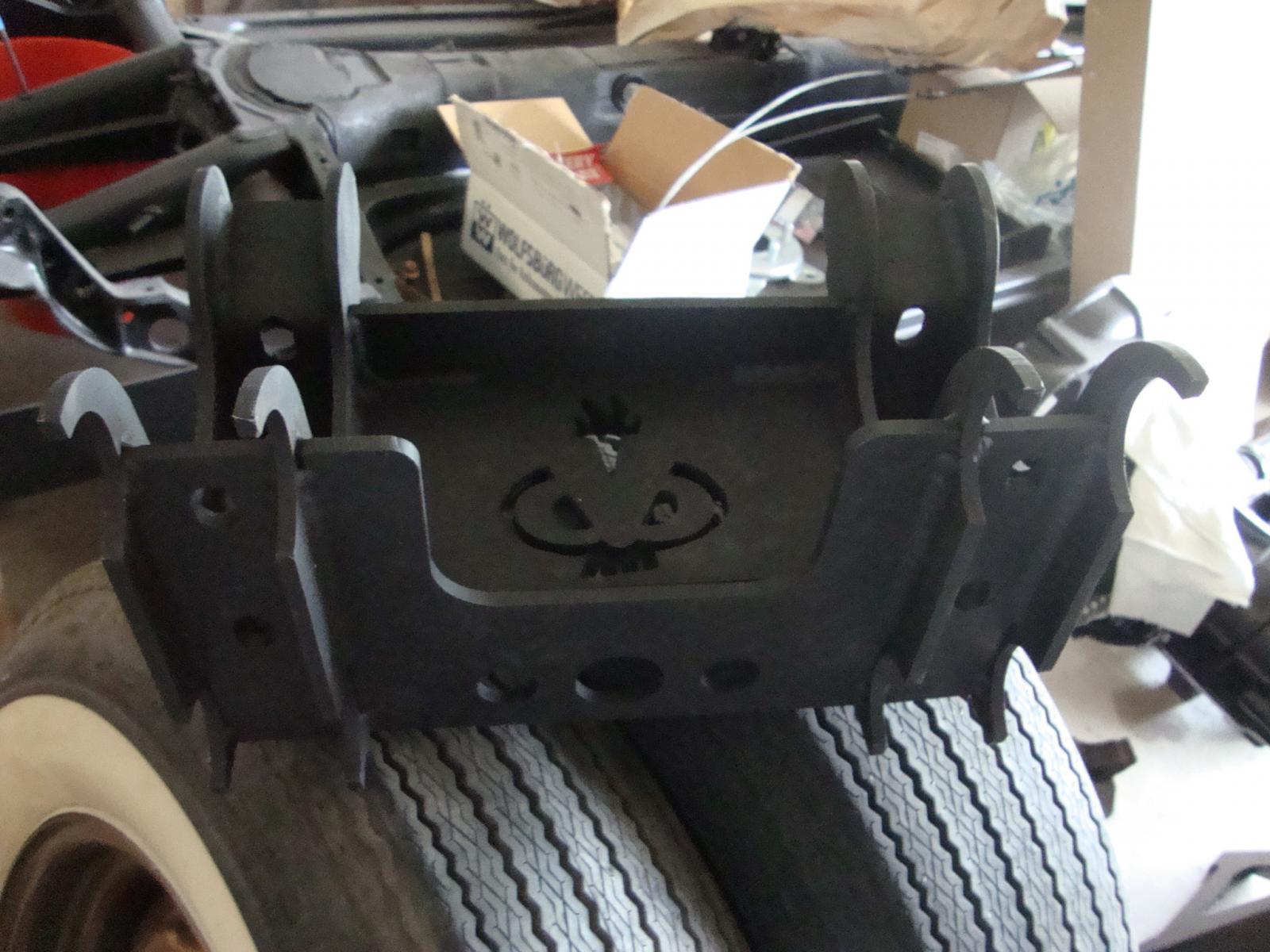

I have parts to go either way actually...I have an 8" extender from The Volksrod Shop ready to bolt on. The front beam from the 67 is a new VW unit that was added just before I bought the car so I think I'm going to run it initially.
I tripped on to a deal I couldn't pass up at a swap meet earlier this year...it was a Speedway Motors axle mounting kit complete in the box. I then located a rough but salvageable 39 Ford front axle that was already converted to juice brakes. I may run this set up later...all depends how the car drives and looks after I get it on the road.
_________________ 1956 Oval
and a barn full of VW parts
1956 Oval build thread
https://www.thesamba.com/vw/forum/viewtopic.php?t=...mp;start=0
1962 Single Cab Restoration
http://www.thesamba.com/vw/forum/viewtopic.php?p=7959298#7959298
1967 Beetle Restoration
http://www.thesamba.com/vw/forum/viewtopic.php?t=495269&highlight=larrys |
|
Back to top |
|
 |
jhicken Samba Member

Joined: October 24, 2003 Posts: 9472 Location: Fallbrook, CA
|
Posted: Wed Aug 01, 2012 8:45 pm Post subject: |
|
|
Sounds like you are got the right attitude. I got no issues with a volksrod when done well, but it pains me to see a decent car cut up and put together half assed. It's all about the plan, theme and craftsmanship.
I look forward to seeing your progress. In the meantime, here's a a couple of hotties than hopefully will inspire you.
_________________ Der Kleiner Kampfwagens |
|
Back to top |
|
 |
Fifty-Eight Rag Samba Member

Joined: September 07, 2011 Posts: 936 Location: St. Louis, MO
|
Posted: Wed Aug 01, 2012 9:17 pm Post subject: |
|
|
jhicken wrote: |
Sounds like you are got the right attitude. I got no issues with a volksrod when done well, but it pains me to see a decent car cut up and put together half assed. It's all about the plan, theme and craftsmanship.
I look forward to seeing your progress. In the meantime, here's a a couple of hotties than hopefully will inspire you.
|
Thanks for the inspirational pics...the full fendered split is more of where I'm going with this build...minus the fenders. I do know I'm not doing the "satin" look paint but that vintage flair is right in line with me.
This may sound crazy, but I'm envisioning a vintage Hot Rod style circa early to mid 50's but with a German twist...a VW needs to keep some of it's heritage. I'm thinking on the lines of 50s European sports car meets 50s American Hot Rod...bare essentials, but well built and refined.
I love Porsche 356's and I am also looking to them for inspiration. _________________ 1956 Oval
and a barn full of VW parts
1956 Oval build thread
https://www.thesamba.com/vw/forum/viewtopic.php?t=...mp;start=0
1962 Single Cab Restoration
http://www.thesamba.com/vw/forum/viewtopic.php?p=7959298#7959298
1967 Beetle Restoration
http://www.thesamba.com/vw/forum/viewtopic.php?t=495269&highlight=larrys |
|
Back to top |
|
 |
Gnarlyleech Samba Member

Joined: April 23, 2012 Posts: 222 Location: Southwest Louisiana
|
Posted: Wed Aug 01, 2012 9:32 pm Post subject: |
|
|
Your car, your money. Do what makes you happy. _________________ "Good judgment comes from experience and a lot of that comes from bad judgment"
My 1966 Beetle Project Thread http://www.thesamba.com/vw/forum/viewtopic.php?t=520182 |
|
Back to top |
|
 |
VOLKSWAGNUT Fastest VW Belt Changer

Joined: October 14, 2007 Posts: 11126 Location: Flippin' a Belt........ .... Off-n-On ... NC USA
|
Posted: Thu Aug 02, 2012 5:53 am Post subject: |
|
|
drscope wrote: |
Of course you could also say to heck with either beam and go with a Speedway I beam front axle. Not a bad kit but the anchor point for the radius rods needs to really be beefed up if you go that route. They are prone to failure. The rest of the kit is pretty good stuff. |
"Prone to failure" is an understatement... Cheap Cast crap.. is what they are.
The only thing that is decent is the frame horn to I beam adapter, but for the price Speedway wants, that can easily be made...
You rarely hear of a VW beam breaking... even after its cut in half, droped, bagged, narrowed, and extended.
I'd take better and safer proven handling any day over some cheap Cast just for looks.
A beam extender makes the transition very very simple, but if you just happen to have an original 39 Ford axle.... man it would be a shame not to use it... IF you want that look and can handle the mods.
My Volksrod with an 8 inch extender drives just as well as my other Vw's. _________________ aka Ken {o\!/o}
Its your vehicle- stop askin' for approval-do what YOU like for cryin' out loud
Better to roll em' how you want and wear em' out-than lettin' em' rot out
Its about the going not the showing
Rebuilt to drive not decorate
WANTED: Local Eatin' Joints, Triple D for TheSamba contributions here http://www.thesamba.com/vw/forum/viewtopic.php?t=570510
Search "VOLKSWAGNUT" on YouTube since you cant watch a "certain" BELT change video round here
Usually and often edited |
|
Back to top |
|
 |
Fifty-Eight Rag Samba Member

Joined: September 07, 2011 Posts: 936 Location: St. Louis, MO
|
Posted: Thu Aug 02, 2012 6:49 am Post subject: |
|
|
Yeah I've heard the horror stories of the Chinese cheap cast aftermarket "Ford" I beams from Speedway and Super Bell. I'm steering(pardon the pun) clear of those for sure. I did hear that Socal Speed Shop manufactures a true forged axle just like original Ford stuff...that's what they told me when I talked to them. If I decide to go the Ford axle route though, I will definitely be using my 39 axle.
I'm not thoroughly convinced on the Ford axle though, I may just like the VW beam better. I can handle the mods either way, but I want a car that drives as well as it looks.
One thing that I do like about the VW beam over the Ford axle is it would allow me to mount my headlights low...I like that look better _________________ 1956 Oval
and a barn full of VW parts
1956 Oval build thread
https://www.thesamba.com/vw/forum/viewtopic.php?t=...mp;start=0
1962 Single Cab Restoration
http://www.thesamba.com/vw/forum/viewtopic.php?p=7959298#7959298
1967 Beetle Restoration
http://www.thesamba.com/vw/forum/viewtopic.php?t=495269&highlight=larrys |
|
Back to top |
|
 |
|
