PostPosted: Wed Oct 10, 2012 11:12 am    Post subject: Blown Engine, And How! Reply with quote

Thought you guys might like to see this. This engine came out of a Bus a customer of mine bought. He never saw it running. We were hoping it'd be a perfectly good little engine, but were prepared for the worst. We sure got it!

The engine would spin back and forth but not 360 degrees. It'd spin maybe 330 degrees one way or another and then smack into something. I pulled the valve covers off and noticed that none of the valves open and close at all, they were all just dead level with each other and wouldn't move. I knew that could mean only one thing.

I started tearing the engine apart and found #4 rod up through the case, which the fan shroud was hiding.

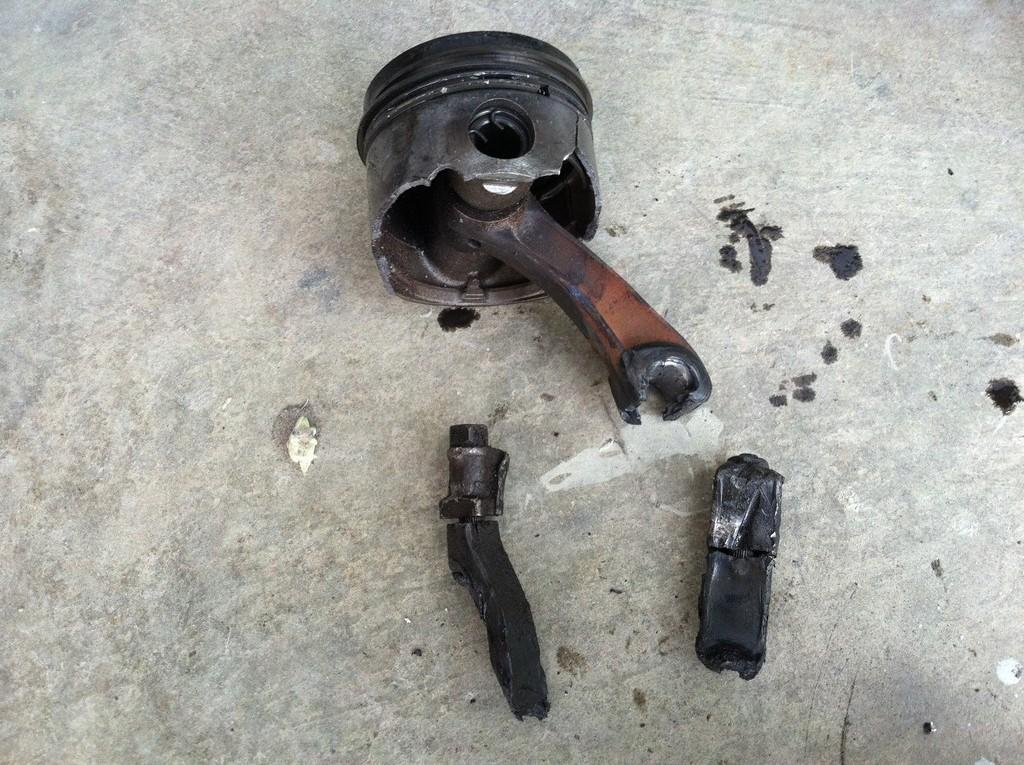

Here's what's left of #4 connecting rod. Both nuts are still on!
Image may have been reduced in size. Click image to view fullscreen.


Damage to the crank.
Image may have been reduced in size. Click image to view fullscreen.

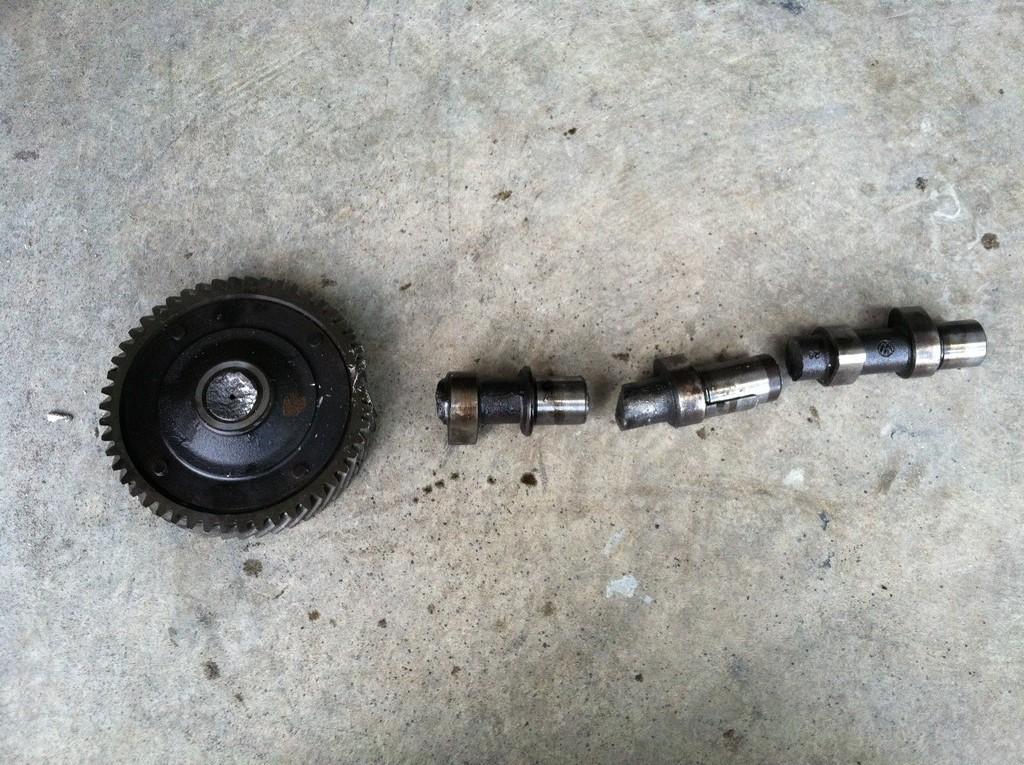

The camshaft, or should I say camshafts?
Image may have been reduced in size. Click image to view fullscreen.


The entire case is filled with this stuff.
Image may have been reduced in size. Click image to view fullscreen.


This is interesting. All the intake valves are black except that one that was on #4.
Image may have been reduced in size. Click image to view fullscreen.


Not sure what happened first that caused all this, but I'm sure some of you will have theories. The oil was very low (though it could have been sitting for years and dripped out), and there was also no front engine tin which would have made the engine run hotter than usual. There was one of the six main case nuts missing, and some of the others were loose.

Definitely the worst failure I've seen!

Dan
_________________
Red Barn Restorations
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
Bashr52
Samba Member


Joined: July 16, 2006
Posts: 5667
Location: On an island in VA
Bashr52 is offline

PostPosted: Wed Oct 10, 2012 12:17 pm    Post subject: Reply with quote

That is intersting that it was the #4 that let go. If it was the #3 it would be more understandable.....
Back to top
View user's profile Send private message Gallery Classifieds Feedback
HRVW
Samba Member


Joined: May 01, 2011
Posts: 2531
Location: Rosarito, Mexico
HRVW is offline

PostPosted: Wed Oct 10, 2012 1:12 pm    Post subject: Reply with quote

Laughing Picture was NO big deal for me as I've seen loads of them during my engine building yrs....comes with the territory.

One part fails or lack of oil and KABOOM.
Back to top
View user's profile Send private message Send e-mail Classifieds Feedback
[email protected]
Samba Member


Joined: August 15, 2002
Posts: 4303
Location: Brew City
roy@mofoco.com is offline

PostPosted: Wed Oct 10, 2012 2:22 pm    Post subject: Reply with quote

Thank you for a perfect picture of what I always tell people. Stock connecting rod bolts DO NOT BREAK. The rod itself will come apart before the bolt will.

Sorry about the engine though Embarassed
Back to top
View user's profile Send private message Send e-mail Visit poster's website Gallery Classifieds Feedback
vugbug68
Samba Member


Joined: June 25, 2006
Posts: 2682
Location: sacramento
vugbug68 is offline

PostPosted: Wed Oct 10, 2012 2:36 pm    Post subject: Reply with quote

spun rod bearing, rod got too hot and bam. Heads actually look pretty good
_________________
71 Super - Backroad Thrasher
66 Corvair - Weekend Cruiser
90 4 Runner - Muddin
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
JoeD
Samba Member


Joined: October 09, 2012
Posts: 146

JoeD is offline

PostPosted: Wed Oct 10, 2012 3:12 pm    Post subject: Reply with quote

Yes spun rod bearing. Obvious in the photo. It burnt pretty badly.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
modok
Samba Member


Joined: October 30, 2009
Posts: 23755
Location: Colorado Springs
modok is offline

PostPosted: Wed Oct 10, 2012 4:51 pm    Post subject: Reply with quote

#4 is the most common rod bearing to go out first. i don't know why, we'll probably never know exactly what started this one to go either, all the incriminating evidence has destroyed itself Shocked

Of course, it was probably just low oil pressure.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
SamT
Samba Member


Joined: April 17, 2009
Posts: 1760
Location: Rule, Tx
SamT is offline

PostPosted: Wed Oct 10, 2012 5:09 pm    Post subject: Reply with quote

I love tearing into exploded engines, as long as they are someone else's. That looks like it was in an engine blow contest, about par for my experience with bus engines especially type 3.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
75smith
Samba Member


Joined: July 09, 2011
Posts: 2275
Location: NH
75smith is offline

PostPosted: Wed Oct 10, 2012 5:10 pm    Post subject: Reply with quote

modok wrote:
#4 is the most common rod bearing to go out first. i don't know why, we'll probably never know exactly what started this one to go either, all the incriminating evidence has destroyed itself Shocked

Of course, it was probably just low oil pressure.


huh, interesting I was talking with my dad today and we got on the subject of rod bearings and he said he see's the #3 or #1 go most often
_________________
My 1975 Beetle Build Updated 8-21-12

My engine build
Back to top
View user's profile Send private message Gallery Classifieds Feedback
vugbug68
Samba Member


Joined: June 25, 2006
Posts: 2682
Location: sacramento
vugbug68 is offline

PostPosted: Wed Oct 10, 2012 9:25 pm    Post subject: Reply with quote

#1 bearing is the one i've seen spun the most.
_________________
71 Super - Backroad Thrasher
66 Corvair - Weekend Cruiser
90 4 Runner - Muddin
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
modok
Samba Member


Joined: October 30, 2009
Posts: 23755
Location: Colorado Springs
modok is offline

PostPosted: Wed Oct 10, 2012 9:28 pm    Post subject: Reply with quote

Maybe it depends what caused it?
Back to top
View user's profile Send private message Gallery Classifieds Feedback
1432
Samba Member


Joined: October 08, 2006
Posts: 399
Location: so cal
1432 is offline

PostPosted: Sat Oct 13, 2012 7:22 am    Post subject: Reply with quote

modok wrote:
#4 is the most common rod bearing to go out first. i don't know why, we'll probably never know exactly what started this one to go either, all the incriminating evidence has destroyed itself Shocked

Of course, it was probably just low oil pressure.


oil delivery problems usally affect #1 & 4 rods first due to shared oil feed thru single passage at center main.
