 Posted: Fri Feb 10, 2017 8:28 am Post subject: Dash Grab Handle |
 |
|
I have a 3 month only 61 15 window deluxe.. The grab handle holes are 6 1/2 inches apart.. Does anyone know why or what grab handle would have went there?
Jeff
[img]https://www.thesamba.com/vw/gallery/pix/1605491.jpg
Last edited by The Pinstriper on Fri Feb 10, 2017 8:50 am; edited 2 times in total |
|
| Back to top |
|
 |
EverettB
Administrator
Joined: April 11, 2000
Posts: 71520
Location: Phoenix 602
|
| Posted: Fri Feb 10, 2017 8:42 am Post subject: Re: Dash Grab Handle |
|
|
It could be anything that a previous owner or dealer added.
Reference point:
From another thread I found that the original holes for later Buses are 7 3/4" wide.
My '61 DC has this handle I have seen on various late 50s/early 60s Buses
I don't believe it's that narrow though.
_________________
How to Post Photos
Everett Barnes - [email protected] | My wanted ads
"Water is the only drink for a wise man" | "Communication prevents complaints"
Stop dead photo links! Post your photos to The Samba Gallery! |
|
| Back to top |
|
|
campingbox
Samba Member
Joined: November 14, 2000
Posts: 10249
Location: Petaluma, CA
|
| Posted: Fri Feb 10, 2017 8:53 am Post subject: Re: Dash Grab Handle |
|
|
Have you tried fitting a stock 61 deluxe handle?
Same handle on bulkhead, so you can confirm measurements there. |
|
| Back to top |
|
|
Peter_N
Samba Member
Joined: February 19, 2014
Posts: 332
Location: The Netherlands
|
| Posted: Fri Feb 10, 2017 9:01 am Post subject: Re: Dash Grab Handle |
|
|
That's about the same size my dash handle holes are (6.3 inch)
I've contacted a Happich handle seller recently but he told me they're about 7 3/4" inch apart.
_________________
My 1958 PGSG project topic |
|
| Back to top |
|
|
The Pinstriper
Samba Member
Joined: June 21, 2013
Posts: 13
Location: Winter Springs
|
| Posted: Fri Feb 10, 2017 9:09 am Post subject: Re: Dash Grab Handle |
|
|
Yes.. I posted a picture 😐
Last edited by The Pinstriper on Fri Feb 10, 2017 12:21 pm; edited 1 time in total |
|
| Back to top |
|
|
Erik G
Samba Member
Joined: October 16, 2002
Posts: 13546
Location: Tejas!
|
|
| Back to top |
|
|
The Pinstriper
Samba Member
Joined: June 21, 2013
Posts: 13
Location: Winter Springs
|
| Posted: Fri Feb 10, 2017 9:14 am Post subject: Re: Dash Grab Handle |
|
|
In that photo the holes are right at 6 1/2 apart center to center..
|
|
| Back to top |
|
|
Peter_N
Samba Member
Joined: February 19, 2014
Posts: 332
Location: The Netherlands
|
| Posted: Fri Feb 10, 2017 11:19 am Post subject: Re: Dash Grab Handle |
|
|
| campingbox wrote: |
Have you tried fitting a stock 61 deluxe handle?
Same handle on bulkhead, so you can confirm measurements there. |
Could anyone measure the bolt spacing on such a handle? That would be very helpful for Pinstriper and me
_________________
My 1958 PGSG project topic |
|
| Back to top |
|
|
Eric&Barb
Samba Member
Joined: September 19, 2004
Posts: 25923
Location: Olympia Wash Rinse & Repeat
|
| Posted: Wed Jun 25, 2025 4:40 pm Post subject: Re: Dash Grab Handle |
|
|
| Peter_N wrote: |
| campingbox wrote: |
Have you tried fitting a stock 61 deluxe handle?
Same handle on bulkhead, so you can confirm measurements there. |
Could anyone measure the bolt spacing on such a handle? That would be very helpful for Pinstriper and me |
Yes way late to this party, but was doing some research tripped over this and figure might as well post the info requested now.

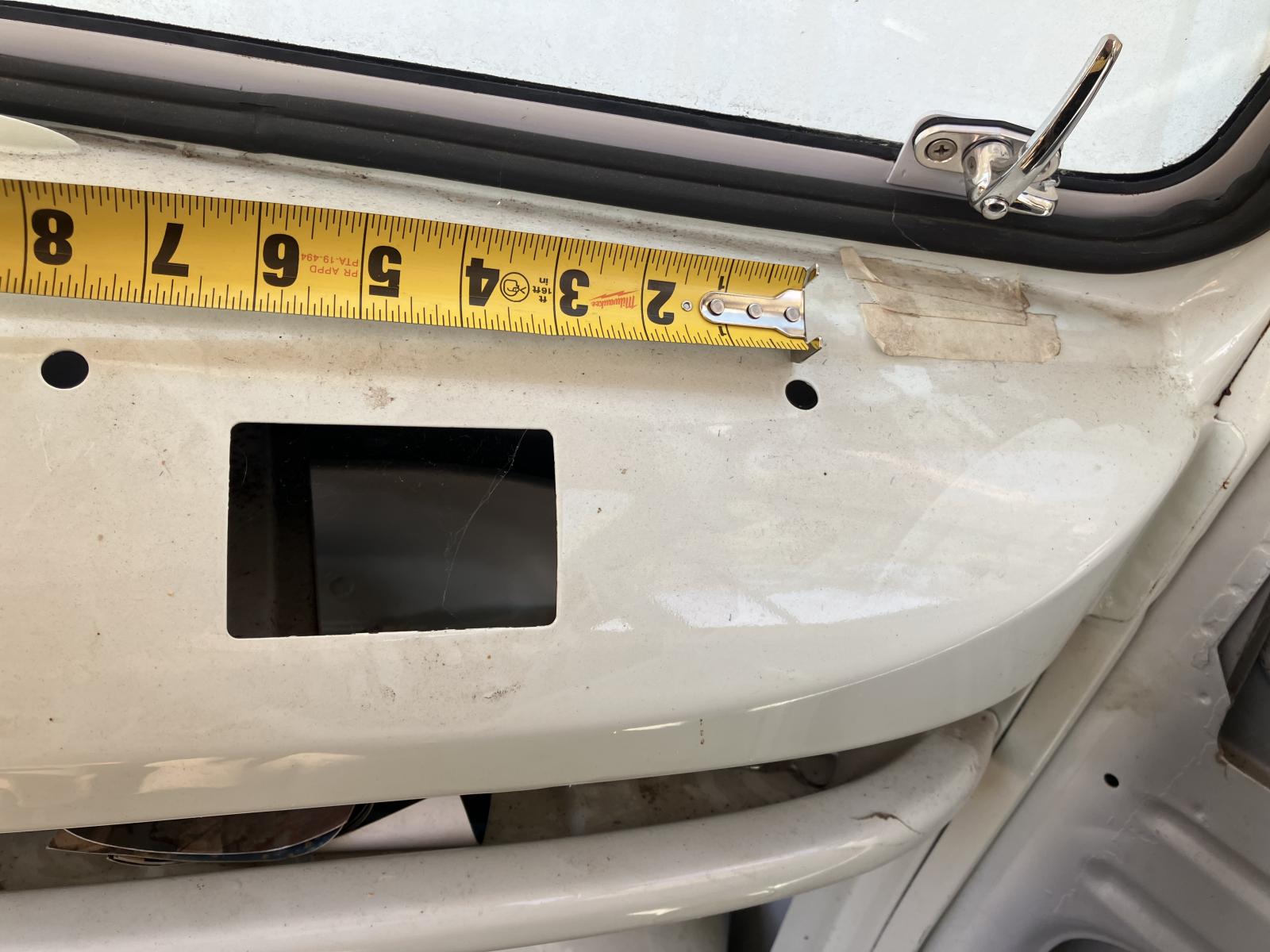

7-11/16" (about 195mm) center to center for the two 11mm holes in a 1964 or 65 spare bus nose we have. Interestingly same C to C for the GHE clone repro handle we just got AAC (Aircooled Accessories), has 8mm studs, same as the post-1960 stock dash grab handle in our DEC62 single cab.
_________________
In Stereo, Where Available! |
|
| Back to top |
|
|
Peter_N
Samba Member
Joined: February 19, 2014
Posts: 332
Location: The Netherlands
|
| Posted: Thu Jun 26, 2025 2:09 am Post subject: Re: Dash Grab Handle |
|
|
Completely forgot I asked these question before. Still no grab handle installed
Thanks for sharing the information Eric&Barb! That's always helpful
_________________
My 1958 PGSG project topic |
|
| Back to top |
|
|
Eric&Barb
Samba Member
Joined: September 19, 2004
Posts: 25923
Location: Olympia Wash Rinse & Repeat
|
| Posted: Thu Jun 26, 2025 12:40 pm Post subject: Re: Dash Grab Handle |
|
|
| Peter_N wrote: |
Completely forgot I asked these question before. Still no grab handle installed
Thanks for sharing the information Eric&Barb! That's always helpful |
A bit funny that after all this time the info might still help you!! Know how that goes though!!! Need to fix up the dash in our 1960 panel camper after over a decade of starting on it....
The just below sentences for any newbies...
The "Technical Bulletins" one can peruse thru and anyone owning a VW really should. Either thru the "Technical" button at upper right of any of Thesamaba webpages, and scroll down on the right side to find those and find the "Body" section in that TB list or for now use the link below:
https://www.thesamba.com/vw/archives/manuals/techbulletin_index.php
In the 1961 Technical Bulletin on this subject it suggests from center of hole for the grab handle to the closest slot of the radio grill for a dimension of .8" (20mm), the spare nose/dash we have shows VW went to 1" (25.4mm) for the post 1960 type 2 in production. The GHE clone grab handle when set on the dash with its much wider bases looked a bit too shoved tightly into that area right up against the radio grill. So we went with the later 1" dimension, boy that was a good decision!! Hole just clears the nearside of the Blaupunkt speaker installed in its factory position with the factory prepunched holes in the lower lip of the dash. So close is the stud that you can not thread on the nut on that side with handle in place. Thankfully the speaker frame is flat so there is a gap between the speaker and arc of the dash underside that one can just get the two washers (one flat and one split lock washer) and nut in place before installing the handle, and still turn the nut. So with one hand held the two washers and nut up under the dash and with other hand slid a smaller drill than the 8mm stud to feed those parts up into the dash and rearrange the hand to push those against the underside of the dash pinning them there. Then slid the drill bit out and offer the grab handle into the hole and thru the parts into the nut to turn it enough to engage the handle stud. Sure, could have removed the speaker, but did not want to waste time doing that and the ever present danger possibility of having the speaker cone damaged by doing so. Well know fact of nature is that sharp pointy objects like screwdrivers like to without provocation poke holes in speaker cones.

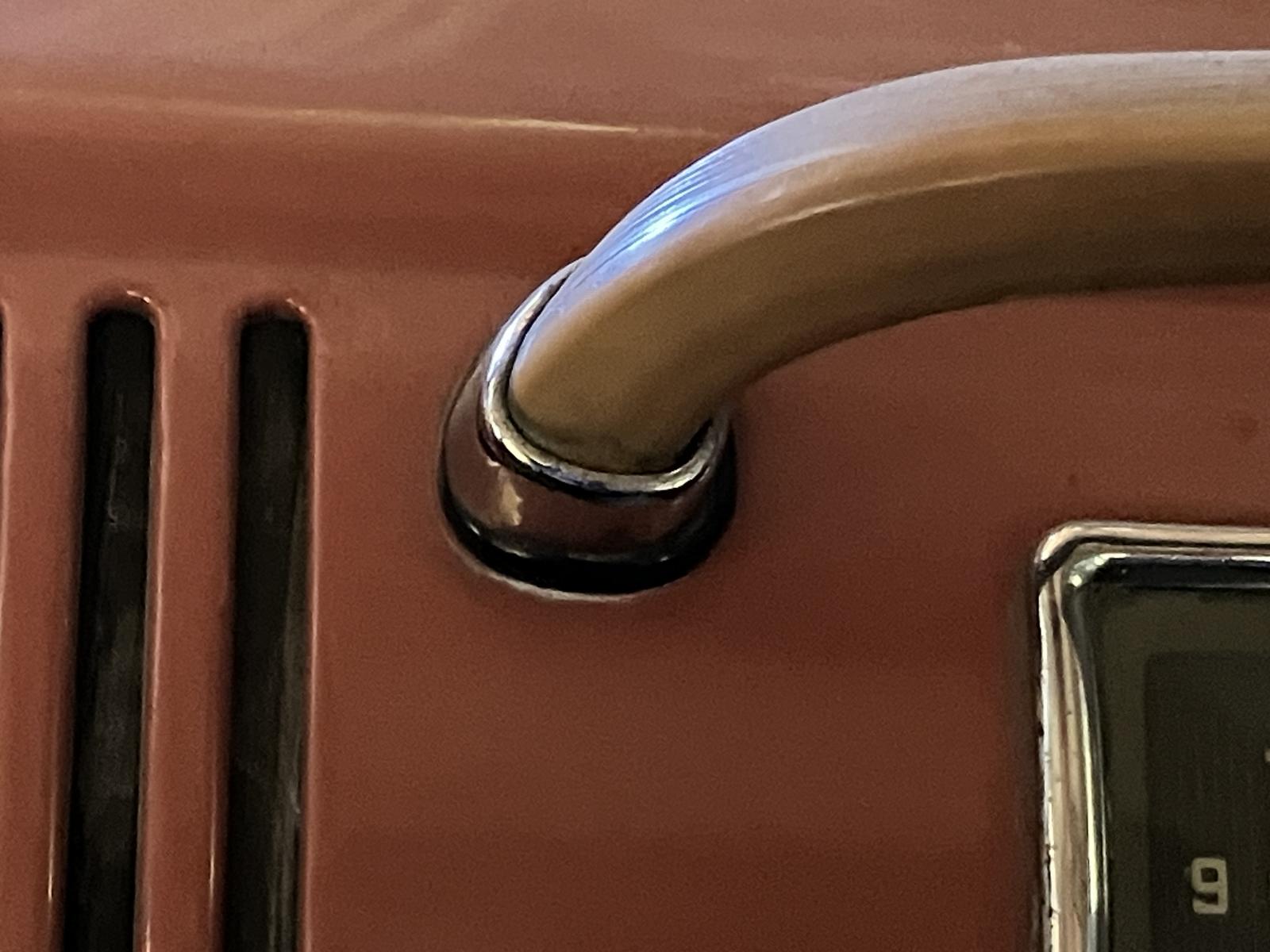

So here are the images of the handle in place:
_________________
In Stereo, Where Available!
Last edited by Eric&Barb on Fri Jun 27, 2025 11:02 am; edited 1 time in total |
|
| Back to top |
|
|
Clara
Samba Member
Joined: June 14, 2003
Posts: 12606
|
| Posted: Fri Jun 27, 2025 9:31 am Post subject: Re: Dash Grab Handle |
|
|
| The Pinstriper wrote: |
In that photo the holes are right at 6 1/2 apart center to center..
have a 3 month only 61 15 window deluxe.. The grab handle holes are 6 1/2 inches apart.. Does anyone know why or what grab handle would have went there? |
Just wondering… what 3 months 61 only do you mean?

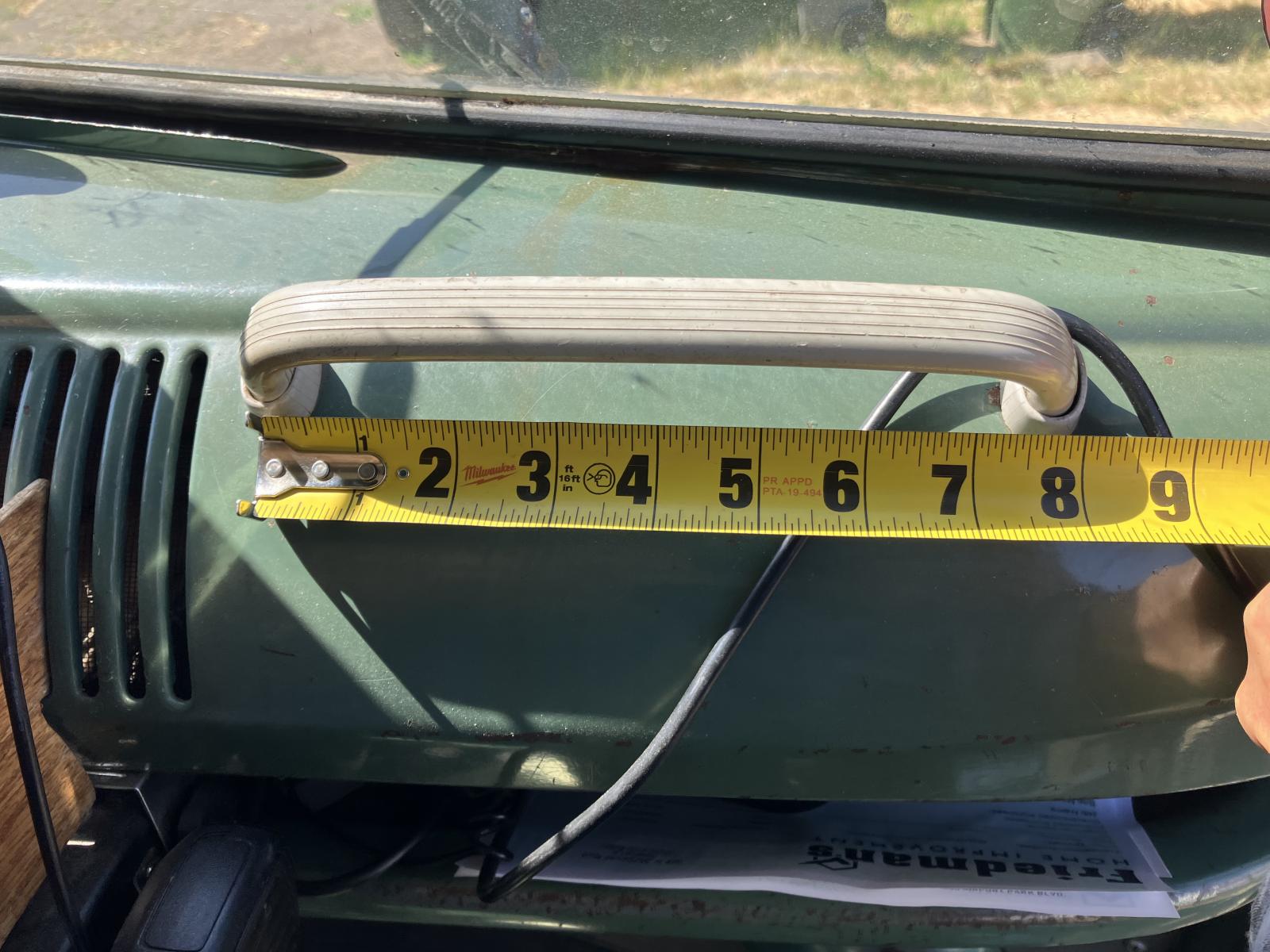

This is my April 61 deluxe with 59-61 deluxe grab handle.
It is low hinge and first month of basalt interior.
Also fat lip parcel tray
_________________
The Obsolete Air-Cooled Documentation Project http://oacdp.org/ |
|
| Back to top |
|
|
Clara
Samba Member
Joined: June 14, 2003
Posts: 12606
|
| Posted: Mon Jun 30, 2025 10:23 am Post subject: Re: Dash Grab Handle |
|
|

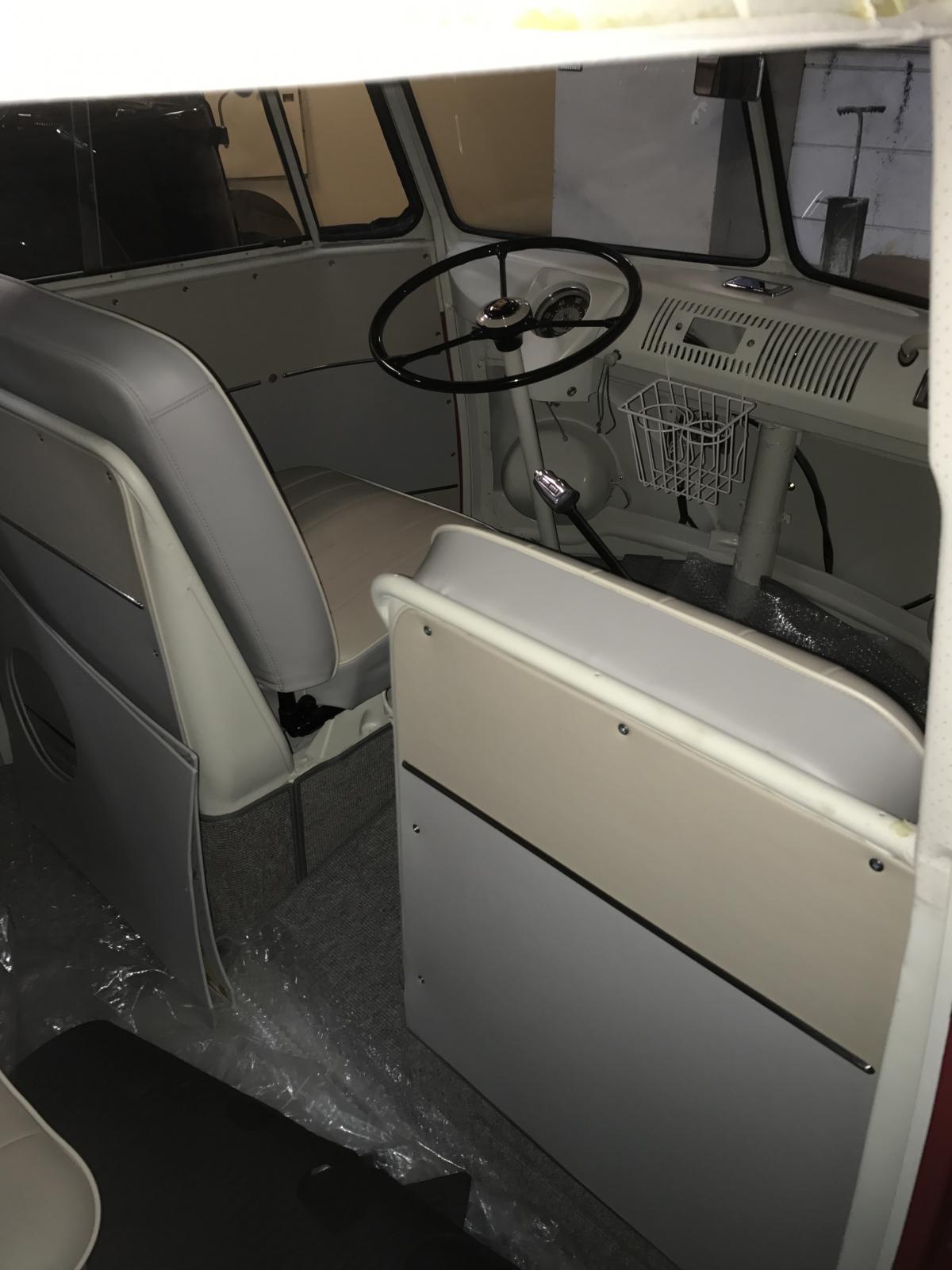

This is an October 1960 15 window deluxe.
Grab handle has triangular ish ends, used on 59-61 deluxes.
Bus has blue-grey interior, hump front seat, high hinges, thin lip parcel tray.
_________________
The Obsolete Air-Cooled Documentation Project http://oacdp.org/ |
|
| Back to top |
|
|
Clara
Samba Member
Joined: June 14, 2003
Posts: 12606
|
| Posted: Mon Jun 30, 2025 11:18 am Post subject: Re: Dash Grab Handle |
|
|
| The Pinstriper wrote: |
I have a 3 month only 61 15 window deluxe.. The grab handle holes are 6 1/2 inches apart.. Does anyone know why or what grab handle would have went there?
Jeff
[img]https://www.thesamba.com/vw/gallery/pix/1605491.jpg[/img |

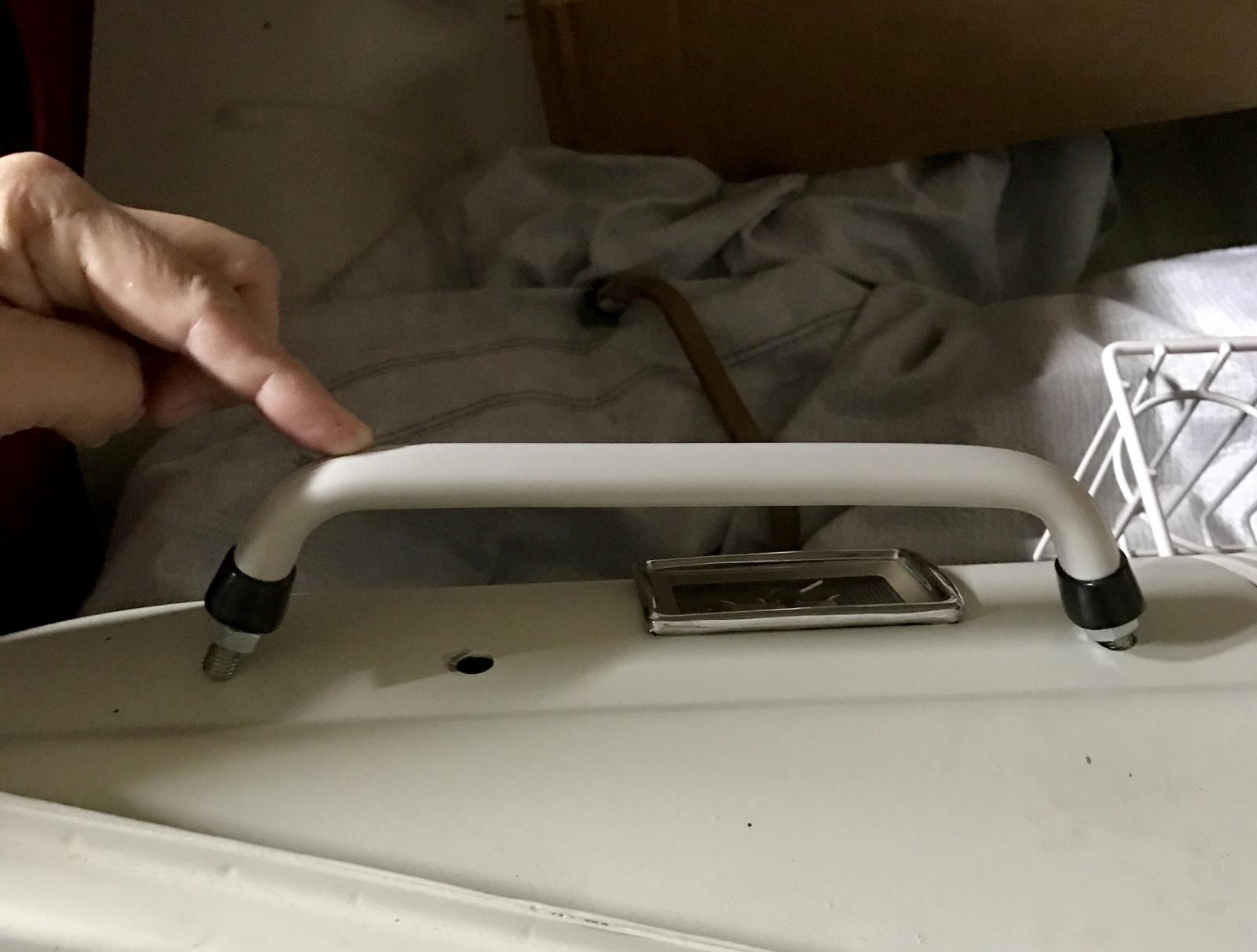

From your gallery, do you still have that handle in the pic below?
_________________
The Obsolete Air-Cooled Documentation Project http://oacdp.org/ |
|
| Back to top |
|
|
Clara
Samba Member
Joined: June 14, 2003
Posts: 12606
|
| Posted: Mon Jun 30, 2025 1:35 pm Post subject: Re: Dash Grab Handle |
|
|
Bend 62-67 grab handle ends like this, so the ends are at right angles to the center part
