Floor seat rail mounting backets - are they NLA?
Forum Index -> Vanagon Share: Facebook Twitter
Reply to topic
Print View
Quick sort: Show newest posts on top | Show oldest posts on top View previous topic :: View next topic
Author Message
vwolder
Samba Member


Joined: June 11, 2017
Posts: 54
Location: DENMARK
vwolder is offline
PostPosted: Sat Dec 30, 2017 2:50 pm    Post subject: Floor seat rail mounting backets - are they NLA? Reply with quote
Hi all,

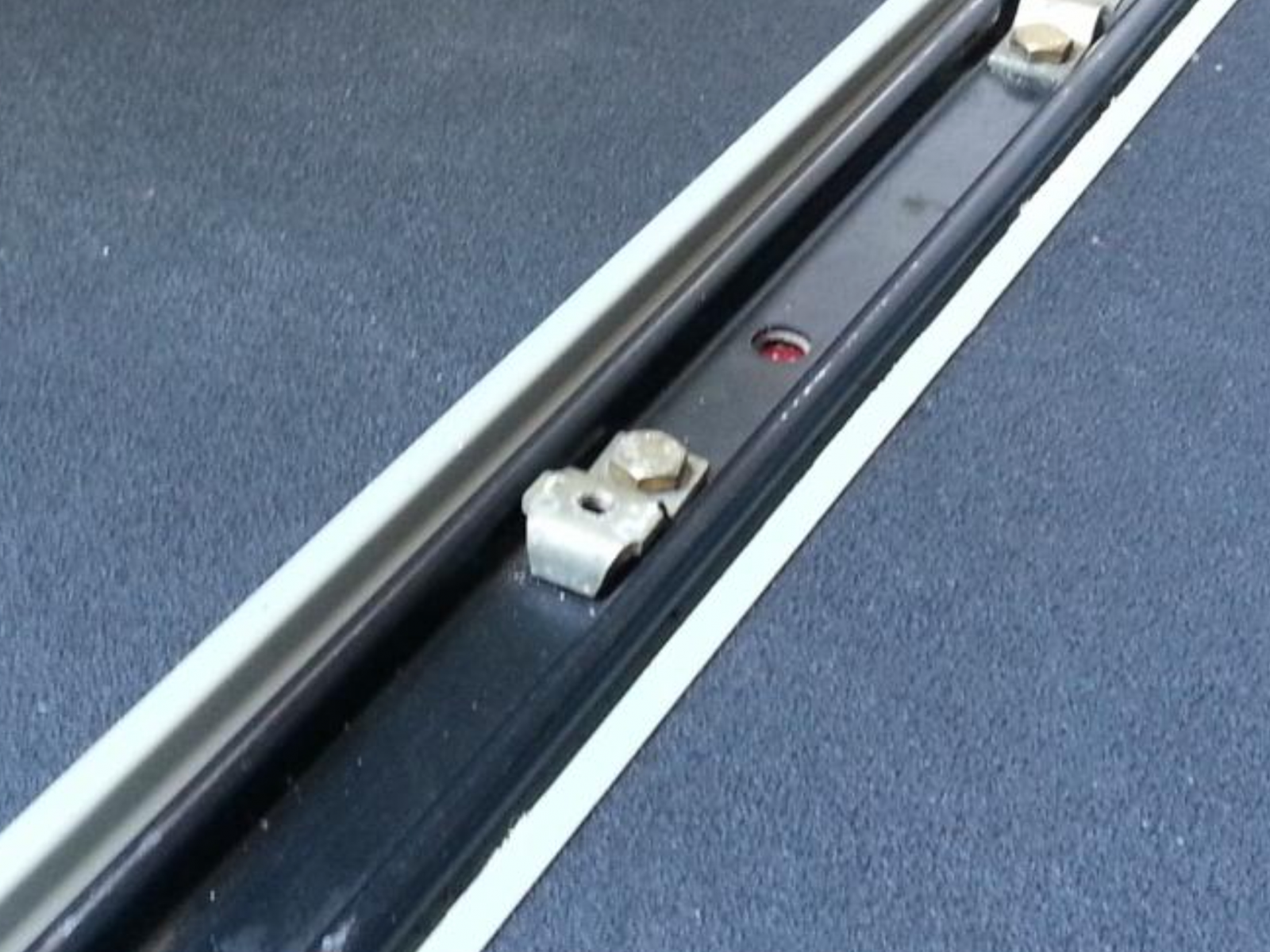

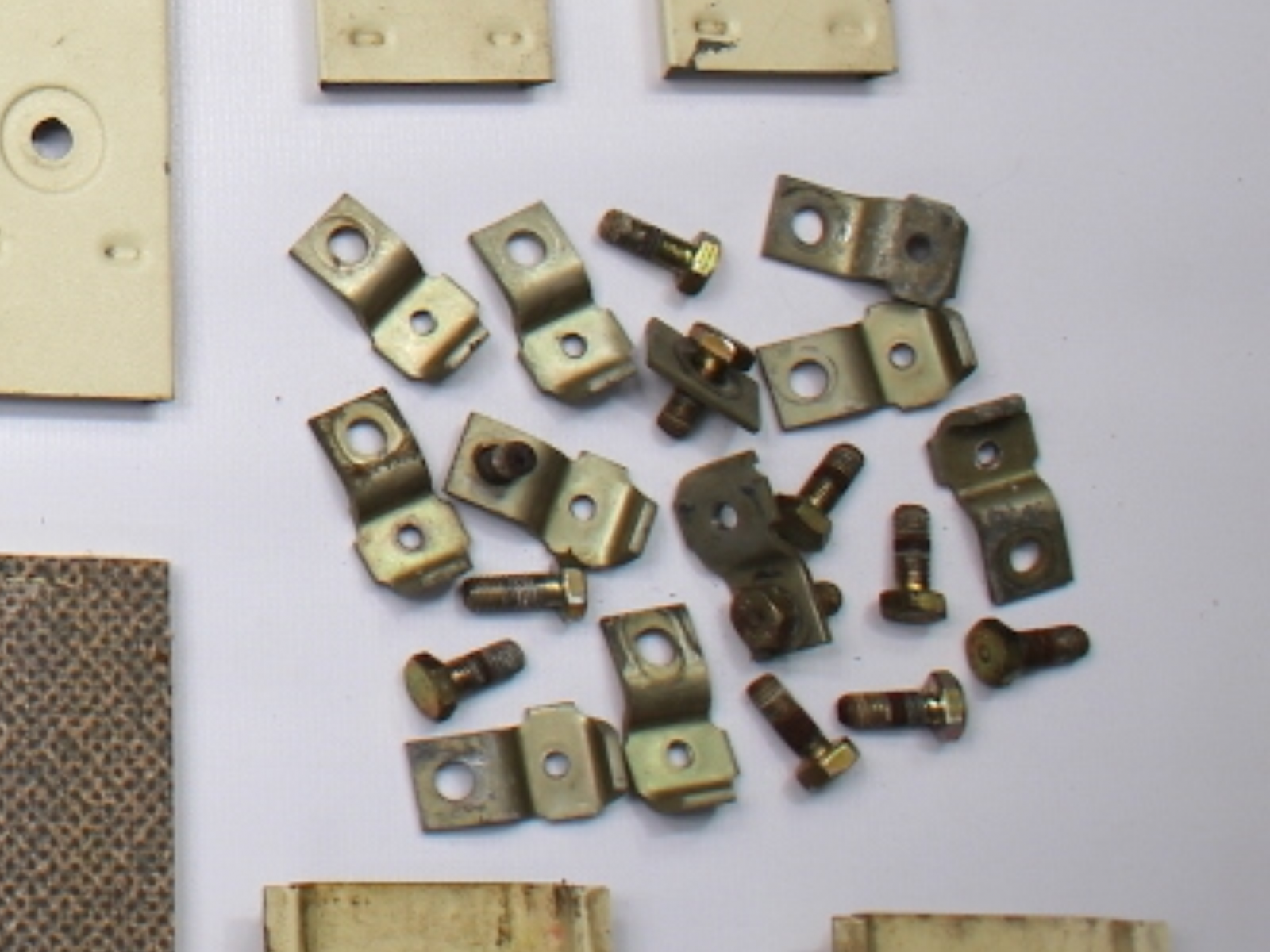

I got hold on a set of rails to put in my 85 westy, but I am missing the special brackets

Is it possible to get them anywhere?




Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.



Thanks!
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Ahwahnee
Samba Member


Joined: June 05, 2010
Posts: 10305
Location: Mt Lemmon, AZ
Ahwahnee is offline
PostPosted: Sat Dec 30, 2017 4:36 pm    Post subject: Re: Floor trail mounting backets - are they NLA? Reply with quote
Alas, I do not know the source for those.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
crazyvwvanman
Samba Member


Joined: January 28, 2008
Posts: 10478
Location: Orbiting San Diego
crazyvwvanman is offline
PostPosted: Sat Dec 30, 2017 5:03 pm    Post subject: Re: Floor trail mounting backets - are they NLA? Reply with quote
The Bus Depot shows them available. You only need 2 to hold the seat in but if you got the complete rail covers and want to use them you might need as many as the rail covers have holes for.

http://www.busdepot.com/253883867

I'd get some used ones, should be around.

Mark
Back to top
View user's profile Send private message Gallery Classifieds Feedback
dobryan Premium Member
Samba Member


Joined: March 24, 2006
Posts: 17307
Location: Brookeville, MD
dobryan is offline
PostPosted: Sat Dec 30, 2017 5:58 pm    Post subject: Re: Floor trail mounting backets - are they NLA? Reply with quote
I believe I have some extras for sale. I am cleaning out my garage attic.
_________________
Dave O
'87 Westy w/ 2010 Subaru EJ25 (Vanaru) and Peloquin TBD

"To travel hopefully is a better thing than to arrive." Robert Louis Stevenson

MD>Canada>AK>WA>OR>CA>AZ>UT>WY>SD
https://www.thesamba.com/vw/forum/viewtopic.php?t=620646

Building a bus for travel in Europe (euroBus)
https://www.thesamba.com/vw/forum/viewtopic.php?t=695371

The Western Syncro build
https://www.thesamba.com/vw/forum/viewtopic.php?t=746794
Back to top
View user's profile Send private message Gallery Classifieds Feedback
crazyvwvanman
Samba Member


Joined: January 28, 2008
Posts: 10478
Location: Orbiting San Diego
crazyvwvanman is offline
PostPosted: Sat Dec 30, 2017 6:00 pm    Post subject: Re: Floor trail mounting backets - are they NLA? Reply with quote
If you need them in Denmark this European source might be a better choice, cheaper and closer.

https://www.volkswagen-classic-parts.de/en/haltestueck-f14fd1.html

Mark
Back to top
View user's profile Send private message Gallery Classifieds Feedback
9.5isCanadian
Samba Member


Joined: September 16, 2017
Posts: 465
Location: In your blind spot.
9.5isCanadian is offline
PostPosted: Sat Dec 30, 2017 7:12 pm    Post subject: Re: Floor seat rail mounting backets - are they NLA? Reply with quote
If I’ve not yet thrown them away.....

You’re welcome to them. Pay the postage and they’re yours.

I removed the middle bench from my 1981 Sun Roof vanagon.
It was a short middle bench.

In fact the bench is buried under the snow in my yard too.
Confused

EDIT: sorry missed the Denmark local. Probably too spendy to ship.
_________________
9 1/2 - missing a few pieces.

1987 Getaway Hightop
1980 Sunroof Vanagon
2018 BMW R Nine T
2012 Golf tdi
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
dobryan Premium Member
Samba Member


Joined: March 24, 2006
Posts: 17307
Location: Brookeville, MD
dobryan is offline
PostPosted: Sat Dec 30, 2017 9:43 pm    Post subject: Re: Floor seat rail mounting backets - are they NLA? Reply with quote
Yep. Me too on the Denmark location. I am sure they will turn up on the used market somewhere near you. 😀
_________________
Dave O
'87 Westy w/ 2010 Subaru EJ25 (Vanaru) and Peloquin TBD

"To travel hopefully is a better thing than to arrive." Robert Louis Stevenson

MD>Canada>AK>WA>OR>CA>AZ>UT>WY>SD
https://www.thesamba.com/vw/forum/viewtopic.php?t=620646

Building a bus for travel in Europe (euroBus)
https://www.thesamba.com/vw/forum/viewtopic.php?t=695371

The Western Syncro build
https://www.thesamba.com/vw/forum/viewtopic.php?t=746794
Back to top
View user's profile Send private message Gallery Classifieds Feedback
vwolder
Samba Member


Joined: June 11, 2017
Posts: 54
Location: DENMARK
vwolder is offline
PostPosted: Sun Dec 31, 2017 12:51 am    Post subject: Re: Floor seat rail mounting backets - are they NLA? Reply with quote
Thanks!

I will have a go with the European site.

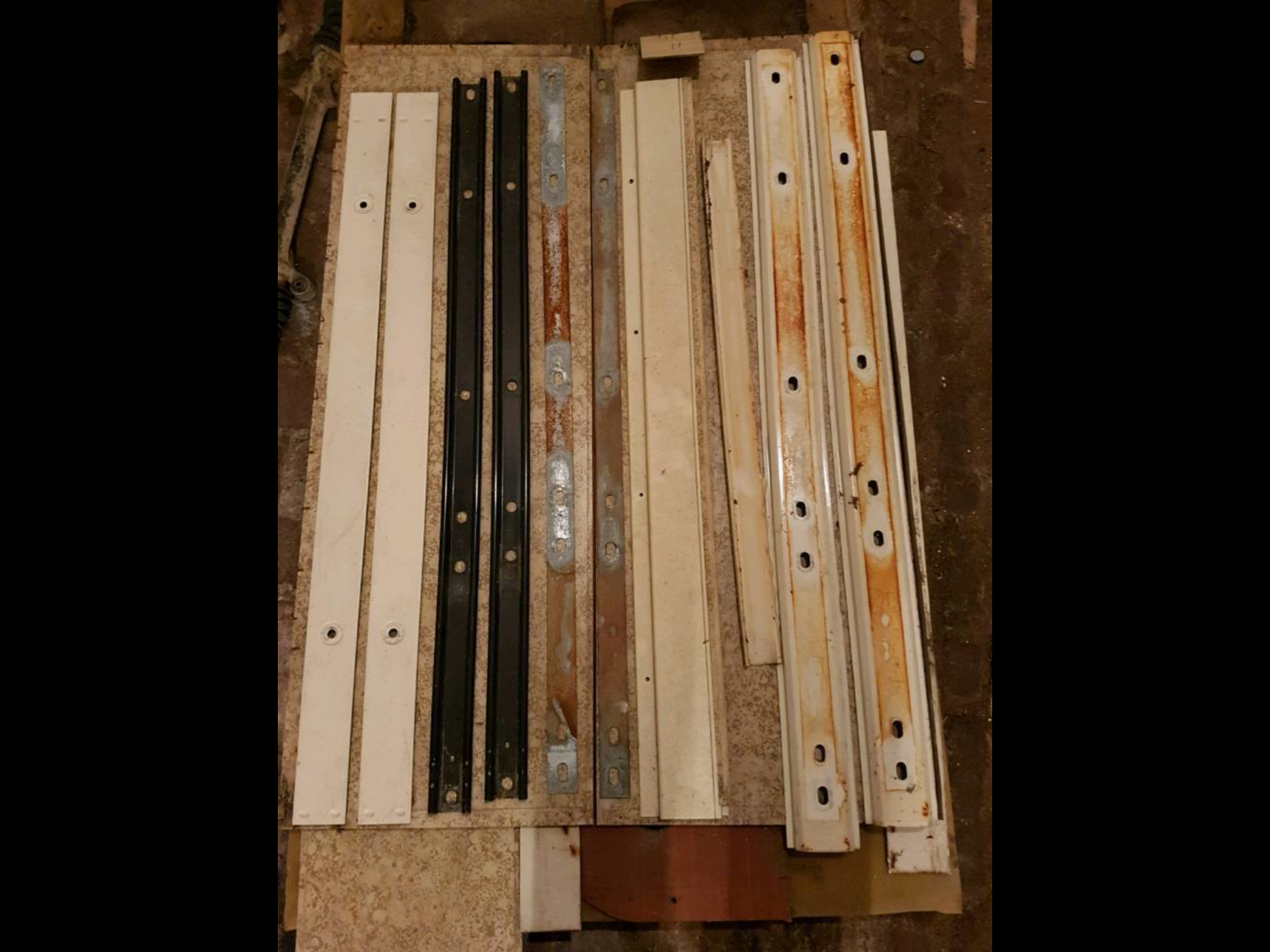

The set is from a joker and the covers have 2 holes each.



Thes rest of the hardware needed looks like standard, right?

I have read all the different posts on this midle seat mod, but I have failed to understand if a two-seat bench WITH armrests will fit? It seems some say yes and others says no...

Image may have been reduced in size. Click image to view fullscreen.





Image may have been reduced in size. Click image to view fullscreen.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
dobryan Premium Member
Samba Member


Joined: March 24, 2006
Posts: 17307
Location: Brookeville, MD
dobryan is offline
PostPosted: Sun Dec 31, 2017 8:32 am    Post subject: Re: Floor seat rail mounting backets - are they NLA? Reply with quote
Here is mine in a Westy if that helps with how it fits. (The slider closes snug against the arm rest.) I am not if this style middle seat is a different width than the one you posted.

Image may have been reduced in size. Click image to view fullscreen.

_________________
Dave O
'87 Westy w/ 2010 Subaru EJ25 (Vanaru) and Peloquin TBD

"To travel hopefully is a better thing than to arrive." Robert Louis Stevenson

MD>Canada>AK>WA>OR>CA>AZ>UT>WY>SD
https://www.thesamba.com/vw/forum/viewtopic.php?t=620646

Building a bus for travel in Europe (euroBus)
https://www.thesamba.com/vw/forum/viewtopic.php?t=695371

The Western Syncro build
https://www.thesamba.com/vw/forum/viewtopic.php?t=746794
Back to top
View user's profile Send private message Gallery Classifieds Feedback
vwolder
Samba Member


Joined: June 11, 2017
Posts: 54
Location: DENMARK
vwolder is offline
PostPosted: Mon Jan 01, 2018 2:49 am    Post subject: Re: Floor seat rail mounting backets - are they NLA? Reply with quote
Ok - I will make an exact messurement and evaluate.

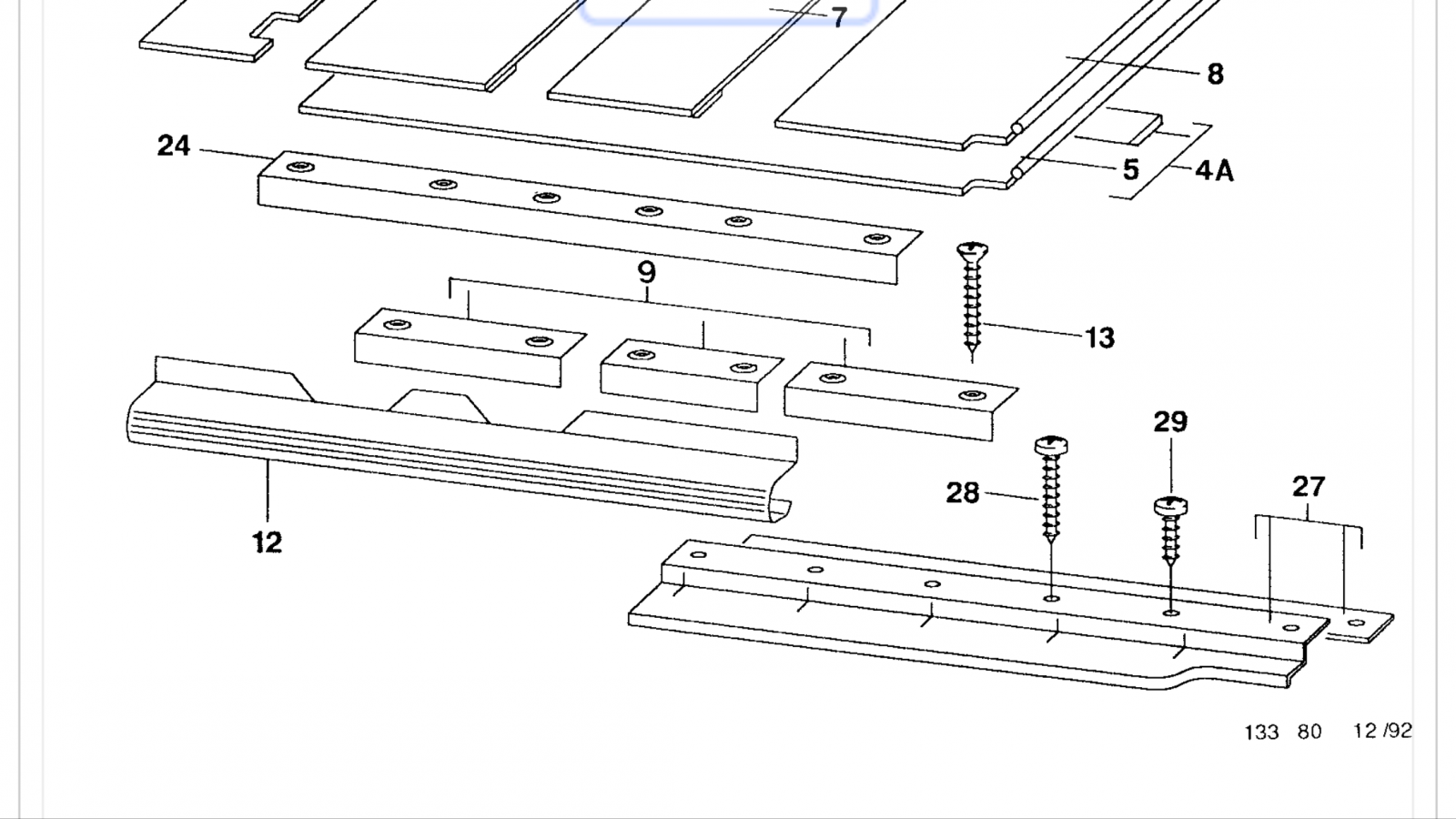

Would anyone have the 3 pieces marked as no 9 laying around?



Image may have been reduced in size. Click image to view fullscreen.


That would save my from having to cut the one I have right now
Back to top
View user's profile Send private message Gallery Classifieds Feedback
