'76 westy front and rear beam rust: assessment & repair advice

[virusdoc]

Getting to know my Westy better today, and crawling around underneath I found some areas of concern on the front and rear axle beams. I'm showing only one side each, because the condition is the same on both sides.

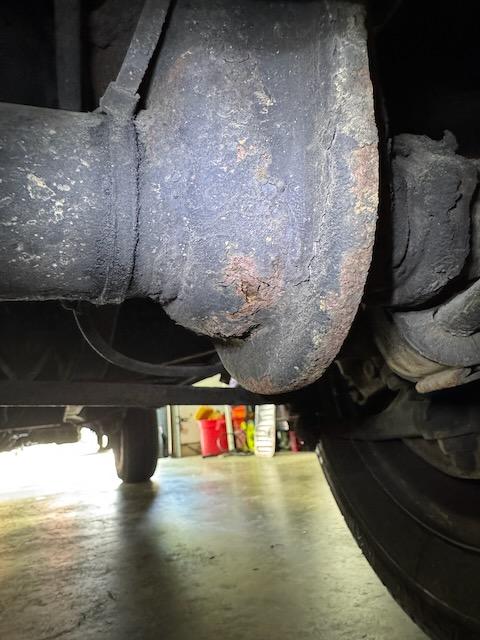

The front beam has some perforation already, and I suspect the only solution for this is a new beam, given what I've read on searches here.

The rear looks more concerning, but I don't know how to evaluate this.

Thoughts?
_________________
1976 Convertible Super Beetle, "June Bug".
Self-rebuilt 1904
1976 Campmobile 2.0L FI, "Kermit"

[lil-jinx]

if the rust has not eaten into the beams themselves ,then they could likely be repaired with a bit of metal work and welding.it looks like your rear frame member is in decent shape ,
_________________
https://www.thesamba.com/vw/forum/viewtopic.php?t=620186
https://www.thesamba.com/vw/forum/viewtopic.php?t=668799
1974 Bay Westfalia. she likes to be called Ethel.
1968 Dune Buggy sold dec 2024

1974 parts bus
A smart man learns from his mistakes,a very smart man learns from other's mistakes.

[virusdoc]

I’ll need to do much more exploratory de-rusting to figure that out. I am convinced the front beam has a lot of internal rust—pushing near that one spot of perforation, the metal around it is very thin. I’ve accepted a new beam is in my future for the front. At least they are available.

On the rear, the weld joint between the beam tube and the frame is flaking, and can be pulled off by hand. You can see at the top where I pulled off a 1-1/2 inch long section. The exposed main tube looks intact but I can’t tell what it looks like under that crumbling joint without getting a wire wheel on it.
_________________
1976 Convertible Super Beetle, "June Bug".
Self-rebuilt 1904
1976 Campmobile 2.0L FI, "Kermit"

[Abscate]

When you put a hammer and chisel on that , it’s going to crumble.

New beam in front , heavy welding in rear
_________________
🇺🇸 🇺🇸 🇺🇸 🇺🇸 🇺🇸 🇺🇸 🇺🇸 🍊 🍊 🍊

[virusdoc]

[busdaddy]

Some bashing with a pointy hammer is step one, neither end looks terminal or unsafe yet, but it's seen some salt that wasn't washed out afterwards so the cancer is starting to take hold. The only option is to cut out the rotted thin parts and replace with fresh metal.
I did a thread on the torsion tube repair years ago, but that one doesn't look advanced enough for the savage butchery I posted, some careful removal of a section at a time followed by hand formed new metal of the OG thickness is the answer there. Once you get inside you'll be able to look at the inner tube, I wouldn't expect too much pitting on that one, but you never know until you get in there, it's the tip of the iceberg you see right now.
_________________
Rust NEVER sleeps and stock never goes out of style.

Please don't PM technical questions, ask your problem in public so everyone can play along. If you think it's too stupid post it here
Stop dead photo links! Post your photos to The Samba Gallery!

Слава Україні!

[virusdoc]

I’m a good wrencher. And could easily rebuild the engine if needed. But metalworking and welding are outside my expertise. Going to need to find a place that can do this.

Anyone have experience with this shop, about an hour from me?

https://m.facebook.com/Midwestaircooled/
