40hp Big Bore Speedwell Build
Forum Index -> Vintage Speed Share: Facebook Twitter
Reply to topic
Print View
Quick sort: Show newest posts on top | Show oldest posts on top View previous topic :: View next topic
Author Message
Envious
Samba Member


Joined: January 08, 2003
Posts: 1821
Location: Toronto, Ontario, Canada
Envious is offline

PostPosted: Thu Dec 20, 2012 8:04 am    Post subject: 40hp Big Bore Speedwell Build Reply with quote

- Mahle big bore p&c's
- Square boss heads rebuilt by local guy Dougy Dee
- NOS 64mm crank
- NOS stock cam
- NOS rods
- case work done by RIMCO (checked the bore, deck, cut the case for cam bearings, walnut blast inside and out.)
- 010 distributor rebuilt by Glenn Ring
- Speedwell sprint kit (linkage by Alejandro)
- Berg sump
- 4 tip stainless muffler by Mr WOB.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

_________________
71 Type 1302 Custom
64 Type 151
63 Type 117 L469 Anthracite
64 Type 361 L575 Nutria
64 Porsche 356c
56 Type 113 L227 Strato Silver
52 BSA C11G
59 Heilite Single Wheel Camping Trailer
56 Allstate Single Wheel
84 Vanagon Westfalia
http://www.thesamba.com/vw/forum/viewtopic.php?t=388225


Last edited by Envious on Thu Dec 20, 2012 8:22 am; edited 3 times in total
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Envious
Samba Member


Joined: January 08, 2003
Posts: 1821
Location: Toronto, Ontario, Canada
Envious is offline

PostPosted: Thu Dec 20, 2012 8:07 am    Post subject: Reply with quote

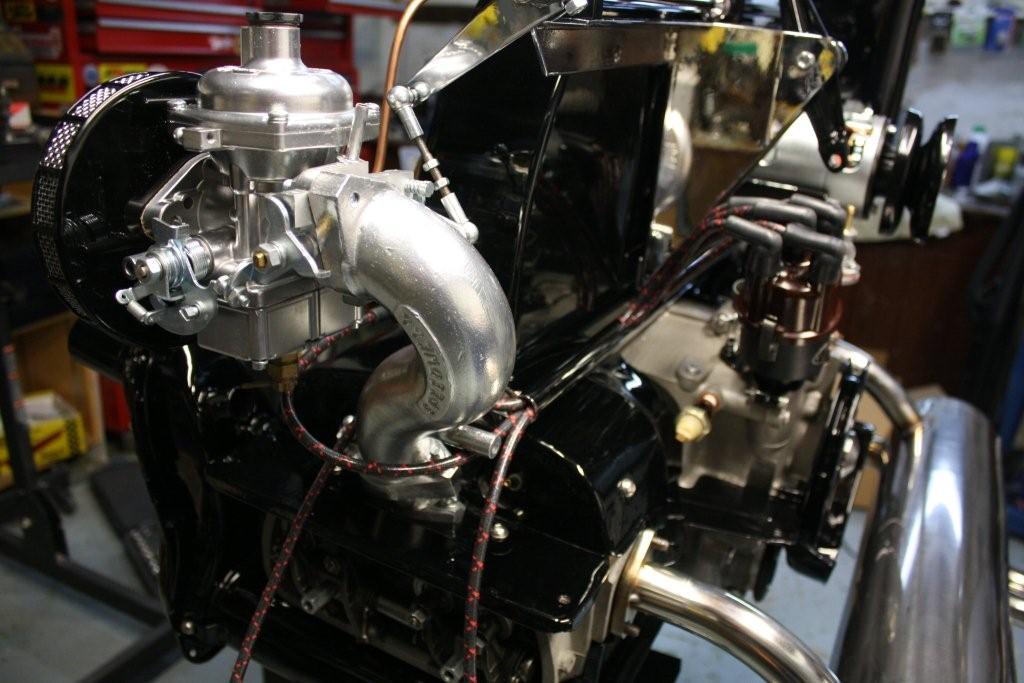

Stromberg carbs and Speedwell intakes before and after.
Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

_________________
71 Type 1302 Custom
64 Type 151
63 Type 117 L469 Anthracite
64 Type 361 L575 Nutria
64 Porsche 356c
56 Type 113 L227 Strato Silver
52 BSA C11G
59 Heilite Single Wheel Camping Trailer
56 Allstate Single Wheel
84 Vanagon Westfalia
http://www.thesamba.com/vw/forum/viewtopic.php?t=388225


Last edited by Envious on Sat Dec 22, 2012 7:22 pm; edited 1 time in total
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Envious
Samba Member


Joined: January 08, 2003
Posts: 1821
Location: Toronto, Ontario, Canada
Envious is offline

PostPosted: Thu Dec 20, 2012 8:09 am    Post subject: Reply with quote

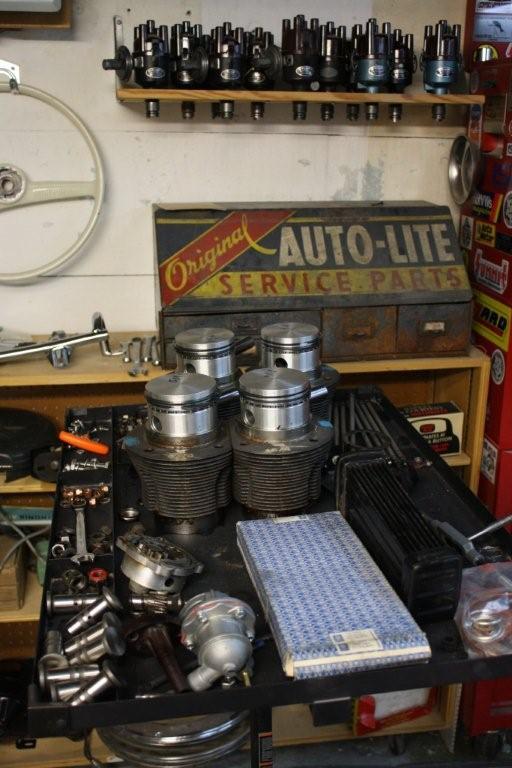

Mahle big bore kit. Skirts cut down to clear case webbing. Balanced against each other.
Image may have been reduced in size. Click image to view fullscreen.

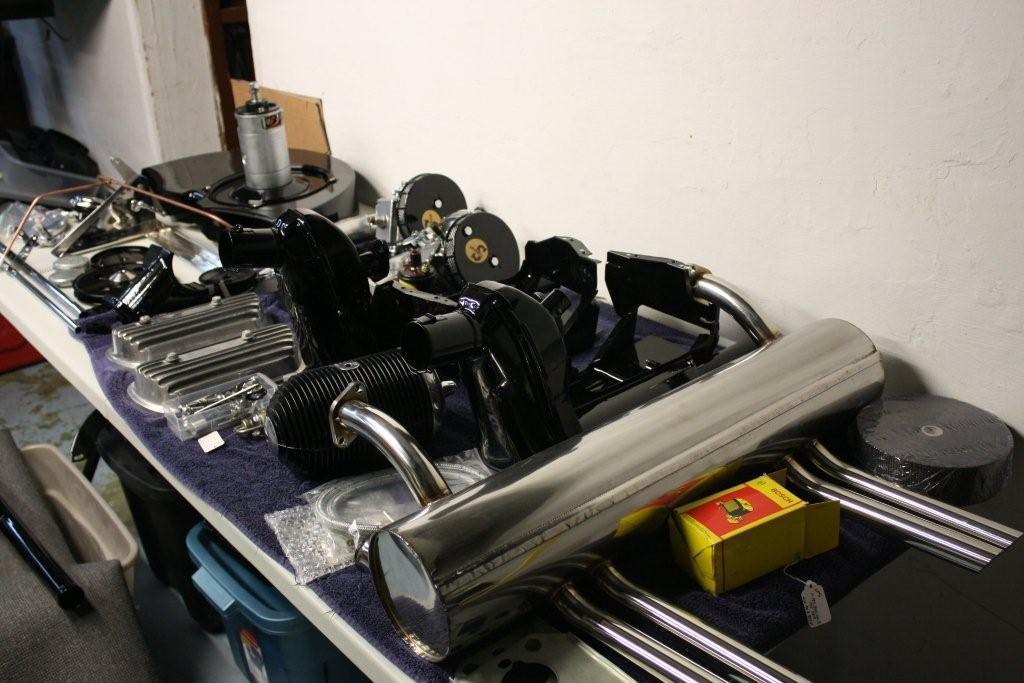

Table full of parts ready to go.
Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

_________________
71 Type 1302 Custom
64 Type 151
63 Type 117 L469 Anthracite
64 Type 361 L575 Nutria
64 Porsche 356c
56 Type 113 L227 Strato Silver
52 BSA C11G
59 Heilite Single Wheel Camping Trailer
56 Allstate Single Wheel
84 Vanagon Westfalia
http://www.thesamba.com/vw/forum/viewtopic.php?t=388225
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Envious
Samba Member


Joined: January 08, 2003
Posts: 1821
Location: Toronto, Ontario, Canada
Envious is offline

PostPosted: Thu Dec 20, 2012 8:15 am    Post subject: Reply with quote

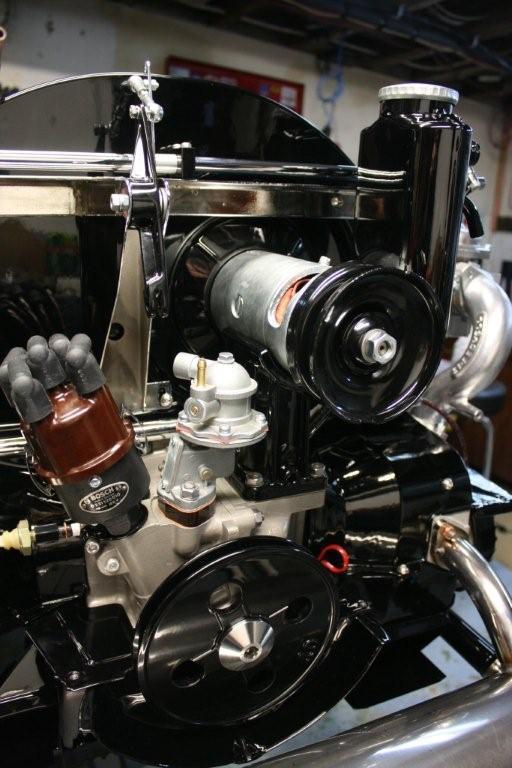

Almost ready to fire.
Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

_________________
71 Type 1302 Custom
64 Type 151
63 Type 117 L469 Anthracite
64 Type 361 L575 Nutria
64 Porsche 356c
56 Type 113 L227 Strato Silver
52 BSA C11G
59 Heilite Single Wheel Camping Trailer
56 Allstate Single Wheel
84 Vanagon Westfalia
http://www.thesamba.com/vw/forum/viewtopic.php?t=388225
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Kjell Roar
Samba Member


Joined: December 08, 2008
Posts: 1326
Location: Norway
Kjell Roar is offline

PostPosted: Thu Dec 20, 2012 10:27 am    Post subject: Reply with quote

Really nice!

How much did you have to take off the pistons? Any pictures of it?
_________________
I got a historic car, every scratch got a history...

My car, Aug. 4th, 1955 / an early 56: http://www.thesamba.com/vw/forum/album_page.php?pic_id=610438
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Das Dragon
Samba Member


Joined: November 13, 2000
Posts: 2474
Location: AZ.
Das Dragon is offline

PostPosted: Thu Dec 20, 2012 11:29 am    Post subject: Reply with quote

Beautiful!
I was going to suggest adding a small cam until I noticed you had the engine together already. I had the same set up(not those carbs though) and an E100 really brought the engine to life. Smile
_________________
Rest In Peace HamburgerBrad, we will never forget you!



_________________________________________________________
DB3 said:
"Awesome!!!
*********'s constant over-estimation of his own importance never ceases to amaze me."

With *****, "Bullshit Happens"!
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Glenn Premium Member
Mr. 010


Joined: December 25, 2001
Posts: 76921
Location: Sneaking up behind you
Glenn is offline

PostPosted: Thu Dec 20, 2012 12:06 pm    Post subject: Reply with quote

Has it been that many? Wink

Envious wrote:
Image may have been reduced in size. Click image to view fullscreen.

_________________
Glenn
74 Beetle Specs | 74 Beetle Restoration | 2180cc Engine
"You may not get what you pay for, but you always pay for what you get"

Member #1009

#BlueSquare
Back to top
View user's profile Send private message Send e-mail Visit poster's website Gallery Classifieds Feedback
Envious
Samba Member


Joined: January 08, 2003
Posts: 1821
Location: Toronto, Ontario, Canada
Envious is offline

PostPosted: Thu Dec 20, 2012 12:25 pm    Post subject: Reply with quote

Glenn wrote:
Has it been that many? Wink

It's a sickness. Smile I had to pull one down to install in this motor. I'm having my carpenter make a nice shelf for them in the new garage. Wink
_________________
71 Type 1302 Custom
64 Type 151
63 Type 117 L469 Anthracite
64 Type 361 L575 Nutria
64 Porsche 356c
56 Type 113 L227 Strato Silver
52 BSA C11G
59 Heilite Single Wheel Camping Trailer
56 Allstate Single Wheel
84 Vanagon Westfalia
http://www.thesamba.com/vw/forum/viewtopic.php?t=388225
Back to top
View user's profile Send private message Gallery Classifieds Feedback
anthracitedub
Samba Member


Joined: June 20, 2007
Posts: 3241
Location: Michigan
anthracitedub is offline

PostPosted: Wed Jan 23, 2013 5:37 pm    Post subject: Reply with quote

It's a thing of beauty, but Im surprised you built that far with out a flywheel and end play adjustment.... Or did you just remove he flywheel in one of the pics?
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
Envious
Samba Member


Joined: January 08, 2003
Posts: 1821
Location: Toronto, Ontario, Canada
Envious is offline

PostPosted: Wed Jan 23, 2013 6:05 pm    Post subject: Reply with quote

I've already set the end play but pulled the flywheel off.
_________________
71 Type 1302 Custom
64 Type 151
63 Type 117 L469 Anthracite
64 Type 361 L575 Nutria
64 Porsche 356c
56 Type 113 L227 Strato Silver
52 BSA C11G
59 Heilite Single Wheel Camping Trailer
56 Allstate Single Wheel
84 Vanagon Westfalia
http://www.thesamba.com/vw/forum/viewtopic.php?t=388225
Back to top
View user's profile Send private message Gallery Classifieds Feedback
70slooker
Samba Member


Joined: July 14, 2006
Posts: 40
Location: vancouver
70slooker is offline

PostPosted: Sat Feb 09, 2013 5:56 pm    Post subject: Reply with quote

Wow Dave amazing as always! What kind of fuel pump is that?
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Mr. Motorhead
Mad Scientist


Joined: January 06, 2004
Posts: 717
Location: Practitioner of 36hp alchemy
Mr. Motorhead is offline

PostPosted: Sat Feb 09, 2013 11:55 pm    Post subject: Reply with quote

70'slooker wrote:
Wow Dave amazing as always! What kind of fuel pump is that?


That is the Danish made fuel pump that is currently available.
_________________
30 years experience in the sales of new and used auto parts!
36 horsepower parts for sale at http://www.aircooledresearch.com/
Or the new site at http://www.bugparts.com
Check out the Bonneville project:
http://aircooledresearch.com/docs/thebonnevilleproject.html#

"All limitations are self imposed."
Some Chinese guy
Back to top
View user's profile Send private message Send e-mail Visit poster's website Gallery Classifieds Feedback
Envious
Samba Member


Joined: January 08, 2003
Posts: 1821
Location: Toronto, Ontario, Canada
Envious is offline

PostPosted: Sun Feb 10, 2013 6:18 am    Post subject: Reply with quote

Mr. Motorhead wrote:
70'slooker wrote:
Wow Dave amazing as always! What kind of fuel pump is that?


That is the Danish made fuel pump that is currently available.

Ya, I normally keep one on the shelf as a back up. I considered running it on this motor but I've decided to run a rebuilt oe pump instead.
_________________
71 Type 1302 Custom
64 Type 151
63 Type 117 L469 Anthracite
64 Type 361 L575 Nutria
64 Porsche 356c
56 Type 113 L227 Strato Silver
52 BSA C11G
59 Heilite Single Wheel Camping Trailer
56 Allstate Single Wheel
84 Vanagon Westfalia
http://www.thesamba.com/vw/forum/viewtopic.php?t=388225
Back to top
View user's profile Send private message Gallery Classifieds Feedback
didget69
Samba Member


Joined: July 22, 2004
Posts: 4927
Location: Raleigh, North Carolina
didget69 is offline

PostPosted: Sun Feb 10, 2013 9:53 pm    Post subject: Reply with quote

What model/size Stromberg carbs did Speedwell kit utilize?

beautiful work!

bryan
_________________
I never found the need to impress people with any mechanic certifications, trophies or track wins... unless it was for Mom to post on the refrigerator door.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Envious
Samba Member


Joined: January 08, 2003
Posts: 1821
Location: Toronto, Ontario, Canada
Envious is offline

PostPosted: Sun Feb 10, 2013 10:07 pm    Post subject: Reply with quote

didget69 wrote:
What model/size Stromberg carbs did Speedwell kit utilize?

beautiful work!

bryan

Thank you for the compliment! The Strombergs are CD150's.
_________________
71 Type 1302 Custom
64 Type 151
63 Type 117 L469 Anthracite
64 Type 361 L575 Nutria
64 Porsche 356c
56 Type 113 L227 Strato Silver
52 BSA C11G
59 Heilite Single Wheel Camping Trailer
56 Allstate Single Wheel
84 Vanagon Westfalia
http://www.thesamba.com/vw/forum/viewtopic.php?t=388225
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Jon65
Samba Member


Joined: September 29, 2012
Posts: 2417

Jon65 is offline

PostPosted: Mon Feb 11, 2013 3:34 pm    Post subject: Reply with quote

Amazing build. That is one of the cleanest engines I have ever seen. Cool
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Notchbacktastic
Samba Member


Joined: July 28, 2012
Posts: 4
Location: S.E QLD, Australia
Notchbacktastic is offline

PostPosted: Sat Aug 10, 2013 2:48 am    Post subject: Reply with quote

Please update!!!! Mad
Back to top
View user's profile Send private message Send e-mail Classifieds Feedback
Envious
Samba Member


Joined: January 08, 2003
Posts: 1821
Location: Toronto, Ontario, Canada
Envious is offline

PostPosted: Sun Jul 05, 2015 8:16 pm    Post subject: Reply with quote


Link

_________________
71 Type 1302 Custom
64 Type 151
63 Type 117 L469 Anthracite
64 Type 361 L575 Nutria
64 Porsche 356c
56 Type 113 L227 Strato Silver
52 BSA C11G
59 Heilite Single Wheel Camping Trailer
56 Allstate Single Wheel
84 Vanagon Westfalia
http://www.thesamba.com/vw/forum/viewtopic.php?t=388225
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Low Bräu
Samba Member


Joined: December 12, 2003
Posts: 346
Location: Merritt Island, FL
Low Bräu is offline

PostPosted: Thu Jul 09, 2015 3:26 pm    Post subject: Reply with quote

Good job! That motor looks and sounds sweet. I've always loved the look of those speedwell carburetor kits.

Josh
_________________
Independent German Auto
671 Fern Drive
Merritt Island, FL 32952
(321) 449-4665

Specializing in repair and maintenance for Porsche, BMW, Mini, Audi, and Volkswagen.

1952 Standard Beetle
1960 SO-23 Westfalia
1961 L-380 Turkis Deluxe Beetle
1985 Vanagon Country Homes Camper (work in progress - EG33 swap)
Back to top
View user's profile Send private message Send e-mail Facebook Gallery Classifieds Feedback
Display posts from previous:
Reply to topic    Forum Index -> Vintage Speed All times are Mountain Standard Time/Pacific Daylight Savings Time
Page 1 of 1


Jump to:
You cannot post new topics in this forum
You cannot reply to topics in this forum
You cannot edit your posts in this forum
You cannot delete your posts in this forum
You cannot vote in polls in this forum

About | Help! | Advertise | Donate | Premium Membership | Privacy/Terms of Use | Contact Us | Site Map
Copyright © 1996-2023, Everett Barnes. All Rights Reserved.
Not affiliated with or sponsored by Volkswagen of America | Forum powered by phpBB
Links to eBay or other vendor sites may be affiliate links where the site receives compensation.
