Oil cooler seal identification / which one do I need? Help!

[Kommercial]

Ok Just enjoyed a nice oil waterfall on my new motor, once the pressure built up
So let's dicuss oil cooler seals/coolers. Who can identify what goes to what, and maybe Glen will throw this in the FAQ.

Still trying to figure out why mine blow out, please see newest post below

This is the info someone PM'd me- Anyone else?
From left to right

-Tapered flanged is a replacement seal with small 8mm on one side and large 10mm on the other for use when you have a mismatch such as large 10mm passage oil cooler fitted on a small 8mm passage case or a small passage oil cooler fitted on a large oil passage case.

-Thin flanged fit all large 10mm oil passage type 1 cases and large 10mm oil passage coolers including the dog house style. so in theory 70 and newer..

-Thick flanged fit early type 3 small 8mm oil passage. I'm not sure of the year interchange on these. (is this also doghouse only??, what about non doghouse cooler on a type3 case?)

-Tube style, small 8mm diameter, fits all type 1 stock small 8mm oil passage cases and small 8mm oil passage oil coolers. So in theory 69 and older..

Where do the spacers go, seems to be differing opinions on this

Large 10mm diameter oil passage

Small 8mm diameter oil passage

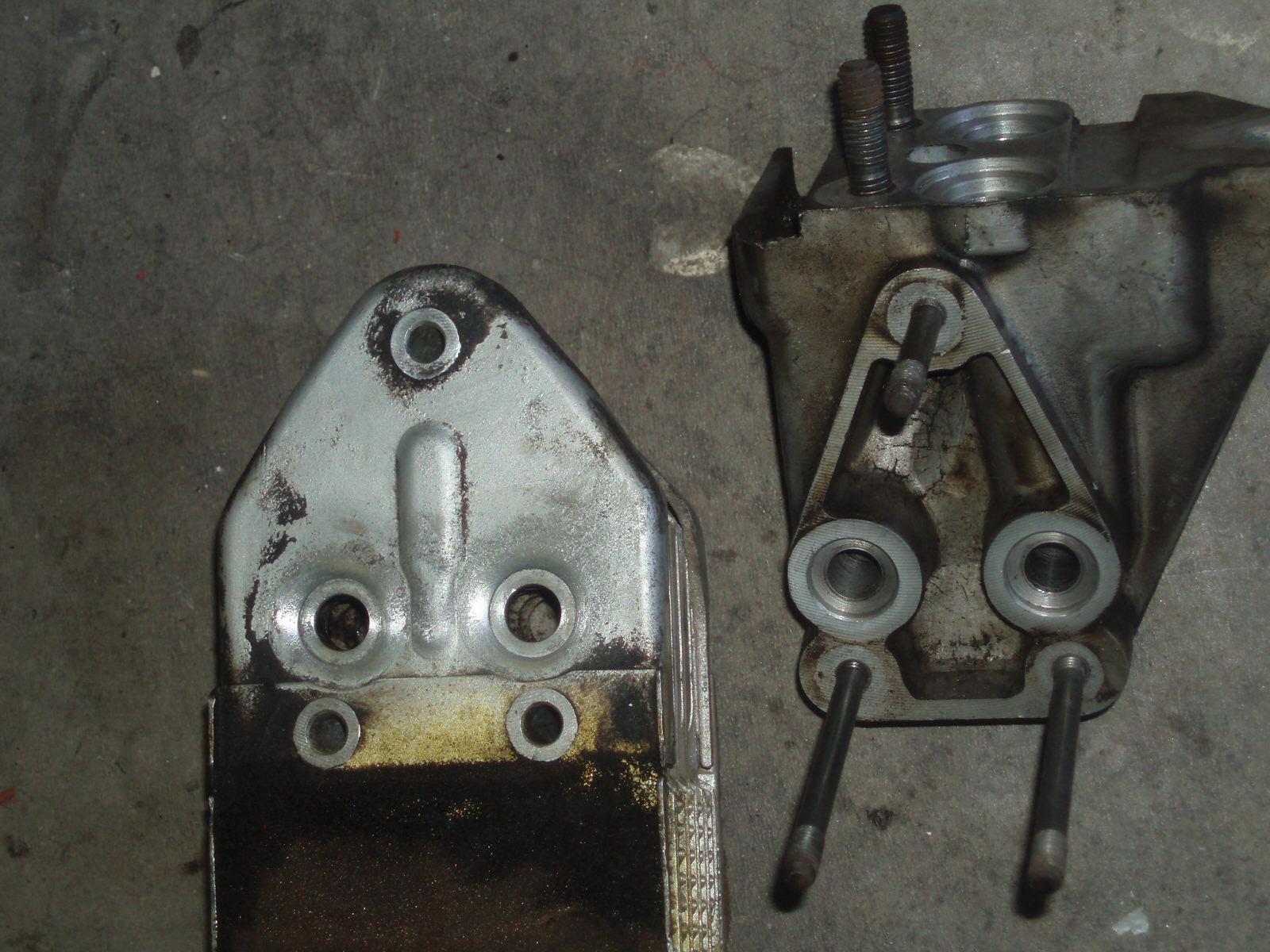

All doghouse coolers are large 10mm diameter passage so you either need the flanged large diameter seal, or the flanged large 10mm to small 8mm tapered seal, depending on the passage size of your case.

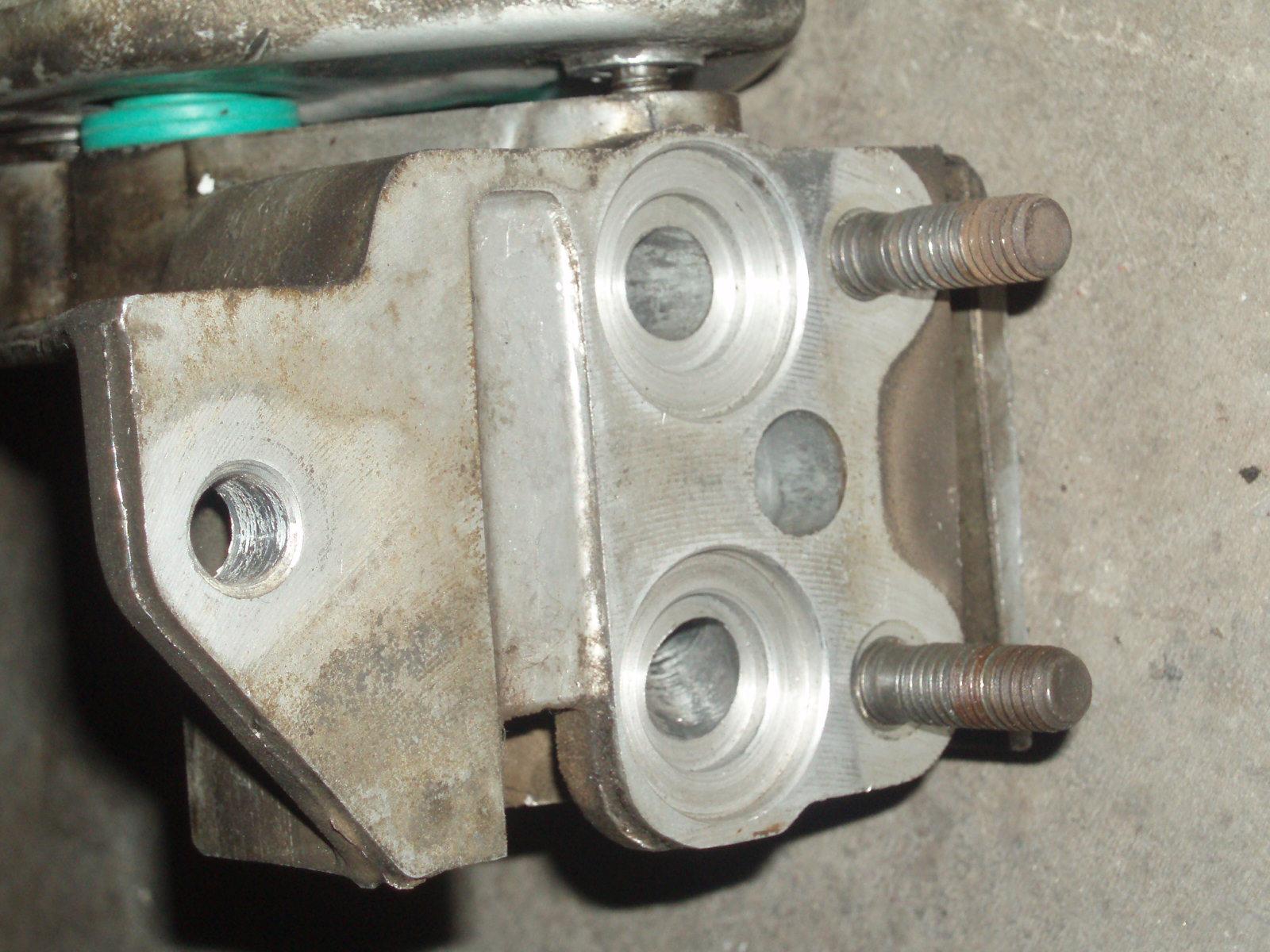

2 sets of seals for the 10mm doghouse setup

[Dale M.]

I always used the ones that matched the inside diameter of the oil passages in case....

Dale
_________________
“Fear The Government That Wants To Take Your Guns"
"Kellison Sand Piper Roadster" For Street & Show.
"Joe Pody Sandrover" Buggy with 2180 for Autocross (Sold)
============================================================
All suggestions and advice are purely my own opinion. You are free to ignore them if you wish ...

[Kommercial]

I'm running a type 3 case (looks just like my type 1 cases?) with small oil passage and a type 1 oil cooler. Would the seals used be any different then a type 1 oil cooler on a type 1 case? These orange tube type seals didn't hold. I put them on dry, would that effect it?

So I was told to use the thick flanged orange ones. But when I tighten the thick flange seals down they squish out the sides. Do I need spacers? Different seals? or?

[Kommercial]

Found this that basically says use spacers only when going from 8 to 10, non doghouse only. But I am going 8 to 8 non doghouse which is not shown....

[Cusser]

[Kommercial]

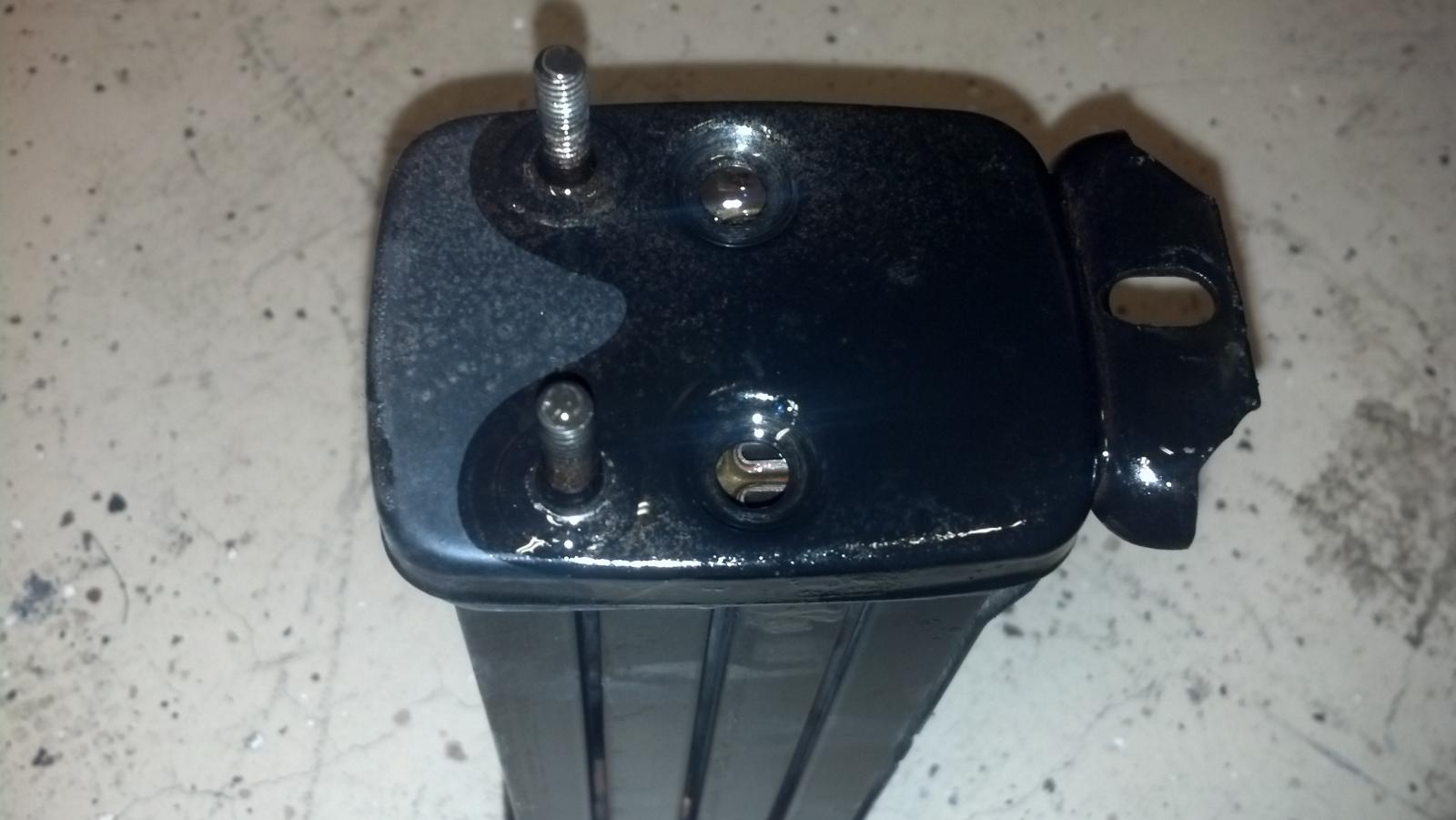

Just removed and stripped the motor and lightly greased the tube type oil seals and put it back in. (put them in dry last time). Niagra falls again! What am I missing here? The seals stuck up about a 1/16-1/8" out of the case just like the other motor I just tore down that didn't leak. The oil cooler is a stock 1600. I looked at some other oil coolers I have and the pressings in the bottom of the cooler were sharper as opposed to the one I'm using but other then that I don't see a difference. I can feel the seals touching before I torque it down. Anyone?

If I use a flange type seal, the oil cooler would never touch the case in this instance and then how would I be able to properly torque or maintain torque?? As I said I tried them but they were distorted and gushed out the sides of the oil cooler when tight, definetly not right.

Will an issue with the relief valve cause the seals to "blow" by just turning it over?? It hasn't even started yet.

[Kommercial]

Motor stripped again ready for plan Z. Any ideas? I blew through the cooler (as well as solvent soaked it for days before) so being plugged is not the issue..... blew through the case passages as well. Found some taller non flanged seals in an old motor. Still plyable, guess I'll try those...

[HRVW]

Okay my pesos worth....drop them and a magnet will pick them up.

When doing engines in Calif The small black seals were for the early 36/40hp engines.

The THICK T3 seals were for the T3 case and T3 oil cooler and adding the copper washer to the two bolts and top stud......NO leaks.

Then there was the early cooler to the later case needing the GREEN step seal as I called them.....went up or down as the need arose....did work.

The later case and newer oil cooler used the orange/red color seal that fit either way and I would use the copper washer to keep from Squishing the seal (learned that the hard way).

The case hole did not matter as to size as long as the seal dropped in snug w/o moving around.....use the three copper washers and it was a GO.

The seals should NEVER be Squished as the evidence shows the results.

(VW mechanic/engine builder/parts house owner of 28yrs)

[Scorcho]

Trying to see if my oil cooler is leaking because I over tightened it (most likely) or because I used the wrong ones.

What's lead me to believe that I used the right seals is that they didn't leak at all until I drove it on a hot day for about 4 hours. No leaks before that.

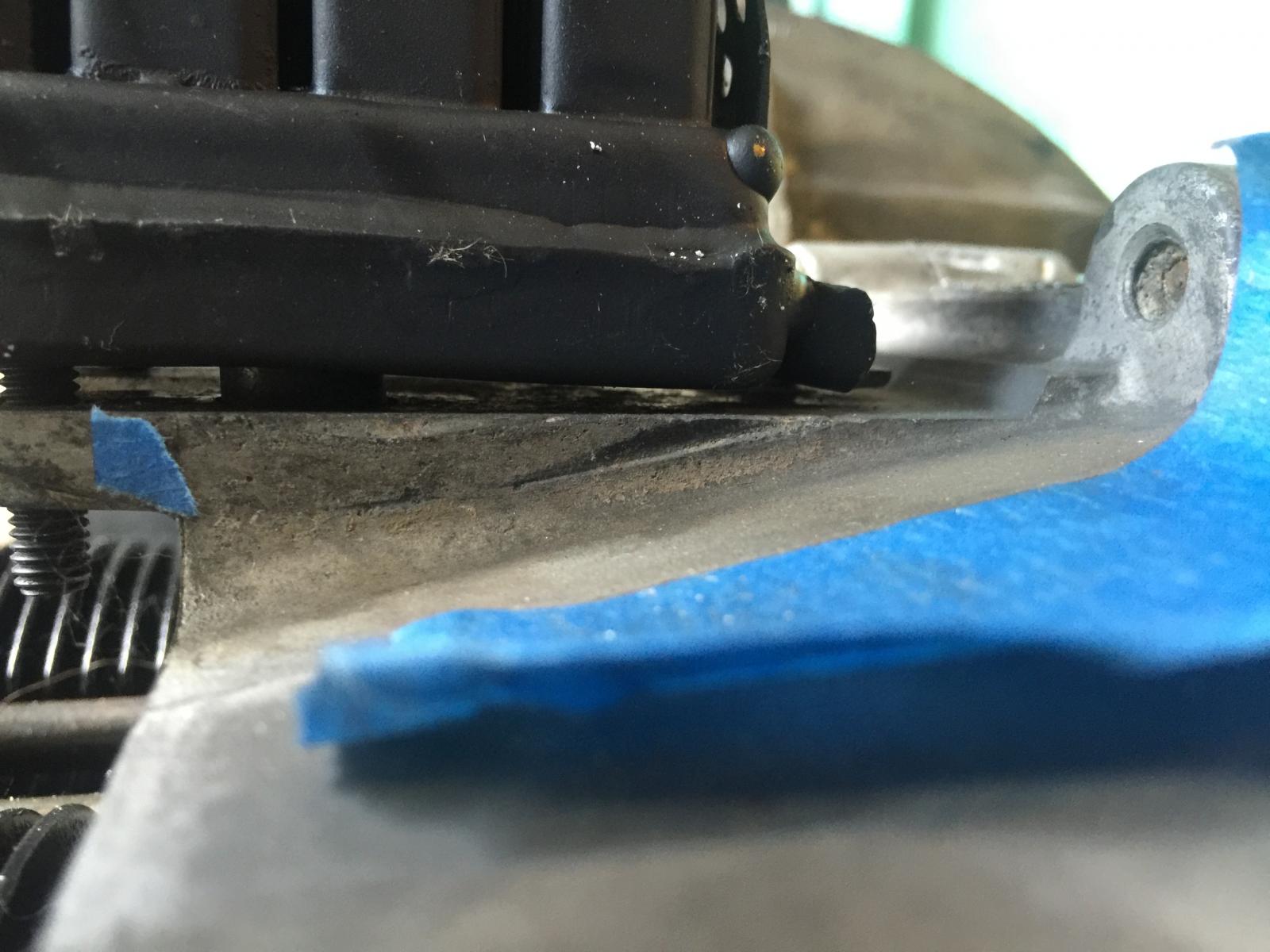

Some pictures I took while installing the oil cooler originally. Wish I would have taken one of the case but that should come soon

[Brian]

Do you have a caliper? My eyecrometer says it's about 9mm. You need to make sure you have the proper seals on your case.
_________________
Wash your hands

'69 Bug
'68 Baja Truck
'71 Bug
'68 Camper

Only losers litter

[Scorcho]

So in essence we are measure the diameter of the holes in the oil cooler the holes in the case and putting the seal that matches it on either side correct?

Like if my holes in case measure 8 and the holes in my oil cooler have a diameter of 10 I would put a seal that matches with those diameters?

[Scorcho]

Where exactly do the washers go. I am putting the seals that go from 8mm(engine case) to 10mm(non doghouse oil cooler) wondering if I should put spacers based on the diagram above but not sure exactly where they go

[66brm]

[Scorcho]

Ok awesome didn't notice the little logos on the diagram to indicate what cars!! Now it makes complete sense thanks a lot!

[onehappykombi]

Very helpful information, thank you

I think my issue is not covered here:

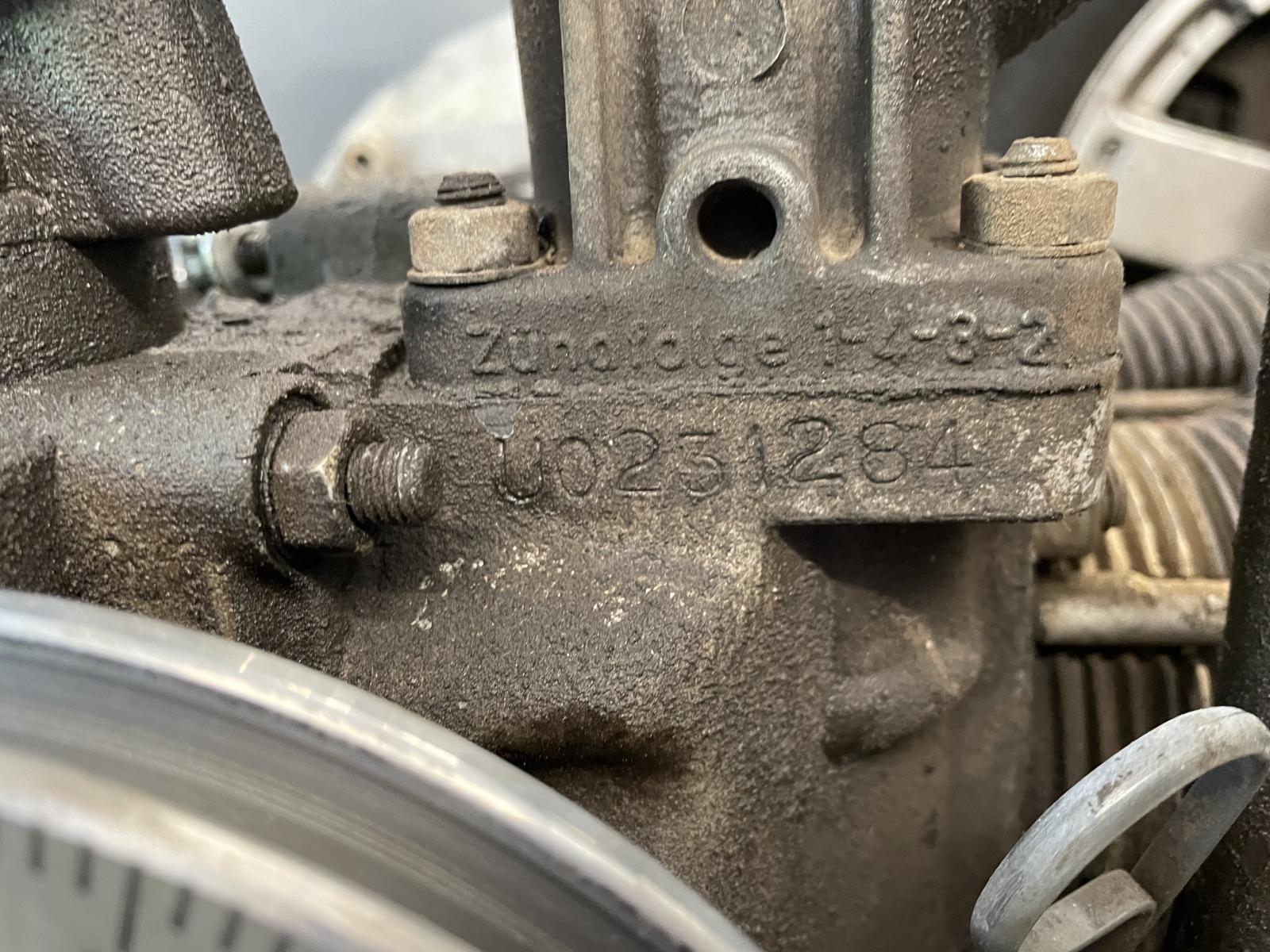

My bus has what I believe to be a Type 3 case due to engine number starting with U0.

I don’t know what the “D” o the “15” mean on the engine part number.

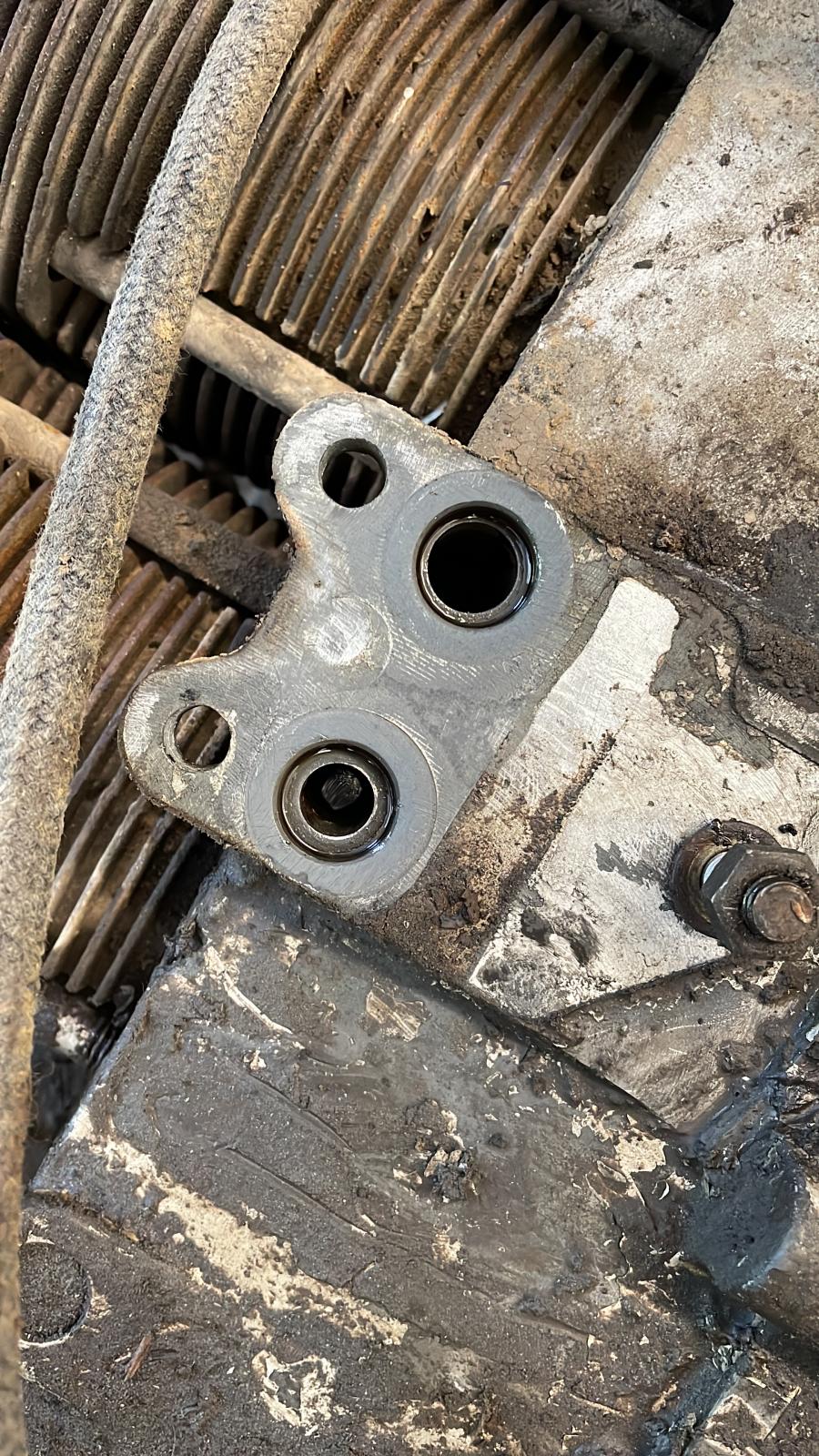

The oil cooler passages are mismatched, one is 8mm and the other is 10mm.

The previous owner had installed 8mm seals on both holes.

Is it ok to run this case in a Bus or should I just get one with both 10mm and 10mm?

If I use this case, should I use one 10mm seal and one 8mm seal?

Thank you!!
_________________
'56 Early Split & '69 Early Bay

Overlanding the USA
Camper special engine build

[heimlich]

If it helps you the green ones are these: https://vwnos.com/111-198-029-2
I have them marked as for single port. Part number for the kit is: 111 198 029

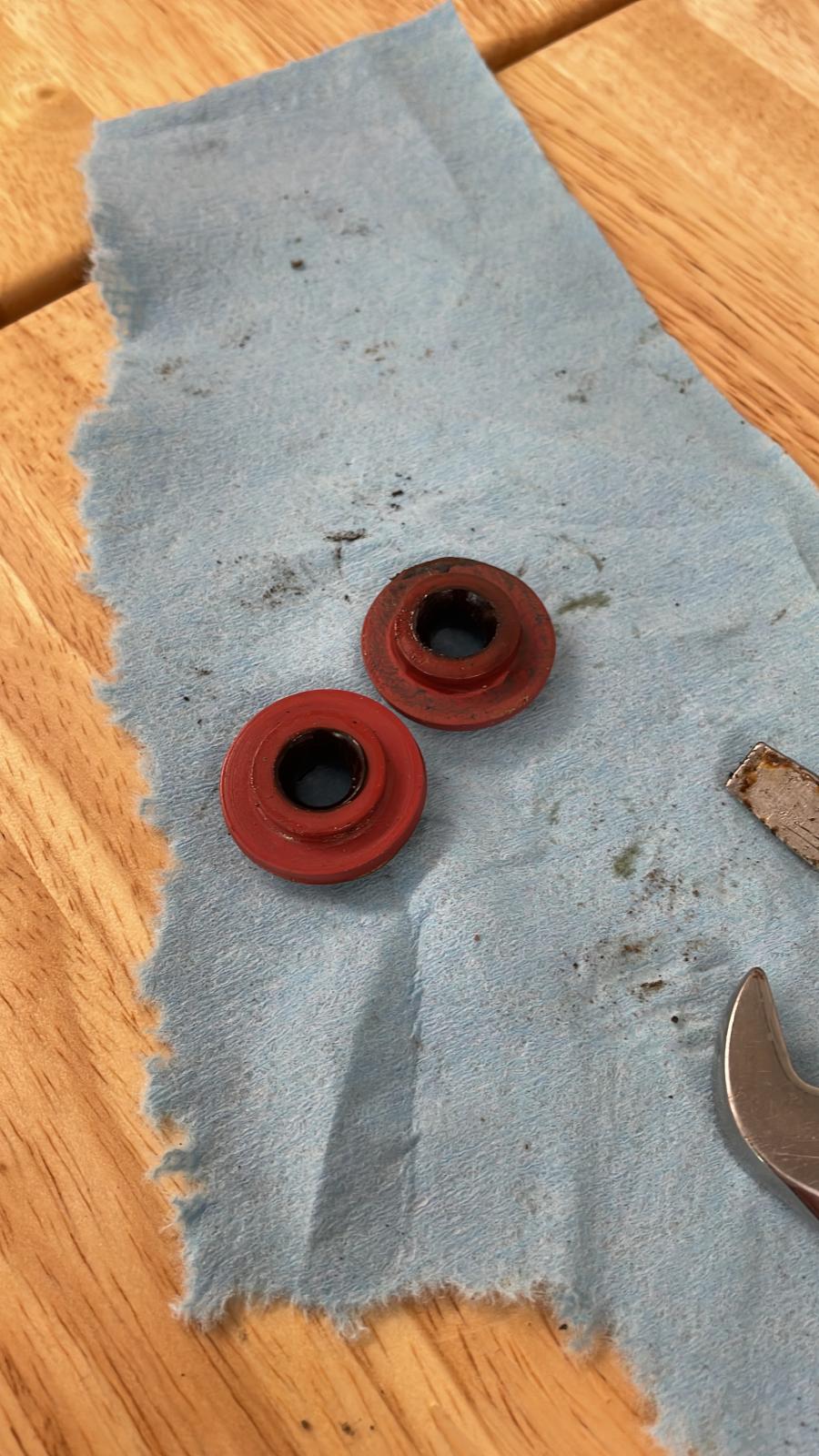

Here are some others that look like your red ones: https://vwnos.com/021-117-151-a

In your picture to the far right. They come in white and black. Some or longer/shorter than the others: https://vwnos.com/111-117-151
_________________
www.vwnos.com [email protected]
Classic Brands. Classic Quality.
Not all parts are made the same. NOS OE/OEM parts made mainly in West Germany, Early Germany, and Early Brazil are where VW produced the best quality parts and best fitting products.
5% Off your order with coupon code: 5%OFF
Restored Distributors Available (<--Click here)

[txoval]

The green are to transition from 10mm to 8mm ports.

Example: 36hp case with aftermarket cooler

[onehappykombi]

[volksworld]

think we have an optical illusion here...yes obviously the hole for the 2 oil passages are different sizes...but it looks to me that the shoulders for the holes where the cooler seals fit are the same size...you need to measure them to verify that...if they are the same you do not need 2 different seals...if you are using the offset adapter for a doghouse cooler you just need the normal red seals...verify that the block hole shoulder is the same diameter as the second step in the cooler adapter...you havent shown enough of the engine but i do not believe you have a type III block...the casting number you show on the side is 211 (bus)...the font of that engine # does not appear to be original VW...it was probably stamped on there by a rebuilder...type III engine numbers arent even in that location as they would be hidden by the fan housing...they are stamped onto the TOP of the block parallel to the case seam near the fuel pump

[onehappykombi]
