Slow 1200
Samba Member


Joined: July 02, 2004
Posts: 1934

Slow 1200 is offline

PostPosted: Fri Jan 11, 2013 6:17 am    Post subject: Stock jetting specs for PHN and PDSIT carbs Reply with quote

Moderator note:
Here are some specs in English (all models):
http://www.thesamba.com/vw/archives/manuals/techbulletins/m1.php


Single carbs first, "only" 8 versions of the PHN
Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.


Last edited by Slow 1200 on Fri Jan 11, 2013 6:35 am; edited 1 time in total
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Slow 1200
Samba Member


Joined: July 02, 2004
Posts: 1934

Slow 1200 is offline

PostPosted: Fri Jan 11, 2013 6:20 am    Post subject: Reply with quote

Then we get the 1500S and hence dual PDSIT carbs, notice how different 64s and 65s are.
Image may have been reduced in size. Click image to view fullscreen.


another source for the same carbs:
Image may have been reduced in size. Click image to view fullscreen.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Slow 1200
Samba Member


Joined: July 02, 2004
Posts: 1934

Slow 1200 is offline

PostPosted: Fri Jan 11, 2013 6:30 am    Post subject: Reply with quote

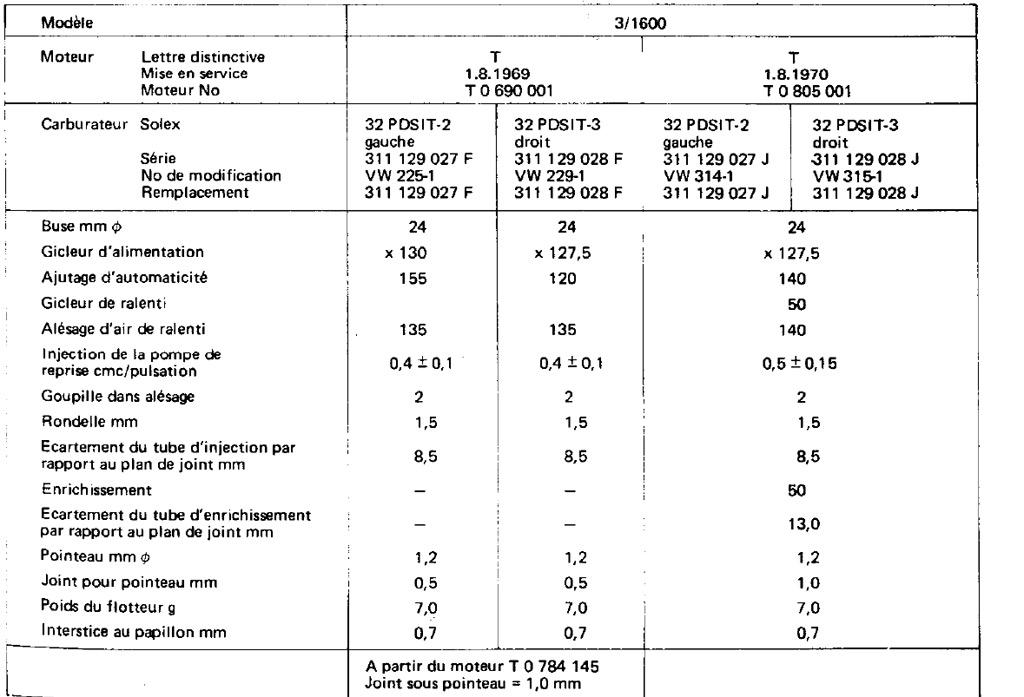

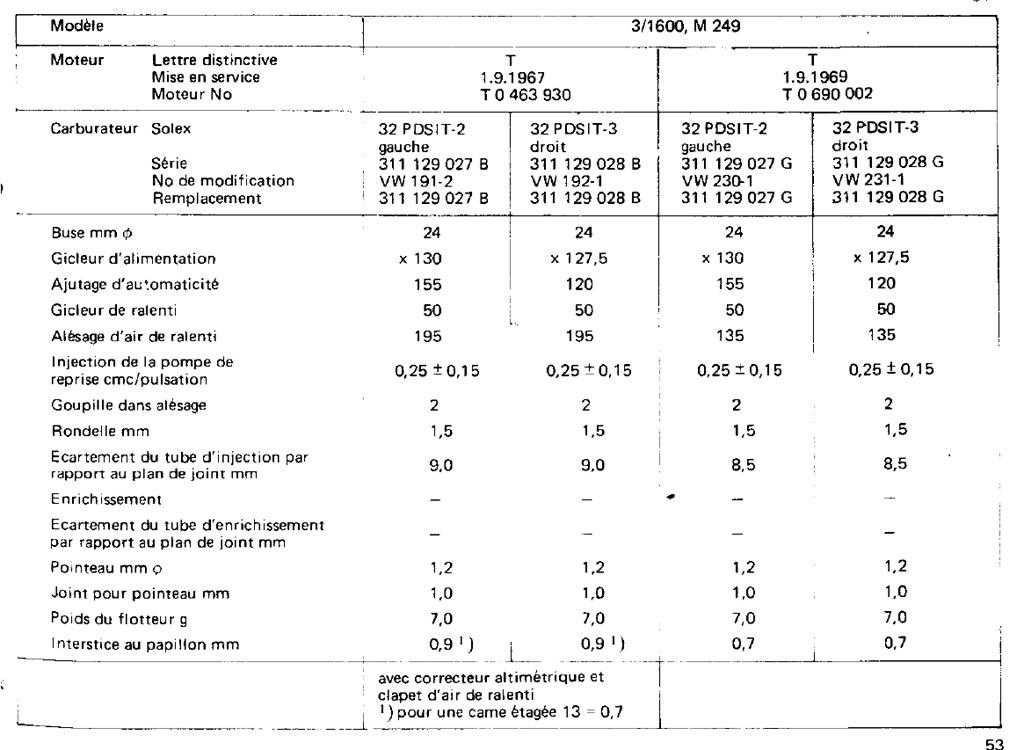

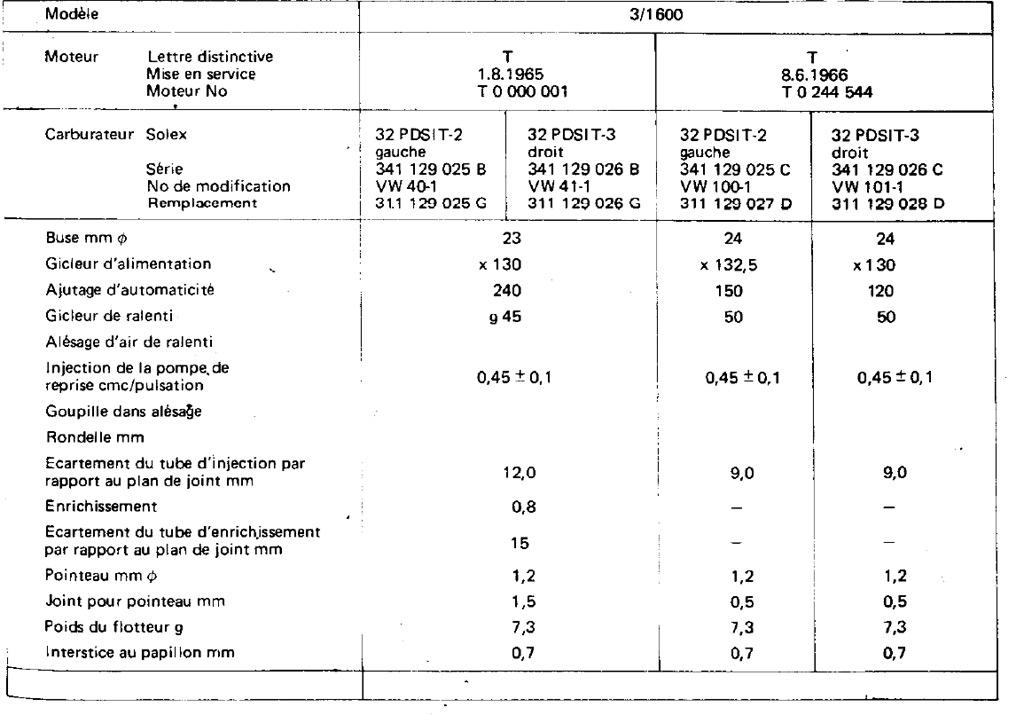

Then we get the 1600, notice how in 67 the powerjet disappears, and with the dual port jetting becomes different for left and right carbs, and also the changing thickness for the needle and seat washer depending on the year



Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


more to come later


Last edited by Slow 1200 on Fri Jan 11, 2013 10:02 am; edited 1 time in total
Back to top
View user's profile Send private message Gallery Classifieds Feedback
EasternNotch
Samba Member


Joined: January 19, 2006
Posts: 557
Location: Boston MA
EasternNotch is offline

PostPosted: Fri Jan 11, 2013 7:08 am    Post subject: Reply with quote

Thanks for posting this it is very good!

My carbs like most are mutts I guess.
1964 1500s single port

23 mm vents
135 mains
180 airs
and 45 idles

I have the dual power jet type tops on my setup currently as well. I like the way it is running with this setup. I have many carbs and could try several of these configuations. This spring I will try and see which it seems to like best.
_________________
1964 Notchback
1969 T34
1989 Doka AFN TDI
1965 Type 2 Panel
1969 Fastback

*Cruised all day long 70 mph before I parked it!
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
Slow 1200
Samba Member


Joined: July 02, 2004
Posts: 1934

Slow 1200 is offline

PostPosted: Fri Jan 11, 2013 10:00 am    Post subject: Reply with quote

These are a different iteration for 67s and then 69s went leaner
Image may have been reduced in size. Click image to view fullscreen.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Slow 1200
Samba Member


Joined: July 02, 2004
Posts: 1934

Slow 1200 is offline

PostPosted: Fri Jan 11, 2013 10:09 am    Post subject: Reply with quote

automatic 68-69, with altitude correcting main jets:
Image may have been reduced in size. Click image to view fullscreen.



68-69 autos again plus 70 autos, notice the spec for the 68-69 needle & seat is different from above!
Image may have been reduced in size. Click image to view fullscreen.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Slow 1200
Samba Member


Joined: July 02, 2004
Posts: 1934

Slow 1200 is offline

PostPosted: Fri Jan 11, 2013 10:16 am    Post subject: Reply with quote

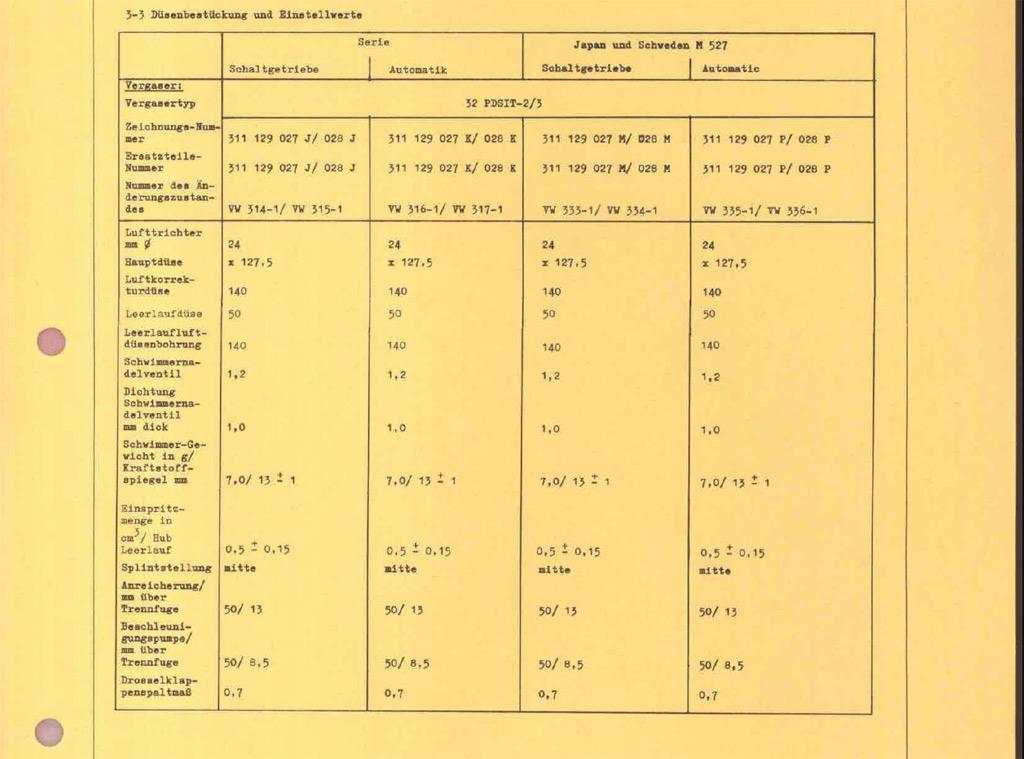

70 and 71 jetting:
Image may have been reduced in size. Click image to view fullscreen.



a different 71 jetting chart (more reliable, it's the only one that matches my stock carbs!)
Image may have been reduced in size. Click image to view fullscreen.


71 and 72:
Image may have been reduced in size. Click image to view fullscreen.


71 and 72 autos (71 is wrong, they did have power jets as seen above)
Image may have been reduced in size. Click image to view fullscreen.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Slow 1200
Samba Member


Joined: July 02, 2004
Posts: 1934

Slow 1200 is offline

PostPosted: Fri Jan 11, 2013 10:34 am    Post subject: Reply with quote

And here the explanation for the side to side jetting differences:
Image may have been reduced in size. Click image to view fullscreen.


so, if you have a filter with the right side like the dotted line, on a dual port you should run different jetting on every side, but if you have the skinnier version you must run equal jetting, or that's what I assume from my rusty german and looking at the jetting charts!
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Slow 1200
Samba Member


Joined: July 02, 2004
Posts: 1934

Slow 1200 is offline

PostPosted: Fri Jan 11, 2013 10:41 am    Post subject: Reply with quote

EasternNotch wrote:
Thanks for posting this it is very good!

My carbs like most are mutts I guess.
1964 1500s single port

23 mm vents
135 mains
180 airs
and 45 idles

I have the dual power jet type tops on my setup currently as well. I like the way it is running with this setup. I have many carbs and could try several of these configuations. This spring I will try and see which it seems to like best.


seems like you have stock 65 model year jetting, maybe they upgraded the carbs to the following year's spec? check the VW number engraved on the carbs, that will tell the story!

like this:
Image may have been reduced in size. Click image to view fullscreen.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Paul Wilson
Samba Member


Joined: August 30, 2003
Posts: 608

Paul Wilson is offline

PostPosted: Fri Jan 11, 2013 5:00 pm    Post subject: Reply with quote

That would be great info, if I could read it. I'll try to find a way to translate it.
Paul
Back to top
View user's profile Send private message Gallery Classifieds Feedback
EasternNotch
Samba Member


Joined: January 19, 2006
Posts: 557
Location: Boston MA
EasternNotch is offline

PostPosted: Fri Jan 11, 2013 5:19 pm    Post subject: Reply with quote

Slow 1200 wrote:
EasternNotch wrote:
Thanks for posting this it is very good!

My carbs like most are mutts I guess.
1964 1500s single port

23 mm vents
135 mains
180 airs
and 45 idles

I have the dual power jet type tops on my setup currently as well. I like the way it is running with this setup. I have many carbs and could try several of these configuations. This spring I will try and see which it seems to like best.


seems like you have stock 65 model year jetting, maybe they upgraded the carbs to the following year's spec? check the VW number engraved on the carbs, that will tell the story!

like this:
Image may have been reduced in size. Click image to view fullscreen.



I was the one who "upgraded " them. I simply went from the blue Bentley and what I gathered in this forum. What you posted is much more in depth. I wonder if the carbs really changed from 64 to 65 or if these were changes made from results of the year of real world use.
_________________
1964 Notchback
1969 T34
1989 Doka AFN TDI
1965 Type 2 Panel
1969 Fastback

*Cruised all day long 70 mph before I parked it!
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
Rome
Samba Member


Joined: June 02, 2004
Posts: 6207
Location: Pearl River, NY
Rome is offline

PostPosted: Sun Jan 13, 2013 7:21 am    Post subject: Reply with quote

Quote:
so, if you have a filter with the right side like the dotted line, on a dual port you should run different jetting on every side, but if you have the skinnier version you must run equal jetting, or that's what I assume from my rusty german and looking at the jetting charts!


You have correctly translated the German text. The yellow paragraph to the left of the illustration mentions that the internal design of the air cleaner has been changed to provide "the same resistance value" to both carbs. Therefore both carbs can now use the same jets.

Thanks for all your details and research!
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Paul Wilson
Samba Member


Joined: August 30, 2003
Posts: 608

Paul Wilson is offline

PostPosted: Sat Jan 26, 2013 1:53 pm    Post subject: Reply with quote

Very interesting reading. I am in the middle of rebuilding my stock single port 1600 engine for my 66 Squareback. I am currently rebuilding the 32 PDSIT carbs. What I currently have is 23mm venturies, left carb has 135 main jet, 180 air correction jet The right carb has, 130 main jet, 240 air correction. I also have the early style stock air cleaner. After looking at the charts in this forum I need the following. Please correct me if I am wrong.
I should have:
24mm venturies
Left carb. 132.5 main jet and 150 air correction jet.
Right carb. 130 main jet and 120 air correction jet.
Paul
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Paul Wilson
Samba Member


Joined: August 30, 2003
Posts: 608

Paul Wilson is offline

PostPosted: Sun Jan 27, 2013 8:58 am    Post subject: Reply with quote

Paul Wilson wrote:
Very interesting reading. I am in the middle of rebuilding my stock single port 1600 engine for my 66 Squareback. I am currently rebuilding the 32 PDSIT carbs. What I currently have is 23mm venturies, left carb has 135 main jet, 180 air correction jet The right carb has, 130 main jet, 240 air correction. I also have the early style stock air cleaner. After looking at the charts in this forum I need the following. Please correct me if I am wrong.
I should have:
24mm venturies
Left carb. 132.5 main jet and 150 air correction jet.
Right carb. 130 main jet and 120 air correction jet.
Paul

One other thing, I have converted everything to 12v. I have the 12v cut off . Is there an advantage to replacing these with the mechanical idle jets?
Paul
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Slow 1200
Samba Member


Joined: July 02, 2004
Posts: 1934

Slow 1200 is offline

PostPosted: Mon Jan 28, 2013 7:46 am    Post subject: Reply with quote

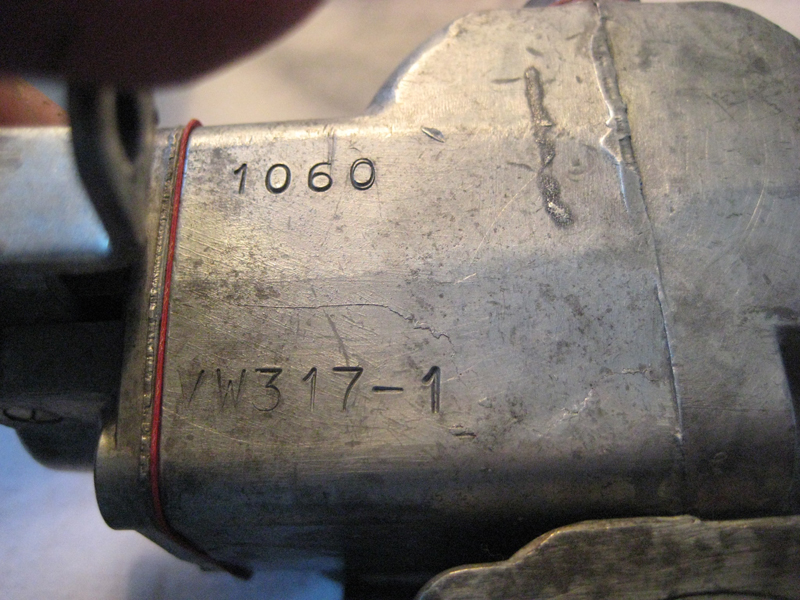

what are the engraved VW numbers on the carb bodies?
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Paul Wilson
Samba Member


Joined: August 30, 2003
Posts: 608

Paul Wilson is offline

PostPosted: Mon Jan 28, 2013 5:27 pm    Post subject: Reply with quote

Slow 1200 wrote:
what are the engraved VW numbers on the carb bodies?

There are no engraved numbers on the carbs. The number consist of stamped, raised (cast) or aluminum tag. These are not the original carbs. But were NOS three years ago.
Complete info as they are set up now, using the orignal oil bath air cleaner
32 PSIT-3
B 6 116 (stamped)
VW 41-2 (stamped)
Aluminum tag 311 129 026B
23mm venturies
main jet 130
air correction jet 240
idle jet with electric 55
This appears to be a 65-66 based carb.

32 PDSIT -2
5040364 (stamped)
VW 129 025 AX
Aluminum tag 311 129 025AX
23mm venturies
main jet 135
air correction jet 180
idle jet with electric 55
It appears that this is 64 based carb,? I need to convert them to the 66, 1600 version.
I think I am on the right track, I just want to make sure.
I have a stock single port 1600 converted to 12v, counter weighted crank, everything pretty much stock.
Paul
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Slow 1200
Samba Member


Joined: July 02, 2004
Posts: 1934

Slow 1200 is offline

PostPosted: Tue Jan 29, 2013 1:25 am    Post subject: Reply with quote

do both have the power jet tube? if yes, is it at the same height on both?
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Paul Wilson
Samba Member


Joined: August 30, 2003
Posts: 608

Paul Wilson is offline

PostPosted: Tue Jan 29, 2013 5:02 pm    Post subject: Reply with quote

Slow 1200 wrote:
do both have the power jet tube? if yes, is it at the same height on both?

Ok, both carbs have 3 tubes. I'm not sure which is the power jet tube. The vertical tube is the same length. The other two tubes, over the venturies are slightly longer. one is about .030" longer and the other is about .070" longer.
Which is the power jet tube?
Paul
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Paul Wilson
Samba Member


Joined: August 30, 2003
Posts: 608

Paul Wilson is offline

PostPosted: Thu Jan 31, 2013 2:36 pm    Post subject: Reply with quote

Paul Wilson wrote:
Slow 1200 wrote:
do both have the power jet tube? if yes, is it at the same height on both?

Ok, both carbs have 3 tubes. I'm not sure which is the power jet tube. The vertical tube is the same length. The other two tubes, over the venturies are slightly longer. one is about .030" longer and the other is about .070" longer.
Which is the power jet tube?
Paul

Bump
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Slow 1200
Samba Member


Joined: July 02, 2004
Posts: 1934

Slow 1200 is offline

PostPosted: Fri Feb 01, 2013 2:20 am    Post subject: Reply with quote

according to the table, on a 66 the acc pump tube is 12mm away from the gasket plane, the power jet is 15mm away, and you should be using a 1,5mm thick washer under the needle and seat, I would only use that washer if the carbs turn out to be 66s
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Display posts from previous:
Reply to topic    Forum Index -> Type 3 All times are Mountain Standard Time/Pacific Daylight Savings Time
Page: 1, 2  Next
Page 1 of 2


Jump to:
You cannot post new topics in this forum
You cannot reply to topics in this forum
You cannot edit your posts in this forum
You cannot delete your posts in this forum
You cannot vote in polls in this forum

About | Help! | Advertise | Donate | Premium Membership | Privacy/Terms of Use | Contact Us | Site Map
Copyright © 1996-2020, Everett Barnes. All Rights Reserved.
Not affiliated with or sponsored by Volkswagen of America | Forum powered by phpBB
