luggage rack hardware

rayroc · Posted: Tue Sep 22, 2015 8:12 am Post subject: luggage rack hardware

I took my luggage rack off to paint the roof and now seem to have lost the hardware does anyone know if the brackets from a late bay rack will work?

rockfish · Posted: Wed Sep 23, 2015 2:35 pm Post subject:

If the GW product below works - then it would make sense that a late Bay should work. But why not spend $40 on new (and stainless) brackets? Especially since you just painted the luggage rack...my 2 cents.

Image may have been reduced in size. Click image to view fullscreen.

http://www.gowesty.com/ec_view_details.php?id=2459&category_id=&category_parent_id=
_________________
89 Westy
GW 2.5 5-speed trans

"It's what you learn after you know it all that counts."
- John Wooden

djkeev · Posted: Wed Sep 23, 2015 3:40 pm Post subject:

Those OEM style footmans loops are so old school!

Who really uses straps and buckles today?
We use bungees with hooks or rope of various types and cinching methods.

You CANNOT get a rope through a footmans loop. You may get a bungee hook in but it's tight.

I found these stainless loops for sail boats at West Marine.
A perfect fit and oh so versatile!

Here is a quote from a post I made about them on this thread.....
http://www.thesamba.com/vw/forum/viewtopic.php?t=462517&postdays=0&postorder=asc&start=0

heidi85ho · Posted: Wed Sep 23, 2015 4:12 pm Post subject:

Personally, I like using my kayak/canoe straps. In most cases they are cheaper than buggies, won't snap back, and use a webbing material that is very strong.
And they fit perfectly under the original cleats.
_________________
85 westy-1.9-standard trans, FAS GenV 2.0

michaelasnider · Posted: Thu Sep 24, 2015 5:49 am Post subject:

I think he was asking if the hardware that holds the luggage rack on to the roof would be compatible, not the footmans loops.

Either way I don't have an answer!

Dana Champion · Posted: Thu Sep 24, 2015 7:21 am Post subject:

Early Vanagon Westfalia luggage compartments are slightly different than the later ones. They changed the clete base. If the holes line up , they will work. I replaced the ones on my '88 with the GoWesty kit.( I saved the old ones). There is a little more room to attach a rubber coated bungee (design difference), which IMO works well. Of course the original cletes were riveted. I like my ss ones. I put one foot on the front tire and stand there and admire them. Very Happy

Go GoWesty

rayroc · Posted: Thu Sep 24, 2015 8:14 am Post subject: lr hardware

I should have spedified that I mean the hardware that secures the rack to the roof

Dana Champion · Posted: Thu Sep 24, 2015 10:12 am Post subject:

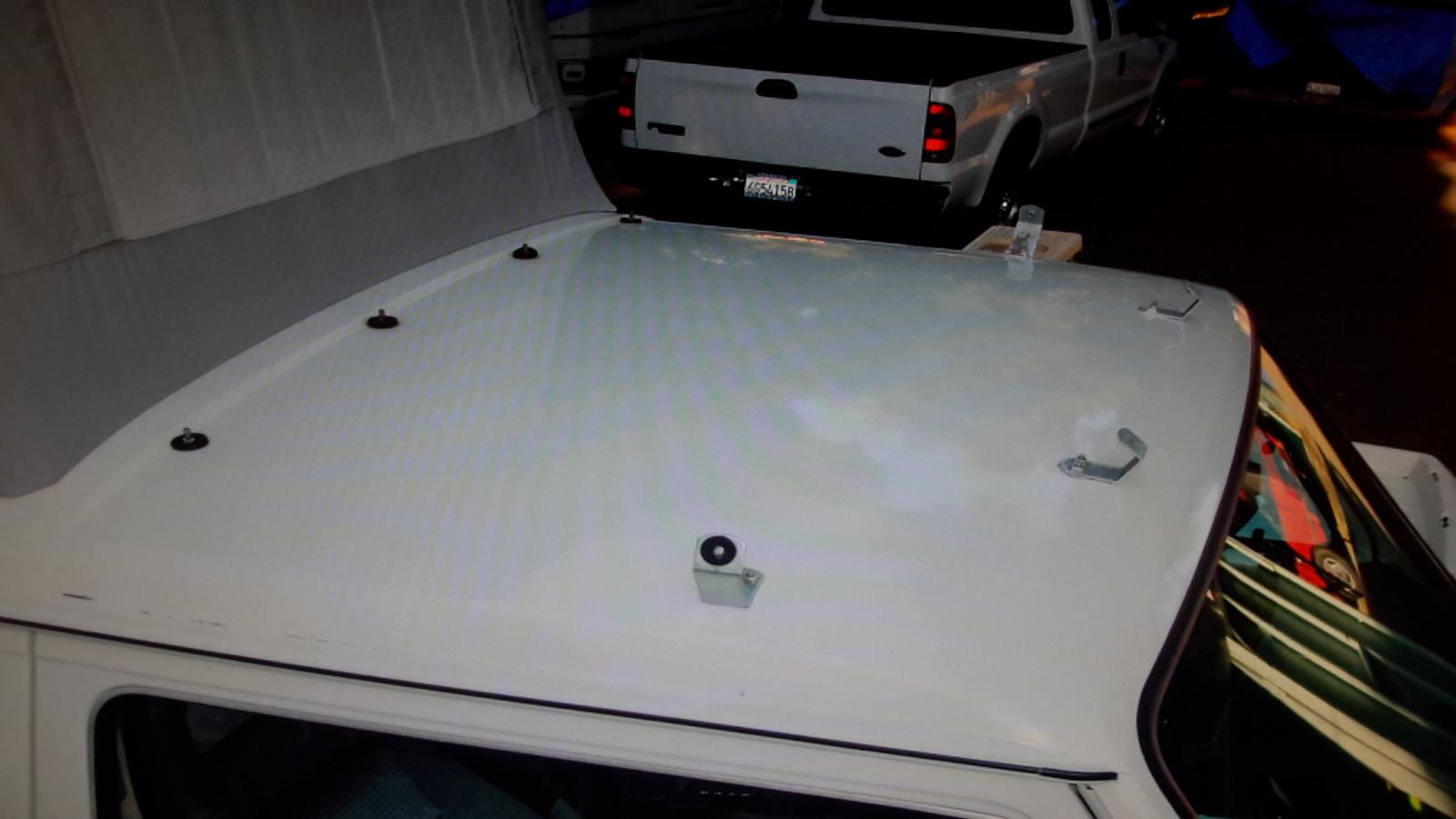

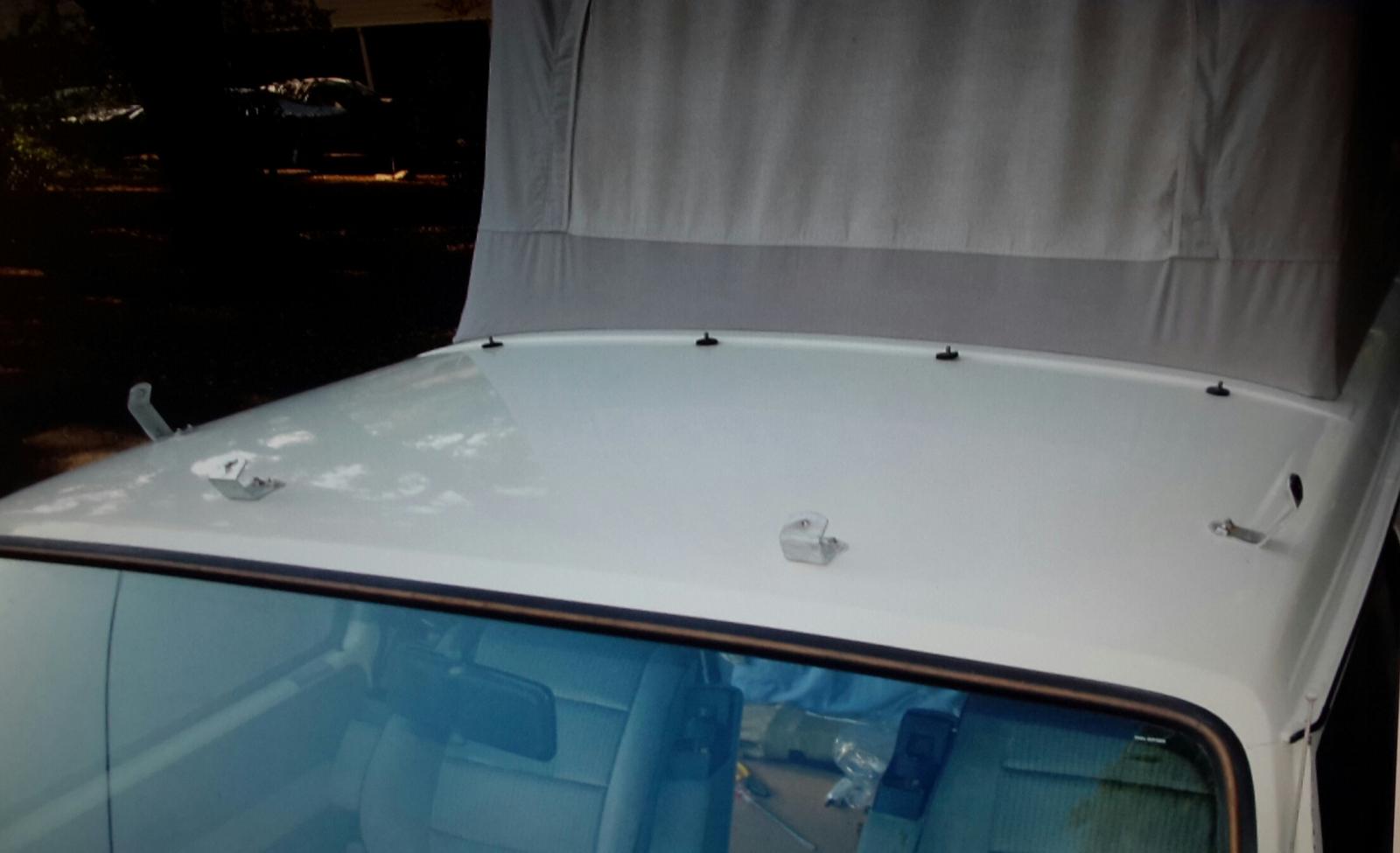

Here are a few pictures of my '88 when I replaced the seal and hold down cletes. At least this will help show you what to look for.

I doubt the late bay hardware looks like this.

Good luck.

Very Happy

OhBetty · Posted: Tue Feb 09, 2016 7:32 pm Post subject: Re: luggage rack hardware

Hey guys! How in the world do you get these cam straps off? I'm trying to do something similar with my stock straps but can't figure out how to get them off! Embarassed

Appreciate any thoughts.. Thank you!

[email protected] · Posted: Wed Feb 10, 2016 8:44 am Post subject: Re: luggage rack hardware

you need to drill them out

Franagon · Posted: Mon Feb 20, 2017 8:08 am Post subject: Re: luggage rack hardware

Hey Dana Champion,

Can you confirm you just use the rubber washers on the side 'internal' luggage rack mounts? That is how I see it in your pic on this post. I only found the 2, so I thought the fronts were missing, maybe not. Any reason NOT to put rubber on the front 'internal mounts'?

Thanks!
_________________
84 Westy Wolfsburg Manual - RG6 Bostig
