Bad torque multiplier tool
Page: 1, 2  Next
Forum Index -> Performance/Engines/Transmissions Share: Facebook Twitter
Reply to topic
Print View
Quick sort: Show newest posts on top | Show oldest posts on top View previous topic :: View next topic
Author Message
bensolo
Samba Member


Joined: September 22, 2017
Posts: 9
Location: The Outer Banks
bensolo is offline

PostPosted: Fri Apr 04, 2025 2:12 pm    Post subject: Bad torque multiplier tool Reply with quote

I purchased a Torquemeister look-alike from Amazon. The drive gear does not engage the flywheel enough to do the job. Can anyone recommend a retailer that sells a good one. They all look the same in the ads.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Glenn Premium Member
Mr. 010


Joined: December 25, 2001
Posts: 79443
Location: Sneaking up behind you
Glenn is offline

PostPosted: Fri Apr 04, 2025 2:16 pm    Post subject: Re: Bad torque multiplier tool Reply with quote

I would say they are all generic and the only name brand would be EMPI.

I have no personal experience with any of them.

FYI, the EMPI one is $150 and the cheaper ones are $95, so maybe the EMPI one is better made???
_________________
Glenn
74 Beetle Specs | 74 Beetle Restoration | 2180cc Engine
"You may not get what you pay for, but you always pay for what you get"

Member #1009

#BlueSquare

עַם יִשְׂרָאֵל חַי
Back to top
View user's profile Send private message Send e-mail Visit poster's website Gallery Classifieds Feedback
BFB
Samba Member


Joined: November 03, 2014
Posts: 2642

BFB is online now

PostPosted: Fri Apr 04, 2025 3:44 pm    Post subject: Re: Bad torque multiplier tool Reply with quote

Glenn wrote:
...

FYI, the EMPI one is $150 and the cheaper ones are $95, so maybe the EMPI one is better made???


well isn't that just sad!?
_________________
"how am i supposed to torque the rear wheel nut to 250 ft lbs??? " - clonebug
An interesting thing happens in forums where everyone starts parroting the same thing and "common knowledge" takes over.
Most experts aren't.
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
Root_Werks
Samba Member


Joined: December 31, 2007
Posts: 1053
Location: San Juan Islands
Root_Werks is offline

PostPosted: Fri Apr 04, 2025 3:55 pm    Post subject: Re: Bad torque multiplier tool Reply with quote

Bought the EMPI one years back and it's fine. Overbuilt and heavy, gears line up fine.

-Dan
_________________
When I set my timing, why do I flush, then take a pee?
Back to top
View user's profile Send private message Gallery Classifieds Feedback
58 Plastic Tub
Samba Member


Joined: September 03, 2007
Posts: 481
Location: Nowhere, USA
58 Plastic Tub is offline

PostPosted: Fri Apr 04, 2025 4:16 pm    Post subject: Re: Bad torque multiplier tool Reply with quote

bensolo wrote:
I purchased a Torquemeister look-alike from Amazon. The drive gear does not engage the flywheel enough to do the job. Can anyone recommend a retailer that sells a good one. They all look the same in the ads.

It must have been a bad day in the east Asian mud hut they all come out of.

Either that, or somebody is buying EMPI seconds. Think about that for a moment...
_________________
Stan Galat
"A single point in isolation is a reference point. Two points is a line. Three points is a trend. Trends don't lie."
Back to top
View user's profile Send private message Gallery Classifieds Feedback
67rustavenger
Samba Member


Joined: February 24, 2015
Posts: 11038
Location: Oregon
67rustavenger is offline

PostPosted: Fri Apr 04, 2025 4:27 pm    Post subject: Re: Bad torque multiplier tool Reply with quote

OP, the drive gear (the little one) is reversible on the TorqueMeister tool.
Pull the clevis pin and switch the gear to the opposite side of the tool and try it again.
You have to swap it around when you use it for removing axle nuts versus flywheel gland nuts.
_________________
I have learned over the years.
Cheap parts are gonna disappoint you.
Buy Once, Cry Once!

There's never enough time to do it right the first time. But there's always enough time to do it thrice.
GFY's Xevin and VW_Jimbo!
2003 Astrovan? GFYS again, Xevin! Wink
Don't let your bad ideas remain, ideas!
Back to top
View user's profile Send private message Gallery Classifieds Feedback
bensolo
Samba Member


Joined: September 22, 2017
Posts: 9
Location: The Outer Banks
bensolo is offline

PostPosted: Fri Apr 04, 2025 4:59 pm    Post subject: Re: Bad torque multiplier tool Reply with quote

67rustavenger wrote:
OP, the drive gear (the little one) is reversible on the TorqueMeister tool.
Pull the clevis pin and switch the gear to the opposite side of the tool and try it again.
You have to swap it around when you use it for removing axle nuts versus flywheel gland nuts.


I have used one before and am familiar with it’s operation. Switching gears around or flipping the tool won’t help. The drive gears are not the right pitch to engage the flywheel. The gear also barely touches the flywheel. Standard flywheel. 36mm nut. I already returned it.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
mikedjames
Samba Member


Joined: July 02, 2012
Posts: 3309
Location: Hamble, Hampshire, UK
mikedjames is offline

PostPosted: Fri Apr 04, 2025 11:42 pm    Post subject: Re: Bad torque multiplier tool Reply with quote

The genuine full kit comes with both two drive gears a 6 volt and a 12 volt pitch drive gear for the two different starter rings..

Probably just the usual Amazon junk dealers.
_________________
Ancient vehicles and vessels

1974 VW T2 : Devon Eurovette camper with 1641 DP T1 engine, Progressive carb, full flow oil cooler, EDIS crank timed ignition.
Engine 1: 40k miles (rocker shaft clip fell off), Engine 2: 30k miles (rebuild, dropped valve). Engine 3: a JK Preservation Parts "new" engine, aluminium case: 26k miles: new top end.
Gearbox rebuild 2021 by Bears.

1979 Westerly GK24 24 foot racer/cruiser yacht Forethought of Gosport.
1973 wooden Pacer sailing dinghy
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
bensolo
Samba Member


Joined: September 22, 2017
Posts: 9
Location: The Outer Banks
bensolo is offline

PostPosted: Wed Apr 09, 2025 3:09 pm    Post subject: Re: Bad torque multiplier tool Reply with quote

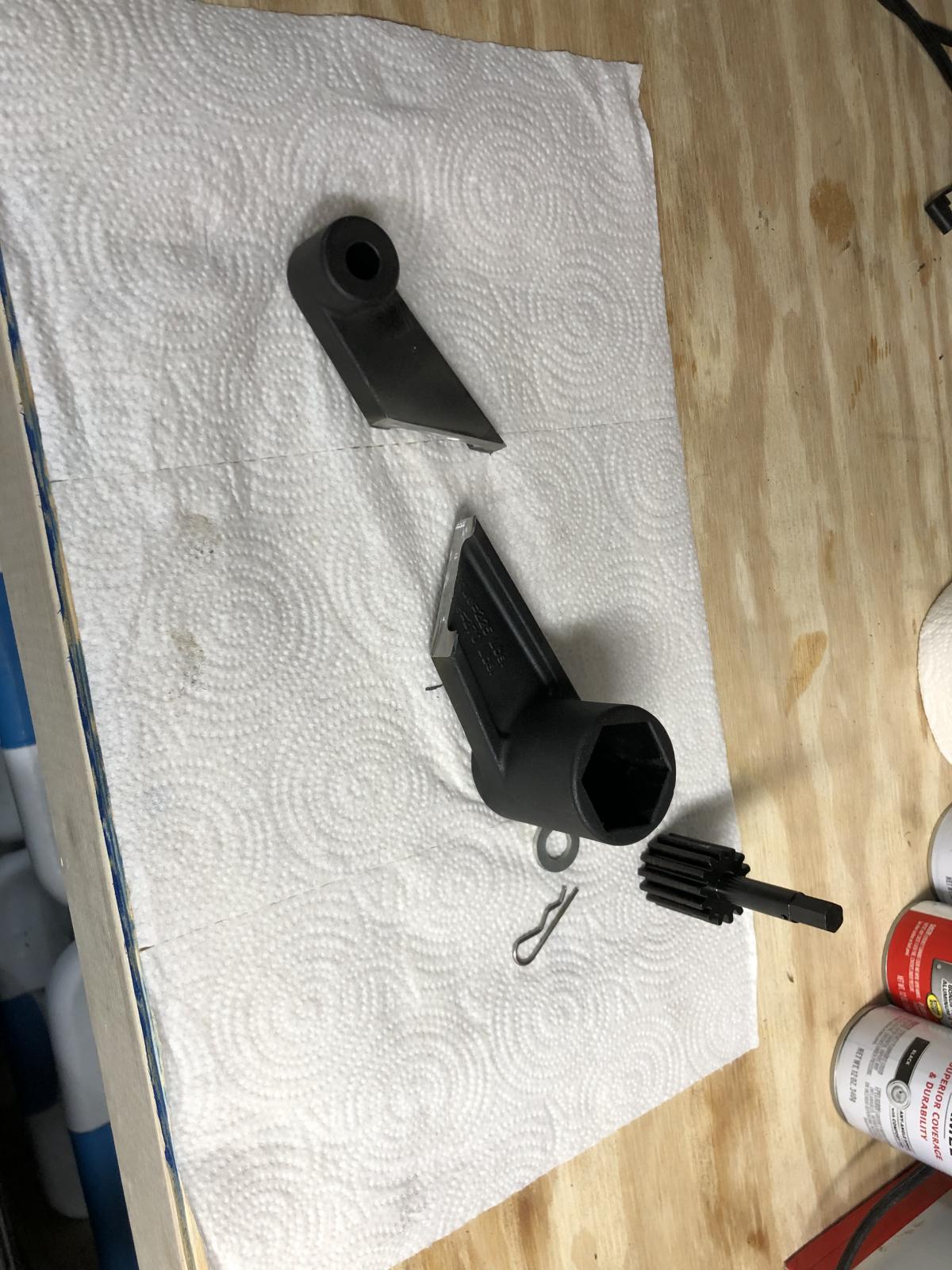

I purchased the Empi branded tool. It comes in the same box and same packaging as the Amazon tool. Obviously it’s also made in China. The fit was marginally better, but there was very little gear tooth engagement and the tool would slip when pressure was applied. I was able to make it work by angling the tool slightly to get better gear engagement. I guess that counts as a win. I just expected better fit and finish for 50% more money.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Glenn Premium Member
Mr. 010


Joined: December 25, 2001
Posts: 79443
Location: Sneaking up behind you
Glenn is offline

PostPosted: Wed Apr 09, 2025 3:10 pm    Post subject: Re: Bad torque multiplier tool Reply with quote

Sorry, but most aftermarket parts/tools are crap.
_________________
Glenn
74 Beetle Specs | 74 Beetle Restoration | 2180cc Engine
"You may not get what you pay for, but you always pay for what you get"

Member #1009

#BlueSquare

עַם יִשְׂרָאֵל חַי
Back to top
View user's profile Send private message Send e-mail Visit poster's website Gallery Classifieds Feedback
2002sportside
Samba Member


Joined: January 27, 2004
Posts: 1496
Location: New England
2002sportside is offline

PostPosted: Wed Apr 09, 2025 3:42 pm    Post subject: Re: Bad torque multiplier tool Reply with quote

I bought the cheaper one from CIP and didn't have any issues with it on the gland nut or brake drums.
_________________
1973 Volkswagen Beetle never ending project
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Glenn Premium Member
Mr. 010


Joined: December 25, 2001
Posts: 79443
Location: Sneaking up behind you
Glenn is offline

PostPosted: Wed Apr 09, 2025 3:59 pm    Post subject: Re: Bad torque multiplier tool Reply with quote

Mine was home made 30 years ago and never failed. I bet I used it over 200 times.

Image may have been reduced in size. Click image to view fullscreen.

_________________
Glenn
74 Beetle Specs | 74 Beetle Restoration | 2180cc Engine
"You may not get what you pay for, but you always pay for what you get"

Member #1009

#BlueSquare

עַם יִשְׂרָאֵל חַי
Back to top
View user's profile Send private message Send e-mail Visit poster's website Gallery Classifieds Feedback
calvinater
Samba Member


Joined: September 06, 2014
Posts: 3566
Location: 802 The Pointless Forrest
calvinater is offline

PostPosted: Thu Apr 10, 2025 10:24 am    Post subject: Re: Bad torque multiplier tool Reply with quote

So Glenn, that works on flywheel, what do use on rear drums?
_________________
"Albatross"!
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Glenn Premium Member
Mr. 010


Joined: December 25, 2001
Posts: 79443
Location: Sneaking up behind you
Glenn is offline

PostPosted: Thu Apr 10, 2025 1:08 pm    Post subject: Re: Bad torque multiplier tool Reply with quote

calvinater wrote:
So Glenn, that works on flywheel, what do use on rear drums?

I have a 3/4" beam torque wrench.
_________________
Glenn
74 Beetle Specs | 74 Beetle Restoration | 2180cc Engine
"You may not get what you pay for, but you always pay for what you get"

Member #1009

#BlueSquare

עַם יִשְׂרָאֵל חַי
Back to top
View user's profile Send private message Send e-mail Visit poster's website Gallery Classifieds Feedback
Who.Me?
Samba Member


Joined: July 14, 2014
Posts: 2513
Location: UK (South)
Who.Me? is offline

PostPosted: Fri Apr 11, 2025 2:15 am    Post subject: Re: Bad torque multiplier tool Reply with quote

I wonder whether the multipliers that I see advertised on ebay as Ford Ecoboost and Ecodiesel torque multiplier tools would work better for most users? E.g. https://www.ebay.co.uk/itm/387322862558?_skw=torqu...BM7tfDv8Rl

They're under £90 (just under US $120 at today's exchange rate), which is cheaper than the single-purpose 'Mr Torque'-type flywheel tool and I reckon it could be used for flywheels, hub nuts (and other useful tasks around the home Laughing )

Rationale: -

I got lucky several years ago and picked up a Sykes Pickavant Motorq torque mulitplier (TM) that was misdescribed on ebay, so I got it ridiculously cheap. It's an utter monster and OTT for my application, but it works brilliantly for accurately torquing flywheels and rear axle nuts. https://sykes-pickavant.com/products/80060000-a-mo...q-input-dr

My TM is the 'traditional' style, designed for multiple purposes. The head contains the multiplier gearbox. It comes with two different reaction arms that attach to the head. One is a straight, round reaction bar, the other an offset/angled reaction 'foot'.

For flywheels, I use the foot in combination with a piece of angle iron bolted across a couple of clutch bolts. It's basically the Muir approach, but the TM avoids having to use some dodgy scaffold pole to extend a breaker bar or torque wrench to gain the extra leverage. The reaction foot engages with the angle iron (pics below).

For hub nuts, I just use the straight reaction bar.

The Ford ecoboost/ecodiesel tool linked above appears to be a similar arrangement to the traditional TM that I have, but the casting of the head is extended. It effectively has the straight reaction arm built in to the head, which should work for hub nuts. The kit comes with a bolt-on arm that attaches at 90-degrees to the built-in arm, effectively creating a reaction 'foot'. That could be bolted to the angle-iron for flywheels, effectively achieving the same result as below.

I don't need another TM, so I'm not going to experiment on anyone's behalf, but it occurs to me that tool should work in just the same way as my traditional TM.

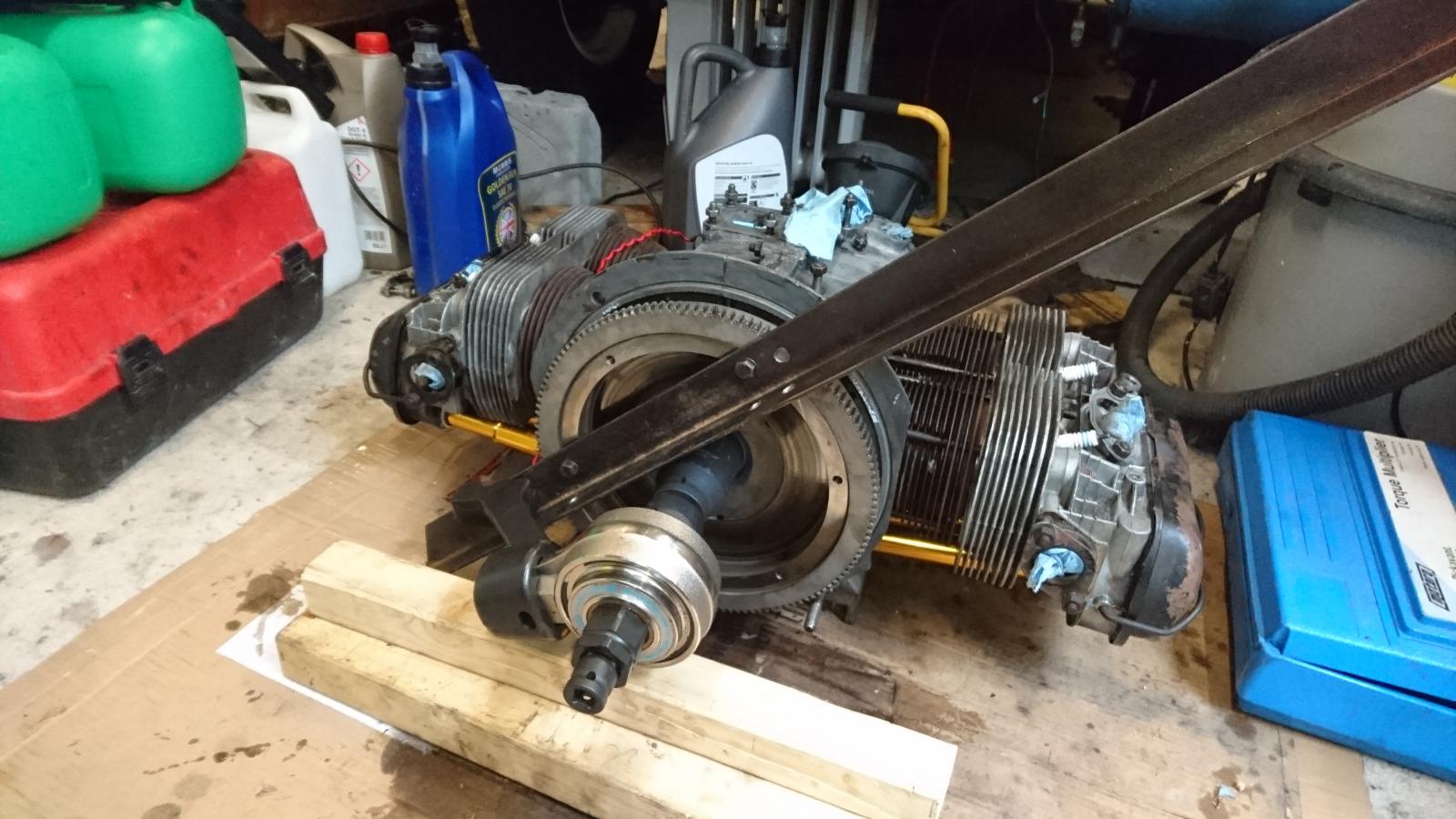

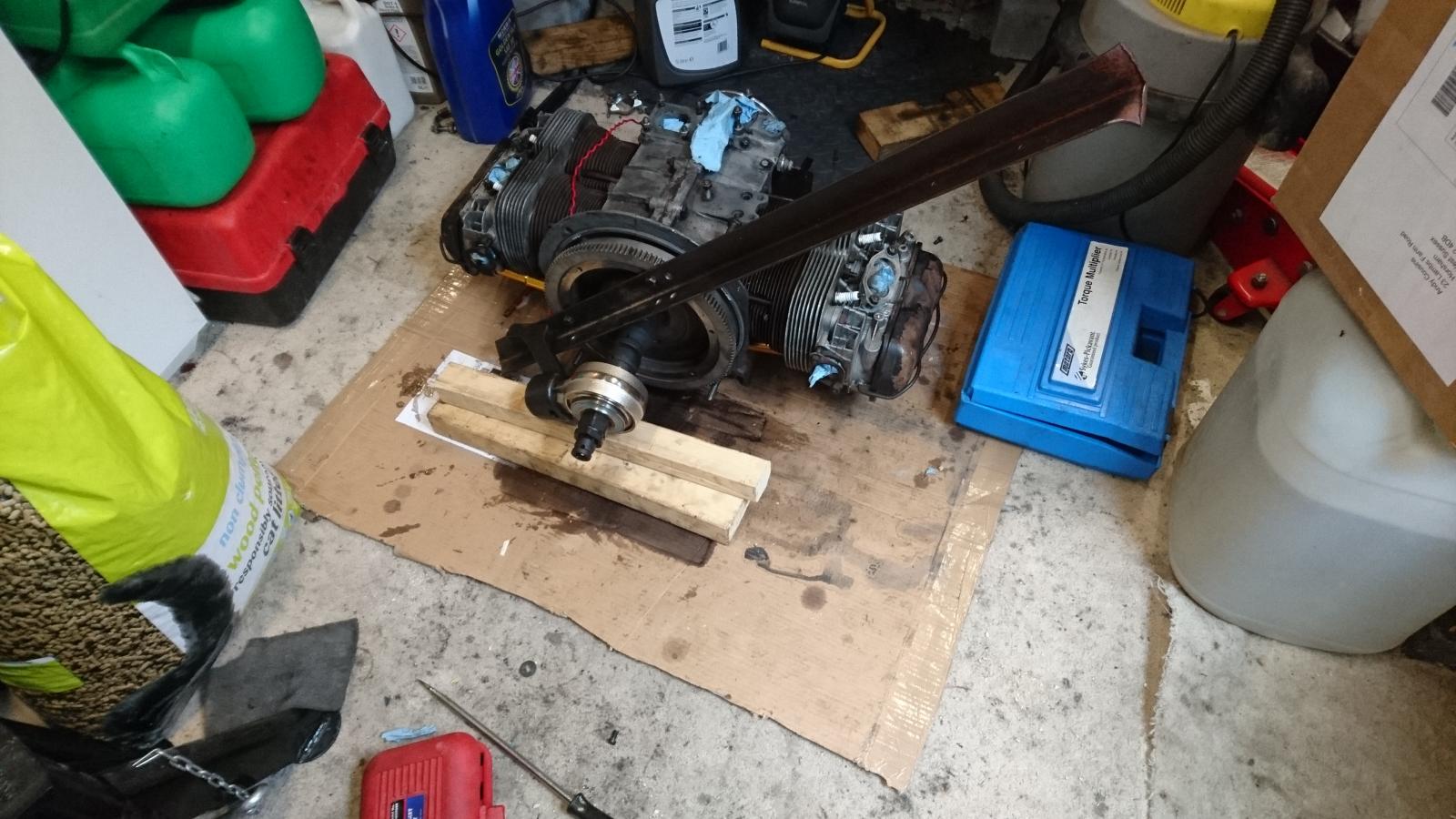

This is what my TM arrangement looks like for torquing a flywheel. Mine's a monster, s I have to support the head with blocks of wood or bricks. The ecoboost/ecodiesel tool looks lighter, but still gives a 5:1 advantage. I reckon it would be easier to use.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.


Ford tool...

Image may have been reduced in size. Click image to view fullscreen.

_________________
Andy


Looking for info on my truck's history. Are you from Campbell California or nearby. Do you recognise it? ... http://www.thesamba.com/vw/forum/viewtopic.php?t=636786
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
nsracing
Samba Member


Joined: November 16, 2003
Posts: 9743
Location: NOVA
nsracing is offline

PostPosted: Wed Apr 16, 2025 12:41 pm    Post subject: Re: Bad torque multiplier tool Reply with quote

TorqueMister was a bad idea - Laughing

There is nothing my 3/4" torque wrench cannot do. It is big enough for forklifts.
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
Dale M.
Samba Member


Joined: April 12, 2006
Posts: 20803
Location: Just a tiny bit west of Yosemite Valley
Dale M. is offline

PostPosted: Wed Apr 16, 2025 4:15 pm    Post subject: Re: Bad torque multiplier tool Reply with quote

I have one like pictured in this web site, it is a 4:1 with a input range of up to 250 ft-lbs, and output of up to 1000 ft-lbs....

Works with whatever I have a socket to fit output (3/4 inch drive) to nut/bolt (flywheels, axle nuts, assorted things on micro ranch, gold mining equipment, etc.).....

What makes it nice if I want to go to say 300 ft-lbs on axle nut all I have to do it take torque wrench to 75 ft-lbs...

https://www.maxprocorp.com/blog/what-is-a-torque-multiplier-and-how-does-it-work/

When buying this sort of tool, I believe I would go more along the generic tool than with something adapted or designed along a specific design for a specific purpose, application as the EcoBoost...
_________________
“Fear The Government That Wants To Take Your Guns"
"Kellison Sand Piper Roadster" For Street & Show.
"Joe Pody Sandrover" Buggy with 2180 for Autocross (Sold)
============================================================
All suggestions and advice are purely my own opinion. You are free to ignore them if you wish ...
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Who.Me?
Samba Member


Joined: July 14, 2014
Posts: 2513
Location: UK (South)
Who.Me? is offline

PostPosted: Fri Apr 18, 2025 2:23 am    Post subject: Re: Bad torque multiplier tool Reply with quote

Dale M. wrote:

When buying this sort of tool, I believe I would go more along the generic tool than with something adapted or designed along a specific design for a specific purpose, application as the EcoBoost...


The problem is the price of a traditional, generic TM versus the amount of times a hobbyist would use it.

The EcoBoost tool looks like it's basically a traditional TM, but for half or a third of the price (and slightly cheaper than the TorqueMeister which can only do one job).
It looks like it might be good value for a hobbyist.
_________________
Andy


Looking for info on my truck's history. Are you from Campbell California or nearby. Do you recognise it? ... http://www.thesamba.com/vw/forum/viewtopic.php?t=636786
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
chrisflstf
Samba Member


Joined: February 10, 2004
Posts: 4030
Location: San Diego
chrisflstf is offline

PostPosted: Fri Apr 18, 2025 10:12 am    Post subject: Re: Bad torque multiplier tool Reply with quote

The torque multipliers like dale listed are super nice, but super expensive. Like $500 to 1000.
Another simple alternative is a torque extender. Basically a bar, 2 feet long is good, with socket or adaptor in each end. Your 150 ft lb torque wrench attaches to it.

Here is a calculator

http://www.rv7.us/a_u-torquewrenchsetting.htm
Back to top
View user's profile Send private message Gallery Classifieds Feedback
bensolo
Samba Member


Joined: September 22, 2017
Posts: 9
Location: The Outer Banks
bensolo is offline

PostPosted: Tue Jul 08, 2025 4:00 pm    Post subject: Re: Bad torque multiplier tool Reply with quote

The retailer was kind enough to warranty the defective tool. I had to provide proof of destruction. I sent a pic and received a refund.

Image may have been reduced in size. Click image to view fullscreen.


….and then I welded the tool back together 1mm shorter. Obviously I am not a professional welder. It works fine now.


Image may have been reduced in size. Click image to view fullscreen.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Display posts from previous:
Reply to topic    Forum Index -> Performance/Engines/Transmissions All times are Mountain Standard Time/Pacific Daylight Savings Time
Page: 1, 2  Next
Page 1 of 2


Jump to:
You cannot post new topics in this forum
You cannot reply to topics in this forum
You cannot edit your posts in this forum
You cannot delete your posts in this forum
You cannot vote in polls in this forum

About | Help! | Advertise | Donate | Premium Membership | Privacy/Terms of Use | Contact Us | Site Map
Copyright © 1996-2024, Everett Barnes. All Rights Reserved.
Not affiliated with or sponsored by Volkswagen of America | Forum powered by phpBB
Links to eBay or other vendor sites may be affiliate links where the site receives compensation.
