Engine to Transmission Connection - HELP! - 1 nut won't go on
Forum Index -> Vanagon Share: Facebook Twitter
Reply to topic
Print View
Quick sort: Show newest posts on top | Show oldest posts on top View previous topic :: View next topic
Author Message
tfelzq
Samba Member


Joined: February 27, 2017
Posts: 26
Location: Austin, TX
tfelzq is offline

PostPosted: Wed Mar 29, 2017 9:01 am    Post subject: Engine to Transmission Connection - HELP! - 1 nut won't go on Reply with quote

I recently had my engine rebuilt. When connecting the engine to the transmission, I was unable to put a nut on one of the engine mount bolts. When I took it off, I realized that the mount bolts were different sizes. Let me explain with pictures.

Here are the two bolts of different lengths.


Image may have been reduced in size. Click image to view fullscreen.


The one on the right is noticeably shorter by almost a half an inch:

(left one)
Image may have been reduced in size. Click image to view fullscreen.


(right one)

Image may have been reduced in size. Click image to view fullscreen.

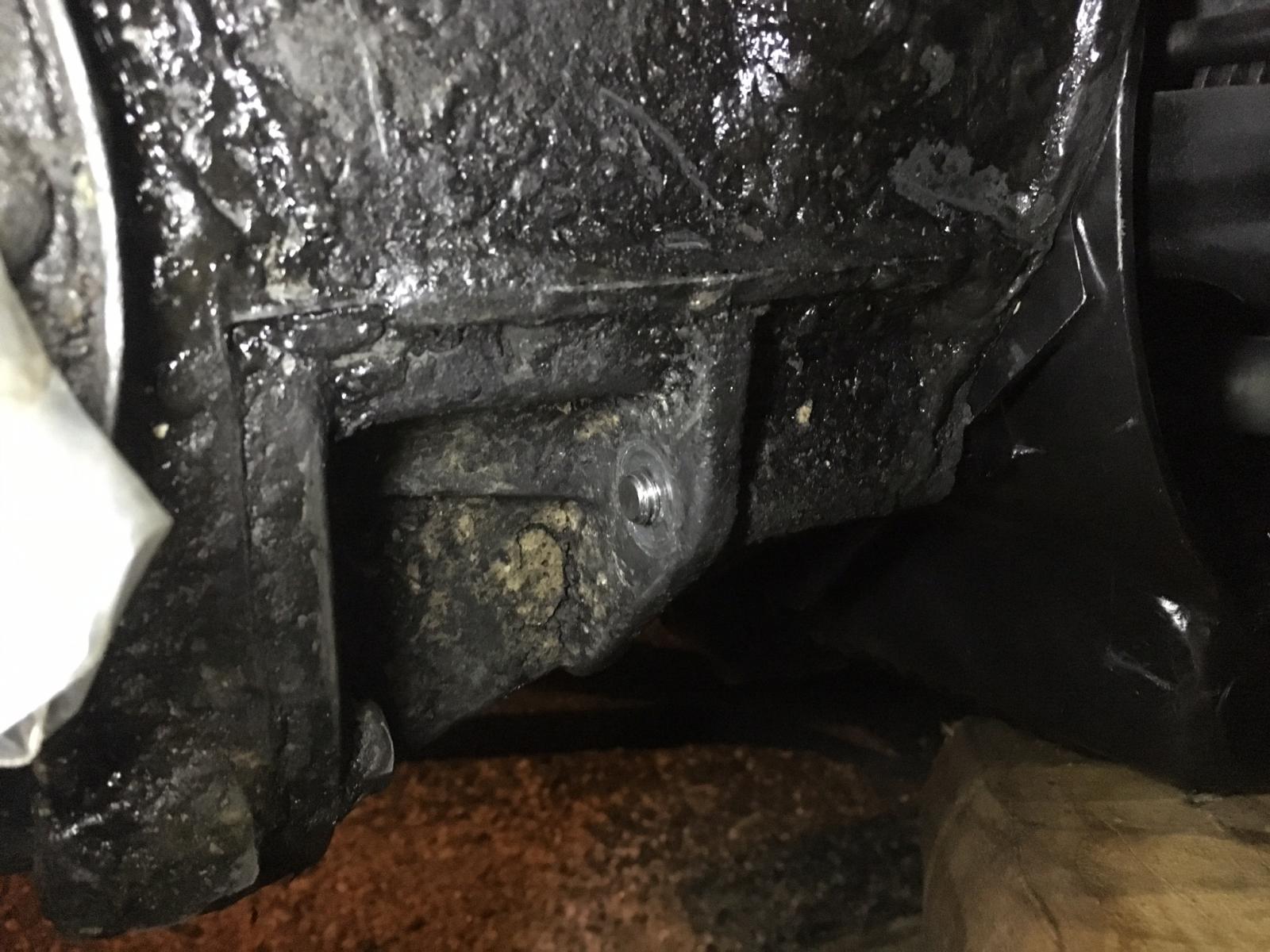

With the transmission flush to the engine, the nut would not go on bc there were only 2 threads for it:


Image may have been reduced in size. Click image to view fullscreen.



I'm wondering if it's possible that the bolts were accidentally switched when they were rebuilding the engine?

Notice the different thread counts on each one of these:

the longer one has more threads exposed near the engine and is all the way sunk in:


Image may have been reduced in size. Click image to view fullscreen.


The shorter one is all the way in, but barely has any threads exposed:


Image may have been reduced in size. Click image to view fullscreen.


Do you think these are backwards?

If not, what do you think is the solution?

Any recommendations will help!
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Bman
Samba Member


Joined: April 28, 2005
Posts: 895
Location: South Coast, Oregon
Bman is offline

PostPosted: Wed Mar 29, 2017 9:08 am    Post subject: Re: Engine to Transmission Connection - HELP! - 1 nut won't go on Reply with quote

That is a problem. No word from your builder if they messed with that?

What if you were to double nut the shorter one to back it out and replace with a longer stud?
_________________
~Bryan
1990 Burgandy Tintop (Wife's Daily Driver)
1989 Tiico Westfalia "Taj"




2WD Doka build thread: http://www.thesamba.com/vw/forum/viewtopic.php?t=503578&highlight=
FaceHook:
https://www.facebook.com/pages/VW-T3-DokaSinka/129026087217120?ref=hl
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
MarkWard
Samba Member


Joined: February 09, 2005
Posts: 18741
Location: Retired South Florida
MarkWard is offline

PostPosted: Wed Mar 29, 2017 9:08 am    Post subject: Re: Engine to Transmission Connection - HELP! - 1 nut won't go on Reply with quote

Same part number for both studs. Looking at the parts description they should be 97 mm overall length. You could remove the short one and try reversing it and see if that helps. You could also remove both studs and compare them to each other. Last you could contact the rebuilder and ask for your studs back. You can double nut them to remove them from the case. Good luck.

OE part number is N 014 675 2
Back to top
View user's profile Send private message Gallery Classifieds Feedback
atomatom
Samba Member


Joined: May 15, 2012
Posts: 1911
Location: in an 84 Westy or Bowen Island, BC
atomatom is offline

PostPosted: Wed Mar 29, 2017 9:46 am    Post subject: Re: Engine to Transmission Connection - HELP! - 1 nut won't go on Reply with quote

it looks like the studs (both) may be too short. you could back out the one that is not long enough (double nut it to do this).

i would measure the nut you are putting on, then back out the stud that far. it looks like you need 5-10mm
_________________
84 Vanagon Westy, 1.9L, California raised but defected to Canada.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
davideric9
Samba Member


Joined: January 21, 2009
Posts: 1014
Location: Oakland CA
davideric9 is offline

PostPosted: Wed Mar 29, 2017 10:11 am    Post subject: Re: Engine to Transmission Connection - HELP! - 1 nut won't go on Reply with quote

I think two size studs were used, long ones for Manual Transmission, short ones for Automatic Transmission. Looks like the shop grabbed the wrong stud. Get the correct ones and move on.
_________________
1987 Syncro Westfalia, stock (bought 1994)
1986 Syncro Westfalia SVX, 3 knob (bought 2008)
1987 Westfalia (bought 2010)
1988 Wolfsburg GL (bought 2012)
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
Zeitgeist 13
Samba Member


Joined: March 05, 2009
Posts: 12167
Location: Port Manteau
Zeitgeist 13 is offline

PostPosted: Wed Mar 29, 2017 10:26 am    Post subject: Re: Engine to Transmission Connection - HELP! - 1 nut won't go on Reply with quote

It appears that the first two or three threads on that shorter stud are stripped, which is probably exacerbating the problem. Get a new longer stud
_________________
Casey--

'89 Bluestar ALH w/12mm Waldo pump, PP764 and GT2052
'01 Weekender --> full camper
y u rune klassik?
Back to top
View user's profile Send private message Gallery Classifieds Feedback
MarkWard
Samba Member


Joined: February 09, 2005
Posts: 18741
Location: Retired South Florida
MarkWard is offline

PostPosted: Wed Mar 29, 2017 11:17 am    Post subject: Re: Engine to Transmission Connection - HELP! - 1 nut won't go on Reply with quote

I would look a little closer at the corner of the case I can see in the picture. Is that a repair to the corner?
Back to top
View user's profile Send private message Gallery Classifieds Feedback
the joker
Samba Member


Joined: October 12, 2006
Posts: 1287

the joker is offline

PostPosted: Wed Mar 29, 2017 1:33 pm    Post subject: Re: Engine to Transmission Connection - HELP! - 1 nut won't go on Reply with quote

may we ask Arrow who was the rebuilder Question
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
tfelzq
Samba Member


Joined: February 27, 2017
Posts: 26
Location: Austin, TX
tfelzq is offline

PostPosted: Wed Mar 29, 2017 1:50 pm    Post subject: Re: Engine to Transmission Connection - HELP! - 1 nut won't go on Reply with quote

Alright team - the double nut technique was new to me, but it worked. Pictured here are the two double threaded mounting bolts:


Image may have been reduced in size. Click image to view fullscreen.


Both of these have a few threads missing. The part with the missing threads actually came from within the engine block - not from the nut.

I'm thinking they both need to be replaced, no?
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Bman
Samba Member


Joined: April 28, 2005
Posts: 895
Location: South Coast, Oregon
Bman is offline

PostPosted: Wed Mar 29, 2017 1:54 pm    Post subject: Re: Engine to Transmission Connection - HELP! - 1 nut won't go on Reply with quote

Yes replace both, aren't they too short anyway? Get the correct studs.
_________________
~Bryan
1990 Burgandy Tintop (Wife's Daily Driver)
1989 Tiico Westfalia "Taj"




2WD Doka build thread: http://www.thesamba.com/vw/forum/viewtopic.php?t=503578&highlight=
FaceHook:
https://www.facebook.com/pages/VW-T3-DokaSinka/129026087217120?ref=hl
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
davideric9
Samba Member


Joined: January 21, 2009
Posts: 1014
Location: Oakland CA
davideric9 is offline

PostPosted: Wed Mar 29, 2017 2:26 pm    Post subject: Re: Engine to Transmission Connection - HELP! - 1 nut won't go on Reply with quote

Van-Cafe lists these for $3.95 each and says manual transmission only
http://www.van-cafe.com/page_2177_257/stud-engine-to-transmission
_________________
1987 Syncro Westfalia, stock (bought 1994)
1986 Syncro Westfalia SVX, 3 knob (bought 2008)
1987 Westfalia (bought 2010)
1988 Wolfsburg GL (bought 2012)
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
SlalomVan
Samba Member


Joined: March 28, 2006
Posts: 131
Location: Seattle, WA
SlalomVan is offline

PostPosted: Mon Sep 30, 2019 4:45 pm    Post subject: Re: Engine to Transmission Connection - HELP! - 1 nut won't go on Reply with quote

Can someone list the size and thread pitch of the nuts that go on theses studs? I searched! Even the Bentley doesnโ€™t show the size.
_________________
1989 Vanagon GL - 2.1 (White - "Northlake" Totaled/Gone)
1988 Vanagon GL Wolfsburg (Orly Blue - "Poulsbo" - Sold)
1989 Vanagon G - 2.1 (White - "Kingston") - Full rebuild underway - Last on the road in 1997
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
dabaron
Samba Member


Joined: June 21, 2018
Posts: 2716
Location: Philly, mang
dabaron is offline

PostPosted: Mon Sep 30, 2019 6:02 pm    Post subject: Re: Engine to Transmission Connection - HELP! - 1 nut won't go on Reply with quote

SlalomVan wrote:
Can someone list the size and thread pitch of the nuts that go on theses studs? I searched! Even the Bentley doesnโ€™t show the size.


M10 1.5 (coarse threads). get grade 8.
_________________
1991 Vanagon GL Camper
i had no idea i wanted to be a mechanic
Back to top
View user's profile Send private message Gallery Classifieds Feedback
DanHoug
Samba Member


Joined: December 05, 2016
Posts: 5693
Location: Bemidji, MN
DanHoug is offline

PostPosted: Mon Sep 30, 2019 6:08 pm    Post subject: Re: Engine to Transmission Connection - HELP! - 1 nut won't go on Reply with quote

Image may have been reduced in size. Click image to view fullscreen.


picture of the two types of studs
_________________
-dan
60% of what you find on the internet is wrong, including this post.

'87 Westy & '89 Westy both 2.1 4spd

Past projects can be found at--
www.thefixitworkshop.com
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
Wildthings
Samba Member


Joined: March 13, 2005
Posts: 52327

Wildthings is offline

PostPosted: Mon Sep 30, 2019 7:14 pm    Post subject: Re: Engine to Transmission Connection - HELP! - 1 nut won't go on Reply with quote

tfelzq wrote:
Alright team - the double nut technique was new to me, but it worked. Pictured here are the two double threaded mounting bolts:


Image may have been reduced in size. Click image to view fullscreen.


Both of these have a few threads missing. The part with the missing threads actually came from within the engine block - not from the nut.

I'm thinking they both need to be replaced, no?


Those studs don't look to be factory pieces but ones threaded by using a lathe. The threads on the factory studs were rolled and not cut.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Abscate Premium Member
