PostPosted: Tue Aug 27, 2013 8:40 am    Post subject: Syncro trans rebuild Reply with quote

.. plus some.

This thread will be something of a continuation of previous threads, with an emphasis on oiling upgrades (primarily to address 4th gear overheating).

http://www.thesamba.com/vw/forum/viewtopic.php?t=534623&highlight=syncro+transaxle+service

While I've had to turn down a few Sambanistas, Zeohsix's 094 project intrigued me because of:
1) Access to a full machine shop
2) Eric's wish to actively participate in machining and parts preparation for his build.

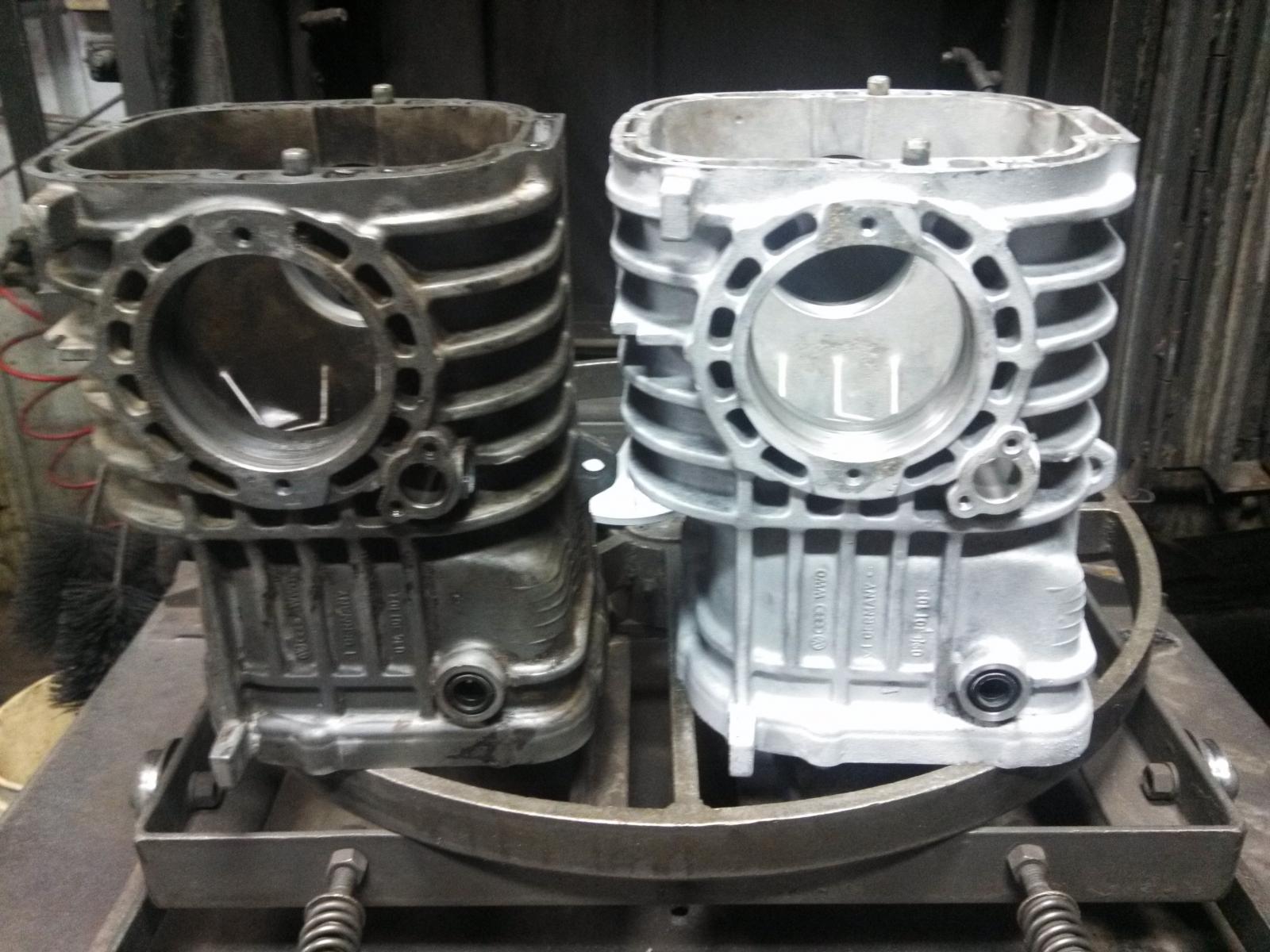

Eric "hit the jackpot" with his late model factory built replacement 094 transaxle having an aluminum main housing:

Image may have been reduced in size. Click image to view fullscreen.


Because we have time constraints, and I may not be able to add material on a day-to-day basis, I'm putting forth some of the photos now. I probably won't be able to wrap up this thread until after the build is complete, and I'm sipping lemonade on Kailua Beach.

Some of you are familiar with our friend Herman's transaxle modifications .. oil drilled pinion bearing and gun-drilled mainshaft.
Image may have been reduced in size. Click image to view fullscreen.


While we've followed some of what Herman has done, we've gone a different direction with addressing 4th gear heat build-up. Much more to follow ..
_________________
aka Pablo, Geary
9.36 @ 146 in '86
'90 Syncro Westy SVX
'87 Syncro GL 2.5

Needed: Stock 14" x 6" Syncro steel rim
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
Ian
Samba Member


Joined: August 28, 2002
Posts: 4805
Location: 713
Ian is offline

PostPosted: Tue Aug 27, 2013 8:49 am    Post subject: Reply with quote

Cool Cool Cool
_________________
All your Buses are belong to us.
Love and good roads!
veloandy wrote:
I got the feeling that he and his buddies stay at the shop super-late every night wrenching on project VWs just for the sheer joy of it.

IN LOVING MEMORY OF ROB CRESS 1968-2012
Back to top
View user's profile Send private message AIM Address Facebook Instagram Gallery Classifieds Feedback
gears
Samba Member


Joined: October 28, 2002
Posts: 3833
Location: Bend, OR; Kailua, HI
gears is offline

PostPosted: Tue Aug 27, 2013 8:52 am    Post subject: Reply with quote

Many of the aluminum South African intermediate housings require finish machining:

4mm holes drilled & tapped:
Image may have been reduced in size. Click image to view fullscreen.


Half moon for bearing locking plate:
Image may have been reduced in size. Click image to view fullscreen.

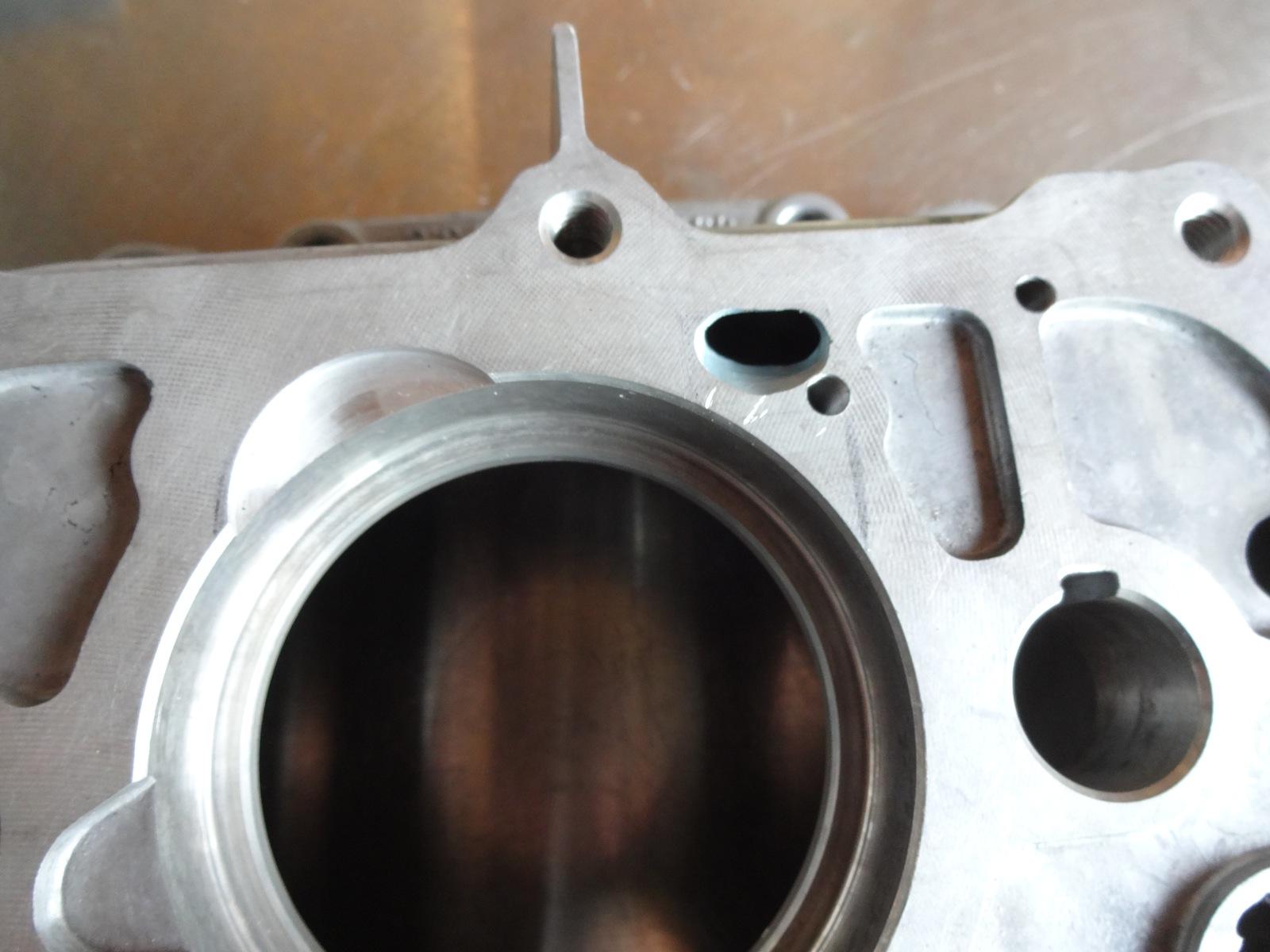

The half moon on this housing was rotated counterclockwise a bit. This exact location can only be used because a bearing plate will be added .. otherwise, the low gear housing would fail to retain the locking plate in this position (should normally be rotated clockwise a tad).

Some SA housings also require that the oil-add hole be drilled & tapped. Thankfully, this one was previously done.

Edit: My oiling hole can be seen on the left. This is why I moved the half moon .. although I really didn't need to move it this much.
_________________
aka Pablo, Geary
9.36 @ 146 in '86
'90 Syncro Westy SVX
'87 Syncro GL 2.5

Needed: Stock 14" x 6" Syncro steel rim


Last edited by gears on Wed Aug 28, 2013 7:47 am; edited 1 time in total
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
gears
Samba Member


Joined: October 28, 2002
Posts: 3833
Location: Bend, OR; Kailua, HI
gears is offline

PostPosted: Tue Aug 27, 2013 1:00 pm    Post subject: Reply with quote

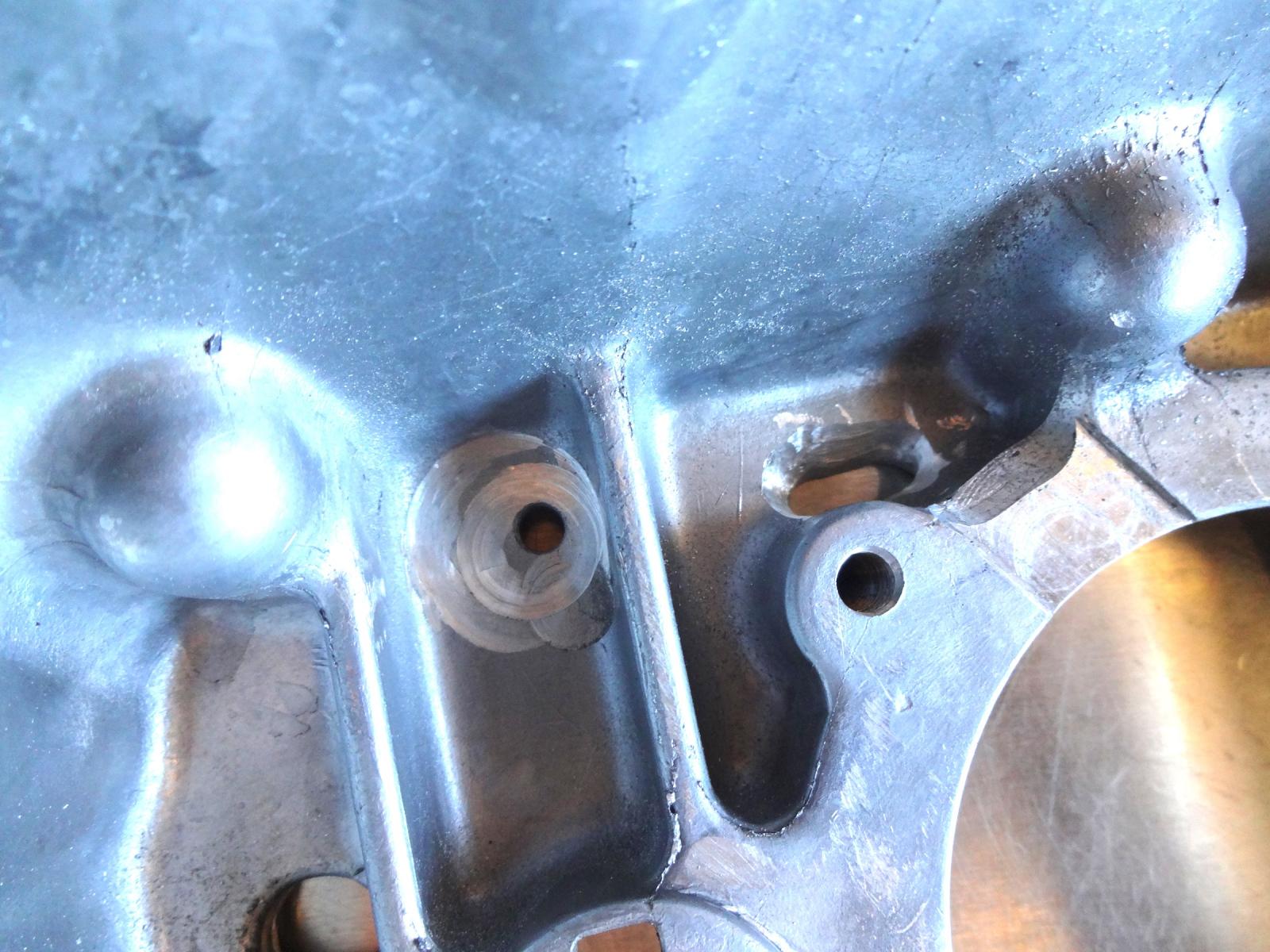

Welded ..
Image may have been reduced in size. Click image to view fullscreen.


.. and prepared for oil feed to pinion bearing:
Image may have been reduced in size. Click image to view fullscreen.

_________________
aka Pablo, Geary
9.36 @ 146 in '86
'90 Syncro Westy SVX
'87 Syncro GL 2.5

Needed: Stock 14" x 6" Syncro steel rim
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
syncrodoka
Samba Member


Joined: December 27, 2005
Posts: 10945
Location: Santa Cruz, CA
syncrodoka is offline

PostPosted: Tue Aug 27, 2013 3:07 pm    Post subject: Reply with quote

Thank you very much for documenting this process.
I am envious. Cool
Back to top
View user's profile Send private message Gallery Classifieds Feedback
insyncro
Banned


Joined: March 07, 2002
Posts: 15088
Location: New York
insyncro is offline

PostPosted: Tue Aug 27, 2013 4:53 pm    Post subject: Reply with quote

Yes.
Thank you.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Howesight
Samba Member


Joined: July 02, 2008
Posts: 2090
Location: Vancouver, B.C.
Howesight is offline

PostPosted: Tue Aug 27, 2013 6:32 pm    Post subject: Reply with quote

I planned my SVX conversion back in 2008 (delayed by life until 2012)without any knowledge of the inherent weaknesses in the 094 syncro gearbox. At the time in 2008, I was imagining zooming up mountain passes with a couple ATV's on a trailer behind my Syncro Westy SVX. Then I learnt about the weaknesses of the 094 and have been listening carefully ever since for odd noises (none yet, thanks to Daryl's rebuild and upgrades) and have not yet towed anything, let alone a pair of quads.

I, for one, am overjoyed that the Samba brain trust has found a solution to these 094 weaknesses and that Paul Guard is now posting a pictorial to boot.

Bravo!
_________________
'86 Syncro Westy SVX
Back to top
View user's profile Send private message Gallery Classifieds Feedback
IdahoDoug
Samba Member


Joined: June 12, 2010
Posts: 8938
Location: N. Idaho
IdahoDoug is offline

PostPosted: Tue Aug 27, 2013 10:40 pm    Post subject: Reply with quote

Nice work! Great thread!
_________________
1987 2WD Wolfsburg Vanagon Weekender "Mango", two fully locked 80 Series LandCruisers. 2016 Subaru Outback boxer. 1990 Audi 90 Quattro 20V with rear locking differential. 1988 Mitsubishi Van w/ dual spinny seats, mid engine and solid axle.1990 burgundy parts Vanagon. 1984 Porsche 944, 1992 Lexus LS400.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
rubbachicken
Samba Member


Joined: October 05, 2004
Posts: 3058
Location: socal
rubbachicken is offline

PostPosted: Tue Aug 27, 2013 10:43 pm    Post subject: Reply with quote

very interesting stuff, don't be shy with the pictures Smile
_________________
lucy our westy

lucy's BIG adventure

meet 'burni'


markswagen {mobile mechanic} san diego area all early VW's cared for.

619 201 0310 or 617 935 4182
Back to top
View user's profile Send private message Send e-mail Facebook Gallery Classifieds Feedback
zeohsix
Samba Member


Joined: August 31, 2012
Posts: 501
Location: United States
zeohsix is offline

PostPosted: Tue Aug 27, 2013 11:17 pm    Post subject: Reply with quote

Paul your showing a photo of the "practice" pinion bearing race. The ones we are going to put into use are much better done! The holes in the practice race look like someone had too many beers and shouldn't be operating machine tools. Pinion race is one of the least fun jobs of the mods other one is finding location of casting webbing to sink a hole into the main case, all the time the drill is going your thinking....did I really get the depth right? I'm going to cry if this bit breaks out the side. It is a pleasure working with you on this project.

Anyone wanting an aluminum case 094 there seem to be some New Old Stock VW trans axels popping up on EBay. Bring a fat wallet! In fact I think a fat wallet is required for anything to do with a Syncro transaxel Razz
Back to top
View user's profile Send private message Gallery Classifieds Feedback
gears
Samba Member


Joined: October 28, 2002
Posts: 3833
Location: Bend, OR; Kailua, HI
gears is offline

PostPosted: Wed Aug 28, 2013 6:07 am    Post subject: Reply with quote

Some day when our pinion bearings are obsolete, I'll be digging for that wonky practice race ;>)

.. and yes, I know the feeling of drilling those long "prayer" holes .. kinda like installing your first set of piston squirters in a new engine case.

The bearing rollers just clear the drilled holes:

Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


.. We'll chamfer all drilled holes, just the same:

Image may have been reduced in size. Click image to view fullscreen.

_________________
aka Pablo, Geary
9.36 @ 146 in '86
'90 Syncro Westy SVX
'87 Syncro GL 2.5

Needed: Stock 14" x 6" Syncro steel rim


Last edited by gears on Wed Aug 28, 2013 6:27 am; edited 2 times in total
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
gears
Samba Member


Joined: October 28, 2002
Posts: 3833
Location: Bend, OR; Kailua, HI
gears is offline

PostPosted: Wed Aug 28, 2013 6:21 am    Post subject: Reply with quote

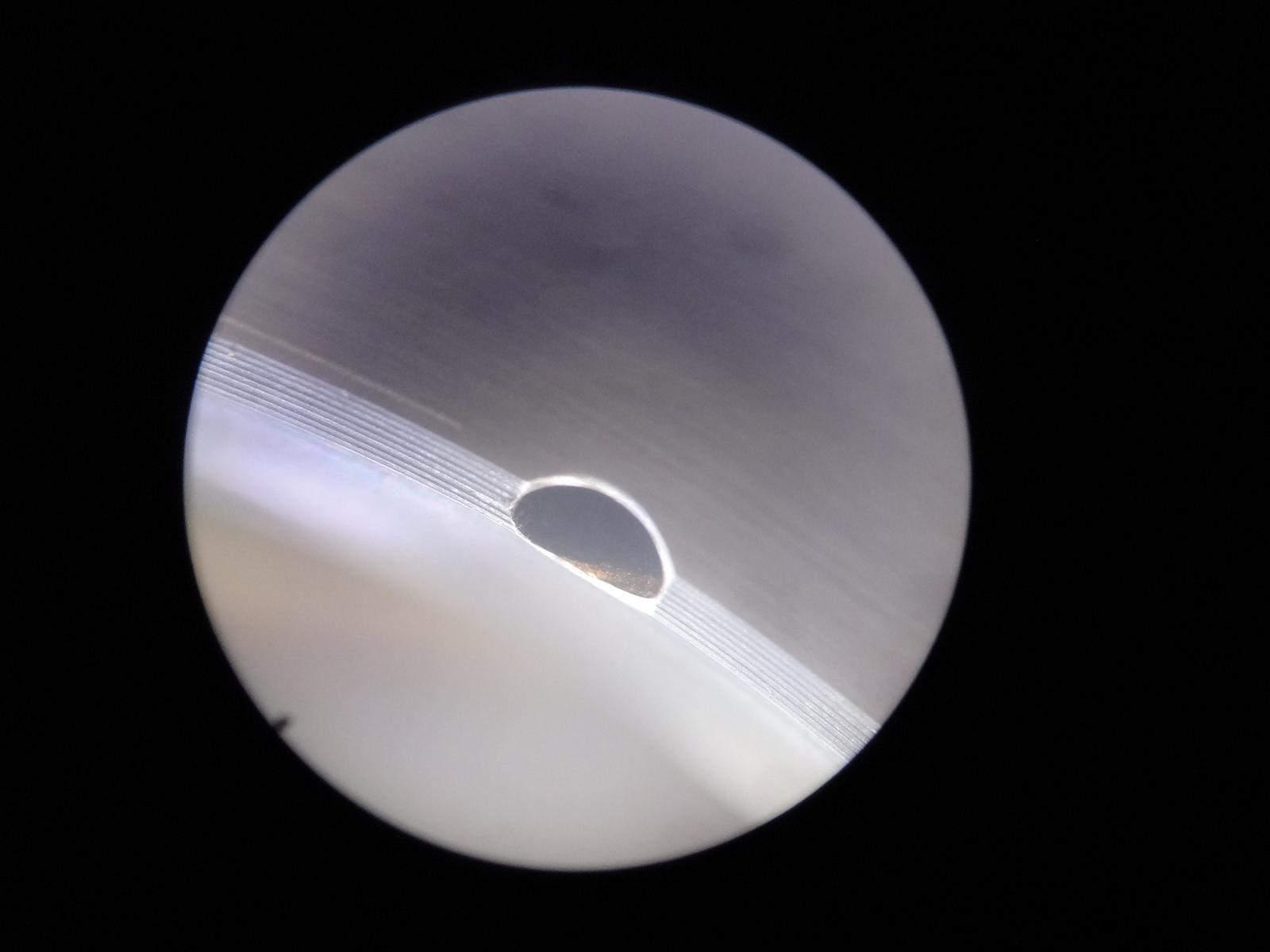

As long as we're peering through the microscope, any imperfections in the bearing's threads are located and removed, thus avoiding the possibility of a seized chromoly pinion nut.

Image may have been reduced in size. Click image to view fullscreen.

_________________
aka Pablo, Geary
9.36 @ 146 in '86
'90 Syncro Westy SVX
'87 Syncro GL 2.5

Needed: Stock 14" x 6" Syncro steel rim
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
gears
Samba Member


Joined: October 28, 2002
Posts: 3833
Location: Bend, OR; Kailua, HI
gears is offline

PostPosted: Wed Aug 28, 2013 10:23 am    Post subject: Reply with quote

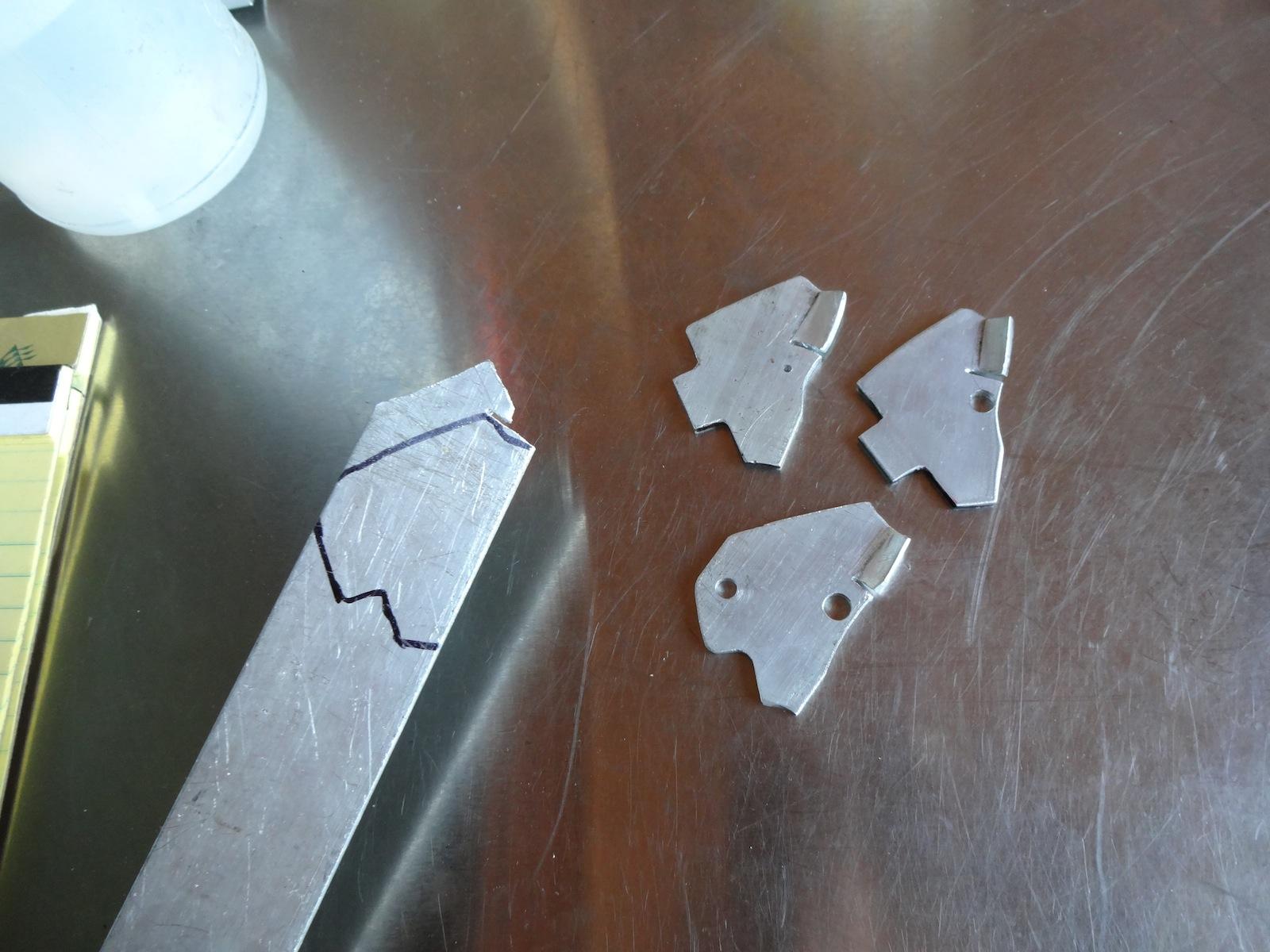

Working on an oil delivery path:
Image may have been reduced in size. Click image to view fullscreen.

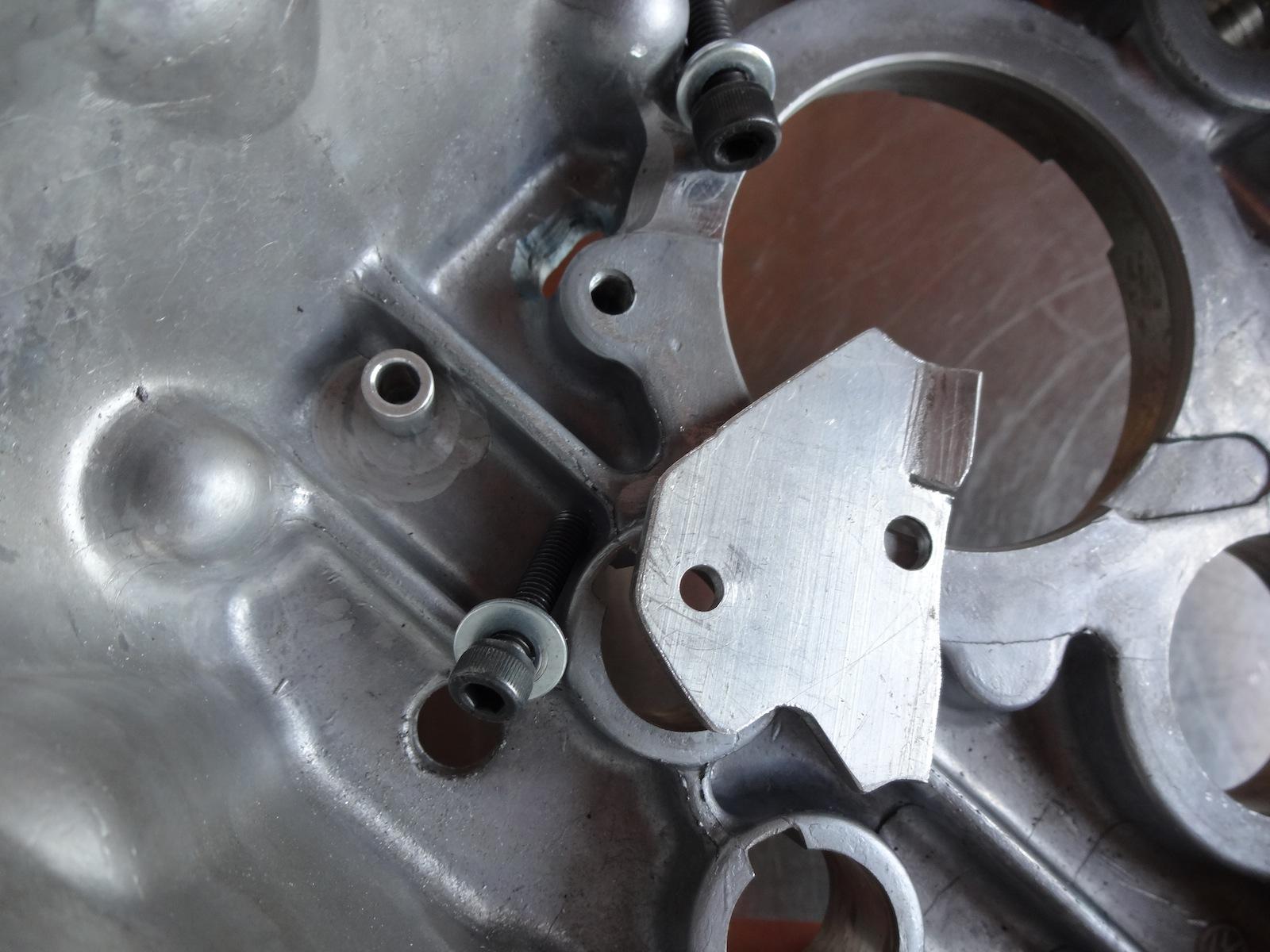

5mm & 6mm mounting holes; Large oblong oiling hole will hopefully deliver oil at a moderate flow rate, without squirting beyond where we need it:

Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.

_________________
aka Pablo, Geary
9.36 @ 146 in '86
'90 Syncro Westy SVX
'87 Syncro GL 2.5

Needed: Stock 14" x 6" Syncro steel rim


Last edited by gears on Wed Sep 25, 2013 12:32 pm; edited 1 time in total
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
gears
Samba Member


Joined: October 28, 2002
Posts: 3833
Location: Bend, OR; Kailua, HI
gears is offline

PostPosted: Wed Aug 28, 2013 10:28 am    Post subject: Reply with quote

Daryl's bearing retainer plate with new oiling hole:

Image may have been reduced in size. Click image to view fullscreen.

_________________
aka Pablo, Geary
9.36 @ 146 in '86
'90 Syncro Westy SVX
'87 Syncro GL 2.5

Needed: Stock 14" x 6" Syncro steel rim
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
zeohsix
Samba Member


Joined: August 31, 2012
Posts: 501
Location: United States
zeohsix is offline

PostPosted: Wed Aug 28, 2013 6:54 pm    Post subject: Reply with quote

400HP transaxle isn't that what you promised with lifetime guarantee Very Happy

Looking GREAT!
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Ian
Samba Member


Joined: August 28, 2002
Posts: 4805
Location: 713
Ian is offline

PostPosted: Wed Aug 28, 2013 7:02 pm    Post subject: Reply with quote

gears wrote:
As long as we're peering through the microscope, any imperfections in the bearing's threads are located and removed, thus avoiding the possibility of a seized chromoly pinion nut.

Image may have been reduced in size. Click image to view fullscreen.


How do you plan to fix this knick?? Weld and recut the thread??
_________________
All your Buses are belong to us.
Love and good roads!
veloandy wrote:
I got the feeling that he and his buddies stay at the shop super-late every night wrenching on project VWs just for the sheer joy of it.

IN LOVING MEMORY OF ROB CRESS 1968-2012
Back to top
View user's profile Send private message AIM Address Facebook Instagram Gallery Classifieds Feedback
shadetreetim
Samba Member


Joined: January 10, 2011
Posts: 1993
Location: Riverside, California
shadetreetim is offline

PostPosted: Wed Aug 28, 2013 7:31 pm    Post subject: Reply with quote

Cool thread to watch. Thanks for letting us follow along.
_________________
Tim Potts

Doing my best every time I drive it to dispel the myth these Vanagons have to be slow!


'89 Vanagon Bluestar/Country Homes 1.8T & .77 4th
'10 Wrangler 3.8 6SP Manual
'12 Ford E350
'12 Tiguan 2.0T 6SP Tiptronic - Lady Shadetree's
Back to top
View user's profile Send private message Gallery Classifieds Feedback
gears
Samba Member


Joined: October 28, 2002
Posts: 3833
Location: Bend, OR; Kailua, HI
gears is offline

PostPosted: Wed Aug 28, 2013 8:56 pm    Post subject: Reply with quote

gears wrote:
.. any imperfections in the bearing's threads are located and removed ..


.. merely means removing high spots with a mini triangular file.
_________________
aka Pablo, Geary
9.36 @ 146 in '86
'90 Syncro Westy SVX
'87 Syncro GL 2.5

Needed: Stock 14" x 6" Syncro steel rim
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
IdahoDoug
Samba Member


Joined: June 12, 2010
Posts: 8938
Location: N. Idaho
IdahoDoug is offline

PostPosted: Wed Aug 28, 2013 9:24 pm    Post subject: Reply with quote

Nice, I like how D's plate supports the main bearing all the way around. With the half moon-ish castings pressing against the plate's forward side, it will provide good support, and the added surface area of the plate will prevent those castings from wearing. I considered putting a thin steel shim on those half moon castings to reduce wear but this is so much better. So, I'm guessing you'll skip the gasket on the plate side, or will you still use it and have to shim at the nose casting to account for the added depth? I skipped it per advice (perhaps yours?) and it came out nice and quiet. Will you be using a thin steel shim in the bottom of the main bearing bore?

Whose oil diverters are going in? I about passed out with anxiety drilling those holes in mine.....

DougM
_________________
1987 2WD Wolfsburg Vanagon Weekender "Mango", two fully locked 80 Series LandCruisers. 2016 Subaru Outback boxer. 1990 Audi 90 Quattro 20V with rear locking differential. 1988 Mitsubishi Van w/ dual spinny seats, mid engine and solid axle.1990 burgundy parts Vanagon. 1984 Porsche 944, 1992 Lexus LS400.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
gears
Samba Member


Joined: October 28, 2002
Posts: 3833
Location: Bend, OR; Kailua, HI
gears is offline

PostPosted: Wed Aug 28, 2013 10:30 pm    Post subject: Reply with quote

The following photos show my arrival at an oil deflector plate design, which will direct cooled oil straight onto the mainshaft ball bearing and 4th gear idler teeth .. the two most overheated parts in the transaxle.

Playing with oil deflector plate shapes:
Image may have been reduced in size. Click image to view fullscreen.


Final choice of deflector plate .. 5mm bolt on left, 6mm on right
Image may have been reduced in size. Click image to view fullscreen.


Torquing plate against 11.6mm tall spacer sleeve. Location of this bolt was critical, avoiding the thinest areas of casting.
Image may have been reduced in size. Click image to view fullscreen.


I like it. Both 4th gear and the mainshaft bearing will receive a generous gush of cooling oil, in the precise area providing the most benefit.
Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Tomorrow we'll take a look at the neat way in which oil is fed to the front of the intermediate housing.
_________________
aka Pablo, Geary
9.36 @ 146 in '86
'90 Syncro Westy SVX
'87 Syncro GL 2.5

Needed: Stock 14" x 6" Syncro steel rim
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
Display posts from previous:
Reply to topic    Forum Index -> Vanagon All times are Mountain Standard Time/Pacific Daylight Savings Time
Page: 1, 2, 3 ... 10, 11, 12  Next
Jump to:
Page 1 of 12


Jump to:
You cannot post new topics in this forum
You cannot reply to topics in this forum
You cannot edit your posts in this forum
You cannot delete your posts in this forum
You cannot vote in polls in this forum

About | Help! | Advertise | Donate | Premium Membership | Privacy/Terms of Use | Contact Us | Site Map
Copyright © 1996-2018, Everett Barnes. All Rights Reserved.
Not affiliated with or sponsored by Volkswagen of America | Forum powered by phpBB
