PostPosted: Sun Dec 29, 2013 12:36 pm    Post subject: 3M Panel Adhesive Dispenser Gun Reply with quote

I do Auto Body work for myself. Not a lot of volume so spending big money for the "proper" up to date tools is not high on my priority list!

I recently decided to utilize 3M's Panel adhesive. It us a two part product that mixes in the nozzle, ingenious actually!

The proper dispensers are expensive!
$100-$400 !

Not laying out that kind of coin!

So........
Gather together ....
1 - one quart quality caulk gun (being a builder I have many for subfloor adhesives)
1 - 1-1/4" dowel
1 - 1" dowel
1 - scrap of 1x2 pine (3/4x1 1/2") about 5" long
2 - 1-1/2" pan head screws
Drill bits and screw driver
Saw
Pencil
Tape measure.

The adhesive piston centers are 1-1/2".

I marked my 1 x 2 scrap about mid point for the centers and drilled a clearance hole for the screws.

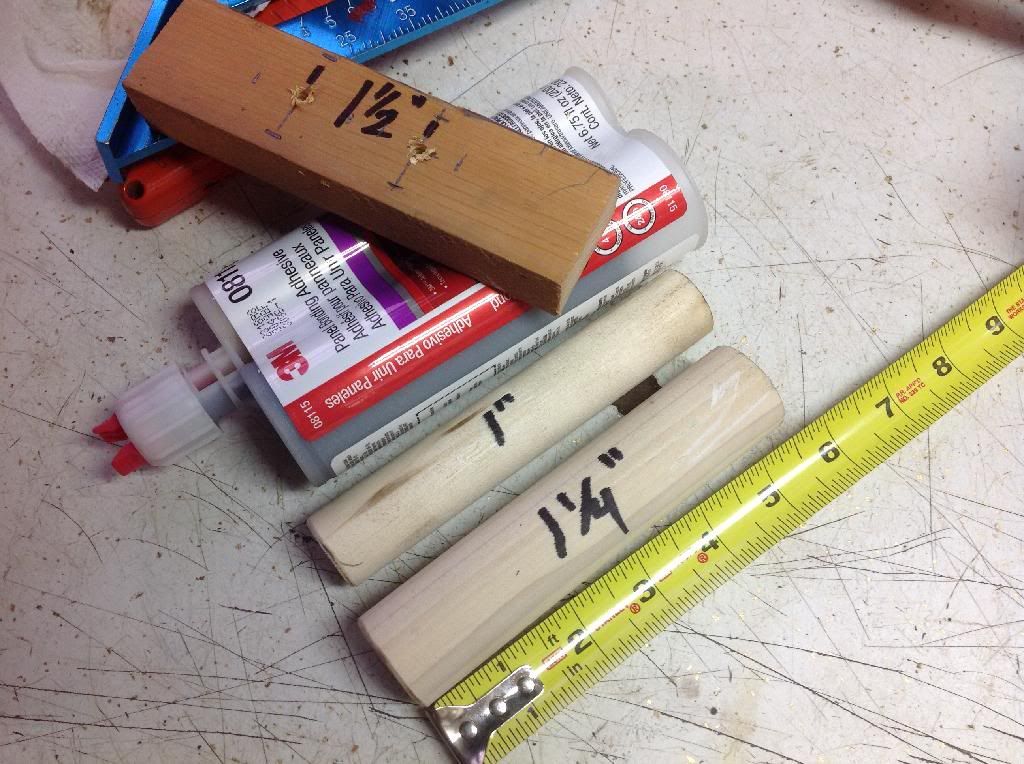

I cut the two dowels to 5-1/2" long being careful to have square ends so they sit flat on the 1 x 2...........

Image may have been reduced in size. Click image to view fullscreen.

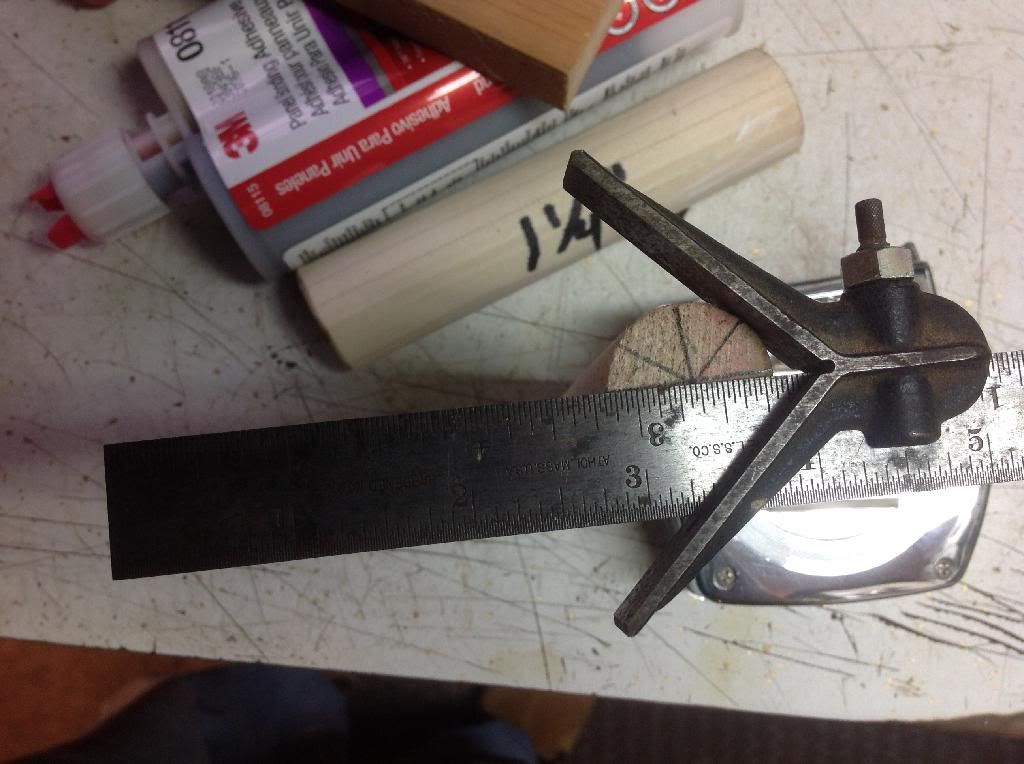

I Then found the center of each dowel (it helps having the right tools! Smile ) .........

Image may have been reduced in size. Click image to view fullscreen.

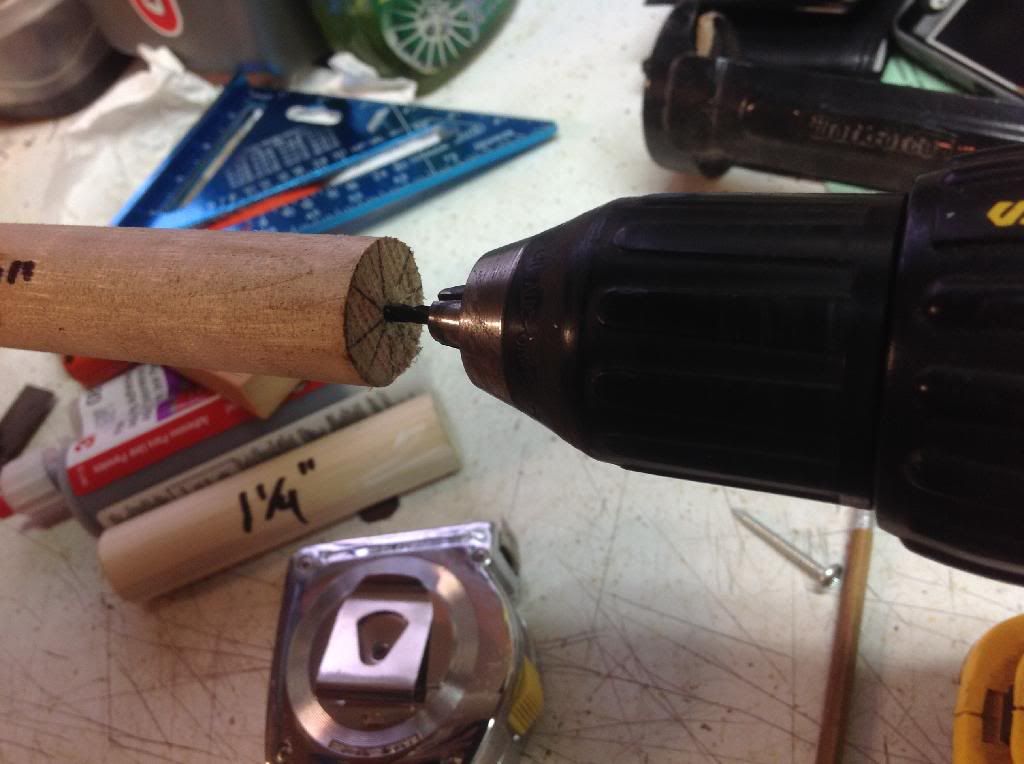

I drilled the dowels with a pilot bit to prevent cracking the dowel when the screw runs in.........

Image may have been reduced in size. Click image to view fullscreen.

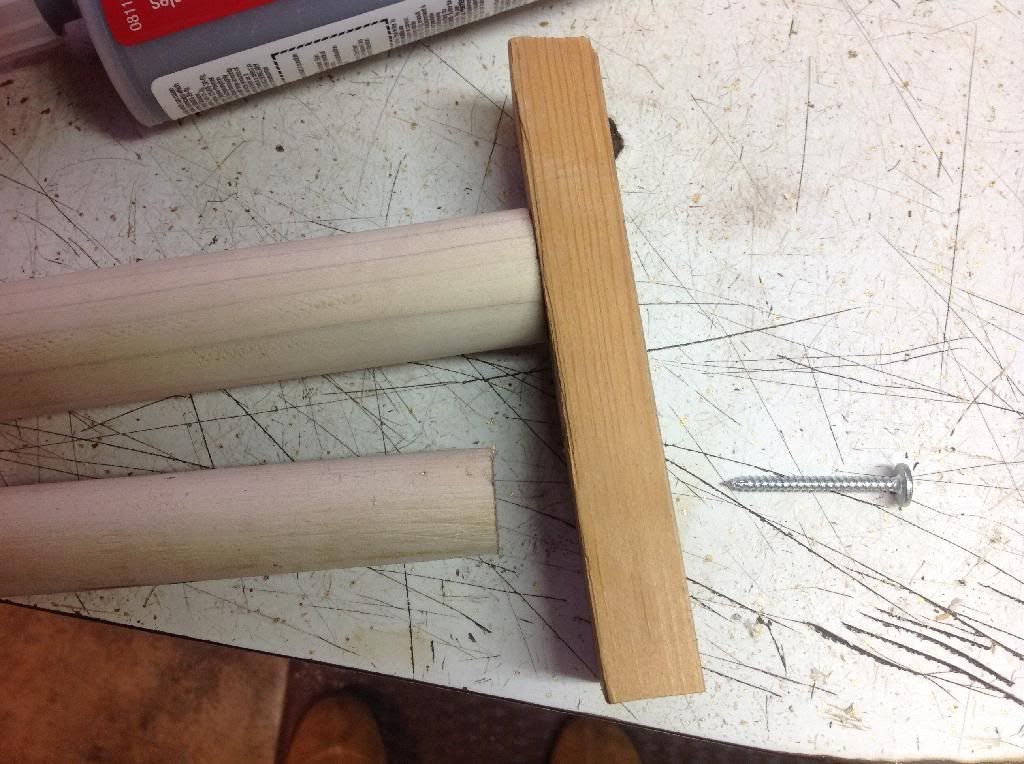

I Assembled the two dowels onto the 1 x 2 ..........
Image may have been reduced in size. Click image to view fullscreen.

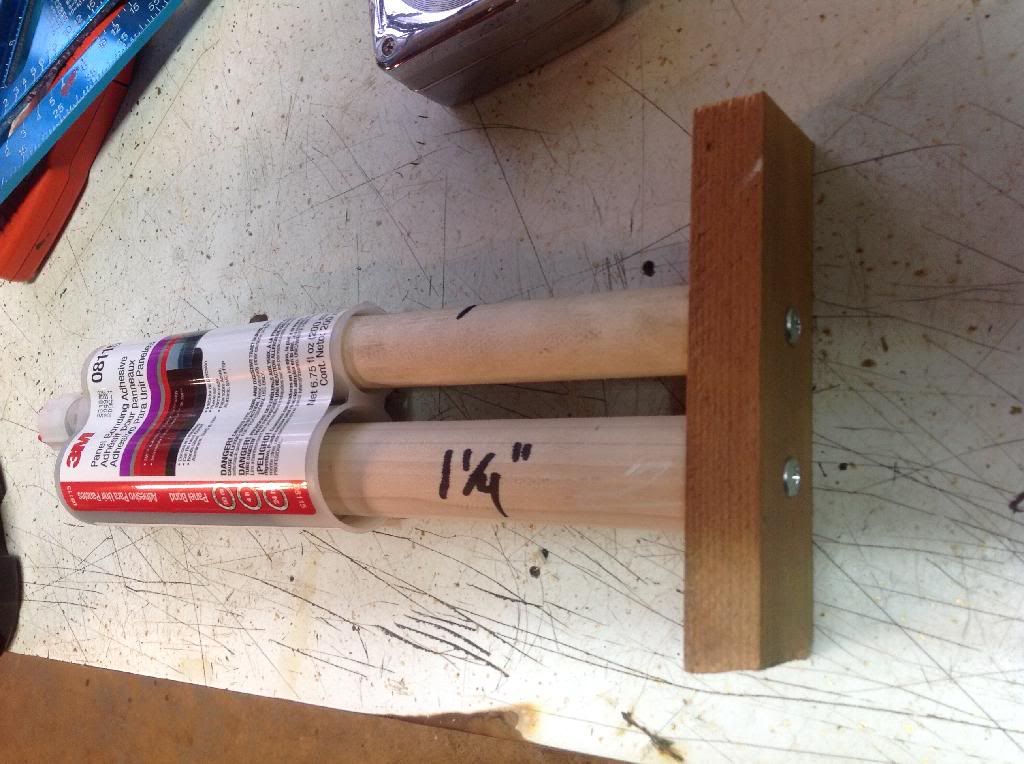

See How nicely it fits?.........
Image may have been reduced in size. Click image to view fullscreen.

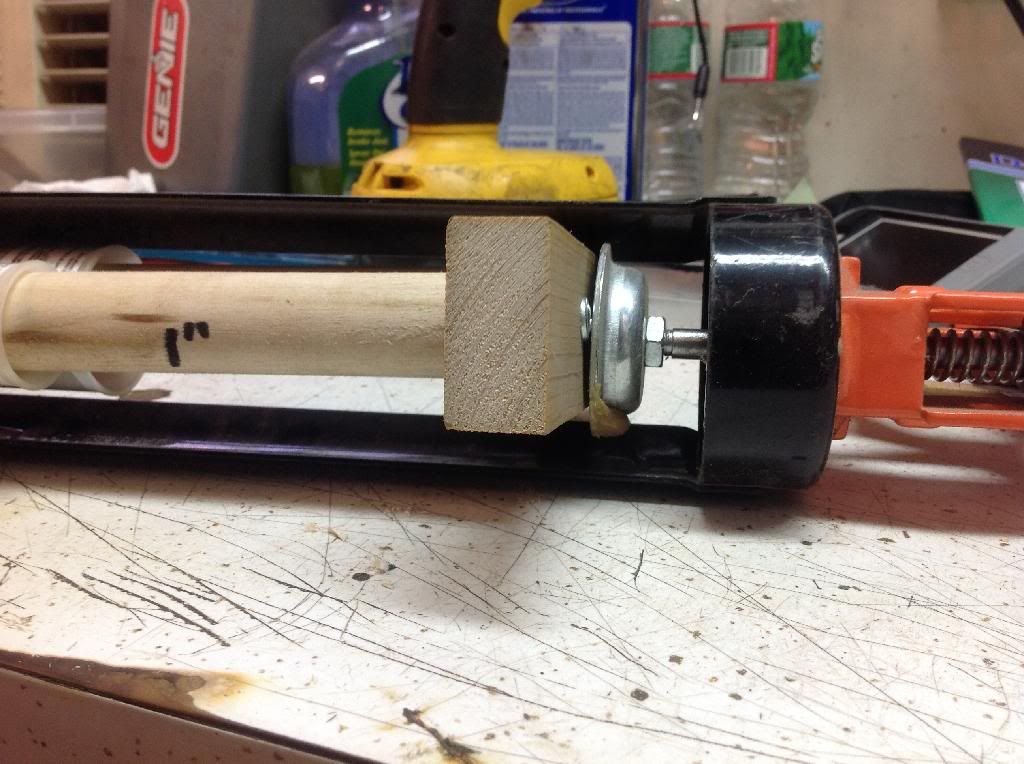

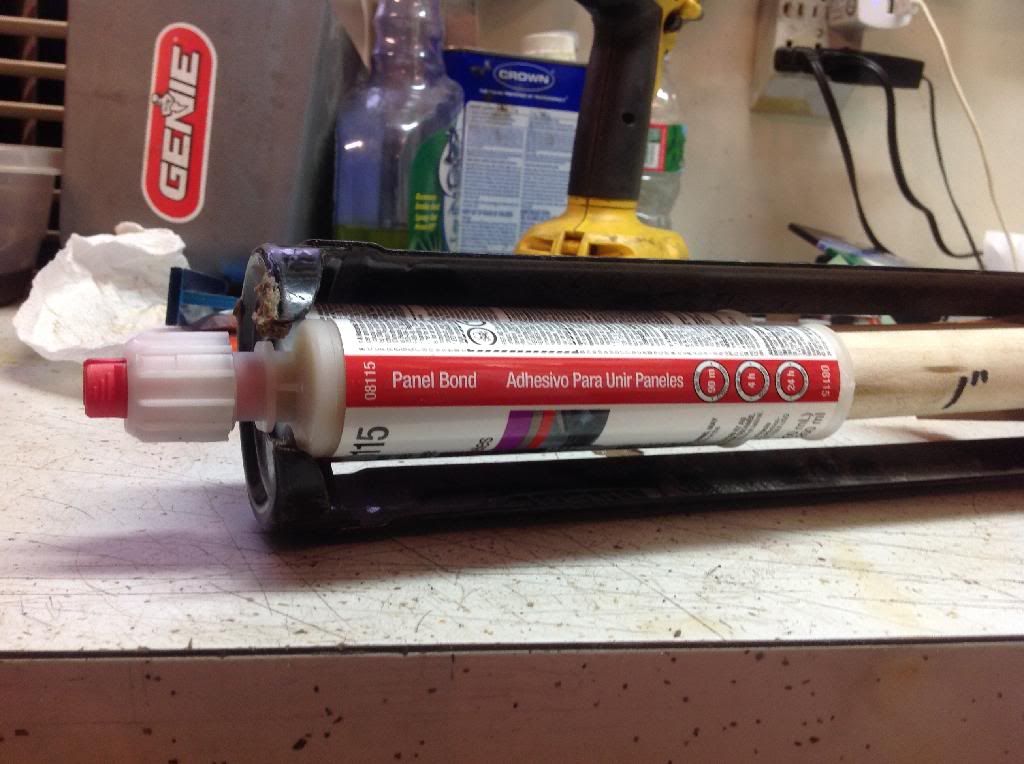

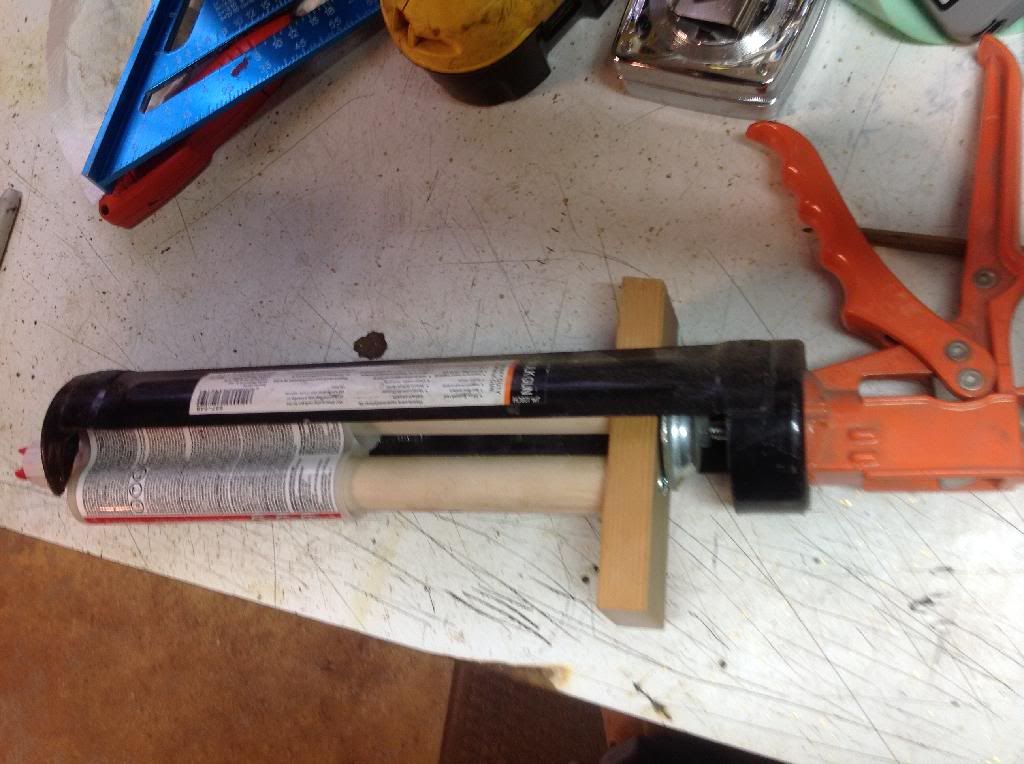

Here are of photos of it in my gun. My gun has a slot in the bottom so I allowed the 1 x 2 to protrude through for balance....... If I had a do it again card, I would recess the screw heads into the 1 x 2.............
Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Dave
_________________
Stop Dead Photo Links how to post photos

Ghia
http://www.thesamba.com/vw/forum/viewtopic.php?t=392473

Vanagon
http://www.thesamba.com/vw/forum/viewtopic.php?p=6315537#6315537

Beetle
https://www.thesamba.com/vw/forum/viewtopic.php?t=482968&highlight=74+super+vert
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
CanadianBug
Samba Member


Joined: September 05, 2008
Posts: 222
Location: South Western Ontario
CanadianBug is offline

PostPosted: Sun Dec 29, 2013 1:30 pm    Post subject: Reply with quote

Good thinking! Smile
_________________
[email protected] wrote:


bodywork isn't a fucking race.
Back to top
View user's profile Send private message Classifieds Feedback
Northof49
Samba Member


Joined: July 22, 2013
Posts: 1759
Location: Winnipeg, Manitoba, Canada
Northof49 is offline

PostPosted: Sun Dec 29, 2013 3:40 pm    Post subject: Reply with quote

Awesome. Does the mixing tip mix the two components sufficiently or do you need to mix it in a separate step before applying it to a joint?
_________________
1958 Karmann Ghia owner
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Der Speed Shack
Samba Member


Joined: April 10, 2010
Posts: 163
Location: Fullerton, Ca 92832
Der Speed Shack is offline

PostPosted: Sun Dec 29, 2013 6:26 pm    Post subject: Reply with quote

while the 3m guns are outragously expensive, the SEM guns are only about $35 and accept all the panel adhesive tubes including 3m. the large cualking guns are still around $20 if you dont have a "bunch lying around", and they're about twice the size, but it does look like it will work.
Back to top
View user's profile Send private message Send e-mail Visit poster's website Facebook Instagram Classifieds Feedback
djkeev Premium Member
Samba Moderator


Joined: September 30, 2007
Posts: 26179
Location: North West New Jersey
djkeev is offline

PostPosted: Sun Dec 29, 2013 10:30 pm    Post subject: Reply with quote

Hmmmmm...... Maybe years ago.
Today's prices.........

$70
http://www.amazon.com/SEM-Paints-SEM70029-Dual-Mix-Applicator/dp/B000BHL1HI

$99
http://www.tcpglobal.com/itemdetail.aspx?itemno=SEM%2071119

Yes, the mixing tip is a highly effective miracle of in tube mixing, quite simple, yet oddly fascinating.
One of those "Why didn't I think about that?" Devices! Crying or Very sad

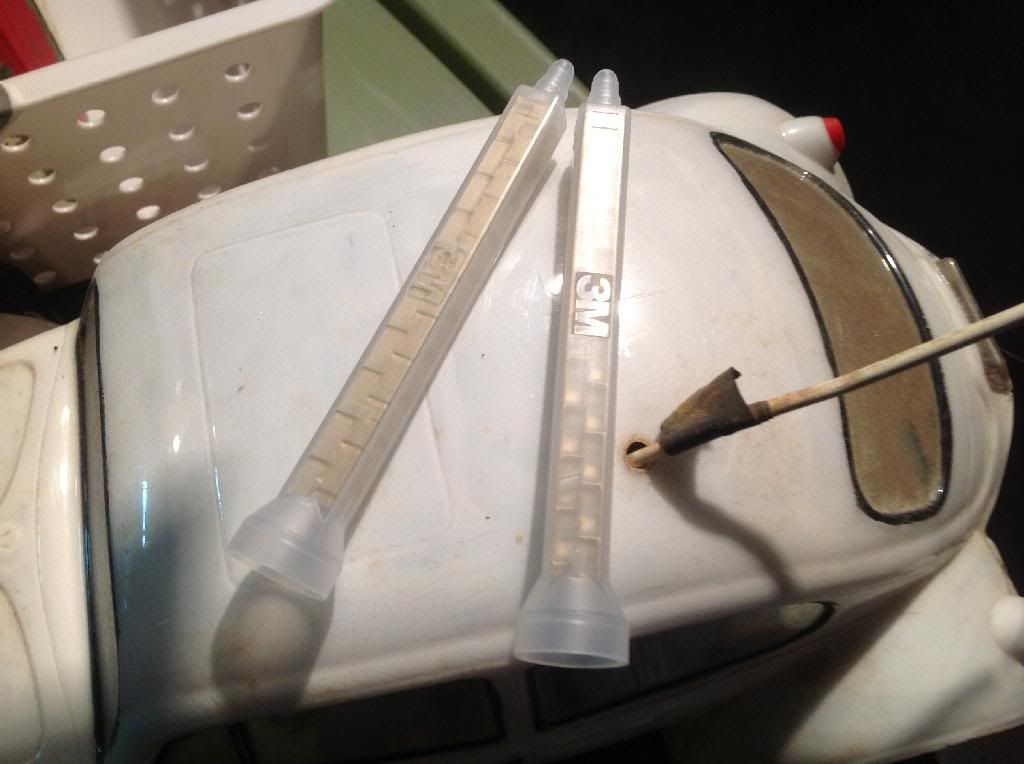

Here is the mixing nozzle. Utilizing a series of baffles inside the two parts are forced to intermix with each other exiting the nozzle properly mixed together! ........
Image may have been reduced in size. Click image to view fullscreen.



Dave
_________________
Stop Dead Photo Links how to post photos

Ghia
http://www.thesamba.com/vw/forum/viewtopic.php?t=392473

Vanagon
http://www.thesamba.com/vw/forum/viewtopic.php?p=6315537#6315537

Beetle
https://www.thesamba.com/vw/forum/viewtopic.php?t=482968&highlight=74+super+vert


Last edited by djkeev on Tue Dec 31, 2013 5:24 pm; edited 1 time in total
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
brystheguy
Samba Member


Joined: October 19, 2011
Posts: 25
Location: Shawnee, KS
brystheguy is offline

PostPosted: Tue Dec 31, 2013 4:34 pm    Post subject: Reply with quote

This is genius! I splurged on the gun a month ago and it worked great. The mixing nozzle was fascinating to watch!
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
[email protected]splus
Samba Peckerhead


Joined: January 01, 2007
Posts: 13264
Location: sticksville, ct.
skills@eurocarsplus is offline

PostPosted: Wed Jan 01, 2014 11:00 am    Post subject: Reply with quote

Confused good thinking, but....

i will have to look at my gun. for some reason, i think the plunges are staggered, so if yours are not you won't get the proper mix.

i will double check to confirm
_________________
gprudenciop wrote:

my reason for switching to subaru is my german car was turning chinese so i said fuck it and went japanese.......
[email protected] wrote:
most VW enthusiasts are stuck in 80's price land.

Jake Raby wrote:
Thanks for the correction. I used to be a nice guy, then I ruined it by exposing myself to the public.

Brian wrote:
Also the fact that people are agreeing with Skills, it's a turn of events for samba history
Back to top
View user's profile Send private message Gallery Classifieds Feedback
djkeev Premium Member
Samba Moderator


Joined: September 30, 2007
Posts: 26179
Location: North West New Jersey
djkeev is offline

PostPosted: Wed Jan 01, 2014 11:51 am    Post subject: Reply with quote

[email protected] wrote:
Confused good thinking, but....

i will have to look at my gun. for some reason, i think the plunges are staggered, so if yours are not you won't get the proper mix.

i will double check to confirm


Hmmmm, I can't imagine why they would be but if they are let me know and by how much.

Easy enough to fix! A little snip here and a tiny snip there..........And I'll change my instructions also.
