 Posted: Tue Jan 13, 2015 8:32 am Post subject: Imaginative |
 |
|
Hi, As I was just having a relaxing weekend, some freaky Idea stuck my brain.
Many syncro owners have felt that the approach angle needs to be a bit more.
My following imagination might give you some sleepless nights.
My imagination,
By shuffling the front end parts we get shorter synco + good approach angle .
What can be done .
1.cut the front which includes front door hinges, Dash & inside cross member.
2.Bring the front end closer to stay rod.
3.cut the wind shield frame just above the H/L where the slope starts.
Make sure the cut frame can carry dash & all it’s attachments.
4.weld the frame to the roof aligned to the centre of the wheel.
5 Same front doors by closing their arches. No need of sliding door.
6. Rotate the steering Box to your requirement.
I will leave it to you now. Your contribution to my imagination can take the idea further.
I think it can be done if someone has the time & a spare body
Here, important mechanical parts are unchanged

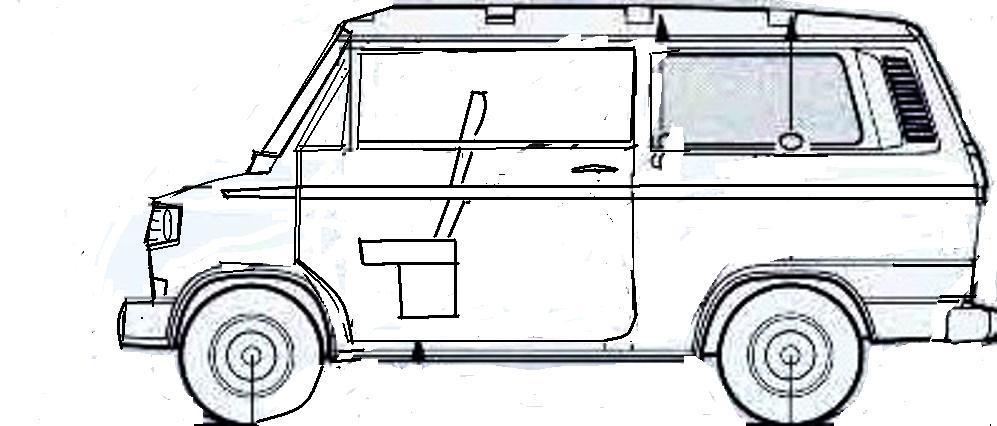

My skill in Microsoft paint(please overlook my not so good drawing).
|
|
| Back to top |
|
 |
djkeev
Samba Moderator
Joined: September 30, 2007
Posts: 32988
Location: Reading Pennsylvania
|
|
| Back to top |
|
|
Syncroincity
Samba Member
Joined: April 15, 2007
Posts: 1557
Location: New York City
|
|
| Back to top |
|
|
Glenn
Mr. 010
Joined: December 25, 2001
Posts: 79493
Location: Sneaking up behind you
|
| Posted: Tue Jan 13, 2015 9:47 am Post subject: |
|
|
| djkeev wrote: |
Oh, this idea is so wrong on so many fronts.
Besides losing the utility of the Van..... You will end up with something akin to this!
Dave |
That's just COLD.
_________________
Glenn
74 Beetle Specs | 74 Beetle Restoration | 2180cc Engine
"You may not get what you pay for, but you always pay for what you get"
Member #1009
#BlueSquare
עַם יִשְׂרָאֵל חַי |
|
| Back to top |
|
|
kamzcab86
Samba Moderator
Joined: July 26, 2008
Posts: 8452
Location: Arizona
|
| Posted: Tue Jan 13, 2015 11:06 am Post subject: Re: Imaginative |
|
|
| narendra.vw wrote: |
| (please overlook my not so good drawing). |
Sorry, I can't.  Your drawing reminds me too much of the G-wagen:
_________________
~Kamz
1986 Cabriolet: www.Cabby-Info.com
 1990 Vanagon Westfalia: Old Blue's Blog
2016 Golf GTI S
"Real knowledge is to know the extent of one's ignorance." - 孔子 |
|
| Back to top |
|
|
BlueGrasser
Samba Member
Joined: August 27, 2014
Posts: 562
Location: Sacramento
|
| Posted: Tue Jan 13, 2015 11:07 am Post subject: |
|
|
I think I just threw up a little in my mouth
The short wheelbase, butt over the front wheels, and panoramic views are what make a Vanagon so brilliant. While I always appreciate imagination, this appears to be a mini-van conversion.
_________________
Going to where the grass is bluer...
1985 Vanagon Westfalia Camper with 1.8T |
|
| Back to top |
|
|
hans j
Samba Member
Joined: May 06, 2006
Posts: 2741
Location: Salt Lake City UT
|
| Posted: Tue Jan 13, 2015 11:18 am Post subject: |
|
|
I like the look of it, reminds me of the Fridolin! http://en.wikipedia.org/wiki/Volkswagen_Type_147_Kleinlieferwagen
But if I were going with a non-forward control vehicle, i would go with a Land Rover 110 or similar. Put a pop top on it and it would be a nice camper. Forward control allows for a lot of space in the same foot print. Larger tires and a little bit of suspension gain some approach/departure angles without any body modification.
_________________
1986 Canadian Syncro Westy TDI - 1989 Syncro Single Cab - 2001 Audi S4 - 1981 VW Caddy ABA - 1980 VW Caddy EV - 1973 VW T-181 |
|
| Back to top |
|
|
PDXWesty
Samba Member
Joined: April 11, 2006
Posts: 6344
Location: Portland OR
|
|
| Back to top |
|
|
danfromsyr
Samba Member
Joined: March 01, 2004
Posts: 15351
Location: Syracuse, NY
|
| Posted: Tue Jan 13, 2015 11:36 am Post subject: |
|
|
nah he's drawn up a Chevy Astro (Safari) van
made in AWD with a 4.3l V6 (2cyl short of a 350 V and can be swapped over to manual 4wd with locker(s)
_________________
| Abscate wrote: |
| These are the reasons we have words like “wanker” |
|
|
| Back to top |
|
|
djkeev
Samba Moderator
Joined: September 30, 2007
Posts: 32988
Location: Reading Pennsylvania
|
|
| Back to top |
|
|
Abscate
Samba Member
Joined: October 05, 2014
Posts: 23855
Location: NYC/Upstate/ROW
|
| Posted: Tue Jan 13, 2015 12:44 pm Post subject: |
|
|
| djkeev wrote: |
Oh, this idea is so wrong on so many fronts.
Besides losing the utility of the Van..... You will end up with something akin to this!
Dave |
Typ Halb
_________________
🇺🇸 🇺🇸 🇺🇸 🇺🇸 🇺🇸 🇺🇸 🇺🇸 🍊 🍊 🍊 |
|
| Back to top |
|
|
danfromsyr
Samba Member
Joined: March 01, 2004
Posts: 15351
Location: Syracuse, NY
|
| Posted: Tue Jan 13, 2015 1:03 pm Post subject: |
|
|
Ford Broncos are awesome and better in red..
| djkeev wrote: |
Oh, this idea is so wrong on so many fronts.
Besides losing the utility of the Van..... You will end up with something akin to this!
Dave |
