| Author |
Message |
OrangeBugger
Samba Member
Joined: August 25, 2013
Posts: 21
Location: USA
|
 Posted: Fri Jul 25, 2014 3:01 pm Post subject: Super super hard to start/ won't start |
 |
|
I have no idea whats wrong but I'm kind of new to vw.. anyways my 73 super got hard to start and would take 2 turns of the key to start about a month ago then one day it took about 7 turns to start so I didn't try to start it since then and I saw the distributor cap and rotor were worn so I bought new ones and put them on today. Now when I tried to start it wouldn't start and made a backfire noise on one attempt. I check the battery and it is good so I have no idea.. any help is appreciated  |
|
| Back to top |
|
 |
Joel
Samba Member
Joined: September 04, 2006
Posts: 11099
Location: NSW Australia
|
| Posted: Fri Jul 25, 2014 3:41 pm Post subject: Re: Super super hard to start/ won't start |
|
|
| OrangeBugger wrote: |
| . Now when I tried to start it wouldn't start and made a backfire noise on one attempt. |
firing order is wrong.
_________________
Quick little bug, you got a Porsche motor in that?
1974 Germanlook 1303 2.5 Suba-Beetle |
|
| Back to top |
|
|
OrangeBugger
Samba Member
Joined: August 25, 2013
Posts: 21
Location: USA
|
| Posted: Fri Jul 25, 2014 3:45 pm Post subject: Re: Super super hard to start/ won't start |
|
|
| Joel wrote: |
| OrangeBugger wrote: |
| . Now when I tried to start it wouldn't start and made a backfire noise on one attempt. |
firing order is wrong. |
So I put the wires in the wrong spots? how would I resolve this now that I don't know where they originally were? |
|
| Back to top |
|
|
mukluk
Samba Member
Joined: October 18, 2012
Posts: 7452
Location: Clyde, TX
|
| Posted: Fri Jul 25, 2014 4:08 pm Post subject: |
|
|

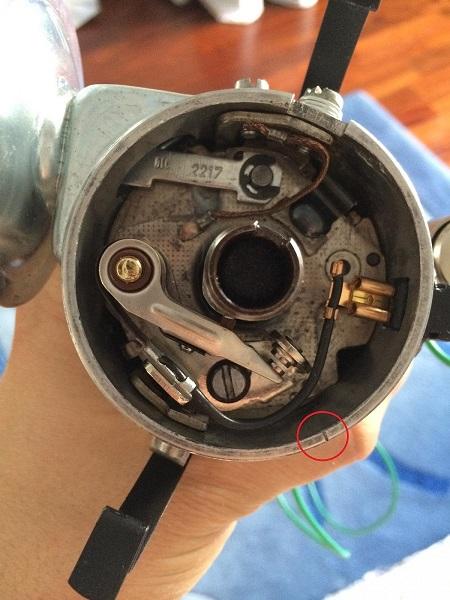

Pull your distributor cap off and look for the notch on the rim, that should be where #1 cylinder fires.

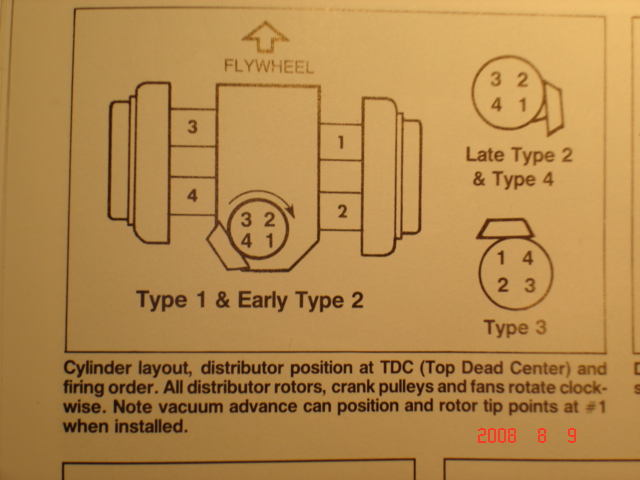

From there the firing order is 1-4-3-2 in a clockwise rotation, see the pic for cylinder locations.
Once you have verified all the spark plug leades are in the correct location on the cap, perform the tuneup procedure outlined here: http://www.vw-resource.com/tune_up.html
_________________
1960 Ragtop w/Semaphores "Inga" |
|
| Back to top |
|
|
Joel
Samba Member
Joined: September 04, 2006
Posts: 11099
Location: NSW Australia
|
| Posted: Fri Jul 25, 2014 4:10 pm Post subject: |
|
|
You just need to find #1 TDC.
I have got a vid showing how to do it on youtube but I cant get the link on my phone.
its very simple though, just line up the TDC mark on the pulley and pop off the rhs rocker cover and make sure both #1valves are shut and not moving.
if they are moving you are on #3 Tdc and need to spin the pulley one full turn.
the rotor is now pointing at #1, just go clockwise, 4 3 2.
_________________
Quick little bug, you got a Porsche motor in that?
1974 Germanlook 1303 2.5 Suba-Beetle |
|
| Back to top |
|
|
OrangeBugger
Samba Member
Joined: August 25, 2013
Posts: 21
Location: USA
|
| Posted: Fri Jul 25, 2014 4:16 pm Post subject: |
|
|
| Thanks folks! |
|
| Back to top |
|
|
Joel
Samba Member
Joined: September 04, 2006
Posts: 11099
Location: NSW Australia
|
| Posted: Fri Jul 25, 2014 4:24 pm Post subject: |
|
|
Mukluk, that diagram only applies to 009s and single port bugs.
Dual port distributors are 90 degrees anti clockwise.
_________________
Quick little bug, you got a Porsche motor in that?
1974 Germanlook 1303 2.5 Suba-Beetle |
|
| Back to top |
|
|
OrangeBugger
Samba Member
Joined: August 25, 2013
Posts: 21
Location: USA
|
| Posted: Fri Jul 25, 2014 4:42 pm Post subject: |
|
|
| Joel wrote: |
You just need to find #1 TDC.
I have got a vid showing how to do it on youtube but I cant get the link on my phone.
its very simple though, just line up the TDC mark on the pulley and pop off the rhs rocker cover and make sure both #1valves are shut and not moving.
if they are moving you are on #3 Tdc and need to spin the pulley one full turn.
the rotor is now pointing at #1, just go clockwise, 4 3 2. |
Is changing the distributor going to help the starting? Or is the problem with the starter or something else? |
|
| Back to top |
|
|
mukluk
Samba Member
Joined: October 18, 2012
Posts: 7452
Location: Clyde, TX
|
| Posted: Fri Jul 25, 2014 5:09 pm Post subject: |
|
|
| Joel wrote: |
Mukluk, that diagram only applies to 009s and single port bugs.
Dual port distributors are 90 degrees anti clockwise. |
The diagram is more so just to visually demonstrate how the plug leades are located in relation to each other and where the cylinders are located so he can trace the leades to verify they go where they should. Regardless of distributor installed, unless his engine has never been rebuilt there is always the possibility the distributor drive may have been clocked incorrectly when installed, hence one of the reasons I referenced to the tuneup procedure (which also details how to verify where TDC is truely located)... the other reason for referencing the tuneup procedure is that it is by far the best thing to perform in the case of any hard start or poor running complaint.
_________________
1960 Ragtop w/Semaphores "Inga" |
|
| Back to top |
|
|
Joel
Samba Member
Joined: September 04, 2006
Posts: 11099
Location: NSW Australia
|
| Posted: Fri Jul 25, 2014 5:56 pm Post subject: |
|
|
| OrangeBugger wrote: |
Is changing the distributor going to help the starting? Or is the problem with the starter or something else? |
If the cap and rotor were badly worn down thaf would have been your hard starting issue.
the reason it wont fire now is you most likely jyst have the leads in the wrong order.
_________________
Quick little bug, you got a Porsche motor in that?
1974 Germanlook 1303 2.5 Suba-Beetle |
|
| Back to top |
|
|
1badride65
Samba Member
Joined: January 08, 2010
Posts: 64
Location: SUISUN CITY,CA
|
| Posted: Fri Jul 25, 2014 9:00 pm Post subject: |
|
|
| You should also check your ignition points in the distributor, they may be burnt or have a ridge on them keeping your engine from starting. Also, check the point gap and make sure they are set at .016''. If they are damaged, they should be replaced. |
|
| Back to top |
|
|
ashman40
Samba Member
Joined: February 16, 2007
Posts: 16598
Location: North Florida, USA
|
| Posted: Fri Jul 25, 2014 9:43 pm Post subject: |
|
|
| Joel wrote: |
You just need to find #1 TDC.
I have got a vid showing how to do it on youtube but I cant get the link on my phone.
its very simple though, just line up the TDC mark on the pulley and pop off the rhs rocker cover and make sure both #1valves are shut and not moving.
if they are moving you are on #3 Tdc and need to spin the pulley one full turn.
the rotor is now pointing at #1, just go clockwise, 4 3 2. |
Here is a vid, maybe not the same one Joel was talking about since this one looks for movement on #3 rockers/valves. When #3 valves are moving #1 valves are closed and not moving. When the crank is at TDC and #1 valves are closed (not moving) then the engine is at TDC at the end of the compression stroke for #1 cylinder and the rotor will be pointing to where #1 plug wire should be installed on distributor cap.
Link
_________________
AshMan40
---------------------------
'67 Beetle #1 {project car that never made it to the road  }
'75 Beetle 1200LS (RHD Japan model) {junked due to frame rot}
'67 Beetle #2 {2019 project car - Wish me luck!} |
|
