PostPosted: Thu Aug 28, 2014 4:57 am    Post subject: Automatic shifter "gap filler" trim piece Reply with quote

I've an Automatic Vanagon. Sadly the shift rod gap cover that surrounds the shift lever and slides forward and back with the lever is long ago broken and gone.

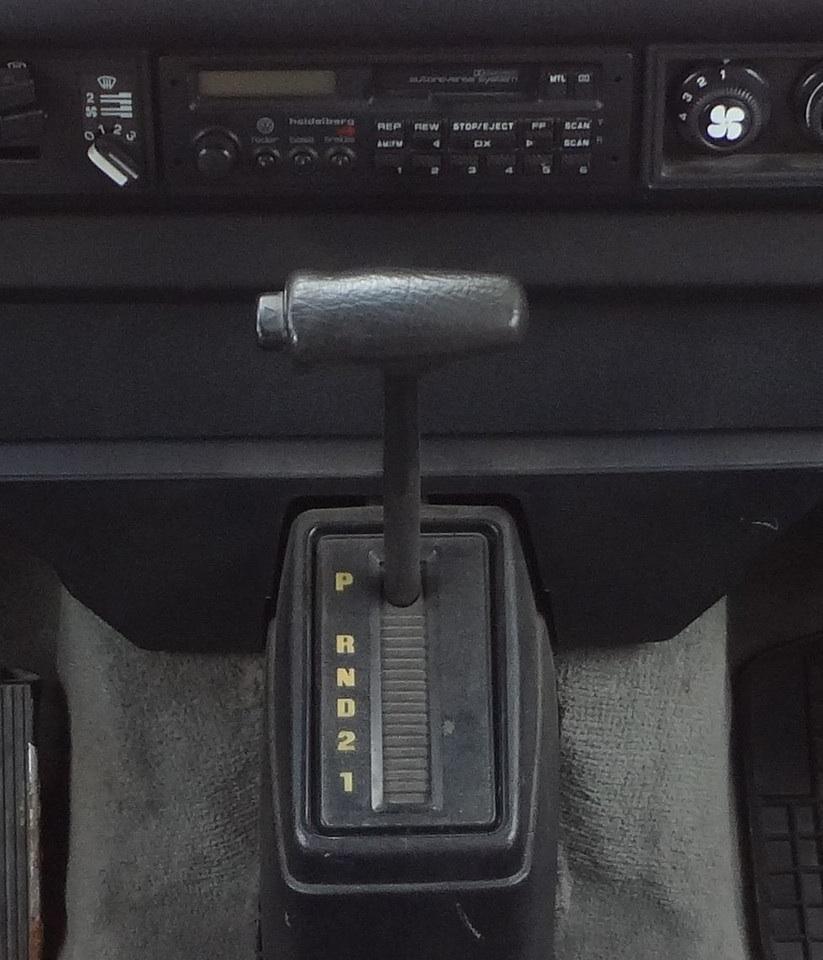

Heres a picture to help....... (Not my van and I wish my shift knob looked half that good! It's an 86 Audi 5000 Turbo knob)
Image may have been reduced in size. Click image to view fullscreen.

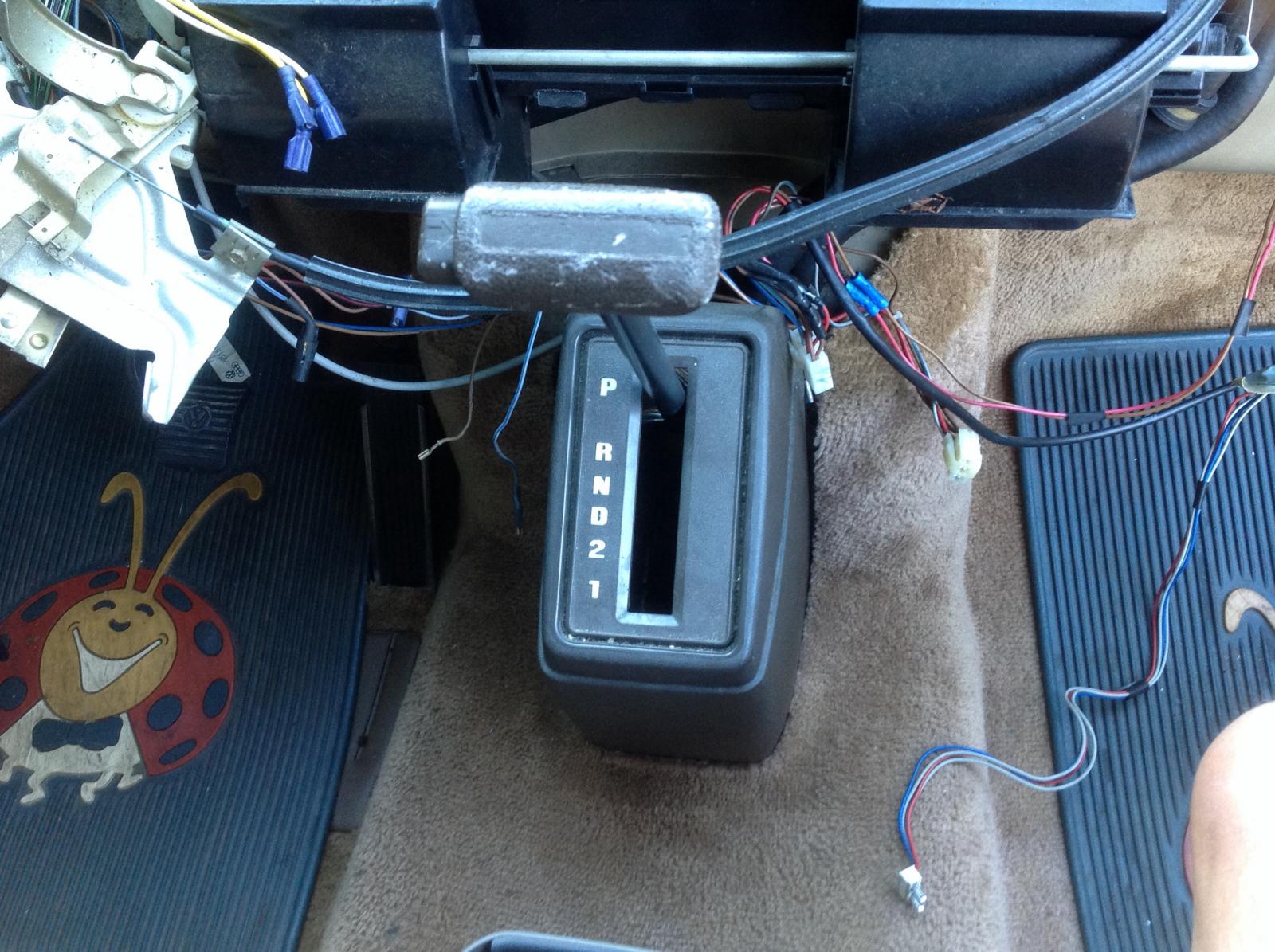

Here's mine without the gap cover....... I think my PO used to teeth on the knob!
Image may have been reduced in size. Click image to view fullscreen.


Is there a source for a replacement piece or ideas for improvising a new one?

Thanks!
Dave
_________________
Stop Dead Photo Links how to post photos

Ghia
http://www.thesamba.com/vw/forum/viewtopic.php?t=392473

Vanagon
http://www.thesamba.com/vw/forum/viewtopic.php?p=6315537#6315537

Beetle
https://www.thesamba.com/vw/forum/viewtopic.php?t=482968&highlight=74+super+vert
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
rcook52459
Samba Member


Joined: August 24, 2011
Posts: 491
Location: PORTLAND ORE
rcook52459 is offline

PostPosted: Thu Aug 28, 2014 5:25 am    Post subject: Reply with quote

I just kept looking in the classifieds here untill I found one.is there any wrecking yards near you.here's a website with wrecking yards all over the country. http://www.car-part.com/
_________________
85 westy tiico conversion.auto trans triumph TR250 1980 Suzuki GS1000l
Back to top
View user's profile Send private message Classifieds Feedback
djkeev
Samba Moderator


Joined: September 30, 2007
Posts: 23645
Location: North West New Jersey
djkeev is offline

PostPosted: Thu Aug 28, 2014 5:28 am    Post subject: Reply with quote

May work...... But spendy! $$'s

Image may have been reduced in size. Click image to view fullscreen.


Dave
_________________
Stop Dead Photo Links how to post photos

Ghia
http://www.thesamba.com/vw/forum/viewtopic.php?t=392473

Vanagon
http://www.thesamba.com/vw/forum/viewtopic.php?p=6315537#6315537

Beetle
https://www.thesamba.com/vw/forum/viewtopic.php?t=482968&highlight=74+super+vert
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
Terry Kay
Banned


Joined: June 22, 2003
Posts: 13331

Terry Kay is offline

PostPosted: Thu Aug 28, 2014 6:25 am    Post subject: Reply with quote

Two places to locate a shift console filler;
Bone yard.
Parts want ads here.

All gone from VW parts for a few years--NLA
_________________
T.K.
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
madspaniard
Samba Member


Joined: August 18, 2008
Posts: 3795
Location: Alameda, CA
madspaniard is offline

PostPosted: Thu Aug 28, 2014 9:18 am    Post subject: Reply with quote

hit the junk yard

http://www.thesamba.com/vw/forum/viewtopic.php?t=579634&highlight=shifter
_________________
1991 Westy auto w/ Peloquin TBD

"The only difference between me and a madman is that I'm not mad” - Salvador Dali
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Christopher Schimke
Samba Member


Joined: August 03, 2005
Posts: 5132
Location: PNW
Christopher Schimke is offline

PostPosted: Thu Aug 28, 2014 9:26 am    Post subject: Reply with quote

Another option would be to replace the original strip with some weatherstrip brushes. You can buy replacement brushes for dirt cheap. Cut to length and glue two strips inside the housing and your golden. McMaster Carr sells a variety of different replacement sizes. You may be able to find these at your local hardware store too.

Image may have been reduced in size. Click image to view fullscreen.

_________________
Christopher

*Custom wheel hardware for Audi/VW, Porsche and Mercedes wheels - Urethane Suspension Bushings*
T3Technique.com or contact me at [email protected]
Back to top
View user's profile Send private message Facebook Gallery Classifieds Feedback
?Waldo?
Samba Member


Joined: February 22, 2006
Posts: 7829
Location: Where?
?Waldo? is offline

PostPosted: Thu Aug 28, 2014 10:04 am    Post subject: Reply with quote

I think 99 cents and 10 minutes later you'd be all set.
Back to top
View user's profile Send private message Classifieds Feedback
kourt
Samba Member


Joined: August 13, 2013
Posts: 1180
Location: Austin, TX
kourt is offline

PostPosted: Thu Aug 28, 2014 10:22 am    Post subject: Reply with quote

nice floor mats
Back to top
View user's profile Send private message Gallery Classifieds Feedback
danfromsyr
Samba Member


Joined: March 01, 2004
Posts: 12215
Location: Syracuse, NY
danfromsyr is offline

PostPosted: Thu Aug 28, 2014 10:47 am    Post subject: Reply with quote

that's not where the Jammin 8-track goes for tunes? Laughing

but you can get creative with plastic cutting board sheets.. or such.

but you can salvage one from any 80's jetta/golf with an AT though those are getting much more rare these days at the yards.
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
djkeev
Samba Moderator


Joined: September 30, 2007
Posts: 23645
Location: North West New Jersey
djkeev is offline

PostPosted: Thu Aug 28, 2014 2:00 pm    Post subject: Reply with quote

kourt wrote:
nice floor mats


Thanks!

I need to get some proper Vanagon carpet mats from SewFine, but right now these old Bug mats do the trick. They are vintage originals from the late 1960's, my girl (now wife of 40 years) got them for my first car, a 1960 Beetle, they've been in almost every car I've owned since then.

Dave
_________________
Stop Dead Photo Links how to post photos

Ghia
http://www.thesamba.com/vw/forum/viewtopic.php?t=392473

Vanagon
http://www.thesamba.com/vw/forum/viewtopic.php?p=6315537#6315537

Beetle
https://www.thesamba.com/vw/forum/viewtopic.php?t=482968&highlight=74+super+vert
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
djkeev
Samba Moderator


Joined: September 30, 2007
Posts: 23645
Location: North West New Jersey
djkeev is offline

PostPosted: Thu Aug 28, 2014 3:00 pm    Post subject: Reply with quote

Foam board, good idea but too flimsy........

Hmmmm....... A simple $2 spiral notebook with a black plastic cover..... Not cardboard.......... Back side of cover is a nice pebble grain..........

If I slice off a 30mm wide strip (just shy of 1 3/16") punch in a 5/8" hole.............

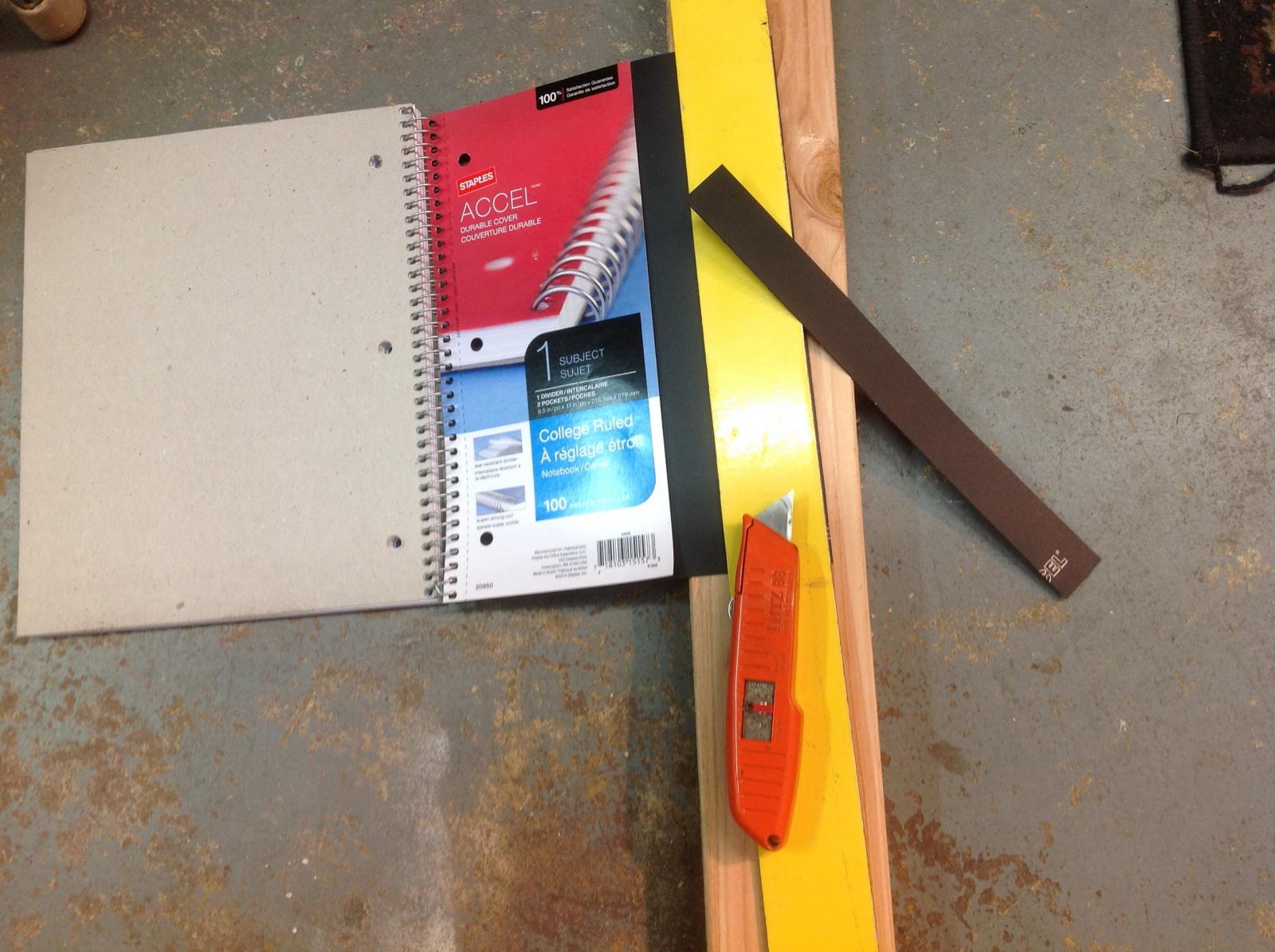

Step one...... Brave the back to school shoppers at Staples and secure a notebook......
Image may have been reduced in size. Click image to view fullscreen.


Step two, cut cover off........
What? You say that Step two is go pick up Pizza?....... Yes Dear........ Wink
_________________
Stop Dead Photo Links how to post photos

Ghia
http://www.thesamba.com/vw/forum/viewtopic.php?t=392473

Vanagon
http://www.thesamba.com/vw/forum/viewtopic.php?p=6315537#6315537

Beetle
https://www.thesamba.com/vw/forum/viewtopic.php?t=482968&highlight=74+super+vert
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
djkeev
Samba Moderator


Joined: September 30, 2007
Posts: 23645
Location: North West New Jersey
djkeev is offline

PostPosted: Fri Aug 29, 2014 9:39 am    Post subject: Reply with quote

Well, the night has gone by, good Pizza, good Wine, a nice fire in the backyard fire pit.

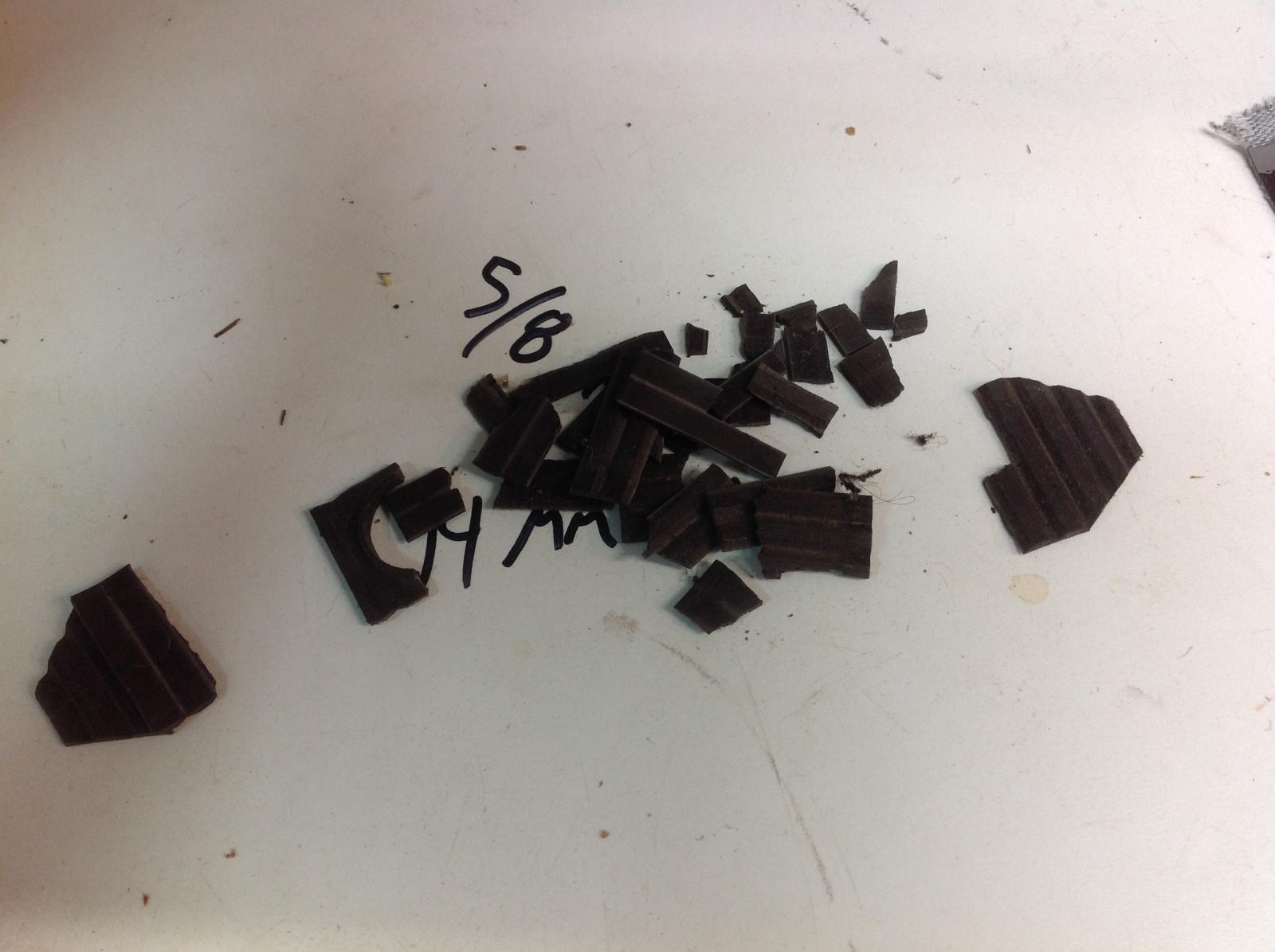

BTW, here is the original cover, it is so brittle that the pieces break when simply touched!
Image may have been reduced in size. Click image to view fullscreen.


I didn't rip off the notebook cover, just sliced off 30mm of it.......
Image may have been reduced in size. Click image to view fullscreen.

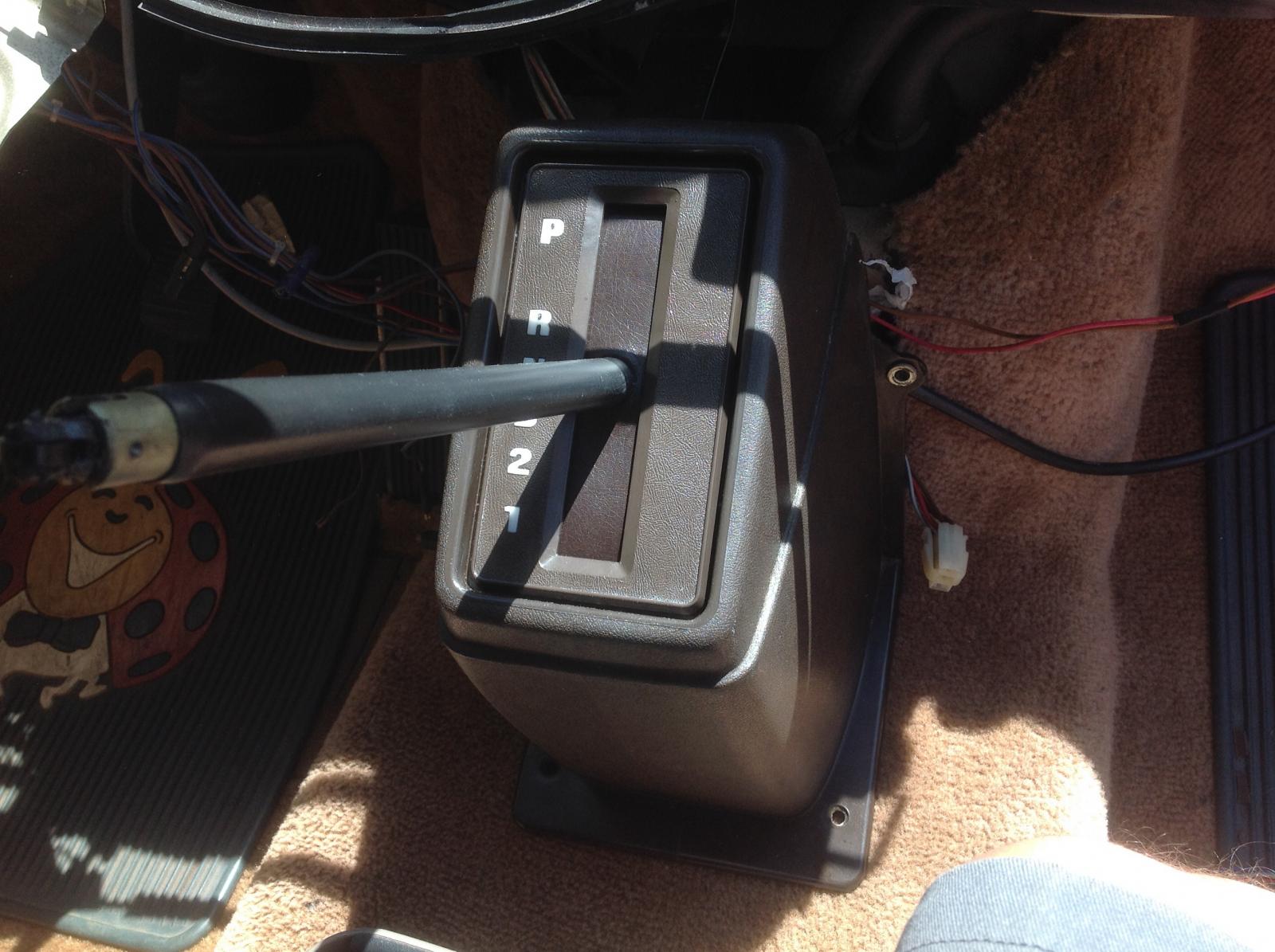

Installed! Pebble side up...........
Image may have been reduced in size. Click image to view fullscreen.


I don't like the Black, it would look better Brown, I've got the Vinyl for my Dash recover project!
A small slice.........
Image may have been reduced in size. Click image to view fullscreen.

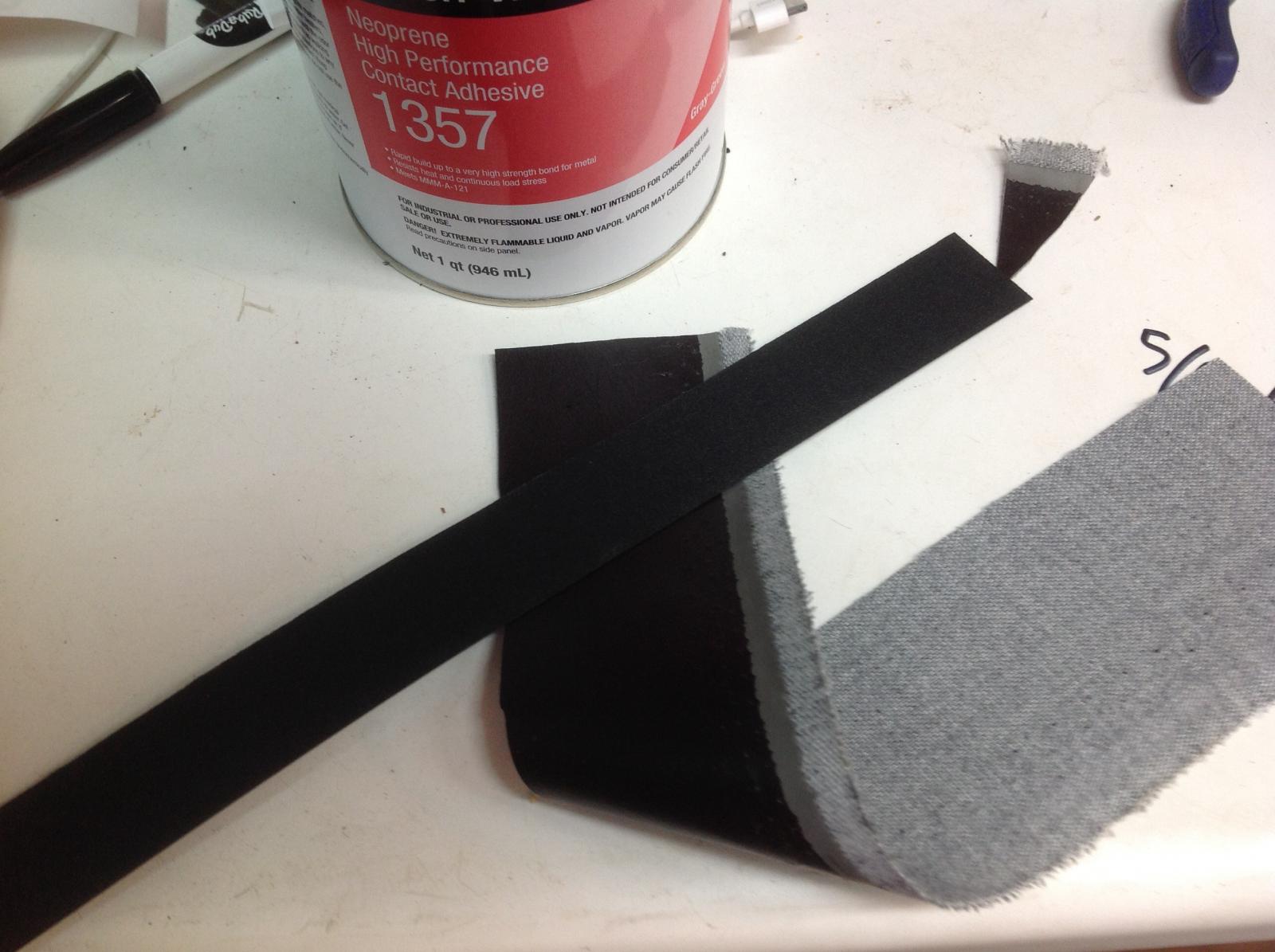

I used my 3m 1357 adhesive and applied the Vinyl to the Notebook cover slice.
I need a 5/8" punch...... I don't have one but I do have a wedge concrete floor anchor that has a 5/8" diameter body!

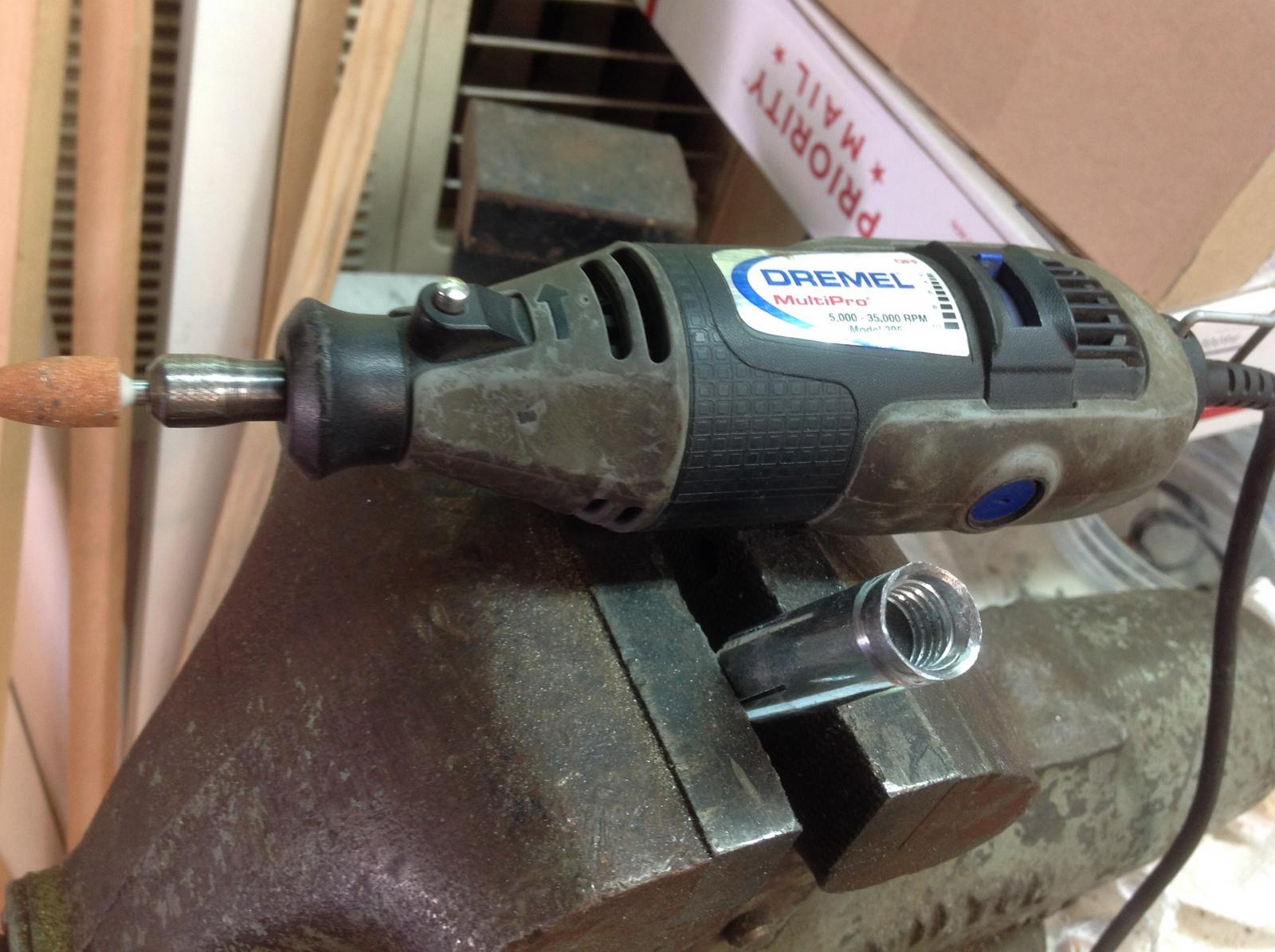

A little grinding with the Dremel making the outer edge razor sharp..........
Image may have been reduced in size. Click image to view fullscreen.


I set the strip on a 2x set my punch over it where I want the hole..... Strike firmly and Viola'!!!! ........ A Brown Shifter Gap Filler!! Smile

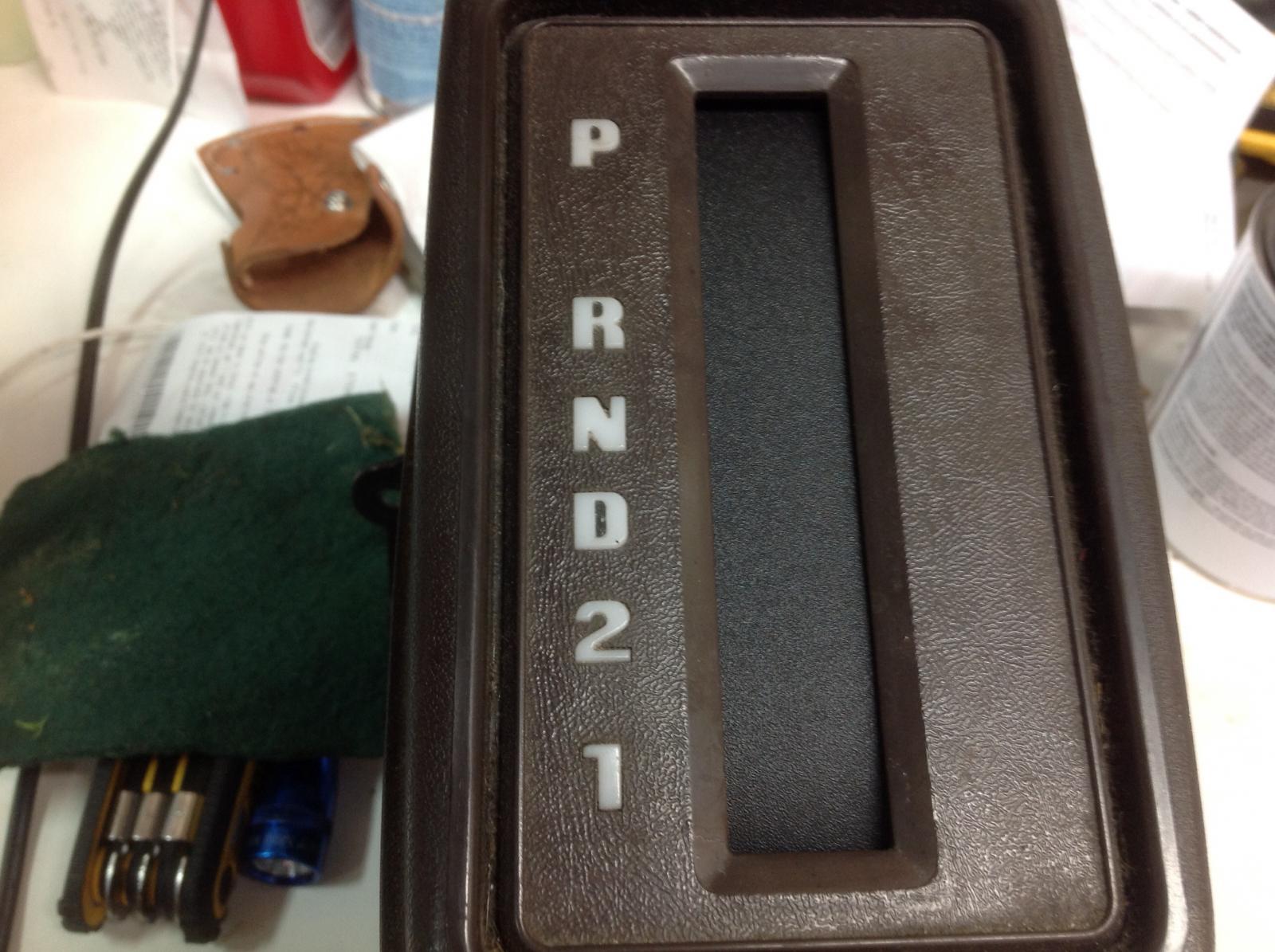

I placed the hole 5 1/4" from one end of the plastic strip that was cut from a binder cover. The vinyl over runs the length by about 1" at each end.

Image may have been reduced in size. Click image to view fullscreen.


Dave
_________________
Stop Dead Photo Links how to post photos

Ghia
http://www.thesamba.com/vw/forum/viewtopic.php?t=392473

Vanagon
http://www.thesamba.com/vw/forum/viewtopic.php?p=6315537#6315537

Beetle
https://www.thesamba.com/vw/forum/viewtopic.php?t=482968&highlight=74+super+vert


Last edited by djkeev on Thu Sep 11, 2014 9:30 am; edited 1 time in total
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
danfromsyr
Samba Member


Joined: March 01, 2004
Posts: 12215
Location: Syracuse, NY
danfromsyr is offline

PostPosted: Fri Aug 29, 2014 10:07 am    Post subject: Reply with quote

Kudos to handiness and creativity.

now you can make 4 more and sell them as improvements over the Oe. units.

Applause
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
kamzcab86
Samba Moderator


Joined: July 26, 2008
Posts: 6521
Location: Arizona
kamzcab86 is offline

PostPosted: Fri Aug 29, 2014 10:08 am    Post subject: Reply with quote

Well done! Applause
_________________
~Kamz Anxious
1986 Cabriolet: www.Cabby-Info.com
Blue Vanagon 1990 Vanagon Westfalia: Old Blue's Blog
2016 Golf GTI S
"I fear the day that technology will surpass our human interaction; the world will have a generation of idiots." ~Albert Einstein
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
rcook52459
Samba Member


Joined: August 24, 2011
Posts: 491
Location: PORTLAND ORE
rcook52459 is offline

PostPosted: Fri Aug 29, 2014 10:47 am    Post subject: Reply with quote

good work
_________________
85 westy tiico conversion.auto trans triumph TR250 1980 Suzuki GS1000l
Back to top
View user's profile Send private message Classifieds Feedback
whafalia
Samba Member


Joined: January 28, 2009
Posts: 614
Location: San Francisco
whafalia is offline

PostPosted: Fri Aug 29, 2014 8:08 pm    Post subject: Reply with quote

I hadn't even realized I had this void in my life, now I can't not see it!
Mr. Keev I just read your resurrection thread and have enjoyed it and several of the sidebars very much. I'm looking forward to finding out how your next attempt at a brown paint match goes. If you wanted to slice off a few more millimeters of plastic and can spare a bit of vinyl I'd send you, heck, enough for 2 or 3 more binders! Laughing
But I have the impression you have better things to do, cheers!
_________________
84 westie 2.178 w/ digijet, AT
Back to top
View user's profile Send private message Gallery Classifieds Feedback
bjrogers86auto
Samba Member


Joined: March 26, 2009
Posts: 1333
Location: Halifax, N.S.
bjrogers86auto is offline

PostPosted: Sat Aug 30, 2014 8:52 am    Post subject: gap filler Reply with quote

That is sweet!

I must have got one of the last in stock because I ordered one for my van in 09 and still havent installed it. When I do does anyone have the solution for the rattle at 50+ mph? It drives me nuts! Smile

Brian
_________________
86 Vanagon GL Westfalia 2.1
18 Nissan Frontier Pro 4X
19 Honda Civic Hatchback

A little rudeness and disrespect can elevate a meaningless interaction to a battle of wills and add drama to an otherwise dull day. Calvin and Hobbes.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
maryloucb
Samba Member


Joined: June 22, 2012
Posts: 204
Location: Colorado
maryloucb is offline

PostPosted: Sat Aug 30, 2014 11:33 am    Post subject: Reply with quote

Ah jeez, I just discovered that there were supposed to be lights in there. Now I have to worry about a gap filler too Shocked ? But seriously, nice work!
Back to top
View user's profile Send private message Gallery Classifieds Feedback
slackin' at work
Samba Member


Joined: May 07, 2003
Posts: 424
Location: Central Virginia
slackin' at work is offline

PostPosted: Sat Sep 05, 2015 6:04 pm    Post subject: Reply with quote

just got this in the mail. works perfect. no modifications needed.

chinese nock-off? yes… cheap? yes.

http://www.ebay.com/itm/281760089501?_trksid=p2057872.m2749.l2649&ssPageName=STRK%3AMEBIDX%3AIT
_________________
`18 Alltrack: IS20, APR goodies.
`85 Westfalia: The Staypuft Marshmallow Van™ 3.3 SVX • subaru 5-speed
`84 J10 (apart of resto)
Back to top
View user's profile Send private message Classifieds Feedback
snowsyncro
Samba Member


Joined: January 11, 2009
Posts: 1474
Location: East Preston, Nova Scotia, Canada
snowsyncro is offline

PostPosted: Sun Sep 06, 2015 4:19 am    Post subject: Re: gap filler Reply with quote

bjrogers86auto wrote:
When I do does anyone have the solution for the rattle at 50+ mph? It drives me nuts! Smile

Brian


Brian, you need to alter the resonant frequency. My fix for this was to hang a large roll of duct tape on the shifter once up to highway speeds. My wife's job was to pick up the roll and replace it, each time it fell off. Then I got fancy, and taped my largest socket near the top of the gearshift stalk. Works great, until you need the socket, then you are back to the first solution.

RonC
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Display posts from previous:
Reply to topic    Forum Index -> Vanagon All times are Mountain Standard Time/Pacific Daylight Savings Time
Page: 1, 2  Next
Page 1 of 2


Jump to:
You cannot post new topics in this forum
You cannot reply to topics in this forum
You cannot edit your posts in this forum
You cannot delete your posts in this forum
You cannot vote in polls in this forum

About | Help! | Advertise | Donate | Premium Membership | Privacy/Terms of Use | Contact Us | Site Map
Copyright © 1996-2018, Everett Barnes. All Rights Reserved.
Not affiliated with or sponsored by Volkswagen of America | Forum powered by phpBB
