PostPosted: Fri Sep 19, 2014 7:35 pm    Post subject: 1965 21 Window Restoration Thread (From old photos) Reply with quote

I have been updating progress on "Funky Truck" a 1959 single cab here on TheSamba. I recently found my stash of old photos for my other project a 1965 21 window. I will start this thread from the oldest photo and post them here as I scan them into my computer.

This is what it looked like in 1994
Image may have been reduced in size. Click image to view fullscreen.


I paid $2,000 for it in this disassembled condition. The previous owner said it was "complete", body work was done and all the parts are in the boxes. It had all new rubber and all I had to do was paint and assemble. Nothing could be further from the truth. I did not know how to put it back together. I had never owned or driven a VW before this one so it sat for a while. There was no internet VW community back then. The middle and rear seats were from a later bay window bus. I learned that early and found the correct ones. I am glad I did. They can be pricey these days. The sad thing is that bay middle seat went to the dump! Shoot me now. Who knew?

Image may have been reduced in size. Click image to view fullscreen.


I started work on this bus in 1994 following the Bentley manual. Good thing it had lots of pictures.

Image may have been reduced in size. Click image to view fullscreen.


This is the engine. The number starts with a zero or an O 317618 Could this be the original engine?
Image may have been reduced in size. Click image to view fullscreen.

Kurt
_________________
"The more I get done the less it looks like I did anything"
1963 Panelvan build "Tyvanosaurus Wrecks"
http://www.thesamba.com/vw/forum/viewtopic.php?p=8351639#8351639
1959 Single Cab Restoration"Funky Truck"
http://www.thesamba.com/vw/forum/viewtopic.php?t=5...highlight=
1965 21 Window Restoration Thread (From old photos)
http://www.thesamba.com/vw/forum/viewtopic.php?t=6...highlight=
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
Stuartzickefoose
Samba Post Whore


Joined: February 07, 2008
Posts: 10350
Location: SoCal for now...
Stuartzickefoose is offline

PostPosted: Fri Sep 19, 2014 9:05 pm    Post subject: Reply with quote

Popcorn
_________________
Stuart Zickefoose

2011 Jetta Sportwagen TDi 6 speed manual

206-841-7324
[email protected]
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
dmuis
Samba Member


Joined: September 01, 2004
Posts: 372
Location: Sunny Alberta, Wild Rose Country.
dmuis is offline

PostPosted: Fri Sep 19, 2014 9:34 pm    Post subject: Re: 1965 21 Window Restoration Thread (From old photos) Reply with quote

glideking wrote:

Image may have been reduced in size. Click image to view fullscreen.


This is the engine. The number starts with a zero or an O 317618 Could this be the original engine?
Image may have been reduced in size. Click image to view fullscreen.

Kurt


That number would put it at a Sept 63 1500.

Looking forward to more "vintage" photos!
Back to top
View user's profile Send private message Gallery Classifieds Feedback
glideking
Samba Member


Joined: February 02, 2013
Posts: 987
Location: California
glideking is offline

PostPosted: Fri Sep 19, 2014 9:54 pm    Post subject: Engine lid and treasure chest hinge mount plate repair Reply with quote

'63 interesting. I thought the "o" put it at '65. The engine is older than the bus then! It should be a 1500 and it does have the rev limiter. I will have to open it up and see what's inside.
Kurt
_________________
"The more I get done the less it looks like I did anything"
1963 Panelvan build "Tyvanosaurus Wrecks"
http://www.thesamba.com/vw/forum/viewtopic.php?p=8351639#8351639
1959 Single Cab Restoration"Funky Truck"
http://www.thesamba.com/vw/forum/viewtopic.php?t=5...highlight=
1965 21 Window Restoration Thread (From old photos)
http://www.thesamba.com/vw/forum/viewtopic.php?t=6...highlight=
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
Brian
Samba Moderator


Joined: May 28, 2012
Posts: 8167
Location: Oceanside
Brian is offline

PostPosted: Fri Sep 19, 2014 10:14 pm    Post subject: Reply with quote

What is the thingy on the carb?
_________________
Wash your hands

'69 Bug
'68 Baja Truck
'71 Bug
'68 Camper

Only losers litter
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
glideking
Samba Member


Joined: February 02, 2013
Posts: 987
Location: California
glideking is offline

PostPosted: Fri Sep 19, 2014 10:51 pm    Post subject: Reply with quote

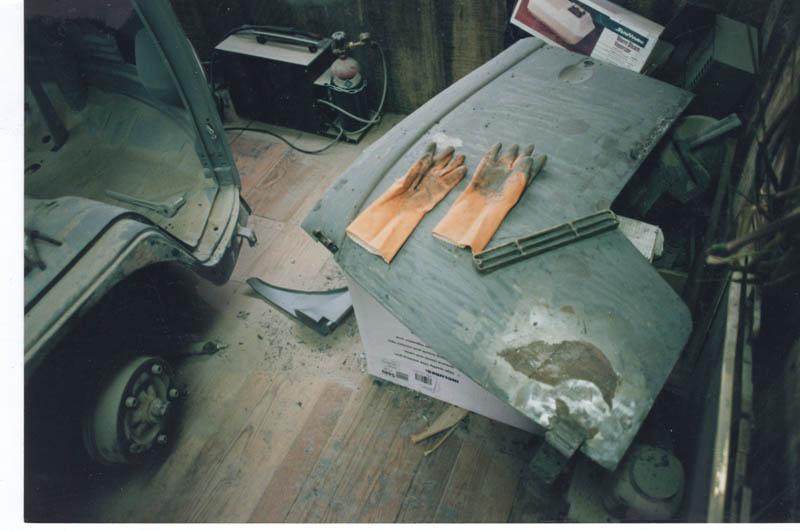

The first problem with my new "ready for paint" bus was the Bondo was applied over paint and was easily plucked off with a screwdriver.
Image may have been reduced in size. Click image to view fullscreen.


Multiple mirror mount holes needed to be welded.
Image may have been reduced in size. Click image to view fullscreen.

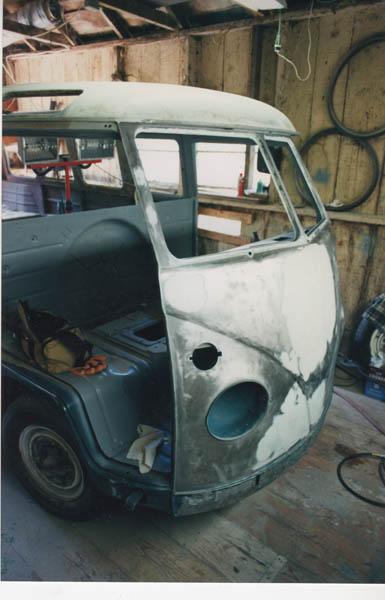

So I sanded off all the paint and learned how to apply "real" body filler directly to clean sanded metal. I pounded out the dents so the filler would be as thin as possible.
Image may have been reduced in size. Click image to view fullscreen.


At some point the front seat bulkhead had been removed with captain's chairs added to make it a walkthrough. Blechhh! So I found a replacement but my M code plate must have gone with it. I wonder what it said? I had to weld in original seat mounts. Back then I had a $150 Sears welder. It was terrible! That is why I learned to love grinding!
Image may have been reduced in size. Click image to view fullscreen.


How nice it was back in those days. You could find a bus with little or no rust.
Image may have been reduced in size. Click image to view fullscreen.

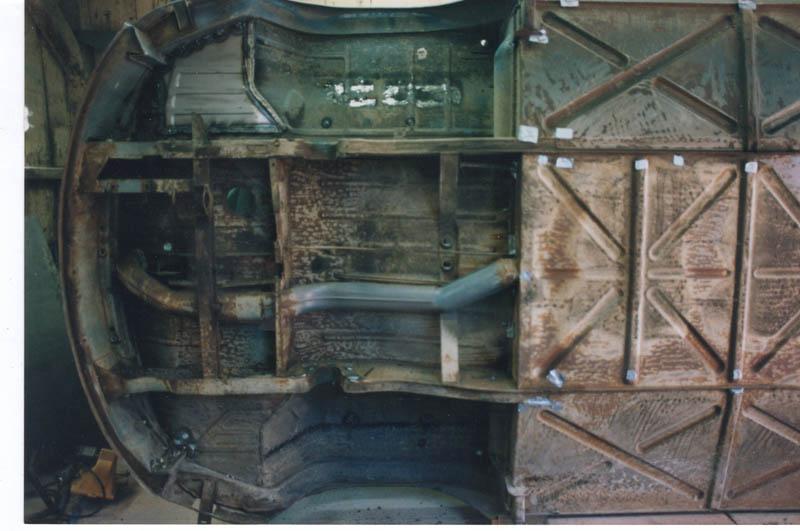

The heater log had been removed so I welded in another. I wonder if the guy who cut up this bus ever thought that someone would be putting it all back together someday?
Image may have been reduced in size. Click image to view fullscreen.


Even though the bus had little or no damage I wanted to try and get that perfectly flat reflection so I glued three sheets sandpaper to a long board.
Image may have been reduced in size. Click image to view fullscreen.

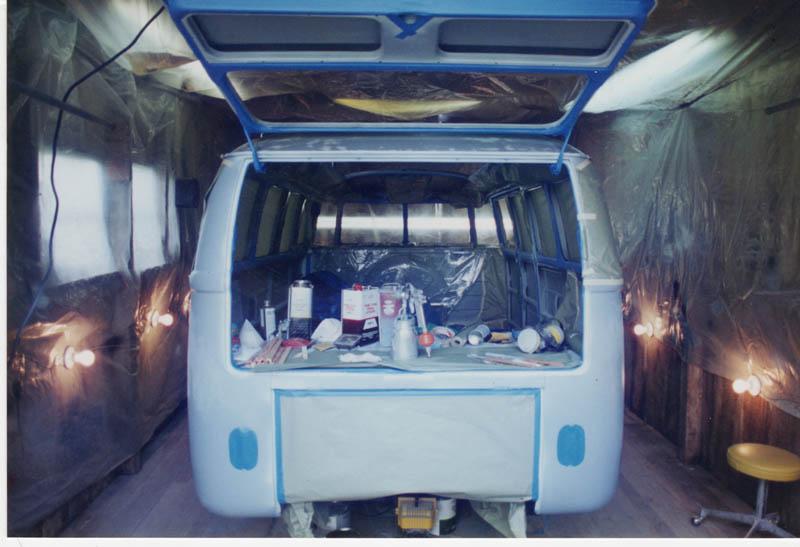

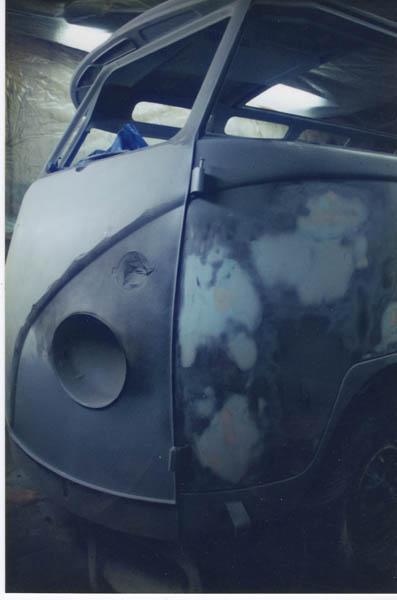

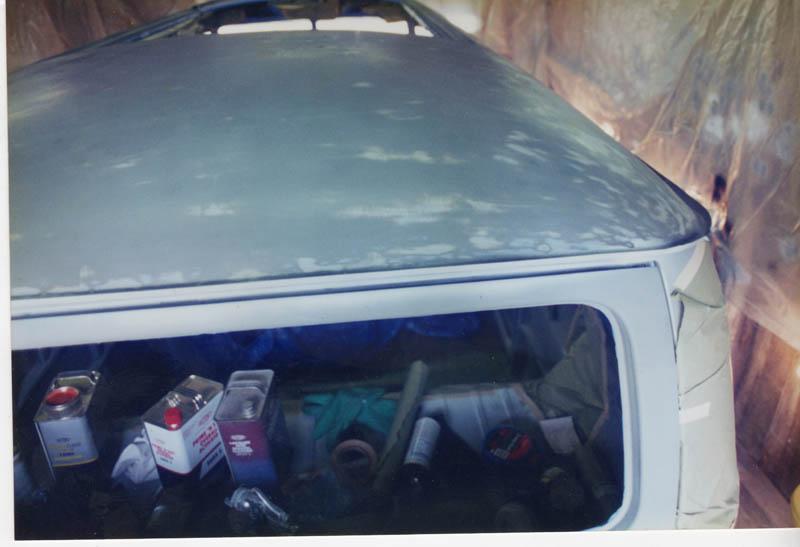

"Guidecoat" is your friend!
Image may have been reduced in size. Click image to view fullscreen.


I was going through a lot of sandpaper that would clog quickly so I did some of it with paint stripper. That proved to be tedious in it's own way. There is that underpowered Sears welder. I put it on the front lawn with a free sign on it.
Image may have been reduced in size. Click image to view fullscreen.


The sun roof had been covered with plywood so I had a few holes to weld up.
Image may have been reduced in size. Click image to view fullscreen.

Thanks for looking at my old photos with me. More to come.
Kurt
_________________
"The more I get done the less it looks like I did anything"
1963 Panelvan build "Tyvanosaurus Wrecks"
http://www.thesamba.com/vw/forum/viewtopic.php?p=8351639#8351639
1959 Single Cab Restoration"Funky Truck"
http://www.thesamba.com/vw/forum/viewtopic.php?t=5...highlight=
1965 21 Window Restoration Thread (From old photos)
http://www.thesamba.com/vw/forum/viewtopic.php?t=6...highlight=
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
glideking
Samba Member


Joined: February 02, 2013
Posts: 987
Location: California
glideking is offline

PostPosted: Fri Sep 19, 2014 10:59 pm    Post subject: Carb thingy Reply with quote

Carb has a lot of thingies on it. The electric choke? The rev limiter? Buses had them for a few years. I will keep them both.



Link

_________________
"The more I get done the less it looks like I did anything"
1963 Panelvan build "Tyvanosaurus Wrecks"
http://www.thesamba.com/vw/forum/viewtopic.php?p=8351639#8351639
1959 Single Cab Restoration"Funky Truck"
http://www.thesamba.com/vw/forum/viewtopic.php?t=5...highlight=
1965 21 Window Restoration Thread (From old photos)
http://www.thesamba.com/vw/forum/viewtopic.php?t=6...highlight=
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
mandraks
Samba Member


Joined: November 28, 2004
Posts: 5731
Location: Lawrenceville, Ga
mandraks is offline

PostPosted: Sat Sep 20, 2014 9:23 am    Post subject: Re: Carb thingy Reply with quote

glideking wrote:
Carb has a lot of thingies on it. The electric choke? The rev limiter? Buses had them for a few years. I will keep them both.



Link


i used to driver a 1500 with the governor on it, never occurred to me to pull the wires off and peak inside. Thank you for posting.

ever run the distributor rev limiter?
_________________
regards

Uli

----------------------------------------
'53 3-Fold Oval, L35 Metallic Blue, looking for a narrow hatch panel
Back to top
View user's profile Send private message Gallery Classifieds Feedback
glideking
Samba Member


Joined: February 02, 2013
Posts: 987
Location: California
glideking is offline

PostPosted: Sun Sep 21, 2014 10:48 am    Post subject: Reply with quote

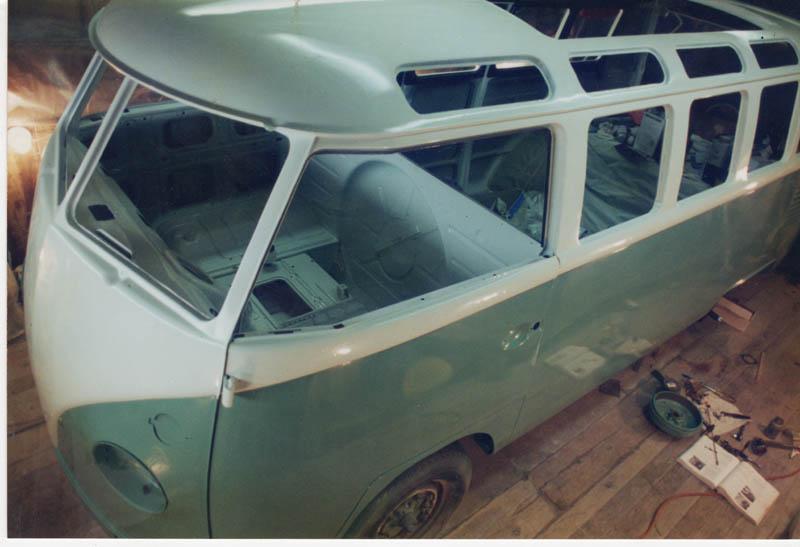

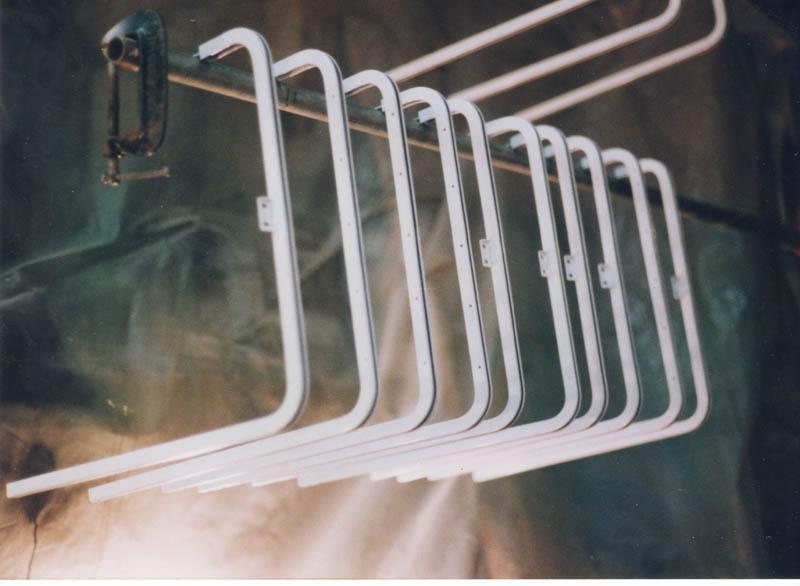

My shop became covered with VW parts trying to figure out how it all went back together. There is that bay middle and rear seat that I wish I did not throw away.
Image may have been reduced in size. Click image to view fullscreen.

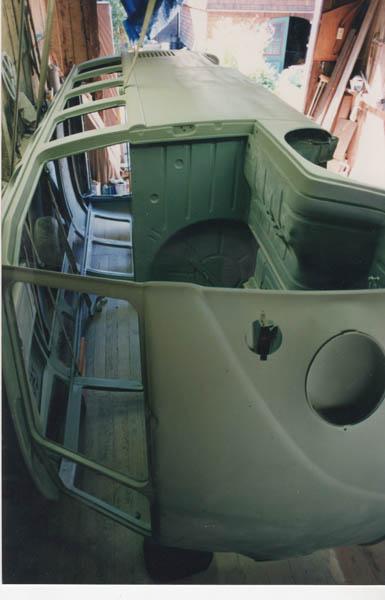

I felt so good about the prep and body work I felt the bottom needed my attention too. The bus was so light being stripped down like this it was easy to just push it sideways. The sand on the floor made it easy to slide. I figured the jackpoints would hold it up on it's side if I put a block of wood under them. I used straps through the skylight windows to the rafters of the garage and tipped it over. The garage was too small so I slid the bus sideways on the sandy floor multiple times until it was all the way over. I did not block the top. I just left it hanging from the straps hovering over the floor.
Image may have been reduced in size. Click image to view fullscreen.

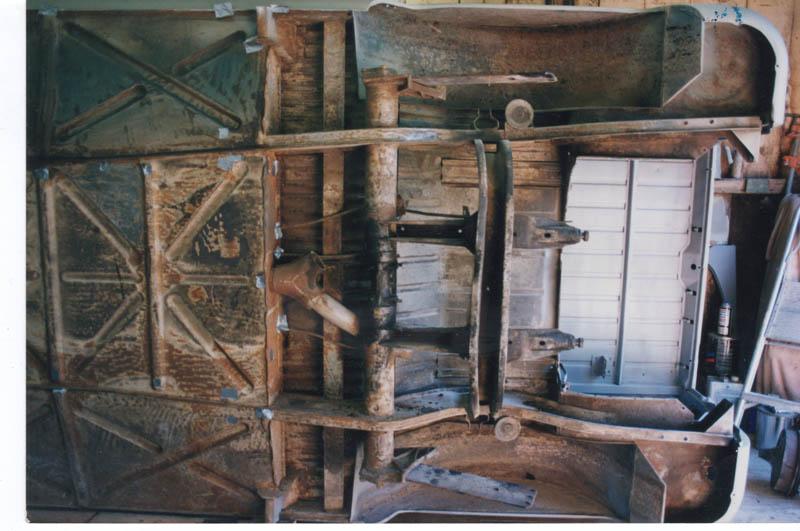

After the bus was over I removed the front and rear suspensions. As you can see this bus started in very good condition.
Image may have been reduced in size. Click image to view fullscreen.


The only rust I had to repair was the passenger floor. I covered holes with tape to minimize how much sand got inside.
Image may have been reduced in size. Click image to view fullscreen.

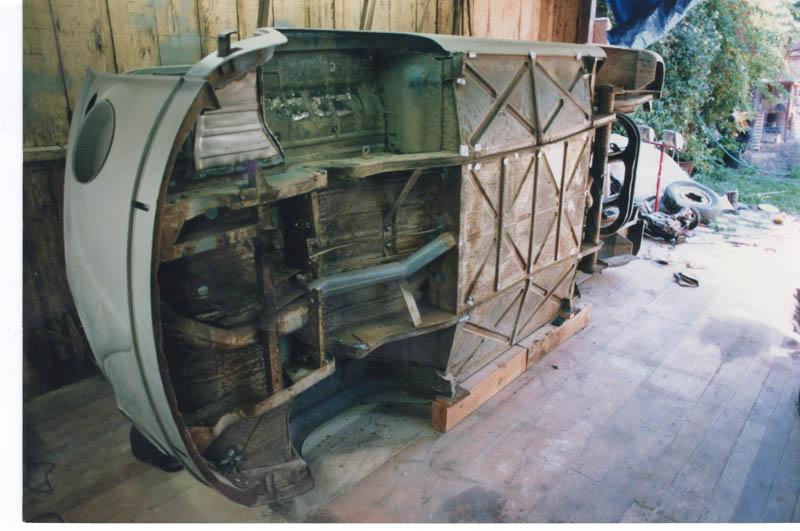

Here you can see the blocks of wood supporting the jackpoints.
Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Sandblasted to bare metal.
Image may have been reduced in size. Click image to view fullscreen.


Urethane primer, paint and clear coat.
Image may have been reduced in size. Click image to view fullscreen.


I did not know then that the bottom should be gray. Forgive me.
Image may have been reduced in size. Click image to view fullscreen.

More to come...
Kurt
_________________
"The more I get done the less it looks like I did anything"
1963 Panelvan build "Tyvanosaurus Wrecks"
http://www.thesamba.com/vw/forum/viewtopic.php?p=8351639#8351639
1959 Single Cab Restoration"Funky Truck"
http://www.thesamba.com/vw/forum/viewtopic.php?t=5...highlight=
1965 21 Window Restoration Thread (From old photos)
http://www.thesamba.com/vw/forum/viewtopic.php?t=6...highlight=
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
BDSBSS23
Samba Member


Joined: January 03, 2008
Posts: 1817
Location: Utah
BDSBSS23 is offline

PostPosted: Sun Sep 21, 2014 11:47 am    Post subject: Reply with quote

Sweet 21 window. If only if I knew about buses years ago I would have found some in great shape like yours. Keep it up.
_________________
58 beetle AKA Black Beauty http://www.thesamba.com/vw/forum/viewtopic.php?t=496780&highlight=black+beauty
65 micro bus (project)
http://www.thesamba.com/vw/forum/viewtopic.php?t=522611&highlight=std
Pillar repair with 65 bus
http://www.thesamba.com/vw/forum/viewtopic.php?t=530360
Back to top
View user's profile Send private message Gallery Classifieds Feedback
glideking
Samba Member


Joined: February 02, 2013
Posts: 987
Location: California
glideking is offline

PostPosted: Tue Sep 23, 2014 10:02 am    Post subject: Reply with quote

The old photos are numbered on the back so I must have cleaned up the front beam next.
Image may have been reduced in size. Click image to view fullscreen.

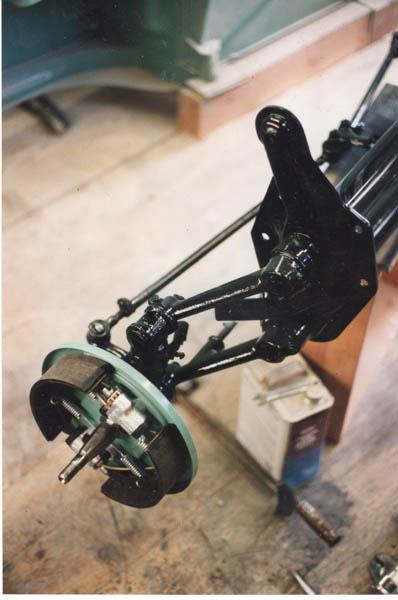

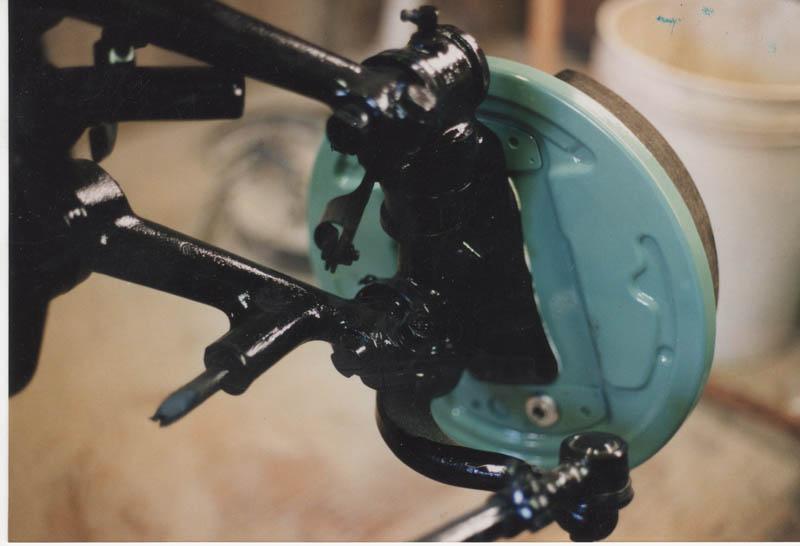

Turquoise brake drums? What was I thinking?
Image may have been reduced in size. Click image to view fullscreen.


All new brake components.
Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


My woodworking bench. Brings back memories. I rearranged the lock wafers so one key would open everything.
Image may have been reduced in size. Click image to view fullscreen.

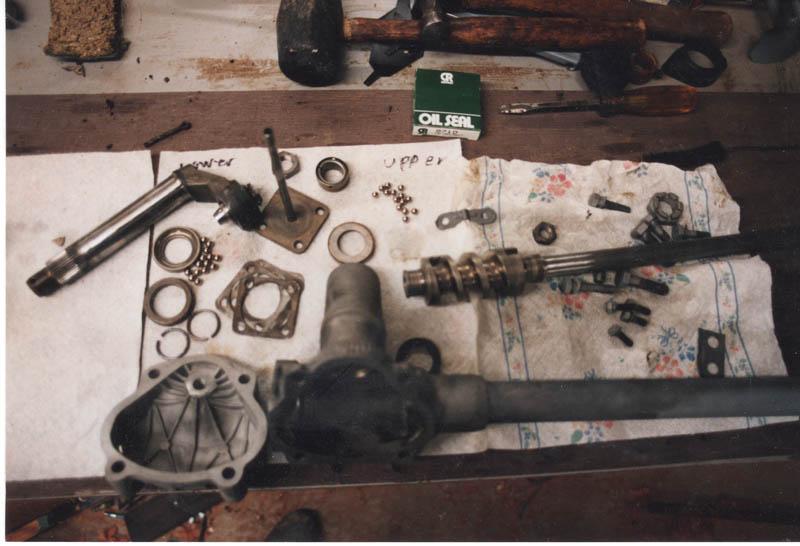

I cleaned and installed a new seal for the steering box.
Image may have been reduced in size. Click image to view fullscreen.


My daughter Kelsy as seen before on TheSamba but this time from a better scanned print. I was very happy to find this stash of old photos. I thought they were lost forever.
Image may have been reduced in size. Click image to view fullscreen.


The bottom was done. Time to flip it back down.
Image may have been reduced in size. Click image to view fullscreen.


Going back down. A little bit at a time, then slide it sideways and a little bit more...
Image may have been reduced in size. Click image to view fullscreen.

More to come...
Kurt
_________________
"The more I get done the less it looks like I did anything"
1963 Panelvan build "Tyvanosaurus Wrecks"
http://www.thesamba.com/vw/forum/viewtopic.php?p=8351639#8351639
1959 Single Cab Restoration"Funky Truck"
http://www.thesamba.com/vw/forum/viewtopic.php?t=5...highlight=
1965 21 Window Restoration Thread (From old photos)
http://www.thesamba.com/vw/forum/viewtopic.php?t=6...highlight=
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
ratherb-buggin
Samba Member


Joined: January 30, 2005
Posts: 971
Location: Shawnee, KS
ratherb-buggin is offline

PostPosted: Tue Sep 23, 2014 10:03 am    Post subject: Reply with quote

Cool photos!!
Back to top
View user's profile Send private message Instagram Gallery Classifieds Feedback
glideking
Samba Member


Joined: February 02, 2013
Posts: 987
Location: California
glideking is offline

PostPosted: Thu Sep 25, 2014 10:46 pm    Post subject: More scanned photos Reply with quote

Endless filling and sanding...
Image may have been reduced in size. Click image to view fullscreen.


Getting more practice with guide coat.
Image may have been reduced in size. Click image to view fullscreen.


I thought it was flat before the filler... more guide coat!
Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Every little ding and scratch...
Image may have been reduced in size. Click image to view fullscreen.


Getting better...
Image may have been reduced in size. Click image to view fullscreen.


Looks like I must have painted the interior first. I have no photos of that. masked off the inside to spray the outside...
Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Looks like I sprayed the turquoise bottom first but I have no photos of just that. Remember photos cost money back then.
Image may have been reduced in size. Click image to view fullscreen.


I used 1/4 inch vinyl tape to do the curves then paper tape overall.
Image may have been reduced in size. Click image to view fullscreen.


I remember this was a very exciting day! Ready for the white top.
Image may have been reduced in size. Click image to view fullscreen.


I could eat off a floor that clean!
Image may have been reduced in size. Click image to view fullscreen.


Not too bad for a first timer...
Image may have been reduced in size. Click image to view fullscreen.


This one shows the Bentley manual out guiding me through the rear brake assembly.
Image may have been reduced in size. Click image to view fullscreen.


Not the correct colors but CLEAN!
Image may have been reduced in size. Click image to view fullscreen.


Parts...
Image may have been reduced in size. Click image to view fullscreen.


I never did figure out what those parts were for...
Image may have been reduced in size. Click image to view fullscreen.


My "spray booth" plastic sheet over the walls with the door wide open to the summer air at night. I strung a bunch of bare light bulbs around the walls to see the paint going on better.
Image may have been reduced in size. Click image to view fullscreen.

Not much more to come...
Kurt
_________________
"The more I get done the less it looks like I did anything"
1963 Panelvan build "Tyvanosaurus Wrecks"
http://www.thesamba.com/vw/forum/viewtopic.php?p=8351639#8351639
1959 Single Cab Restoration"Funky Truck"
http://www.thesamba.com/vw/forum/viewtopic.php?t=5...highlight=
1965 21 Window Restoration Thread (From old photos)
http://www.thesamba.com/vw/forum/viewtopic.php?t=6...highlight=
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
pyrOman
Fire Master


Joined: July 21, 2003
Posts: 12023
Location: Over 2002 posts deleted!
pyrOman is offline

PostPosted: Fri Sep 26, 2014 6:11 am    Post subject: Reply with quote

Image may have been reduced in size. Click image to view fullscreen.


WOW! That is a tight shop!!! Shocked
_________________
Some people are so busy being clever they don't have time enough to be wise.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Chad M
Samba Member


Joined: July 14, 2003
Posts: 657
Location: Alberta
Chad M is offline

PostPosted: Fri Sep 26, 2014 6:20 am    Post subject: Re: More scanned photos Reply with quote

glideking wrote:


I never did figure out what those parts were for...
Image may have been reduced in size. Click image to view fullscreen.


Pop out window frames?
Back to top
View user's profile Send private message Gallery Classifieds Feedback
kenshapiro2002
Samba Member


Joined: April 26, 2013
Posts: 1824
Location: Bawlmer Hon
kenshapiro2002 is offline

PostPosted: Fri Sep 26, 2014 7:21 am    Post subject: Reply with quote

Kurt knows what they are...I too couldn't figure out what he meant by that. Rolling Eyes
_________________
Looking for a correct 1967 rear seat

Looking for '67 Engine / Block HO 183xxx - HO 194xxx
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Shoyrtt
Samba Member


Joined: August 21, 2010
Posts: 880
Location: Redlands, CA
Shoyrtt is offline

PostPosted: Tue Dec 02, 2014 3:36 pm    Post subject: Reply with quote

Any updates Kurt?
Back to top
View user's profile Send private message Gallery Classifieds Feedback
BulliBill
Samba Member


Joined: July 09, 2004
Posts: 3907
Location: St Charles, MO
BulliBill is offline

PostPosted: Tue Dec 02, 2014 4:29 pm    Post subject: Reply with quote

Hey Kurt,

Aren't you glad you had the foresight to buy that Deluxe back then! I've never been a "Deluxe" kinda guy, but knowing what I know now, I would have bought and stored away a few way back when they were plentiful and fairly cheap, and then retired on them! I still have a set of middle and rear seats from a Deluxe stored away since the late '80's. I won't be able to retire on them, but someday they'll help pay for something I'll really need for something in my fleet...

Can't wait to see more of your Deluxe and the SC too!).

Bill Bowman
_________________
I'm looking for these license plate frames for my fleet:
Coeur D'Alene - Lake Shore Volkswagen
Mission VW - San Fernando
Thornton VW - Stockton

Thanks for any help!
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
Ran When Parked
Samba Member


Joined: September 26, 2013
Posts: 778
Location: Birmingham, AL
Ran When Parked is offline

PostPosted: Tue Dec 02, 2014 6:48 pm    Post subject: Awesome Reply with quote

I am amazed by the rafter rotisserie and the fact it was your first time. AND without the internet expert at your fingertips factor.

Thanks for sharing with us.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
glideking
Samba Member


Joined: February 02, 2013
Posts: 987
Location: California
glideking is offline

PostPosted: Sun Jan 04, 2015 1:29 am    Post subject: Reply with quote

I am starting my engine rebuild for this bus. I will start by cleaning my single port heads to see what I have got. These have been kicking around the barn for many years.

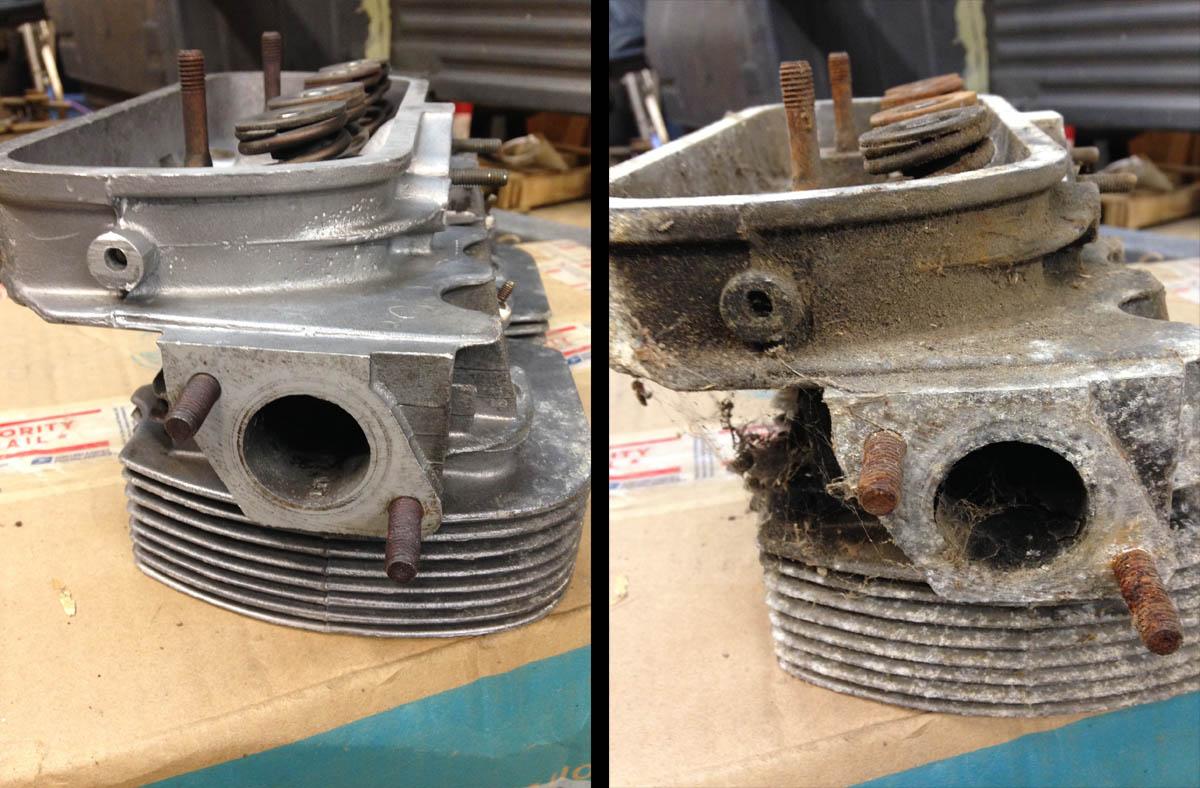

The same head before and after soda blasting.
Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


This shows the difference between soda and coal slag media blasting. The soda took four times longer but left the original metal surface intact with all casting and machining marks. Coal slag was fast but left the surface rough.
Image may have been reduced in size. Click image to view fullscreen.

Kurt
_________________
"The more I get done the less it looks like I did anything"
1963 Panelvan build "Tyvanosaurus Wrecks"
http://www.thesamba.com/vw/forum/viewtopic.php?p=8351639#8351639
1959 Single Cab Restoration"Funky Truck"
http://www.thesamba.com/vw/forum/viewtopic.php?t=5...highlight=
1965 21 Window Restoration Thread (From old photos)
http://www.thesamba.com/vw/forum/viewtopic.php?t=6...highlight=
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
Display posts from previous:
Reply to topic    Forum Index -> Split Bus All times are Mountain Standard Time/Pacific Daylight Savings Time
Page: 1, 2  Next
Page 1 of 2


Jump to:
You cannot post new topics in this forum
You cannot reply to topics in this forum
You cannot edit your posts in this forum
You cannot delete your posts in this forum
You cannot vote in polls in this forum

About | Help! | Advertise | Donate | Premium Membership | Privacy/Terms of Use | Contact Us | Site Map
Copyright © 1996-2020, Everett Barnes. All Rights Reserved.
Not affiliated with or sponsored by Volkswagen of America | Forum powered by phpBB
