| Author |
Message |
MURZI
Samba Member
Joined: August 25, 2005
Posts: 5066
Location: Madisonville, La
|
 Posted: Wed Sep 24, 2014 4:57 pm Post subject: Speedhut gauges |
 |
|
Just thought I would post a couple pics of my new gauges. I love them!!! GPS calibrated speedo.
_________________
62 vert
2276
Tim’s welded heads
45 Dells
A1 sidewinder
Fk44 cam |
|
| Back to top |
|
 |
grandpa pete
Samba Member
Joined: July 06, 2008
Posts: 6426
Location: St. Petersburg, FL
|
|
| Back to top |
|
|
MURZI
Samba Member
Joined: August 25, 2005
Posts: 5066
Location: Madisonville, La
|
| Posted: Thu Sep 25, 2014 5:19 pm Post subject: |
|
|

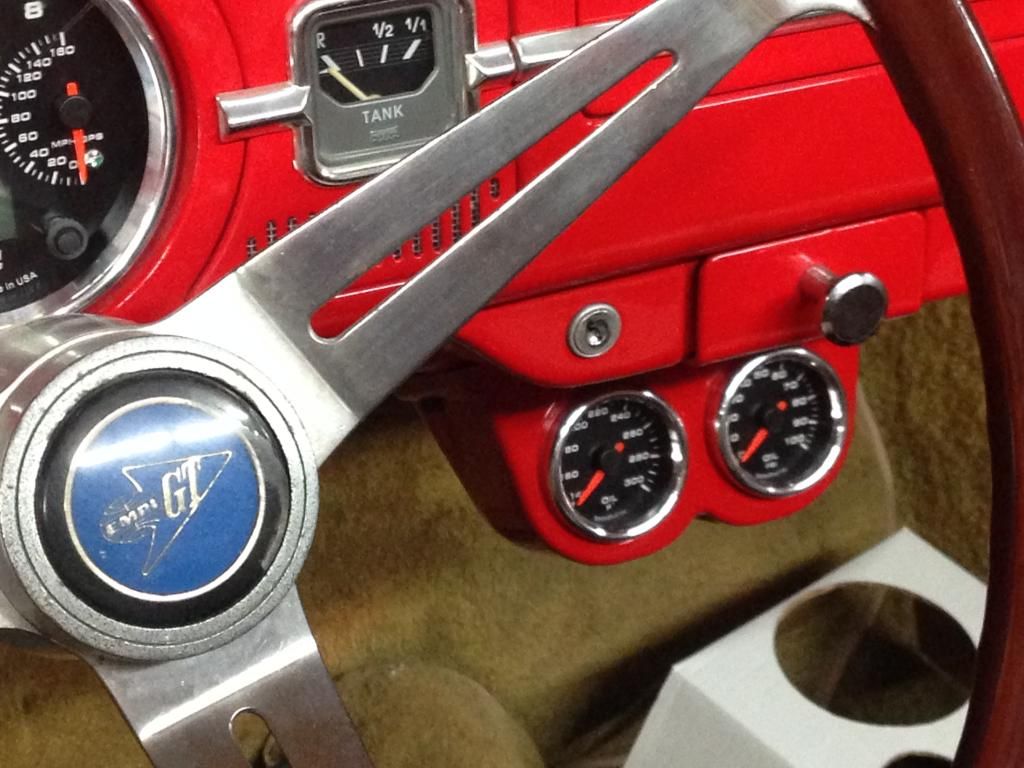

The gauge pod is a 10 dollar ebay item. I just sanded the pebble grain off and painted it.
_________________
62 vert
2276
Tim’s welded heads
45 Dells
A1 sidewinder
Fk44 cam |
|
| Back to top |
|
|
sixfootdan
Samba Smartass
Joined: February 13, 2002
Posts: 4852
Location: \Lo*ca"tion\, n. 1. The act or process of locating.
|
| Posted: Thu Sep 25, 2014 7:22 pm Post subject: |
|
|
Looks nice.
_________________
Schrodinger's cat walked into a bar and it didn't.
GO SEAHAWKS!!! |
|
| Back to top |
|
|
RareAir
Samba Member
Joined: May 11, 2002
Posts: 14577
Location: 18 miles North of the border
|
| Posted: Thu Sep 25, 2014 7:27 pm Post subject: |
|
|
| grandpa pete wrote: |
NOTE ; The brake fliud reservoir won't work there !  |
Why not? As long as the reservoir is set higher than the master cylinder & the hose is long enough to connect them, it'll work just fine. Drill a small hole on the cowl for the hose to pass through (or use the stock hole for the wiper squirter) and rig up a mounting bracket
_________________
1947 Typ 11a
1954 Typ 117
1956 Typ 151
1959 Typ 117
1959 Typ 265
1961 356B
1966 Typ 151
1966 Typ 241 |
|
| Back to top |
|
|
Nevada Notch
Samba Member
Joined: May 02, 2005
Posts: 540
Location: Carson City Nevada
|
| Posted: Thu Sep 25, 2014 9:18 pm Post subject: |
|
|
Did it need an adapter or anything?
I like it a lot. I've been wanting one for quite some time now. Didn't know you could get it in the arrangement you have with the tachometer being so large and the small speedometer.
Hard to see the speedometer but then I though you get used to how fast you are going by engine rpm and what gear you are in.
By the way, where are the idiot lights and turn signal indicator? Are they built into the gauge?
_________________
1966 Euro
1600DP
Dual 34mm ICT's
99% Resto-Custom Daily Driver |
|
| Back to top |
|
|
MURZI
Samba Member
Joined: August 25, 2005
Posts: 5066
Location: Madisonville, La
|
| Posted: Fri Sep 26, 2014 6:24 pm Post subject: |
|
|
Bought 4.5" and it went right in....no adapter. I guess you could use the OG trim ring with some dremel mods. As for the warning lights I have the turn signal and high beam indicators in the speedo. I need to add a Alt light and oil pressure light to the gauge pod. Looking for something small and incandescent. Right now I just "rigged" the original alternator bulb so the alternator will charge.
_________________
62 vert
2276
Tim’s welded heads
45 Dells
A1 sidewinder
Fk44 cam |
|
| Back to top |
|
|
Split 1
Samba Member
Joined: May 03, 2005
Posts: 764
Location: Adelaide. South australia
|
| Posted: Mon Apr 13, 2015 5:03 am Post subject: |
|
|
Thinking of one of these myself
How did it attach
How hard was it to fit?
Thanks
Dave |
|
| Back to top |
|
|
bladerunner80
Samba Member
Joined: February 13, 2011
Posts: 255
Location: Fife, WA
|
| Posted: Mon Apr 13, 2015 1:02 pm Post subject: |
|
|
I just installed the same sped/tach in my 66 after seeing these photos a while back. Fitment is perfect. The gauge uses a clamp ring attachment method and had it installed into the dash in minutes. I ordered mine with the chrome smoothing trim ring and it looks really nice.
_________________
http://das-auto-66vw.tumblr.com/ |
|
| Back to top |
|
|
Split 1
Samba Member
Joined: May 03, 2005
Posts: 764
Location: Adelaide. South australia
|
| Posted: Mon Apr 13, 2015 2:26 pm Post subject: |
|
|
That does look great, I will get one, did you get the 4 1/2 inch one?
Dave |
|
| Back to top |
|
|
bladerunner80
Samba Member
Joined: February 13, 2011
Posts: 255
Location: Fife, WA
|
|
| Back to top |
|
|
Split 1
Samba Member
Joined: May 03, 2005
Posts: 764
Location: Adelaide. South australia
|
| Posted: Mon Apr 13, 2015 5:49 pm Post subject: |
|
|
Thanks for that.
Its just that a company here in Australia sells attachment rings for the 4 inch one and I wasnt aware that the 4.5 would fit straight in.
Dave |
|
| Back to top |
|
|
microbus
Samba Member
Joined: October 12, 2007
Posts: 527
Location: Alberta, Canada
|
| Posted: Mon Apr 13, 2015 7:15 pm Post subject: |
|
|
UGH... thanks for spening more of my hard earned money MURZI... . but seriously thanks!
_________________
Darsh Import/ Dubsport Inc... my own VW Parts and Repair shop.
Automotive Service Technician |
|
| Back to top |
|
|
texstardetail
Samba Member
Joined: May 24, 2009
Posts: 91
Location: Georgetown, Texas
|
| Posted: Sat Apr 18, 2015 2:22 pm Post subject: |
|
|
| Wow, those look great. and no more Speedo cable! |
|
| Back to top |
|
|
Cali_Army_Guy
Samba Member
Joined: March 19, 2015
Posts: 2094
Location: Stockton, CA
|
| Posted: Fri Feb 24, 2017 9:59 pm Post subject: Re: Speedhut gauges |
|
|
Just ordered mine! Here's the one I ordered. Can't wait.
_________________
2015 VW Passat Wolfsburg Edition
1966 VW Beetle - Sold |
|
| Back to top |
|
|
Nevada Notch
Samba Member
Joined: May 02, 2005
Posts: 540
Location: Carson City Nevada
|
| Posted: Sat Feb 25, 2017 3:17 pm Post subject: Re: Speedhut gauges |
|
|
I forgot to post a picture of my gauge after I installed it.
I have the bright light indicator set up as my oil light and the turn signal indicators split for both left and right sides.
For anyone wondering, I have my generator output monitored through my car stereo. I also have my electric fuel pump wired so that if the belt fails and I don't notice the drop in voltage, the fuel pump will shut off and she just runs out of gas.
_________________
1966 Euro
1600DP
Dual 34mm ICT's
99% Resto-Custom Daily Driver |
|
| Back to top |
|
|
Cali_Army_Guy
Samba Member
Joined: March 19, 2015
Posts: 2094
Location: Stockton, CA
|
| Posted: Sat Feb 25, 2017 3:57 pm Post subject: Re: Speedhut gauges |
|
|
| Nevada Notch wrote: |
I have the bright light indicator set up as my oil light and the turn signal indicators split for both left and right sides. |
This is the exact same thing I was going to do when mine comes in. Glad to hear it'll work like I want.
_________________
2015 VW Passat Wolfsburg Edition
1966 VW Beetle - Sold |
|
| Back to top |
|
|
TinCanFab
Samba Member
Joined: April 04, 2006
Posts: 2743
Location: Waterford, California
|
|
| Back to top |
|
|
EMPIImp69
Samba Member
Joined: April 17, 2006
Posts: 3389
Location: Dirty Jersey
|
| Posted: Wed Aug 30, 2017 12:47 pm Post subject: Re: Speedhut gauges |
|
|
Roach, that looks fn awesome. Where did you buy it from? Thx
_________________
1963 Ragtop Bug
1966 Vert Bug
Check out my ads, Thanks! |
|
| Back to top |
|
|
TinCanFab
Samba Member
Joined: April 04, 2006
Posts: 2743
Location: Waterford, California
|
| Posted: Wed Aug 30, 2017 2:28 pm Post subject: Re: Speedhut gauges |
|
|
| EMPIImp69 wrote: |
| Roach, that looks fn awesome. Where did you buy it from? Thx |
You just call up Speedhut and order direct. First play around in there website and try the different styles. Go to the individual gauge menu, pick your size and style of what kind of gauge you want. Then you just play with the menu options and see the sample of your gauge.
For no extra charge they will put any graphics or logos you want. I called and said I wanted their speedo to match Autometer Cobalt style and they did the rest after I emailed them a pic. 2 weeks later it showed up. Amazing service, made in the USA and lifetime warranty.
They are packed full of features, the only thing they could not fit in the gauge was the oil and gen idiot light, only room for high beam and turn signal indicators. I mounted the oil and gen lights seperate. Even if you order the 80mph speedo like I did, you can still see 81mph+ on the digital read out on the bottom. There's even a 12volt wire hook up so the GPS is ready to read your speed in like 5 seconds after you start the car. No searching for signal like if you restarted your cell phone.
Everything about it is top notch and even Classic Instruments or Auto Meter offer nothing close in comparison. You can get Autometer GPS for more money and those are set up for running adapters and stuff more for American cars. For those that are thinking wtf why would they copy an Autometer design? I TRIED to get a matching Cobalt speedo and gas gauge from them but they couldn't do it in a way that worked for my build. Speedhut steps in and fills the void in the market.
http://www.speedhut.com/gauges/Speedometers/?catid=f8
25 pages of options, just make sure you get GPS 4.5" and say goodbye to that unreliable stock speedo cable.
_________________
Check out my truck brought back from the dead... http://www.thesamba.com/vw/forum/viewtopic.php?t=420762&highlight=sprayed+blood
They're never really ever finished 58 rag build...
http://www.thesamba.com/vw/forum/viewtopic.php?t=658092 |
|
