CJ5 Grab Bar Dash Mod with Cup Holders
Page: 1, 2, 3, 4  Next
Forum Index -> Vanagon Share: Facebook Twitter
Reply to topic
Print View
Quick sort: Show newest posts on top | Show oldest posts on top View previous topic :: View next topic
Author Message
GypsyDriver
Samba Member


Joined: November 06, 2012
Posts: 190
Location: Columbus, GA
GypsyDriver is offline

PostPosted: Fri Apr 03, 2015 12:24 pm    Post subject: CJ5 Grab Bar Dash Mod with Cup Holders Reply with quote

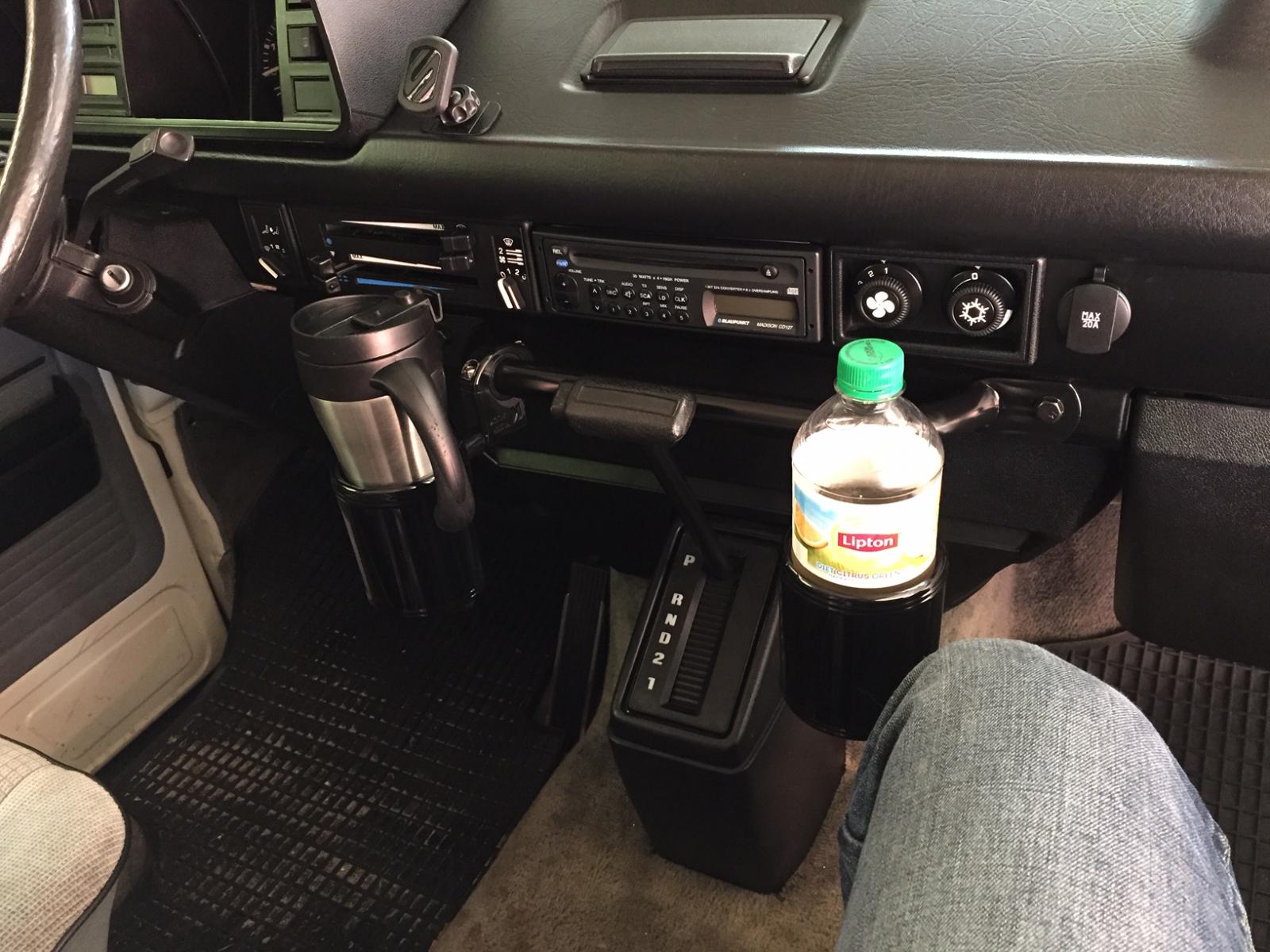

I finally got a little time today to finish a small project I've had on my idea list for a couple of years. I mounted a grab bar designed to mount above the glovebox in a Jeep CJ5 on the lower metal dash lip below the stereo in my Westy.

Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


The bar is made by Rugged Ridge in black powdercoat purchased from Amazon for $23 and comes with black mounting hardware. http://www.amazon.com/Rugged-Ridge-11203-01-Black-...+Grab+bar.

Installation is fairly easy. I removed the heater cover so I could access the back of the dash lip. There's nothing behind the mounting points. I marked and drilled two 1/4" holes and mounted it with washers on both sides. Its solid. The lip itself will move a little if you put a lot of pressure on it ... its not anchored on the glovebox side. But, it's minor.

Why do this you ask? Because the bar is 1" in diameter, which is a standard motorcycle and bicycle handlebar size. This provides a little more than a foot of mounting space for handlebar-compatible accessories: cup holders, 12volt/USB ports, GPSs, light switches, winch switches, RAM and AMPS bar mounts, etc. without having to drill additional mounting holes in your dash, with easy access to power, and it just looks cool. I mounted 2 Kruzer Kaddy motorcycle cup holders in black powdercoat. The cup holders are awesome ... extremely well built and mount right at your fingertips. The bar clears the automatic shifter by more than an inch and the cupholders don't interfere with swiveling the seat or sliding through the aisle to get to the back of the van.

Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Took me half an hour all in all and its mostly reversible. I can plug the holes with black panel clips if I ever want to take it off and it would hardly be noticeable except to one of you guys.


Last edited by GypsyDriver on Fri Apr 03, 2015 6:21 pm; edited 4 times in total
Back to top
View user's profile Send private message Gallery Classifieds Feedback
dhaavers
Samba Member


Joined: March 19, 2010
Posts: 7717
Location: NE MN (tinyurl.com/dhaaverslocation)
dhaavers is offline

PostPosted: Fri Apr 03, 2015 12:32 pm    Post subject: Reply with quote

Great idea - nicely done! Cool
_________________
86 White Westy Weekender
"The WonderVan"

<EDITED TO PROTECT INNOCENT PIXELS>
Back to top
View user's profile Send private message Gallery Classifieds Feedback
newfisher
Samba Member


Joined: January 05, 2012
Posts: 1764
Location: The wet spot--Oregon
newfisher is offline

PostPosted: Fri Apr 03, 2015 1:01 pm    Post subject: Reply with quote

Great idea! Would need the shifter extension for us manual shift guys.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
ThankYouJerry
Samba Member


Joined: September 01, 2012
Posts: 2271
Location: Shakedown Street
ThankYouJerry is offline

PostPosted: Fri Apr 03, 2015 1:32 pm    Post subject: Reply with quote

Maybe the nicest cup holder mod I've seen. Nice job!
_________________
1990 Multivan - "Ohana"
1.8T, Auto w/3.27 R&P + Peloquin TBD
Back to top
View user's profile Send private message Gallery Classifieds Feedback
GypsyDriver
Samba Member


Joined: November 06, 2012
Posts: 190
Location: Columbus, GA
GypsyDriver is offline

PostPosted: Fri Apr 03, 2015 1:40 pm    Post subject: Reply with quote

newfisher wrote:
Great idea! Would need the shifter extension for us manual shift guys.


I wondered about that. Also the Syncros with the little control panel below the radio. I think it would work still. It also fits mounted at the top of the plastic heater cover about an inch lower than it is now, but rubs the shifter just slightly.


Last edited by GypsyDriver on Fri Apr 03, 2015 4:51 pm; edited 1 time in total
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Merian
Samba Member


Joined: January 04, 2014
Posts: 5212
Location: Orygun
Merian is offline

PostPosted: Fri Apr 03, 2015 2:17 pm    Post subject: Reply with quote

is it bolted to the heater cover? to anything else?
Back to top
View user's profile Send private message Gallery Classifieds Feedback
GypsyDriver
Samba Member


Joined: November 06, 2012
Posts: 190
Location: Columbus, GA
GypsyDriver is offline

PostPosted: Fri Apr 03, 2015 2:21 pm    Post subject: Reply with quote

Merian wrote:
is it bolted to the heater cover? to anything else?


It's bolted to the sheet metal on the lower part of the dash between the radio and the plastic heater cover.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
djkeev
Samba Moderator


Joined: September 30, 2007
Posts: 32367
Location: Reading Pennsylvania
djkeev is offline

PostPosted: Fri Apr 03, 2015 2:30 pm    Post subject: Reply with quote

This is a really nice dash cup holder solution!

As mentioned, one of the better ones. Doesn't look cobbled together or home made.

That plastic piece you bolted the grab bar to is only plastic. Did you do any reinforcement behind it?

The Kuzer Kaddy is also a nice touch.

They aren't cheap though.

To get the bar and two kaddies, you are well over a hundred dollars.

Then again, I bought an electric refrigerator for well over three that has cup holders in it!

Very very nice!

I am going to link this into the Cup Holder FAQ.

Dave
_________________
Stop Dead Photo Links how to post photos

Ghia
http://www.thesamba.com/vw/forum/viewtopic.php?t=392473

Vanagon
http://www.thesamba.com/vw/forum/viewtopic.php?p=6315537#6315537

Beetle
https://www.thesamba.com/vw/forum/viewtopic.php?t=482968&highlight=74+super+vert


Last edited by djkeev on Fri Apr 03, 2015 2:32 pm; edited 1 time in total
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
GypsyDriver
Samba Member


Joined: November 06, 2012
Posts: 190
Location: Columbus, GA
GypsyDriver is offline

PostPosted: Fri Apr 03, 2015 2:41 pm    Post subject: Reply with quote

djkeev wrote:
This is a really nice dash cup holder solution!

As mentioned, one of the better ones. Doesn't look cobbled together or home made.

That plastic piece you bolted the grab bar to is only plastic. Did you do any reinforcement behind it?

The Kuzer Kaddy is also a nice touch.

They aren't cheap though.

To get the bar and two kaddies, you are well over a hundred dollars.

Then again, I bought an electric refrigerator for well over three that has cup holders in it!

Very very nice!

I am going to link this into the Cup Holder FAQ.

Dave


Thanks, Dave!

My Westy has a strip of sheet metal that runs below the radio between the glovebox and the steering wheel. I assume other Vanagons are the same. Mine's a 91. The bar's bolted to that metal strip. It's not attached to the plastic at all. The heater cover comes off freely. In fact, I clipped the plastic cover back in place after I installed the cup holders. It's a very solid setup.

The Kruzer Kaddy is expensive, but will last forever. There are cheaper, but also cool bottle holders for enduro bikes that I thought about, but settled on the Kruzer's. All in it was about $110.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
BlueGrasser
Samba Member


Joined: August 27, 2014
Posts: 562
Location: Sacramento
BlueGrasser is offline

PostPosted: Fri Apr 03, 2015 3:31 pm    Post subject: Reply with quote

Applause

I think this will work just fine for a manual shift without any kind of extender. If anything, I think the auto appears closer to that mount point. I'll have to measure next time I'm in the van.

I'm a big fan of this solution! Very Happy
_________________
Going to where the grass is bluer...
1985 Vanagon Westfalia Camper with 1.8T
Back to top
View user's profile Send private message Gallery Classifieds Feedback
shadetreetim
Samba Member


Joined: January 10, 2011
Posts: 1994
Location: Riverside, California
shadetreetim is offline

PostPosted: Fri Apr 03, 2015 3:55 pm    Post subject: Reply with quote

I like it. Dancing
_________________
Tim Potts

Doing my best every time I drive it to dispel the myth these Vanagons have to be slow!


'89 Vanagon Bluestar/Country Homes 1.8T & .77 4th
'74 Jeep CJ5
Back to top
View user's profile Send private message Gallery Classifieds Feedback
noganav
Samba Member


Joined: January 06, 2006
Posts: 1236
Location: San Diego CA
noganav is offline

PostPosted: Fri Apr 03, 2015 4:15 pm    Post subject: Reply with quote

Pure genius. Thank you!
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
GypsyDriver
Samba Member


Joined: November 06, 2012
Posts: 190
Location: Columbus, GA
GypsyDriver is offline

PostPosted: Fri Apr 03, 2015 4:28 pm    Post subject: Reply with quote

BlueGrasser wrote:
Applause

I think this will work just fine for a manual shift without any kind of extender. If anything, I think the auto appears closer to that mount point. I'll have to measure next time I'm in the van.

I'm a big fan of this solution! Very Happy


I should've thought to provide measurements before. The inside measurement is almost exactly 2" ... for those that have the Syncro controls or other switches mounted there. There's enough room to mount switches behind it and reach into the space. The outside of the bar extends 3" out from the dash. As mentioned previously, the bar is 1" in diameter and will take standard motorcycle or bicycle handlebar accessories like the Kruzer Kaddy or this handlebar-mounted power port: http://www.amazon.com/gp/aw/d/B00RF3AW76/ref=mp_s_...ref=plSrch


Last edited by GypsyDriver on Fri Apr 03, 2015 4:51 pm; edited 1 time in total
Back to top
View user's profile Send private message Gallery Classifieds Feedback
newfisher
Samba Member


Joined: January 05, 2012
Posts: 1764
Location: The wet spot--Oregon
newfisher is offline

PostPosted: Fri Apr 03, 2015 4:51 pm    Post subject: Reply with quote

BlueGrasser wrote:
Applause

I think this will work just fine for a manual shift without any kind of extender. If anything, I think the auto appears closer to that mount point. I'll have to measure next time I'm in the van.

I'm a big fan of this solution! Very Happy


I currently hit the stereo when I shift from reverse to 1st or when shifting into 3rd. Having the bar there, but lower, would most likely be a knuckle breaker. Its a killer set up and im definately copying it, just need to heat up the rose bud and manipulate the shifter.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
BlueGrasser
Samba Member


Joined: August 27, 2014
Posts: 562
Location: Sacramento
BlueGrasser is offline

PostPosted: Fri Apr 03, 2015 5:21 pm    Post subject: Reply with quote

newfisher wrote:
BlueGrasser wrote:
Applause

I think this will work just fine for a manual shift without any kind of extender. If anything, I think the auto appears closer to that mount point. I'll have to measure next time I'm in the van.

I'm a big fan of this solution! Very Happy


I currently hit the stereo when I shift from reverse to 1st or when shifting into 3rd. Having the bar there, but lower, would most likely be a knuckle breaker. Its a killer set up and im definately copying it, just need to heat up the rose bud and manipulate the shifter.

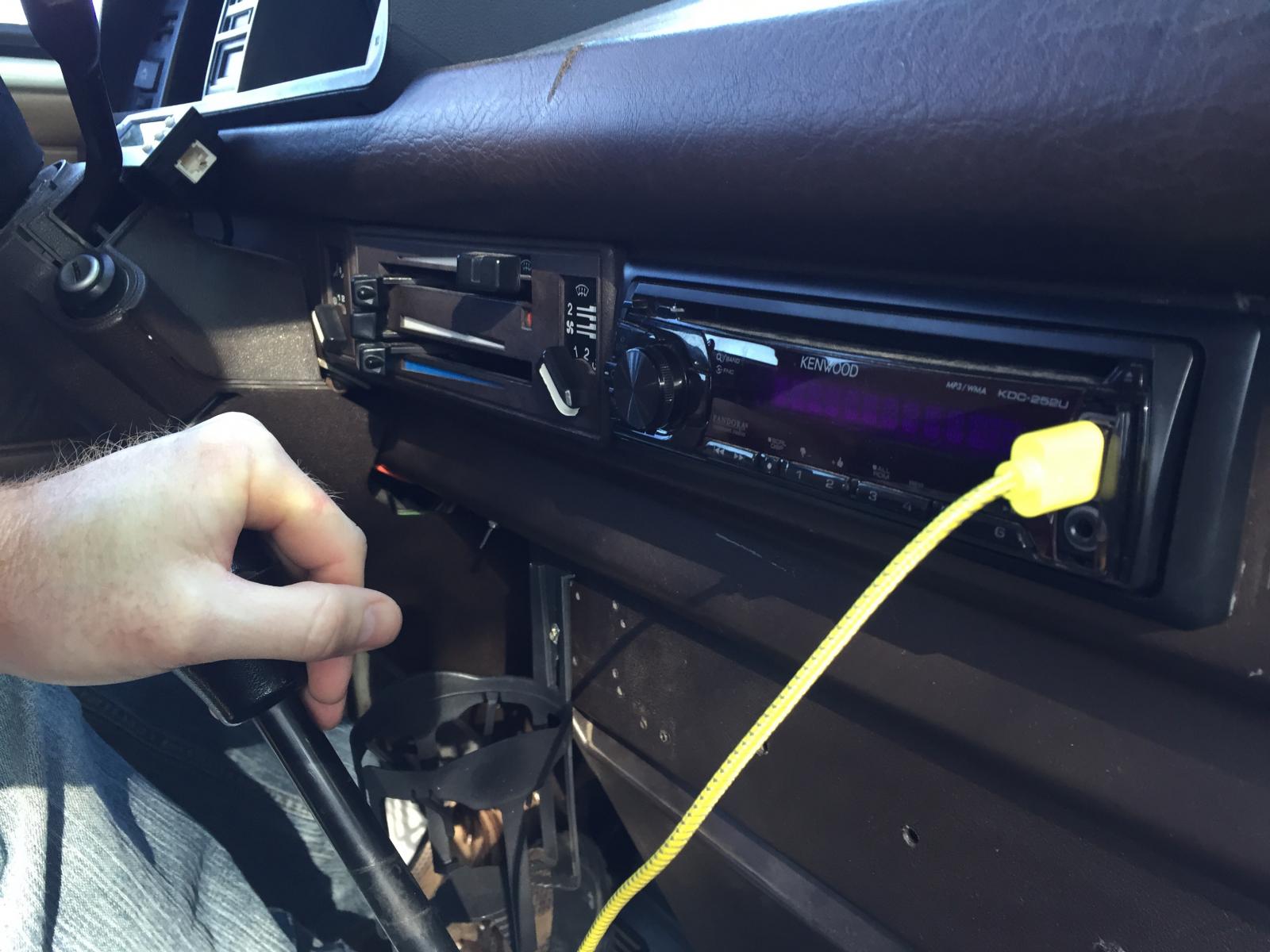

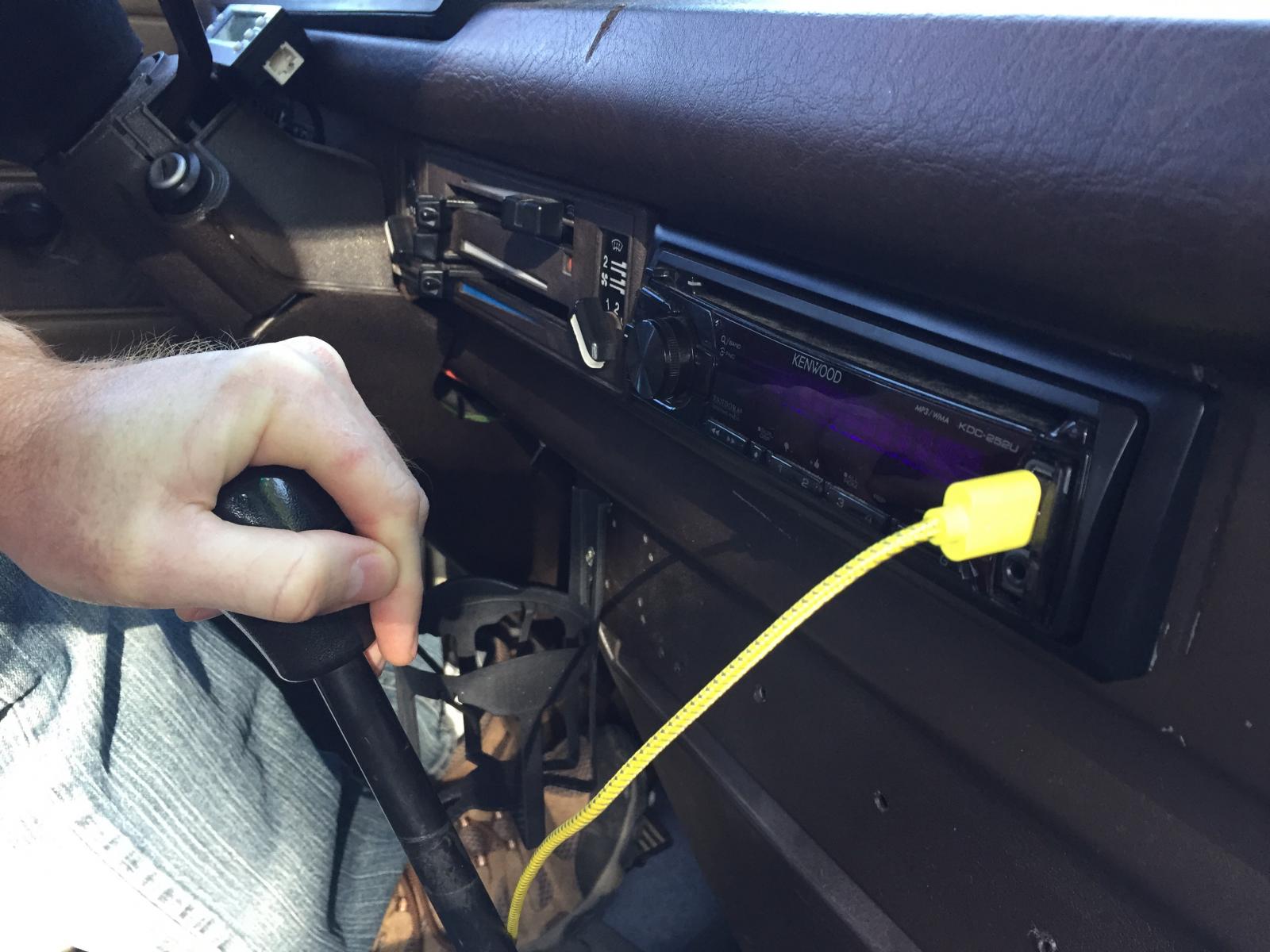

Wow, our linkages must be different. Here's mine in first and reverse. I'm 5 or 6 inches out.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

_________________
Going to where the grass is bluer...
1985 Vanagon Westfalia Camper with 1.8T
Back to top
View user's profile Send private message Gallery Classifieds Feedback
BlueGrasser
Samba Member


Joined: August 27, 2014
Posts: 562
Location: Sacramento
BlueGrasser is offline

PostPosted: Fri Apr 03, 2015 6:01 pm    Post subject: Reply with quote

I am concerned about my hand hitting the drivers side cup holder in reverse though. Moving it any further left could be a knee banger and would be in the way of removing the seat. Think

Image may have been reduced in size. Click image to view fullscreen.


It does look like you can buy those cups with different mounting hardware though. Perhaps attaching straight into that metal strip below the stereo without the bar???
_________________
Going to where the grass is bluer...
1985 Vanagon Westfalia Camper with 1.8T
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Syncroincity
Samba Member


Joined: April 15, 2007
Posts: 1557
Location: New York City
Syncroincity is offline

PostPosted: Fri Apr 03, 2015 6:14 pm    Post subject: Reply with quote

newfisher wrote:
I currently hit the stereo when I shift from reverse to 1st or when shifting into 3rd. Having the bar there, but lower, would most likely be a knuckle breaker. Its a killer set up and im definately copying it, just need to heat up the rose bud and manipulate the shifter.


You need to rebuild and/or adjust your shift linkage, it shouldn't be anywhere near that close to the dash...


OP- this is definitely the cleanest solution I've seen yet, very good work! Very Happy Applause
_________________
'86 Syncro CHC Top AAZ Turbodiesel
'04 Passat Variant 4Mo 5MT

Vanagon Build: http://www.thesamba.com/vw/forum/viewtopic.php?t=466866&highlight=
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
newfisher
Samba Member


Joined: January 05, 2012
Posts: 1764
Location: The wet spot--Oregon
newfisher is offline

PostPosted: Fri Apr 03, 2015 6:42 pm    Post subject: Reply with quote

It could be my neanderthal like paws
Back to top
View user's profile Send private message Gallery Classifieds Feedback
GypsyDriver
Samba Member


Joined: November 06, 2012
Posts: 190
Location: Columbus, GA
GypsyDriver is offline

PostPosted: Fri Apr 03, 2015 6:46 pm    Post subject: Reply with quote

BlueGrasser wrote:
I am concerned about my hand hitting the drivers side cup holder in reverse though. Moving it any further left could be a knee banger and would be in the way of removing the seat. Think

Image may have been reduced in size. Click image to view fullscreen.


It does look like you can buy those cups with different mounting hardware though. Perhaps attaching straight into that metal strip below the stereo without the bar???


Left to right travel tolerance is a concern for manual transmissions, especially as our vans get older and looser. You'll notice in my installation, I mounted the cup holders just inside the curve of the bar to preserve space for a pair of future switches and a USB power port. They're about as far apart as you can get on that bar. The lower metal lip of the dash, which seems to have gone unused by VW extends all the way to the steering column on the left. Maybe someone can fabricate a 7/8" to 1.25" bar that utilizes that whole available space better with mounting points to the inside of the ends rather than the outside and gain several inches of mounting space.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
djkeev
Samba Moderator


Joined: September 30, 2007
Posts: 32367
Location: Reading Pennsylvania
djkeev is offline

PostPosted: Sat Apr 04, 2015 6:15 am    Post subject: Reply with quote

This morning I was surfing around looking for clamp on cup holders.

Turns Out there are quite a few styles from which to choose! Each with its own nuance to it.
The one the Op posted, a simple wire type, a simple ring that holds tapered cups, a soft vinyl bag like a pool table has at each pocket for balls, and a cup similar to the OP only it also has a slot for a mug handle.

In addition..... You can get a clamp on Cell phone mount, a clamp on Tablet mount, a clamp on GPS mount, a clamp on mount for anything with a belt clip and even just the clamp itself so you can make your own special mount for any object that you desire to mount! ...... I'm thinking Sunglass Holder........

I can see that bar now..... A crowded magic mounting bar looking for all the World like a police officers belt!


Dave
_________________
Stop Dead Photo Links how to post photos

Ghia
http://www.thesamba.com/vw/forum/viewtopic.php?t=392473

Vanagon
http://www.thesamba.com/vw/forum/viewtopic.php?p=6315537#6315537

Beetle
https://www.thesamba.com/vw/forum/viewtopic.php?t=482968&highlight=74+super+vert
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
Display posts from previous:
Reply to topic    Forum Index -> Vanagon All times are Mountain Standard Time/Pacific Daylight Savings Time
Page: 1, 2, 3, 4  Next
Page 1 of 4


Jump to:
You cannot post new topics in this forum
You cannot reply to topics in this forum
You cannot edit your posts in this forum
You cannot delete your posts in this forum
You cannot vote in polls in this forum

About | Help! | Advertise | Donate | Premium Membership | Privacy/Terms of Use | Contact Us | Site Map
Copyright © 1996-2023, Everett Barnes. All Rights Reserved.
Not affiliated with or sponsored by Volkswagen of America | Forum powered by phpBB
Links to eBay or other vendor sites may be affiliate links where the site receives compensation.
