 Posted: Thu May 07, 2015 8:29 pm Post subject: 1972 battery ground cable strap connection location |
 |
|
Guys, I swear... I can't figure out where the battery ground strap attaches to the frame on this bus. It appears to not be the same as a 1971 and not the same as a 1976. So was 1972 some special location?
_________________
Lead Mechanic: San Diego Air and Space Museum
Licensed Airframe and Powerplant Mechanic
Licensed Pilot (Single engine Land)
Boeing 727,737-200-300-400,757,767
Airbus A319,320,321
DC9/MD80
BAe146
Fokker F28/F100
VW type 1 1962,63,65,69,72
VW Type 2 1971 (3 ea.) 1978, 1969
VW Jetta
VW Passat
Capable of leaping tall buildings in a single bound |
|
| Back to top |
|
 |
Ian
Samba Moderator
Joined: August 28, 2002
Posts: 4958
Location: 713
|
| Posted: Thu May 07, 2015 9:11 pm Post subject: |
|
|
All the ones I've seen have it going to the engine block. 72 is a weird year.
_________________
All your Buses are belong to us.
Love and good roads!
IN LOVING MEMORY OF ROB CRESS 1968-2012 & KEN CRIMMINS 1957-2024 |
|
| Back to top |
|
|
busdaddy
Samba Member
Joined: February 12, 2004
Posts: 52557
Location: Surrey B.C. Canada, but thinking of Ukraine
|
| Posted: Thu May 07, 2015 9:35 pm Post subject: |
|
|
72 bolts to the wheel well just below where the ECU would go if it had FI.

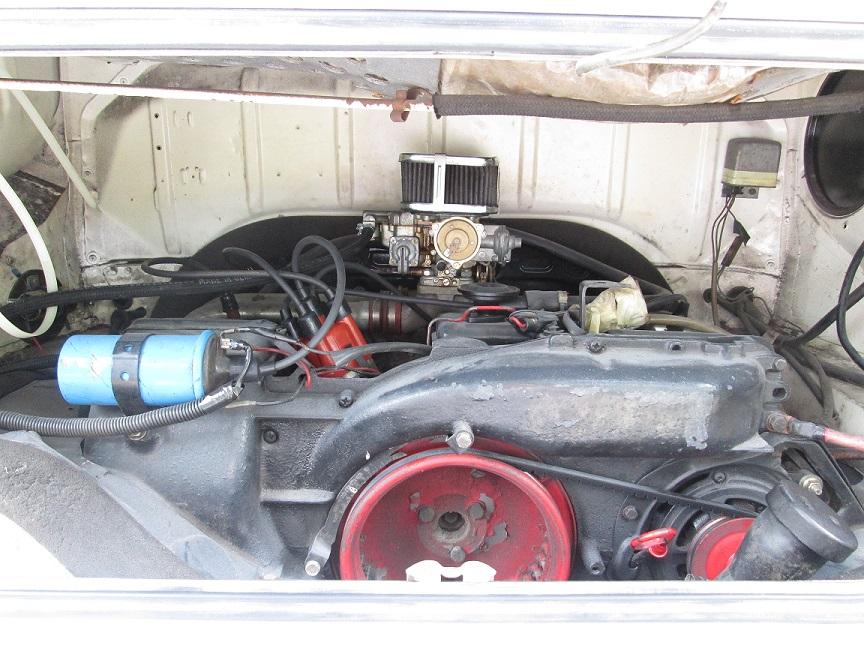

I think I can almost see the hole just below the kink in the bodyline in this pic:
If that single dangly wire swung to the right a few inches it'd be over it.
_________________
Rust NEVER sleeps and stock never goes out of style.
Please don't PM technical questions, ask your problem in public so everyone can play along. If you think it's too stupid post it here
Stop dead photo links! Post your photos to The Samba Gallery!
Слава Україні! |
|
| Back to top |
|
|
Ian
Samba Moderator
Joined: August 28, 2002
Posts: 4958
Location: 713
|
| Posted: Thu May 07, 2015 10:26 pm Post subject: |
|
|
| busdaddy wrote: |
| 72 bolts to the wheel well just below where the ECU would go if it had FI. |
No, it doesn't. Maybe late 72 ie. 73 model year.
_________________
All your Buses are belong to us.
Love and good roads!
IN LOVING MEMORY OF ROB CRESS 1968-2012 & KEN CRIMMINS 1957-2024 |
|
| Back to top |
|
|
aeromech
Samba Member
Joined: January 24, 2006
Posts: 17591
Location: San Diego, California
|
| Posted: Fri May 08, 2015 6:03 am Post subject: |
|
|
Mark, I can't believe this. I think Ian is right. I know the hole you're thinking about and this bus doesn't have it. I'd sure like to see an original picture of how VW did it.
_________________
Lead Mechanic: San Diego Air and Space Museum
Licensed Airframe and Powerplant Mechanic
Licensed Pilot (Single engine Land)
Boeing 727,737-200-300-400,757,767
Airbus A319,320,321
DC9/MD80
BAe146
Fokker F28/F100
VW type 1 1962,63,65,69,72
VW Type 2 1971 (3 ea.) 1978, 1969
VW Jetta
VW Passat
Capable of leaping tall buildings in a single bound |
|
| Back to top |
|
|
Ian
Samba Moderator
Joined: August 28, 2002
Posts: 4958
Location: 713
|
| Posted: Fri May 08, 2015 8:57 am Post subject: |
|
|
Not many all original 1972 Buses out there anymore.
_________________
All your Buses are belong to us.
Love and good roads!
IN LOVING MEMORY OF ROB CRESS 1968-2012 & KEN CRIMMINS 1957-2024 |
|
| Back to top |
|
|
aeromech
Samba Member
Joined: January 24, 2006
Posts: 17591
Location: San Diego, California
|
| Posted: Fri May 08, 2015 9:01 am Post subject: |
|
|
Ian, I can't tell shit from that picture. Can you?
_________________
Lead Mechanic: San Diego Air and Space Museum
Licensed Airframe and Powerplant Mechanic
Licensed Pilot (Single engine Land)
Boeing 727,737-200-300-400,757,767
Airbus A319,320,321
DC9/MD80
BAe146
Fokker F28/F100
VW type 1 1962,63,65,69,72
VW Type 2 1971 (3 ea.) 1978, 1969
VW Jetta
VW Passat
Capable of leaping tall buildings in a single bound |
|
| Back to top |
|
|
Ian
Samba Moderator
Joined: August 28, 2002
Posts: 4958
Location: 713
|
| Posted: Fri May 08, 2015 9:04 am Post subject: |
|
|

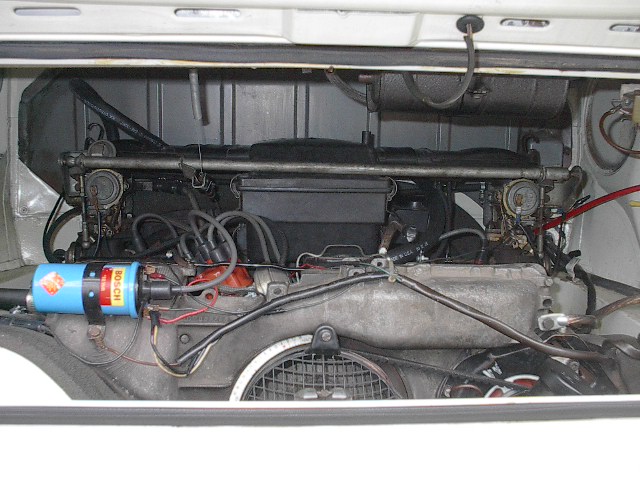

Nope! That's all we get this many years later for "perfect original example"
_________________
All your Buses are belong to us.
Love and good roads!
IN LOVING MEMORY OF ROB CRESS 1968-2012 & KEN CRIMMINS 1957-2024 |
|
| Back to top |
|
|
aeromech
Samba Member
Joined: January 24, 2006
Posts: 17591
Location: San Diego, California
|
| Posted: Fri May 08, 2015 9:05 am Post subject: |
|
|
I just cannot accept that VW grounded the battery to the engine like that. It just looks too bush league.
_________________
Lead Mechanic: San Diego Air and Space Museum
Licensed Airframe and Powerplant Mechanic
Licensed Pilot (Single engine Land)
Boeing 727,737-200-300-400,757,767
Airbus A319,320,321
DC9/MD80
BAe146
Fokker F28/F100
VW type 1 1962,63,65,69,72
VW Type 2 1971 (3 ea.) 1978, 1969
VW Jetta
VW Passat
Capable of leaping tall buildings in a single bound |
|
| Back to top |
|
|
sjbartnik
Samba Member
Joined: September 01, 2011
Posts: 6041
Location: Brooklyn
|
| Posted: Fri May 08, 2015 9:37 am Post subject: |
|
|
| aeromech wrote: |
| I just cannot accept that VW grounded the battery to the engine like that. It just looks too bush league. |
They did it in the Karmann Ghia so, you never know:
|
|
| Back to top |
|
|
Xevin
Samba Member
Joined: January 08, 2014
Posts: 8475
|
| Posted: Fri May 08, 2015 10:05 am Post subject: |
|
|
Gary, my 72 ground is attached to the block like Ian's picture. But I have a mystery cable with a battery terminal clamp on one end and the other is bolted to the battery tray near the side marker. Always thought that was the orginal ground. I don't use it because the tray is cRusty. Thought the PO added the current strap.
_________________
Keep on Busin'
| 67rustavenger wrote: |
GFY's Xevin and VW_Jimbo!  |
| Clatter wrote: |
| Damn that Xevin... |
| skills@eurocarsplus wrote: |
I respect Xevin and he's a turd  |
| SGKent wrote: |
My God! Xevin and I 100% agree  |
|
|
| Back to top |
|
|
aeromech
Samba Member
Joined: January 24, 2006
Posts: 17591
Location: San Diego, California
|
| Posted: Fri May 08, 2015 10:26 am Post subject: |
|
|

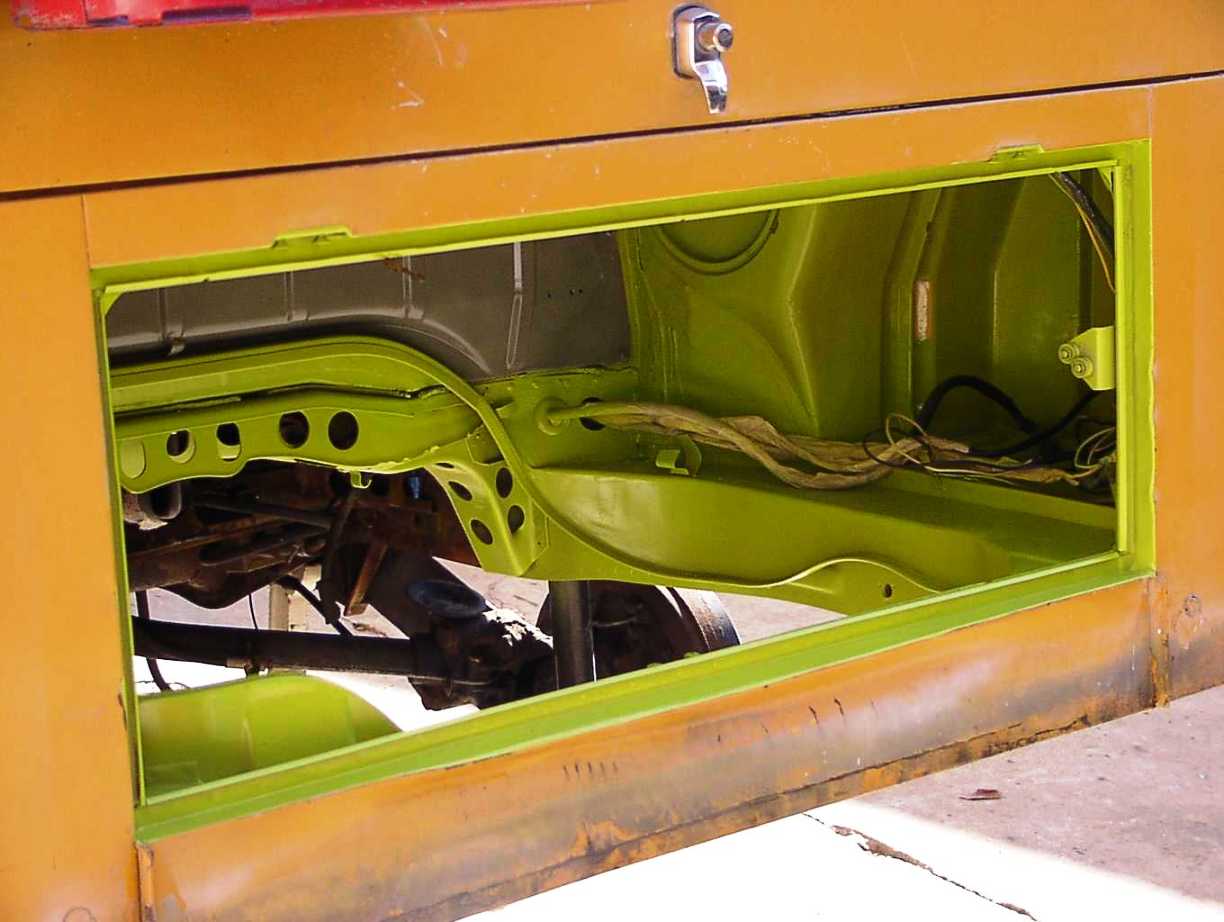

Well, I think I'm just gunna fabricate some kind of ground location. I have a rivnut puller. Maybe I'll install a rivnut somewhere solid like VW did with the later buses. They come in large sizes like 8mm
_________________
Lead Mechanic: San Diego Air and Space Museum
Licensed Airframe and Powerplant Mechanic
Licensed Pilot (Single engine Land)
Boeing 727,737-200-300-400,757,767
Airbus A319,320,321
DC9/MD80
BAe146
Fokker F28/F100
VW type 1 1962,63,65,69,72
VW Type 2 1971 (3 ea.) 1978, 1969
VW Jetta
VW Passat
Capable of leaping tall buildings in a single bound |
|
| Back to top |
|
|
Xevin
Samba Member
Joined: January 08, 2014
Posts: 8475
|
| Posted: Fri May 08, 2015 10:30 am Post subject: |
|
|
I've seen people to something like that near the right side of the cover plate in your photo.
_________________
Keep on Busin'
| 67rustavenger wrote: |
| GFY's Xevin and VW_Jimbo! |
| Clatter wrote: |
| Damn that Xevin... |
| skills@eurocarsplus wrote: |
| I respect Xevin and he's a turd |
| SGKent wrote: |
| My God! Xevin and I 100% agree |
|
|
| Back to top |
|
|
Xevin
Samba Member
Joined: January 08, 2014
Posts: 8475
|
| Posted: Fri May 08, 2015 10:32 am Post subject: |
|
|
| Xevin wrote: |
| I've seen people to something like that near the right side of the cover plate in your photo. |
"AWOL" Stuart suggested that to me as well.
_________________
Keep on Busin'
| 67rustavenger wrote: |
| GFY's Xevin and VW_Jimbo! |
| Clatter wrote: |
| Damn that Xevin... |
| skills@eurocarsplus wrote: |
| I respect Xevin and he's a turd |
| SGKent wrote: |
| My God! Xevin and I 100% agree |
|
|
| Back to top |
|
|
Tcash
Samba Member
Joined: July 20, 2011
Posts: 12847
Location: San Jose, California, USA
|
|
| Back to top |
|
|
aeromech
Samba Member
Joined: January 24, 2006
Posts: 17591
Location: San Diego, California
|
| Posted: Fri May 08, 2015 11:13 am Post subject: |
|
|
Thanks Tim
_________________
Lead Mechanic: San Diego Air and Space Museum
Licensed Airframe and Powerplant Mechanic
Licensed Pilot (Single engine Land)
Boeing 727,737-200-300-400,757,767
Airbus A319,320,321
DC9/MD80
BAe146
Fokker F28/F100
VW type 1 1962,63,65,69,72
VW Type 2 1971 (3 ea.) 1978, 1969
VW Jetta
VW Passat
Capable of leaping tall buildings in a single bound |
|
| Back to top |
|
|
Wildthings
Samba Member
Joined: March 13, 2005
Posts: 52081
|
| Posted: Sat May 09, 2015 4:26 am Post subject: |
|
|
| aeromech wrote: |
| I just cannot accept that VW grounded the battery to the engine like that. It just looks too bush league. |
Grounding to the engine is a much better set up in my opinion. With it grounded to the engine you will not get starter current running through the clutch cable even if the ground strap is missing. The reason VW grounded it to the body was to save a few pennies, not because it was a better way to do things. |
|
| Back to top |
|
|
aeromech
Samba Member
Joined: January 24, 2006
Posts: 17591
Location: San Diego, California
|
| Posted: Sat May 09, 2015 5:27 am Post subject: |
|
|
| Wildthings wrote: |
| aeromech wrote: |
| I just cannot accept that VW grounded the battery to the engine like that. It just looks too bush league. |
Grounding to the engine is a much better set up in my opinion. With it grounded to the engine you will not get starter current running through the clutch cable even if the ground strap is missing. The reason VW grounded it to the body was to save a few pennies, not because it was a better way to do things. |
WT,
Respectfully I need to disagree. By installing the "battery return" ground strap to the engine, you'd be sending ALL the electrical loads through the transmission strap, the engine, and fan case. The clutch would flow as well as soon as it became the path of least resistance to the battery. Things like stereos, wipers, headlights, etc would all need to flow through the engine. A much better path for those is through the frame.
_________________
Lead Mechanic: San Diego Air and Space Museum
Licensed Airframe and Powerplant Mechanic
Licensed Pilot (Single engine Land)
Boeing 727,737-200-300-400,757,767
Airbus A319,320,321
DC9/MD80
BAe146
Fokker F28/F100
VW type 1 1962,63,65,69,72
VW Type 2 1971 (3 ea.) 1978, 1969
VW Jetta
VW Passat
Capable of leaping tall buildings in a single bound |
|
| Back to top |
|
|
Lil Lulu
Samba Member
Joined: December 08, 2007
Posts: 1790
Location: Mouth of the Columbia
|
| Posted: Sat May 09, 2015 6:01 am Post subject: |
|
|
My second 72 and they were both grounded like this:
_________________
'65 Beetle "Lil' Lulu"- Ruby Red
1600 stock from '71 bus
'72 Deluxe - Niagara Blue w/pastelwiess Camper Special 2L dual 40 Webers 002
'74 Hightop Weekender "Dixie" 1800 34 Del singles |
|
| Back to top |
|
|
Wildthings
Samba Member
Joined: March 13, 2005
Posts: 52081
|
| Posted: Sat May 09, 2015 9:08 am Post subject: |
|
|
| aeromech wrote: |
| Wildthings wrote: |
| aeromech wrote: |
| I just cannot accept that VW grounded the battery to the engine like that. It just looks too bush league. |
Grounding to the engine is a much better set up in my opinion. With it grounded to the engine you will not get starter current running through the clutch cable even if the ground strap is missing. The reason VW grounded it to the body was to save a few pennies, not because it was a better way to do things. |
WT,
Respectfully I need to disagree. By installing the "battery return" ground strap to the engine, you'd be sending ALL the electrical loads through the transmission strap, the engine, and fan case. The clutch would flow as well as soon as it became the path of least resistance to the battery. Things like stereos, wipers, headlights, etc would all need to flow through the engine. A much better path for those is through the frame. |
Per the original system all the loads you mention are already flowing through the tranny ground strap when the alternator is charging as the strap is the return path to the alternator. If they also flow through the ground strap at those times the engine is off or the alternator is not putting out sufficient amps then such a load is minimal compared to the starting load.
With the engine running and the alternator putting out a large amount of extra amps to charge the battery then the load on the tranny ground strap will be less than as per the original system and not more. |
|
| Back to top |
|
|
|
