 Posted: Wed Jun 17, 2015 11:53 am Post subject: Bug fender differences |
 |
|
Hi,
I'm about to make some aluminium front fenders for my '66 bug. Can someone tell me if the shape and flow of a pre '67 front fender has changed from the early splits?
The pattern parts say one fender fits all but there must be differences.
Thanks
Sorry about the repost! |
|
| Back to top |
|
 |
Miklo
¡Chale!
Joined: August 27, 2008
Posts: 2058
Location: Antelope Valley, Ca
|
| Posted: Wed Jun 17, 2015 1:23 pm Post subject: |
|
|
Aluminum fenders huh... Interesting!
They will fit yes, but there are lots of differences...
http://www.thesamba.com/vw/forum/viewtopic.php?t=448426
_________________
✠Miklo✠
'55 Type1 "Ozma"
'66 Type1 "Charlotte" RIP
Antelope Valley's Mobile Air-Cooled Guru
| Dr OnHolliday wrote: |
| As I remember it, lowriding was not one of the criteria that Adolf gave to Dr. Porsche... |
|
|
| Back to top |
|
|
vwracerdave
Samba Member
Joined: November 11, 2004
Posts: 15601
Location: Deep in the 405
|
| Posted: Wed Jun 17, 2015 1:47 pm Post subject: |
|
|
The basic curve never changed. You can take any year fender and bolt it to any year Bug. The curve and bolt holes are all the same. Only the lights and bumper holes changed.
You can also take a rear fenders and bolt then on the front and front tenders will bolt on the rear.
_________________
2017 Street Comp Champion - Thunder Valley Raceway Park - Noble, OK
2010 Sportsman ET Champion - Mid-America Dragway - Arkansas City, KS
1997 Sportsman ET Champion - Thunder Valley Raceway Park - Noble ,OK |
|
| Back to top |
|
|
Floyd1966
Samba Member
Joined: May 17, 2013
Posts: 27
Location: England
|
| Posted: Wed Jun 17, 2015 1:48 pm Post subject: |
|
|
Mmm interesting. So it looks like pre '59 had a more pronounced headlight bulge? I'm not too fussed about the shape of the fender headlight bowl.
The fenders for my '66 are a prelude to my all aluminium Hebmuller........
Oh my day job www.Metalcraftltd.com
 |
|
| Back to top |
|
|
Bruce
Samba Member
Joined: May 16, 2003
Posts: 17634
Location: Left coast, Canada
|
| Posted: Wed Jun 17, 2015 7:51 pm Post subject: |
|
|
Pictures or it's just talk.
It's clear from your work on the Jag, you can do this, so let's see pics of your progress.
Some say that split Beetle fenders are different due to the 16" wheels.
Then early oval fenders for 15" wheels.
58 and later fenders are shaped differently where the running board meets.
Around 1960, VW eliminated the steel wire tube that connects the bottom of the headlight bucket to the inner fender.
_________________
| overheard at the portland Swap Meet... wrote: |
| ..... a steering wheel made from a mastadon tusk..... |
|
|
| Back to top |
|
|
Floyd1966
Samba Member
Joined: May 17, 2013
Posts: 27
Location: England
|
| Posted: Wed Jun 17, 2015 11:31 pm Post subject: |
|
|
"pictures or its just talk" made me smile

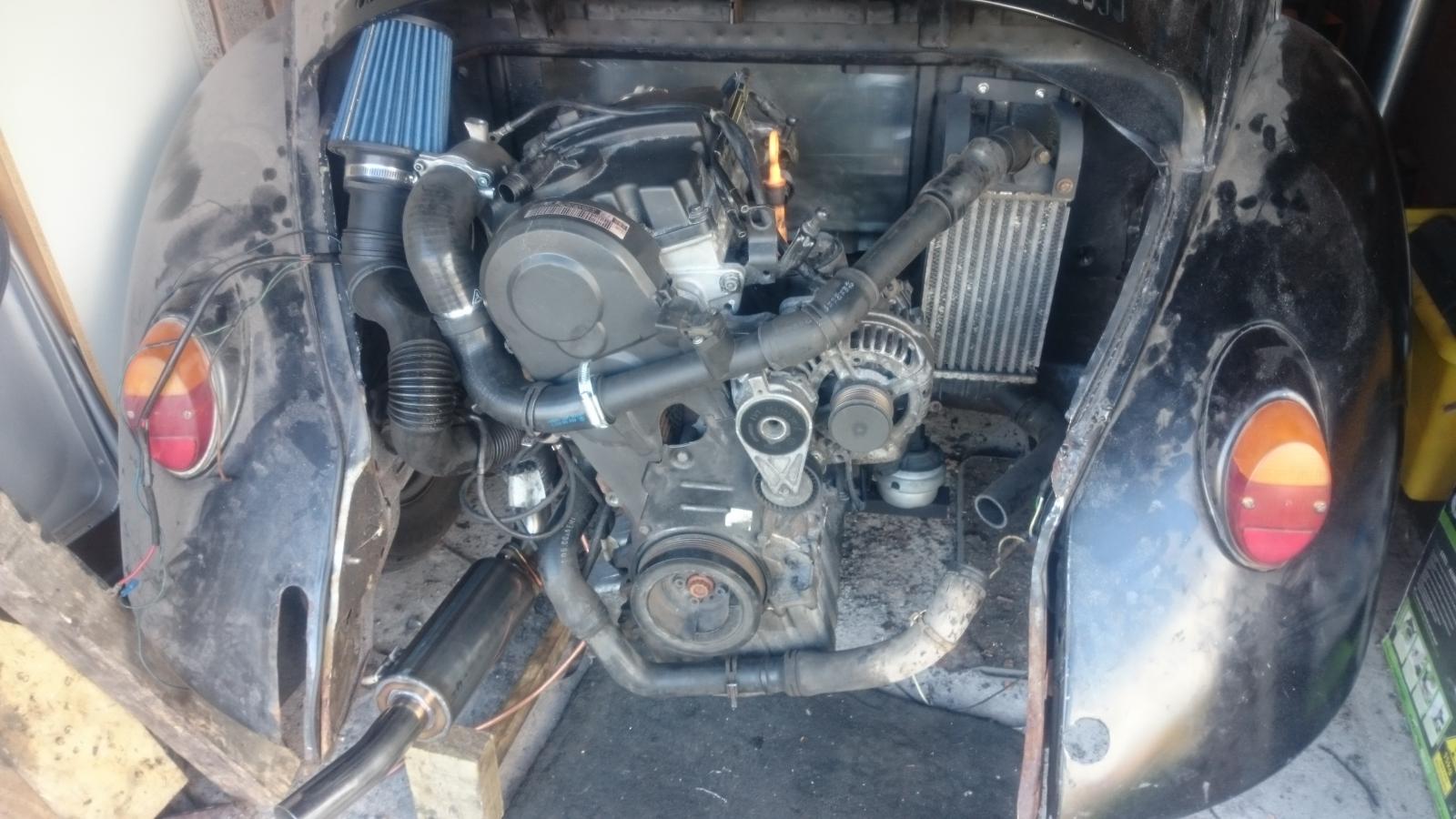

I'll put some up as I do the fenders. I will also start a thread in the readers rides section for my '66. I'm almost finished doing a conversion to the 3 cylinder tdi engine ( it's a long story!)
The aluminium Hebmuller is my long term project, all I have so for is the donor car.
Just to clarify, I work at Metalcraft, but I am not the guy who did the Jag. I've been there about two years and feel I'm still an apprentice ( although at 47, quite an old one!) |
|
| Back to top |
|
|
Floyd1966
Samba Member
Joined: May 17, 2013
Posts: 27
Location: England
|
| Posted: Thu Jun 18, 2015 4:47 am Post subject: |
|
|
Ha ha, yep, there's going to be a fair bit of work yet!
I absolutely hate rat look, but someone called my bug rat look. That's when I decided to sort the body out as well as the engine conversion! |
|
| Back to top |
|
|
Mike Fisher
Samba Member
Joined: January 30, 2006
Posts: 18046
Location: Eugene, OR
|
| Posted: Thu Jun 18, 2015 4:53 am Post subject: |
|
|
Yeah your TDI only has 3 cylinders?
_________________
https://imgur.com/user/FisherSquareback/posts
69 FI/AT square Daily Driver
66 sunroof,67,70,71,71,71AT,72,72AT,73 Parts
two 57 oval ragtops sold
'68 Karmann Ghia sold
Society is like stew. If you don't keep it stirred up you end up with a lot of scum on the top! - Russ_Wolfe/Edward Abbey |
|
| Back to top |
|
|
Floyd1966
Samba Member
Joined: May 17, 2013
Posts: 27
Location: England
|
| Posted: Thu Jun 18, 2015 5:43 am Post subject: |
|
|
3 cylinder 1.4 litre as used in the vw polo ( fox?) seat arosa and audi a2.
75 bhp 138ft/p torque 60 - 65 mpg as standard. |
|
| Back to top |
|
|
Bruce
Samba Member
Joined: May 16, 2003
Posts: 17634
Location: Left coast, Canada
|
| Posted: Thu Jun 18, 2015 5:00 pm Post subject: |
|
|
| Floyd1966 wrote: |
| The aluminium Hebmuller is my long term project, all I have so for is the donor car. |
Instead of front fenders, I suggest you start by hammering out an aluminum deck lid.
If you're goal is to save weight, fenders is not a good place. Small stones kicked up by the tyres cause dents, so to combat this, you have to coat the inside with something thick enough to absorb the impacts. That something usually ends up weighing more than the savings over a steel fender.
_________________
| overheard at the portland Swap Meet... wrote: |
| ..... a steering wheel made from a mastadon tusk..... |
|
|
| Back to top |
|
|
Floyd1966
Samba Member
Joined: May 17, 2013
Posts: 27
Location: England
|
| Posted: Fri Jun 19, 2015 8:37 am Post subject: |
|
|
Thanks for your interest.
The fenders I'm making are for my '66, I haven't started the heb yet.
When I do start it, the deck lid will be one of the last things I do on it- I'll need to make it to fit the body.
I'm not making the fenders from aluminium to save weight, it's just that's what I use at work, oh and I like to be different!
I'll most likely fit a second skin to the back of the wings to prevent stones denting the painted surface.
Anyway, I had half an hour free today to make a start on the front fender.... |
|
| Back to top |
|
|
Floyd1966
Samba Member
Joined: May 17, 2013
Posts: 27
Location: England
|
| Posted: Fri Jun 19, 2015 8:47 am Post subject: |
|
|

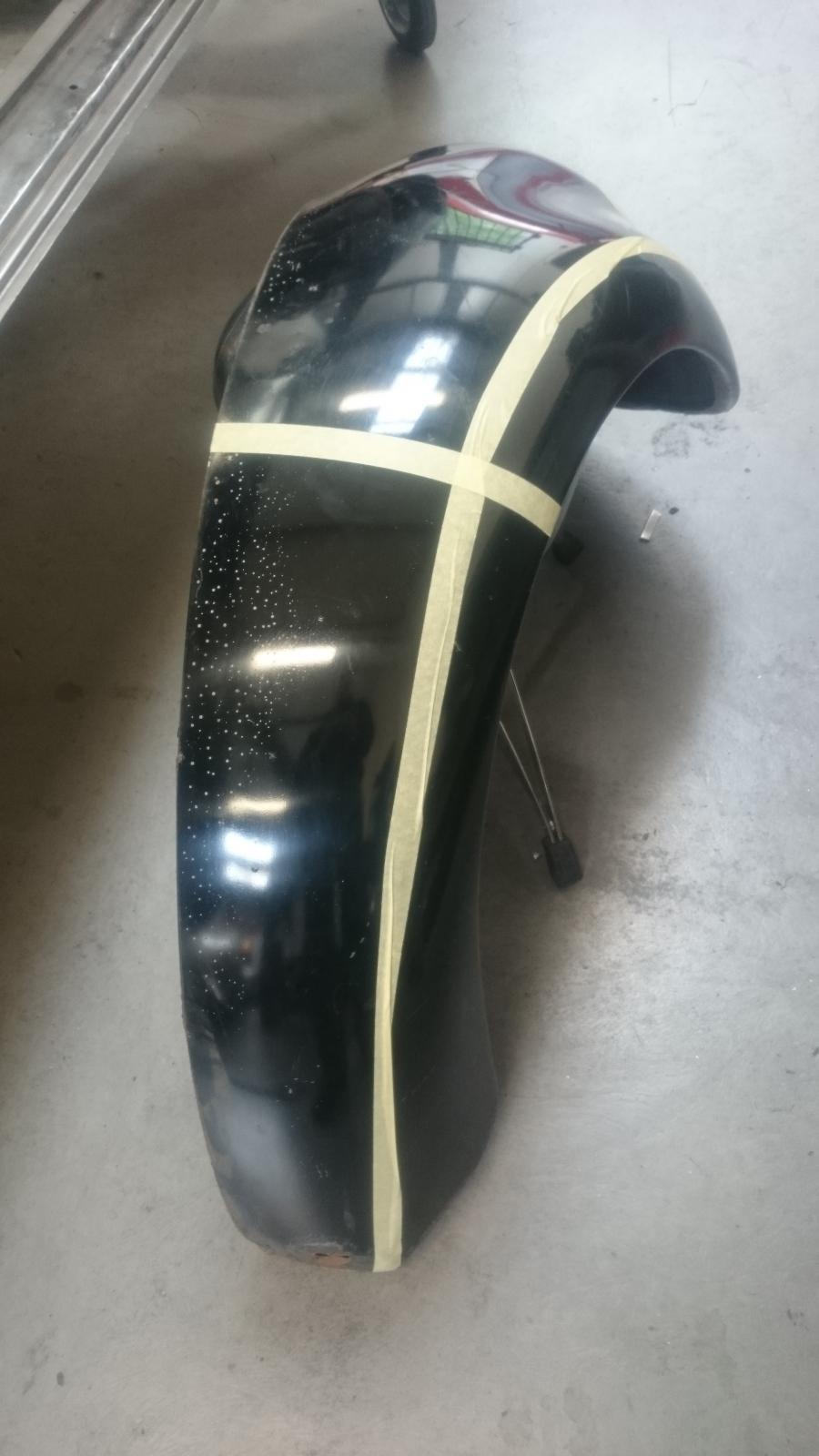

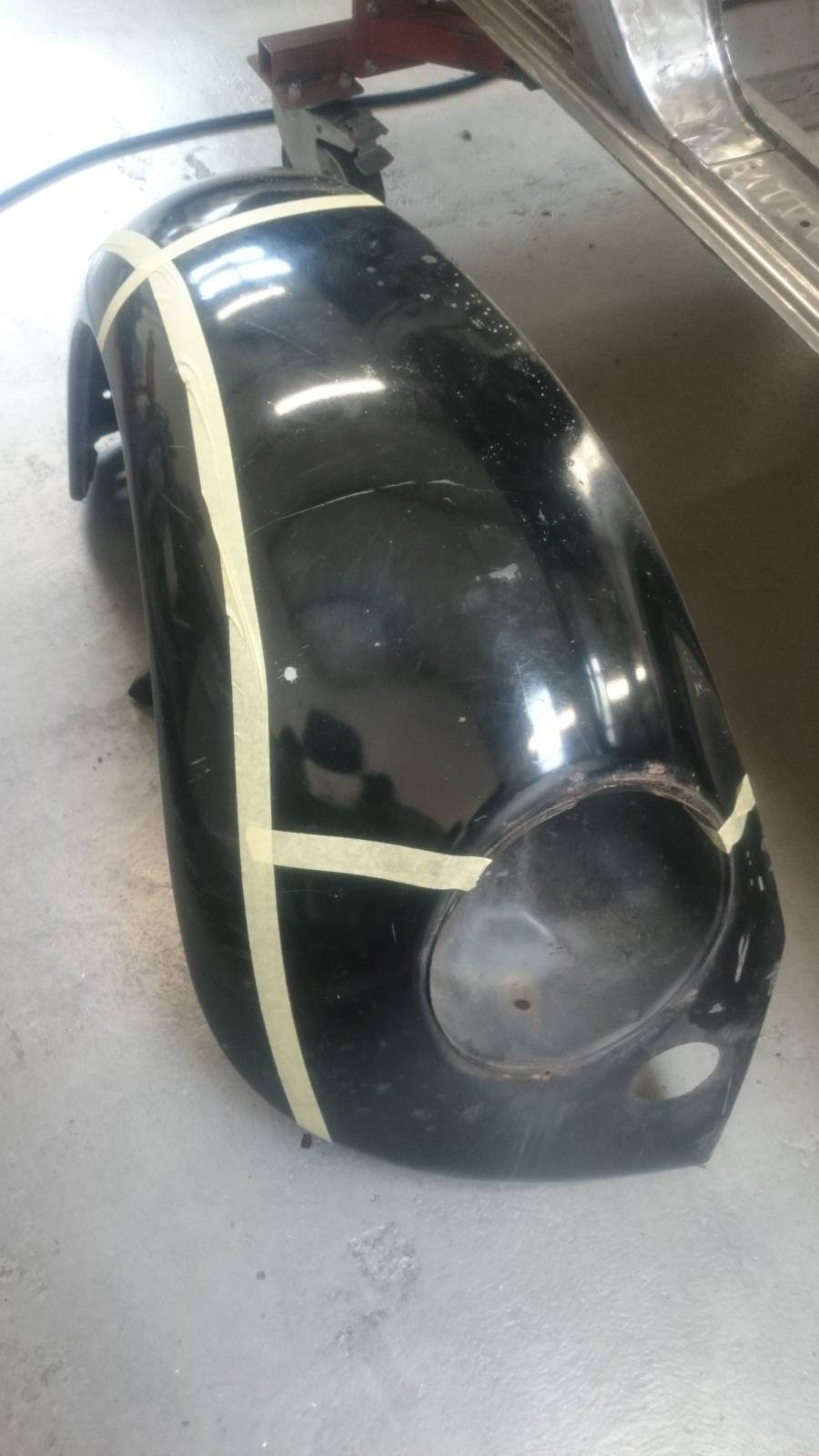

I started looking at dividing it into 5 sections.

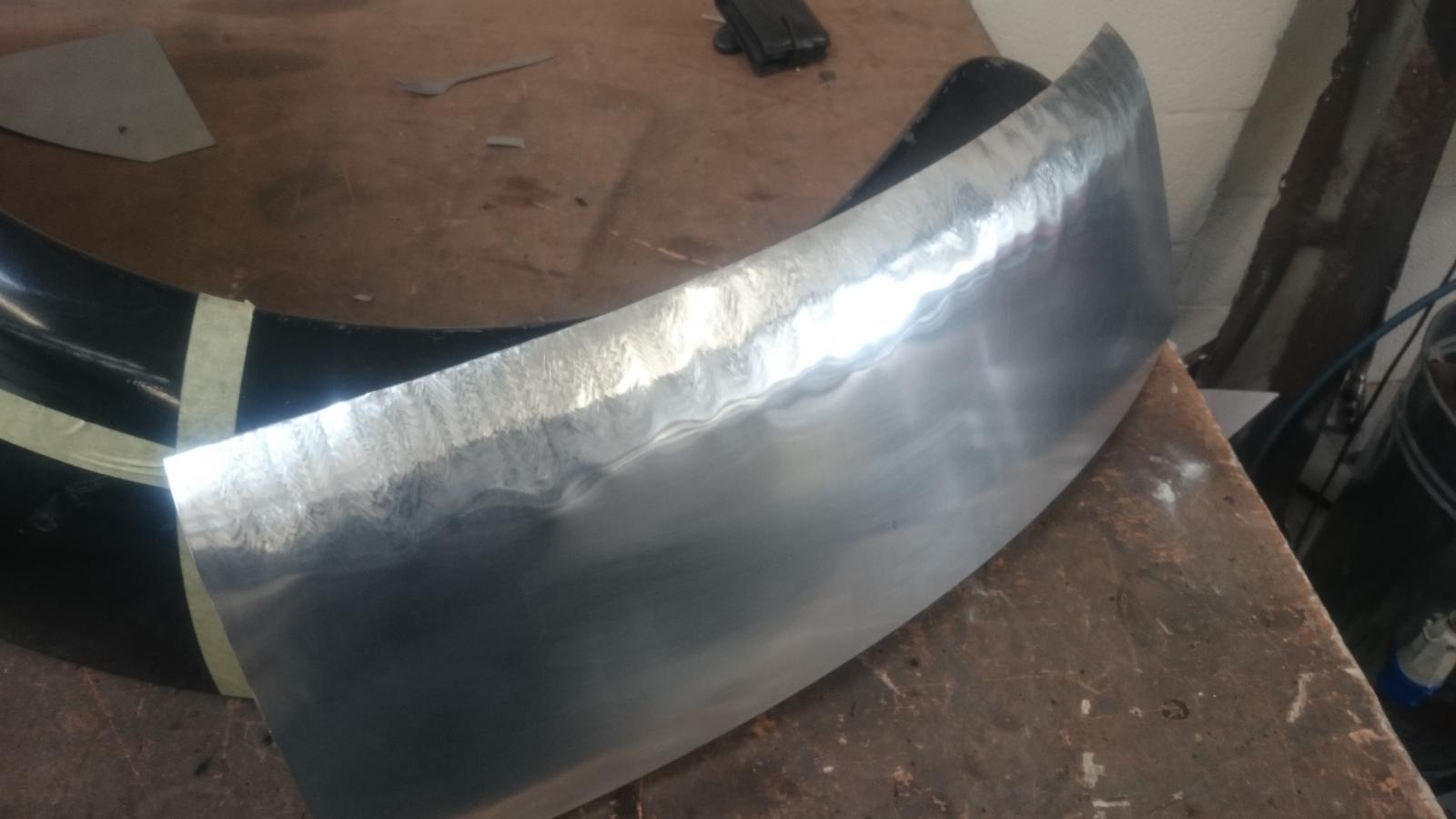

Then I started on the first section. By this time I was running out of time, so rushed it and maybe put a bit too much shape into it
I used a edge shrinker in the power hammer to get a rough shape. Then I'll switch to the English wheel next time I get time
|
|
| Back to top |
|
|
Floyd1966
Samba Member
Joined: May 17, 2013
Posts: 27
Location: England
|
| Posted: Sat Jun 20, 2015 4:40 am Post subject: |
|
|
| I have now started a thread in readers rides for this" '66 bug tdi conversion plus aluminium stuff " |
|
