 Posted: Sun May 07, 2017 5:30 pm Post subject: Water leaking in this spot any clues? |
 |
|
It's happening on both sides of the van |
|
| Back to top |
|
 |
mikemtnbike
Samba Member
Joined: March 26, 2015
Posts: 2931
Location: North Carolina
|
| Posted: Sun May 07, 2017 6:13 pm Post subject: Re: Water leaking in this spot any clues? |
|
|
That's the front of door jam/frame, right?
I'd guess windshield seal if it's both sides.
_________________
1991 Vanagon GL 2.1 AT Westfauxlia. "Frankie" Totaled  https://www.thesamba.com/vw/forum/viewtopic.php?t=764510&highlight=carnage
1995 Eurovan Camper "Marzivan"
2020 GTI SE manual |
|
| Back to top |
|
|
djkeev
Samba Moderator
Joined: September 30, 2007
Posts: 32989
Location: Reading Pennsylvania
|
|
| Back to top |
|
|
sciroccojim
Samba Member
Joined: March 04, 2008
Posts: 259
Location: NJ
|
| Posted: Mon May 08, 2017 8:45 am Post subject: Re: Water leaking in this spot any clues? |
|
|

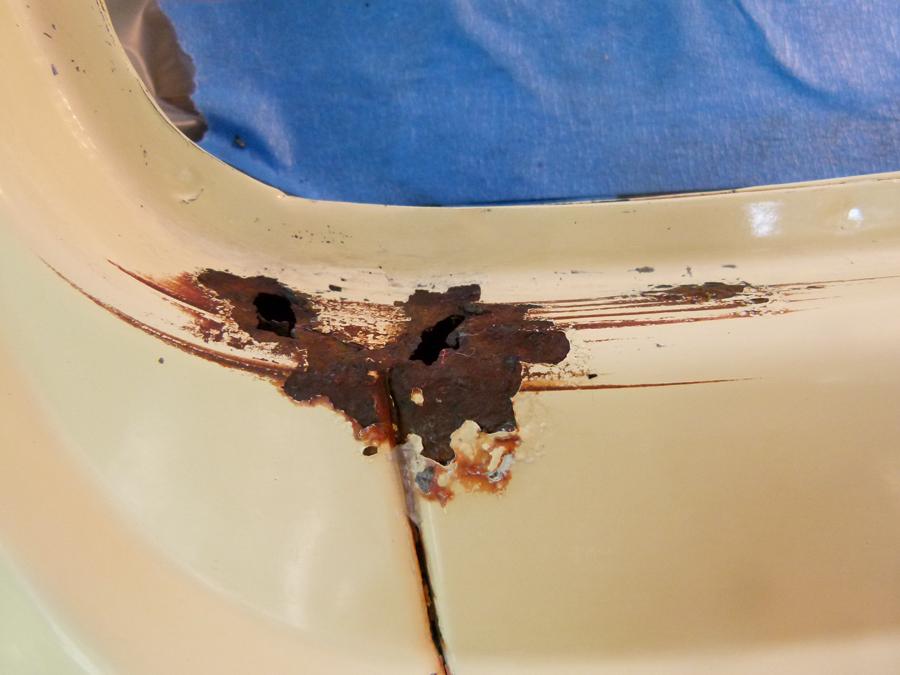

Rust hole under the windshield seal (at the base). Use a screwdriver or popsicle stick to lift the seal up as much as possible and look for rust holes, especially at the corners.
Your location plus the obvious evidence of a repaint suggest that there is rust there that wasn't addressed. Sorry.
_________________
1987 Westy Camper |
|
| Back to top |
|
|
Jradical2006
Samba Member
Joined: December 08, 2016
Posts: 56
Location: Maine
|
| Posted: Mon May 08, 2017 1:51 pm Post subject: Re: Water leaking in this spot any clues? |
|
|
| Thanks would you suggest looking at the seal from inside the van or outside or is there only one option? |
|
| Back to top |
|
|
Jradical2006
Samba Member
Joined: December 08, 2016
Posts: 56
Location: Maine
|
| Posted: Mon May 08, 2017 1:55 pm Post subject: Re: Water leaking in this spot any clues? |
|
|
| I should mention I just got a new windshield about a two weeks ago. It's not factory vw so maybe it doesn't fit? I will look for the rust first I suppose. I just bought this van about three months ago and it's my first vw I'm still figuring it all out |
|
| Back to top |
|
|
Jeffrey Lee
Samba Member
Joined: February 04, 2014
Posts: 1520
Location: Wisconsin
|
| Posted: Mon May 08, 2017 2:12 pm Post subject: Re: Water leaking in this spot any clues? |
|
|
Any reputable glass installer should have noticed and mentioned any signs of rust-through on the lip surrounding the windshield. But these days, few are that diligent.
Even without rusted holes, an ill-fitting seal can allow water in. 3M 8509 Automotive Bedding and Glazing Compound can be applied under the rubber seal even after glass installation to help with leaks.
_________________
Camp Westfalia
Camping Tips • Newsletter • Cool Campervan Apparel
www.CampWestfalia.com |
|
| Back to top |
|
|
sciroccojim
Samba Member
Joined: March 04, 2008
Posts: 259
Location: NJ
|
| Posted: Mon May 08, 2017 2:32 pm Post subject: Re: Water leaking in this spot any clues? |
|
|
If you have a leak on the passenger corner, you should be able to see it from beneath by dropping the glovebox.
_________________
1987 Westy Camper |
|
| Back to top |
|
|
Jradical2006
Samba Member
Joined: December 08, 2016
Posts: 56
Location: Maine
|
| Posted: Mon May 08, 2017 2:35 pm Post subject: Re: Water leaking in this spot any clues? |
|
|
| Yeah I honestly doubt it's rust because I was there when he did it and I think I took a close look but I don't really remember. I know I saw nothing alarming like that pic |
|
| Back to top |
|
|
Jradical2006
Samba Member
Joined: December 08, 2016
Posts: 56
Location: Maine
|
| Posted: Mon May 08, 2017 2:37 pm Post subject: Re: Water leaking in this spot any clues? |
|
|
| Yeah I honestly doubt it's rust because I was there when he did it and I think I took a close look but I don't really remember. I know I saw nothing alarming like that pic |
|
