Westy 1985 Muffler $ 59.17 ( after rebate)

[EL31415]

I just came back this past weekend from Anza-Borrego Desert
I dreamed that my westy was a syncro and got stuck on some trails, end up braking my rusty muffler and in need of a new one

" Walker Quiet-Flow Muffler "
Just wanted to share this for everyone in need of a new muffler
There's a $ 40 rebate promotion ( mail in rebate)
Here's the link to the form--> https://images-na.ssl-images-amazon.com/images/G/01/00/00/07/94/22/58/794225810.pdf
(Offer expires May 31, 2010)
There is no restriction on the vendor so you can buy locally and use the rebate.

Here's the link to the muffler for my Westy 1985 muffler on Amazon
http://www.amazon.com/Walker-22392-Quiet-Flow-Muffler/dp/B000C8Z9F6

If think this model comes with Limited Lifetime Warranty

This may also work for other moderl -->
Offer is good only on qualifying products: Walker Quiet-FlowSS or Quiet-Flow3Mufflers 21000 – 22999 Series, Walker Welded Muffler Assemblies 40032 – 49999 and 50050 – 59999 Series.

1985 Westy (1.9 L ) --> Walker 22392
1986 Westy (2.1 L )--> Walker 22485



P.S. Not sure if this is the right place to post
Just wanted to share a good deal

Hope this may help some !
_________________
~~~~~~~~~~~~~~~~~~~~
1985 Westy

[RCB]

Excellent information. Looks like a $$$$ saver too. Terry K speaks quite highly of the Walker Mufflers and it being an option to the Ansa and Bosal's.

I wasent able to find one for the earlier 1980's Vanagons, for that price it would be nice to have a spare in the "parts bin".

Thankx for posting the information.

[Vanagon Nut]

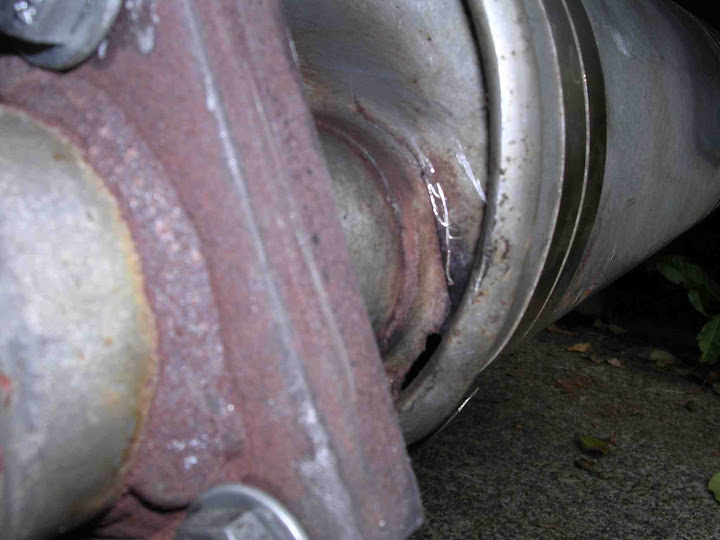

I installed a Vanagon (2.1) Quiet Flow on my swap. It is quiet especially considering exhaust system is short. Rebate was pretty prompt. JSYK, mine cracked at inlet. But. I assume this was due to engine vibrations with older version of my hanger design.

That price is great. Up here, muffler much more.

Neil.

_________________
1981 Westy DIY 15º ABA
(VW Gas I4)

1988 Westy DIY 50º ABA

VE7TBN

[chimivee]

Nice! Thanks for sharing.

Is this the part you guys are ordering for the 2.1 (22485), and does it require the brackets shown?

_________________
-James
86 Syncro Westy, etc

[PDXWesty]

Edit** Is it a round or square muffler you are referring too? That is a great price!

I see a lot of people retrofit other mufflers on vans and they don't have the same clearance as the stock muffler. They hang down a lot more below the carrier bar. The stock mufflers fit up tight and provide more clearance. I got this van and someone had put an aftermarket muffler on and it didn't fit right at all. Better to buy the right part for the application in this case.

This looks like the right one. The picture on Amazon isn't right.

_________________
89 Westy 2.1 Auto

[r39o]

[chimivee]

[Vanagon Nut]

[EL31415]

[Wildthings]

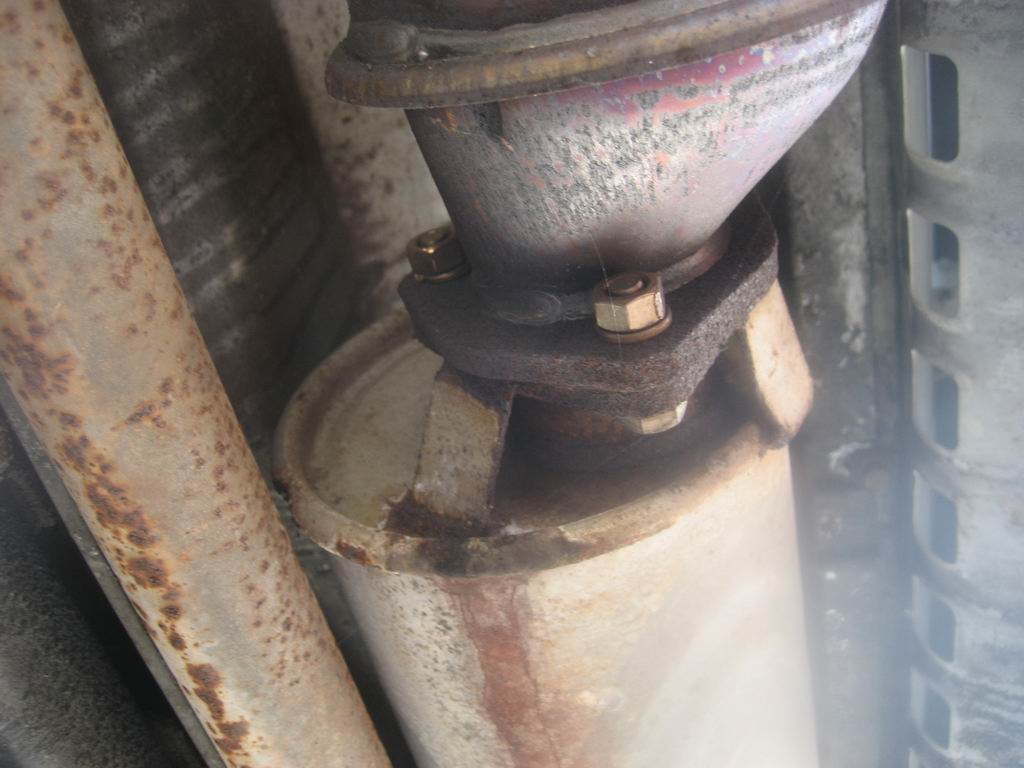

When it quits raining out, I will try to take some pictures of the hanger system I built for my 83 1/2. Its been on there quite a while now without cracking. I pretty much designed it to allow for heat expansion so I don't think either the pipes or mounts are as likely to crack as with the original set up.

[r39o]

[Vanagon Nut]

Thanks r39o

I see what you mean.

We'll see how long my fetid repair lasts (fetid cuz tough to get MIG gun in there)

Neil.
_________________
1981 Westy DIY 15º ABA
(VW Gas I4)

1988 Westy DIY 50º ABA

VE7TBN

[Wildthings]

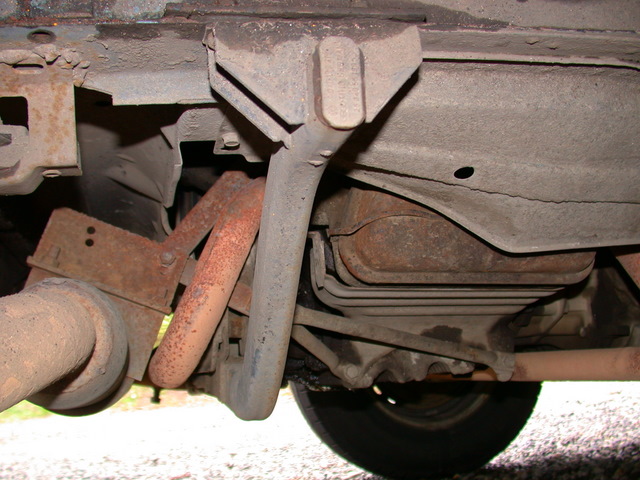

You can't really see things all that well in this picture, But the links that support the muffler are designed to pivot on either end a bit, the bolts were left slightly loose and then double nutted to allow them some movement. Hidden behind the mustache bar is another almost vertical link that stabilizes the rear end of the two links connecting to the bottom of the sump. For the link that you see disappearing upward there is a 90° bracket at the top which allows the link to swing forward and back. Sorry, I know my description doesn't make a whole lot of sense when you can't see all the part.

On the left side on the engine I have a single support as vertical as I could figure out how to mount it. It too is set of so its ends are free to move a little.

The original mounts that supported the muffler when I bought the rig managed to break every 5-10K miles. Once I redid them I have gone 50-60K without failure.

.

[powderedwaters]

Hot Tamales thats a deal! Once I can organize a secret cross border operation I'll have me a shiny new one.

A question about the brackets. Do the stock mounts fit this muffler or is a after market set/home made version the way out.

I know the original post was for an earlier model but the Walker Exhaust 22485 Quiet-Flow3 Muffler should fit nice on me 2.1. Anyone have any experience?

http://www.amazon.com/Walker-Exhaust-22485-Quiet-F...;carId=001
_________________
89 VanagonGL Hannover Edition 2.1 AT

[Terry Kay]

<<A question about the brackets. Do the stock mounts fit this muffler or is a after market set/home made version the way out.

I know the original post was for an earlier model but the Walker Exhaust 22485 Quiet-Flow3 Muffler should fit nice on me 2.1. Anyone have any experience?>>

The Walker mufflers are a little bit smaller in diameter then the stock VW muffler
The upper saddles will accept them with no problem, but this leaves a big gap between the muffler and the lower strap.

I've had the answer for tis problem, and have had the solution for at least 10 years.

I've been manufacturing heavy duty straps that are a little bit shorter than will fit to any muffler & hanger anyone has to offer for the vanagon.

The secret is only in the strap bolt length.

That's it---
And any after market muffler will fit into the stock Vanagon upper saddle with my heavy duty muffler strap.

Problem solved, All Done.
_________________
T.K.

[Terry Kay]

<<A question about the brackets. Do the stock mounts fit this muffler or is a after market set/home made version the way out.

I know the original post was for an earlier model but the Walker Exhaust 22485 Quiet-Flow3 Muffler should fit nice on me 2.1. Anyone have any experience?>>

The Walker mufflers are a little bit smaller in diameter then the stock VW muffler
The upper saddles will accept them with no problem, but this leaves a big gap between the muffler and the lower strap.

I've had the answer for tis problem, and have had the solution for at least 10 years.

I've been manufacturing heavy duty straps that are a little bit shorter than will fit to any muffler & hanger anyone has to offer for the vanagon.

The secret is only in the strap bolt length.

That's it---
And any after market muffler will fit into the stock Vanagon upper saddle with my heavy duty muffler strap.

Problem solved, All Done.
_________________
T.K.

[r39o]

[PDXWesty]

If you go to the manufacturers website, you will actually see part numbers and sketches. They are round like the originals.

_________________
89 Westy 2.1 Auto

[RCB]

Looks as if Walker doesen't manufacture a muffler for an 82 air-cooled Westy. Would it be wise/ not so wise to use the #22392 they show in the picture?

It appears to be the same configuration as the air-cooled mufflers are...a flange on one end and just a small straight pipe on the other.

Besides the world reversing its rotation....whats the downside on installing a muffler thats not designed for a particular vehicle.

[r39o]
