 Posted: Sat Jan 07, 2017 4:07 pm Post subject: Driver seat- bottom cover installation question |
 |
|
What is the proper way to attach the sides of the bottom seat cover to the bottom of the frame UNDER the seat rails?
Image below for reference of what specific part I'm referring to:
I ask 1. because I see the spikes under the rail but there doesn't seem to be space to do much with them due to the seat rails being there. And 2. because in mine (which I just removed) they were glued onto the seat frame piping when it came to the sides. And I'm pretty sure that's not right.

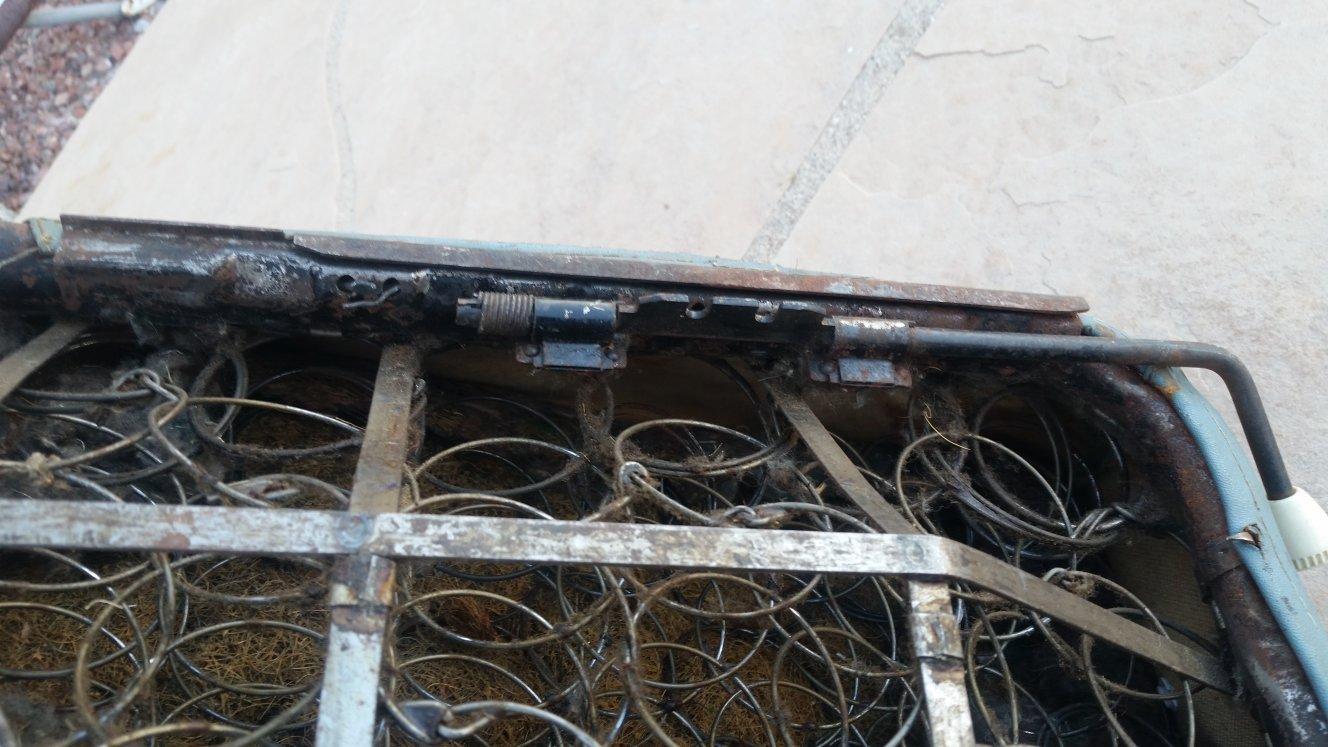

Pic below is of my seat. Like I said, I see the spikes under there, but would love some guidance as to how the covers are correctly installed under there without interfering with the seat rails.
If it makes any difference, it's a non-walkthrough bus.
_________________
Instagram: @juanskombi
1967 Velvet Green/Pearl White Kombi
1964 Pearl White Ghia Coupe
1969 BMW 2002
1959 Ford F100 |
|
| Back to top |
|
 |
busdaddy
Samba Member
Joined: February 12, 2004
Posts: 52818
Location: Surrey B.C. Canada, but thinking of Ukraine
|
| Posted: Sat Jan 07, 2017 4:19 pm Post subject: Re: Driver seat- bottom cover installation question |
|
|
The side spikes tap down over the bead formed by the wire, the wire tension does most of the work, the spikes keep it from getting caught in the slider and the tips trap the wire.
_________________
Rust NEVER sleeps and stock never goes out of style.
Please don't PM technical questions, ask your problem in public so everyone can play along. If you think it's too stupid post it here
Stop dead photo links! Post your photos to The Samba Gallery!
Слава Україні! |
|
| Back to top |
|
|
EverettB
Administrator
Joined: April 11, 2000
Posts: 71539
Location: Phoenix 602
|
| Posted: Sat Jan 07, 2017 4:42 pm Post subject: Re: Driver seat- bottom cover installation question |
|
|
Yes, it sort of just sits in the channel with tension from the wire and cover.
The spikes do not go through the material.
There is a thick piece of wire on each side though, poked through the cover so it goes around the wire inside the cover and through those pairs of holes you see in the frame.
Examples:
Wires - As far as I know there was one wire on each side even though there are 2 sets of holes. Both sides of an original seat are shown below.
Adjuster side, wire is coming undone here
Other side:
Seat cover sort of stuffed into the channel, you can see the wire used poking out a little here:
_________________
How to Post Photos
Everett Barnes - [email protected] | My wanted ads
"Water is the only drink for a wise man" | "Communication prevents complaints"
Stop dead photo links! Post your photos to The Samba Gallery! |
|
| Back to top |
|
|
Juan
Samba Member
Joined: September 01, 2003
Posts: 878
Location: Miami, FL
|
| Posted: Sat Jan 07, 2017 4:53 pm Post subject: Re: Driver seat- bottom cover installation question |
|
|
Thank you both for the responses.
I'm using WW/TMI replacement seat covers. Should I be looking for a wire inside the old seat covers? Or do the new seat covers come with something already sewn in?
Thanks again for the help!
_________________
Instagram: @juanskombi
1967 Velvet Green/Pearl White Kombi
1964 Pearl White Ghia Coupe
1969 BMW 2002
1959 Ford F100 |
|
| Back to top |
|
|
EverettB
Administrator
Joined: April 11, 2000
Posts: 71539
Location: Phoenix 602
|
|
| Back to top |
|
|
hitest
Samba Member
Joined: September 30, 2008
Posts: 10325
Location: Prime Meridian, ID
|
| Posted: Sat Jan 07, 2017 5:30 pm Post subject: Re: Driver seat- bottom cover installation question |
|
|
Occasionally the string will get sewn in place- and can't be used to pull a wire, so... Remember when you were a kid- and the knot on your hoodie's hood came loose? Feeding a wire through is kind of like that- you pinch and pull it through inch by inch if you don't have a pull string. I always bend the end of the 16 g wire over in a tight loop before pulling it through- to prevent snagging. It goes pretty smoothly.
_________________
| EverettB wrote: |
I wonder what the nut looks like.
|
'62 L390 151, '62 L469 117, '63 L380 113, '64 L87 311, '65 L512 265, '65 L31 SO-42, '66 L360 251, '68 L30k 141, '71 L12 113, '74 ORG 181
FU#5 |
|
| Back to top |
|
|
BarryL
Samba Member
Joined: November 01, 2004
Posts: 15241
Location: Casa de Oro, California
|
| Posted: Sat Jan 07, 2017 7:29 pm Post subject: Re: Driver seat- bottom cover installation question |
|
|
| EverettB wrote: |
There is a thick piece of wire on each side though, poked through the cover so it goes around the wire inside the cover and through those pairs of holes you see in the frame.
Examples:
Wires - As far as I know there was one wire on each side even though there are 2 sets of holes.
|
My originals had wire through both sets on both sides. Looking from underneath is a shot of a redone one and how to get it tight by twisting.
Showing both wires twists on one side.
You make a tight long U shape wire and poke it from the outside in over the seat perimeter tightening wire. |
|
| Back to top |
|
|
EverettB
Administrator
Joined: April 11, 2000
Posts: 71539
Location: Phoenix 602
|
| Posted: Sat Jan 07, 2017 9:34 pm Post subject: Re: Driver seat- bottom cover installation question |
|
|
| BarryL wrote: |
| EverettB wrote: |
There is a thick piece of wire on each side though, poked through the cover so it goes around the wire inside the cover and through those pairs of holes you see in the frame.
Examples:
Wires - As far as I know there was one wire on each side even though there are 2 sets of holes.
|
My originals had wire through both sets on both sides. Looking from underneath is a shot of a redone one and how to get it tight by twisting.
Showing both wires twists on one side.
You make a tight long U shape wire and poke it from the outside in over the seat perimeter tightening wire. |
Ok, that is very possible too.
The seat above looks like they only did one, maybe someone was sloppy.
_________________
How to Post Photos
Everett Barnes - [email protected] | My wanted ads
"Water is the only drink for a wise man" | "Communication prevents complaints"
Stop dead photo links! Post your photos to The Samba Gallery! |
|
| Back to top |
|
|
Juan
Samba Member
Joined: September 01, 2003
Posts: 878
Location: Miami, FL
|
| Posted: Sat Jan 07, 2017 10:30 pm Post subject: Re: Driver seat- bottom cover installation question |
|
|
This is all super helpful. Thank you!
_________________
Instagram: @juanskombi
1967 Velvet Green/Pearl White Kombi
1964 Pearl White Ghia Coupe
1969 BMW 2002
1959 Ford F100 |
|
| Back to top |
|
|
Juan
Samba Member
Joined: September 01, 2003
Posts: 878
Location: Miami, FL
|
| Posted: Tue Jan 17, 2017 9:13 pm Post subject: Re: Driver seat- bottom cover installation question |
|
|

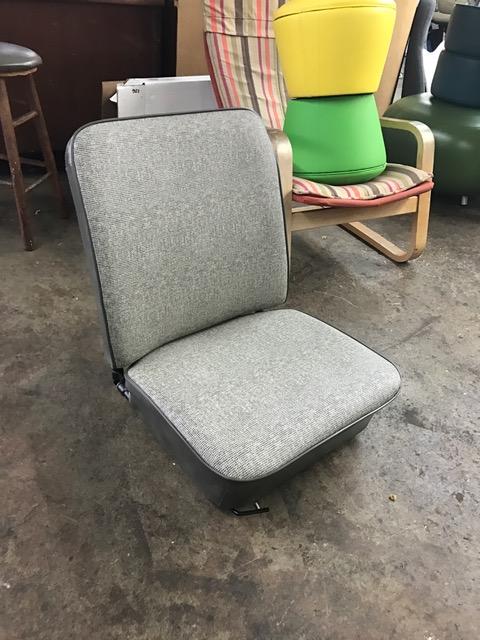

Just wanted to say thanks! Came out great.
_________________
Instagram: @juanskombi
1967 Velvet Green/Pearl White Kombi
1964 Pearl White Ghia Coupe
1969 BMW 2002
1959 Ford F100 |
|
| Back to top |
|
|
Z
Samba Member
Joined: June 15, 2003
Posts: 2517
Location: galveston, tx
|
| Posted: Wed Jan 18, 2017 11:38 pm Post subject: Re: Driver seat- bottom cover installation question |
|
|
Looks great! |
|
| Back to top |
|
|
hitest
Samba Member
Joined: September 30, 2008
Posts: 10325
Location: Prime Meridian, ID
|
| Posted: Thu Jan 19, 2017 7:50 pm Post subject: Re: Driver seat- bottom cover installation question |
|
|
Beautiful work sir!
