PostPosted: Mon Jun 20, 2016 12:00 pm    Post subject: rear PVC cot Reply with quote

Inspired by the cot that Needlenoddlenoo put together on his camper build, I decided to give it a try and set one up for my 5 year old. She's a small fry. I set mine up primarily using 1inch sch40 pvc except for the longest spans, in which I used 1 1/2 inch. The 1 1/2 inch conveniently slips tightly over 1 inch couplings. I boneheaded one of my cuts, so you can see I had to unnecessarily couple a bit of 1 1/2 inch pipe together on the rear long span. The inner demensions are 18 x 50. That should be plenty for her and some room to grow. I could have brought it out towards the rear door another inch, but the rear feet sit nicely on the rear board where it currently is. Here is the composition of the structure.

(1) 1 1/2" x 10' sch40 pvc pipe
-A seat side span length - 50 1/2"
-B tailgate side span length - 43 1/2"

(2) 1" x 10' sch40 pvc pipe
-C (4) vertical legs under side windows- 16"
-D (2) horizontal leg supports - 11"
-E (2) vertical rear legs - 17"
-F (2) longer head/foot pipe - 11"
-G (2) shorter head/foot pipe - 5 1/4"
-H (6) 1" T's

(10) 1" elbows

(1) coupler connectors - 2"

Image may have been reduced in size. Click image to view fullscreen.


With just the standard cushion underneath, there is a lot of clearance. I believe it was 14 inches. We use an extra 2" foam pad, so we ironically get a foot (12 inches) of clearance to the bottom of the pvc bed.

Image may have been reduced in size. Click image to view fullscreen.

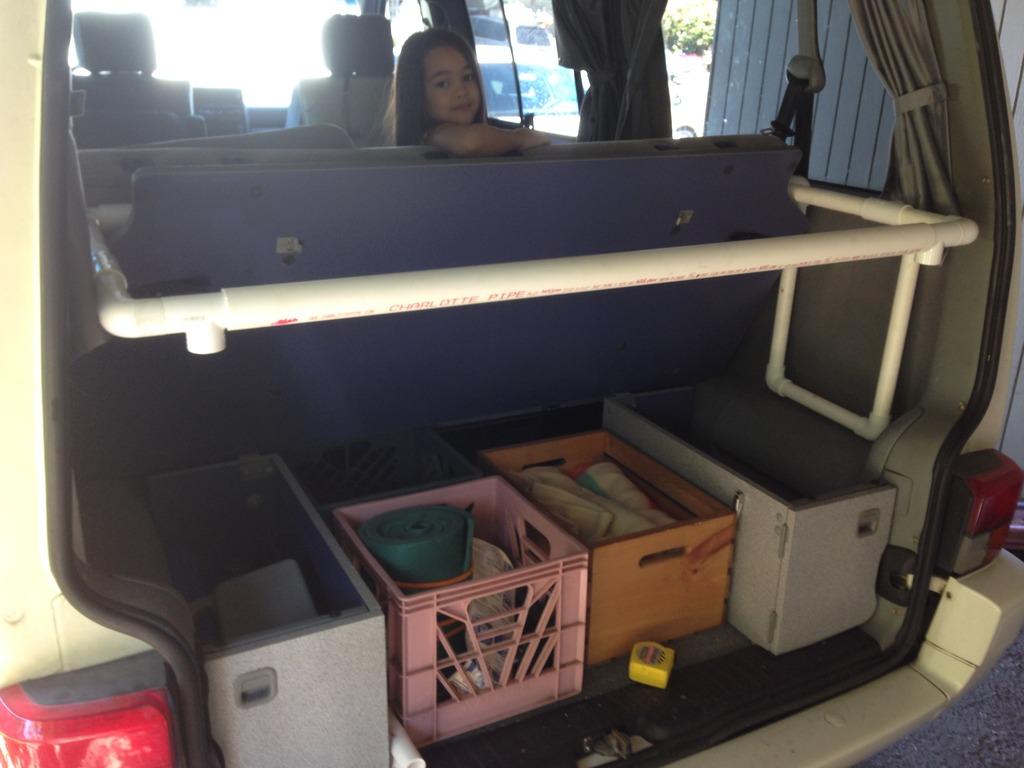

If I remove the rear two legs, I can still lift the rear table. Something I seldom do, but nice that the functionality is there. I haven't glued any of the pipe yet, but I think it will be wise to leave quite a few spots unglued. I plan on leaving all of the vertical connections unglued as well as where the 1 1/2 inch pipe slips over the 1 inch couplers.

Image may have been reduced in size. Click image to view fullscreen.


I'm working on the fabric now. I've got some duck-cloth(like canvas) that I'm using. I'm going to set it up sort of like a trampoline, where I'll string the edges of the duck cloth out towards the pipe. I'm not sure if I'm going slip wood dowels in the edges of the bed mat or use grommets. I'm leaning towards some dowels. More to come.
_________________
93 Weekender TDI conversion (AHU)
93 MV TDI conversion (1Z)
Weekender rear cot
Late model cabin air filter on 93
Euro spec bumper install on 93


Last edited by Joshwa on Tue Aug 08, 2017 10:46 am; edited 3 times in total
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
Needlenoddlenoo
Samba Member


Joined: November 23, 2013
Posts: 89
Location: Bellingham, WA
Needlenoddlenoo is offline

PostPosted: Mon Jun 20, 2016 8:22 pm    Post subject: Re: rear PVC cot Reply with quote

Awesome, I'm sorry I wasn't as detailed as you when I did the build, that's very well put together and a great presentation, so glad my tinkering inspired someone.
Ivan
_________________
Not all who wander are lost

The Tortuga (99 Eurovan)
Elsie (87 vanagon ) sold
Luna -RIP.
Sunny the boxer
Leland,Sawyer,,Gallagher
Wife and I
Back to top
View user's profile Send private message Send e-mail Instagram Gallery Classifieds Feedback
jjvincent
Samba Member


Joined: January 11, 2016
Posts: 1018
Location: Bethlehem, PA
jjvincent is offline

PostPosted: Tue Jun 21, 2016 7:23 am    Post subject: Re: rear PVC cot Reply with quote

I was going to suggest more vertical pipes, a door and a lock. Now I see you were not building a "time out" cage for when kids start to act up.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Joshwa
Samba Member


Joined: November 18, 2015
Posts: 546
Location: Mountlake Terrace WA
Joshwa is offline

PostPosted: Wed Jun 29, 2016 12:15 pm    Post subject: Re: rear PVC cot Reply with quote

I've finished the fabric part of the cot. Duck cloth with looped ends holding old fiberglass tent poles along each edge. I used cable ties to pull the poles in the fabric towards the pvc pipe. I can take out slack as the fabric stretches. I can top it with a blanket or short inflatable mattress. This is going to be in use this weekend. Hopefully version 1 is good enough.
_________________
93 Weekender TDI conversion (AHU)
93 MV TDI conversion (1Z)
Weekender rear cot
Late model cabin air filter on 93
Euro spec bumper install on 93


Last edited by Joshwa on Tue Aug 08, 2017 10:50 am; edited 3 times in total
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
rcowan
Samba Member


Joined: March 24, 2003
Posts: 179
Location: Oregon
rcowan is offline

PostPosted: Thu Jun 30, 2016 11:00 am    Post subject: Re: rear PVC cot Reply with quote

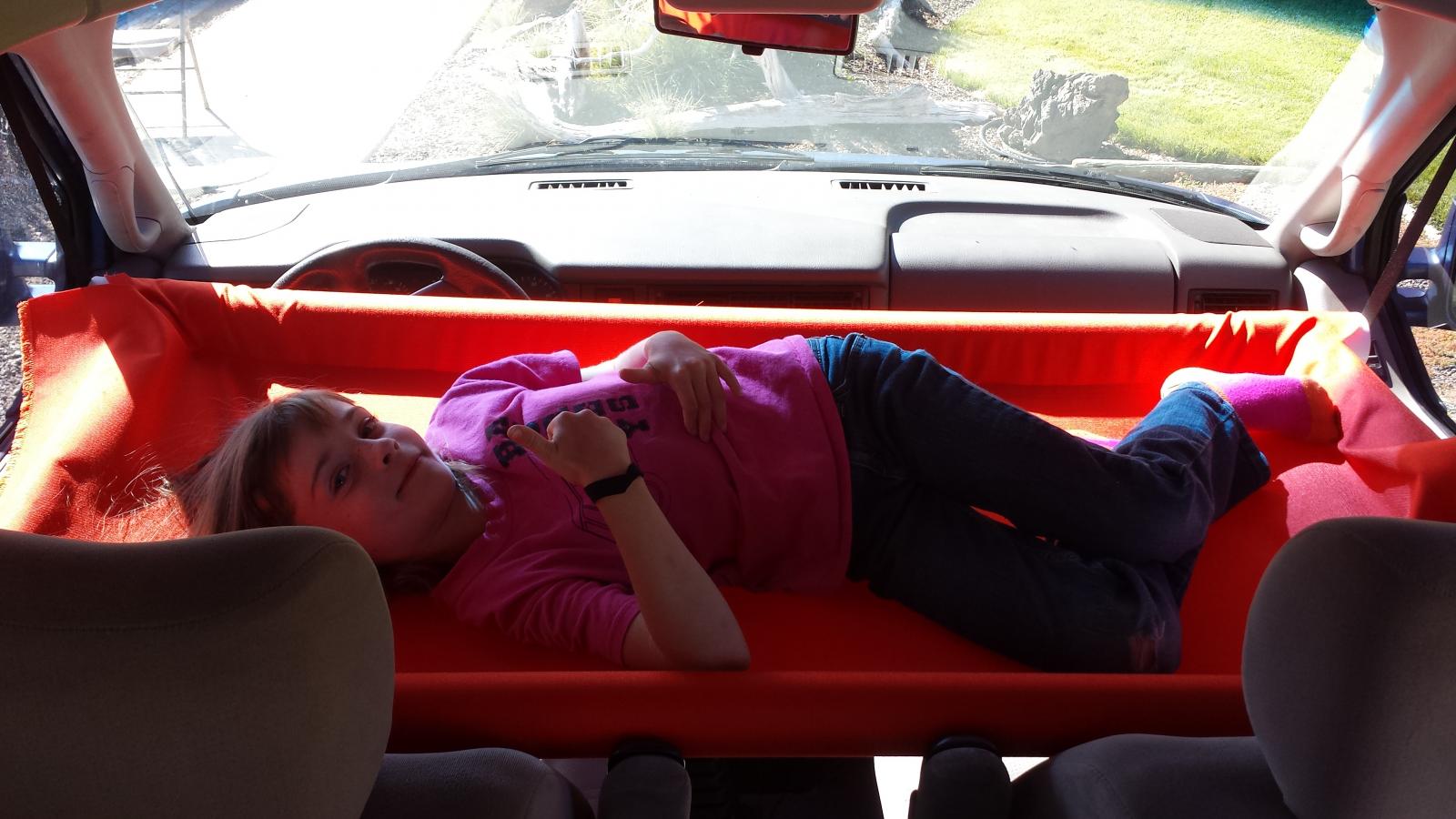

Reminds me of a PVC cot I built last summer for the OTHER end of our Eurovan. Smile

Image may have been reduced in size. Click image to view fullscreen.
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
jjvincent
Samba Member


Joined: January 11, 2016
Posts: 1018
Location: Bethlehem, PA
jjvincent is offline

PostPosted: Thu Jun 30, 2016 1:19 pm    Post subject: Re: rear PVC cot Reply with quote

Just wait until your kids get older and bigger. That's when you buy a tent when you take the EV camping. My 14 year old is 5'11" and 10 year old is 5'0". It's now where the older one takes up the whole bottom bed and the younger takes up the top (he likes the top because he builds a little fort up there). My wife and I just sleep in the tent together and call it a day.

We just did that when we went to Sampson State park this past weekend. Nice thing was that we placed the tent toward Seneca lake and got a nice view each morning and we could have a coffee while the kids are sleeping because they will be up at sometime, thus the complaints begin.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Abscate Premium Member
Samba Member


Joined: October 05, 2014
Posts: 11772
Location: NYC/Upstate/ROW
Abscate is offline

PostPosted: Thu Jun 30, 2016 6:21 pm    Post subject: Re: rear PVC cot Reply with quote

Ive got a cottage just South of that Park, should have stopped by...

Very Happy Very Happy Very Happy Very Happy
_________________
.ssS!
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Joshwa
Samba Member


Joined: November 18, 2015
Posts: 546
Location: Mountlake Terrace WA
Joshwa is offline

PostPosted: Wed Jul 06, 2016 2:09 pm    Post subject: Re: rear PVC cot Reply with quote

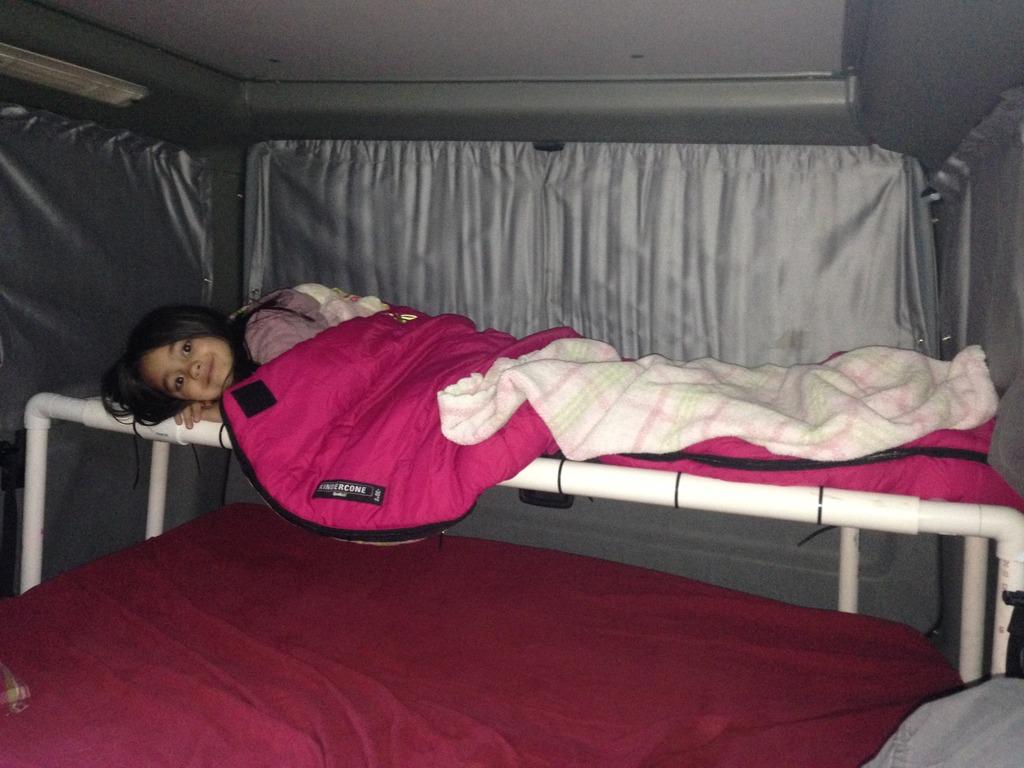

The cot worked out great on our 4 days of camping at Ft Stevens on the NW tip of Oregon. Not just for getting the kid up and out of the main bed, but also to toss stuff onto when we were changing the bed back to a seat. I'm sure you are all familiar with the shuffling of items from front to rear. Especially when you have an extra foam pad to fold up and tuck under all the gear that goes to the rear.

Image may have been reduced in size. Click image to view fullscreen.

_________________
93 Weekender TDI conversion (AHU)
93 MV TDI conversion (1Z)
Weekender rear cot
Late model cabin air filter on 93
Euro spec bumper install on 93


Last edited by Joshwa on Tue Aug 08, 2017 10:49 am; edited 1 time in total
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
Itsamoto
Samba Member


Joined: May 01, 2014
Posts: 391
Location: Canada
Itsamoto is offline

PostPosted: Wed Jul 06, 2016 2:53 pm    Post subject: Re: rear PVC cot Reply with quote

Brilliant -- and thanks for the cut list too.
