PostPosted: Sun Jul 31, 2016 2:48 pm    Post subject: Steering Boxes: VW vs. TRW; VW Teardown & Rebuild Reply with quote

As a result of the challenges I had with a new TRW steering box,
http://www.thesamba.com/vw/forum/viewtopic.php?t=659460&highlight=

I decided to dissect a VW type 3 steering box and the troublesome TRW steering box. Various parts of what I learned can be found in different topics over the years. But here it is all in one place:

Here is the Type 3 (311.415.131A) steering box drawing:
Image may have been reduced in size. Click image to view fullscreen.


And the two disassembled steering boxes laid out for examination:
Image may have been reduced in size. Click image to view fullscreen.


TRW:
Image may have been reduced in size. Click image to view fullscreen.


VW:
Image may have been reduced in size. Click image to view fullscreen.


Now I'll document each component section. Starting with the items across the top of the sections: bolts, gasket, housing:

BOLTS:
Image may have been reduced in size. Click image to view fullscreen.

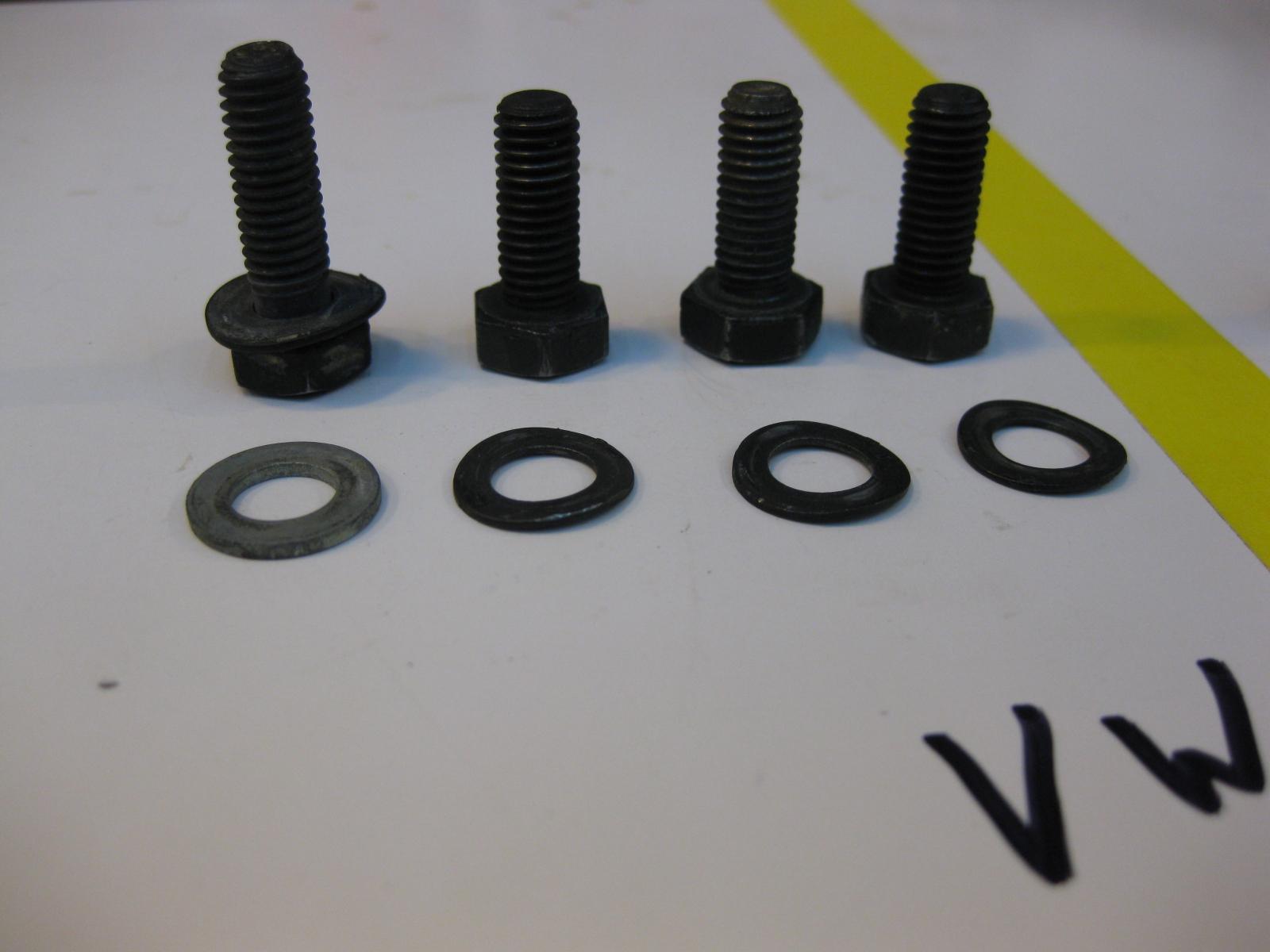

VW has qty 4 of M8X20 bolts with spring washers until a change at chassis 3112131805 when they switch to M8X25. Both sizes shown along with the extra flat washer associated with mounting the ground strap.
Image may have been reduced in size. Click image to view fullscreen.


TRW unit came with qty 4 of M8 X 20 with lock washers instead of spring washers.

GASKET: Both VW and TRW gasket is .2mm Thick. If anyone knows the source for these gaskets, please post.

HOUSING:

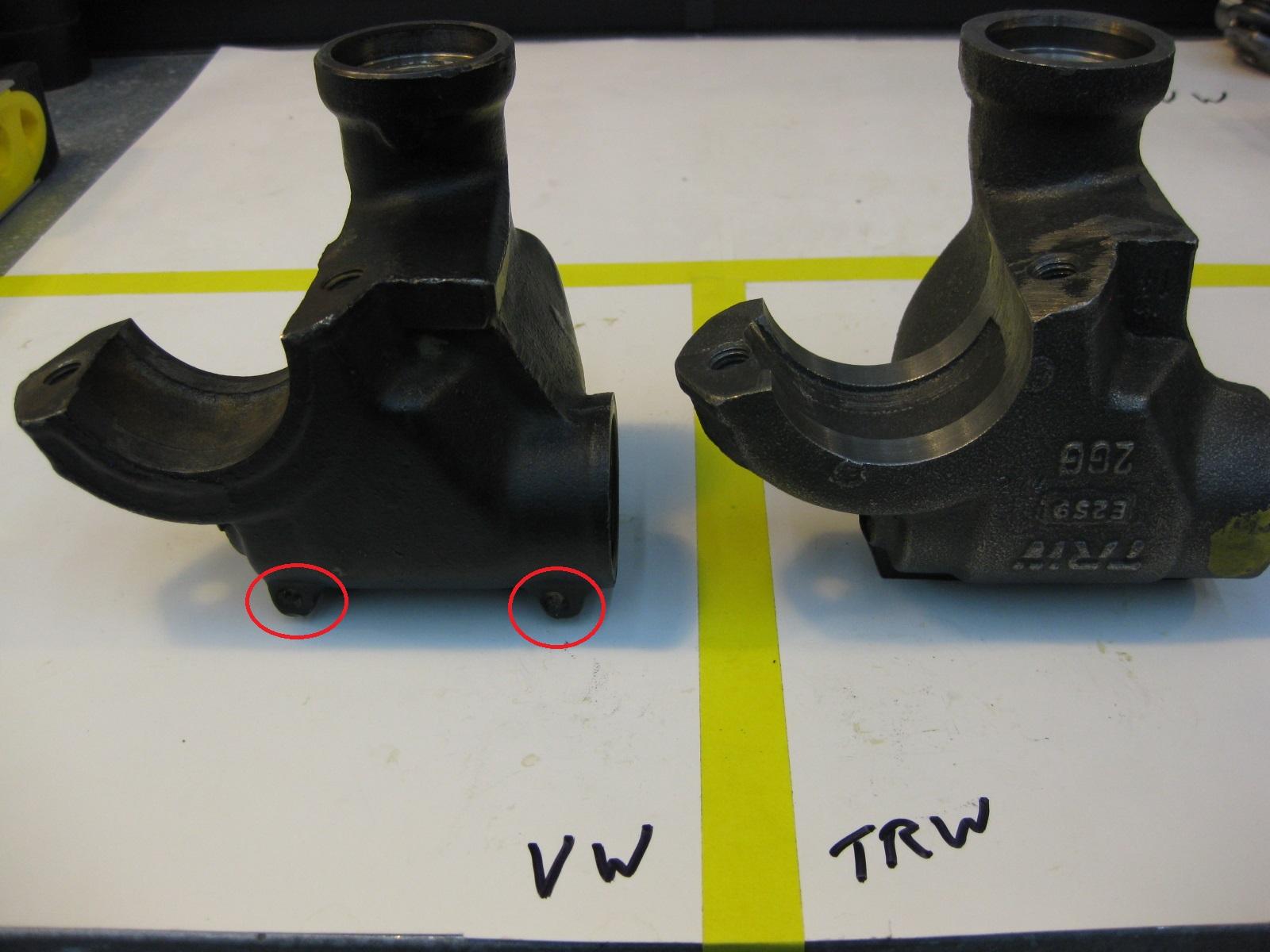

At first glance they seem the same, but subtle differences emerge. (And why did they hand grind the casting marks off of the front of the TRW housing? Is this a counterfeit?)
Image may have been reduced in size. Click image to view fullscreen.


Notice that TRW does not have the alignment points that can be used during manufacturing to assure consistent alignment as the housing progresses through the milling stages:
Image may have been reduced in size. Click image to view fullscreen.

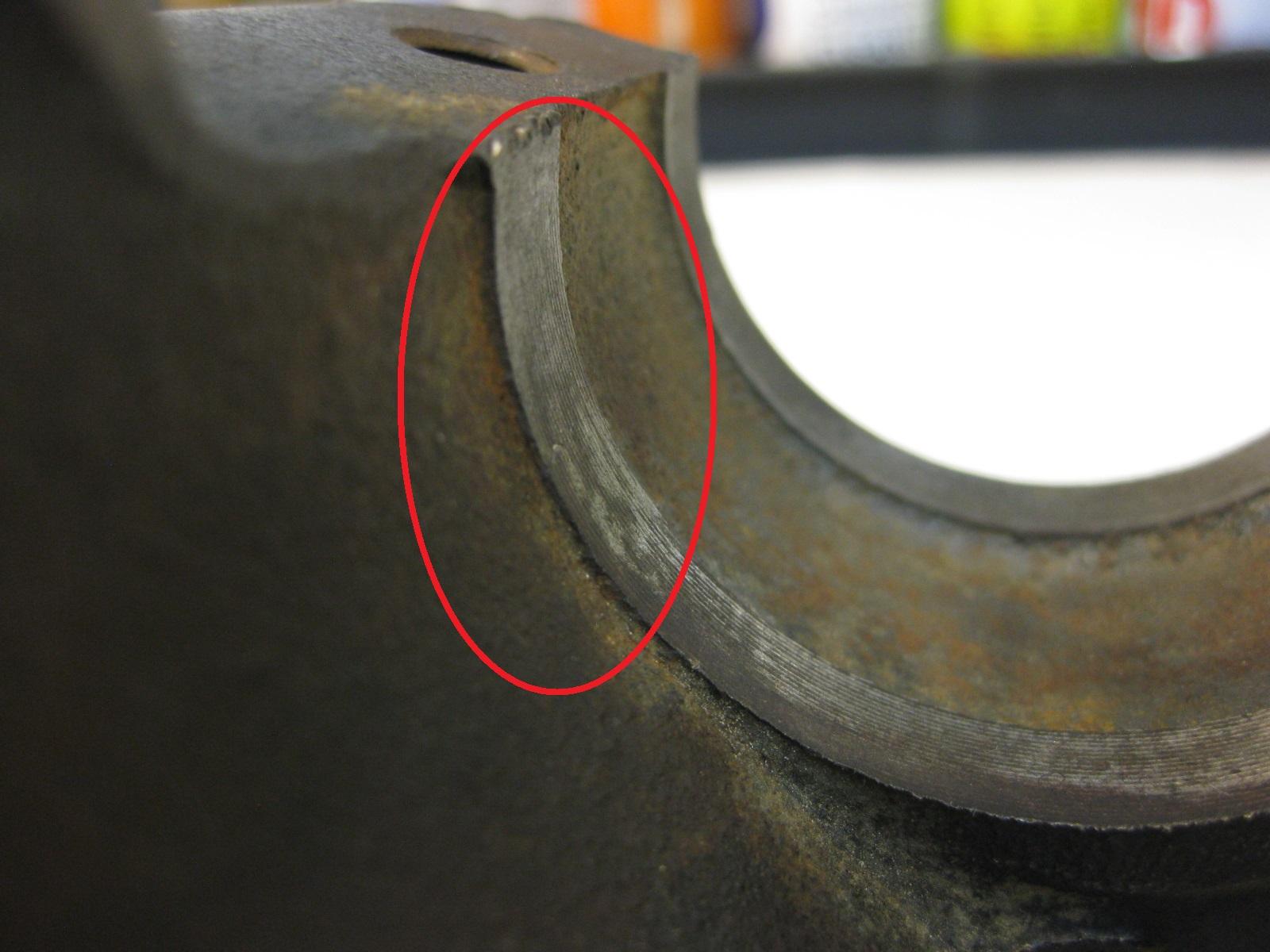

TRW Inconsistency in milling the saddle/bearing surface where the housing clamps to the beam. VW units have a "step".
Image may have been reduced in size. Click image to view fullscreen.


Some TRW units have it, some do not.
Image may have been reduced in size. Click image to view fullscreen.


Alignment for the milled hole where the top end of the steering worm shaft exits the housing is important for proper interference between the worm shaft and the roller shaft. And for proper alignment between the worm shaft and the steering column. I have 5 VW units currently disassembled and they all look like this, with the hole nicely centered in this area of the casting:
Image may have been reduced in size. Click image to view fullscreen.


The hole in this TRW unit is offset creating a misalignment. This steering box doesn't actually work because this misalignment has the worm shaft jammed so tightly against the roller shaft that you can not operate the unit without excessive force.
Image may have been reduced in size. Click image to view fullscreen.


I'll break this into a couple posts. Next post, the roller shaft.
_________________
'69 Squareback restoration
'69 Fastback restoration
'66 Type34


Last edited by OKType3Tim on Tue Aug 23, 2016 6:51 am; edited 1 time in total
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
OKType3Tim Premium Member
Samba Member


Joined: April 30, 2011
Posts: 221
Location: Northeast Oklahoma
OKType3Tim is offline

PostPosted: Sun Jul 31, 2016 3:26 pm    Post subject: Re: Dissection and comparison between VW and TRW Steering Boxes Reply with quote

Now to examine the Roller Shaft, the line of parts across the middle row:
Image may have been reduced in size. Click image to view fullscreen.


From left to right:

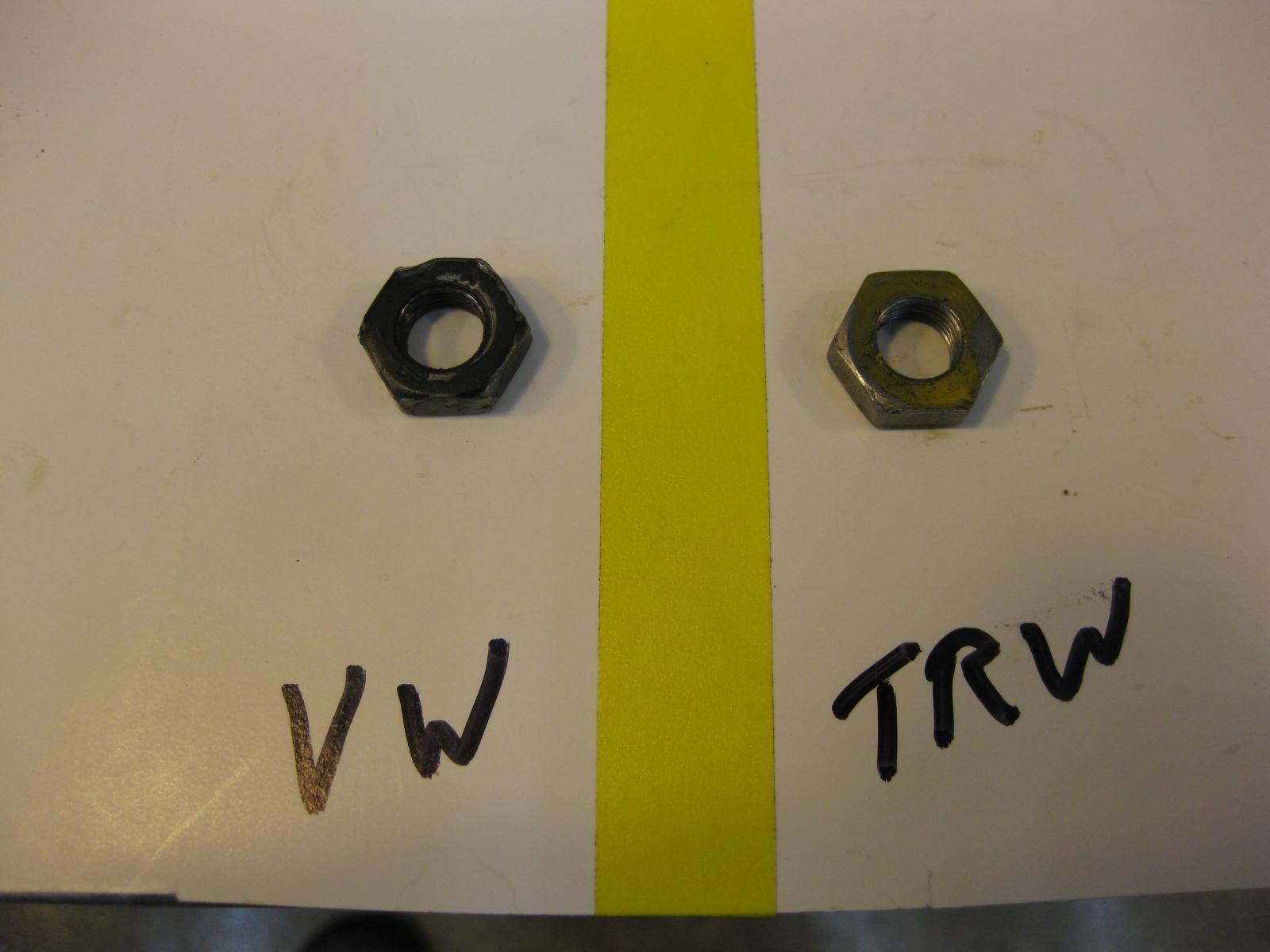

The lock nut; both VW AND TRW use the same M10X1 hex nut..
Image may have been reduced in size. Click image to view fullscreen.


The Steering Gear Case Cover, which externally appear the same.
Image may have been reduced in size. Click image to view fullscreen.


But internally, VW used a brass bushing, while TRW just has the aluminum of the cover to provide the bearing surface.
Image may have been reduced in size. Click image to view fullscreen.


It does appear that TRW is using an aluminum material that is stronger than the VW cover material. (BTW, on disassembly, there was only minimal grease up in this bearing surface cavity.)
Image may have been reduced in size. Click image to view fullscreen.

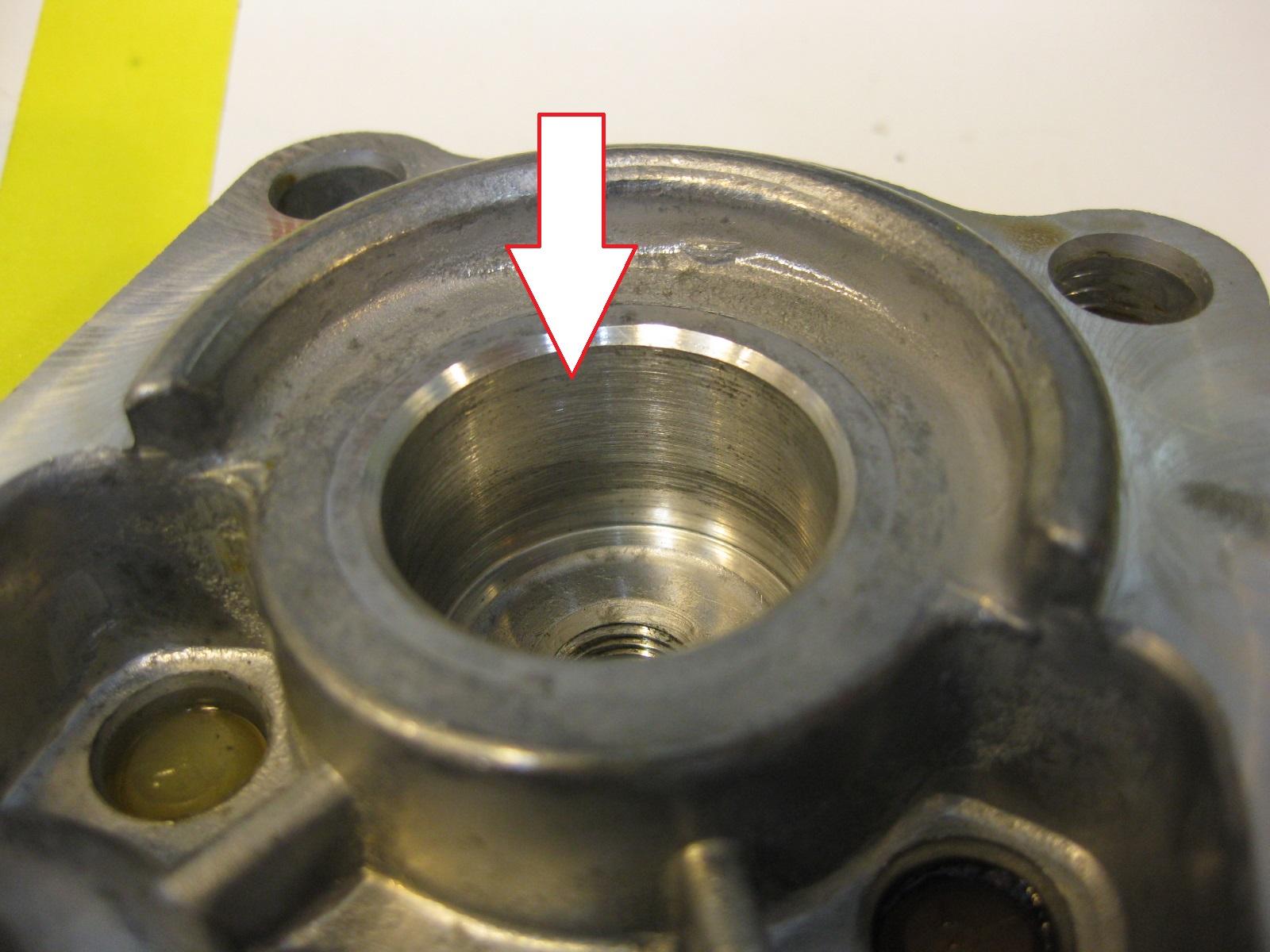

But the bearing surface is already showing wear just from my attempt to install the unit in my vehicle.
Image may have been reduced in size. Click image to view fullscreen.

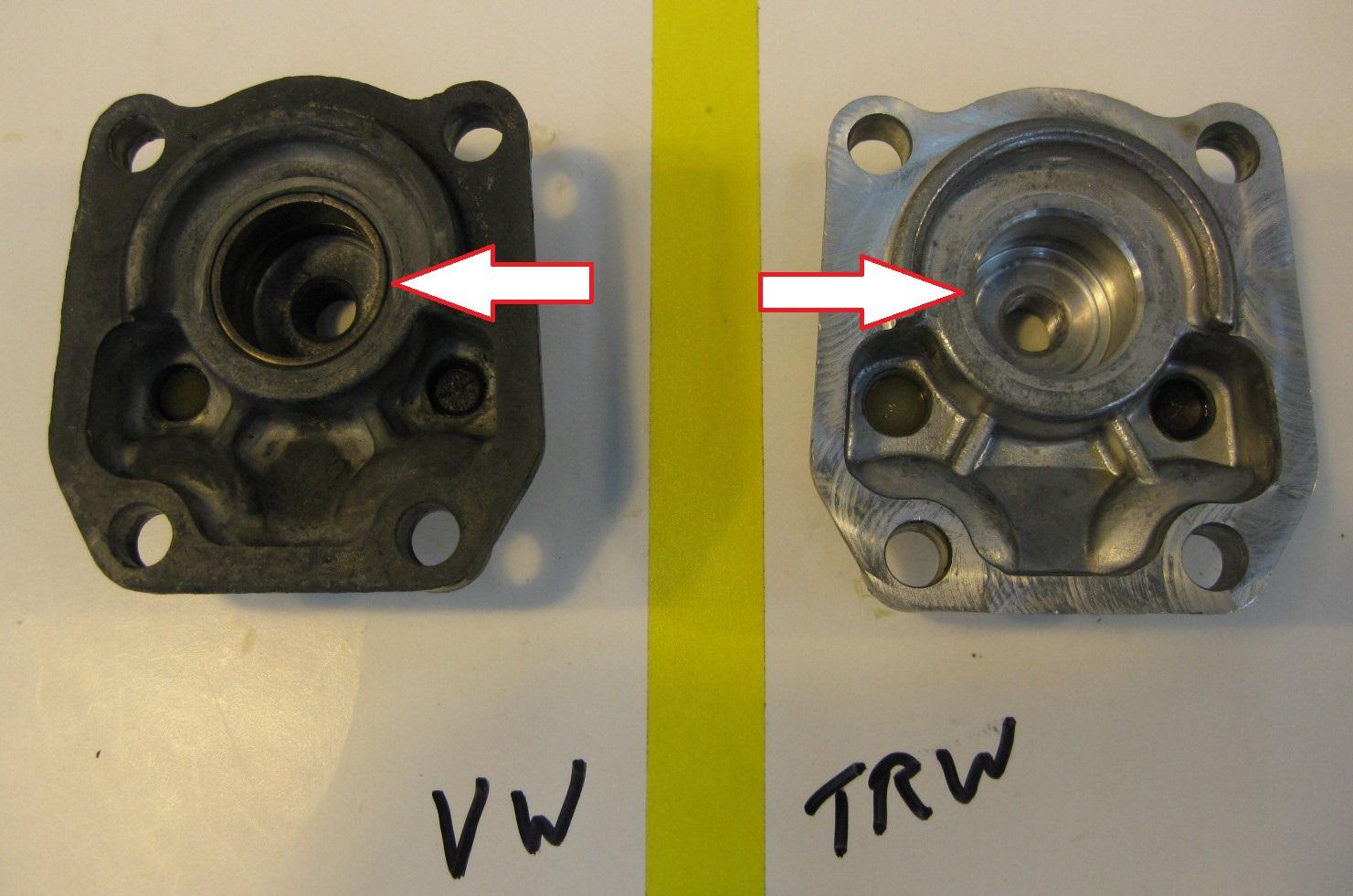

Also, the internal shoulder on the TRW cover is not made exactly the same as the VW unit, such that the TRW cover will not sit down onto the VW housings. (You could file off the small amount of excess material if you were so inclined.)

The lock ring and shim are the same, which means that somewhere there is a source of shims being made.
Image may have been reduced in size. Click image to view fullscreen.

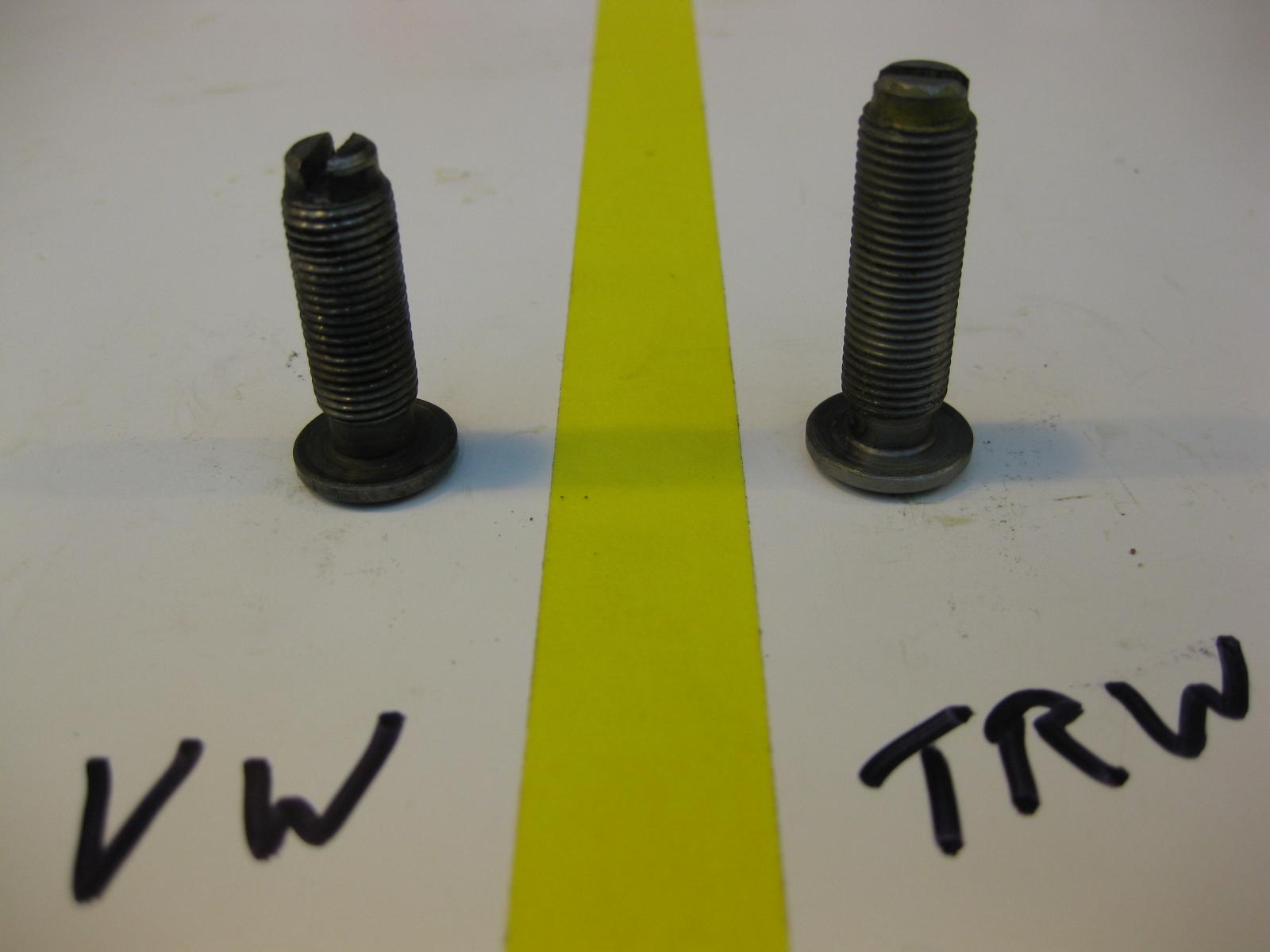

The adjusting screw is the same, except the TRW is 5mm taller for some reason.
Image may have been reduced in size. Click image to view fullscreen.

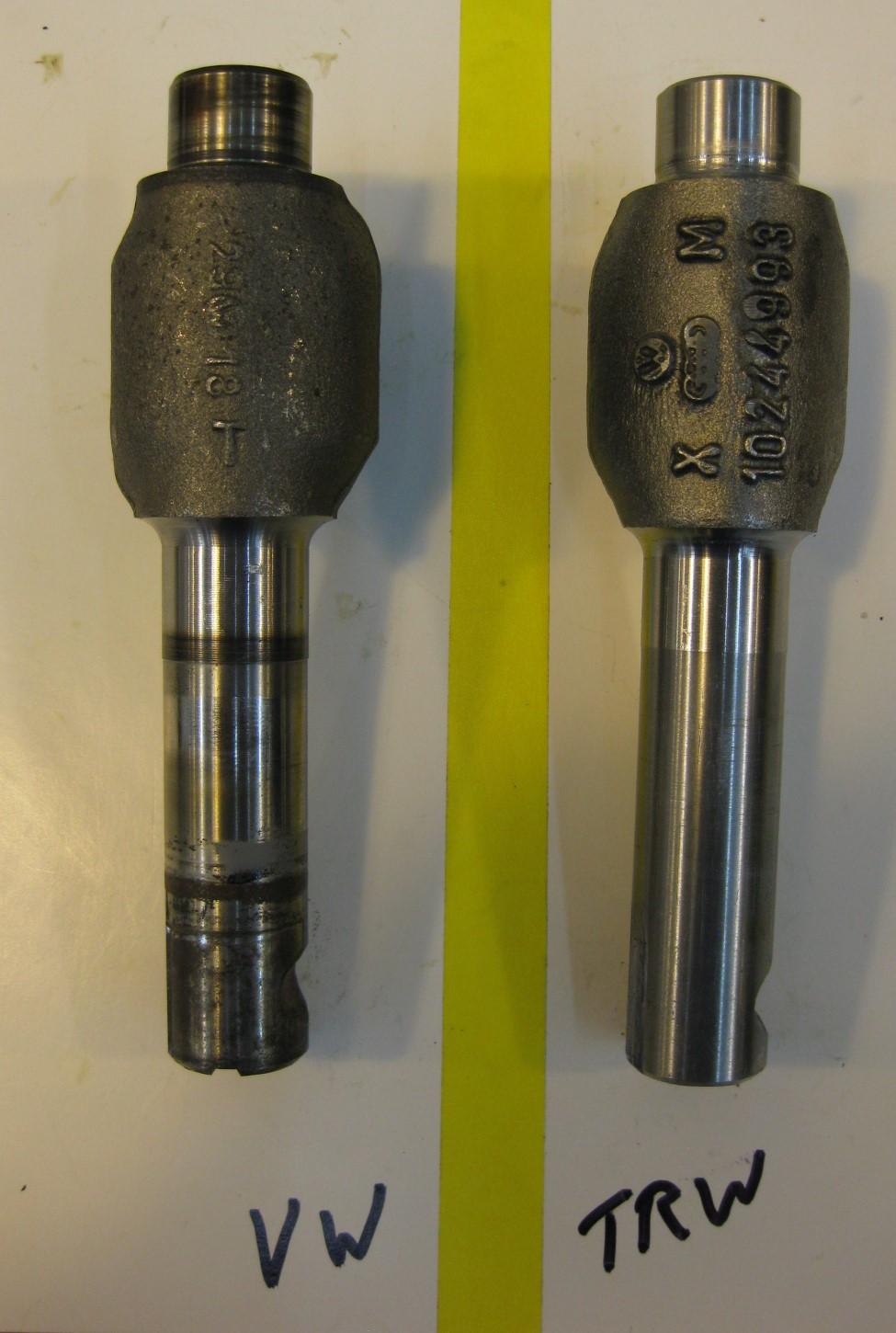

The roller shaft looks to be identical.
Image may have been reduced in size. Click image to view fullscreen.

Same dimensions.
Image may have been reduced in size. Click image to view fullscreen.

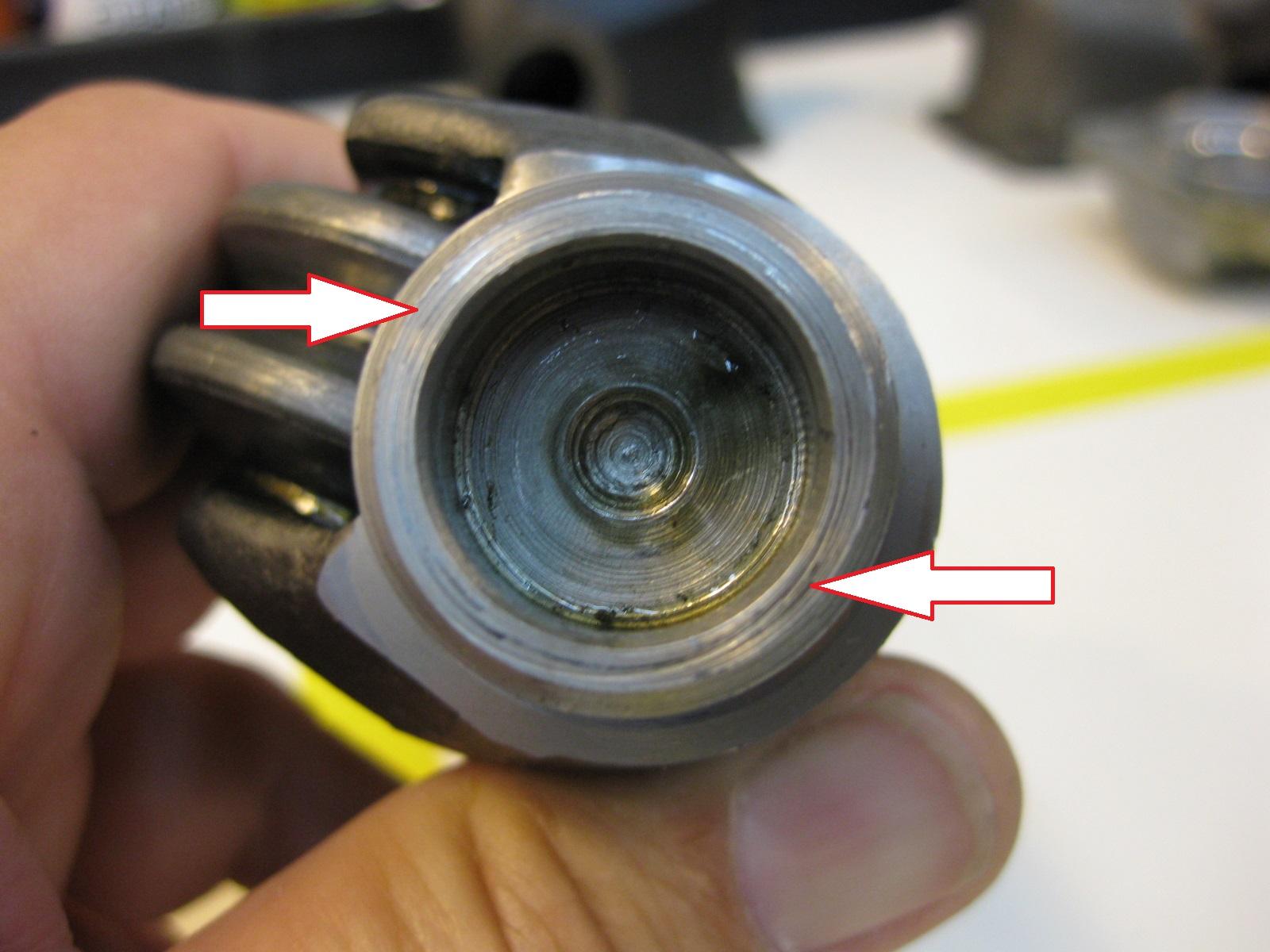

But as I examined the TRW shaft, I was disappointed to visually see, and then verify with my calipers, that the hole in the top of the shaft was drilled off-center. Not much, but enough that I picked up on it just by looking at it carefully. I checked all 5 of the VW shafts that I have on the bench. All 5 were dead on centered. This means that the top of the shaft is going to bear harder on one side of the cover plate. Probably the source of the wear I noted above.
Image may have been reduced in size. Click image to view fullscreen.


Bottom SEAL:
The bottom seal is a 24 X 37 X 7. These are readily available online or from your local autoparts or seal store.
_________________
'69 Squareback restoration
'69 Fastback restoration
'66 Type34
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
mackaymanx
Samba Member


Joined: October 12, 2006
Posts: 432
Location: Australia
mackaymanx is offline

PostPosted: Sun Jul 31, 2016 4:05 pm    Post subject: Re: Dissection and comparison between VW and TRW Steering Boxes Reply with quote

OKType3Tim wrote:

But as I examined the TRW shaft, I was disappointed to visually see, and then verify with my calipers, that the hole in the top of the shaft was drilled off-center. Not much, but enough that I picked up on it just by looking at it carefully. I checked all 5 of the VW shafts that I have on the bench. All 5 were dead on centered. This means that the top of the shaft is going to bear harder on one side of the cover plate. Probably the source of the wear I noted above.
Image may have been reduced in size. Click image to view fullscreen.




This should have no effect, as the top of the shaft does not touch anything. The adjuster sits it the recess and takes any axial load. As long as there is enough clearance around the foot of the adjuster in the recess it will not be a problem.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
OKType3Tim Premium Member
Samba Member


Joined: April 30, 2011
Posts: 221
Location: Northeast Oklahoma
OKType3Tim is offline

PostPosted: Sun Jul 31, 2016 4:09 pm    Post subject: Re: Dissection and comparison between VW and TRW Steering Boxes Reply with quote

Finally, examine the worm shaft, the line of parts across the bottom row.
Image may have been reduced in size. Click image to view fullscreen.


From Left to right:
A retainer listed in the parts book as a seal. TRW does not use this.
Image may have been reduced in size. Click image to view fullscreen.


A seal that is a 16 X 24 X 7. These are readily available online or from your local autoparts or seal store.
Image may have been reduced in size. Click image to view fullscreen.


A shim that VW places between the housing and upper bearing. TRW does not do this. VW manual calls for this to be typically .35mm. In the units I have tore down right now they vary from .16mm to .26mm. So I don't know the reasoning behind this shim nor the reason for the variance.
Image may have been reduced in size. Click image to view fullscreen.

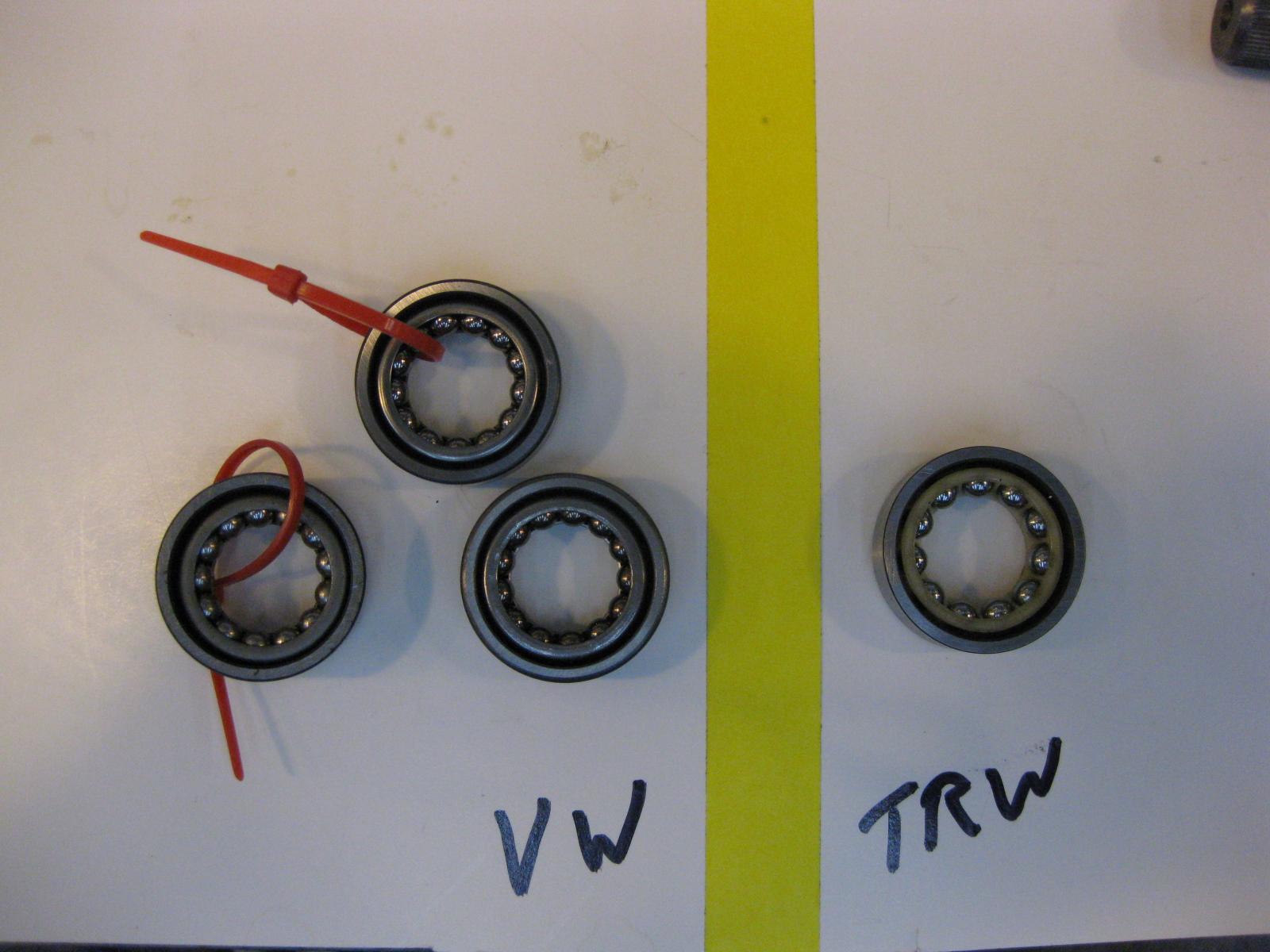

Bearings, one for the upper end of the shaft and one for the lower end. Both upper and lower are the same. Here is where it really gets interesting. In the units I have disassembled, I have found FAG 50820A, FAG 508620B, SKF 311120A, SKF 311120AD, and unmarked with cage marking of *C131*. Any unit can have a mix of bearings. These cross to VW part# 411.417.225.
Main Race side:
Image may have been reduced in size. Click image to view fullscreen.

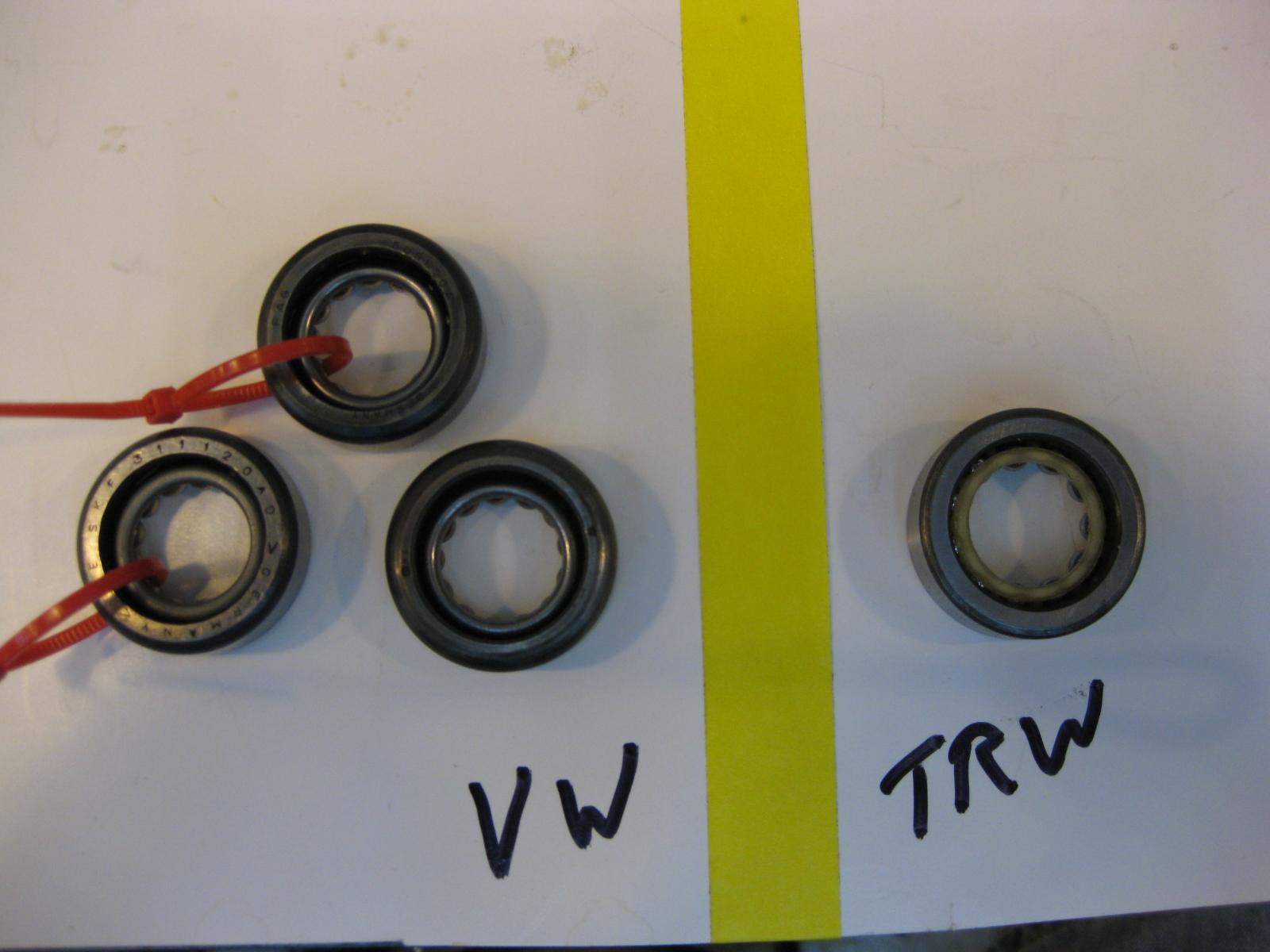

Reverse Race side:
Image may have been reduced in size. Click image to view fullscreen.


These are an "Angular Contact Ball Bearing" where one race is provided with the bearing and the opposite race is the actual worm shaft. The VW based units use a metal cage with 13 balls of 5mm diameter.
Image may have been reduced in size. Click image to view fullscreen.

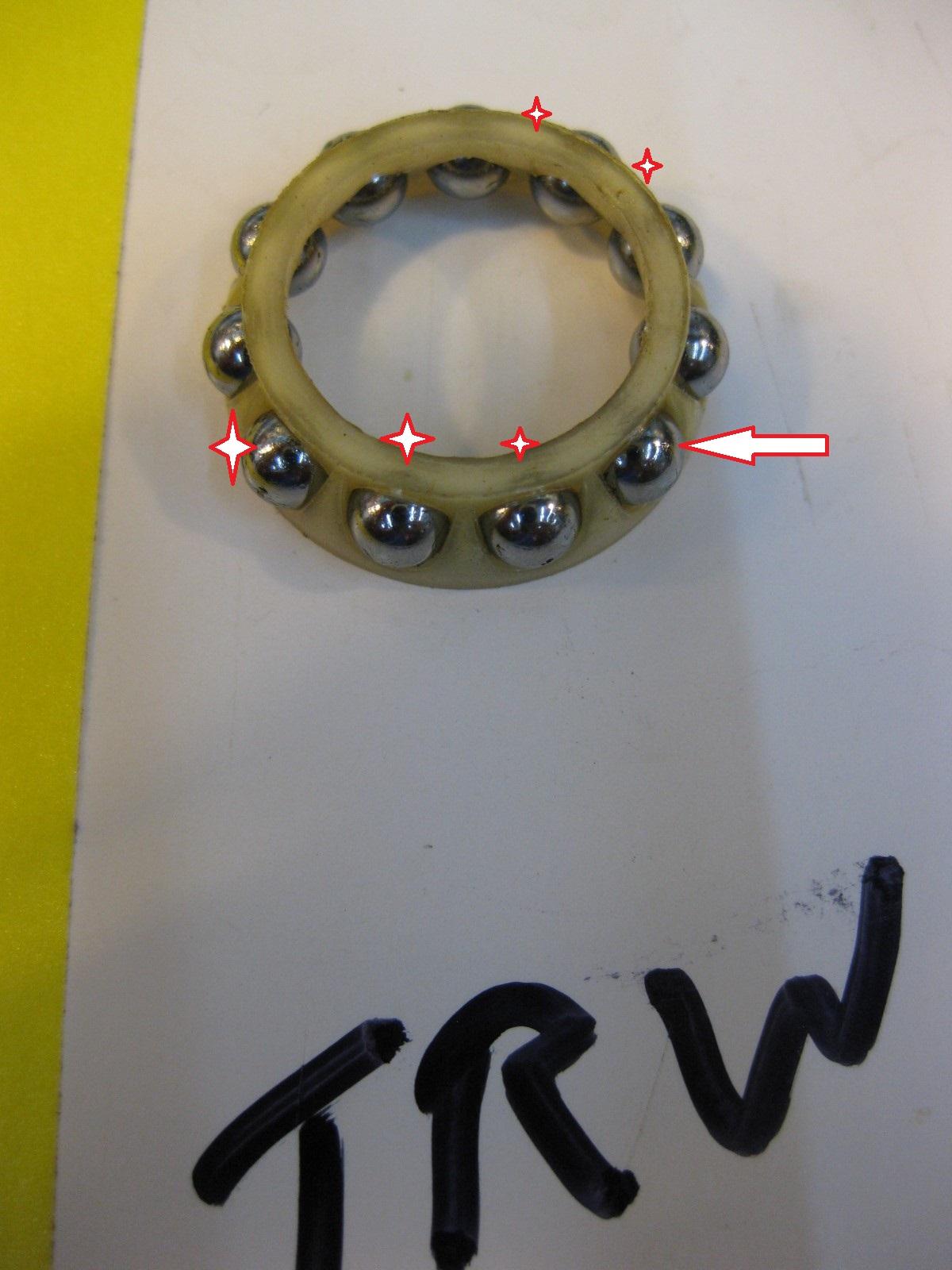

The TRW bearings do not have any part number markings and use a plastic cage with 11 balls of 5mm diameter.
Image may have been reduced in size. Click image to view fullscreen.


The harsh reality of a magnified, lighted, camera picture on the TRW cage shows cage cracking/stress, and pitted ball bearings. This on a bearing that hasn't done anything except sit in grease for several years.
Image may have been reduced in size. Click image to view fullscreen.

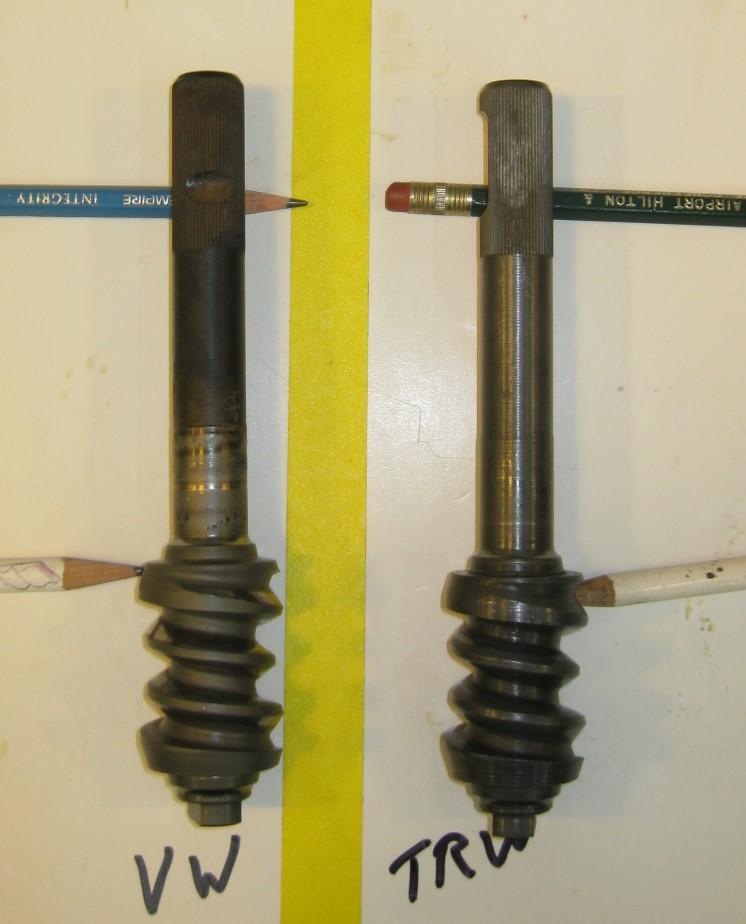

The worm shaft initially appears to be the same. And given that the diameter of the balls are the same from VW to TRW, the shaft seems to mate up fine with the older VW bearings.
Image may have been reduced in size. Click image to view fullscreen.

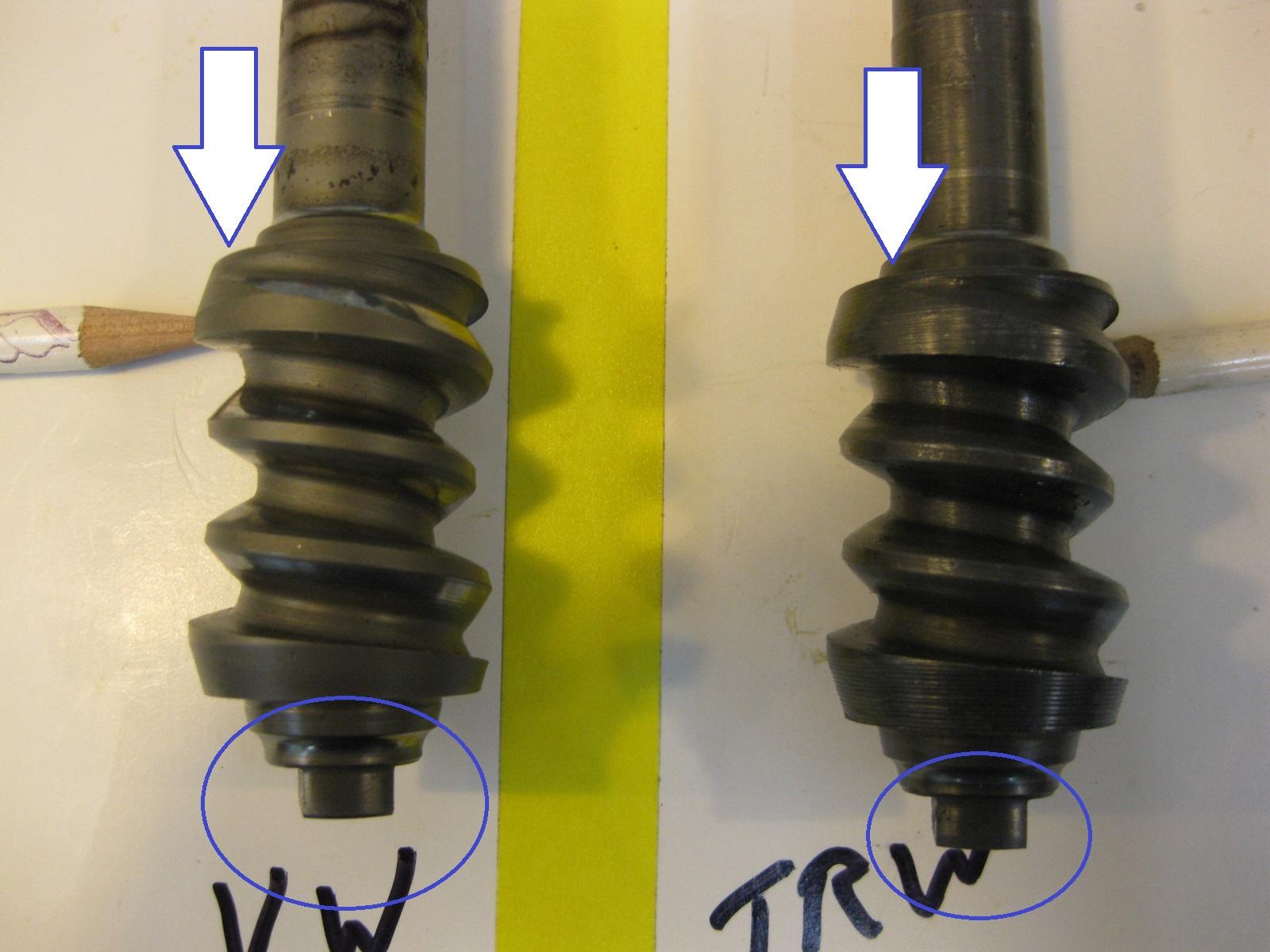

However, I lined them up for the pictures to verify the they were truly identical:
Image may have been reduced in size. Click image to view fullscreen.


And found this:
Image may have been reduced in size. Click image to view fullscreen.

If you just proceed along with installing the TRW steering gear, you will find that your steering wheel is now 90 degrees off from where you thought it was going to be.

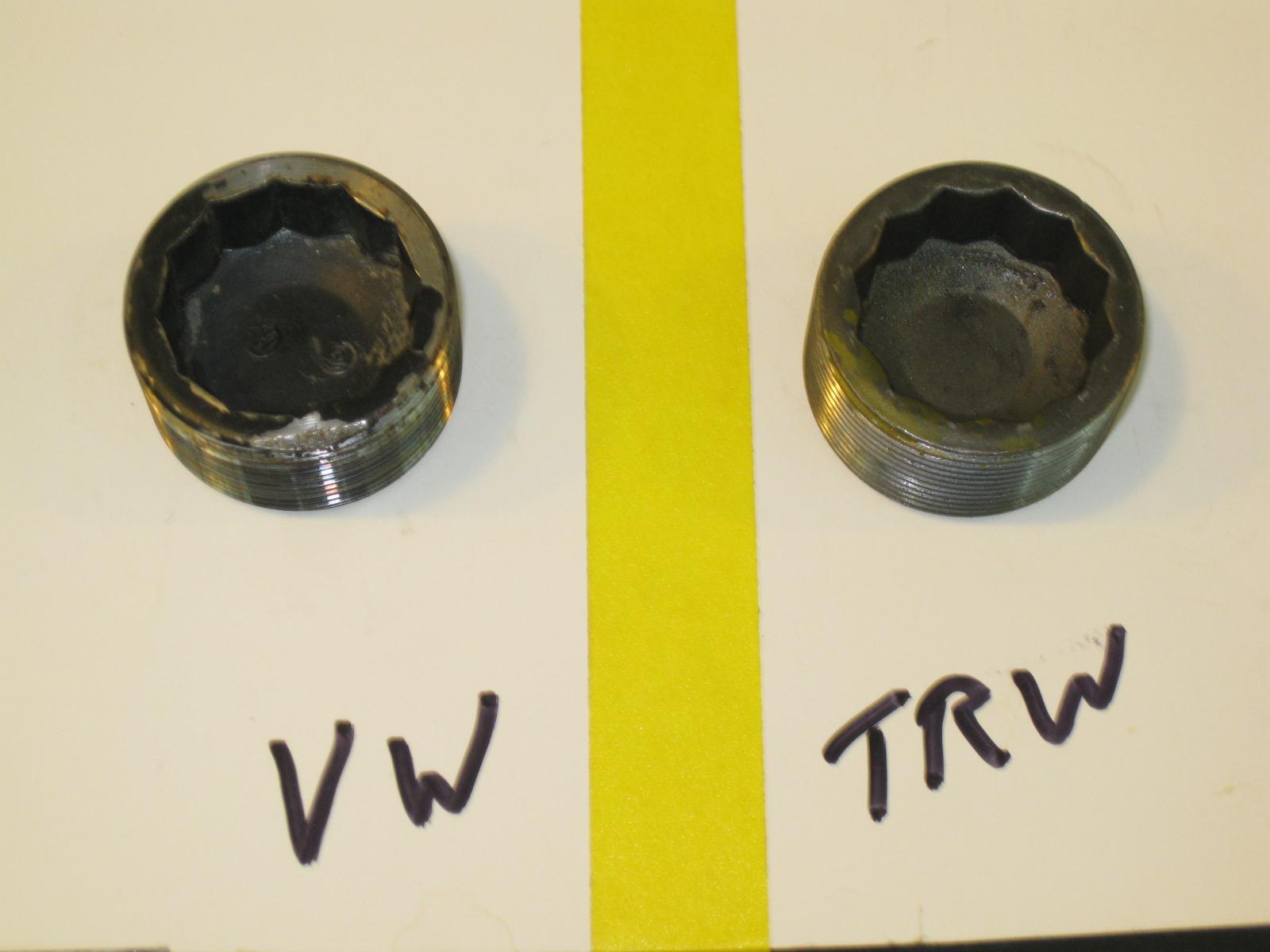

And then finally at the bottom of the shaft you have the adjusting screw and lock ring which are identical between the units.
Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


So, I was hopeful when I started disassembly of the TRW, that I would at least get some good spare parts. But not so much:
Image may have been reduced in size. Click image to view fullscreen.


And this:
Image may have been reduced in size. Click image to view fullscreen.

_________________
'69 Squareback restoration
'69 Fastback restoration
'66 Type34


Last edited by OKType3Tim on Fri Aug 18, 2017 8:50 am; edited 1 time in total
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
Tram
Samba Socialist


Joined: May 02, 2003
Posts: 21818
Location: Still Feelin' the Bern- Once you've felt it you can't un- feel it.
Tram is offline

PostPosted: Sun Jul 31, 2016 4:51 pm    Post subject: Re: Dissection and comparison between VW and TRW Steering Boxes Reply with quote

Excellent writeup and analysis.

From what you are showing, it's now clear to me exactly how and why these units can just seemingly overnight go loose. The plastic bearing races are a real eye opener, as is the substandard machine work and all the things that are mis- aligned.

The longer adjusting screw just screams "cheat" to me, as it seems only to be longer to make it appear that there is more adjustment to the box than there actually is (as the height of the worm adjuster is a good visual indication of the condition of the box). It also helps explain why the last few boxes I've gotten actually needed this adjustment backed off upon install.

Are these "counterfeit" boxes? Maybe, but if they are, even the parts suppliers seem unaware of it.
_________________
Give A Pal a Hand!
www.happytrailsfarm.org

vwfye wrote:
Oh the joy of custom things...



RIPRW

"I'm very fond of long walks, especially when taken by those who annoy me."- Fred Allen
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
Zundfolge1432 Premium Member
Samba Member


Joined: June 13, 2004
Posts: 8864
Location: Stuck in the middle with you
Zundfolge1432 is offline

PostPosted: Sun Jul 31, 2016 5:06 pm    Post subject: Re: Dissection and comparison between VW and TRW Steering Boxes Reply with quote

Another sad commentary on the state of aftermarket parts quality. Doesn't surprise me though as folks are now rebuilding original carburetors,fuel pumps,distributors etc because replacement parts are often times junk. I'll be looking for a few spares to put away for myself. Thanks for sharing this Tim.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Clatter
Samba Member


Joined: September 24, 2003
Posts: 4360
Location: Santa Cruz
Clatter is offline

PostPosted: Sun Jul 31, 2016 5:42 pm    Post subject: Re: Dissection and comparison between VW and TRW Steering Boxes Reply with quote

Excellent Excellent write up!

Thanks for taking the time to do all of this!
_________________
Bus Motor Build
Fastback Build

What's That Noise??
Back to top
View user's profile Send private message Gallery Classifieds Feedback
KTPhil Premium Member
Samba Member


Joined: April 06, 2006
Posts: 26927
Location: Conejo Valley, CA
KTPhil is offline

PostPosted: Sun Jul 31, 2016 6:51 pm    Post subject: Re: Dissection and comparison between VW and TRW Steering Boxes Reply with quote

...and maybe send a copy to TRW so they know the VW community is on to the cheap corner-cutting. They only et away with it is we don't change our habits and shine a light on it.

Thanks for the teardown and analysis. Maybe this will improve things in the long run!


Last edited by KTPhil on Sun Jul 31, 2016 9:24 pm; edited 1 time in total
Back to top
View user's profile Send private message Gallery Classifieds Feedback
wcfvw69 Premium Member
Samba Purist


Joined: June 10, 2004
Posts: 12644
Location: Arizona
wcfvw69 is offline

PostPosted: Sun Jul 31, 2016 7:14 pm    Post subject: Re: Dissection and comparison between VW and TRW Steering Boxes Reply with quote

KTPhil wrote:
...and maybe send a copy to TRW so they know the VW community is on the the cheap corner-cutting.


While this isn't a bad idea, I just don't think TRW cares or would care "if" they are not aware of their shoddy work in the first place.

Sadly, we only have to look at Bosch, Meyer, Lemforder and other "German" brand names whose quality of parts that are now suspect at best. It's apparent to me and others that these manufactures don't care about the quality of these parts being sold to support these now decades old vehicles.

Honestly, who do these parts manufactures answer to for their poor quality parts? It's not like they are supplying these parts for new car production where the auto manufacturers would hold them accountable. It's been mentioned before that there's no real financial reward for them to make and continue to sell these parts for what's now a very small, niche market of surviving 40+ YO classic cars.

We are seeing Bosch discontinue many, many common parts in the last couple of years for our classic VW's due to that exact reason. It's clearly not worth their efforts to continue to source the cheapest labor pool on the planet to make these parts anymore due to the low volume sales of them.
_________________
Bill

**Restored German Bosch distributors for sale or I can restore yours**

**Restored German Pierburg fuel pumps for sale or I can restore yours**



1970 Westfalia Bus
1969 Convertible Bug
1967 Standard Bug
Back to top
View user's profile Send private message Gallery Classifieds Feedback
ataraxia
Samba Member


Joined: March 19, 2010
Posts: 4061
Location: Illinois
ataraxia is offline

PostPosted: Mon Aug 01, 2016 6:24 am    Post subject: Re: Dissection and comparison between VW and TRW Steering Boxes Reply with quote

The plastic bearing cages are the first indication that these are garbage. If the bearing cage flexes/fails, the whole box goes to shit real fast.

It also appears that the seals in the TRW box are 'single lip', whereas the VW seals are 'double lip'. That will make a difference in how well the box retains its grease/oil. My leaking / rebuilt steering box had single lip seals and gear oil inside, some of it making it out of the box via the seal.

There are several shims for the bearing race but I'm not 100% sure why they exist - adjustment can be made at the other end of the shaft.

311 415 193
Shim 0.20 mm
for steering worm

311 415 194
Shim 0.25 mm
for steering worm

311 415 195
Shim 0.30 mm
for steering worm

311 415 196
Shim 0.35 mm
for steering worm

311 415 197
Shim 0.40 mm
for steering worm

311 415 198
Shim 0.45 mm
for steering worm

311 415 199
Shim 0.50 mm
for steering worm

It would be great if we could get all of this information in one thread so that we have a resource for rebuilding a proper steering box with the parts sources.

Thanks for documenting what you're doing!
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
sjbartnik
Samba Member


Joined: September 01, 2011
Posts: 4390
Location: Brooklyn
sjbartnik is offline

PostPosted: Mon Aug 01, 2016 7:08 am    Post subject: Re: Dissection and comparison between VW and TRW Steering Boxes Reply with quote

Great thread!
_________________
1965 Volkswagen 1500 Variant S
2000 Kawasaki W650
Back to top
View user's profile Send private message Gallery Classifieds Feedback
KTPhil Premium Member
Samba Member


Joined: April 06, 2006
Posts: 26927
Location: Conejo Valley, CA
KTPhil is offline

PostPosted: Mon Aug 01, 2016 8:05 am    Post subject: Re: Dissection and comparison between VW and TRW Steering Boxes Reply with quote

ataraxia wrote:
There are several shims for the bearing race but I'm not 100% sure why they exist - adjustment can be made at the other end of the shaft.


Perhaps the shim lets them center the meshing of the "gears" for minimum play and adjustability for wear later on.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
ataraxia
Samba Member


Joined: March 19, 2010
Posts: 4061
Location: Illinois
ataraxia is offline

PostPosted: Mon Aug 01, 2016 8:53 am    Post subject: Re: Dissection and comparison between VW and TRW Steering Boxes Reply with quote

KTPhil wrote:
ataraxia wrote:
There are several shims for the bearing race but I'm not 100% sure why they exist - adjustment can be made at the other end of the shaft.


Perhaps the shim lets them center the meshing of the "gears" for minimum play and adjustability for wear later on.


I highly doubt anyone is taking one of these apart to swap the shim though...
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
KTPhil Premium Member
Samba Member


Joined: April 06, 2006
Posts: 26927
Location: Conejo Valley, CA
KTPhil is offline

PostPosted: Mon Aug 01, 2016 9:14 am    Post subject: Re: Dissection and comparison between VW and TRW Steering Boxes Reply with quote

I'm thinking maybe at the factory they select the proper shim to allow for manufacturing variances.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
OKType3Tim Premium Member
Samba Member


Joined: April 30, 2011
Posts: 221
Location: Northeast Oklahoma
OKType3Tim is offline

PostPosted: Mon Aug 01, 2016 6:07 pm    Post subject: Re: Dissection and comparison between VW and TRW Steering Boxes Reply with quote

Updates and Answers:

Regarding the off center hole in the top of the roller shaft; mackayamanx is correct that, "This should have no effect, as the top of the shaft does not touch anything. .....As long as there is enough clearance around the foot of the adjuster in the recess it will not be a problem." Here is a picture of that clearance.
Image may have been reduced in size. Click image to view fullscreen.


Good catch ataraxia on the TRW seals being single lip. Double lips seals are available from:
http://www.avxseals.com/Shaft-Oil-Seals-TC24x37x7-p/tc24x37x7.htm

http://www.avxseals.com/Shaft-Oil-Seals-TC16x24x7-p/tc16x24x7.htm
(and maybe other places.)

Regarding the tall "Adjusting Screw": My parts book doesn't show a change. BUT, completing my disassembly of the 5 VW steering boxes I have; I found that the unit that has the tall bolts, also has the tall adjusting screw. Thus, from chassis 311 2131 806 it may be that tall adjusting screws were used:
Image may have been reduced in size. Click image to view fullscreen.

_________________
'69 Squareback restoration
'69 Fastback restoration
'66 Type34
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
OKType3Tim Premium Member
Samba Member


Joined: April 30, 2011
Posts: 221
Location: Northeast Oklahoma
OKType3Tim is offline

PostPosted: Mon Aug 01, 2016 6:32 pm    Post subject: Re: Dissection and comparison between VW and TRW Steering Boxes Reply with quote

ataraxia wrote:
KTPhil wrote:
ataraxia wrote:
There are several shims for the bearing race but I'm not 100% sure why they exist - adjustment can be made at the other end of the shaft.


Perhaps the shim lets them center the meshing of the "gears" for minimum play and adjustability for wear later on.


I highly doubt anyone is taking one of these apart to swap the shim though...


The bentley describes a procedure to make sure that there is no play bewteen the roller shaft and drop arm moving the drop arm (pitman) 11 degrees to either side. I think it is saying that once you have adjusted the adjusting screw to have no play at 11 degress on one side, then you turn to the other side. If at 11 degrees you have no play then you are good. But it the play shows up then you start over with a different shim. Having assembled a unit today; that is a lot of work to "start over".
Image may have been reduced in size. Click image to view fullscreen.

_________________
'69 Squareback restoration
'69 Fastback restoration
'66 Type34
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
OKType3Tim Premium Member
Samba Member


Joined: April 30, 2011
Posts: 221
Location: Northeast Oklahoma
OKType3Tim is offline

PostPosted: Mon Aug 01, 2016 6:40 pm    Post subject: Re: Dissection and comparison between VW and TRW Steering Boxes Reply with quote

Clatter, where did you find the paper gasket for the lid?
_________________
'69 Squareback restoration
'69 Fastback restoration
'66 Type34
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
ataraxia
Samba Member


Joined: March 19, 2010
Posts: 4061
Location: Illinois
ataraxia is offline

PostPosted: Mon Aug 01, 2016 6:56 pm    Post subject: Re: Dissection and comparison between VW and TRW Steering Boxes Reply with quote

Steering box gaskets:

Only if you're absolutely desperate:
http://www.thesamba.com/vw/classifieds/detail.php?id=1618692

Slightly better price:
http://www.thesamba.com/vw/classifieds/detail.php?id=1788940

More reasonable price:
http://www.thesamba.com/vw/classifieds/detail.php?id=1280560

I used to get them out of a source in Germany but it'd all dried up now.

Another seal source:
http://www.oringsandmore.com

Similar pricing but these guys will ship for free once you spend $25 on their website. If not, shipping is $4 so it's no big deal.
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
ataraxia
Samba Member


Joined: March 19, 2010
Posts: 4061
Location: Illinois
ataraxia is offline

PostPosted: Mon Aug 01, 2016 7:17 pm    Post subject: Re: Dissection and comparison between VW and TRW Steering Boxes Reply with quote

OKType3Tim wrote:
ataraxia wrote:
KTPhil wrote:
ataraxia wrote:
There are several shims for the bearing race but I'm not 100% sure why they exist - adjustment can be made at the other end of the shaft.


Perhaps the shim lets them center the meshing of the "gears" for minimum play and adjustability for wear later on.


I highly doubt anyone is taking one of these apart to swap the shim though...


The bentley describes a procedure to make sure that there is no play bewteen the roller shaft and drop arm moving the drop arm (pitman) 11 degrees to either side. I think it is saying that once you have adjusted the adjusting screw to have no play at 11 degress on one side, then you turn to the other side. If at 11 degrees you have no play then you are good. But it the play shows up then you start over with a different shim. Having assembled a unit today; that is a lot of work to "start over".


This might explain why the rebuilt boxes aren't worth a shit...I highly doubt anyone is building them to the Bentley spec.

I know what you're saying - I took one completely apart and put it back together (without checking specs.) and it's time consuming.
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
W1K1
Samba Member


Joined: March 04, 2004
Posts: 3690
Location: Southern AB
W1K1 is offline

PostPosted: Tue Aug 02, 2016 7:38 am    Post subject: Re: Dissection and comparison between VW and TRW Steering Boxes Reply with quote

Quote:
The plastic bearing cages are the first indication that these are garbage. If the bearing cage flexes/fails, the whole box goes to shit real fast.


actually it's just new bearing cage technology VS old. Steel cages were common 40 years ago, now the plastic cages are more common. their only job is to keep the balls separated on the bearing race. if you exceed the 250 degree temp rating of the plastic in operation, chances are you have distorted the bearing races as well.
_________________
http://www.thesamba.com/vw/archives/manuals/jim_martin_engine_build.php

1973 super
1965 squareback 1500E
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Display posts from previous:
Reply to topic    Forum Index -> Type 3 All times are Mountain Standard Time/Pacific Daylight Savings Time
Page: 1, 2, 3 ... 17, 18, 19  Next
Jump to:
Page 1 of 19


Jump to:
You cannot post new topics in this forum
You cannot reply to topics in this forum
You cannot edit your posts in this forum
You cannot delete your posts in this forum
You cannot vote in polls in this forum

About | Help! | Advertise | Donate | Premium Membership | Privacy/Terms of Use | Contact Us | Site Map
Copyright © 1996-2020, Everett Barnes. All Rights Reserved.
Not affiliated with or sponsored by Volkswagen of America | Forum powered by phpBB
