PostPosted: Wed Sep 06, 2017 5:27 am    Post subject: Removing studs from drums Reply with quote

So, yeah.

I have these type 3 drums that i want to install on my bus. The problem is that they have studs, and the studs lack tread to install stock rims (about last 3/4 inch is treadless).

So i'd like to remove them. Problem is, i have no clue how, or if its even possible.

My research so far have been... fruitless. Some people seems to use puller, like those used to remove door hinge... Are those studs screwed there or tapped? There's no tread to save when removing them?

here's a picture of the stud ;
Image may have been reduced in size. Click image to view fullscreen.

_________________
1964 Turkis Flipseat
Back to top
View user's profile Send private message Instagram Gallery Classifieds Feedback
Jacks
Samba Member


Joined: July 15, 2006
Posts: 2037
Location: San Clemente, Ca.
Jacks is offline

PostPosted: Wed Sep 06, 2017 5:36 am    Post subject: Re: Removing studs from drums Reply with quote

Take a closer look at those splines.
_________________
Jack Staggs
Actual name
Back to top
View user's profile Send private message Send e-mail Classifieds Feedback
williamM
Samba Member


Joined: August 07, 2008
Posts: 4324
Location: southwest Arizona
williamM is offline

PostPosted: Wed Sep 06, 2017 5:58 am    Post subject: Re: Removing studs from drums Reply with quote

Jacks wrote:
Take a closer look at those splines.



Jacks right- that drum ia scrap- but back to your question- they look like you can BFH them from the thread end like an american drum.
_________________
some days I get up and just sit and think. Some days I just sit.

opinion untempered by fact is ignorance.

Don't step in any!
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
Enkiel
Samba Member


Joined: October 21, 2004
Posts: 2771
Location: Quebec, Canada
Enkiel is offline

PostPosted: Wed Sep 06, 2017 6:03 am    Post subject: Re: Removing studs from drums Reply with quote

i think i need enlightment!

why is it scrap?

and... BFH?
_________________
1964 Turkis Flipseat
Back to top
View user's profile Send private message Instagram Gallery Classifieds Feedback
hazetguy
Samba Member


Joined: April 06, 2001
Posts: 10595

hazetguy is offline

PostPosted: Wed Sep 06, 2017 6:29 am    Post subject: Re: Removing studs from drums Reply with quote

the splines are worn out to the point of them being almost completely stripped, probably caused by the axle nut being run loose for a long time.
that drum is junk.

BFH = BIG FAWKIN' HAMMER

personally, i would press them out on a shop press.
_________________
Parts and mechanical restoration services available. I restore and rebuild fuel pumps, distributors, spindles, etc.
Check my ads or send a PM.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
ToolBox
Samba Member


Joined: January 27, 2004
Posts: 2739
Location: Detroit, where they don't jack parts off my ride in the parking lot of the 7-11
ToolBox is offline

PostPosted: Wed Sep 06, 2017 8:47 am    Post subject: Re: Removing studs from drums Reply with quote

Even if that drum had usable splines I would wonder how it was butchered to accept pressed in studs. Did the just blast the studs into the threaded hole? And if so how F'd are the threads? Did they drill the threads out for a proper clearance hole? Meaning you will need to press studs back in.
Back to top
View user's profile Send private message Send e-mail AIM Address Gallery Classifieds Feedback
johny__utah
Samba Member


Joined: September 02, 2008
Posts: 370
Location: Arizona/California
johny__utah is offline

PostPosted: Wed Sep 06, 2017 9:41 am    Post subject: Re: Removing studs from drums Reply with quote

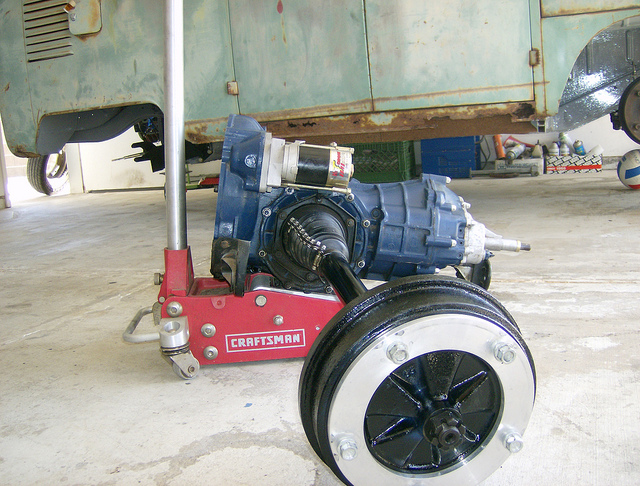

You could run a spacer between drum and rim.. Or take them to a machine shop and have smaller (length) studs pushed in. If they were done the right way like Toolbox mentioned.
Image may have been reduced in size. Click image to view fullscreen.

spacer example.
_________________
1956 L31 Panel
1961 L346 L347 Standard
1963 L380 L289 Standard
Back to top
View user's profile Send private message Send e-mail Facebook Instagram Gallery Classifieds Feedback
Erik G
Samba Member


Joined: October 16, 2002
Posts: 11749
Location: Tejas!
Erik G is offline

PostPosted: Wed Sep 06, 2017 10:45 am    Post subject: Re: Removing studs from drums Reply with quote

don't you need a spacer to run stock wheels anyway? otherwise the wheel hits the springplate?
_________________
Stop dead photo links! Post your photos to The Samba Gallery!
Back to top
View user's profile Send private message Facebook Instagram Gallery Classifieds Feedback
johny__utah
Samba Member


Joined: September 02, 2008
Posts: 370
Location: Arizona/California
johny__utah is offline

PostPosted: Thu Sep 07, 2017 9:17 am    Post subject: Re: Removing studs from drums Reply with quote

Erik G wrote:
don't you need a spacer to run stock wheels anyway? otherwise the wheel hits the springplate?


Yes, my tires rubbed on the springplate cast housing.
