Diesel Slave Bracket Support Problem [SOLVED]
Forum Index -> Vanagon Share: Facebook Twitter
Reply to topic
Print View
Quick sort: Show newest posts on top | Show oldest posts on top View previous topic :: View next topic
Author Message
vanagonjr
Samba Member


Joined: October 07, 2010
Posts: 3033
Location: Dartmouth, Mass.
vanagonjr is offline

PostPosted: Sat Sep 10, 2016 9:01 am    Post subject: Diesel Slave Bracket Support Problem [SOLVED] Reply with quote

Mounting a Diesel bell housing to a WBX tranny and having problems with the slave bracket support not quite working out

Image may have been reduced in size. Click image to view fullscreen.

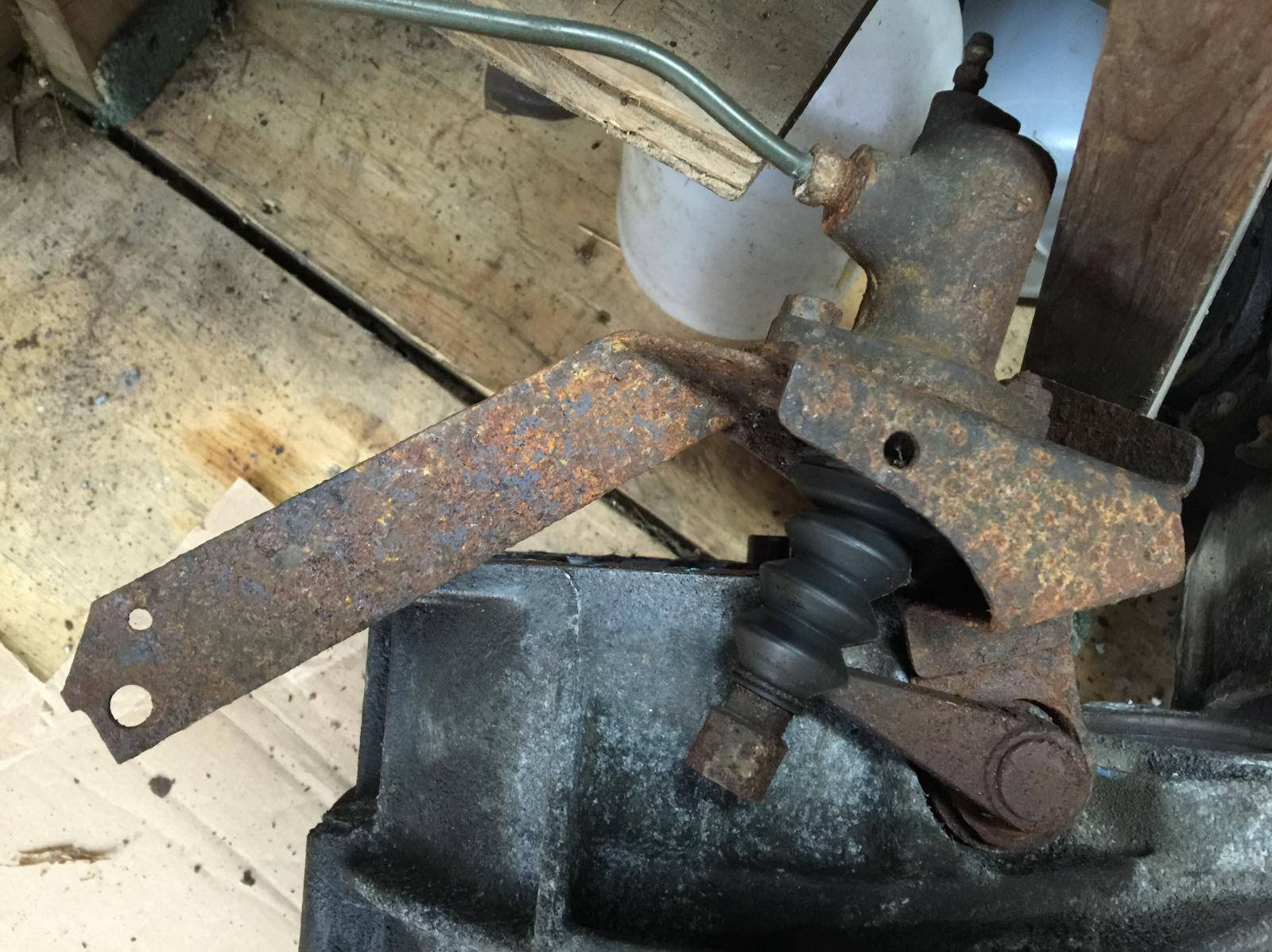

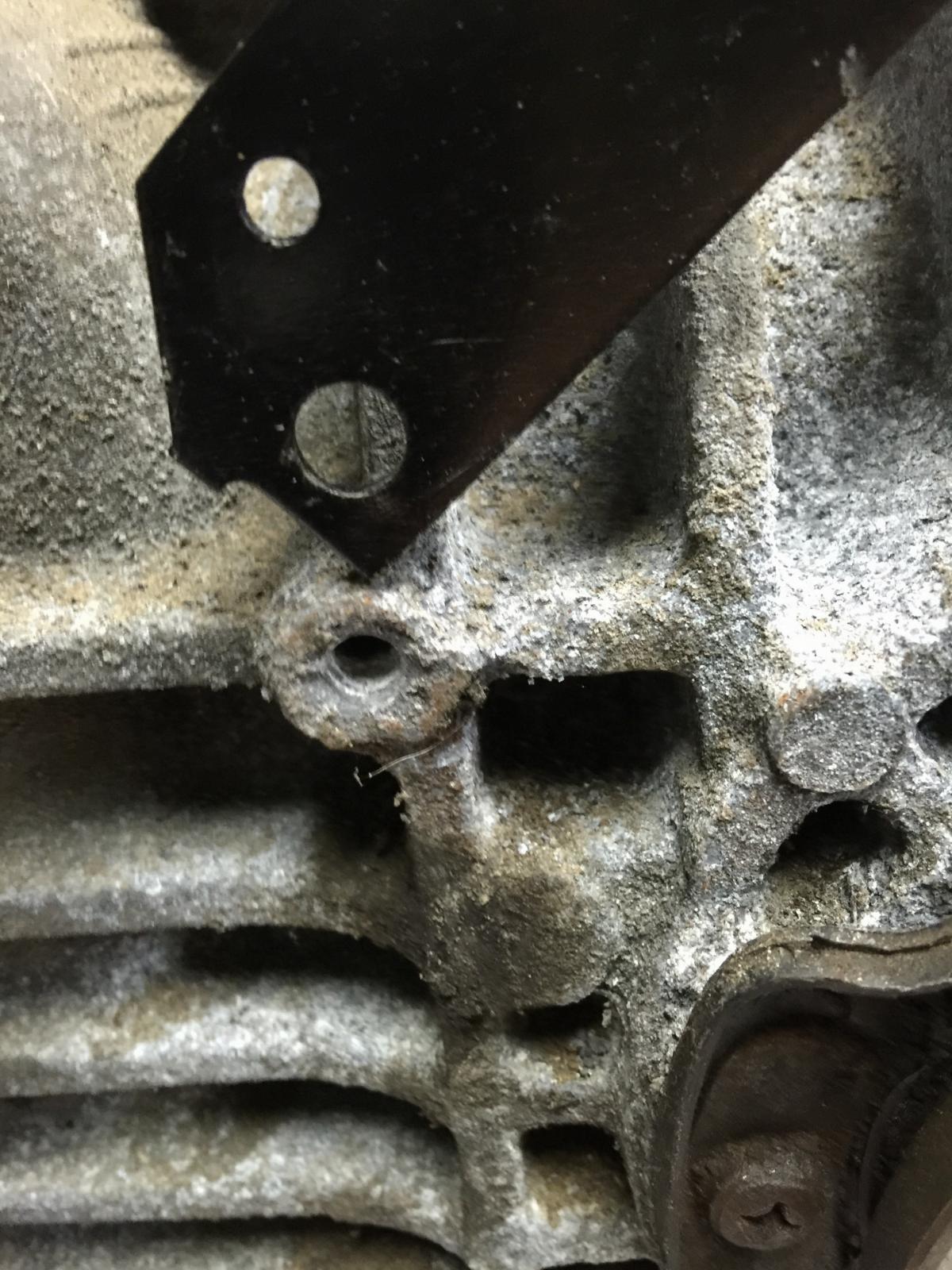

I have two diesel set-ups, and the one I pulled from the van looks like the PO did not mount the support bracket to the tranny, since the threaded hole in the tranny looks like it was unused (see below) and the (rusty) bracket does not have evidence or a bolt head contacting it - but I could be wrong there.

Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.

Would the diesel bracket only with with a diesel (or air-cooled) tranny? This supposedly is an 84 WBX tranny. I can take the WBX bracket and re-drill and cut to make work, just rather make sure something is not amiss here.
_________________
John - 86 Wolfsburg Westfalia "Weekender"
Flint reversed 1.8T W/Passat 5-Speed
LiMBO (late model bus club) www.limbobus.org
LiMBO is on Facebook too! https://www.facebook.com/groups/
FAQ thread: http://www.thesamba.com/vw/forum/viewtopic.php?t=525798


Last edited by vanagonjr on Sat Sep 10, 2016 10:01 am; edited 1 time in total
Back to top
View user's profile Send private message Gallery Classifieds Feedback
crazyvwvanman
Samba Member


Joined: January 28, 2008
Posts: 9095
Location: Orbiting San Diego
crazyvwvanman is offline

PostPosted: Sat Sep 10, 2016 9:44 am    Post subject: Re: Diesel Slave Bracket Support Problem Reply with quote

I think your issue is you need to install the diesel starter motor first and then that spaces the bracket out a little to tilt it down and line up the lower brace hole.

Mark
Back to top
View user's profile Send private message Gallery Classifieds Feedback
vanagonjr
Samba Member


Joined: October 07, 2010
Posts: 3033
Location: Dartmouth, Mass.
vanagonjr is offline

PostPosted: Sat Sep 10, 2016 10:01 am    Post subject: Re: Diesel Slave Bracket Support Problem - SOLVED Reply with quote

crazyvwvanman wrote:
I think your issue is you need to install the diesel starter motor first and then that spaces the bracket out a little to tilt it down and line up the lower brace hole.

Mark


Mark - exactly right and thank you so much! Was leaving the starter off to make moving the tranny a bit lighter and did not even see this!

PS-I enjoy reading your posts and your contributions to this community are simply awesome.
Image may have been reduced in size. Click image to view fullscreen.

_________________
John - 86 Wolfsburg Westfalia "Weekender"
Flint reversed 1.8T W/Passat 5-Speed
LiMBO (late model bus club) www.limbobus.org
LiMBO is on Facebook too! https://www.facebook.com/groups/
FAQ thread: http://www.thesamba.com/vw/forum/viewtopic.php?t=525798
Back to top
View user's profile Send private message Gallery Classifieds Feedback
epowell
Samba Member


Joined: September 23, 2015
Posts: 4658
Location: Czech (mostly) Vancouver (sometimes)
epowell is offline

PostPosted: Sat Sep 25, 2021 10:43 am    Post subject: Re: Diesel Slave Bracket Support Problem [SOLVED] Reply with quote

Having trouble getting the SLAVE bracket to fit.
Image may have been reduced in size. Click image to view fullscreen.

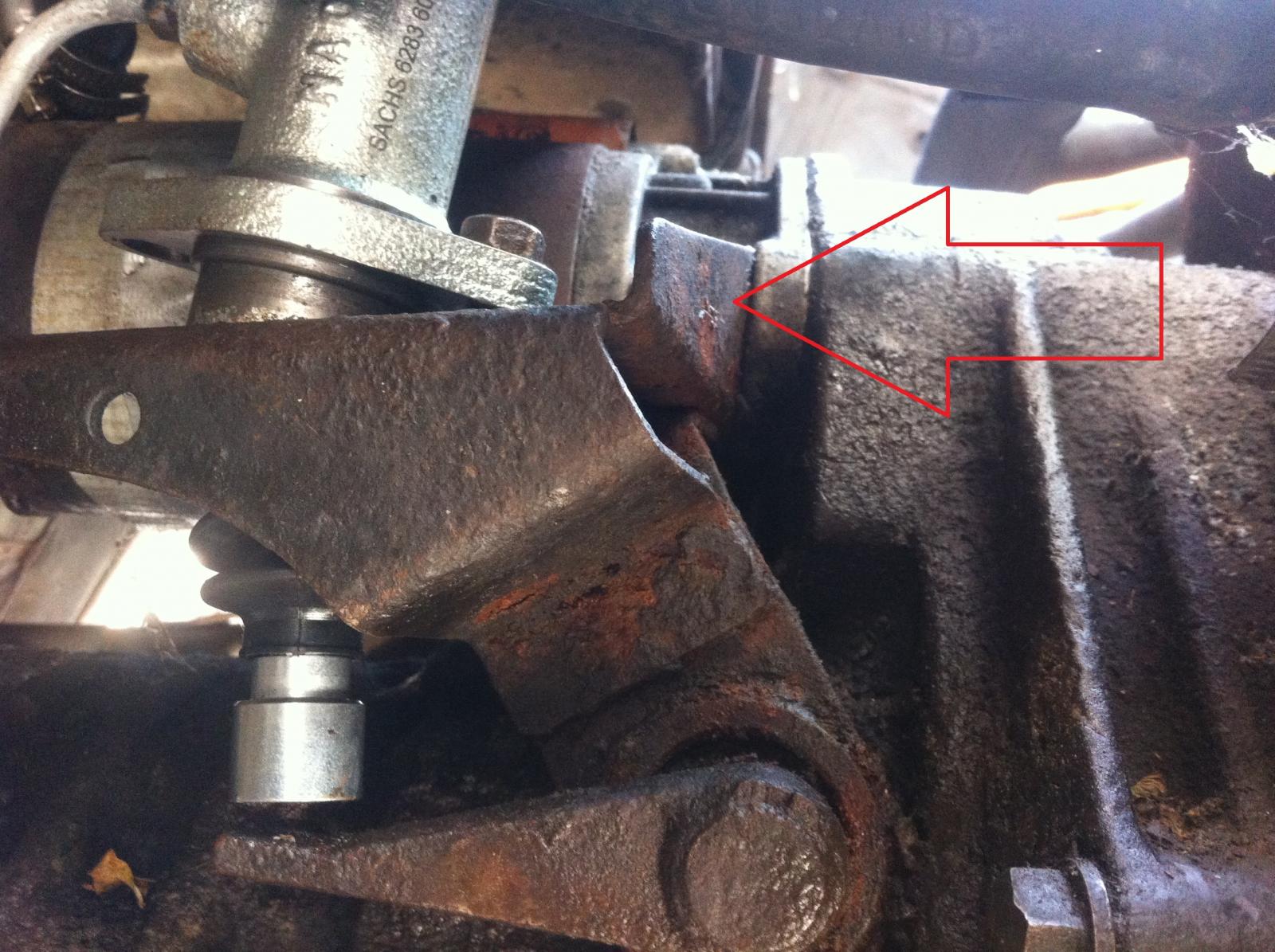

Then noticed that at the STARTER BOLTS AREA the bracket is majorly bent.
Image may have been reduced in size. Click image to view fullscreen.

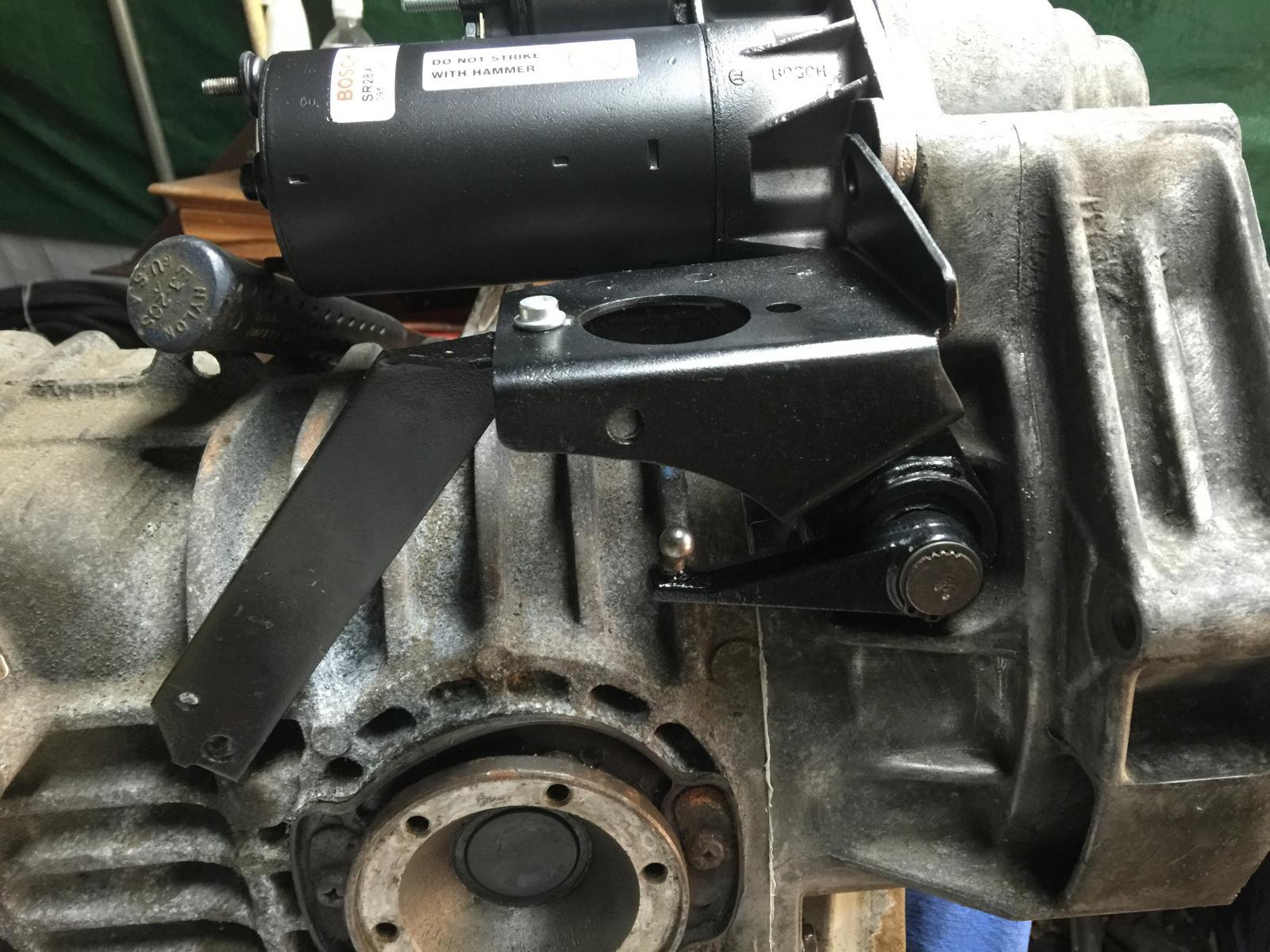

...and seems that it is supposed to be straight like this.
Image may have been reduced in size. Click image to view fullscreen.


So I am going to remove the bracket and try to hammer it straight again...
...Am I on the right track?

Thanks
Ed
_________________
www.edwardpowell.com
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
epowell
Samba Member


Joined: September 23, 2015
Posts: 4658
Location: Czech (mostly) Vancouver (sometimes)
epowell is offline

PostPosted: Sat Sep 25, 2021 11:17 am    Post subject: Re: Diesel Slave Bracket Support Problem [SOLVED] Reply with quote

The question now is how to BEND the bracket?
I suppose I could remove the clutch lever but that might be near impossible... or somehow keep it attached to the starter and use a c clamp somehow to bend it back into shape?
_________________
www.edwardpowell.com
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
epowell
Samba Member


Joined: September 23, 2015
Posts: 4658
Location: Czech (mostly) Vancouver (sometimes)
epowell is offline

PostPosted: Sat Sep 25, 2021 12:41 pm    Post subject: Re: Diesel Slave Bracket Support Problem [SOLVED] Reply with quote

Got it done...

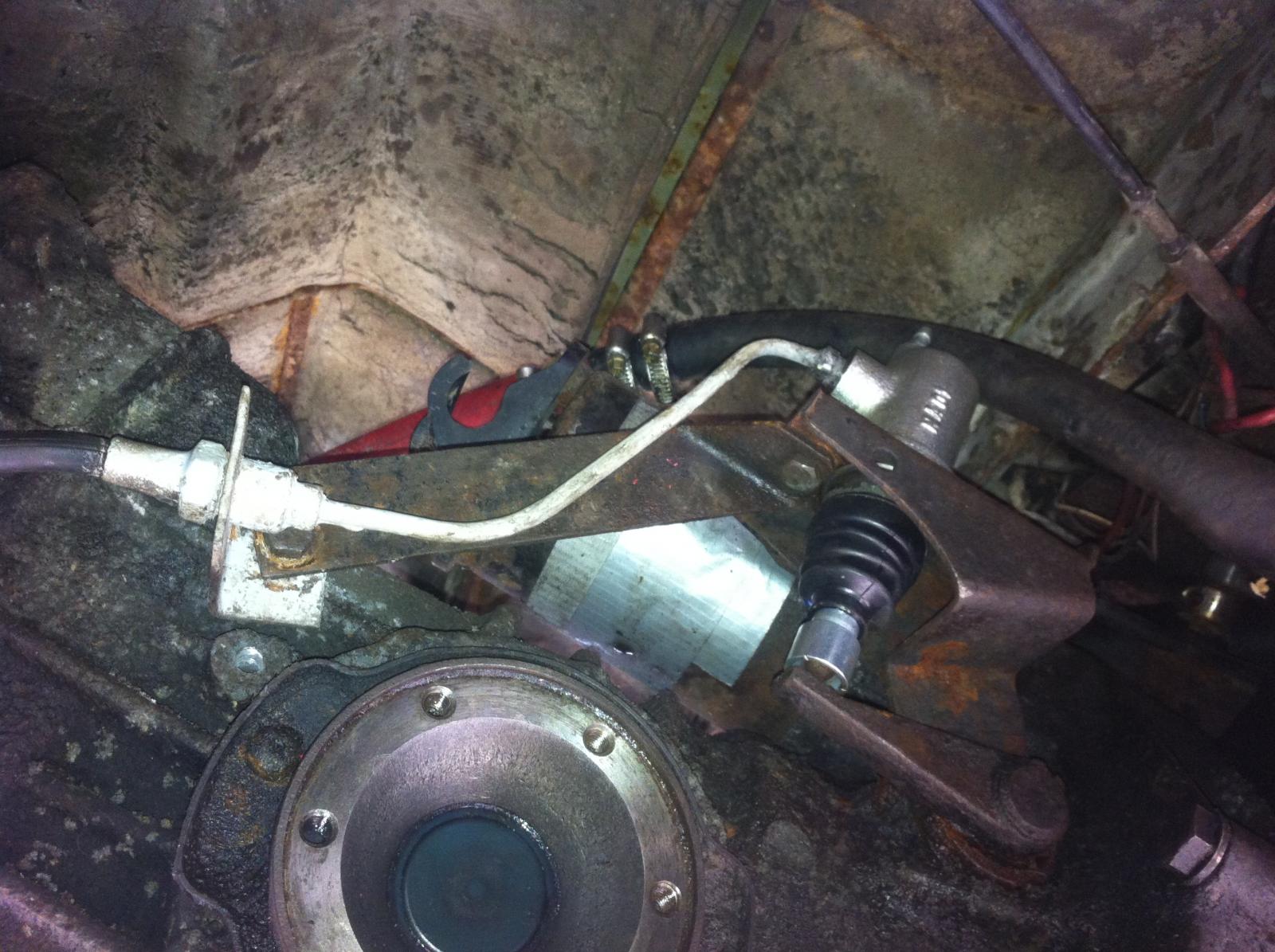

I hammered on the bracket from inside with a minisledge... got it enough back in shape to line up the holes. Smile
Image may have been reduced in size. Click image to view fullscreen.

_________________
www.edwardpowell.com
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
djkeev Premium Member
Samba Moderator


Joined: September 30, 2007
Posts: 28688
Location: Reading Pennsylvania
djkeev is offline

PostPosted: Sat Sep 25, 2021 4:09 pm    Post subject: Re: Diesel Slave Bracket Support Problem [SOLVED] Reply with quote

Sledge hammers can fix any problem that arises I guess….

A tool not in my travel tool kit.
_________________
Stop Dead Photo Links how to post photos

Ghia
http://www.thesamba.com/vw/forum/viewtopic.php?t=392473

Vanagon
http://www.thesamba.com/vw/forum/viewtopic.php?p=6315537#6315537

Beetle
https://www.thesamba.com/vw/forum/viewtopic.php?t=482968&highlight=74+super+vert
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
epowell
Samba Member


Joined: September 23, 2015
Posts: 4658
Location: Czech (mostly) Vancouver (sometimes)
epowell is offline

PostPosted: Sat Sep 25, 2021 4:41 pm    Post subject: Re: Diesel Slave Bracket Support Problem [SOLVED] Reply with quote

djkeev wrote:
Sledge hammers can fix any problem that arises I guess….

A tool not in my travel tool kit.


I hear ya, I was very apprehensive about doing that because I imagined it might disturb lots of stuff in the engine etc.... but actually that was not the case, the vibrations didn't seem to go anywhere. I was surprised that it worked and didn't disturb anything. Keep in mind that in that position it was not even possible to wield much force.

I also don't carry a sledge hammer when traveling but that is because of its weight not it's lack of utility.

I'm sure I would have done a lot of unnecessary damage if I had tried to remove that clutch lever. The only other option would have been a sturdy c-clamp to try to bend it back - that might have worked, but I don't have a c-clamp here.
_________________
www.edwardpowell.com
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
djkeev Premium Member
Samba Moderator


Joined: September 30, 2007
Posts: 28688
Location: Reading Pennsylvania
djkeev is offline

PostPosted: Sun Sep 26, 2021 5:07 am    Post subject: Re: Diesel Slave Bracket Support Problem [SOLVED] Reply with quote

I’m honestly glad it worked for you…..

But life experiences have shown me how easily aluminum castings (such as a transaxle) can crack.

I’d think long and hard before pressing my good luck on a similar future repair.

Dave
_________________
Stop Dead Photo Links how to post photos

Ghia
http://www.thesamba.com/vw/forum/viewtopic.php?t=392473

Vanagon
http://www.thesamba.com/vw/forum/viewtopic.php?p=6315537#6315537

Beetle
https://www.thesamba.com/vw/forum/viewtopic.php?t=482968&highlight=74+super+vert
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
crazyvwvanman
Samba Member


Joined: January 28, 2008
Posts: 9095
Location: Orbiting San Diego
crazyvwvanman is offline

PostPosted: Sun Sep 26, 2021 5:27 am    Post subject: Re: Diesel Slave Bracket Support Problem [SOLVED] Reply with quote

In this case it is a massively thick casting in an area supported by a massive bolt clamping the casting to the thick iron block and holding the bracket steady. The bent bracket is comparatively flimsy.

Mark
Back to top
View user's profile Send private message Gallery Classifieds Feedback
djkeev Premium Member
Samba Moderator


Joined: September 30, 2007
Posts: 28688
Location: Reading Pennsylvania
djkeev is offline

PostPosted: Sun Sep 26, 2021 5:30 am    Post subject: Re: Diesel Slave Bracket Support Problem [SOLVED] Reply with quote

Yeah …….. tell my Bell housing how tough he is for me……
_________________
Stop Dead Photo Links how to post photos

Ghia
http://www.thesamba.com/vw/forum/viewtopic.php?t=392473

Vanagon
http://www.thesamba.com/vw/forum/viewtopic.php?p=6315537#6315537

Beetle
https://www.thesamba.com/vw/forum/viewtopic.php?t=482968&highlight=74+super+vert
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
epowell
Samba Member


Joined: September 23, 2015
Posts: 4658
Location: Czech (mostly) Vancouver (sometimes)
epowell is offline

PostPosted: Sun Sep 26, 2021 8:14 am    Post subject: Re: Diesel Slave Bracket Support Problem [SOLVED] Reply with quote

djkeev wrote:
Yeah …….. tell my Bell housing how tough he is for me……


Your concern is very appreciated Dave, but in this case it is misplaced. As I said, I began light pounding with major trepidation for the reason you mentioned... but you can easily FEEL it. NOTHING whatsoever was moving, vibrating, or anything. As Mark pointed out, it's like that wimpy bracket is being held by a 100KG vice Smile I was very very surprised myself.

So let me ask you... how would YOU have solved this problem. My way took 5 min. and caused no damage Smile

Using a c-clamp somewhere would have caused even more risk to the part you would clamp the bracket to.
Removing the clutch level would be near impossible and likely end up damaging something... what are you left with?
_________________
www.edwardpowell.com
Back to top
