PostPosted: Wed Dec 14, 2016 10:43 pm    Post subject: Temo's first SB & Convertible frame off resto Reply with quote

Hi there, before anything else, "warning" this will be a very slow restoration.

Brief story: wife wanted a convertible and asked me to get one for her, originally was going to be a fixer upper and rebuild/upgrade along the way; but we found a very cheap '72 that was involve in a fire; we decide to make it a restoration... but now the car will be for me, she end up buying a Fiat.

I have a 74 Std, daily driver to work and back; this will be my first super Beetle and Convertible. I confess that once I took off the body I had second thoughts, maybe a bit over my head, but I decide to go ahead and learn along the way.

Here we go...
_________________
Temo.

2017 Tiguan

2015 Passat TDI

'72 Convertible Under Construction
Back to top
View user's profile Send private message Twitter Gallery Classifieds Feedback
Temo
Samba Member


Joined: April 11, 2006
Posts: 291
Location: Upland, Ca
Temo is offline

PostPosted: Wed Dec 14, 2016 10:49 pm    Post subject: Re: Temo's first SB & Convertible frame off resto Reply with quote

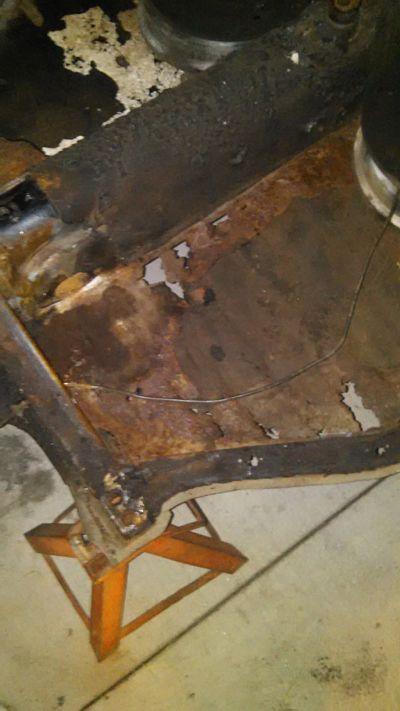

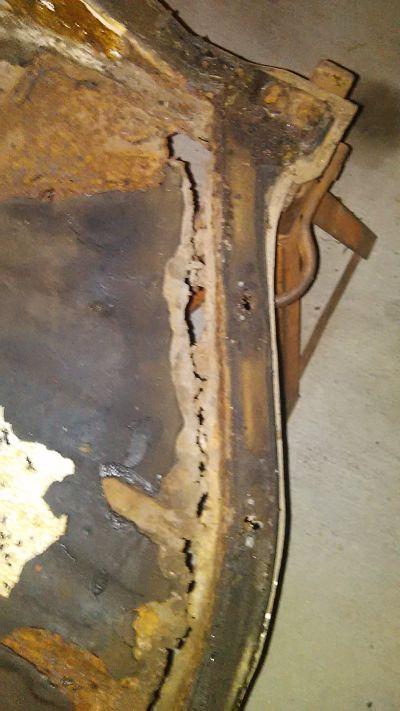

Floor pans are trash. Small detail of the damage.

Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.

_________________
Temo.

2017 Tiguan

2015 Passat TDI

'72 Convertible Under Construction


Last edited by Temo on Wed Dec 14, 2016 11:33 pm; edited 1 time in total
Back to top
View user's profile Send private message Twitter Gallery Classifieds Feedback
Temo
Samba Member


Joined: April 11, 2006
Posts: 291
Location: Upland, Ca
Temo is offline

PostPosted: Wed Dec 14, 2016 10:54 pm    Post subject: Engine damage Reply with quote

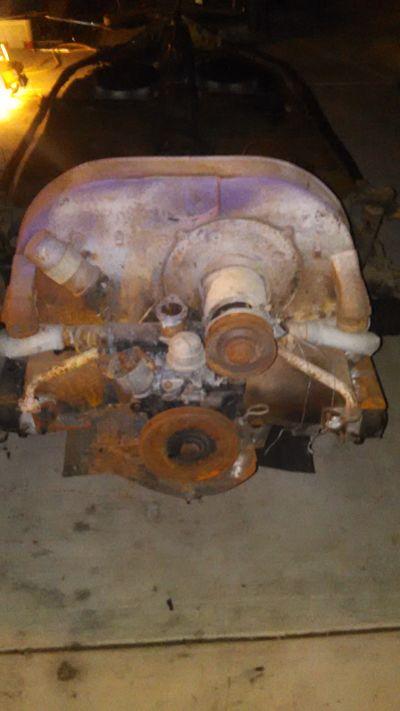

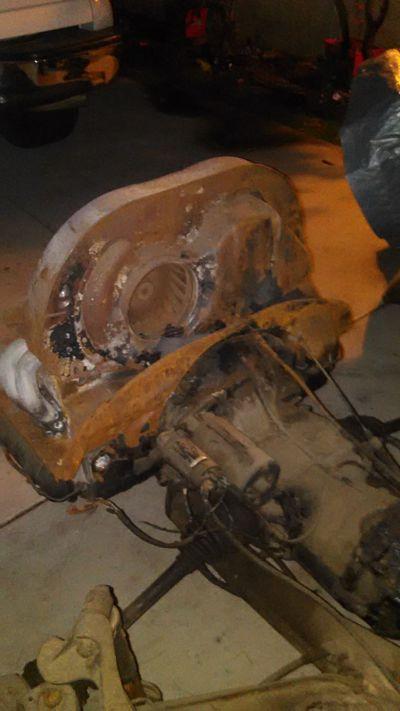

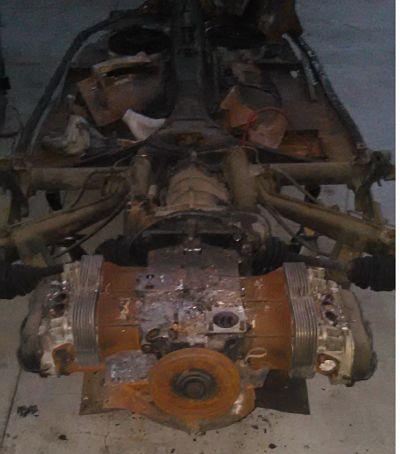

Engine damage.

Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.

_________________
Temo.

2017 Tiguan

2015 Passat TDI

'72 Convertible Under Construction


Last edited by Temo on Wed Dec 14, 2016 11:28 pm; edited 1 time in total
Back to top
View user's profile Send private message Twitter Gallery Classifieds Feedback
Temo
Samba Member


Joined: April 11, 2006
Posts: 291
Location: Upland, Ca
Temo is offline

PostPosted: Wed Dec 14, 2016 11:06 pm    Post subject: Engine "clean" Reply with quote

All the stuff that was damage by the fire is gone.


Image may have been reduced in size. Click image to view fullscreen.

_________________
Temo.

2017 Tiguan

2015 Passat TDI

'72 Convertible Under Construction
Back to top
View user's profile Send private message Twitter Gallery Classifieds Feedback
Temo
Samba Member


Joined: April 11, 2006
Posts: 291
Location: Upland, Ca
Temo is offline

PostPosted: Wed Dec 14, 2016 11:09 pm    Post subject: Melted stuff Reply with quote

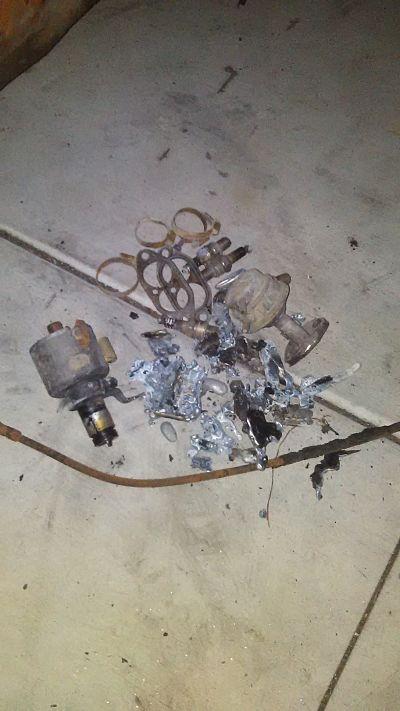

To the trash/recyclable... some of the stuff that melted.

Image may have been reduced in size. Click image to view fullscreen.

_________________
Temo.

2017 Tiguan

2015 Passat TDI

'72 Convertible Under Construction
Back to top
View user's profile Send private message Twitter Gallery Classifieds Feedback
Temo
Samba Member


Joined: April 11, 2006
Posts: 291
Location: Upland, Ca
Temo is offline

PostPosted: Wed Dec 14, 2016 11:18 pm    Post subject: Floor pan removal. Reply with quote

Starting with the floor pan removal, the previous owner did a poor repair on the floor pan, he use 1/8" thick sheet metal and patched both pans, adding insult to injury, he welded the sheet metal to the body.

It was a 4 hrs job to cut both pans.

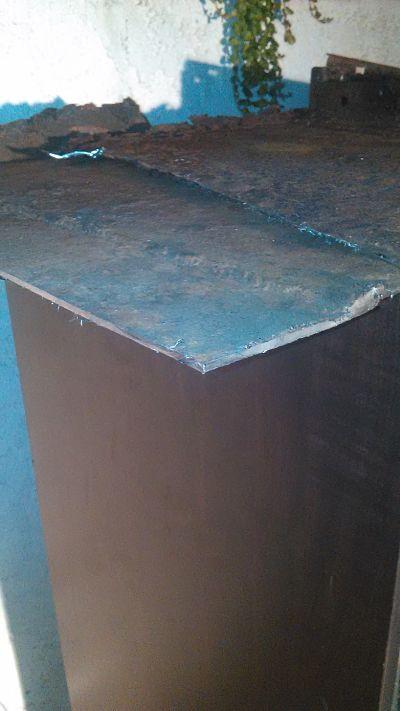

Picture shows the thickness of the sheet metal used.

Image may have been reduced in size. Click image to view fullscreen.

_________________
Temo.

2017 Tiguan

2015 Passat TDI

'72 Convertible Under Construction
Back to top
View user's profile Send private message Twitter Gallery Classifieds Feedback
Temo
Samba Member


Joined: April 11, 2006
Posts: 291
Location: Upland, Ca
Temo is offline

PostPosted: Wed Dec 14, 2016 11:24 pm    Post subject: Left side is gone Reply with quote

The left side is gone, needles to say, it was a pain to remove the pan, not only the patches bad, he didn't care about sealing the joints (I shouldn't be surprise).

Image may have been reduced in size. Click image to view fullscreen.

_________________
Temo.

2017 Tiguan

2015 Passat TDI

'72 Convertible Under Construction
Back to top
View user's profile Send private message Twitter Gallery Classifieds Feedback
Temo
Samba Member


Joined: April 11, 2006
Posts: 291
Location: Upland, Ca
Temo is offline

PostPosted: Thu Dec 15, 2016 8:31 pm    Post subject: Right side pan gone. Reply with quote

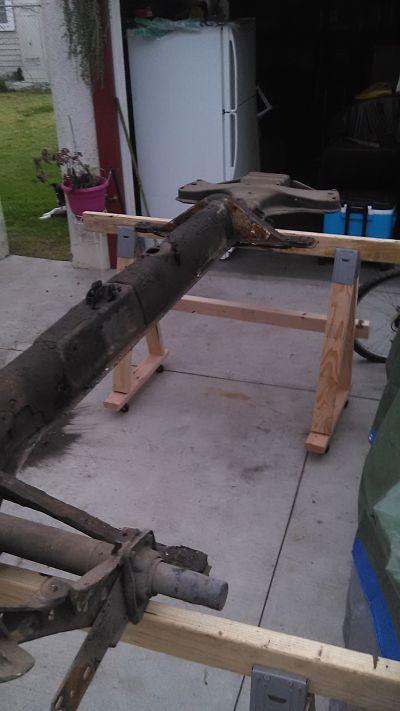

Today I removed the floor pan at right side, same deal as the left side, patches all over, 1/8" thick; finally got it.

Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.

_________________
Temo.

2017 Tiguan

2015 Passat TDI

'72 Convertible Under Construction
Back to top
View user's profile Send private message Twitter Gallery Classifieds Feedback
miller0358
Samba Member


Joined: November 07, 2007
Posts: 1179
Location: northford,ct
miller0358 is offline

PostPosted: Fri Dec 16, 2016 10:49 am    Post subject: Re: Temo's first SB & Convertible frame off resto Reply with quote

At least you are making progress. Just stick with it and one day it will be a great car that you built yourself. What's better than that!! Jeff
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Temo
Samba Member


Joined: April 11, 2006
Posts: 291
Location: Upland, Ca
Temo is offline

PostPosted: Tue Dec 20, 2016 9:02 pm    Post subject: Tunnel cleaning. Reply with quote

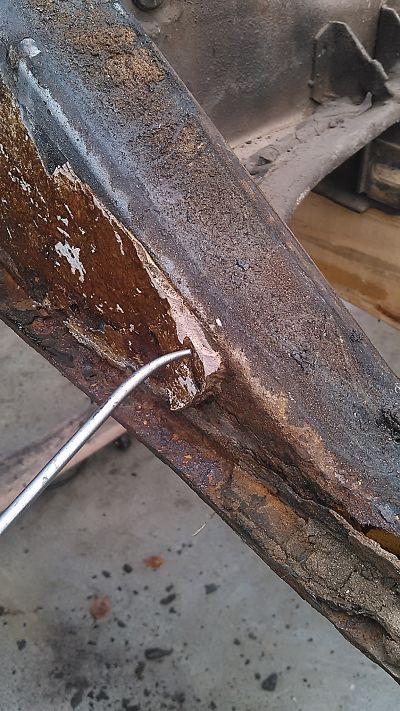

Today we cleaned the tunnel, both outside and inside; the amount of rust that came out of the tunnel was scary.

Image may have been reduced in size. Click image to view fullscreen.


Its time to start cutting and, hopefully soon, start welding.

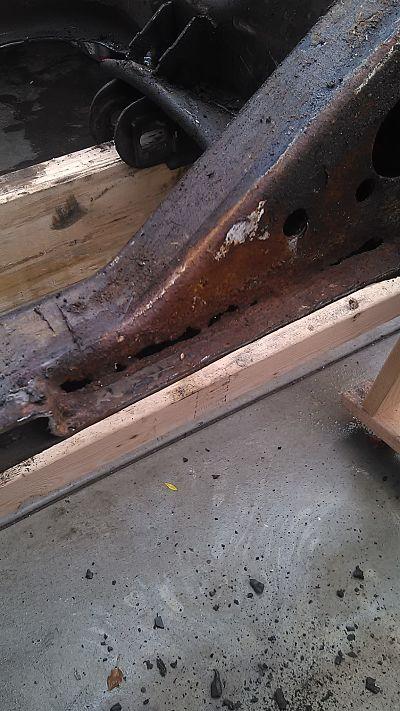

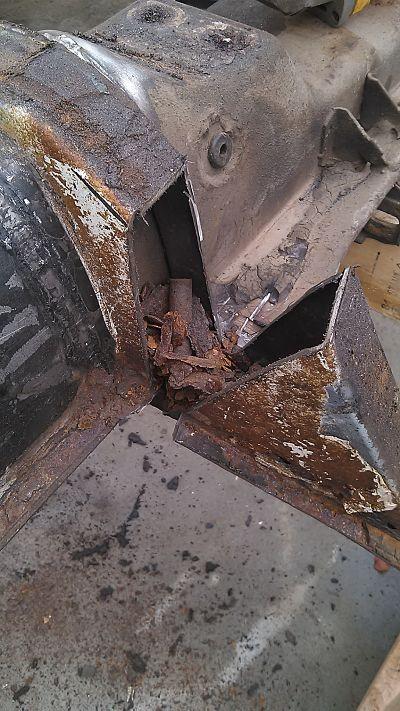

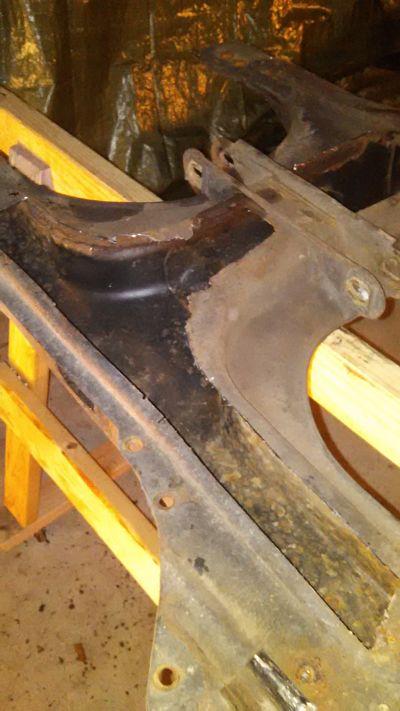

I made some cuts to the lower head frame, as you can see the damage is beyond repair; at this point I believed that is best to remove the complete lower half and leave the bracket for the lower control arm in place.

Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Time to order some parts and keep on cleaning.
_________________
Temo.

2017 Tiguan

2015 Passat TDI

'72 Convertible Under Construction
Back to top
View user's profile Send private message Twitter Gallery Classifieds Feedback
Temo
Samba Member


Joined: April 11, 2006
Posts: 291
Location: Upland, Ca
Temo is offline

PostPosted: Tue Dec 20, 2016 9:03 pm    Post subject: Re: Temo's first SB & Convertible frame off resto Reply with quote

miller0358 wrote:
At least you are making progress. Just stick with it and one day it will be a great car that you built yourself. What's better than that!! Jeff


One day at a time.

Thanks Jeff
_________________
Temo.

2017 Tiguan

2015 Passat TDI

'72 Convertible Under Construction
Back to top
View user's profile Send private message Twitter Gallery Classifieds Feedback
Dwayne1m
Samba Member


Joined: December 31, 2011
Posts: 3538
Location: Pennsylvania
Dwayne1m is offline

PostPosted: Wed Dec 21, 2016 1:23 am    Post subject: Re: Temo's first SB & Convertible frame off resto Reply with quote

Temo wrote:
Hi there, before anything else, "warning" this will be a very slow restoration.



Laughing Most are and don't let anyone tell you otherwise, unless you're a kid living at home with no family or house to take care of. Life will get in the way many times over before you are finished. Enjoy your journey. Cool
Back to top
View user's profile Send private message Gallery Classifieds Feedback
joey1320
Samba Member


Joined: September 12, 2006
Posts: 2131
Location: Cleveland, OH
joey1320 is offline

PostPosted: Wed Dec 21, 2016 6:02 am    Post subject: Re: Temo's first SB & Convertible frame off resto Reply with quote

Dwayne1m wrote:
Temo wrote:
Hi there, before anything else, "warning" this will be a very slow restoration.



Laughing Most are and don't let anyone tell you otherwise, unless you're a kid living at home with no family or house to take care of. Life will get in the way many times over before you are finished. Enjoy your journey. Cool


So true. After reading every thread on the "Builder's link", you can see how some people start off with a bang and then slowly fizzle out. Take your time. Do it right and don't try to do everything at once. IT can easily get out of control if you try to tackle all the issues at once.

Have fun and keep the pics coming Wink
_________________
**1971 Super Project
https://www.thesamba.com/vw/forum/viewtopic.php?t=...mp;start=0
Back to top
View user's profile Send private message Gallery Classifieds Feedback
miller0358
Samba Member


Joined: November 07, 2007
Posts: 1179
Location: northford,ct
miller0358 is offline

PostPosted: Wed Dec 21, 2016 7:15 am    Post subject: Re: Temo's first SB & Convertible frame off resto Reply with quote

When I did my 2 cars (each one took over 2yrs) I tried to do something on them every day, even if only to go out to see what had to be done next. It helped to keep it on the front burner. Jeff
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Temo
Samba Member


Joined: April 11, 2006
Posts: 291
Location: Upland, Ca
Temo is offline

PostPosted: Wed Dec 21, 2016 10:51 pm    Post subject: Frame head Reply with quote

First of all, thank for the words of encouragement.

I decide to tackle the Frame Head first, I drilled out the spot welds, from the lower arm bracket to the front; after removing this part I took another inspection I decide that the bracket will stay thus avoiding the alignment trouble.

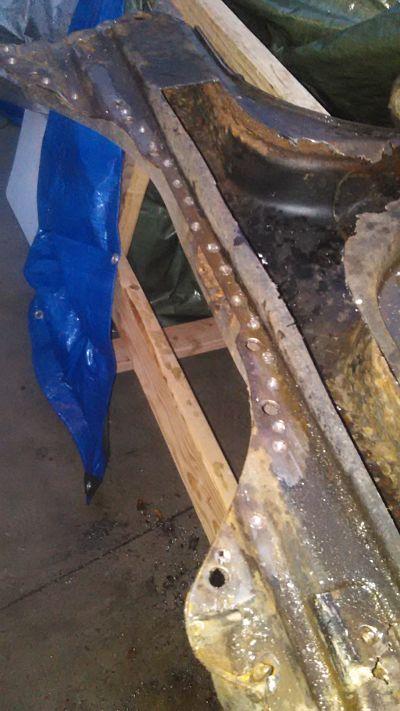

Drilling the weld spots.

Image may have been reduced in size. Click image to view fullscreen.

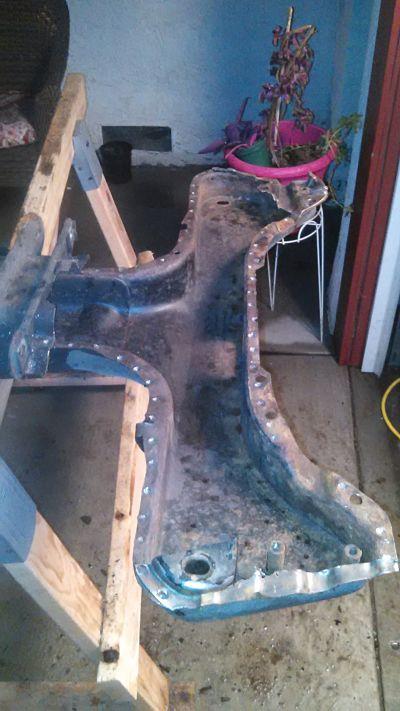

Area removed.

Image may have been reduced in size. Click image to view fullscreen.

_________________
Temo.

2017 Tiguan

2015 Passat TDI

'72 Convertible Under Construction
Back to top
View user's profile Send private message Twitter Gallery Classifieds Feedback
Temo
Samba Member


Joined: April 11, 2006
Posts: 291
Location: Upland, Ca
Temo is offline

PostPosted: Fri Dec 23, 2016 9:46 pm    Post subject: Poor repair at Support Panel Reply with quote

I wanted to share about the odd tings that we find in our Beetles; a previous owner tried to make a rust repair using drywall mud.

Image may have been reduced in size. Click image to view fullscreen.

_________________
Temo.

2017 Tiguan

2015 Passat TDI

'72 Convertible Under Construction
Back to top
View user's profile Send private message Twitter Gallery Classifieds Feedback
Temo
Samba Member


Joined: April 11, 2006
Posts: 291
Location: Upland, Ca
Temo is offline

PostPosted: Fri Dec 23, 2016 9:57 pm    Post subject: Support Panel rusted out. Reply with quote

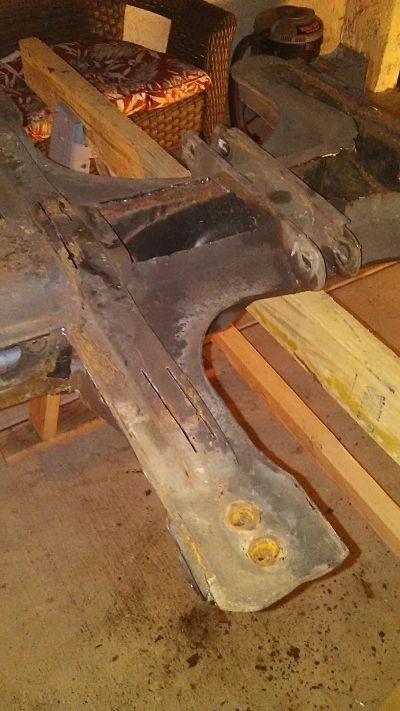

Not surprise to find the Napoleon Hat is trash; initially I cut as much as possible to work free around the tunnel area with the cutting wheel.

After fighting for some time, decide to drill out the spot welds.

Reminder to myself: drill spot welds first, cutting wheel last (if necessary)

Image may have been reduced in size. Click image to view fullscreen.


Completely rusted out.

Image may have been reduced in size. Click image to view fullscreen.

_________________
Temo.

2017 Tiguan

2015 Passat TDI

'72 Convertible Under Construction
Back to top
View user's profile Send private message Twitter Gallery Classifieds Feedback
H2OSB
Samba Member


Joined: April 14, 2013
Posts: 712
Location: Modesto, CA
H2OSB is offline

PostPosted: Sat Dec 24, 2016 8:23 am    Post subject: Re: Temo's first SB & Convertible frame off resto Reply with quote

Temo wrote:
we decide to make it a restoration... but now the car will be for me, she end up buying a Fiat.



Heh, I had a very similar situation with my wife and I getting matching tattoos.

H2OSB
Back to top
View user's profile Send private message Gallery Classifieds Feedback
H2OSB
Samba Member


Joined: April 14, 2013
Posts: 712
Location: Modesto, CA
H2OSB is offline

PostPosted: Sat Dec 24, 2016 8:32 am    Post subject: Re: Temo's first SB & Convertible frame off resto Reply with quote

If I may make a suggestion, and you can weigh this based upon how much you're willing to spend, or trying not to. If you replace the complete hammer head as opposed to just the bottom, all new replacement frame heads are clearanced for the rack and pinion steering rack. Now, you may have never even thought about going with R&P but if has ever crossed your mind, now would be the time to prepare for it. Obviously, the factory '72 steering box would still work with the later style frame head.

Just a thought.
johnL (aka H2OSB)
www.superbeetlesonly.com
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Temo
Samba Member


Joined: April 11, 2006
Posts: 291
Location: Upland, Ca
Temo is offline

PostPosted: Thu May 21, 2020 9:15 pm    Post subject: Re: Temo's first SB & Convertible frame off resto Reply with quote

Oh boy that was some interesting "life got in the way" times... now let's get back to work.

I started this week by doing some mayor cleaning and getting familiar with the project again.

I worked on the rear suspension, control arm, bought the bushings, the bearings, seals, etc. and also I bought the head frame and the right side floor pan. This should keep me busy for a bit.

Also, after buying the wrong irs covers today I got the correct ones.

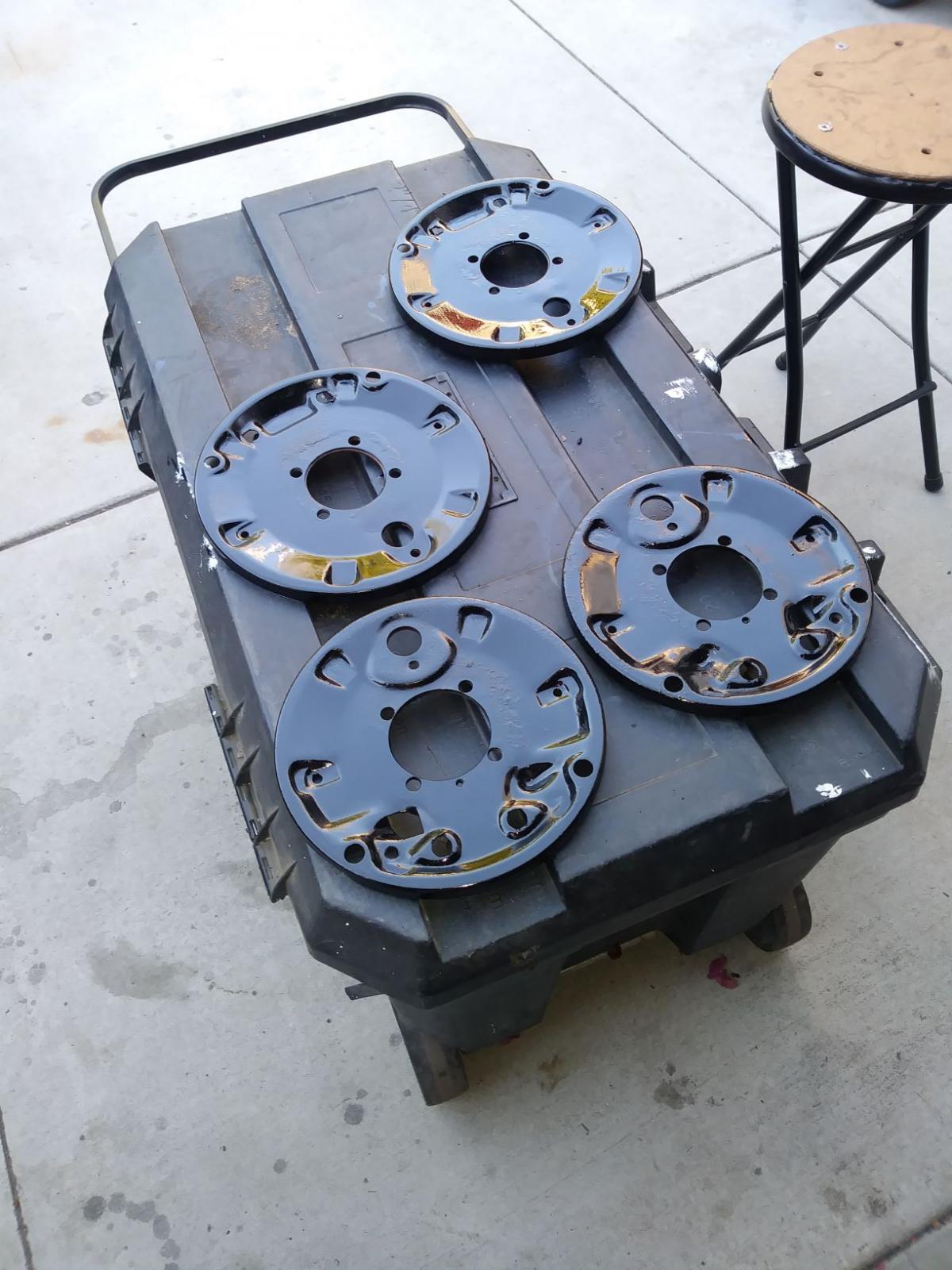

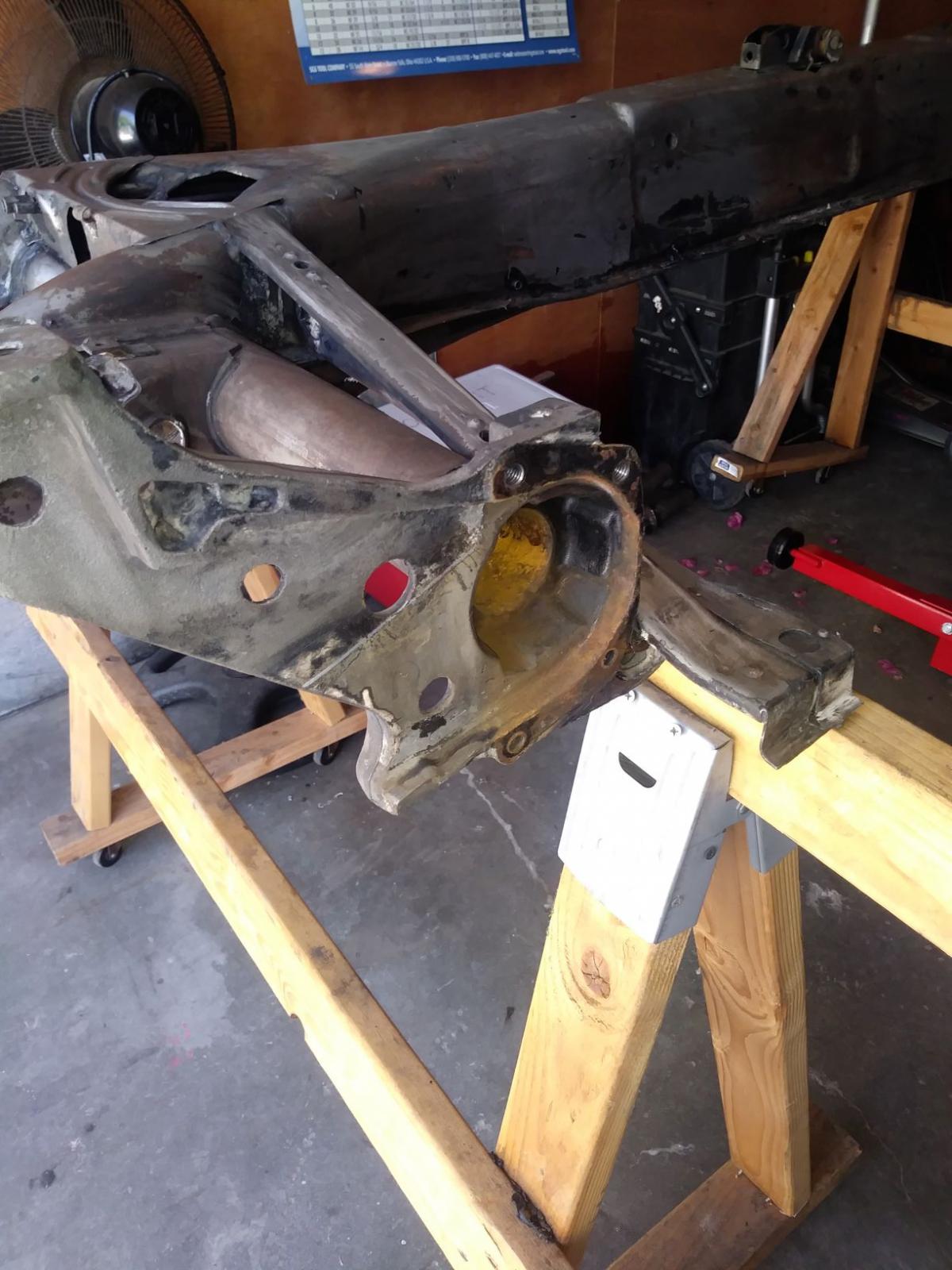

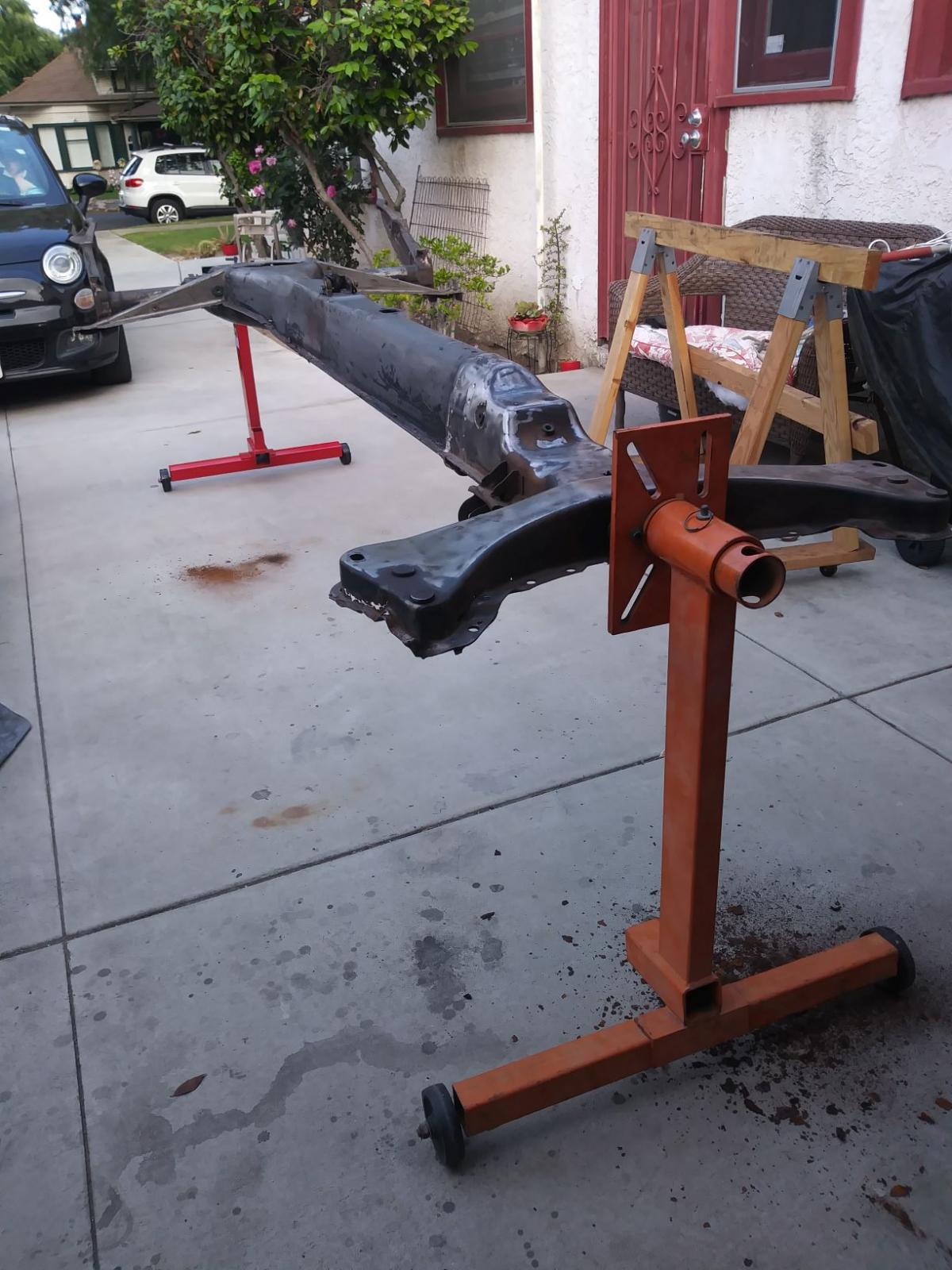

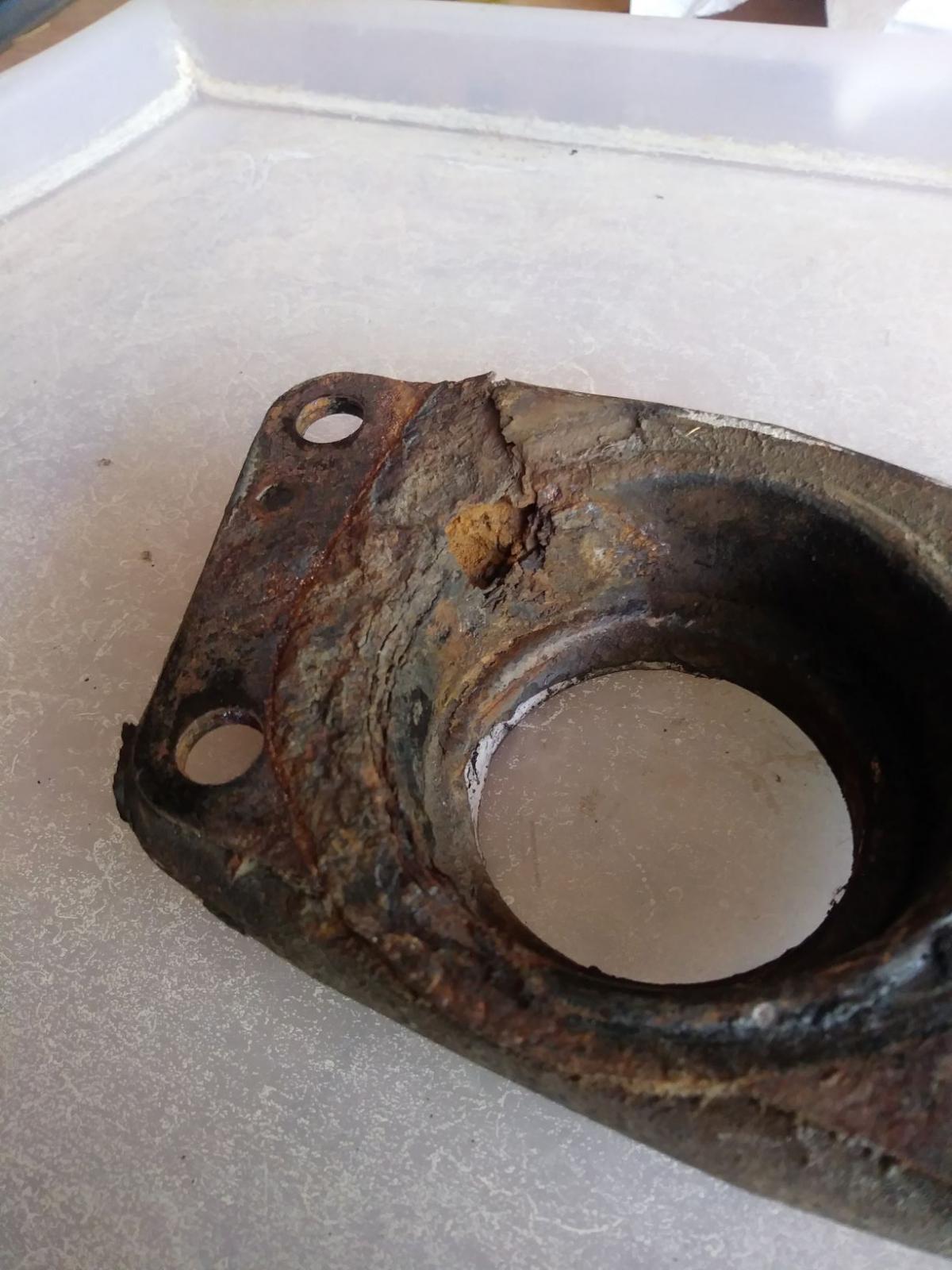

Here some pics of the stuff that I cleaned and put a protective cover of "chassis saver" also I manage to get the chassis in a rotisserie that will come useful some time next weeks when I start welding.

Image may have been reduced in size. Click image to view fullscreen.


Parts with the Chassis Saver protective coat.

Image may have been reduced in size. Click image to view fullscreen.



Image may have been reduced in size. Click image to view fullscreen.


The IRS "nest clean and ready for the bushings and a touch up.

Image may have been reduced in size. Click image to view fullscreen.


The old covers rusted out, ouch.

Image may have been reduced in size. Click image to view fullscreen.

_________________
Temo.

2017 Tiguan

2015 Passat TDI

'72 Convertible Under Construction
Back to top
View user's profile Send private message Twitter Gallery Classifieds Feedback
Display posts from previous:
Reply to topic    Forum Index -> Beetle - Late Model/Super - 1968-up All times are Mountain Standard Time/Pacific Daylight Savings Time
Page: 1, 2  Next
Page 1 of 2


Jump to:
You cannot post new topics in this forum
You cannot reply to topics in this forum
You cannot edit your posts in this forum
You cannot delete your posts in this forum
You cannot vote in polls in this forum

About | Help! | Advertise | Donate | Premium Membership | Privacy/Terms of Use | Contact Us | Site Map
Copyright © 1996-2020, Everett Barnes. All Rights Reserved.
Not affiliated with or sponsored by Volkswagen of America | Forum powered by phpBB
