Low-power fridges: state of the art (share your experience)

[CowardVenus15]

I’ve decided that my fridge needs to go. I thought I got really lucky finding this fridge second hand as the fitment is fantastic. At the time I did not realize my mistake— it’s an absorption fridge ! This is a compressor-less type fridge that powers itself using a heater. On the plus side, this fridge is completely silent. Anybody who knows about electrical loads knows there’s just about nothing more power hungry than an electric heater.

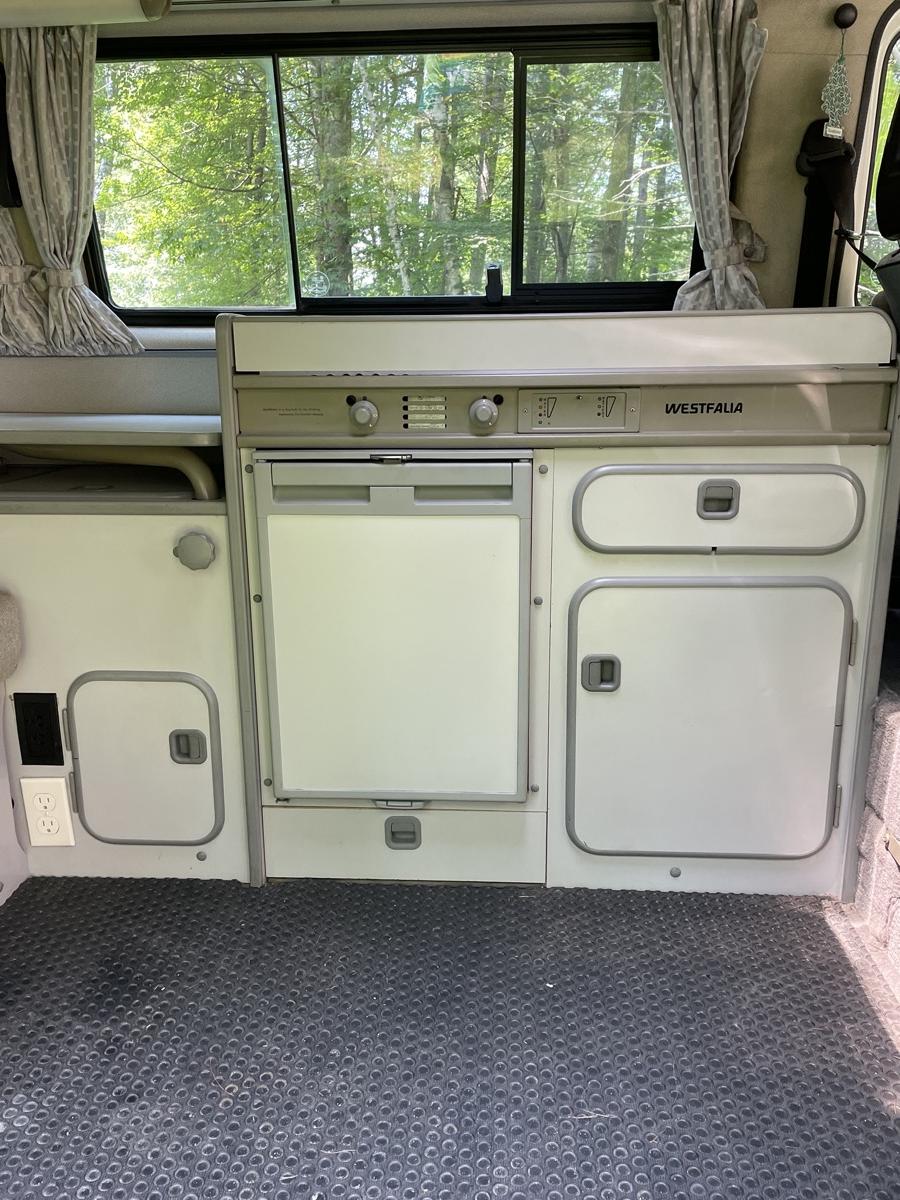

The fridge is rated for 90W and it uses that pretty much constantly! With no other loads, I am measuring around 7A out of my house battery and I have not seen the fridge cycle off. Here’s how nicely it fits:

Now I’d like to replace this with an efficient compressor fridge. I’ve read a few threads stating that the Vitrifrigo C50i and the Norcold DE-0040 are good choices for low power, but both of these seem pretty hard to come by. Truck fridge and Dometic are also popular choices but they don’t seem as efficient as the VF. This might be fine so long as it’s not as much draw as the absorption.

I do not want to do a portable fridge. I understand the advantages but I just can’t do it. The way I want to use my van I’d rather have the fridge in its spot even if it is technically worse. I also do not want an LP fridge.

Many of the threads about fridges are pretty old, so I’d like to know what the modern choices are. I want a fridge that uses the space well and is efficient. The VF seems like a perfect choice for this as it fills the hole completely, but it has the same volume as TF so that technically makes the TF better as you can add a drawer below. Please let me know what advances have been made in the world of RV refrigeration or why you chose what you did!

[GoEverywhere]

I actually just recently swapped the (still functional) stock Riviera fridge outa my rig, which is very similar to the Westy's model.

I went with a Truckfridge TF49 took up a lot less physical space while having MORE storage capacity.

I've taken it on two week long trips so far, the first the ambient temps were in the low 90's, the second they were in the low 70's. Both trips it ran at about 3A when running, which is less than 1/2 what the spec says it's max draw was. It cycles on and off obviously, with that draw only when its cycled on.

I had a hard time keeping it from just freezing everything it worked so well, I think I had it on a setting of 2 out of 7 for the cooler trip, and 4 on the hotter.

I was on grid for the hotter trip, but the cooler trip I had several days off grid so I was able to measure the power draw. Overnight when the solar wasn't adding anything it used roughly 12AH of power.

Hope that's helpful!

[Silverghost500]

The TF 49 is a decent compressor fridge. Works in the same spot in your cabinet. How you position it in the hold is your choice. If you want the top of the fridge up against the bottom of the stove you'll probably need to carve out some material from the back of the cabinet.

I get it about the space and not wanting a portable unit. They are more efficient and can pack a great deal more than the vertical fridges. But they do take up a lot of floor space.
_________________
1986 Volkswagen Vanagon Westfalia "Von Westy"
Honda K24A conversion
3-Speed Automatic

Von Westy YouTube Channel
https://www.youtube.com/channel/UCbhyZYxJEQrUuLnMbLleeIA

[CowardVenus15]

[GoEverywhere]

[Steve Arndt]

Since your cabinet is already trimmed and a work in progress consider the TF65. Same guts as TF49 but lots more volume.
_________________
Steve
Steve's 87 Syncro project

[jimf909]

15 years and 34 pages of fridge projects here. Check out just out the past few years to see the latest units.
https://www.thesamba.com/vw/forum/viewtopic.php?t=359831&postorder=asc

The Vitrifrigo C50i looks like a great fit:

[CowardVenus15]

[MarkWard]

[jimf909]

[MarkWard]

I found the link to the UK reseller and have emailed them about the 110v 240v operation. Seems like a really nice fitup with the added frame. Plus you get quite a bit of space it seems.

Dometic makes one that has a removable freezer that I thought was interesting. We've been so long without a freezer, that having the extra space a freezer takes up would be nice. On the other hand, I do like my ice cream sandwiches when I'm home. Might be a nice treat camping after dinner.

[Chilepines]

I’m very happy with the Dometic CX50. Uses about 25Ah per day, barely can hear it. And it is cold enough to keep ice cream frozen solid!
I really like having space below the fridge for more storage.
Bottom pic is with the almost completed vinyl floor.

_________________
White 89 Westy with 2004 Subaru EJ25 and Subarugears 5MT - Betty
