| Author |
Message |
tommu
Samba Member
Joined: November 15, 2011
Posts: 657
Location: L.A.
|
 Posted: Fri May 26, 2017 7:20 pm Post subject: Wolfsburg West Brake Booster Vacuum Nipple |
 |
|
I'm fitting a new Wolfsburg West brake servo right now and the vacuum nipple is simply too small for the stock hard plastic vacuum hose. To try and move forward I've wrapped some HVAC duct tape around the nipple so I can seal this up - but this is far from a permanent solution.
Has anyone else had the same problem and found a good diameter hose that will fit the hard line and the vacuum nipple itself?
_________________
  |
|
| Back to top |
|
 |
tommu
Samba Member
Joined: November 15, 2011
Posts: 657
Location: L.A.
|
| Posted: Fri May 26, 2017 7:25 pm Post subject: Re: Wolfsburg West Brake Booster Vacuum Nipple |
|
|
Oh, I guess this post answers my question. https://www.thesamba.com/vw/forum/viewtopic.php?t=583610&highlight=wolfsburg+boost%2A
I'll see if this servo is as unfriendly as kremoweets. I think fluid has only recently started leaking into the original one. I washed it out just now but I'm loath to put back in without having it rebuilt.
_________________
Last edited by tommu on Fri May 26, 2017 7:45 pm; edited 1 time in total |
|
| Back to top |
|
|
kreemoweet
Samba Member
Joined: March 13, 2008
Posts: 4074
Location: Seattle, WA
|
| Posted: Fri May 26, 2017 7:36 pm Post subject: Re: Wolfsburg West Brake Booster Vacuum Nipple |
|
|
Been that way from the beginning: https://www.thesamba.com/vw/forum/viewtopic.php?t=583610&highlight=
I just slipped some vinyl tubing I had laying around over the nipple, and the stock vacuum hose fit fine over that. Not a big deal, but just goes to show
exactly what "made by WW" may or may not mean. Myself, I think it's just marketing hokum.
I see OP has already found topic cited above. I really don't know where people get the idea that a little brake fluid will ruin a booster. Twenty years now
on the used booster I installed in 1997, had to clean out the brake fluid first.
_________________
'67 bug: seized by the authorities
'68 bug: seized by the authorities
'71 kombi: not yet seized by the authorities
Stop dead photo links! Post your photos to The Samba Gallery! |
|
| Back to top |
|
|
tommu
Samba Member
Joined: November 15, 2011
Posts: 657
Location: L.A.
|
| Posted: Fri May 26, 2017 7:47 pm Post subject: Re: Wolfsburg West Brake Booster Vacuum Nipple |
|
|
| kreemoweet wrote: |
. I really don't know where people get the idea that a little brake fluid will ruin a booster. Twenty years now
on the used booster I installed in 1997, had to clean out the brake fluid first. |
I'll dry mine out and if it can hold vacuum I'll reinstall.
_________________
|
|
| Back to top |
|
|
busdaddy
Samba Member
Joined: February 12, 2004
Posts: 52558
Location: Surrey B.C. Canada, but thinking of Ukraine
|
| Posted: Fri May 26, 2017 8:02 pm Post subject: Re: Wolfsburg West Brake Booster Vacuum Nipple |
|
|
| kreemoweet wrote: |
I really don't know where people get the idea that a little brake fluid will ruin a booster. Twenty years now
on the used booster I installed in 1997, had to clean out the brake fluid first. |
You are lucky.
Brake fluid not only removes most protective coatings (like paint), it also attracts moisture from the atmosphere, moisture + bare metal = rust.
If you can clean it out so it's dry it will likely be fine, the damage occurs when rust forms on the shiny metal surfaces of the valve discs inside, if they get rough they won't hold vacuum, bits of scale coming from other parts also effect the valves when they get sucked in. If you can get it clean inside and it's not rusty it'll likely be OK, if it's growing brown fuzzies your odds go down significantly.
_________________
Rust NEVER sleeps and stock never goes out of style.
Please don't PM technical questions, ask your problem in public so everyone can play along. If you think it's too stupid post it here
Stop dead photo links! Post your photos to The Samba Gallery!
Слава Україні! |
|
| Back to top |
|
|
tommu
Samba Member
Joined: November 15, 2011
Posts: 657
Location: L.A.
|
| Posted: Sat May 27, 2017 5:52 pm Post subject: Re: Wolfsburg West Brake Booster Vacuum Nipple |
|
|
I fitted the WW servo in the end. Adjusted the connecting rod and bled everything thoroughly. I immediately felt the same lack of brake modulation kreemoweet noted in his review. Brakes are very sharp indeed. It's unpleasant.
Anyone else tried this servo and had different results? Is there any adjustment I can do other than connecting rod?
_________________
|
|
| Back to top |
|
|
TomWesty
Samba Member
Joined: November 23, 2007
Posts: 3496
Location: Wyoming,USA
|
| Posted: Sat May 27, 2017 11:57 pm Post subject: Re: Wolfsburg West Brake Booster Vacuum Nipple |
|
|
| tommu wrote: |
I fitted the WW servo in the end. Adjusted the connecting rod and bled everything thoroughly. I immediately felt the same lack of brake modulation kreemoweet noted in his review. Brakes are very sharp indeed. It's unpleasant.
Anyone else tried this servo and had different results? Is there any adjustment I can do other than connecting rod? |
I don't know if it is the same brand as the WW one, but I bought mine for my '71 at EIS and it is branded Airtec. I set the pushrod the same protrusion as the one I removed and bolted everything up and it works great.
_________________
If you haven't bled on them, you haven't worked on them.
Visit: www.tomcoryell.com and check out my music! |
|
| Back to top |
|
|
tommu
Samba Member
Joined: November 15, 2011
Posts: 657
Location: L.A.
|
| Posted: Sun May 28, 2017 7:55 am Post subject: Re: Wolfsburg West Brake Booster Vacuum Nipple |
|
|
I didn't check the pushrod to master cylinder clearance. I think I need to take the MC off and stick my fingers in there..
_________________
|
|
| Back to top |
|
|
airschooled
Air-Schooled
Joined: April 04, 2012
Posts: 13407
Location: West Coast, USA
|
| Posted: Sun May 28, 2017 11:45 am Post subject: Re: Wolfsburg West Brake Booster Vacuum Nipple |
|
|
| tommu wrote: |
| I didn't check the pushrod to master cylinder clearance. I think I need to take the MC off and stick my fingers in there.. |
Isn't that what the "connecting rod" you adjusted is? Gotta have that millimeter of clearance or you're asking for trouble…
You kept the old booster, right? I vote for a clean, paint, and reinstall.
Robbie
_________________
One-on-one tech help for your vintage Volkswagen:
www.airschooled.com
https://www.patreon.com/airschooled |
|
| Back to top |
|
|
tommu
Samba Member
Joined: November 15, 2011
Posts: 657
Location: L.A.
|
| Posted: Sun May 28, 2017 2:48 pm Post subject: Re: Wolfsburg West Brake Booster Vacuum Nipple |
|
|
| asiab3 wrote: |
| tommu wrote: |
| I didn't check the pushrod to master cylinder clearance. I think I need to take the MC off and stick my fingers in there.. |
Isn't that what the "connecting rod" you adjusted is? Gotta have that millimeter of clearance or you're asking for trouble…
You kept the old booster, right? I vote for a clean, paint, and reinstall.
Robbie |
I call the rod from pedal to brake the connecting rod. The pushrod is in the booster itself. I read that the booster to MC piston pushrod clearance should be determined by the o ring. But some newer boosters have a default pushrod setting that's too extended out of the box. It's a PITA.
I tried cleaning the old booster with soapy water followed by denatured alcohol but I see some light surface rust spots. Still worth cleaning, painting and re-installing!
_________________
|
|
| Back to top |
|
|
aeromech
Samba Member
Joined: January 24, 2006
Posts: 17593
Location: San Diego, California
|
| Posted: Sun May 28, 2017 3:04 pm Post subject: Re: Wolfsburg West Brake Booster Vacuum Nipple |
|
|
The adjustable rod inside the new booster isn't a pain at all. You simply need to be aware to adjust the length when you install the MC. Took me about 10 minutes if I remember right. This was on Cynthia's bus.
_________________
Lead Mechanic: San Diego Air and Space Museum
Licensed Airframe and Powerplant Mechanic
Licensed Pilot (Single engine Land)
Boeing 727,737-200-300-400,757,767
Airbus A319,320,321
DC9/MD80
BAe146
Fokker F28/F100
VW type 1 1962,63,65,69,72
VW Type 2 1971 (3 ea.) 1978, 1969
VW Jetta
VW Passat
Capable of leaping tall buildings in a single bound |
|
| Back to top |
|
|
Tcash
Samba Member
Joined: July 20, 2011
Posts: 12847
Location: San Jose, California, USA
|
| Posted: Sun May 28, 2017 7:28 pm Post subject: Re: Wolfsburg West Brake Booster Vacuum Nipple |
|
|
Brake Servo
|
|
| Back to top |
|
|
aeromech
Samba Member
Joined: January 24, 2006
Posts: 17593
Location: San Diego, California
|
| Posted: Sun May 28, 2017 7:50 pm Post subject: Re: Wolfsburg West Brake Booster Vacuum Nipple |
|
|
Tim,
This aftermarket booster is a bit different in that the very tip of the rod that inserts into the MC is adjustable using very small wrenches. It also has the smaller, like 3/8 nipple, as opposed to the usual 1/2 inch or so size nip. Personally, larger nipples appeal to me. Your tastes may vary.
_________________
Lead Mechanic: San Diego Air and Space Museum
Licensed Airframe and Powerplant Mechanic
Licensed Pilot (Single engine Land)
Boeing 727,737-200-300-400,757,767
Airbus A319,320,321
DC9/MD80
BAe146
Fokker F28/F100
VW type 1 1962,63,65,69,72
VW Type 2 1971 (3 ea.) 1978, 1969
VW Jetta
VW Passat
Capable of leaping tall buildings in a single bound |
|
| Back to top |
|
|
tommu
Samba Member
Joined: November 15, 2011
Posts: 657
Location: L.A.
|
| Posted: Sun May 28, 2017 10:35 pm Post subject: Re: Wolfsburg West Brake Booster Vacuum Nipple |
|
|
The WW booster pushrod the same clearance as the original ATE pushrod. So I concluded that the whole thing was an inferior clone. I dried out, cleaned and refitted my original booster. Proper modulation returned along with more tactile pedal. My advice is to either rebuild your original, buy used here and get it rebuilt or save for the genuine ATE one.
Lesson (re)learnt. You get what you pay for.
_________________
|
|
| Back to top |
|
|
tommu
Samba Member
Joined: November 15, 2011
Posts: 657
Location: L.A.
|
| Posted: Sun May 28, 2017 10:38 pm Post subject: Re: Wolfsburg West Brake Booster Vacuum Nipple |
|
|
| aeromech wrote: |
| The adjustable rod inside the new booster isn't a pain at all. You simply need to be aware to adjust the length when you install the MC. Took me about 10 minutes if I remember right. This was on Cynthia's bus. |
Agree. It's only a pain if you neglect to adjust it before installing it under the car along with a master cylinder and fully bled brakes.
_________________
|
|
| Back to top |
|
|
kreemoweet
Samba Member
Joined: March 13, 2008
Posts: 4074
Location: Seattle, WA
|
| Posted: Sun May 28, 2017 11:11 pm Post subject: Re: Wolfsburg West Brake Booster Vacuum Nipple |
|
|
| tommu wrote: |
| . . . or save for the genuine ATE one. |
Don't forget, and as discussed in my original thread linked to above, that even the genuine ATE booster has an
incorrect push rod setting (for use with original stock master cylinders), and there is no adjustability in that pushrod
length in the necessary direction (shorter). Either a M/C shim or machining of some sort will be required to use it.
_________________
'67 bug: seized by the authorities
'68 bug: seized by the authorities
'71 kombi: not yet seized by the authorities
Stop dead photo links! Post your photos to The Samba Gallery! |
|
| Back to top |
|
|
TomWesty
Samba Member
Joined: November 23, 2007
Posts: 3496
Location: Wyoming,USA
|
| Posted: Wed Jan 24, 2018 7:32 am Post subject: Re: Wolfsburg West Brake Booster Vacuum Nipple |
|
|
| kreemoweet wrote: |
| tommu wrote: |
| . . . or save for the genuine ATE one. |
Don't forget, and as discussed in my original thread linked to above, that even the genuine ATE booster has an
incorrect push rod setting (for use with original stock master cylinders), and there is no adjustability in that pushrod
length in the necessary direction (shorter). Either a M/C shim or machining of some sort will be required to use it. |
I just measured how much the pushrod protruded from the face of the original booster and adjusted the new one to the same amount of protrusion or lack thereof. Took maybe 2 minutes if that.
_________________
If you haven't bled on them, you haven't worked on them.
Visit: www.tomcoryell.com and check out my music! |
|
| Back to top |
|
|
NOVA Bus
Samba Member
Joined: April 18, 2005
Posts: 517
Location: Herndon, VA
|
| Posted: Sun Apr 01, 2018 12:06 pm Post subject: Re: Wolfsburg West Brake Booster Vacuum Nipple |
|
|
Can anyone provide a link or phone # to the rebuilder for my original ATE brake servo? Many thanks!
_________________
********************************
1977 Transporter / Weekender
- GE engine, L-Jetronic w/ hyd. lifters
- Brown Beige plaid P27 Interior (ED)
http:/[url=http://www.vw-mplate.com/mplate-29638.png]Click to view image
Camper Interior donor:
[/URL]/www.vw-mplate.com/mcode.php?lang=EN&id=721 (M-Code for interior). |
|
| Back to top |
|
|
jack-o-van
Samba Member
Joined: April 27, 2017
Posts: 109
Location: Milwaukee
|
| Posted: Thu Jun 21, 2018 3:48 pm Post subject: Re: Wolfsburg West Brake Booster Vacuum Nipple |
|
|
deleted
_________________
| If he meant it of me, he would have been "spot on" when AeroMech wrote: |
| in my opinion you don't know shit |
| And I love what raygreenwood wrote: |
| I will probably be seen as an asshole for this comment.....but thats fine because I am an asshole. |
Last edited by jack-o-van on Thu Jun 21, 2018 4:11 pm; edited 1 time in total |
|
| Back to top |
|
|
jack-o-van
Samba Member
Joined: April 27, 2017
Posts: 109
Location: Milwaukee
|
| Posted: Thu Jun 21, 2018 3:54 pm Post subject: Re: Wolfsburg West Brake Booster Vacuum Nipple |
|
|

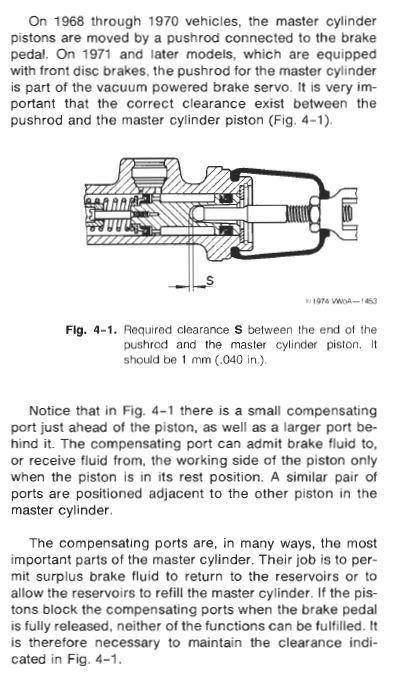

So the Bentley stresses the importance of that clearance, but doesn't say how to measure it. Once you put the pieces together you can't see those parts. Do you go by feel from the other end of the booster?
- Jack.
_________________
| If he meant it of me, he would have been "spot on" when AeroMech wrote: |
| in my opinion you don't know shit |
| And I love what raygreenwood wrote: |
| I will probably be seen as an asshole for this comment.....but thats fine because I am an asshole. |
|
|
| Back to top |
|
|
|
