High Pressure Power Steering hose 251422893C cut open
Forum Index -> Vanagon Share: Facebook Twitter
Reply to topic
Print View
Quick sort: Show newest posts on top | Show oldest posts on top View previous topic :: View next topic
Author Message
ALIKA T3
Samba Member


Joined: July 30, 2009
Posts: 6304
Location: Honolulu,Hawaii and France
ALIKA T3 is offline

PostPosted: Sun Dec 03, 2017 7:43 pm    Post subject: High Pressure Power Steering hose 251422893C cut open Reply with quote

Aloha folks!

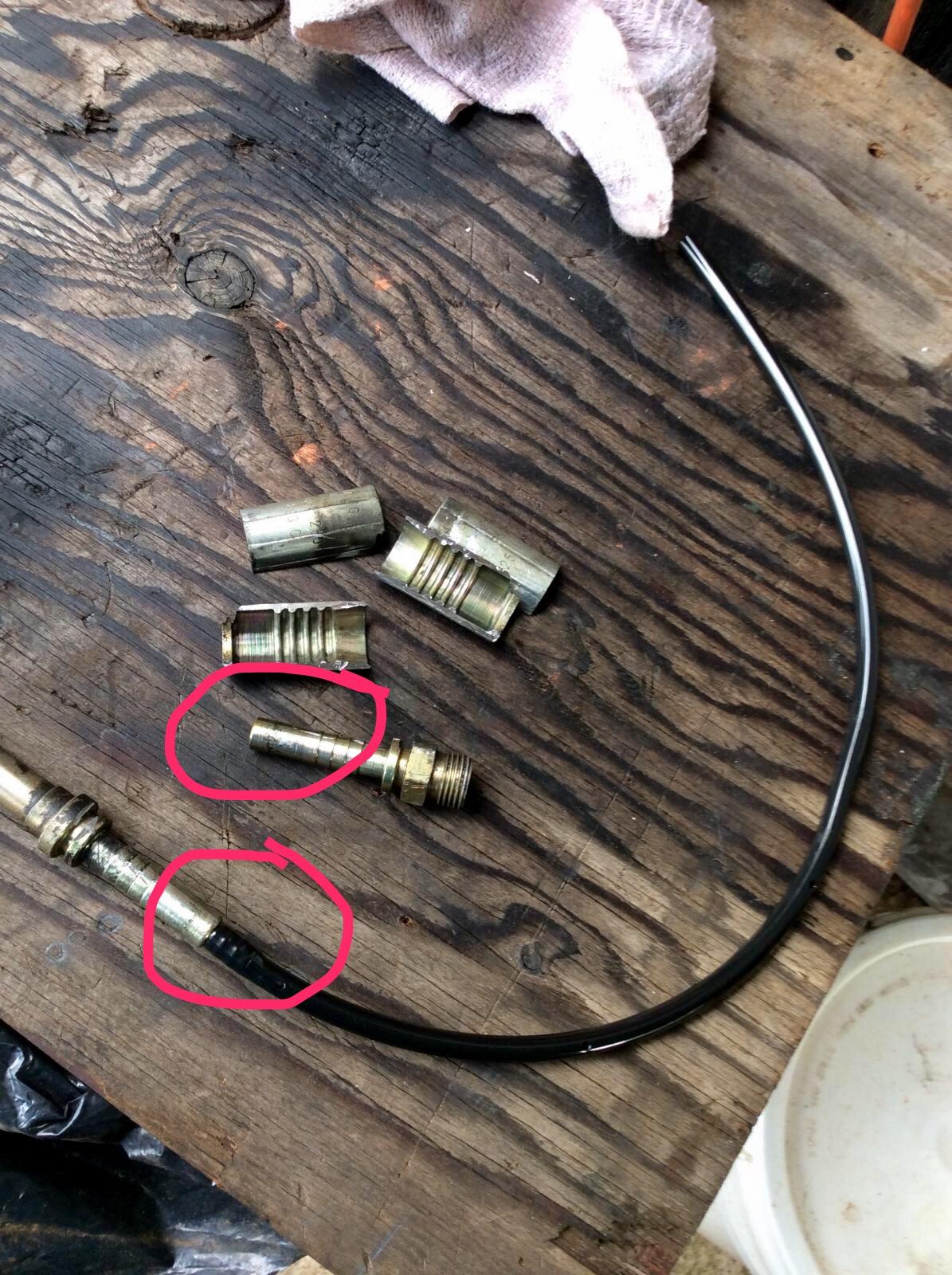

I had a leak on a PS hose , so I cut it open to hopefully re use the fittings.

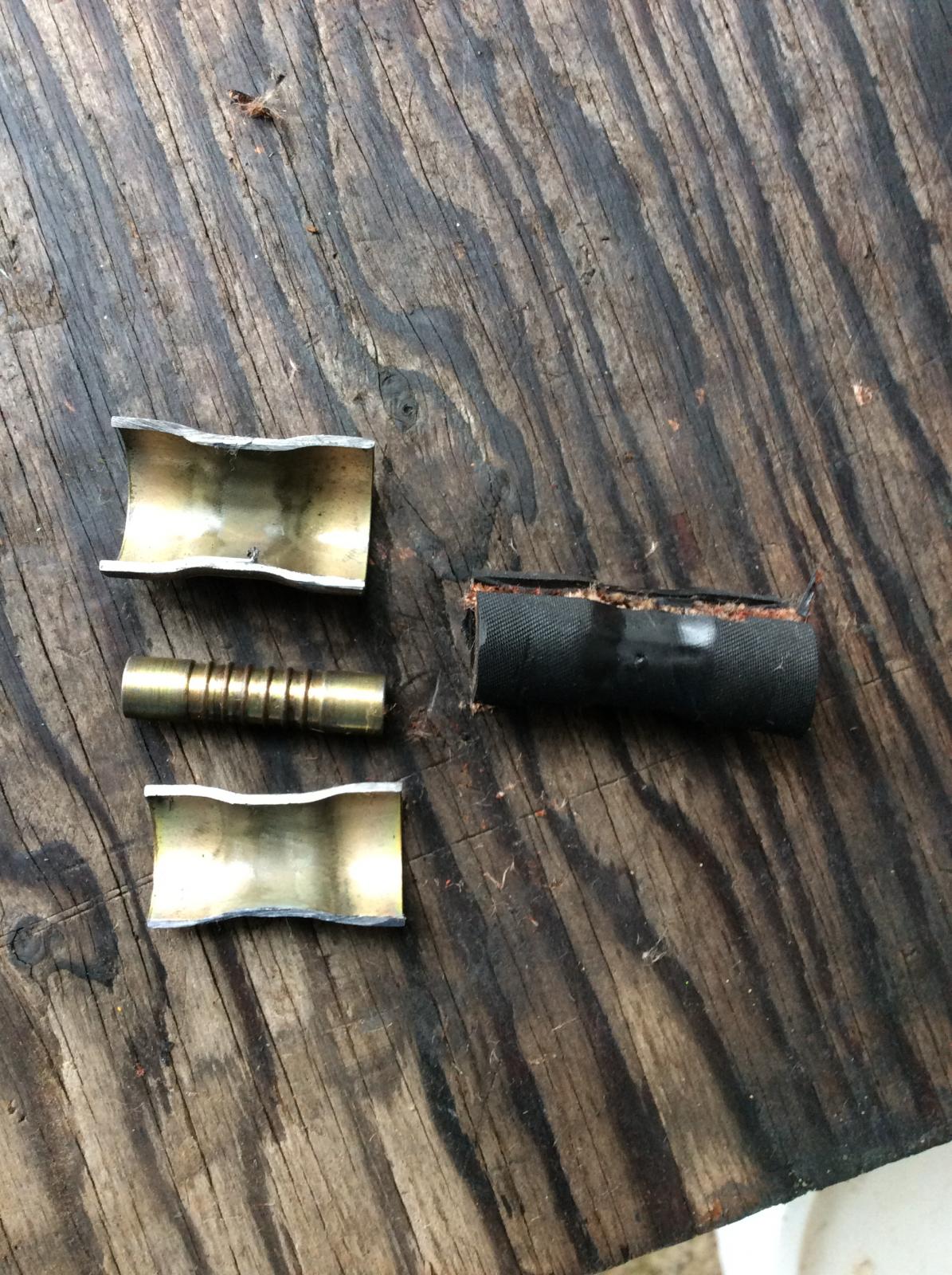

One might find interesting about the flow restrictor, I saw it mentioned often but never seen one yet.

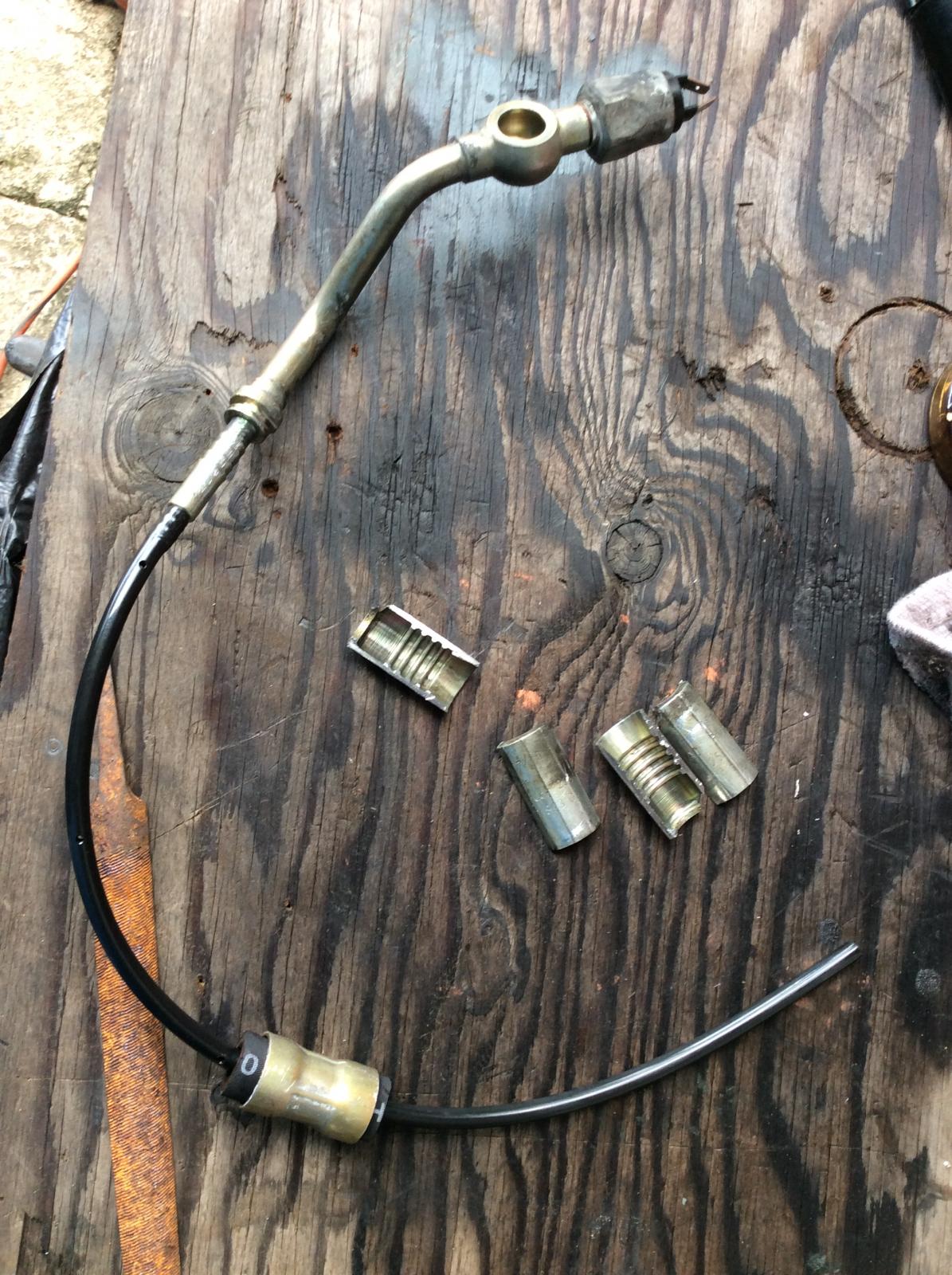

The actual sleeve crimp you see in the middle of the hose is actually not a restrictor but rather a component of the restrictor system. It restricts and holds the restrictor tube that is inside the power steering hose. That plastic tube has 3 holes going trough it perpendicularly and are located on the pump side of the restrictor sleeve.

The rubber hose is 21.25" long , the crimp sleeve is in the middle
The hose is not cut in the middle

Picture time Razz


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.

_________________
Silicone Steering Boots and 930 Cv boots for sale in the classifieds.
Syncro transmission upgrade parts in the Classifieds.
Subaru EJ22+UN1 5 speed transmission
http://www.thesamba.com/vw/forum/viewtopic.php?t=416343
Syncro http://www.thesamba.com/vw/forum/viewtopic.php?t=4...num+gadget
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Farf
Samba Member


Joined: July 12, 2009
Posts: 463
Location: Colorado
Farf is offline

PostPosted: Sun Dec 03, 2017 10:03 pm    Post subject: Re: High Pressure Power Steering hose 251422893C cut open Reply with quote

Thanks for the postmortem on the hose. I too had wondered what the internals of the hose looked like, now we all know! Barring any problems with the internal restriction hose itself do you think the external hose could be replaced instead of paying big $$$ for a new one?
Back to top
View user's profile Send private message Gallery Classifieds Feedback
djkeev
Samba Moderator


Joined: September 30, 2007
Posts: 32367
Location: Reading Pennsylvania
djkeev is offline

PostPosted: Sun Dec 03, 2017 10:46 pm    Post subject: Re: High Pressure Power Steering hose 251422893C cut open Reply with quote

Thanks for doing that but I miss understanding a few things.

The hard plastic inner pipe seems to be perforated along its length.

This means the high pressure oil runs both inside and along the outside of the inner hard plastic pipe?

Help me understand the relationship of the "restrictor" and the hard plastic pipe.

Does the "restrictor" sleeve simply slip over the hard plastic pipe?
It is then crimped in place as basically a weight?
Or....
Does the "restrictor" prevent oil flow along the exterior of the hard plastic pipe?

Image may have been reduced in size. Click image to view fullscreen.


How does the hard plastic pipe attach to the end you removed? The banjo end seems to have a provision for attachment, the straight end does not have that stepped attachment provision. (Red circles I added)
Does the hard plastic just slip inside the fitting and the outside rubber hose clamped to the fitting holds it all together??

Image may have been reduced in size. Click image to view fullscreen.


Thanks!

Dave
_________________
Stop Dead Photo Links how to post photos

Ghia
http://www.thesamba.com/vw/forum/viewtopic.php?t=392473

Vanagon
http://www.thesamba.com/vw/forum/viewtopic.php?p=6315537#6315537

Beetle
https://www.thesamba.com/vw/forum/viewtopic.php?t=482968&highlight=74+super+vert
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
ALIKA T3
Samba Member


Joined: July 30, 2009
Posts: 6304
Location: Honolulu,Hawaii and France
ALIKA T3 is offline

PostPosted: Mon Dec 04, 2017 2:09 am    Post subject: Re: High Pressure Power Steering hose 251422893C cut open Reply with quote

Farf wrote:
Thanks for the postmortem on the hose. I too had wondered what the internals of the hose looked like, now we all know! Barring any problems with the internal restriction hose itself do you think the external hose could be replaced instead of paying big $$$ for a new one?


I'm gonna try that for sure , I will report back. The hard part must be the crimp sleeve compatibility....

It is DN10 hose, meaning I think 10mm ID, 3/8" should do.
_________________
Silicone Steering Boots and 930 Cv boots for sale in the classifieds.
Syncro transmission upgrade parts in the Classifieds.
Subaru EJ22+UN1 5 speed transmission
http://www.thesamba.com/vw/forum/viewtopic.php?t=416343
Syncro http://www.thesamba.com/vw/forum/viewtopic.php?t=4...num+gadget
Back to top
View user's profile Send private message Gallery Classifieds Feedback
ALIKA T3
Samba Member


Joined: July 30, 2009
Posts: 6304
Location: Honolulu,Hawaii and France
ALIKA T3 is offline

PostPosted: Mon Dec 04, 2017 2:23 am    Post subject: Re: High Pressure Power Steering hose 251422893C cut open Reply with quote

djkeev wrote:
Thanks for doing that but I miss understanding a few things.

The hard plastic inner pipe seems to be perforated along its length. Correct, 3 holes, BEFORE the restrictor

This means the high pressure oil runs both inside and along the outside of the inner hard plastic pipe? No, the pressure oil goes through the plastic tube, the plastic tube is attached to the end of the fitting on the pump side only of the restrictor, so you're correct but downstream of the restrictor Wink

Help me understand the relationship of the "restrictor" and the hard plastic pipe.

Does the "restrictor" sleeve simply slip over the hard plastic pipe? The small metal sleeve does slip over the hard plastic tube and is held in place by the outer visible big sleeve pinched over the rubber hose. The plastic is slightly deformed where the sleeve was sitting.From inner to outer you have the plastic tube, then the small sleeve, then the rubber hose then the big sleeve to squeeze that whole assembly.
It is then crimped in place as basically a weight?
Or....
Does the "restrictor" prevent oil flow along the exterior of the hard plastic pipe?
The way I see it, the pressure oil goes through the plastic tube and reaches the opposite end of the rubber hose, unrestricted , the plastic tube just shoots out oil into the bigger ID rubber hose. Before the restrictor, there is static oil sitting between the plastic tube and the outer rubber hose. That oil got there only by the 3 holes into the plastic tube. I think that non running static oil must act as a damper somehow.

Image may have been reduced in size. Click image to view fullscreen.


How does the hard plastic pipe attach to the end you removed? The banjo end seems to have a provision for attachment,yes a nipple kind of thing the straight end does not have that stepped attachment provision. (Red circles I added) no it does not have an attachment, it just ends about 2" or so before the male threaded fitting metal tip.
Does the hard plastic just slip inside the fitting and the outside rubber hose clamped to the fitting holds it all together?? Nein, I didn't take it apart, it is shorter than the rubber hose like I just described above Wink

Image may have been reduced in size. Click image to view fullscreen.


Thanks Dave! You're welcome, I hope my explanations are clear Cool


Dave

_________________
Silicone Steering Boots and 930 Cv boots for sale in the classifieds.
Syncro transmission upgrade parts in the Classifieds.
Subaru EJ22+UN1 5 speed transmission
http://www.thesamba.com/vw/forum/viewtopic.php?t=416343
Syncro http://www.thesamba.com/vw/forum/viewtopic.php?t=4...num+gadget
Back to top
View user's profile Send private message Gallery Classifieds Feedback
djkeev
Samba Moderator


Joined: September 30, 2007
Posts: 32367
Location: Reading Pennsylvania
djkeev is offline

PostPosted: Mon Dec 04, 2017 4:23 am    Post subject: Re: High Pressure Power Steering hose 251422893C cut open Reply with quote

Thanks for the clarifications!

I wish I was smarter and understood high pressure oil properties more.

We know from others that the replacement hoses made with just standard hydraulic hose make noises.

Some now put in an orifice to dampen the noise.

This seems like a complex system ((unlike VW) to solve a noise problem.

Piecing hoses,two piece hose, proprietary fittings, etc.

Dave
_________________
Stop Dead Photo Links how to post photos

Ghia
http://www.thesamba.com/vw/forum/viewtopic.php?t=392473

Vanagon
http://www.thesamba.com/vw/forum/viewtopic.php?p=6315537#6315537

Beetle
https://www.thesamba.com/vw/forum/viewtopic.php?t=482968&highlight=74+super+vert
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
Steve M.
Samba Member


Joined: July 30, 2013
Posts: 6777
Location: Fort Lauderdale, Fl.
Steve M. is offline

PostPosted: Mon Dec 04, 2017 4:33 am    Post subject: Re: High Pressure Power Steering hose 251422893C cut open Reply with quote

I want the name of the guy in the VW Hydraulic Anti-Noise in Power Steering Hose Department!
Who in the hell thought of this? 😨

Thanks for the disection!
_________________
This free advice is worth exactly what you paid for it.

There are seven days in a week. Someday is not one of them.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
JudoJeff
Samba Member


Joined: May 24, 2013
Posts: 1179
Location: Near Springfield, MA
JudoJeff is offline

PostPosted: Mon Dec 04, 2017 5:48 am    Post subject: Re: High Pressure Power Steering hose 251422893C cut open Reply with quote

Makes sense to me:noise, which is caused by waves traveling fast and reflecting, are dampened (slowed down) by expansion against the “sitting still” oil in the outer area. Pressure is maintained, but not the wave height. Works like an oil-filled shock absorber.

The ringed clamp would also shorten and break apart the waves, because of the ridges. Kind of like making you climb up/down hills versus racing along a flat plain.
_________________
________________________________________
1989 Vanagon GL Westfalia Camper, Burned up on 7/31/16.
1987 Vanagon GL Westfalia Camper, Bostig & Rebuilt, sold
1986 Vanagon GL Westfalia Camper, Bostig Sold May 10, 2021
1999 Ford GTRV Westfalia camper (30% bigger Westy layout)
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
ALIKA T3
Samba Member


Joined: July 30, 2009
Posts: 6304
Location: Honolulu,Hawaii and France
ALIKA T3 is offline

PostPosted: Mon Dec 04, 2017 10:24 am    Post subject: Re: High Pressure Power Steering hose 251422893C cut open Reply with quote

I'm no expert either but Jeff summarized pretty well what comes out from the dissection Razz
_________________
Silicone Steering Boots and 930 Cv boots for sale in the classifieds.
Syncro transmission upgrade parts in the Classifieds.
Subaru EJ22+UN1 5 speed transmission
http://www.thesamba.com/vw/forum/viewtopic.php?t=416343
Syncro http://www.thesamba.com/vw/forum/viewtopic.php?t=4...num+gadget
Back to top
View user's profile Send private message Gallery Classifieds Feedback
SteveMc
Samba Member


Joined: December 19, 2013
Posts: 210
Location: Alberta, Canada
SteveMc is offline

PostPosted: Mon Dec 04, 2017 12:40 pm    Post subject: Re: High Pressure Power Steering hose 251422893C cut open Reply with quote

Steve M. wrote:
I want the name of the guy in the VW Hydraulic Anti-Noise in Power Steering Hose Department!
Who in the hell thought of this? 😨

Thanks for the disection!


Its actually a common approach to develop a 'tortuous' path for fluid flow to reduce noise.
_________________
1986 Transporter Single Cab Syncro
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Farf
Samba Member


Joined: July 12, 2009
Posts: 463
Location: Colorado
Farf is offline

PostPosted: Mon Dec 04, 2017 12:45 pm    Post subject: Re: High Pressure Power Steering hose 251422893C cut open Reply with quote

A description of how this thing works from the guys at VW when they submitted patent information. Designers names included.

https://patents.google.com/patent/US4611633A/en?q=B62D5%2f062
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Abscate Premium Member
Samba Member


Joined: October 05, 2014
Posts: 22503
Location: NYC/Upstate/ROW
Abscate is offline

PostPosted: Mon Dec 04, 2017 12:51 pm    Post subject: Re: High Pressure Power Steering hose 251422893C cut open Reply with quote

I don think its about noise, but about absorbing the energy of the fluid when the rack no longer requires pressure after a hard turn.
_________________
.ssS!
Back to top
View user's profile Send private message Gallery Classifieds Feedback
djkeev
Samba Moderator


Joined: September 30, 2007
Posts: 32367
Location: Reading Pennsylvania
djkeev is offline

PostPosted: Mon Dec 04, 2017 1:40 pm    Post subject: Re: High Pressure Power Steering hose 251422893C cut open Reply with quote

Farf wrote:
A description of how this thing works from the guys at VW when they submitted patent information. Designers names included.

https://patents.google.com/patent/US4611633A/en?q=B62D5%2f062


Whoa!!!

Facts!
Answers!
Explanations!

Thanks!!!!

Dave
_________________
Stop Dead Photo Links how to post photos

Ghia
http://www.thesamba.com/vw/forum/viewtopic.php?t=392473

Vanagon
http://www.thesamba.com/vw/forum/viewtopic.php?p=6315537#6315537

Beetle
https://www.thesamba.com/vw/forum/viewtopic.php?t=482968&highlight=74+super+vert
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
JudoJeff
Samba Member


Joined: May 24, 2013
Posts: 1179
Location: Near Springfield, MA
JudoJeff is offline

PostPosted: Mon Dec 04, 2017 2:12 pm    Post subject: Re: High Pressure Power Steering hose 251422893C cut open Reply with quote

"Considering the hose length, cross-section and expandability and the working pressure as being fixed for each particular application, the degree of pulsation reduction will depend upon the dimensions of the inner hose 2, i.e., the flow cross section and the length, and the throttle cross section of the radial throttle passages 3 as well as of the axial throttle passage 8. When these quantities are properly coordinated, it is possible to achieve a nearly pulsation-free hydraulic flow with the use of the expansion hose in accordance with the invention.

Claims (1)
We claim:
1. In a hydraulic circuit an expansion hose for reducing pressure pulsations, the expansion hose comprising: an outer hose having a first hose chamber on an inlet side with an inlet end adapted to receive the pressure pulsations from the hydraulic circuit and a second hose chamber on an outlet side with an outlet end; a throttle element containing an axial throttle passage connecting the first and second chambers; and an inner hose connected at one end with the outer hose inlet end and having a portion extending through the first hose chamber and the throttle element and a portion extending into the second chamber, the inner hose further having its other end open so as to discharge directly into the second hose chamber, the portion of the inner hose within the first hose chamber having at least one radial throttle passage, and the portion of the inner hose within the second hose chamber having an imperforate wall."

Yeah, what I said.....lol
_________________
________________________________________
1989 Vanagon GL Westfalia Camper, Burned up on 7/31/16.
1987 Vanagon GL Westfalia Camper, Bostig & Rebuilt, sold
1986 Vanagon GL Westfalia Camper, Bostig Sold May 10, 2021
1999 Ford GTRV Westfalia camper (30% bigger Westy layout)
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
ALIKA T3
Samba Member


Joined: July 30, 2009
Posts: 6304
Location: Honolulu,Hawaii and France
ALIKA T3 is offline

PostPosted: Tue Dec 19, 2017 6:19 pm    Post subject: Re: High Pressure Power Steering hose 251422893C cut open Reply with quote

I got the hose re-crimped. So far so good Smile


Image may have been reduced in size. Click image to view fullscreen.

_________________
Silicone Steering Boots and 930 Cv boots for sale in the classifieds.
Syncro transmission upgrade parts in the Classifieds.
Subaru EJ22+UN1 5 speed transmission
http://www.thesamba.com/vw/forum/viewtopic.php?t=416343
Syncro http://www.thesamba.com/vw/forum/viewtopic.php?t=4...num+gadget
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Farf
Samba Member


Joined: July 12, 2009
Posts: 463
Location: Colorado
Farf is offline

PostPosted: Tue Dec 19, 2017 7:08 pm    Post subject: Re: High Pressure Power Steering hose 251422893C cut open Reply with quote

Looking good! Thanks again for taking the time to document this. Out of curiosity, how much "slop" does inner hose #2 have when it passes through the throttle sleeve #4 to achieve the flow passage #8? And if I've read the link correctly, you just need enough pressure from the middle crimp #5 to hold the throttle sleeve in place, correct?


Image may have been reduced in size. Click image to view fullscreen.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
ALIKA T3
Samba Member


Joined: July 30, 2009
Posts: 6304
Location: Honolulu,Hawaii and France
ALIKA T3 is offline

PostPosted: Wed Dec 20, 2017 11:32 am    Post subject: Re: High Pressure Power Steering hose 251422893C cut open Reply with quote

Farf wrote:
Looking good! Thanks again for taking the time to document this. Out of curiosity, how much "slop" does inner hose #2 have when it passes through the throttle sleeve #4 to achieve the flow passage #8? And if I've read the link correctly, you just need enough pressure from the middle crimp #5 to hold the throttle sleeve in place, correct?


Image may have been reduced in size. Click image to view fullscreen.


No problemo Wink

There is no play between the inner hose and the metal sleeve and the rubber hose is clamped down to sandwhich it all.The fluid ONLY goes through the inner plastic tubing.
I was going to put a hose clamp for that sleeve but even without asking they crimped it like the original was. The inner plastic hose when disassembled showed a little bit of collapsing from that crimp assembly. It's tight.
_________________
Silicone Steering Boots and 930 Cv boots for sale in the classifieds.
Syncro transmission upgrade parts in the Classifieds.
Subaru EJ22+UN1 5 speed transmission
http://www.thesamba.com/vw/forum/viewtopic.php?t=416343
Syncro http://www.thesamba.com/vw/forum/viewtopic.php?t=4...num+gadget
Back to top
View user's profile Send private message Gallery Classifieds Feedback
xflyer
Samba Member


Joined: June 15, 2006
Posts: 199
Location: SOCAL
xflyer is offline

PostPosted: Mon Jun 18, 2018 6:53 am    Post subject: Re: High Pressure Power Steering hose 251422893C cut open Reply with quote

A similar hose was installed on Audi-s some years before it made it's way to the Vanagon.
On some of the Audi's the system also operates the brake power assist.
I think they adopted this from GM. GM calls it HydroBoost. There is no vacuum booster, just a small piston unit between the brake pedal and the master cylinder.
The system gives good brake feel, no mushy pedals. As long as it works.
Audi decided to change the fluid from ATF to a special hydraulic fluid which is way more expensive and harder to find than ATF.
Whenever something failed that put contamination into the system, everything needed to be replaced. Lines, steering rack, pump, and power brake unit. The only thing that could be cleaned successfully is the reservoir. Usually something would go bad in the pump and metal shavings were everywhere.
Big $$$ repair.
If only the failed component was replaced other parts would fail in a short time.
_________________
1989 Campmobile, 1984 7 passenger beater Vanagon
Both with cool A/C
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
26kick
Samba Member


Joined: June 12, 2006
Posts: 128
Location: Long Beach, CA
26kick is offline

PostPosted: Mon Sep 23, 2019 3:49 pm    Post subject: Re: High Pressure Power Steering hose 251422893C cut open Reply with quote

ALIKA T3 wrote:
I got the hose re-crimped. So far so good Smile


Image may have been reduced in size. Click image to view fullscreen.


Reviving and old but important thread here... That re-crimp looks good! How does it work/sound?

I was wondering if anyone who tried the GoWesty reproduction hose (251422893C) tried putting some extra insulation around the hose to reduce the noise? They claim its about twice as noisy as factory. I was thinking about some of that foam stuff that they use to insulate copper air conditioning lines. A little bulky but seems like that would quiet it down a bit, no?
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Display posts from previous:
Reply to topic    Forum Index -> Vanagon All times are Mountain Standard Time/Pacific Daylight Savings Time
Page 1 of 1


Jump to:
You cannot post new topics in this forum
You cannot reply to topics in this forum
You cannot edit your posts in this forum
You cannot delete your posts in this forum
You cannot vote in polls in this forum

About | Help! | Advertise | Donate | Premium Membership | Privacy/Terms of Use | Contact Us | Site Map
Copyright © 1996-2023, Everett Barnes. All Rights Reserved.
Not affiliated with or sponsored by Volkswagen of America | Forum powered by phpBB
Links to eBay or other vendor sites may be affiliate links where the site receives compensation.
