Question about air cleaner support bracket/stands
Forum Index -> Ghia Share: Facebook Twitter
Reply to topic
Print View
Quick sort: Show newest posts on top | Show oldest posts on top View previous topic :: View next topic
Author Message
BulliBill
Samba Member


Joined: July 09, 2004
Posts: 3863
Location: St Charles, MO
BulliBill is offline

PostPosted: Thu Feb 01, 2018 11:19 am    Post subject: Question about air cleaner support bracket/stands Reply with quote

Howdy all,

I see in my VW dealership parts manual published about 1972 that there is a support stand for the air cleaner, and that apparently there are "two" different versions. My 1970 Ghia engine compartment had it's stock air cleaner stand (right side of the engine compartment) removed long, long ago for installation of a 1776 engine with a pair of Weber 44IDF plus XE carbs (long gone). I'm getting things together to get the original factory engine returned to the Ghia's engine compartment. Here are the two listings in the parts book:

141 129 645A bracket - air cleaner, up to chassis #147 999 000 (end of 1967 model). I'm guessing this remote stand started on Ghia's around 1964 or 1965?

211 813 503A bracket - air cleaner, from chassis #148 000 001 (1968 model) thru 1974 K. Ghias (looks like this was also used on Buses too - 1968 - 1971? Bay windows?)

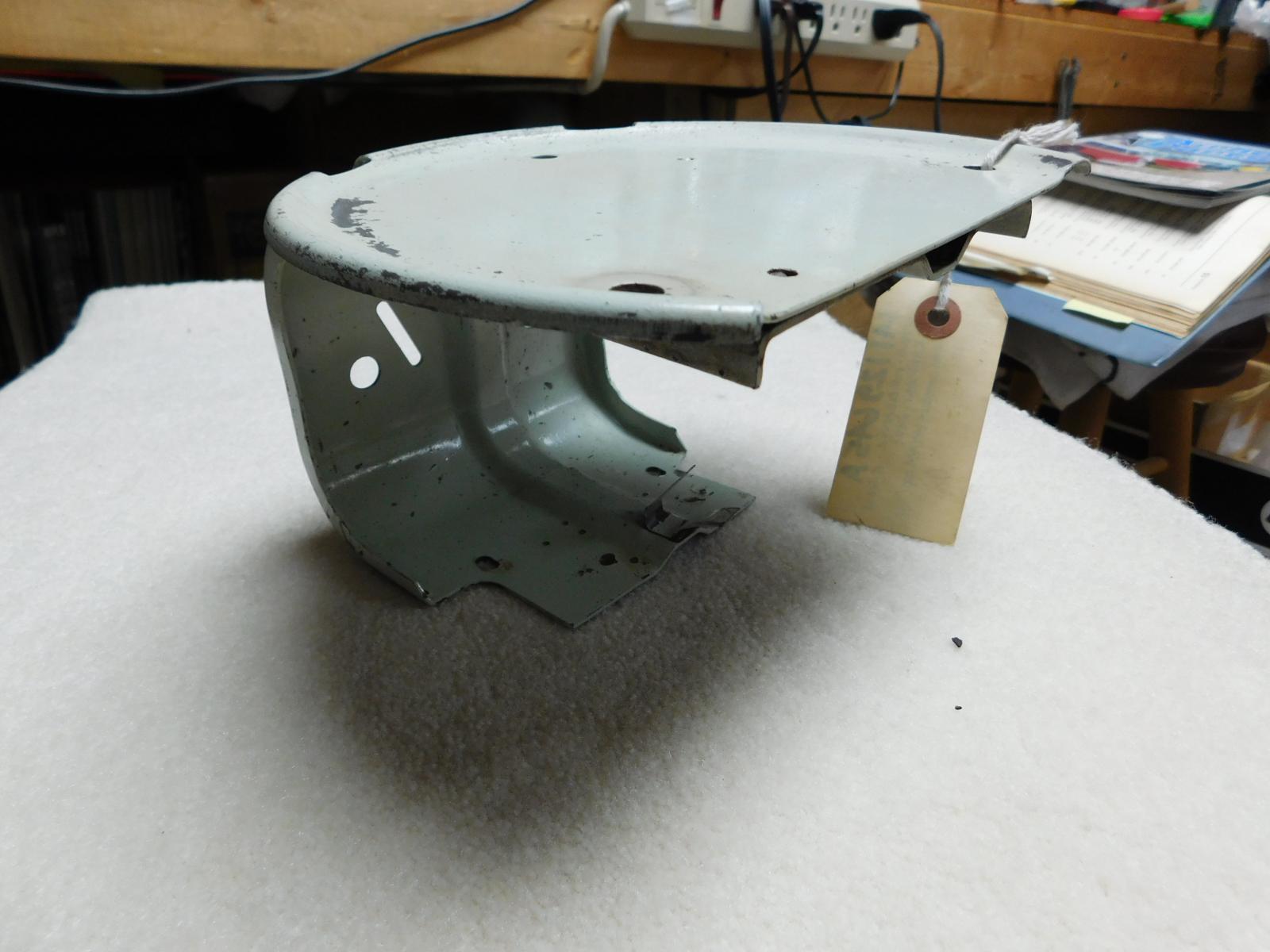

I have a air cleaner stand here...

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.


...and I'm wondering which version I have now that there seems to be two types. Can anyone shed light or point me to an existing thread about this? Is it some tiny subtle difference or are these two stands completely and obviously different? Thanks for any guidance, photos, info you can add here!

Bill
_________________
I'm looking for these license plate frames for my fleet:
Coeur D'Alene - Lake Shore Volkswagen
Mission VW - San Fernando
Thornton VW - Stockton

Thanks for any help!
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
Era Vulgaris
Samba Member


Joined: August 22, 2012
Posts: 698
Location: Raleigh, NC
Era Vulgaris is offline

PostPosted: Thu Feb 01, 2018 1:33 pm    Post subject: Re: Question about air cleaner support bracket/stands Reply with quote

What you have pictured there is the later bracket.

The early bracket is fastened with 4 bolts and has a harder right angle to the mounting surface. The later bracket is welded in place (I think!?) and has a more curved transition to the mounting surface.

Early
Image may have been reduced in size. Click image to view fullscreen.


Late
Image may have been reduced in size. Click image to view fullscreen.

_________________
1966 Karmann Ghia, under construction
1998 Porsche Boxster, silver, 2.5L overhauled by Jake Raby SOLD!
1967 Karmann Ghia, Black, 1500sp, 4 lug steelies SOLD!
1998 BMW Z3, Atlanta Blue Metallic, 2.8L I-6, 17" factory wheels SOLD!
1975 Porsche 914, Laguna Blue, 2270cc DRLA40's, 5 lug fuchs SOLD!
1972 Porsche 914, Signal Orange, 1.7 FI, 5 lug fuchs SOLD!
1974 Karmann Ghia, Black, 1600dp, bullet turn signals, steelies SOLD!
1974 Triumph TR6 with O.D., metallic blue, stock everything SOLD!
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
sputnick60
Samba Moderator


Joined: July 22, 2007
Posts: 3092
Location: Auckland, New Zealand
sputnick60 is offline

PostPosted: Thu Feb 01, 2018 3:58 pm    Post subject: Re: Question about air cleaner support bracket/stands Reply with quote

Yep. And the later version has folded edges to stiffen the thinner material it is made from.
Nicholas
_________________
'66 Karmann Ghia Cabriolet...
'65 Porsche 356C Coupe...
2014 Passat B7 130TDI wagon (cheats in tests)
"Have no fear of perfection - you'll never reach it."(Salvador Dali)
Stop dead photo links! Post your photos to The Samba Gallery!
Back to top
View user's profile Send private message Gallery Classifieds Feedback
BulliBill
Samba Member


Joined: July 09, 2004
Posts: 3863
Location: St Charles, MO
BulliBill is offline

PostPosted: Thu Feb 01, 2018 7:56 pm    Post subject: Re: Question about air cleaner support bracket/stands Reply with quote

Awesome guys! I knew some of you Ghia experts would come through with the details. So it is the "later" style (not sure when earlier ended and later started) but I now know that what I have in hand is correct to eventually fix my old 1970 Ghia Coupe (which I've owned and enjoyed since 1974). Yes, it is/was spot-welded to the engine compartment on the right side. Since I have the engine that my Ghia left the factory with all rebuilt and standing by on a shelf, I may soon remove the 1776 and prep the Ghia to receive her original "heart". Thank you for the info!

Bill Bowman
_________________
I'm looking for these license plate frames for my fleet:
Coeur D'Alene - Lake Shore Volkswagen
Mission VW - San Fernando
Thornton VW - Stockton

Thanks for any help!
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
Rome
Samba Member


Joined: June 02, 2004
Posts: 6771
Location: Pearl River, NY
Rome is offline

PostPosted: Fri Feb 02, 2018 4:36 am    Post subject: Re: Question about air cleaner support bracket/stands Reply with quote

Quote:
...(end of 1967 model). I'm guessing this remote stand started on Ghia's around 1964 or 1965

Hi, Bill! '64 and '65 Ghias did not yet have the AC stand. Their AC was still the all-metal style with the end pod like a Bus, which went off to the left of the carburetor. The long arm was held in place to the fan shroud with a triangular support that used the two ignition coil mounting holes. The "early" AC stand nicely shown above started with the '66 and the 1300 engine.
