 Posted: Mon Jan 16, 2023 1:08 pm Post subject: my fly wheel |
 |
|
today I pulled my motor..I was surprised to see my flywheel with worn teeth facing the pressure plate. not sure how this happened..must have been before my ownership..I never had an issue...should I replace it......What might have caused this...I do not see any damage on the starter gear.......
_________________
Matthew E D'Azzo
volksbugusa
https://www.facebook.com/groups/506947294919060 |
|
| Back to top |
|
 |
toxicavenger70
Samba Member
Joined: July 28, 2019
Posts: 882
Location: CO
|
| Posted: Mon Jan 16, 2023 2:11 pm Post subject: Re: my fly wheel |
|
|
| A worn out starter bushing can cause this to happen. I had the exact same issue when I bought my car. I replaced it with a new flywheel because it started to get noisy on crank ups. |
|
| Back to top |
|
|
volksbugusa
Samba Member
Joined: May 19, 2003
Posts: 382
Location: BUNNELL , FLORIDA. 32110.
|
| Posted: Mon Jan 16, 2023 2:14 pm Post subject: Re: my fly wheel |
|
|

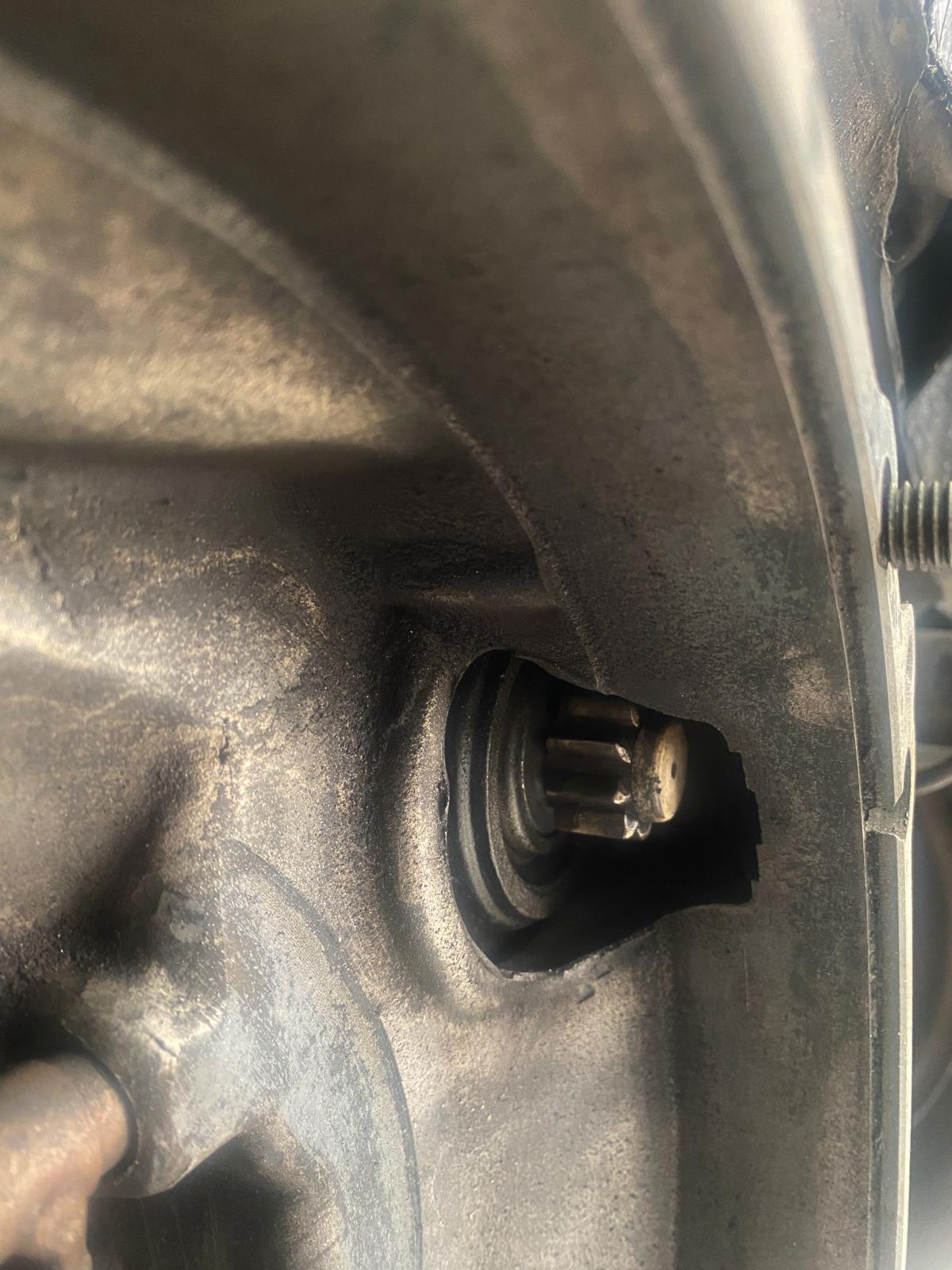

toxicavenger70 thanks for getting back to me.....will replace the flywheel yes...looking at my starter there is only the gear and no nose shaft....so i don't need to replace the bushing..am i correct? Thanks Matt
_________________
Matthew E D'Azzo
volksbugusa
https://www.facebook.com/groups/506947294919060 |
|
| Back to top |
|
|
volksbugusa
Samba Member
Joined: May 19, 2003
Posts: 382
Location: BUNNELL , FLORIDA. 32110.
|
|
| Back to top |
|
|
toxicavenger70
Samba Member
Joined: July 28, 2019
Posts: 882
Location: CO
|
| Posted: Mon Jan 16, 2023 2:38 pm Post subject: Re: my fly wheel |
|
|
| volksbugusa wrote: |
| toxicavenger70 thanks for getting back to me.....will replace the flywheel yes...looking at my starter there is only the gear and no nose shaft....so i don't need to replace the bushing..am i correct? Thanks Matt |
Looks like you have a self supporting starter. So you should be good to go. |
|
| Back to top |
|
|
Cusser
Samba Member
Joined: October 02, 2006
Posts: 33091
Location: Hot Arizona
|
| Posted: Mon Jan 16, 2023 3:11 pm Post subject: Re: my fly wheel |
|
|
| volksbugusa wrote: |
today I pulled my motor..I was surprised to see my flywheel with worn teeth facing the pressure plate. not sure how this happened..must have been before my ownership..I never had an issue...should I replace it......What might have caused this...I do not see any damage on the starter gear.......
|
I think I'd just use grease on the flywheel teeth and starter teeth when I re-installed.
If you get a new flywheel, then you'll have to deal with adjusting the end play most likely.
Your starter is the autostick type self-supported type, fine.
_________________
1970 VW (owned since 1972) and 1971 VW Convertible (owned since 1976), second owner of each. The '71 now has the 1835 engine, swapped from the '70. Second owner of each. 1988 Mazda B2200 truck, 1998 Frontier, 2014 Yukon, 2004 Frontier King Cab. All manual transmission except for the Yukon. http://www.thesamba.com/vw/forum/album_page.php?pic_id=335294 http://www.thesamba.com/vw/forum/album_page.php?pic_id=335297 |
|
| Back to top |
|
|
FarmerBill
Samba Member
Joined: July 25, 2017
Posts: 866
Location: New England
|
| Posted: Mon Jan 16, 2023 4:43 pm Post subject: Re: my fly wheel |
|
|
If it's not grinding I would leave it be.
I had an engine with bad teeth on the flywheel, so bad that when the engine stopped on the worst spot I would have to turn it a few degrees by hand so I could start it. Since an 4 cylinder almost always stops in the same two positions, and since I was broke, I was able to fix the problem by removing the flywheel and turning it 90 degrees. |
|
| Back to top |
|
|
Wulfthang
Samba Member
Joined: August 25, 2018
Posts: 870
Location: Tucson
|
| Posted: Mon Jan 16, 2023 10:12 pm Post subject: Re: my fly wheel |
|
|
I mentioned lubricating the flywheel teeth with some kind of dry lube on the HBB forum. https://www.thesamba.com/vw/forum/viewtopic.php?t=776544
It was not widely accepted! The most common reason for not doing it that I found in my research is "because we ain't never done it thatway afore so why start now"? I'm not going to use grease but will use some type of dry lube, probably motorcycle chain lube. Non sticky, won't fling off and lubes pretty well. |
|
| Back to top |
|
|
modok
Samba Member
Joined: October 30, 2009
Posts: 27672
Location: Colorado Springs
|
| Posted: Mon Jan 16, 2023 11:47 pm Post subject: Re: my fly wheel |
|
|
if it's just a four dowel, turn it 90 degrees to even out the wear.
Might have been chewed up by a bad starter gear. |
|
| Back to top |
|
|
volksbugusa
Samba Member
Joined: May 19, 2003
Posts: 382
Location: BUNNELL , FLORIDA. 32110.
|
|
| Back to top |
|
|
SGKent
Samba Member
Joined: October 30, 2007
Posts: 42553
Location: at the beach
|
| Posted: Tue Jan 17, 2023 3:29 pm Post subject: Re: my fly wheel |
|
|
it looks like the starter teeth are too shallow. Is that the original style starter, or did someone swap it for one that doesn't require the bushing.
_________________
"Most people don't know what they're doing, and a lot of them are really good at it." - George Carlin |
|
