PostPosted: Wed Apr 25, 2018 8:49 am    Post subject: Convertible Reinforcement Rails Reply with quote

I will be installing new heater channels in my 1971 Ghia (doing a body off resto/mod). I noticed that the old channels/rocker panel assembly has the re-enforcement rail attached to the rocker panel itself and not the heater channel.

Does anyone see a downside to attaching the reinforcement rail to the heater channel instead?

I have a concern that getting the rail placed exactly right inside the rocker panel, then making sure the rocker panel will fit onto the heater channel without having to "form" it to fit. My experience so far with replacement panels/floor pans HAS NOT been good. A tweak here; a bend there, etc. In fact the heater channels themselves are going to be fun. If I get it lined up at the "A" Pillar, the "curved" section going towards the front is about a 1/2" off where the 2 bolt holes line up to the body. Yikes!
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
kman
Samba Member


Joined: November 04, 2005
Posts: 650
Location: Michigan
kman is offline

PostPosted: Wed Apr 25, 2018 11:11 am    Post subject: Re: Convertible Re-enforcement Rails Reply with quote

I would do it as intended. The heater channel divider acts as one "beam" and the convertible reinforcement acts as another. it shouldn't be too bad if you tac weld and test fit before committing fully.

Image may have been reduced in size. Click image to view fullscreen.

_________________
71 vert build. http://www.thesamba.com/vw/forum/viewtopic.php?t=572951&highlight=dead
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Evil_Fiz
Samba Member


Joined: May 06, 2011
Posts: 907
Location: Jacksonville, FL
Evil_Fiz is offline

PostPosted: Wed Apr 25, 2018 11:18 am    Post subject: Re: Convertible Re-enforcement Rails Reply with quote

Check out the following web site for a variation on the above mentioned approach. I can't remember all the details but I know they address the convertible rail issue.
http://karmannghia.org/Richard/71_KG_cabriolet/71_KG_cabriolet_bodywork.html
_________________
“…It's not just about what's interesting. It's also about what's helpful, and it's helpful even if it helps just one other guy working on a Ghia.”
kiwighia68

See my build on TheSamba at:
The K_R_A_K_E_N_N : a 70 Ghia Convertible reinterpreted
Back to top
View user's profile Send private message Gallery Classifieds Feedback
djkeev Premium Member
Samba Moderator


Joined: September 30, 2007
Posts: 24733
Location: North West New Jersey
djkeev is offline

PostPosted: Wed Apr 25, 2018 2:42 pm    Post subject: Re: Convertible Re-enforcement Rails Reply with quote

No doubt, use the Convertible reinforcement where it is intended.

History shows us that the replacement rocker panel is often NOT the proper radius to match the front and rear fender bottoms.

You may need to fudge it, trial fit it, wiggle and jiggle it to make it all fit properly.

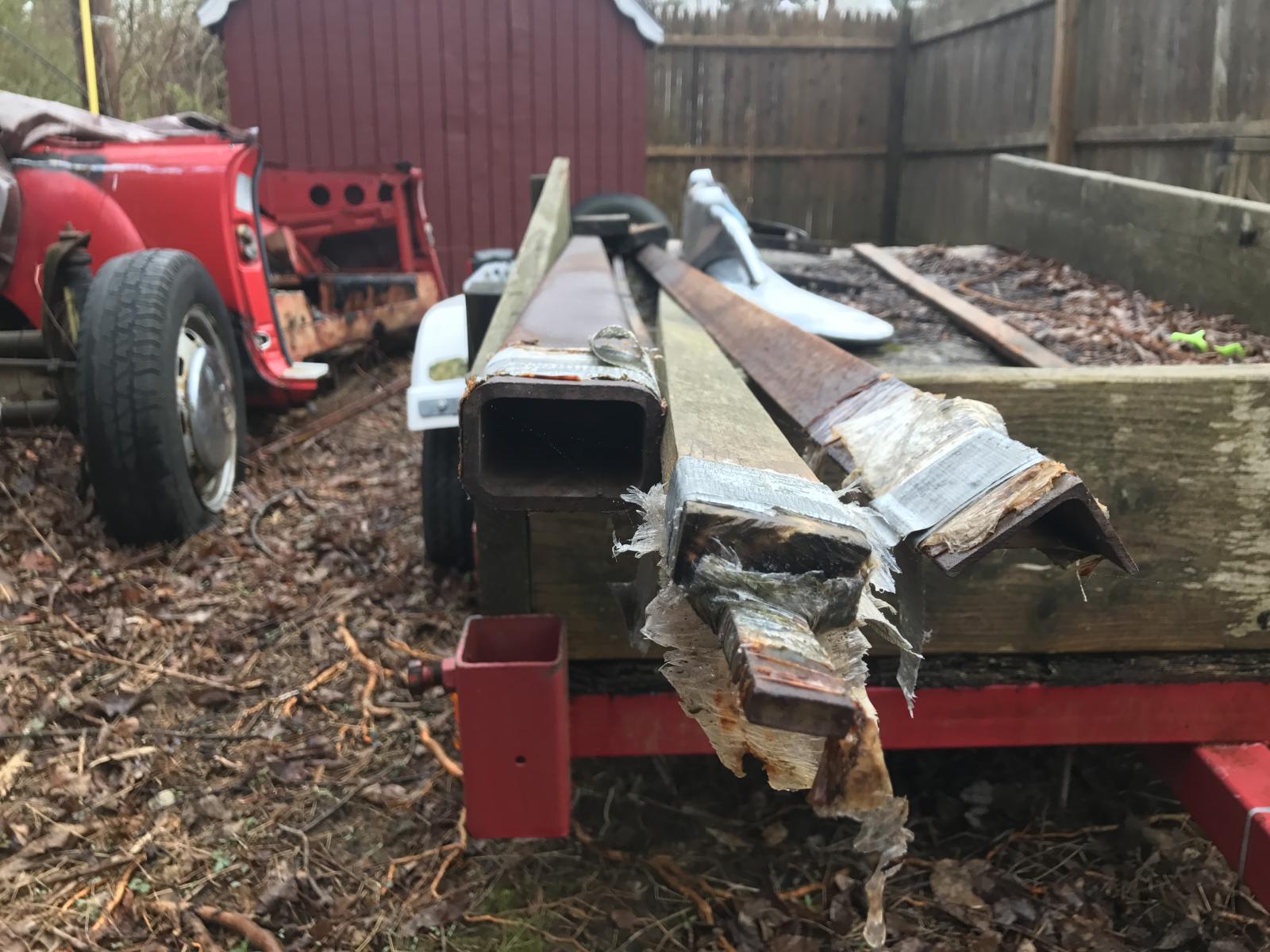

While I have NOT yet done it, my plans are to forego all of the ill fitting and rust prone rocker panel pieces in favor of steel tubing and angle iron, except for the outer skin.

Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.



Dave
_________________
Stop Dead Photo Links how to post photos

Ghia
http://www.thesamba.com/vw/forum/viewtopic.php?t=392473

Vanagon
http://www.thesamba.com/vw/forum/viewtopic.php?p=6315537#6315537

Beetle
https://www.thesamba.com/vw/forum/viewtopic.php?t=482968&highlight=74+super+vert


Last edited by djkeev on Wed Apr 25, 2018 3:18 pm; edited 1 time in total
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
NOVA Airhead
Samba Member


Joined: July 20, 2005
Posts: 5167
Location: The Blue Ridge Mountains of VA
NOVA Airhead is offline

PostPosted: Wed Apr 25, 2018 2:50 pm    Post subject: Re: Convertible Re-enforcement Rails Reply with quote

The convertible reinforcement goes on first and then the outer skin.

Hopefully this photo illustrates when my last car was done.

Image may have been reduced in size. Click image to view fullscreen.

_________________
Ghia Owner Emeritus
Back to top
View user's profile Send private message Gallery Classifieds Feedback
NoDents
Samba Member


Joined: May 31, 2017
Posts: 266
Location: So Cal
NoDents is offline

PostPosted: Wed Apr 25, 2018 3:05 pm    Post subject: Re: Convertible Re-enforcement Rails Reply with quote

NOVA Airhead: That is what I want to do, but the original piece I removed has the rail attached to the outer skin (like the diagram earlier in this thread, and the picture below).

Image may have been reduced in size. Click image to view fullscreen.


Other than adding possible strength to the rocker skin itself (which a coupe DOES NOT have) the overall strength of the completed assembly would remain the same.
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
djkeev Premium Member
Samba Moderator


Joined: September 30, 2007
Posts: 24733
Location: North West New Jersey
djkeev is offline

PostPosted: Wed Apr 25, 2018 3:22 pm    Post subject: Re: Convertible Re-enforcement Rails Reply with quote

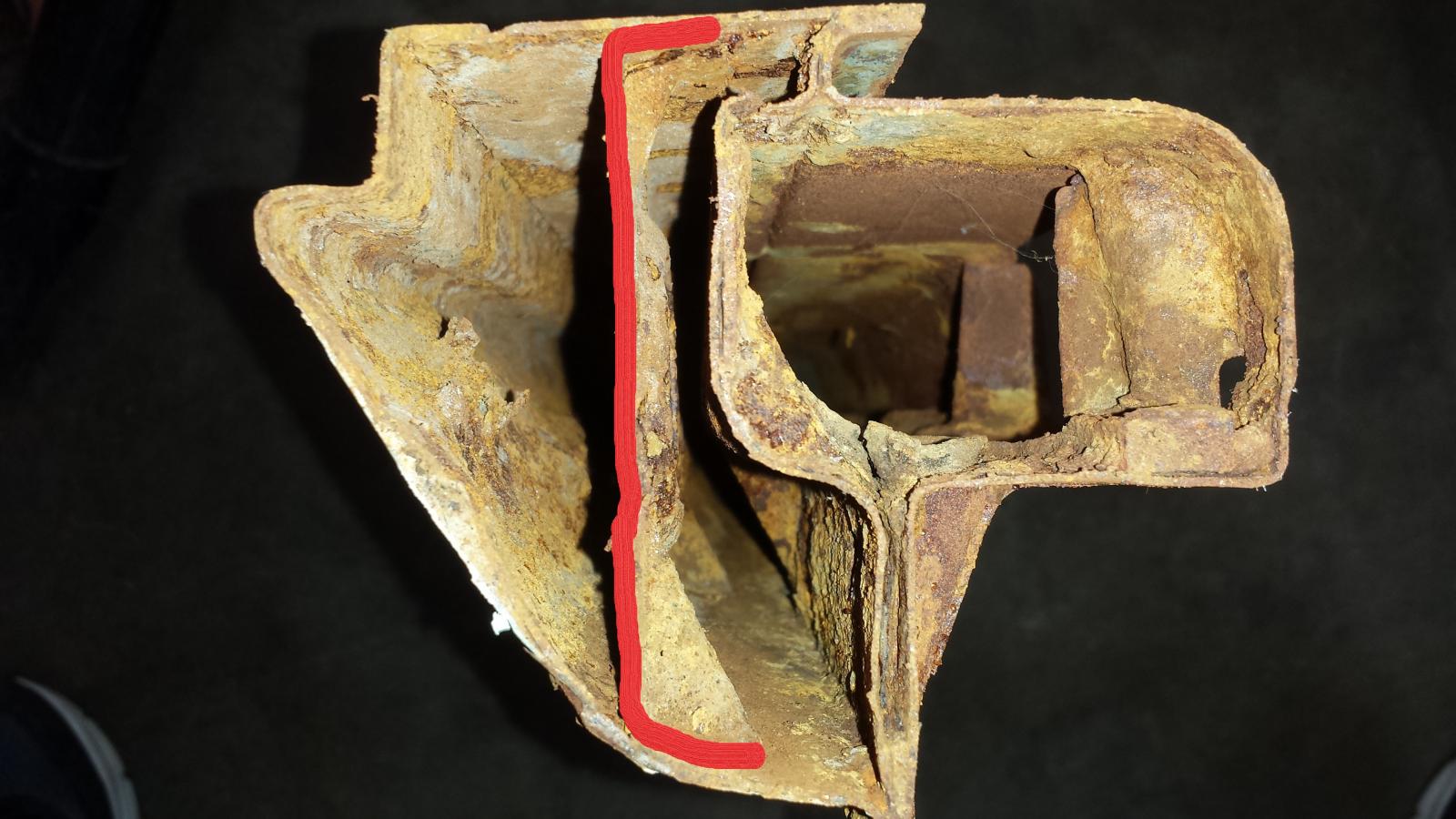

So you will be mounting the convertible rail as I drew it in Green????

Image may have been reduced in size. Click image to view fullscreen.


Dave
_________________
Stop Dead Photo Links how to post photos

Ghia
http://www.thesamba.com/vw/forum/viewtopic.php?t=392473

Vanagon
http://www.thesamba.com/vw/forum/viewtopic.php?p=6315537#6315537

Beetle
https://www.thesamba.com/vw/forum/viewtopic.php?t=482968&highlight=74+super+vert
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
NoDents
Samba Member


Joined: May 31, 2017
Posts: 266
Location: So Cal
NoDents is offline

PostPosted: Wed Apr 25, 2018 7:45 pm    Post subject: Re: Convertible Re-enforcement Rails Reply with quote

djkeev wrote:
So you will be mounting the convertible rail as I drew it in Green????

Image may have been reduced in size. Click image to view fullscreen.


Dave

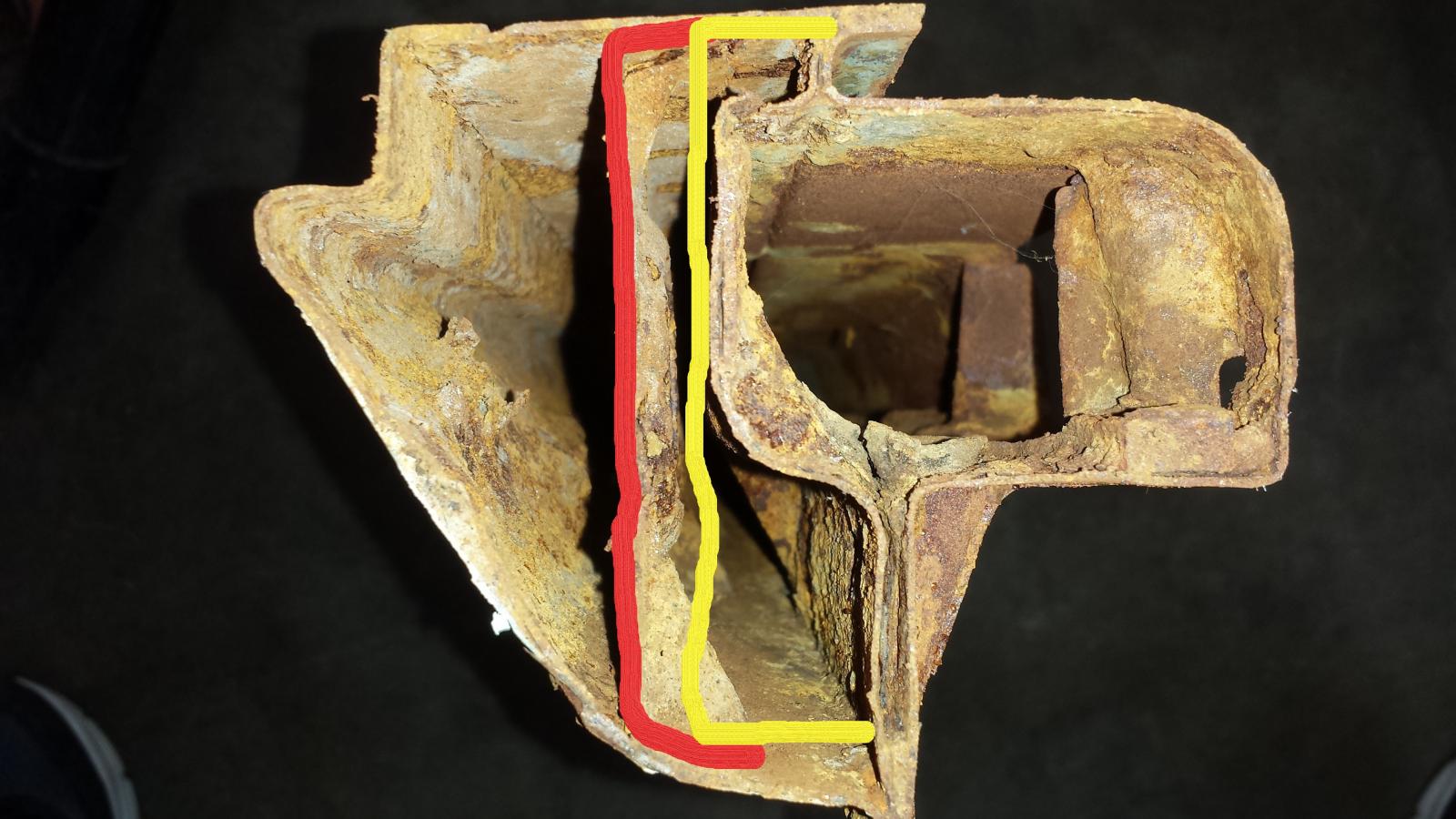

No. Moving to the Yellow position and attaching to the heater channel:

Image may have been reduced in size. Click image to view fullscreen.

_________________
No Dents

1963 Bug - Sold in 1980
1966 Karmann Ghia Convertible - Stolen in 1988
1971 Karmann Ghia Convertible, resto/mod in process, 3 years in... maybe complete summer 2020.
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
djkeev Premium Member
Samba Moderator


Joined: September 30, 2007
Posts: 24733
Location: North West New Jersey
djkeev is offline

PostPosted: Thu Apr 26, 2018 5:13 am    Post subject: Re: Convertible Re-enforcement Rails Reply with quote

Won't they be too short moved farther down the rocker panel slope?

Dave
_________________
Stop Dead Photo Links how to post photos

Ghia
http://www.thesamba.com/vw/forum/viewtopic.php?t=392473

Vanagon
http://www.thesamba.com/vw/forum/viewtopic.php?p=6315537#6315537

Beetle
https://www.thesamba.com/vw/forum/viewtopic.php?t=482968&highlight=74+super+vert
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
Mellow Yellow 74
Samba Member


Joined: October 14, 2014
Posts: 1613
Location: Sydney, Australia
Mellow Yellow 74 is offline

PostPosted: Thu Apr 26, 2018 8:13 am    Post subject: Re: Convertible Re-enforcement Rails Reply with quote

I think you are right that the reinforcement was originally welded to the rocker panel and you are right that doing it the same way would make things difficult. The rocker panel needs to be jacked up with quite a bit of force to make the flange sit flush with the edge of the heater channel and you may not be able to do this with the reinforcement already installed. The way you are proposing is the way NOVA did it which looks like the best way to me.

Also, the drawing showing "centre divider" is a little misleading - this is not the centre divider, it is the outside of the heater channel.
_________________
1962 Karmann Ghia
1974 Deluxe Microbus
1985 Caravelle (Vanagon)
Back to top
View user's profile Send private message Gallery Classifieds Feedback
NoDents
Samba Member


Joined: May 31, 2017
Posts: 266
Location: So Cal
NoDents is offline

PostPosted: Thu Apr 26, 2018 8:50 am    Post subject: Re: Convertible Re-enforcement Rails Reply with quote

Mellow Yellow 74 wrote:
I think you are right that the reinforcement was originally welded to the rocker panel and you are right that doing it the same way would make things difficult. The rocker panel needs to be jacked up with quite a bit of force to make the flange sit flush with the edge of the heater channel and you may not be able to do this with the reinforcement already installed. The way you are proposing is the way NOVA did it which looks like the best way to me.

Also, the drawing showing "centre divider" is a little misleading - this is not the centre divider, it is the outside of the heater channel.


Yes. Am concerned about getting the rocker shaped properly to fit the heater channel. Like you said, it will take some force as I have seen on some Youtube videos.
_________________
No Dents

1963 Bug - Sold in 1980
1966 Karmann Ghia Convertible - Stolen in 1988
1971 Karmann Ghia Convertible, resto/mod in process, 3 years in... maybe complete summer 2020.
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
Mellow Yellow 74
Samba Member


Joined: October 14, 2014
Posts: 1613
Location: Sydney, Australia
Mellow Yellow 74 is offline

PostPosted: Fri Apr 27, 2018 1:35 am    Post subject: Re: Convertible Re-enforcement Rails Reply with quote

NoDents wrote:
Yes. Am concerned about getting the rocker shaped properly to fit the heater channel. Like you said, it will take some force as I have seen on some Youtube videos.


If you have watched the My Friend Pete video on YouTube (and you would f*#%ing remember it if you had) he uses an oxy-acetylene flame to help bend it but you shouldn't need to do this - just a car jack and a length of wood is all you need.
_________________
1962 Karmann Ghia
1974 Deluxe Microbus
1985 Caravelle (Vanagon)
Back to top
View user's profile Send private message Gallery Classifieds Feedback
NoDents
Samba Member


Joined: May 31, 2017
Posts: 266
Location: So Cal
NoDents is offline

PostPosted: Fri Apr 27, 2018 7:43 am    Post subject: Re: Convertible Re-enforcement Rails Reply with quote

Mellow Yellow 74 wrote:
NoDents wrote:
Yes. Am concerned about getting the rocker shaped properly to fit the heater channel. Like you said, it will take some force as I have seen on some Youtube videos.


If you have watched the My Friend Pete video on YouTube (and you would f*#%ing remember it if you had) he uses an oxy-acetylene flame to help bend it but you shouldn't need to do this - just a car jack and a length of wood is all you need.


Yes, one of the videos I watched!

Sinced it seemed Pete had quite some VW experince, I made a trip to his shop last year on a visit to the Dallas area just to thank him for all the how to videos.
_________________
No Dents

1963 Bug - Sold in 1980
1966 Karmann Ghia Convertible - Stolen in 1988
1971 Karmann Ghia Convertible, resto/mod in process, 3 years in... maybe complete summer 2020.
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
drorso
Samba Member


Joined: November 27, 2006
Posts: 15
Location: Israel
drorso is offline

PostPosted: Fri Feb 01, 2019 12:41 pm    Post subject: Re: Convertible Reinforcement Rails Reply with quote

Hi,

My 73 Ghia convertible is now at a restoration shop for body off restoration.

Need advice from experienced people who have done such body off restoration.

Today I visited the shop. It's a very experienced one, but i found out that they did NOT put the reinforcement rails !!

The lower body was pretty rusty, they had to cut and replace many pieces. It's my fault as well as I didn't visit the shop frequently as i had to. The body is now attached to the frame, almost ready for paint.

Should I insist and ask them to detach the body and do the reinforcement?
Back to top
View user's profile Send private message Classifieds Feedback
NoDents
Samba Member


Joined: May 31, 2017
Posts: 266
Location: So Cal
NoDents is offline

PostPosted: Fri Feb 01, 2019 1:07 pm    Post subject: Re: Convertible Reinforcement Rails Reply with quote

YES!

You need the extra support for a convertible.


You also need to make sure it is aligned properly so the rocker covers fit. I am learning the hard way about that. Twisted Evil
_________________
No Dents

1963 Bug - Sold in 1980
1966 Karmann Ghia Convertible - Stolen in 1988
1971 Karmann Ghia Convertible, resto/mod in process, 3 years in... maybe complete summer 2020.
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
swavananda
Samba Member


Joined: February 14, 2009
Posts: 873
Location: Can o' Scruz
swavananda is offline

PostPosted: Fri Feb 01, 2019 10:53 pm    Post subject: Re: Convertible Reinforcement Rails Reply with quote

The shop definitely needs to correct this. It can be done body on , but a big back step for them to remove the rocker skins to do this.

In reference to Pete’s videos. Though I grateful for the education value, there was something else to learn . I saw that he was called out for not treating any of the rust that was on the heater channels or interior metal, just slapped new metal on to get er done. On my rebuild I was lucky to have solid channels AND reinforcements. Though I took the time to strip and clean all the metal and treat it with master series coating. It may be a good thing to bring up with shop. Since they need to open it back up, ask them to do yo a solid by treating the metal. Good luck , hopefully the shop has the integrity to oblige.
_________________
I was doing "Van Life" way before there was ever such a thing.
https://www.thesamba.com/vw/forum/viewtopic.php?t=489454
Back to top
View user's profile Send private message Gallery Classifieds Feedback
swavananda
Samba Member


Joined: February 14, 2009
Posts: 873
Location: Can o' Scruz
swavananda is offline

PostPosted: Fri Feb 01, 2019 10:57 pm    Post subject: Re: Convertible Reinforcement Rails Reply with quote

Get the picture ??


Image may have been reduced in size. Click image to view fullscreen.

_________________
I was doing "Van Life" way before there was ever such a thing.
https://www.thesamba.com/vw/forum/viewtopic.php?t=489454
Back to top
View user's profile Send private message Gallery Classifieds Feedback
NOVA Airhead
Samba Member


Joined: July 20, 2005
Posts: 5167
Location: The Blue Ridge Mountains of VA
NOVA Airhead is offline

PostPosted: Sun Feb 03, 2019 9:16 am    Post subject: Re: Convertible Reinforcement Rails Reply with quote

Its not likely that your car will end up like the picture of the 914 without the reinforcements as the center tunnel provides considerable support for the chassis. However not having the reinforcements will cause problems with your door gaps and over time proper closing of the doors. Also I would think you will experience increased cowl shake.

What a difference I found driving a Ghia with properly sorted rockers. Virtually no squeaks and rattles...or shaking. If you can get this done you should.
_________________
Ghia Owner Emeritus
Back to top
View user's profile Send private message Gallery Classifieds Feedback
jason
Samba Member


Joined: August 07, 2002
Posts: 3262
Location: Garage
jason is offline

PostPosted: Mon Feb 04, 2019 4:05 pm    Post subject: Re: Convertible Reinforcement Rails Reply with quote

Verts usually go the other way. Gaps increase, the front and back move away from each other.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
didget69
Samba Member


Joined: July 22, 2004
Posts: 4666
Location: Capital, North Carolina
didget69 is offline

PostPosted: Tue Feb 05, 2019 2:04 pm    Post subject: Re: Convertible Reinforcement Rails Reply with quote

swavananda wrote:
Get the picture ??


Image may have been reduced in size. Click image to view fullscreen.


... picture received, but the 914 is a Unibody.
Not a body bolted to pan.

Laughing

bnc
_________________
I never found the need to impress people with any mechanic certifications, trophies or track wins... unless it was for Mom to post on the refrigerator door.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Display posts from previous:
Reply to topic    Forum Index -> Ghia All times are Mountain Standard Time/Pacific Daylight Savings Time
Page 1 of 1


Jump to:
You cannot post new topics in this forum
You cannot reply to topics in this forum
You cannot edit your posts in this forum
You cannot delete your posts in this forum
You cannot vote in polls in this forum

About | Help! | Advertise | Donate | Premium Membership | Privacy/Terms of Use | Contact Us | Site Map
Copyright © 1996-2020, Everett Barnes. All Rights Reserved.
Not affiliated with or sponsored by Volkswagen of America | Forum powered by phpBB
