PostPosted: Fri May 25, 2018 2:55 pm    Post subject: 1958 Outlaw Beetle Build Reply with quote

A few shots of my almost completed vintage speed/outlaw project. Just a few small details to complete.

Started with a older restoration, running, stopping, stock, correct & complete 1958 beetle with it's factory color scheme: L41 black over stock brown red/grey interior (great condition).

Most of the upgrades & fixes we did.......

Fixed rust in front apron, deleted US bumper mount holes & bumpers, paint matched as necessary. New stroked (69.5 x 80) 36hp "Okrasa" style engine (long block built by Joe Ruiz & assembled by Monkey Nut VW), W.W. heads & carb kit (reworked by Joe), Mr. Okrasa spec cam, Gene Berg deep sump, restored Bosch 010 dist by Glenn Ring, restored Solex fuel pump by Ed Fall, rebuilt generator by Rick Clark, Vintage Speed "Sebring" exhaust, cross drilled/restored 356B brakes (front & rear) by Martin Willis, new soft & hard brake lines, dual circuit master cylinder upgrade, genuine Porsche 356 rims (matching date stamp set), Pirelli Cinturato CN36 tires, Carerra wheel spacers in rear, Koni Classic shocks, convertible deck lid, custom "1200 SUPER" badge, custom leather straps (hood, spare tire, assist straps, luggage) by Mark Ulves @ The Vdub Hub, new complete 2" narrowed front beam with CB dropped spindles & larger sway bar, restored Empi split-case camber compensator, new bushings, mounts, seals & bearings throughout, new wiring, repro tacho, restored 1958 KM speedo, fuel gauge, Moto-Lita wood steering wheel, NOS Koch oil temp gauge with dip stick sender, Vintage Speed shifter w/ custom wood shifter to match steering wheel, vintage style safety belts, dash mounted stopwatch cluster, custom navigator map light, Bosch script fluted driving lights and euro headlights, euro bumpers, restored VW pop-out windows with og glass, on and on, etc, etc.....

Mechanically sorted, not show car perfect.......that's ok, it's meant to be a driver.

All major work done by Jake, Chandler, Dave, Bryan & Colby @ Monkey Nut VW in Charlotte, NC.


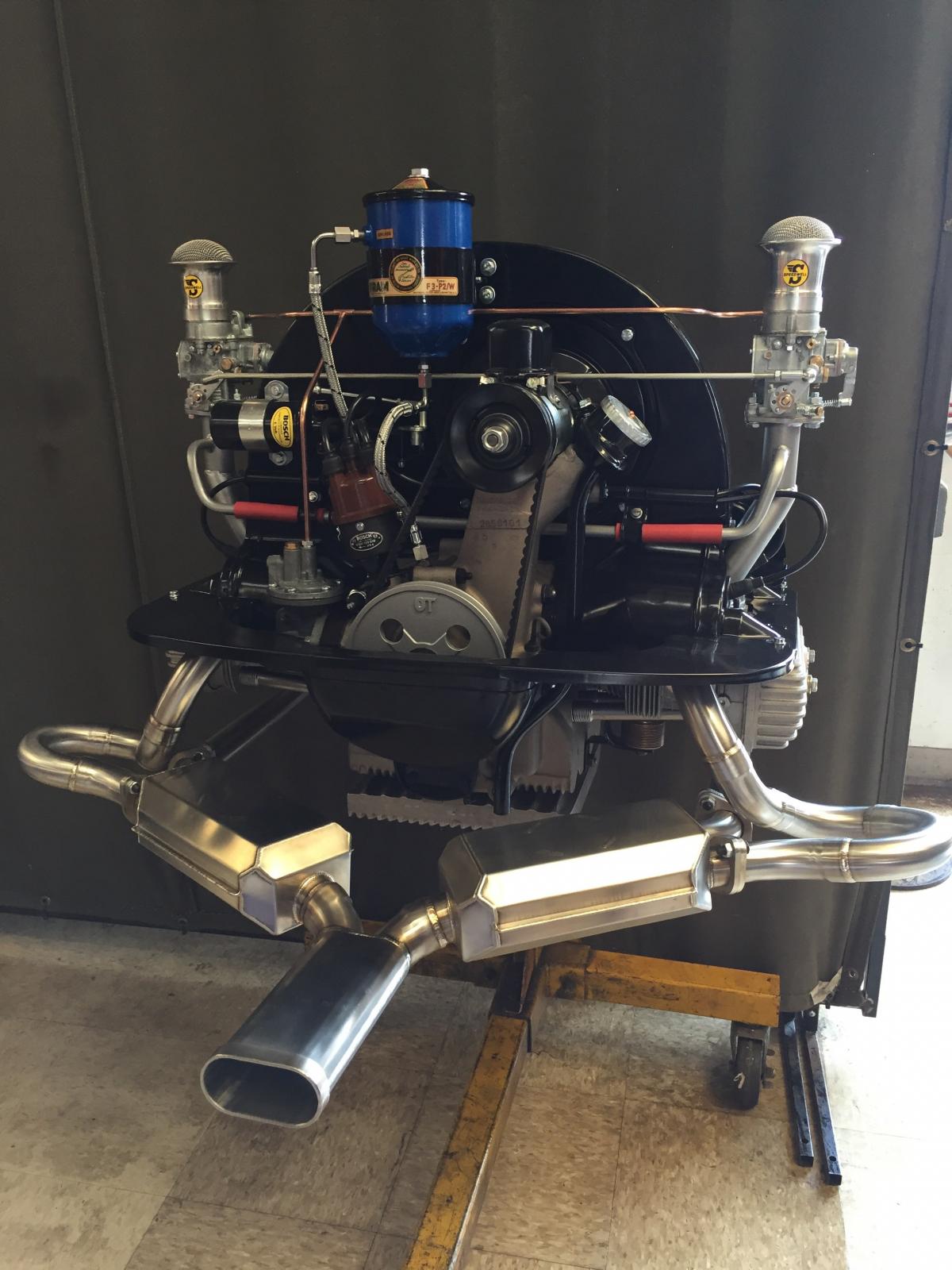

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

_________________
Erik

1958 VW Beetle - "Max": https://www.thesamba.com/vw/forum/viewtopic.php?t=...highlight=
1959 VW Bus - "Hans" - Double Door Panel: https://www.thesamba.com/vw/forum/viewtopic.php?t=746927


Last edited by Big_E_Deluxe on Thu Jun 21, 2018 6:28 am; edited 4 times in total
Back to top
View user's profile Send private message Send e-mail Instagram Gallery Classifieds Feedback
RichardinNZ
Samba Member


Joined: September 16, 2011
Posts: 276
Location: Auckland, New Zealand
RichardinNZ is offline

PostPosted: Fri May 25, 2018 9:09 pm    Post subject: Re: 1958 Outlaw Beetle Build Reply with quote

Very nicely done. Good to see your photos.
_________________
Richard
'58 Beetle; NZ Assembled
Dual Carb 36hp
My Car https://www.thesamba.com/vw/forum/album_page.php?pic_id=1750253
Back to top
View user's profile Send private message Visit poster's website AIM Address Instagram Gallery Classifieds Feedback
vwhelmot
Samba Member


Joined: May 04, 2006
Posts: 485
Location: united kingdom
vwhelmot is offline

PostPosted: Sat May 26, 2018 1:05 am    Post subject: Re: 1958 Outlaw Beetle Build Reply with quote

Really nice bug. Perfect 8)
_________________
Dave Bannister is a fucking tit.


http://www.thesamba.com/vw/forum/viewtopic.php?t=629294
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Glenn Premium Member
Mr. 010


Joined: December 25, 2001
Posts: 70459
Location: Long Island, New York, USA
Glenn is offline

PostPosted: Sat May 26, 2018 3:02 am    Post subject: Re: 1958 Outlaw Beetle Build Reply with quote

SWEEEEET.
_________________
Glenn
74 Beetle Specs | 74 Beetle Restoration | 2180cc Engine
"You may not get what you pay for, but you always pay for what you get"

Cast Iron and Aluminum distributors rebuilt since 2000.
Back to top
View user's profile Send private message Send e-mail Visit poster's website Gallery Classifieds Feedback
Axel Andersson
Samba Member


Joined: June 03, 2011
Posts: 105
Location: Sweden - Europe
Axel Andersson is offline

PostPosted: Sat May 26, 2018 8:21 am    Post subject: Re: 1958 Outlaw Beetle Build Reply with quote

Tasteful car.......congrats.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
motofly196
Samba Member


Joined: June 01, 2008
Posts: 1423
Location: Eastern WA
motofly196 is offline

PostPosted: Sun May 27, 2018 9:25 am    Post subject: Re: 1958 Outlaw Beetle Build Reply with quote

Very nice! I like how you kept it simple and functional without adding a ton of extras. Just nice and clean!
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
Rome
Samba Member


Joined: June 02, 2004
Posts: 7305
Location: Pearl River, NY
Rome is offline

PostPosted: Sun May 27, 2018 1:54 pm    Post subject: Re: 1958 Outlaw Beetle Build Reply with quote

Very impressive! Perfect stance. Do you have a video of the engine running so we can hear the sound of the vintage outlaw power? You could honestly get away with a "1400 SUPER" badge due to the actual displacement. Cool
Back to top
View user's profile Send private message Gallery Classifieds Feedback
henry roberts
Samba Member


Joined: February 24, 2003
Posts: 1205
Location: australia
henry roberts is offline

PostPosted: Mon May 28, 2018 1:07 am    Post subject: Re: 1958 Outlaw Beetle Build Reply with quote

beautiful. you nailed it.

any chance of a dash pic?
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
Big_E_Deluxe
Samba Member


Joined: September 23, 2013
Posts: 177
Location: Charlotte, NC
Big_E_Deluxe is offline

PostPosted: Mon May 28, 2018 8:28 am    Post subject: Re: 1958 Outlaw Beetle Build Reply with quote

Thanks for the kind words. Glad to see you guys in Europe, Australia & NZ approve. I was inspired by a lot of the vintage speed beetles being built and rallied in Europe. I sourced a lot of parts from all over Europe (Sweden, Netherlands, Germany, Belgium, France, UK). It's been a fun project. Hope to be driving it soon.

Here is a video of it idling. Video taken a couple months ago during shake down. It has a really nice sound.

https://www.youtube.com/watch?v=CdVH8QfCkUo&feature=youtu.be

I will post up some more pictures, including the interior once I get it back from the shop.
_________________
Erik

1958 VW Beetle - "Max": https://www.thesamba.com/vw/forum/viewtopic.php?t=...highlight=
1959 VW Bus - "Hans" - Double Door Panel: https://www.thesamba.com/vw/forum/viewtopic.php?t=746927


Last edited by Big_E_Deluxe on Tue May 29, 2018 6:05 am; edited 1 time in total
Back to top
View user's profile Send private message Send e-mail Instagram Gallery Classifieds Feedback
Glenn Premium Member
Mr. 010


Joined: December 25, 2001
Posts: 70459
Location: Long Island, New York, USA
Glenn is offline

PostPosted: Mon May 28, 2018 9:36 am    Post subject: Re: 1958 Outlaw Beetle Build Reply with quote

Big_E_Deluxe wrote:
Here is a video of it idling. Video taken a couple months ago during shake down. It has a really nice sound.

https://www.youtube.com/watch?v=CdVH8QfCkUo&feature=youtu.be

It even sounds SWEEEEET.
_________________
Glenn
74 Beetle Specs | 74 Beetle Restoration | 2180cc Engine
"You may not get what you pay for, but you always pay for what you get"

Cast Iron and Aluminum distributors rebuilt since 2000.
Back to top
View user's profile Send private message Send e-mail Visit poster's website Gallery Classifieds Feedback
LOWE TECH
Samba Member


Joined: June 22, 2016
Posts: 40
Location: SW Washington
LOWE TECH is offline

PostPosted: Mon May 28, 2018 8:31 pm    Post subject: Re: 1958 Outlaw Beetle Build Reply with quote

Just fumbling around the Samba, donít really troll the vintage speed thread but I saw this and loved it. Everything thought out and done right. That car nails it for me! Thanks for sharing.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Big_E_Deluxe
Samba Member


Joined: September 23, 2013
Posts: 177
Location: Charlotte, NC
Big_E_Deluxe is offline

PostPosted: Tue May 29, 2018 6:43 am    Post subject: Re: 1958 Outlaw Beetle Build Reply with quote

Some shots of the 356B brakes. The rear drums that I purchased were drilled, so I had the fronts drilled to match. New linings front & rear to factory spec, plus straightened. Backing plates powder coated, new wheel cylinders, all new hardware, pads & springs. New bearings front & rear. Front backing plates need to be modified slightly to clear dropped spindle, small half moon shaped cut (see photo). Other than that they are a direct bolt-on. Rear castle nut needs to be a early Porsche to clear teeth on rear axle. Bearings on front are beetle bearings.

Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Here is a shot of the restored split-case Empi Camber Compensator. New bushings and fresh powder coat. Straps are original.

Image may have been reduced in size. Click image to view fullscreen.

_________________
Erik

1958 VW Beetle - "Max": https://www.thesamba.com/vw/forum/viewtopic.php?t=...highlight=
1959 VW Bus - "Hans" - Double Door Panel: https://www.thesamba.com/vw/forum/viewtopic.php?t=746927
Back to top
View user's profile Send private message Send e-mail Instagram Gallery Classifieds Feedback
Big_E_Deluxe
Samba Member


Joined: September 23, 2013
Posts: 177
Location: Charlotte, NC
Big_E_Deluxe is offline

PostPosted: Tue May 29, 2018 7:10 am    Post subject: Re: 1958 Outlaw Beetle Build Reply with quote

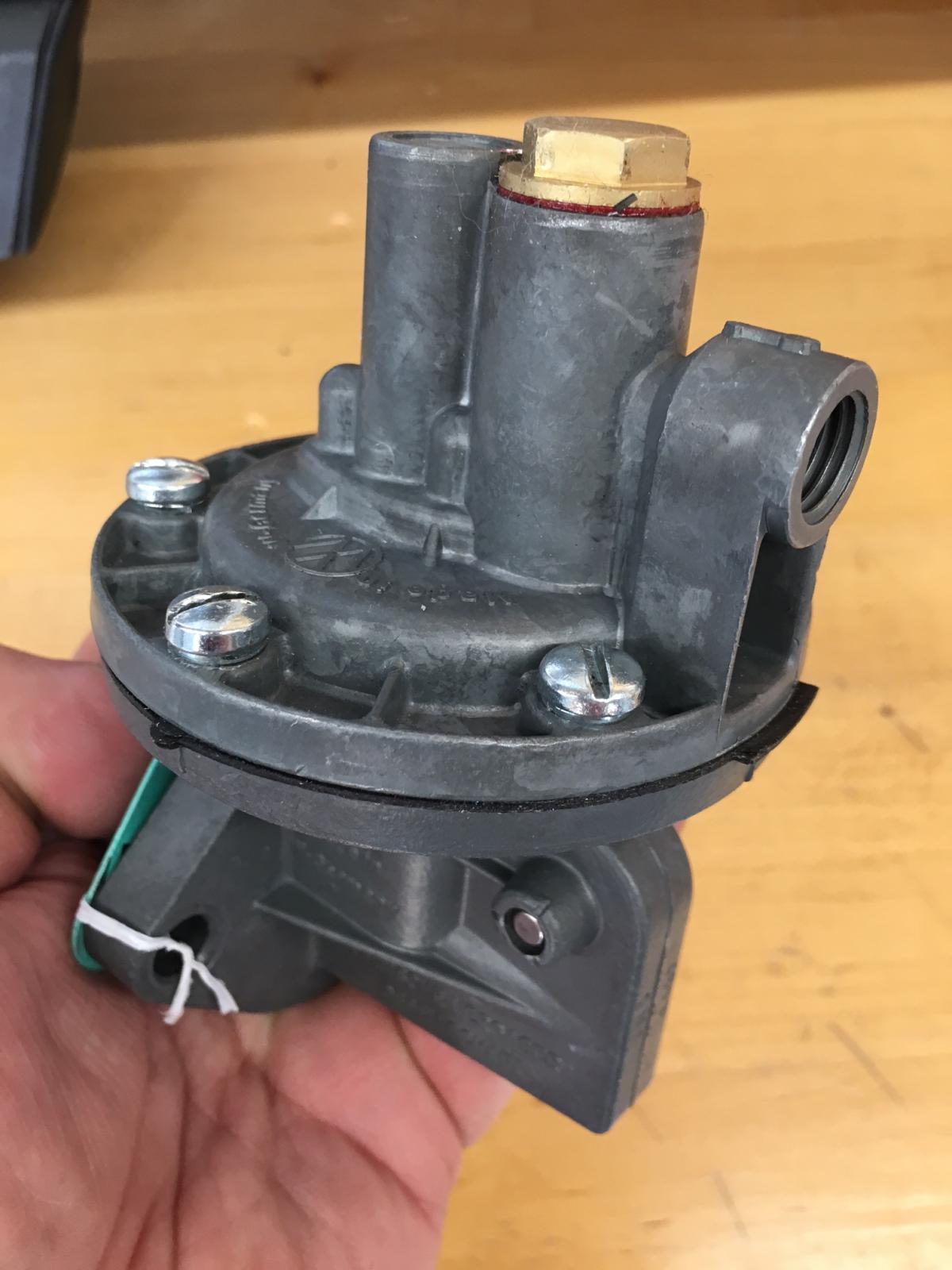

Some misc parts used in the build....

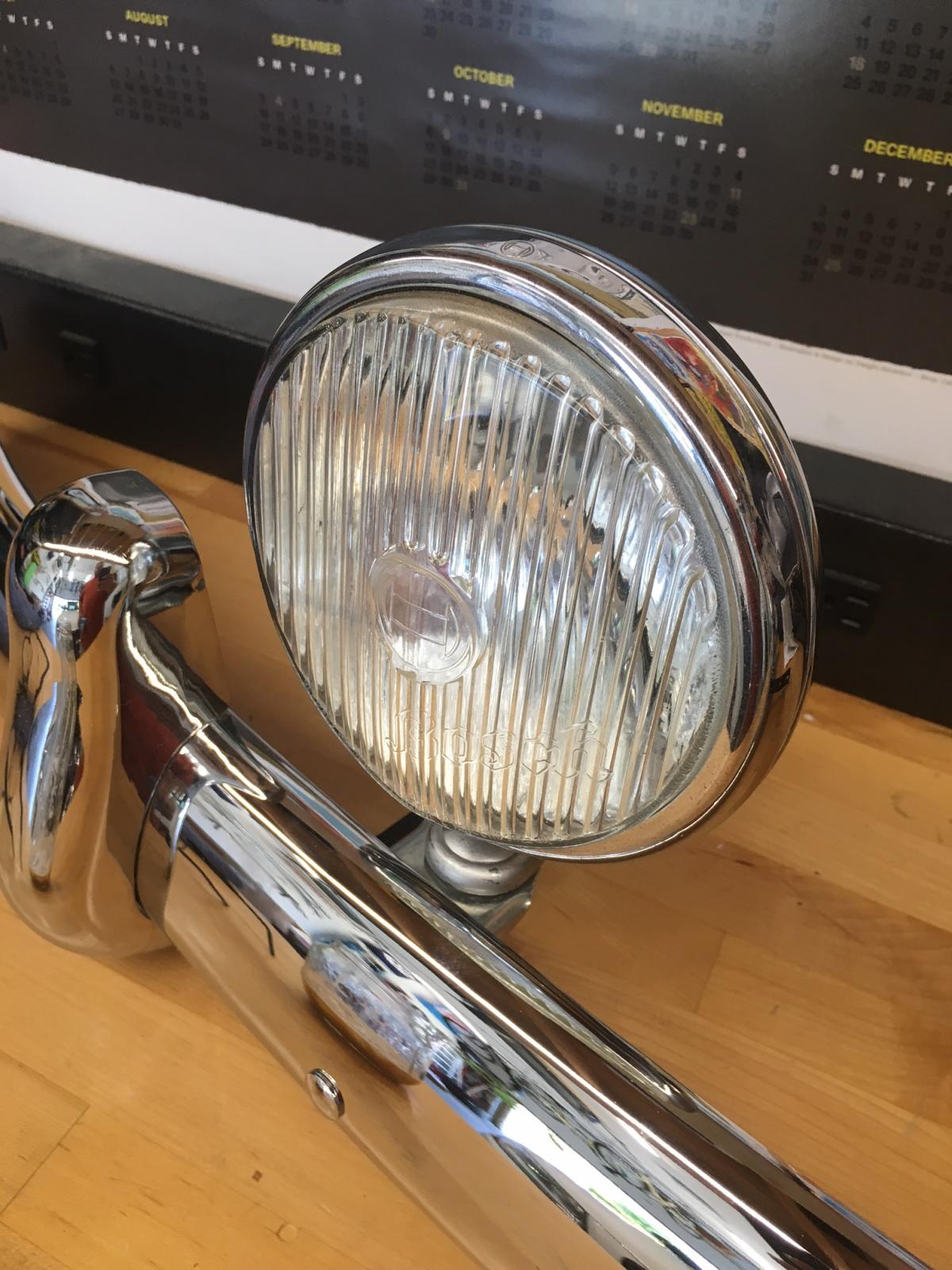

Image may have been reduced in size. Click image to view fullscreen.


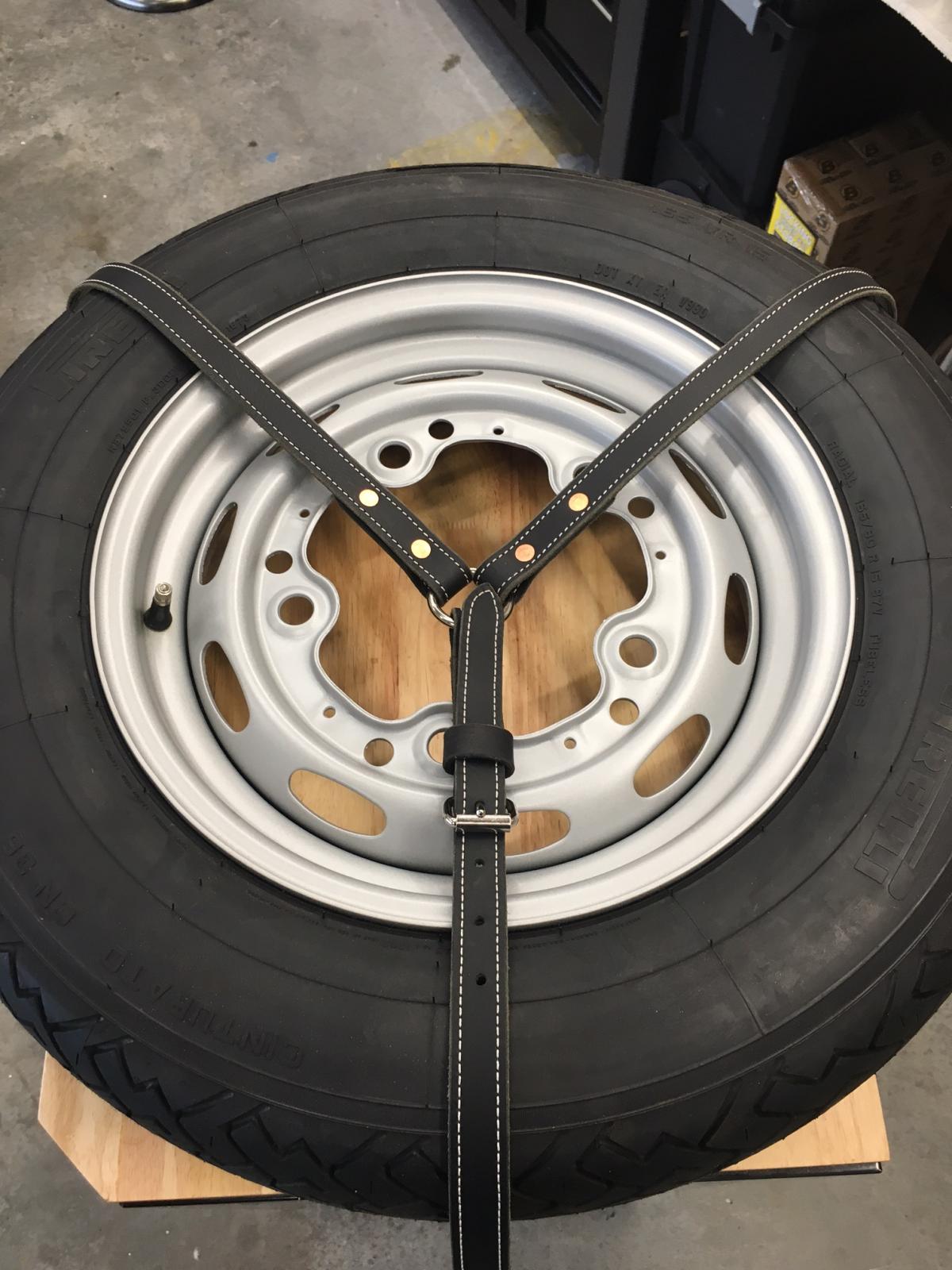

Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.

_________________
Erik

1958 VW Beetle - "Max": https://www.thesamba.com/vw/forum/viewtopic.php?t=...highlight=
1959 VW Bus - "Hans" - Double Door Panel: https://www.thesamba.com/vw/forum/viewtopic.php?t=746927
Back to top
View user's profile Send private message Send e-mail Instagram Gallery Classifieds Feedback
PeteSC
Samba Member


Joined: January 26, 2011
Posts: 651

PeteSC is offline

PostPosted: Tue May 29, 2018 7:20 am    Post subject: Re: 1958 Outlaw Beetle Build Reply with quote

Nice thread, Erik! It's great to have all of the photos of your machine in once place. It's a very well done car.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Glenn Premium Member
Mr. 010


Joined: December 25, 2001
Posts: 70459
Location: Long Island, New York, USA
Glenn is offline

PostPosted: Tue May 29, 2018 7:25 am    Post subject: Re: 1958 Outlaw Beetle Build Reply with quote

Big_E_Deluxe wrote:

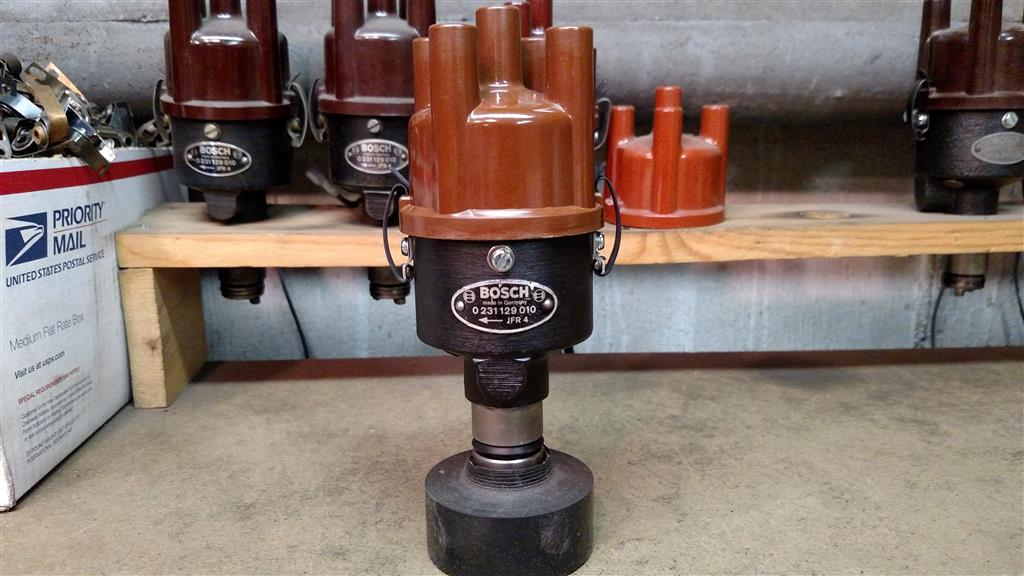

Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Happy to contribute to a awesome build.
_________________
Glenn
74 Beetle Specs | 74 Beetle Restoration | 2180cc Engine
"You may not get what you pay for, but you always pay for what you get"

Cast Iron and Aluminum distributors rebuilt since 2000.
Back to top
View user's profile Send private message Send e-mail Visit poster's website Gallery Classifieds Feedback
EverettB Premium Member
Administrator


Joined: April 11, 2000
Posts: 64975
Location: Phoenix, AZ
EverettB is offline

PostPosted: Tue May 29, 2018 8:44 am    Post subject: Re: 1958 Outlaw Beetle Build Reply with quote

Wow, super nice car!

Big_E_Deluxe wrote:

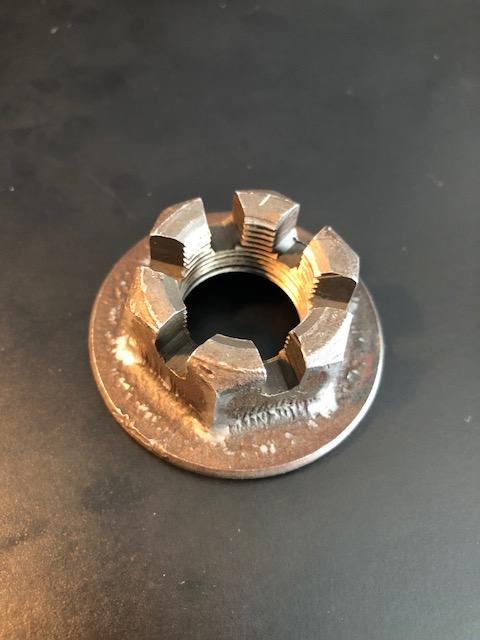

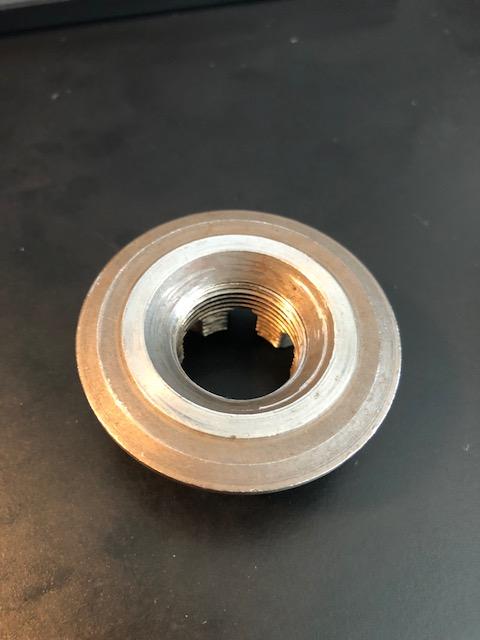

Rear castle nut needs to be a early Porsche to clear teeth on rear axle.

I'm not sure what is different, could you explain it further?
Is it shorter in length or ?
_________________
How to Post Photos
Everett Barnes - [email protected] | My wanted ads
"Water is the only drink for a wise man" | "Communication prevents complaints"
Stop dead photo links! Post your photos to The Samba Gallery!
Back to top
View user's profile Send private message Send e-mail Visit poster's website Facebook Instagram Gallery Classifieds Feedback
Albertoprop17
Samba Member


Joined: March 15, 2016
Posts: 159
Location: Valencia (Spain)
Albertoprop17 is offline

PostPosted: Tue May 29, 2018 9:02 am    Post subject: Re: 1958 Outlaw Beetle Build Reply with quote

Very cool car! I love it

One question, why did you put a 2" narrowed beam on it? Does the 356 drums add track? I'm curious about that
Back to top
View user's profile Send private message Send e-mail Visit poster's website Instagram Gallery Classifieds Feedback
Big_E_Deluxe
Samba Member


Joined: September 23, 2013
Posts: 177
Location: Charlotte, NC
Big_E_Deluxe is offline

PostPosted: Tue May 29, 2018 9:50 am    Post subject: Re: 1958 Outlaw Beetle Build Reply with quote

Glenn wrote:
Big_E_Deluxe wrote:
Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Happy to contribute to a awesome build.

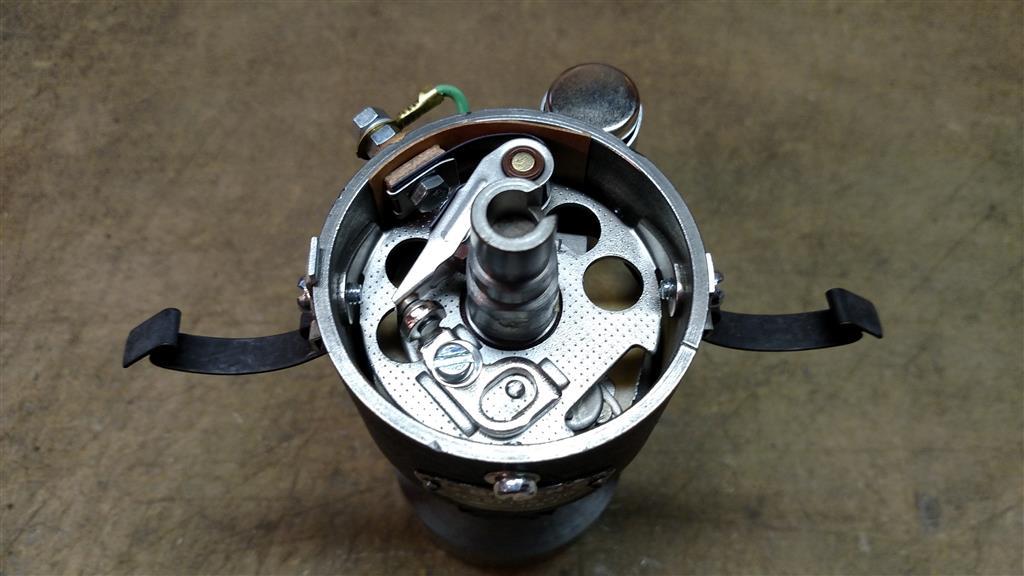

Glenn, You transformed that old dirty 010 to like new condition! Thank you!

Here it is before you did your magic.....

Image may have been reduced in size. Click image to view fullscreen.

_________________
Erik

1958 VW Beetle - "Max": https://www.thesamba.com/vw/forum/viewtopic.php?t=...highlight=
1959 VW Bus - "Hans" - Double Door Panel: https://www.thesamba.com/vw/forum/viewtopic.php?t=746927


Last edited by Big_E_Deluxe on Tue May 29, 2018 10:16 am; edited 1 time in total
Back to top
View user's profile Send private message Send e-mail Instagram Gallery Classifieds Feedback
Big_E_Deluxe
Samba Member


Joined: September 23, 2013
Posts: 177
Location: Charlotte, NC
Big_E_Deluxe is offline

PostPosted: Tue May 29, 2018 10:01 am    Post subject: Re: 1958 Outlaw Beetle Build Reply with quote

EverettB wrote:
Wow, super nice car!

Big_E_Deluxe wrote:
Rear castle nut needs to be a early Porsche to clear teeth on rear axle.

I'm not sure what is different, could you explain it further?
Is it shorter in length or ?


Everett, Thank you!

From what I've read and learned during the install is that the rear 356B drum does not cover all the axle teeth like a stock VW drum, a small portion is exposed. From what I understand, early Porsche 356's used VW axles, so Porsche needed a different castle nut that had a beveled area on the back side of the nut to clear the exposed teeth. I believe it also has a larger outer diameter too. This would allow the nut to seat properly on the drum and not torque down on the teeth. You can use a VW castle nut, but you'll need a washer, not ideal. I'm not an expert, please let me know if I have this incorrect. So far it is working properly.


Here's a Porsche castle nut......

Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.

_________________
Erik

1958 VW Beetle - "Max": https://www.thesamba.com/vw/forum/viewtopic.php?t=...highlight=
1959 VW Bus - "Hans" - Double Door Panel: https://www.thesamba.com/vw/forum/viewtopic.php?t=746927


Last edited by Big_E_Deluxe on Tue May 29, 2018 10:17 am; edited 1 time in total
Back to top
View user's profile Send private message Send e-mail Instagram Gallery Classifieds Feedback
Big_E_Deluxe
Samba Member


Joined: September 23, 2013
Posts: 177
Location: Charlotte, NC
Big_E_Deluxe is offline

PostPosted: Tue May 29, 2018 10:07 am    Post subject: Re: 1958 Outlaw Beetle Build Reply with quote

Albertoprop17 wrote:
Very cool car! I love it

One question, why did you put a 2" narrowed beam on it? Does the 356 drums add track? I'm curious about that


Thank you!

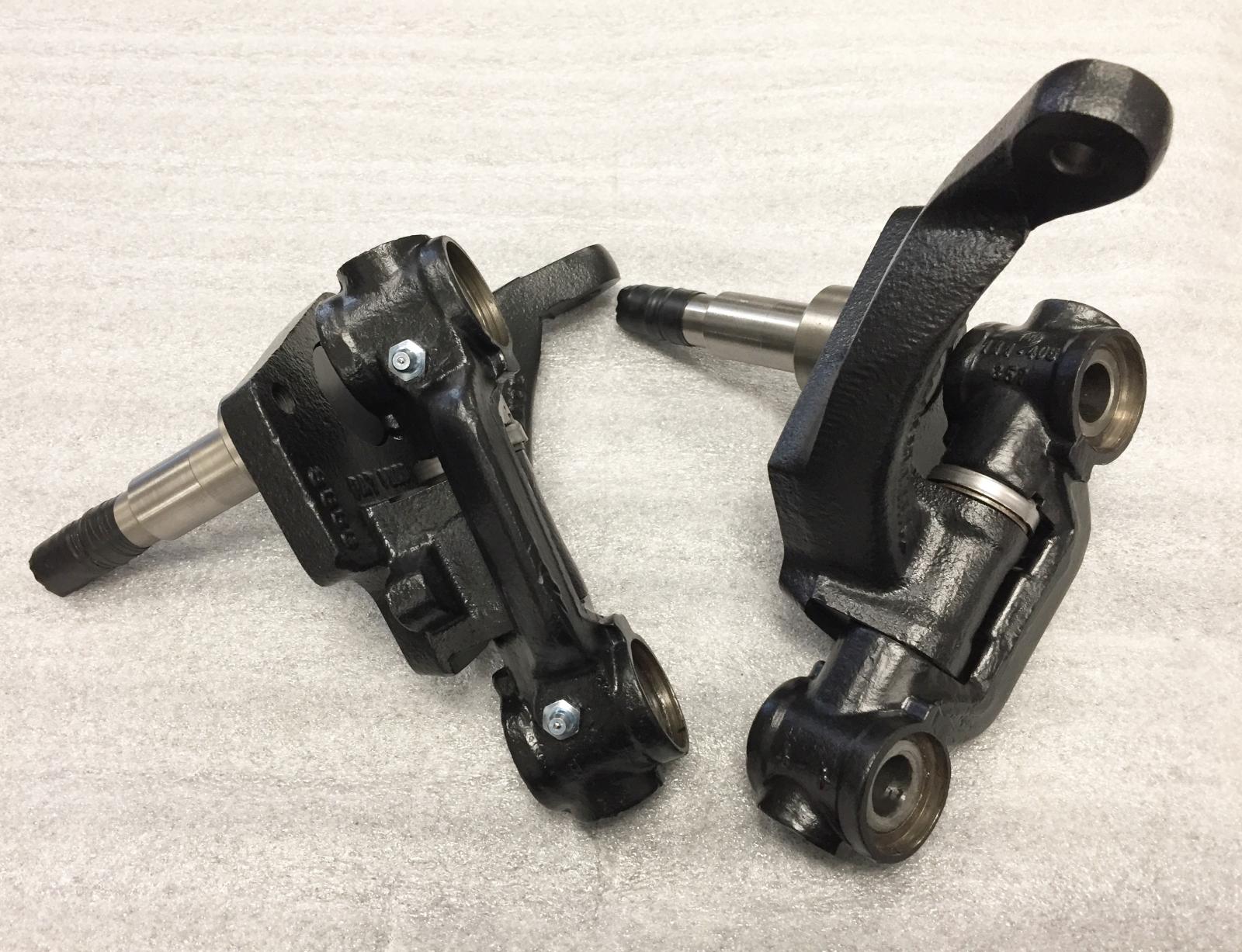

The dropped spindles will create a wider track, not so much the 356B drums. The narrower beam reduced this wider track, and also gave us a little more tire clearance at the fender for stance. The 356 wheels are 4 1/2" wide vs. 4" stock, so we could use a little more room. It also has a better looking wheel offset, that complemented the rear wheels. We wanted it to still have a "stock" look.
