| Author |
Message |
Max Welton
Samba Member
Joined: May 19, 2003
Posts: 11028
Location: Black Forest, CO
|
|
| Back to top |
|
 |
Dfasty
Samba Member
Joined: November 22, 2005
Posts: 541
Location: north bay,ca.
|
 Posted: Sat Apr 19, 2025 9:26 am Post subject: Re: 5.5" wheels on late type-3s? |
 |
|
I run 914 hubcap wheels with an et 41
_________________
70 fastback automatic 06 invader |
|
| Back to top |
|
|
Max Welton
Samba Member
Joined: May 19, 2003
Posts: 11028
Location: Black Forest, CO
|
|
| Back to top |
|
|
wagen19
Samba Member
Joined: November 16, 2007
Posts: 649
Location: germany
|
| Posted: Sat Apr 19, 2025 4:20 pm Post subject: Re: 5.5" wheels on late type-3s? |
|
|
| Max Welton wrote: |
Are they 5.5"?
Max |
There are for ex Lemmerz 1563 - 3, 5,5 x 15 hup cap rims, ET 40 mm.
With german TUEV, even for type 46.
Vd TÜV Merkblatt 718, 1973 |
|
| Back to top |
|
|
Dfasty
Samba Member
Joined: November 22, 2005
Posts: 541
Location: north bay,ca.
|
| Posted: Sat Apr 19, 2025 8:39 pm Post subject: Re: 5.5" wheels on late type-3s? |
|
|
Yes mine are 5.5 x 15 with a vw stamping on them
_________________
70 fastback automatic 06 invader |
|
| Back to top |
|
|
Rome
Samba Member
Joined: June 02, 2004
Posts: 10517
Location: Pearl River, NY
|
| Posted: Sat Apr 19, 2025 10:02 pm Post subject: Re: 5.5" wheels on late type-3s? |
|
|

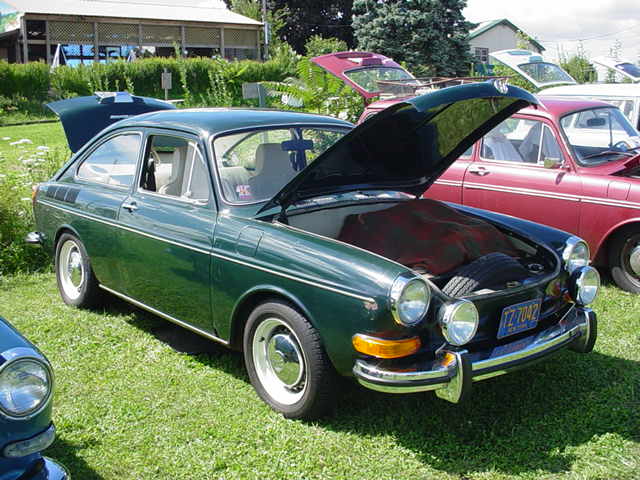

Hey, Max! Similar to 914 stock steel Lemmerz "hubcap" rims mentioned above, my '70 Fastback has 5.5" "Brazilian" stock rims with those nearly square cooling vent holes. I painted them in a late '60's Beetle scheme with black centers and ivory outers. I never measured the offset, but appear to be similar to either those 914 rims, or to '73 Sports Bug rims at 26 mm. 185/65 tires front and rear. Air-Cooled Head's shot of mine at the Type 3 Invasion in Hershey, PA in 2004-
|
|
| Back to top |
|
|
Scotty D
Samba Member
Joined: February 08, 2020
Posts: 275
Location: Claremont CA
|
| Posted: Sun Apr 20, 2025 7:06 am Post subject: Re: 5.5" wheels on late type-3s? |
|
|
| Rome wrote: |
Hey, Max! Similar to 914 stock steel Lemmerz "hubcap" rims mentioned above, my '70 Fastback has 5.5" "Brazilian" stock rims with those nearly square cooling vent holes. I painted them in a late '60's Beetle scheme with black centers and ivory outers. I never measured the offset, but appear to be similar to either those 914 rims, or to '73 Sports Bug rims at 26 mm. 185/65 tires front and rear. Air-Cooled Head's shot of mine at the Type 3 Invasion in Hershey, PA in 2004-
|
Those wheels look great on your fasty. |
|
| Back to top |
|
|
Max Welton
Samba Member
Joined: May 19, 2003
Posts: 11028
Location: Black Forest, CO
|
|
| Back to top |
|
|
Bobnotch
Samba Member
Joined: July 06, 2003
Posts: 23358
Location: Kimball, Mi
|
| Posted: Sun Apr 20, 2025 1:08 pm Post subject: Re: 5.5" wheels on late type-3s? |
|
|
| Rome wrote: |
Hey, Max! Similar to 914 stock steel Lemmerz "hubcap" rims mentioned above, my '70 Fastback has 5.5" "Brazilian" stock rims with those nearly square cooling vent holes. I painted them in a late '60's Beetle scheme with black centers and ivory outers. I never measured the offset, but appear to be similar to either those 914 rims, or to '73 Sports Bug rims at 26 mm. 185/65 tires front and rear. Air-Cooled Head's shot of mine at the Type 3 Invasion in Hershey, PA in 2004-
|

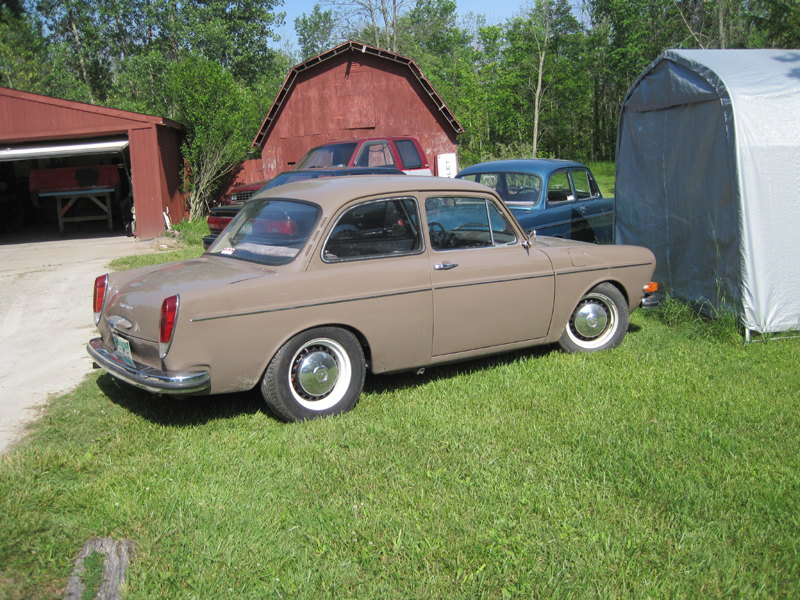

I've got a similar set to those, They originally came on my wife's 70 Fastback (before I put some 8 spokes on it), but I've also had them on my old 71 Notchback (Krunchy, when I painted the centers) and on my old 70 Square.
lowered
I should mention that these rims in the pics above have 205-65-15's on the rear, and 195-60-15's on the front.

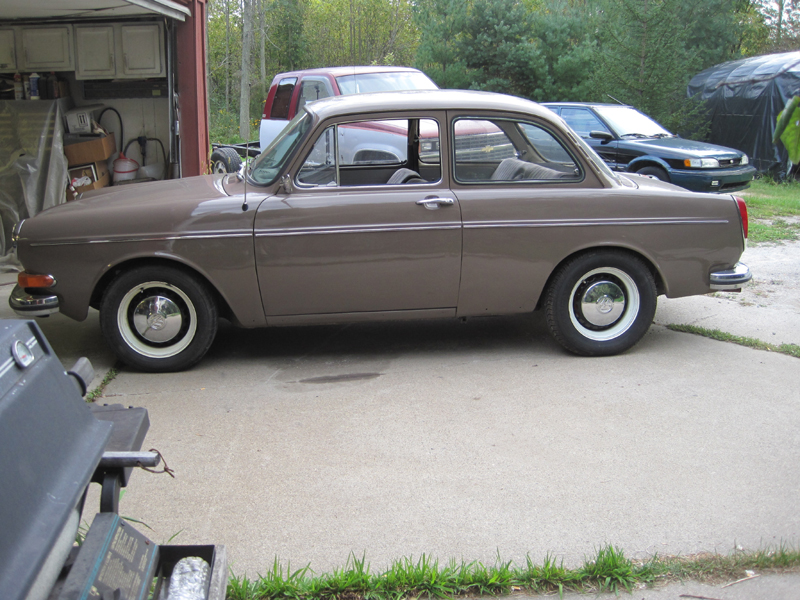

If you can find them, these rims fit well too, but I don't know the offset. I'm also running the same tire size combo as on the other cars above.
_________________
Bob 65 Notch S with Sunroof
71 Notch ...aka Krunchy; build pics here;
http://www.thesamba.com/vw/forum/viewtopic.php?t=249390 -been busy working
64 T-34 Ghia...aka Wolfie, under construction... http://www.thesamba.com/vw/forum/viewtopic.php?t=412120
| Tram wrote: |
| "Friends are God's way of apologizing for relatives." |
| Tram wrote: |
| People keep confusing "restored" and "restroyed". |
|
|
| Back to top |
|
|
Privateer
Samba Member
Joined: April 14, 2013
Posts: 2
Location: Ohio
|
|
| Back to top |
|
|
gtixpress
Samba Member
Joined: June 22, 2006
Posts: 320
Location: Mahomet, IL
|
| Posted: Thu Apr 24, 2025 8:16 am Post subject: Re: 5.5" wheels on late type-3s? |
|
|
Are those 6" on the front as well? They look nice.
_________________
Joe P.
1969 VW Type 3 Squareback
2002 VW GTI 337 (Limited Edition)
2018 VW Atlas SE VR6 4Motion
2019 VW Beetle S Final Edition Convertible |
|
| Back to top |
|
|
Privateer
Samba Member
Joined: April 14, 2013
Posts: 2
Location: Ohio
|
| Posted: Thu Apr 24, 2025 1:37 pm Post subject: Re: 5.5" wheels on late type-3s? |
|
|
| gtixpress wrote: |
Are those 6" on the front as well? They look nice. |
Yep, they are 6" all around.
I was also pleasantly surprised to find the hubcaps I had fit, since the US Wheel page was a big vague on those details.
Thinking back, I believe I actually ordered them through Jegs for a better price and free shipping. But they are available through a few vendors. Just have to search for the 131-5630 part number. |
|
| Back to top |
|
|
Max Welton
Samba Member
Joined: May 19, 2003
Posts: 11028
Location: Black Forest, CO
|
| Posted: Thu Apr 24, 2025 1:55 pm Post subject: Re: 5.5" wheels on late type-3s? |
|
|
I'm pretty committed to running 205x65s front and back.
I have a set of Mangles from back in the day with KG offset. There're only 4.5" but they worked with 205s on my old 68 squareback without issue.

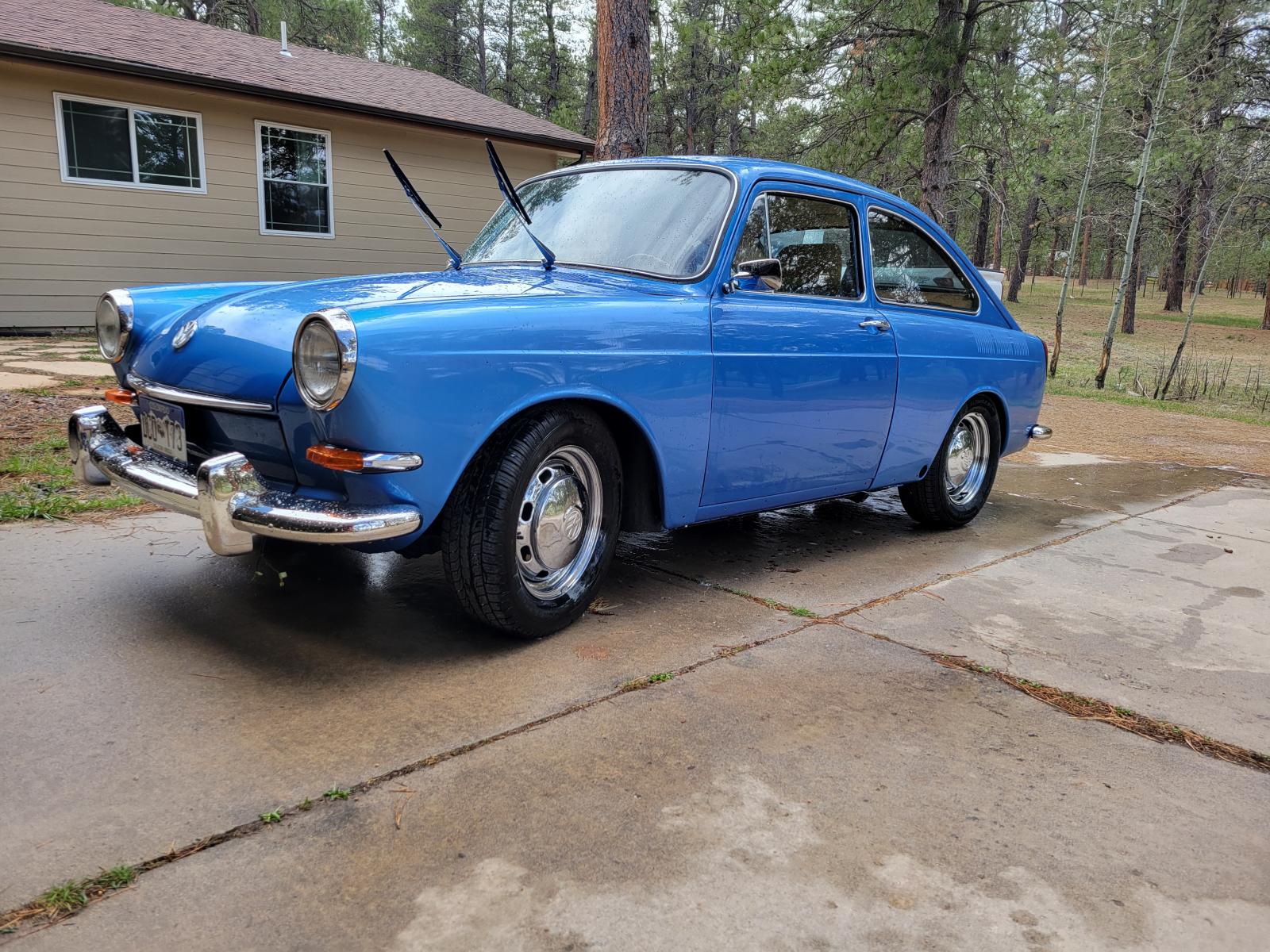

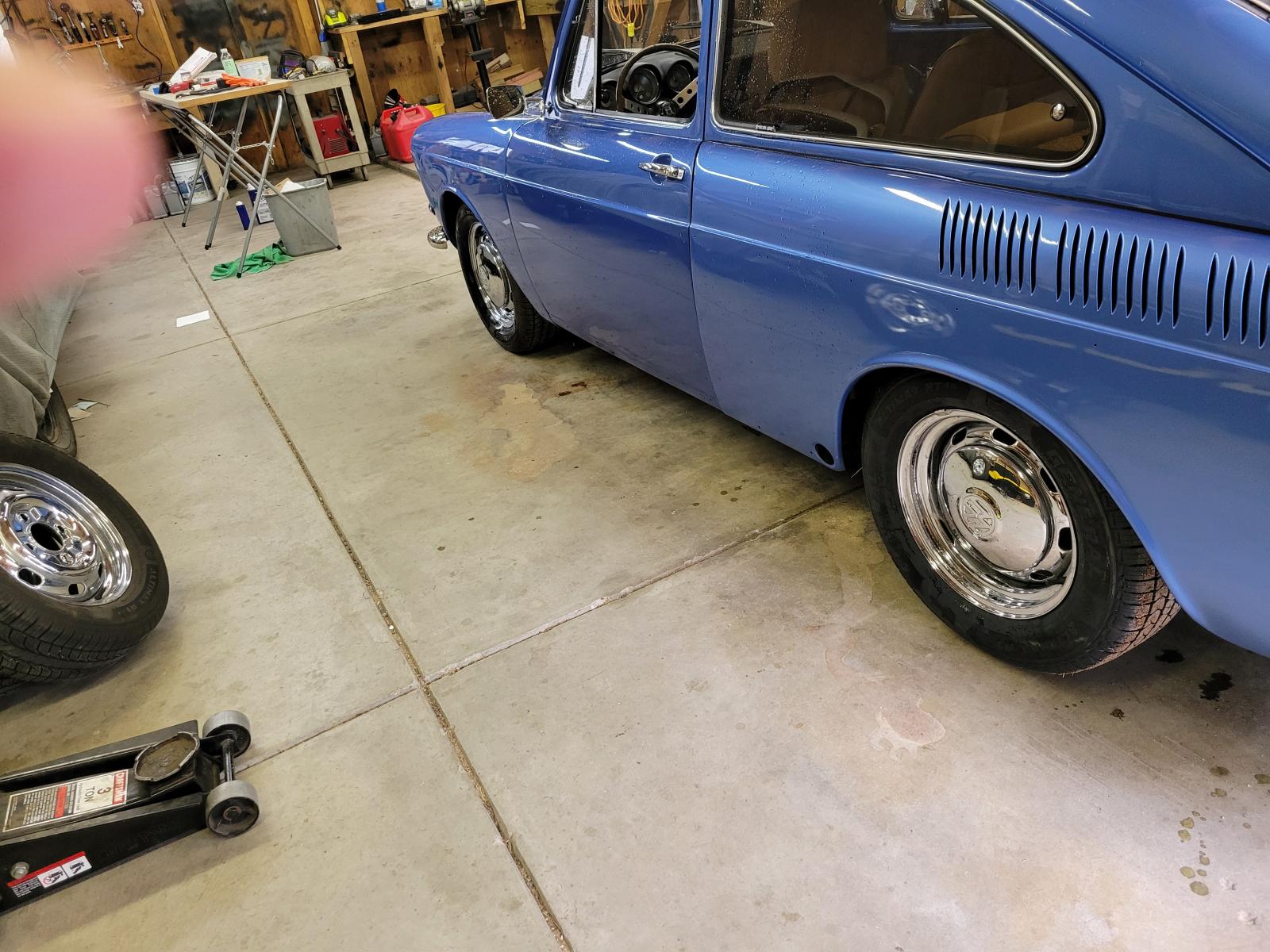

For the fastback, I converted to the short axles and put these 5.5" bug wheels on the back. Those are still the mangles up front. No clearance issues and it rides/handles well.
The options for a 5.5" and an offset that would work with the 205s up front seem limited to having something custom made.
There used to be a advertiser here that would widen steel wheels and give you the offset you specified. Can't find him any more.
Max
_________________
1967 Type-3 Fastback
Under the Knife https://shoptalkforums.com/viewtopic.php?f=24&t=151582
Home Stretch https://www.thesamba.com/vw/forum/viewtopic.php?t=767836 |
|
| Back to top |
|
|
Rome
Samba Member
Joined: June 02, 2004
Posts: 10517
Location: Pearl River, NY
|
| Posted: Thu Apr 24, 2025 3:38 pm Post subject: Re: 5.5" wheels on late type-3s? |
|
|
One wheel company which I remember from the '80's in HotVWs feature cars and in ads for custom/widened rims is Stockton Wheel Service in CA. A quick search does not result in a clear status if they are still in business...
|
|
| Back to top |
|
|
|
