Spring loaded pushrod tubes.

[QRP]

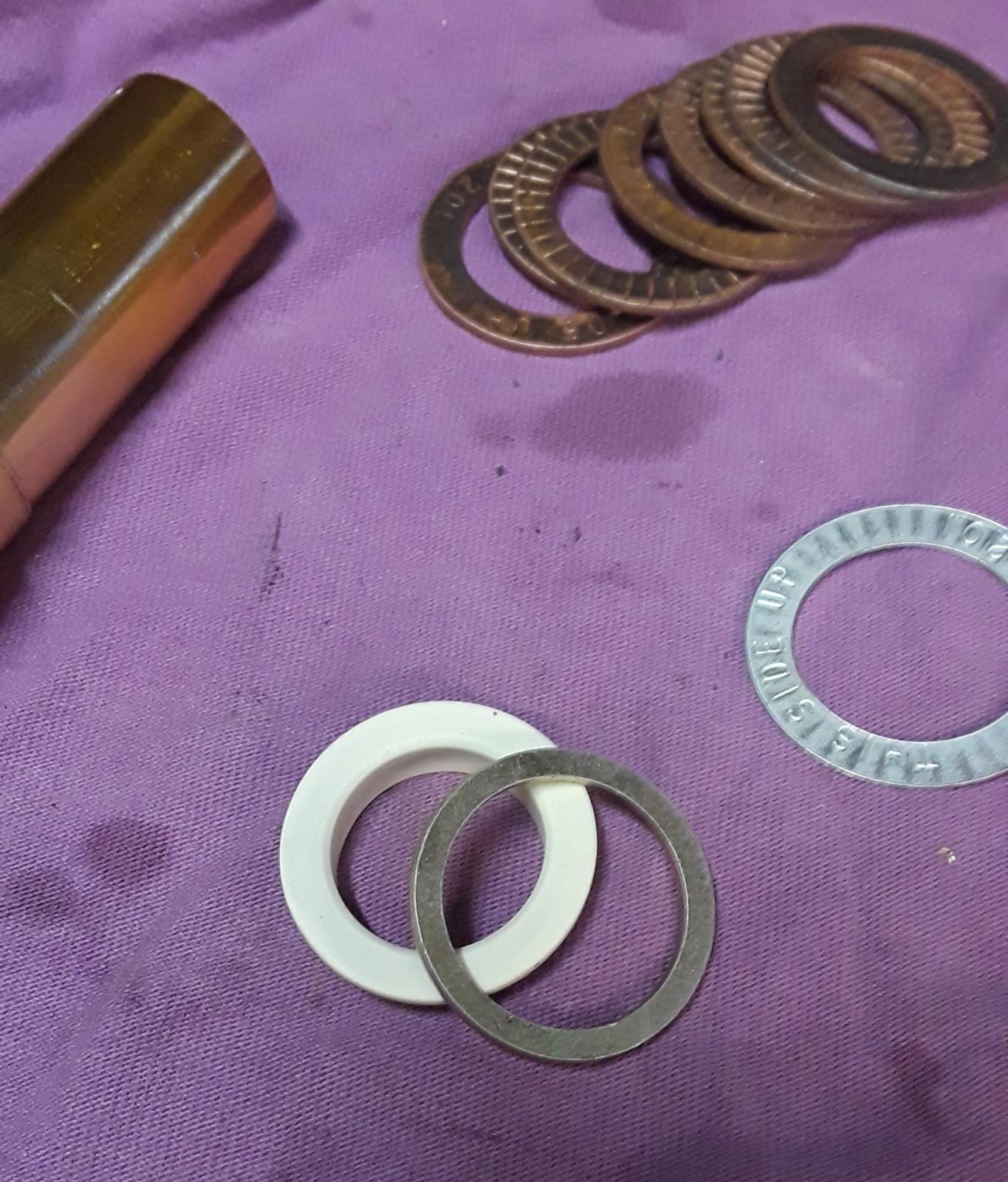

I personally like this style of pushrod tube, only issue I have is the goofy little washer they give you for the spring side seal. I use a single valve spring shim instead, covers the entire seal and is a perfect fit!
Wondering if anyone else does this?

[RailBoy]

Hello, yea they say the best push rod tubes are the stock ones..

I have run the stock ones in both of my built strokers and in the Bently Manual I think it is they tell you of how long, extended they need to be before inserting and compressing by the heads when building.... Also, best to always use new seals..

But there are a few threads on this topic, for at times there is a call to replace a push rod tube with the engine installed do to some reason.

But in the threads you will find out the best preference or meaning choose by engine bullders for most all the spring loaded push rod tubes leak.

So, in the threads you will find the best one builders have used but it escapes me currently.. But I do like what you said about the ones you found, but make sure I think the best use a silicone rubber O-ring internally, I think, lol... RB
_________________
[quote="smitty24"]"HELP, I ported my own heads and now have fire coming out my ass" .[/quote]

[Alstrup]

The spring loaded tubes ALWAYS leaks over time, no matter the brand. And yes, with the cheaper sets you need to add a little yourself to get even a decent result. Stock tubes rarely leaks.
On some engines there is no alternative but to use the spring loaded versions. So you have to live with it.
If you need a quick fix of a bent tube or something like that the spring loaded ones are a nice option. On new engines I do not use them if I can make stock ones work.

[Glenn]

I would only use them as a "repair". if the head is coming off then I would use stock.
_________________
Glenn
74 Beetle Specs | 74 Beetle Restoration | 2180cc Engine
"You may not get what you pay for, but you always pay for what you get"

Member #1009

#BlueSquare

עַם יִשְׂרָאֵל חַי

[andk5591]

It's great they work for you. I have rarely had luck with them.
_________________
D-Dubya Manx clone 1914. Ex wifes car.
Rosie 65 bug - My mostly stock daily driver.
Woodie 69 VW woodie (Hot VWs 7/12).
"John's car" 64 VW woodie - The first ever
Maxine 61 Cal-look bug - Ex-wifes car.
66 bug project - Real patina & Suby conversion
There's more, but not keeping them...

[oldschool5er]

I have done that using valve spring shims as you show. I have only used stock tubes or JayCee in the last 5 years on my engines though. Just installed another set of JayCee this week. I have never experianced leaks on them. The oldest set from 5 years ago and 30k miles on them still does not leak. I have to warn people though that you should not use so called super cool tins or T3 tins on the cylinders as the tubes will hit and no way to prevent that, it will not allow the PR tube seals to seal, so make sure you check it. You must use stock square plate cylinder tin on most engines when you use them I have found.
_________________
HRE in Westerville,Ohio

Full machine shop with all types of CNC. Rapid prototyping available, CNC Plasma cutting, 3D printing and Laser engraving.

[QRP]

[slalombuggy]

I use the SCAT tubes after the stainless ones I used before cracked after having the heads off and on a couple of times. On non-race engines I use the EMPI stainless windage tubes and EMPI silicone seals and I haven't had a leak since going to them.

brad

[vwracerdave]

JayCee tubes that use internal "O" rings are the only spring tubes that DO NOT leak. No matter what you do to the spring tubes pictured above that uses a stock seal, they will leak.
_________________
2017 Street Comp Champion - Thunder Valley Raceway Park - Noble, OK
2010 Sportsman ET Champion - Mid-America Dragway - Arkansas City, KS
1997 Sportsman ET Champion - Thunder Valley Raceway Park - Noble ,OK

[Alstrup]

[mark tucker]

funny I dont have leek issues with the scat big mouth tubes leeking .nor the empi big dia springy tubes. I think the issue it the STUPID INSTALLER. I do also make bigger seal back up washers for them and swedge them to the tube so they never come off again.( on the scat big mouth tubes) the scats are soft aluminum so you can swedge them up a bit bigger to snug up to a backup washer.
some of the empi tubes are not round inside....if there not round they need to be machined so they are round.( where the orings ride inside the tube's) you also need to properly oil the orings before assembling with good synthetic oil so it does not cook and the oring's slide for ever as the engine gets wider and smaller. oil the orings and oil good inbetween the orings. ( never use greese it will push out of the way and the orings will then run dry..and die.( you have to be smarter that what your working on,I suppose there is a greese that will work, but...I wouldent do it.greese also attracks and holds shit to eat stuff up.and also seals out oil.)

[QRP]

WOW . . Let the spring loaded hate flow through you young Jedi's. LOL
I guess everyone has a preference, I've had good luck with these, they keep going and going.
I can't remember the last time I bought new pushrod tubes.

[jeffrey8164]

Personally, I’ve never trusted them enough to use them. I used to work at a Buggy shop and I’ll agree that I’ve never seen a set that didn’t leak at some point.
Long strokes and long rods were one situation in which the stock tubes would not work but I believe and I’m sure someone will correct me if I’m wrong, they were introduced to the buggy crowd so, if they hit a rock or a stump and bent the tube, it could be quickly fixed without having to pull the head off and ruining your trip.
_________________
Volkswagen!
Turning owners into mechanics since 1938.

“Let he that is without oil throw the first rod”
(Compression 8.7:1)

[chrisflstf]

Any body have any tips for compressing the springs enough to do a good install with them?

[bugguy1967]

[QRP]

[quote="chrisflstf"]Any body have any tips for compressing the springs enough to do a good install with them?[/quote ]

A tinny bit of oil on the shaft that the spring rides on to let the seal move a little easier does it for me. And I mean a tinny tinny dab.

[vwracerdave]

I find it real funny (and sad) that a person is willing to spend more money modifying a cheap part to make it work correctly then spend the extra money on a better quality part that fits and is ready to use.
_________________
2017 Street Comp Champion - Thunder Valley Raceway Park - Noble, OK
2010 Sportsman ET Champion - Mid-America Dragway - Arkansas City, KS
1997 Sportsman ET Champion - Thunder Valley Raceway Park - Noble ,OK

[Glenn]

[richierich]

Funny how some just insist that all spring loaded ones just leak. Full stop. My Jaycee ones haven't leaked a drop. Nada. Nothing. But I guess they all leak.
_________________
Blah.....

[QRP]

I think its funny how this turned into this style vs that style.
All I asked was did anyone else use a larger washer . . .

FWIT . . . no stock pushrod tube ever leaked oil, never ever ever.
Hahahaha
And I guess no one here has ever modified a part instead of buying a new one . . . JESUS
