Antenna replacement problem
Forum Index -> Vanagon Share: Facebook Twitter
Reply to topic
Print View
Quick sort: Show newest posts on top | Show oldest posts on top View previous topic :: View next topic
Author Message
fyrgrrl
Samba Member


Joined: May 21, 2006
Posts: 396
Location: The Evergreen State
fyrgrrl is offline

PostPosted: Sat Nov 16, 2019 5:23 pm    Post subject: Antenna replacement problem Reply with quote

I am trying to remove the non-retractable radio antenna on my brother's Vanagon and, after watching all the videos out there on how to do it, I thought it would be easy.

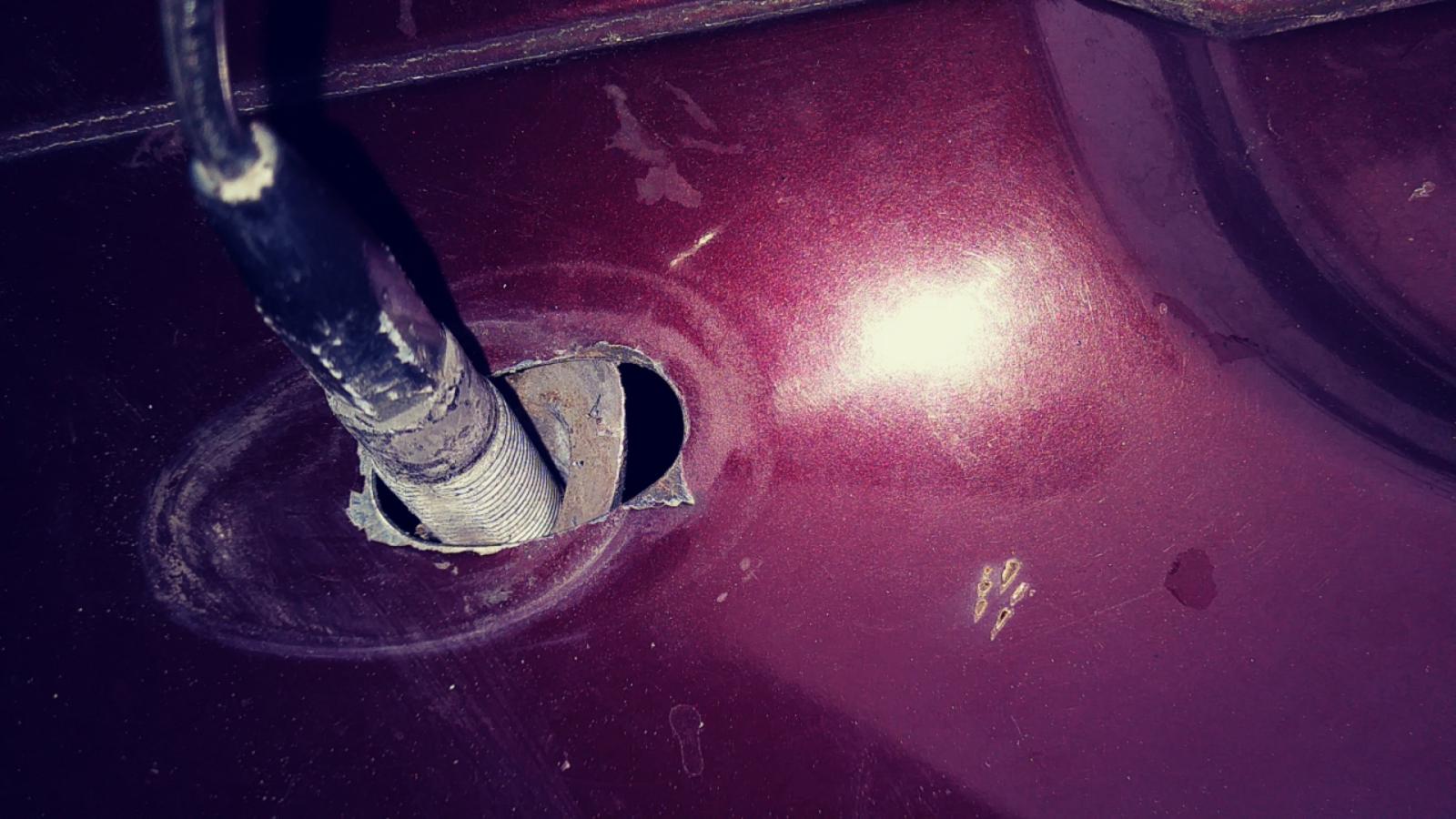

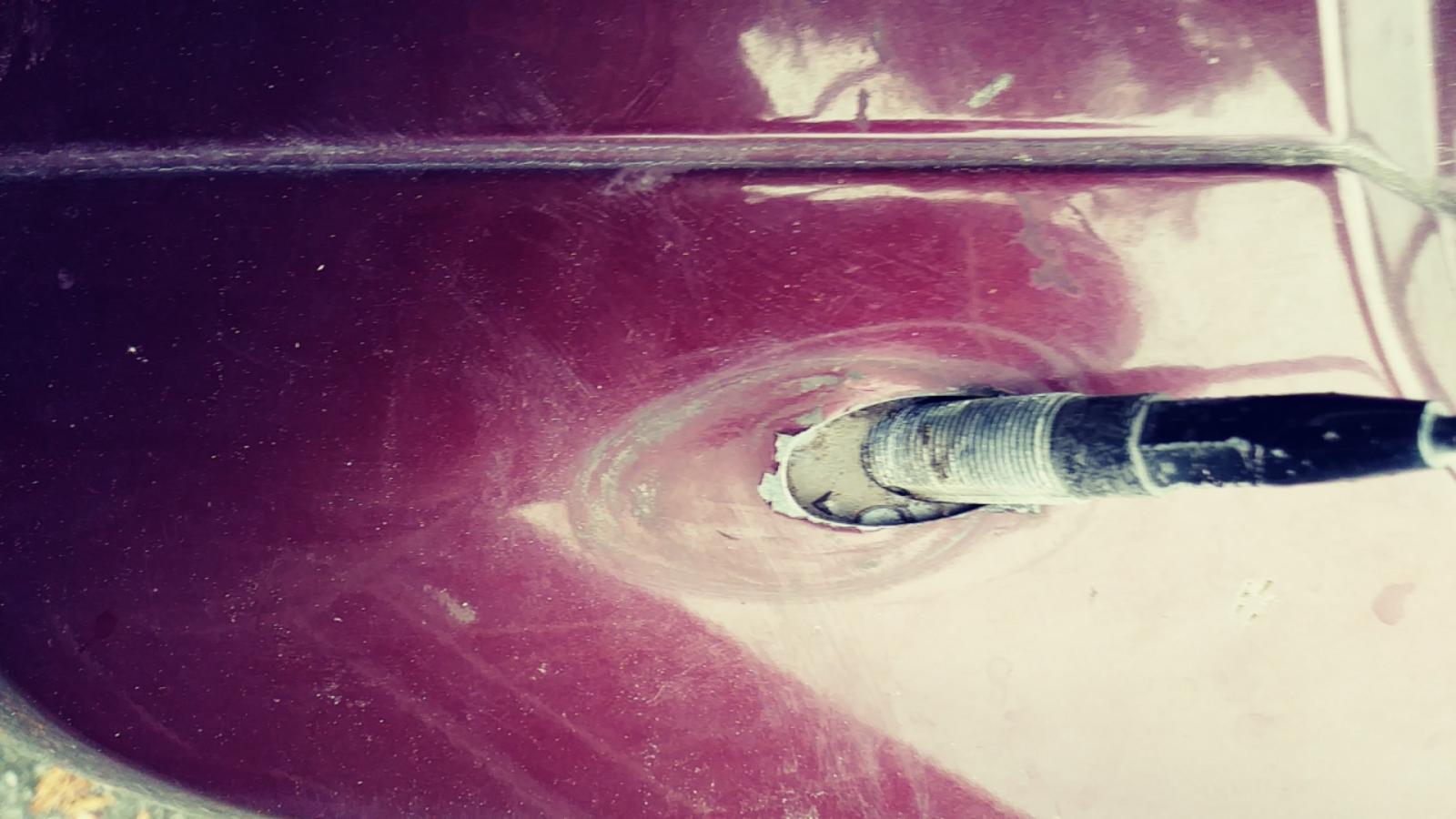

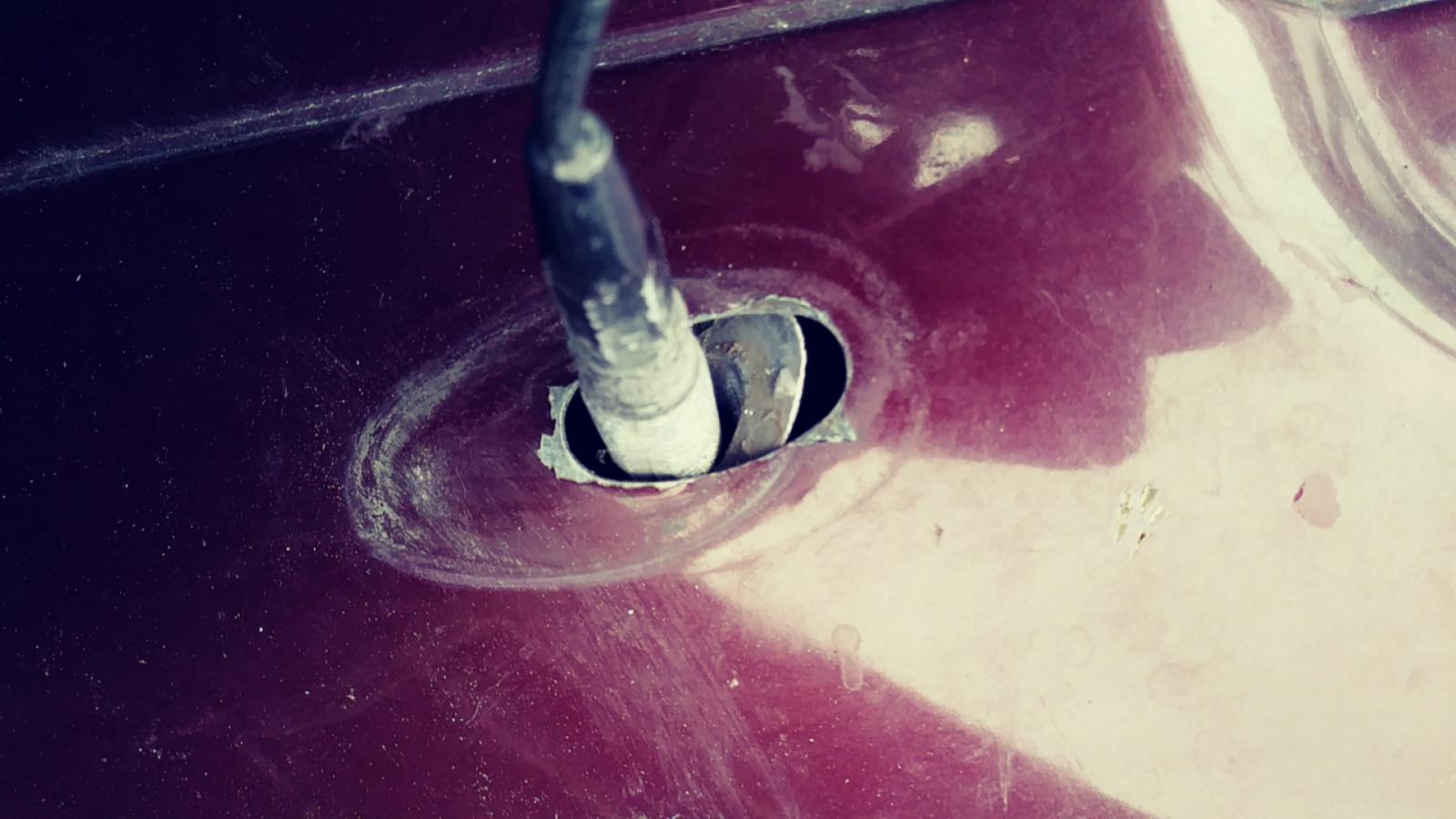

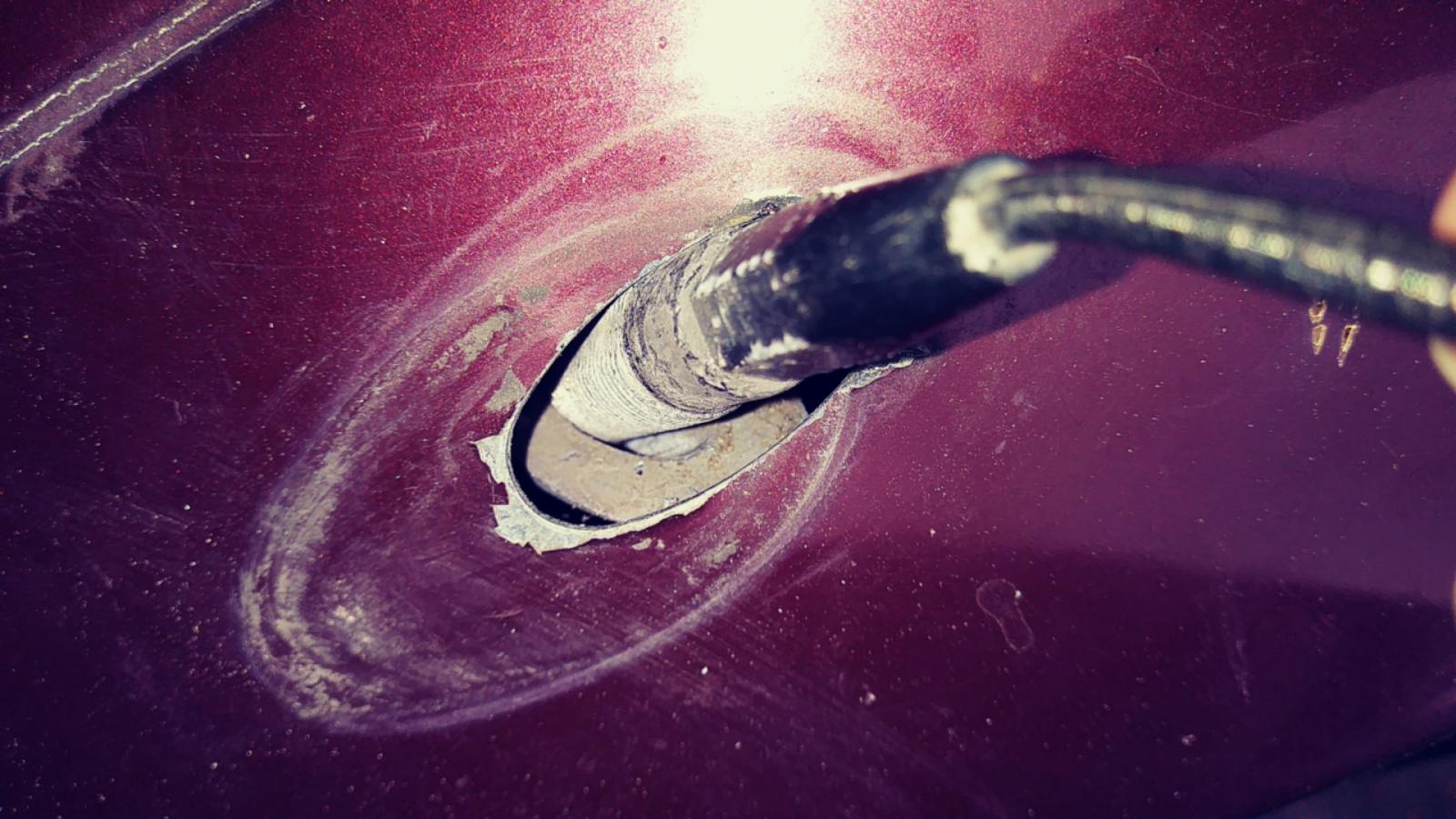

I bought the Hirschmann radio antenna like everyone on TheSamba recommended and today I started to work on it. Got the grille off and the headlight housing removed. I took off the nut on the antenna and slid off the nut and plastic housing. And then I found this.

Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


There is some kind of funky collar on the antenna. Any ideas on how to remove this antenna? I know it won't come out the hole. I saw where someone in another post mentioned to go through the turn signal hole.

Nothing is ever easy.
_________________
1987 Vanagon Westfalia (manual) - "Van Hildegaard"
1987 Vanagon Westfalia (auto)
1985 Vanagon GL 7-passenger van (auto) - "Blau Frau"
1985 Vanagon GL 7-passenger van (manual) - "Braunkuh"
1998 Subaru Legacy Outback (auto)
2003 Subaru Legacy L wagon (auto)
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
Ahwahnee
Samba Member


Joined: June 05, 2010
Posts: 8671
Location: Mt Lemmon, AZ
Ahwahnee is offline

PostPosted: Sat Nov 16, 2019 5:26 pm    Post subject: Re: Antenna replacement problem Reply with quote

It's been a lot of years since I last replaced mine but this may be helpful:

http://www.vanagontravels.com/2011/11/new-hirschmann-vanagon-antenna.html
Back to top
View user's profile Send private message Gallery Classifieds Feedback
djkeev Premium Member
Samba Moderator


Joined: September 30, 2007
Posts: 25007
Location: North West New Jersey
djkeev is offline

PostPosted: Sat Nov 16, 2019 6:08 pm    Post subject: Re: Antenna replacement problem Reply with quote

That is a fitting aid to get it clamped at the correct angle.
They slip on over the mast before it is fed into the hole.... from the inside out.

You remove and install the antenna from the inside of the body.

Dave
_________________
Stop Dead Photo Links how to post photos

Ghia
http://www.thesamba.com/vw/forum/viewtopic.php?t=392473

Vanagon
http://www.thesamba.com/vw/forum/viewtopic.php?p=6315537#6315537

Beetle
https://www.thesamba.com/vw/forum/viewtopic.php?t=482968&highlight=74+super+vert
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
0to60in6min
Samba Member


Joined: November 27, 2006
Posts: 3004
Location: OR & CA (Oregon/California)
0to60in6min is offline

PostPosted: Sat Nov 16, 2019 6:17 pm    Post subject: Re: Antenna replacement problem Reply with quote

Quote:
You remove and install the antenna from the inside of the body.


yup.. you pull it DOWN... not up... Very Happy

and when you install the new one put some silicone sealant on the outer gasket... otherwise you will have water at the foot well later...
Back to top
View user's profile Send private message Gallery Classifieds Feedback
DanHoug
Samba Member


Joined: December 05, 2016
Posts: 1859
Location: Bemidji, MN
DanHoug is offline

PostPosted: Sun Nov 17, 2019 11:11 am    Post subject: Re: Antenna replacement problem Reply with quote

i believe that one can also come up to get out... that collar is a tilting one so push it down, tilt the collar with a screwdriver and come up thru the hole.

Disclaimer... i've NOT replaced a Vanagon antenna but have other ones and they use they a tilting collar.

the ground connection to the body, thru the collar, is important for reception. i hate the design as it always gets corroded but with the new antenna, take a hook shaped tool and clean the underside of the body where the collar is tighten against the sheet metal. it's a design that works well on new cars, with antiques, it leaves much to be desired. but the increase in reception is pretty significant with a clean body connection.
_________________
-dan

87 Westy, stock 2.1 w/ 4 spd ratty but reliable
89 Westy, stock 2.1 w/ 4 spd, fate unknown
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
plummerdesign
Samba Member


Joined: September 04, 2010
Posts: 449
Location: Portland OR
plummerdesign is offline

PostPosted: Sun Nov 17, 2019 2:01 pm    Post subject: Re: Antenna replacement problem Reply with quote

Did you win?
...
I have replaced several Vanagon antenna and can vouch for what has been stated in the posts. It will need to tuck down in the body channel void, almost to the turn signal before having the room to come out.
: )
_________________
It is old and green and it makes me grin.
1984 Westfalia 1.9
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Silverghost500
Samba Member


Joined: August 01, 2018
Posts: 328
Location: Atlanta, GA
Silverghost500 is offline

PostPosted: Mon Nov 18, 2019 2:34 pm    Post subject: Re: Antenna replacement problem Reply with quote

With the front grill and left headlight out you should be able to pull the whole assembly down through the hole and out. Putting the new one back up and into that space may be more of a challenge. The replacement I put it wouldn't go in there unless I shaved off a bit of plastic so it would go bak through the hole behind the grill.
_________________
1986 Volkswagen Vanagon Westfalia "Von Westy"

Host of the YouTube Channel Von Westy
https://www.youtube.com/channel/UCbhyZYxJEQrUuLnMbLleeIA
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Jake de Villiers
Samba Member


Joined: October 24, 2007
Posts: 5247
Location: Crescent Beach, BC
Jake de Villiers is offline

PostPosted: Tue Nov 19, 2019 10:04 am    Post subject: Re: Antenna replacement problem Reply with quote

Do yourself a favour and cut off the cable before you remove the old antenna. You can then tape the new cable to the old and fish it into place quickly and easily. Cool
_________________
'84 Vanagon GL 1.9 WBX
'86 Westy Weekender Poptop/2.5 Subaru/5 Speed Posi/Audi Front Brakes/16 x 7 Mercedes Wheels - answers to 'Dixie'
http://sites.google.com/site/subyjake/mydixiedarlin%27
www.crescentbeachguitar.com
www.thebassspa.com
