Marcdeb Premium Member
Samba Member


Joined: May 22, 2019
Posts: 2713
Location: Vermont
Marcdeb is offline

PostPosted: Fri Mar 19, 2021 12:34 pm    Post subject: Re: 1969 Karmann Ghia Auto Stick Restoration Reply with quote

Nice work. I like the tool you made. I might think you've done this before! Think
_________________
Marc
68 Karmann Ghia Cabrio Autostick
71 Karmann Ghia Cabrio

Previously Owned:
2011 VW EOS Hard Top Conv
2008 Saab 9-3 2.0T Conv
2003 Saab 9-3 SE Conv
2001 Saab 9-3 Conv
1998 BMW 3 Series Conv
1997 Saab 900 Conv
1997 Mazda Miata

68 Ghia Vert Survivor with 22,350 miles: https://www.thesamba.com/vw/forum/viewtopic.php?t=768107&highlight=
71 Ghia Vert Restoration: https://www.thesamba.com/vw/forum/viewtopic.php?t=726710&postorder=asc
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
Legacy
Samba Member


Joined: October 26, 2008
Posts: 203
Location: Charlotte Hall, MD
Legacy is offline

PostPosted: Fri Mar 19, 2021 12:45 pm    Post subject: Re: 1969 Karmann Ghia Auto Stick Restoration Reply with quote

Marcdeb wrote:
Nice work. I like the tool you made. I might think you've done this before! Think


Thanks much for the compliment.
First time working on a Karmann Ghia but have some experience restoring other cars as a hobby.
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
sputnick60
Samba Moderator


Joined: July 22, 2007
Posts: 3779
Location: Near Rectilinear Halo Orbit
sputnick60 is offline

PostPosted: Fri Mar 19, 2021 8:25 pm    Post subject: Re: 1969 Karmann Ghia Auto Stick Restoration Reply with quote

There is this discussion from while back on the tool
https://www.thesamba.com/vw/forum/viewtopic.php?t=361094
Two thirds of the way down is a drawing with the dimensions for the nose ridge tool sourced from the VW Local manufacture workshop tool book. Tool#734

You can find the book here... https://www.thesamba.com/vw/archives/info/local_manufacture.php

Nicholas
_________________
'66 Karmann Ghia Cabriolet...
'65 Porsche 356C Coupe...
2005 Mecedes Benz C180 Kompressor Estate
Stop dead photo links! Post your photos to The Samba Gallery!
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Legacy
Samba Member


Joined: October 26, 2008
Posts: 203
Location: Charlotte Hall, MD
Legacy is offline

PostPosted: Sat Mar 20, 2021 4:21 am    Post subject: Re: 1969 Karmann Ghia Auto Stick Restoration Reply with quote

sputnick60 wrote:
There is this discussion from while back on the tool
https://www.thesamba.com/vw/forum/viewtopic.php?t=361094
Two thirds of the way down is a drawing with the dimensions for the nose ridge tool sourced from the VW Local manufacture workshop tool book. Tool#734

You can find the book here... https://www.thesamba.com/vw/archives/info/local_manufacture.php

Nicholas


Thanks for pointing out that discussion. I should have referenced it in my original writeup as an alternative to my simple tool.

I had seen that thread and downloaded the book in the past. I considered making the tool per the drawing but decided to just make a much simpler version that would basically accomplish the same purpose.
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
Redlabel6
Samba Member


Joined: October 17, 2016
Posts: 367
Location: Minnesota
Redlabel6 is offline

PostPosted: Sun Mar 21, 2021 6:22 am    Post subject: Re: 1969 Karmann Ghia Auto Stick Restoration Reply with quote

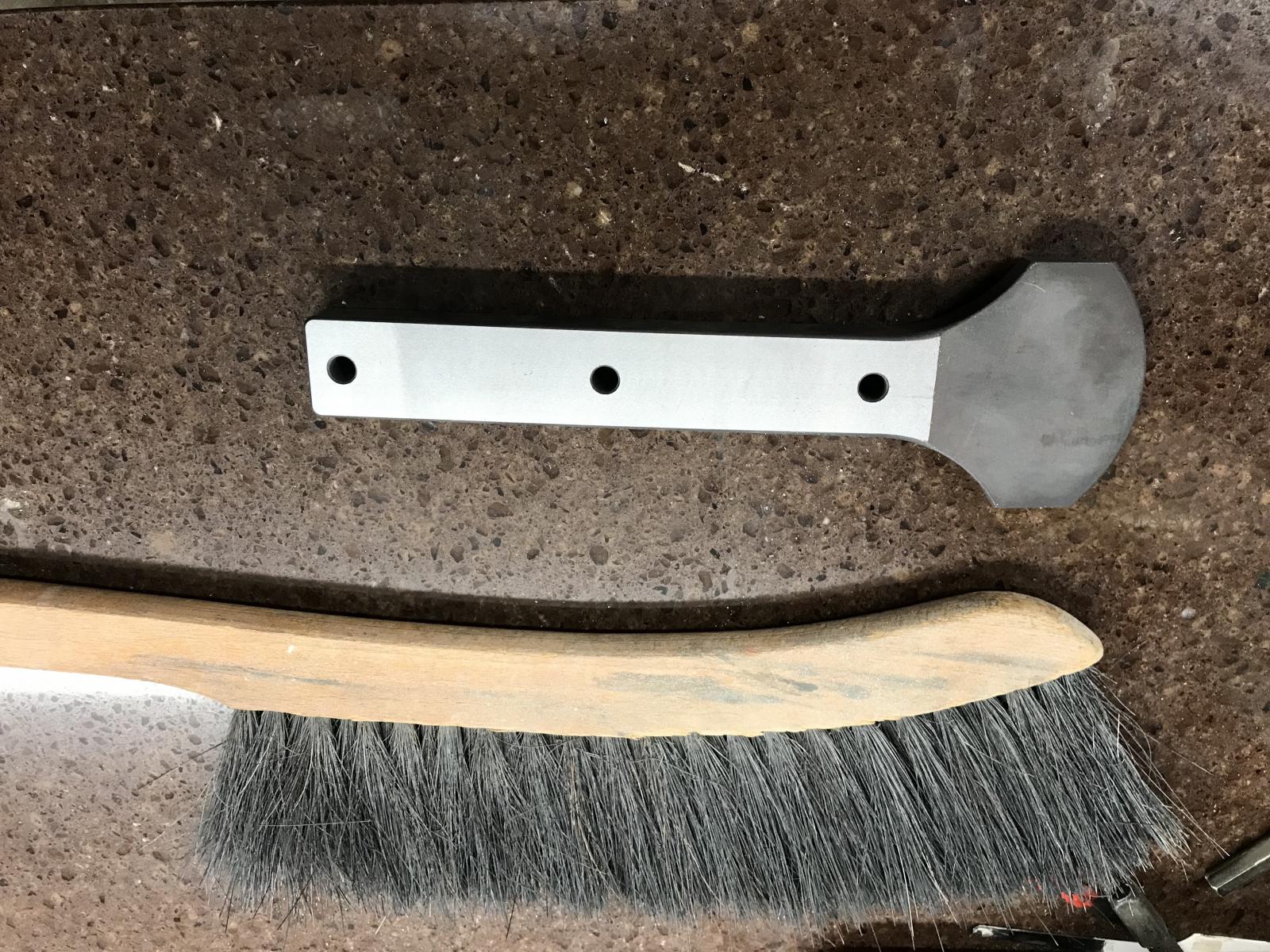

A buddy made a nose tool for me when I worked on my '73.
Worked great!
Image may have been reduced in size. Click image to view fullscreen.

d
_________________
1957 Oval Window Beetle
1973 Karmann Ghia Coupe
https://www.thesamba.com/vw/forum/viewtopic.php?t=666792&highlight=73+coupe
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
Legacy
Samba Member


Joined: October 26, 2008
Posts: 203
Location: Charlotte Hall, MD
Legacy is offline

PostPosted: Thu Aug 26, 2021 2:51 pm    Post subject: Re: 1969 Karmann Ghia Auto Stick Restoration Reply with quote

Been a long time since my last post. Kinda got diverted from working on the car by other things like boat maintenance and repair, fishing, house maintenance, etc. etc. Plus Iíve been lax in keeping my posting timely as repairs were completed.
Have spent some time over the past month or so on the nose of the car cutting out all the rusted areas and either making patch panels or purchasing repair panels and welding them in place. Repairs have been completed to the horn opening, fresh air vents, headlight surround sheet metal and top sections on both fenders. Below Iíve posted pictures showing the progress for each of these repair areas. Let me apologize in advance for the number of pictures posted. In each posting Iím trying to show the progression of the repair, and that takes more than just a few pictures.

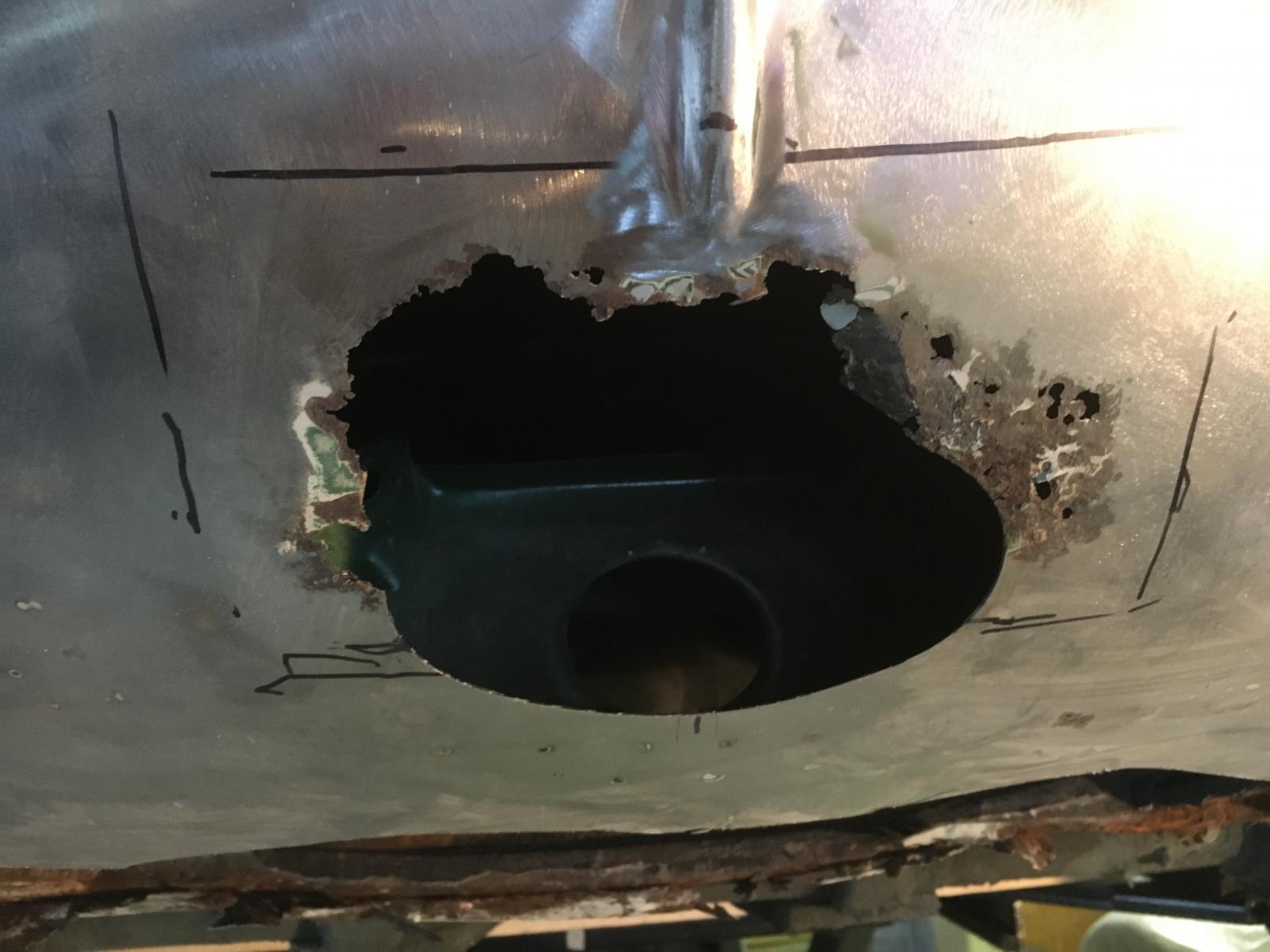

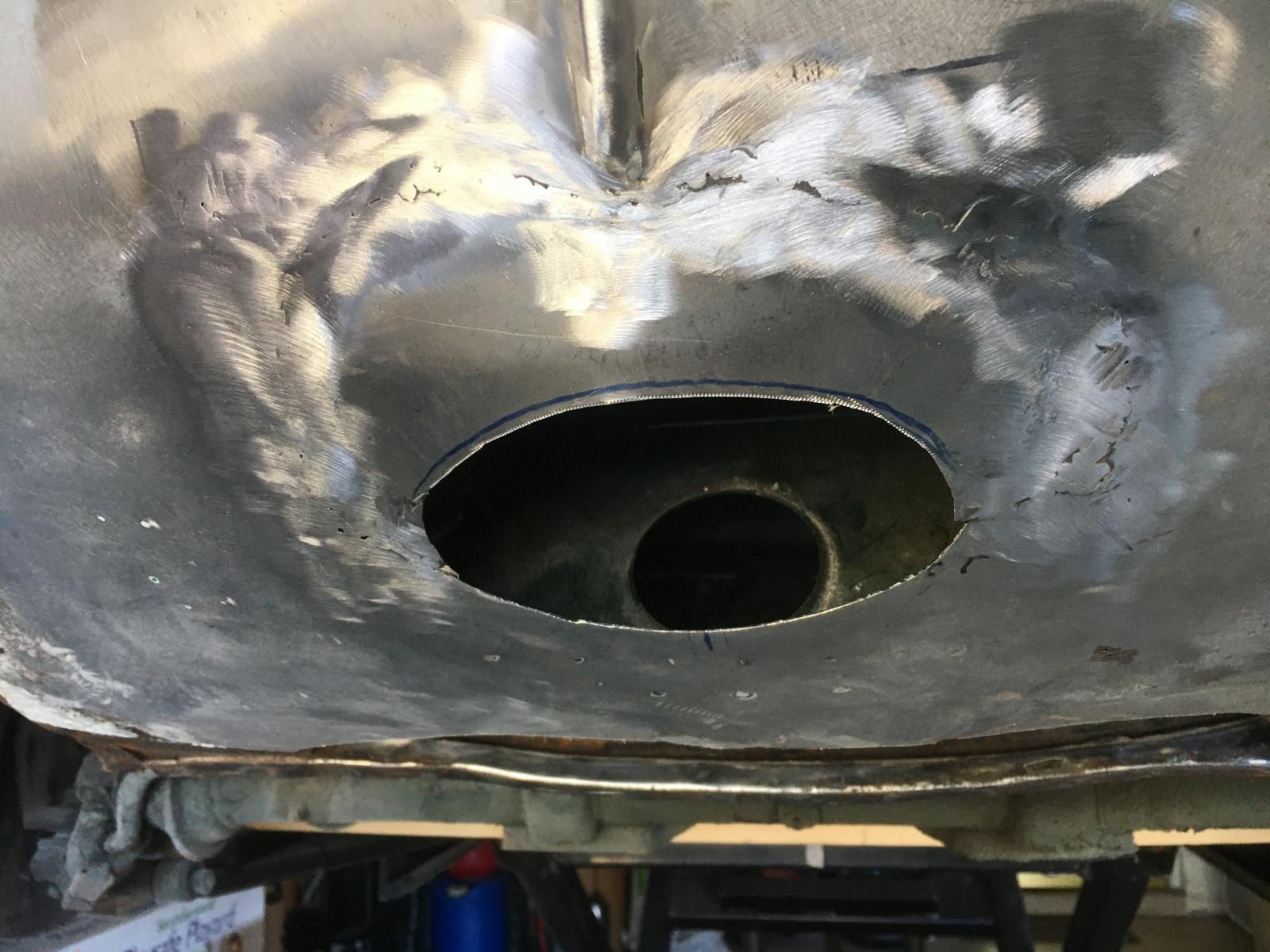

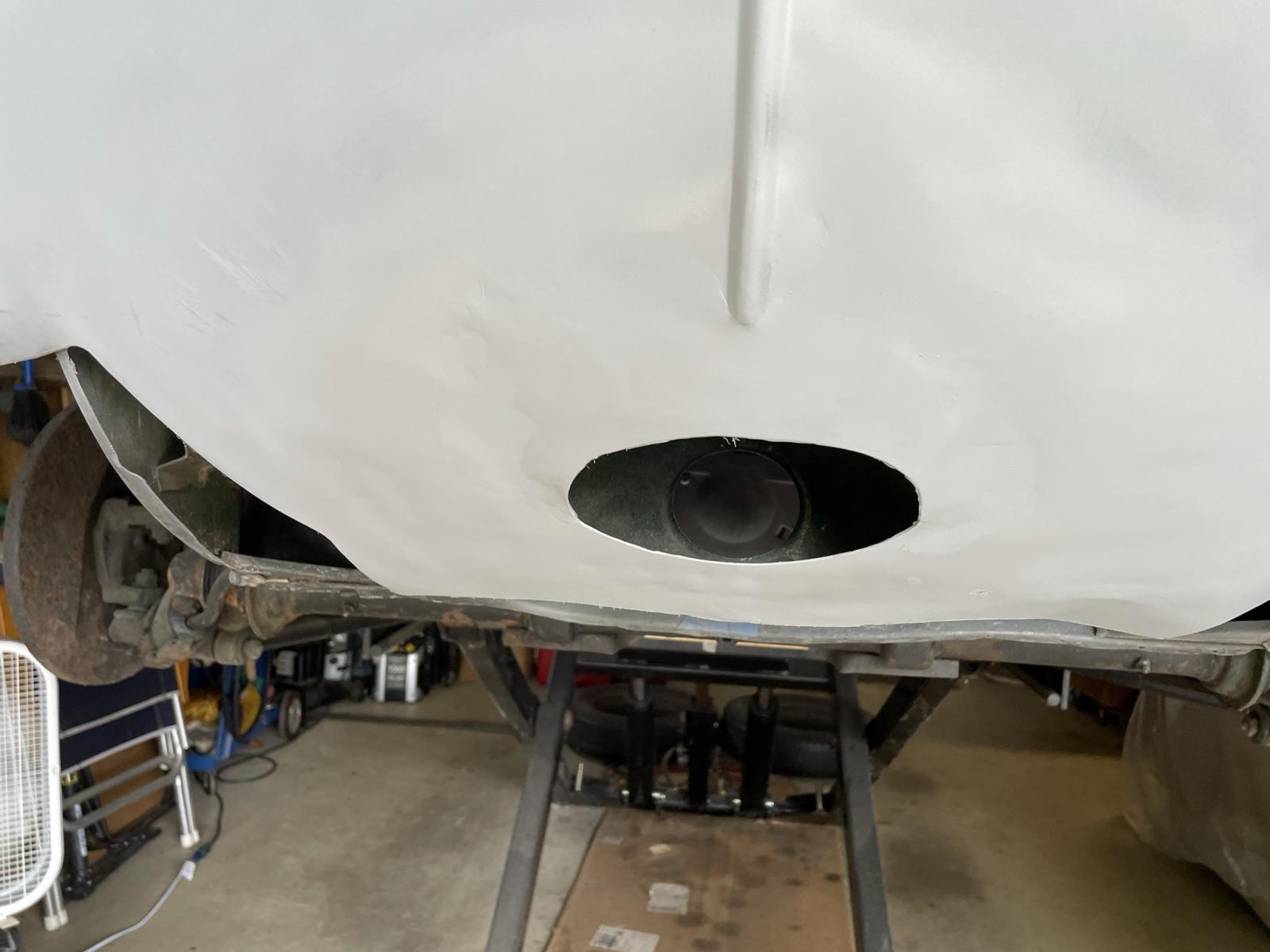

Pictures of the horn opening repair:
Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

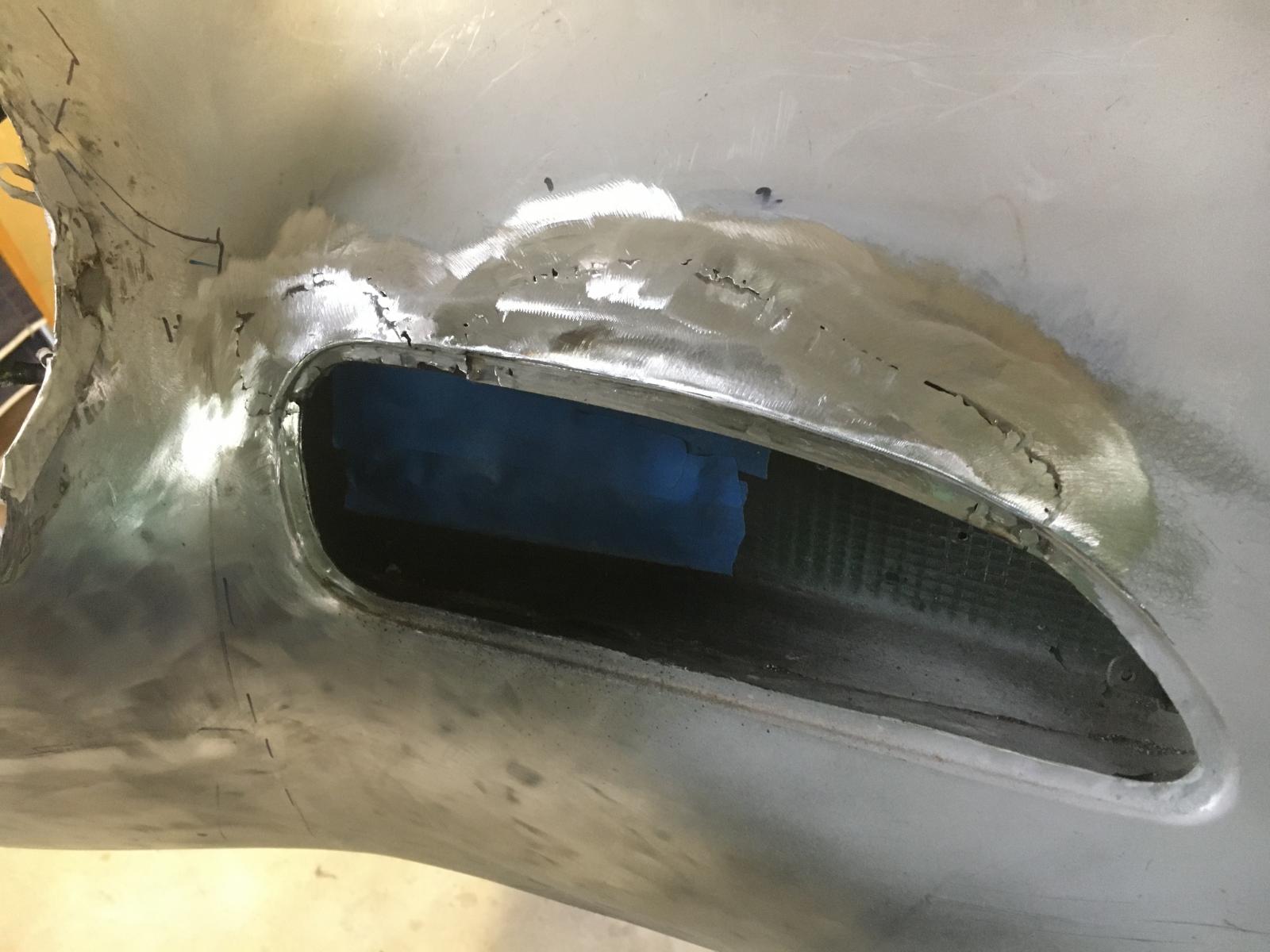

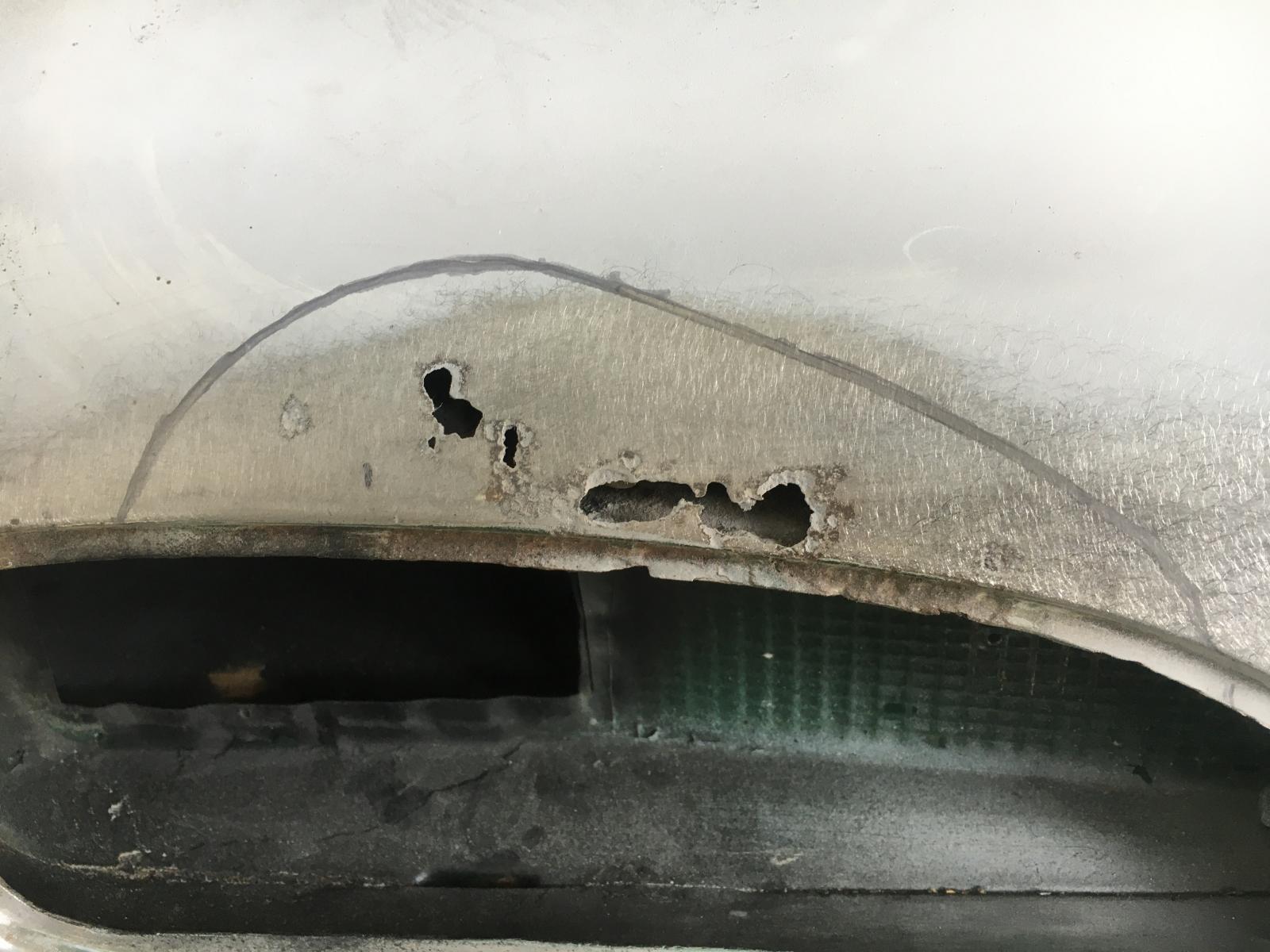

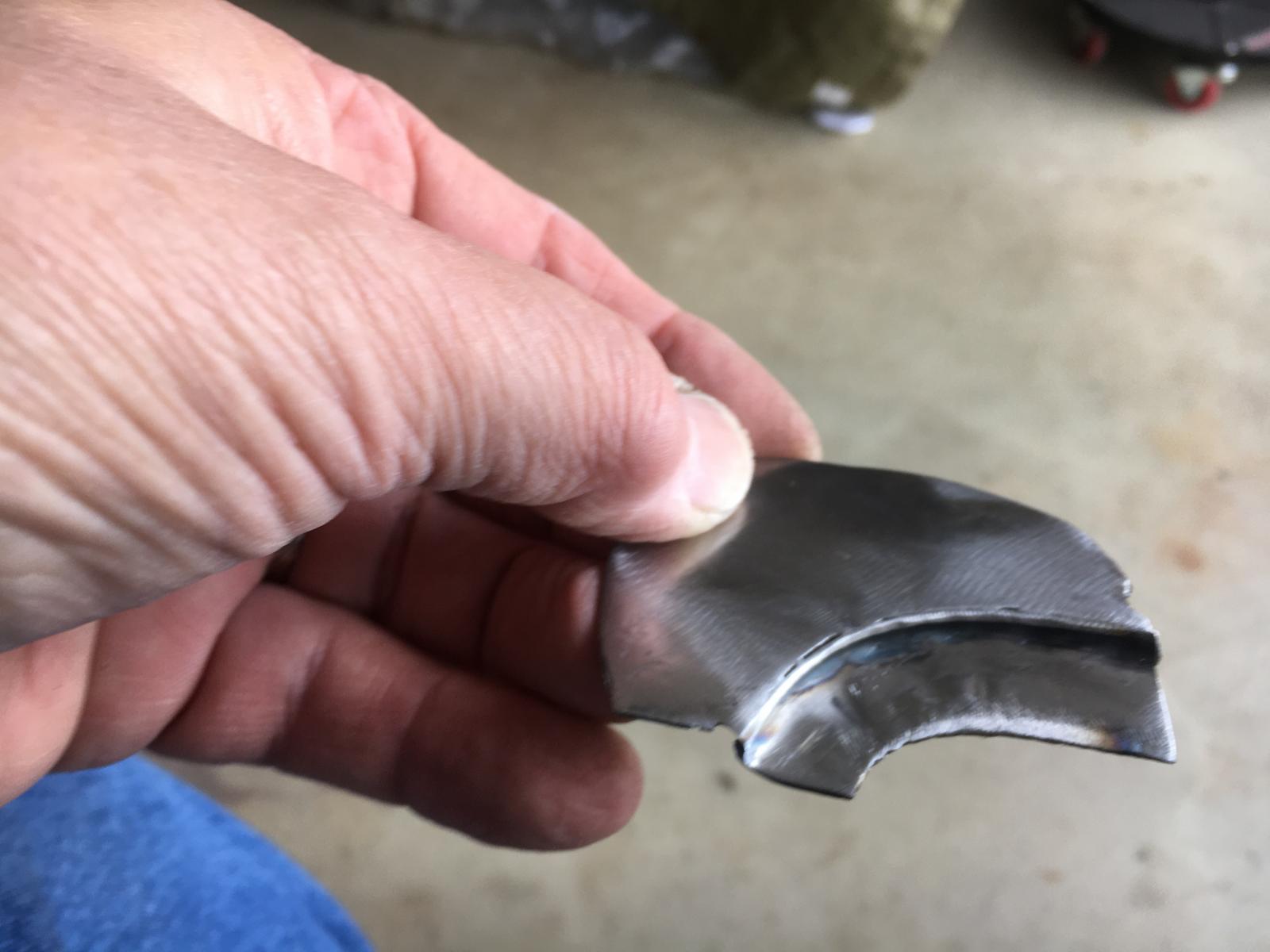

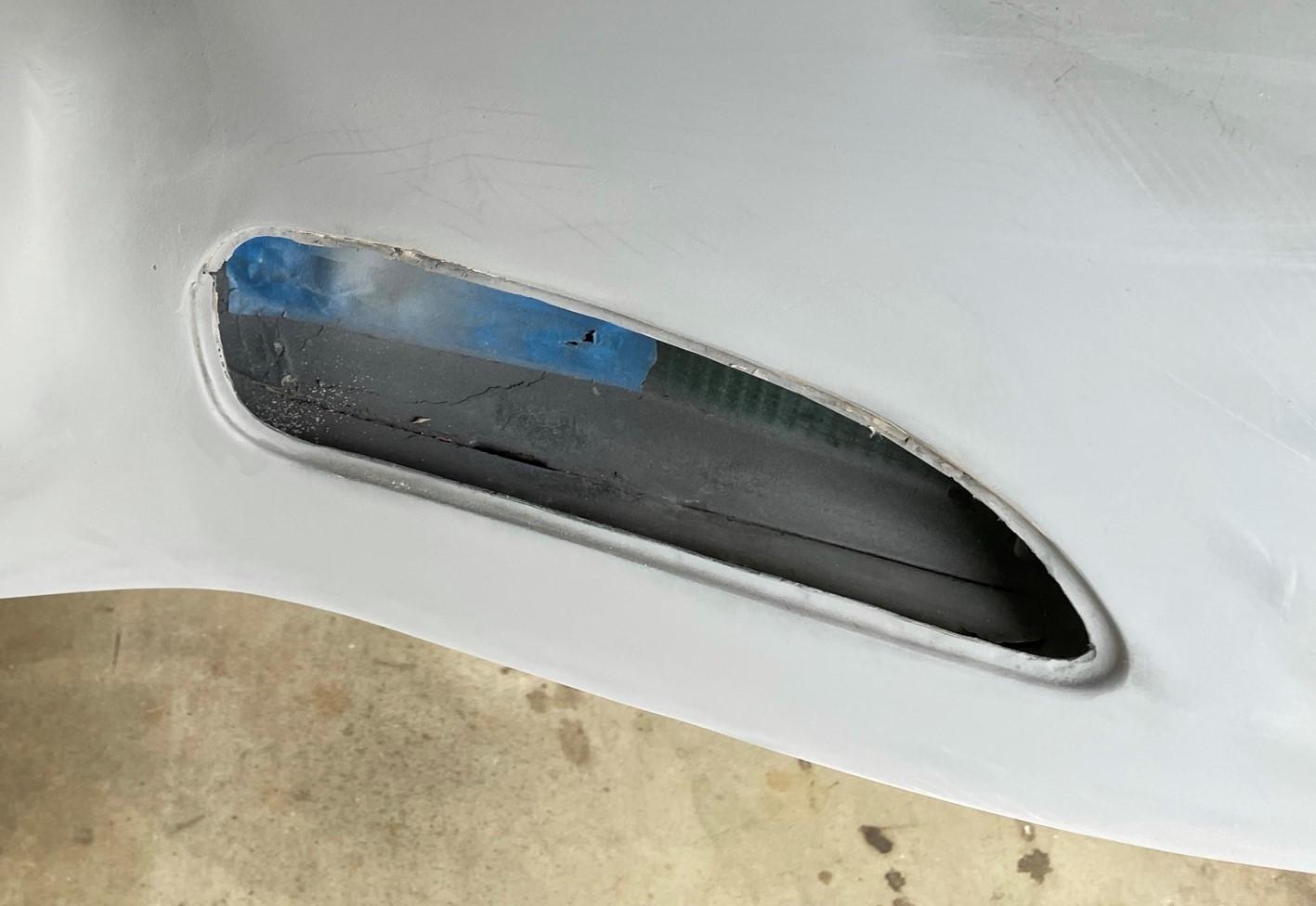

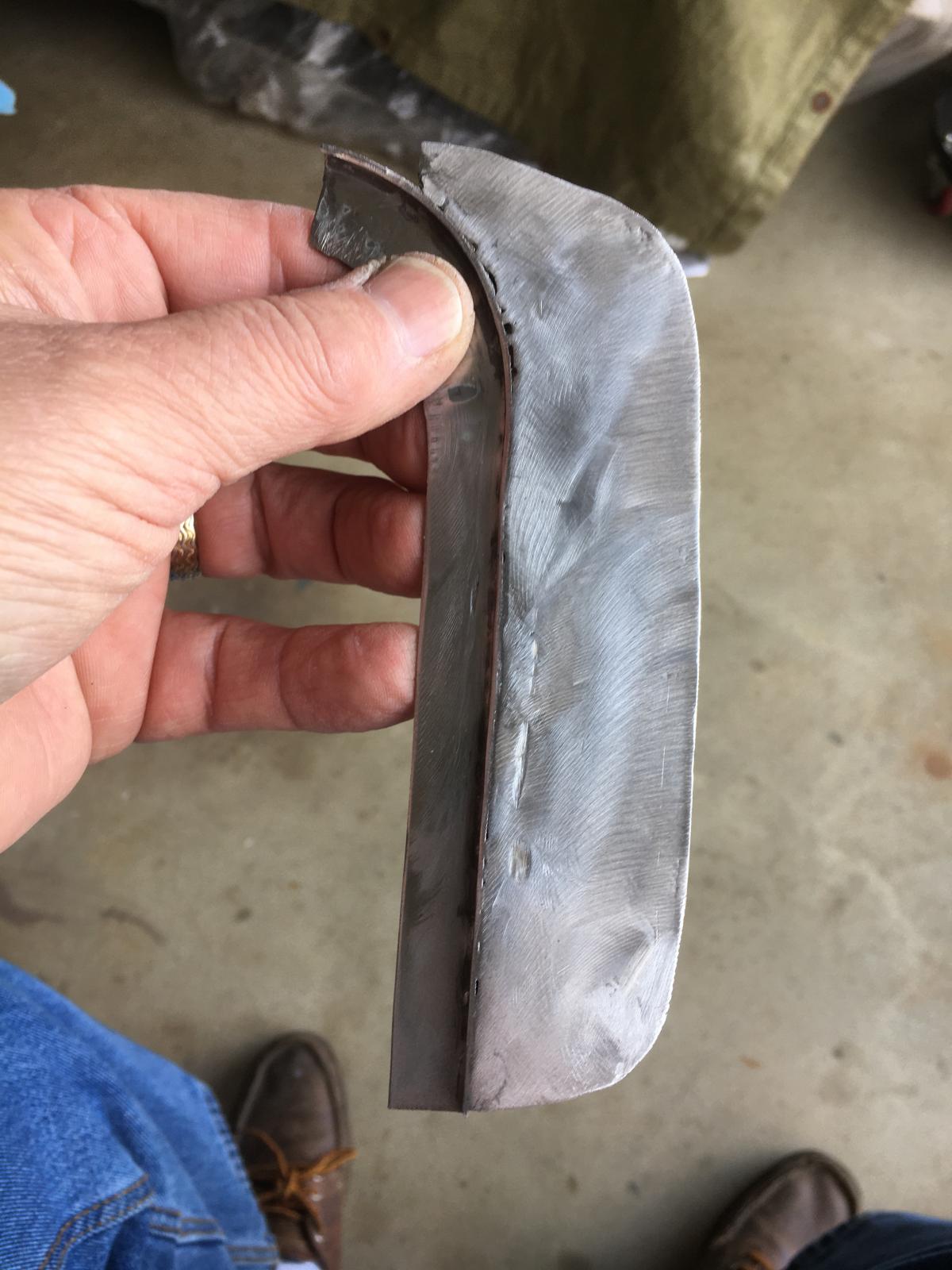

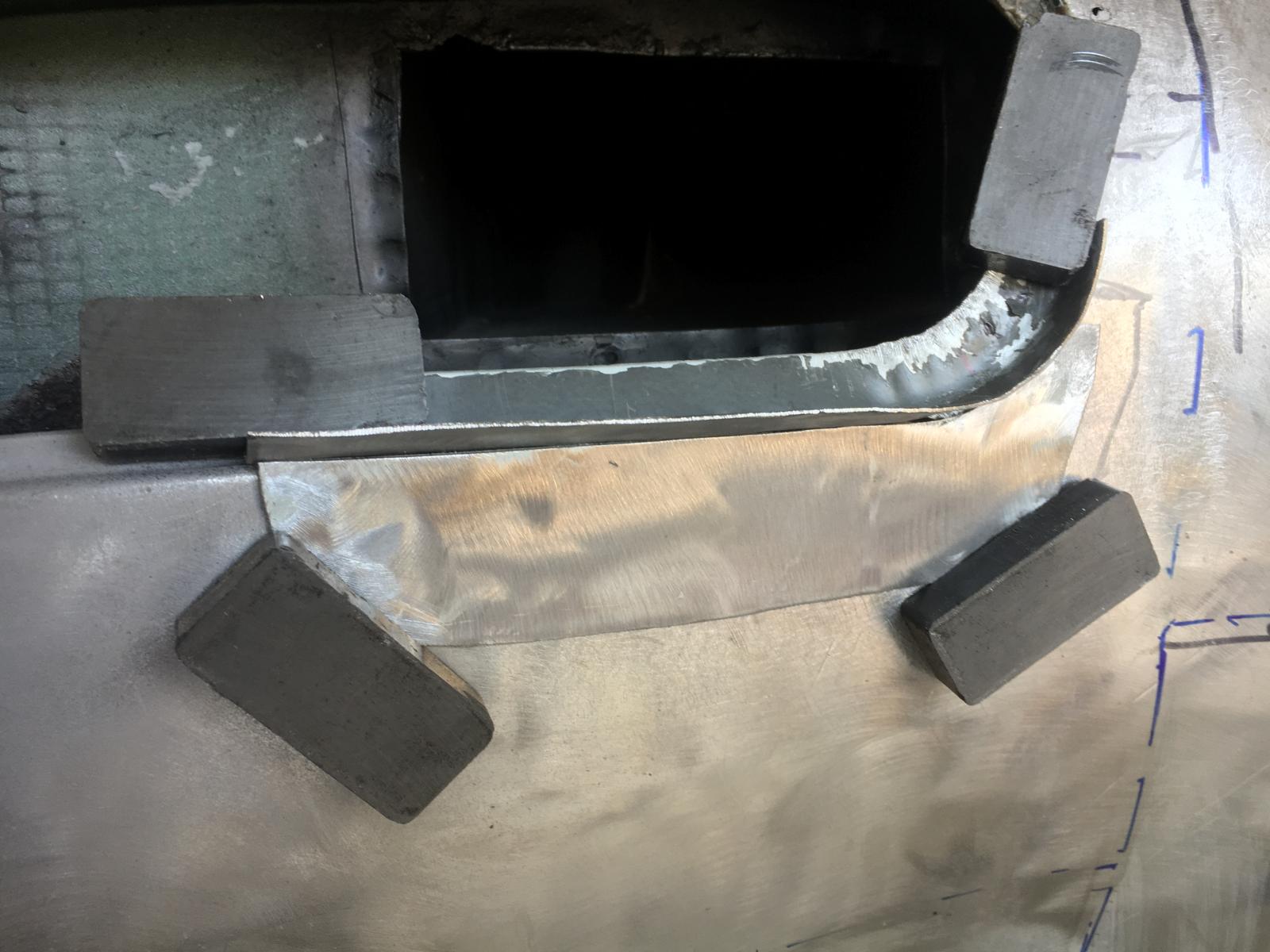

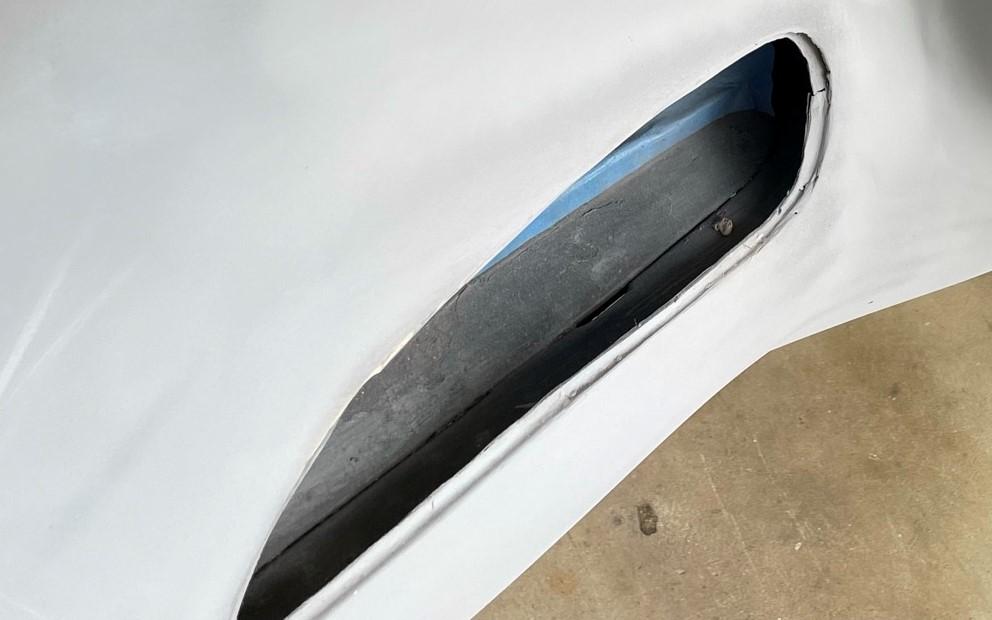

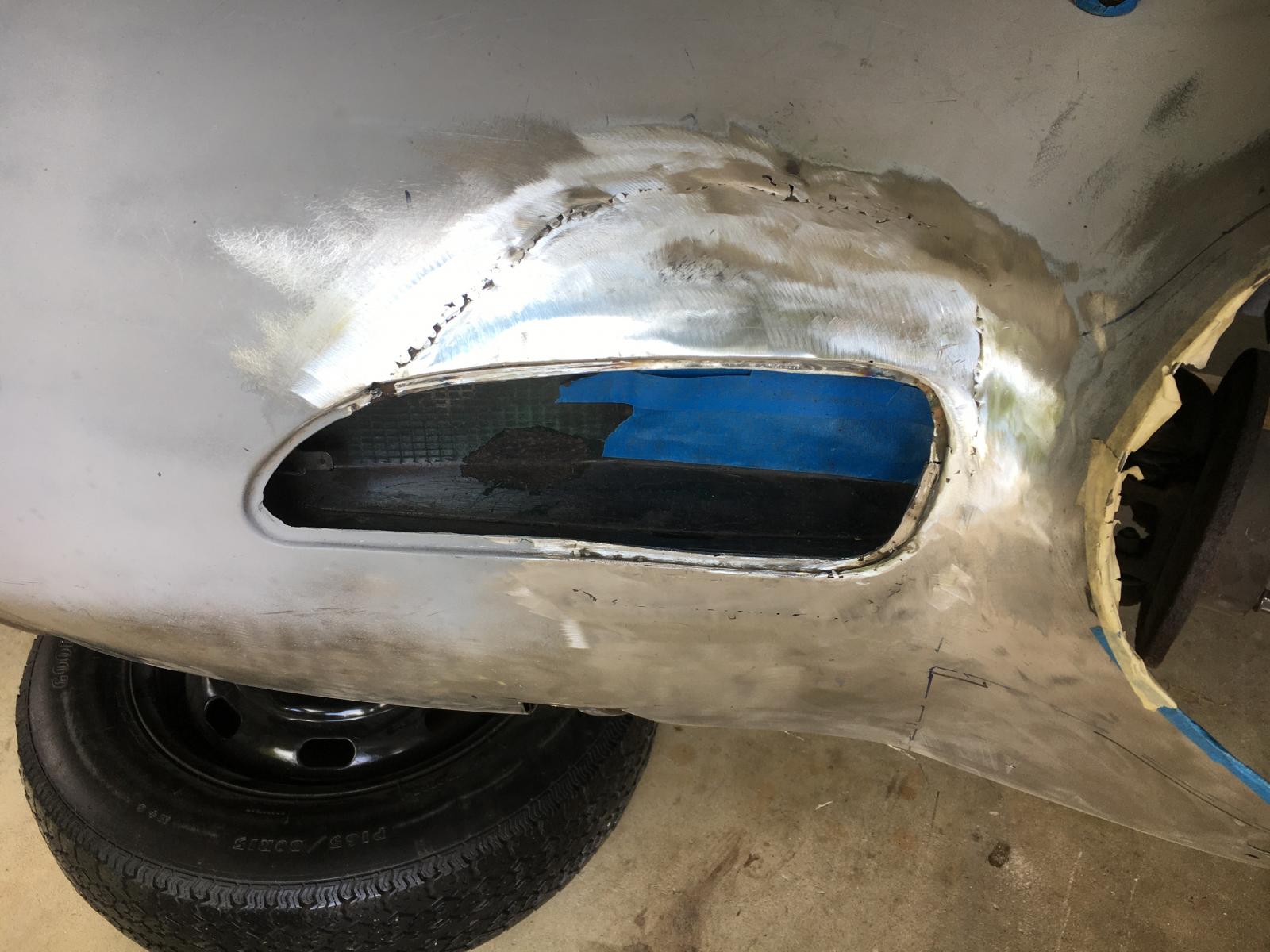

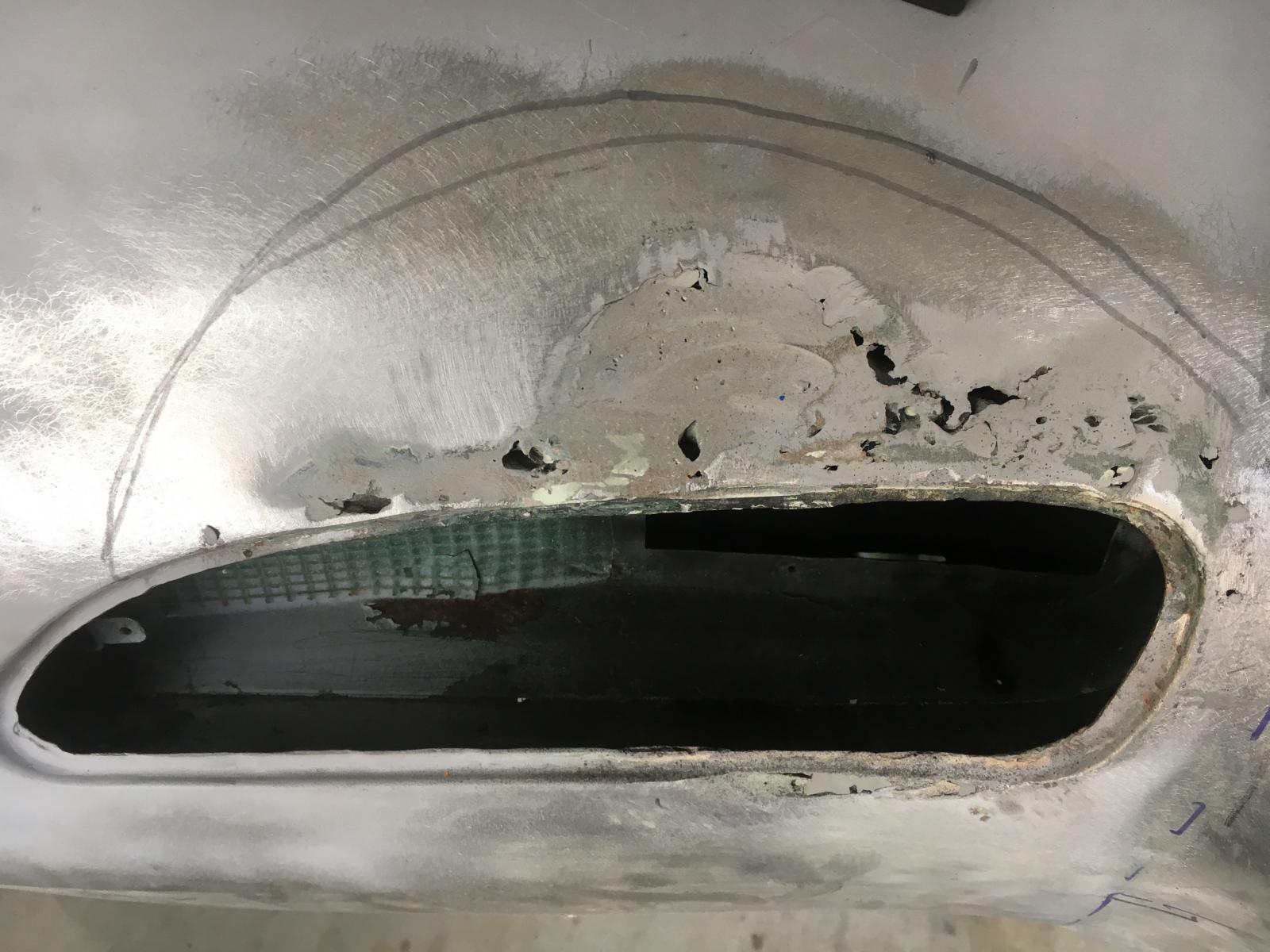

Pictures of the repair to the right fresh air vent:
Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

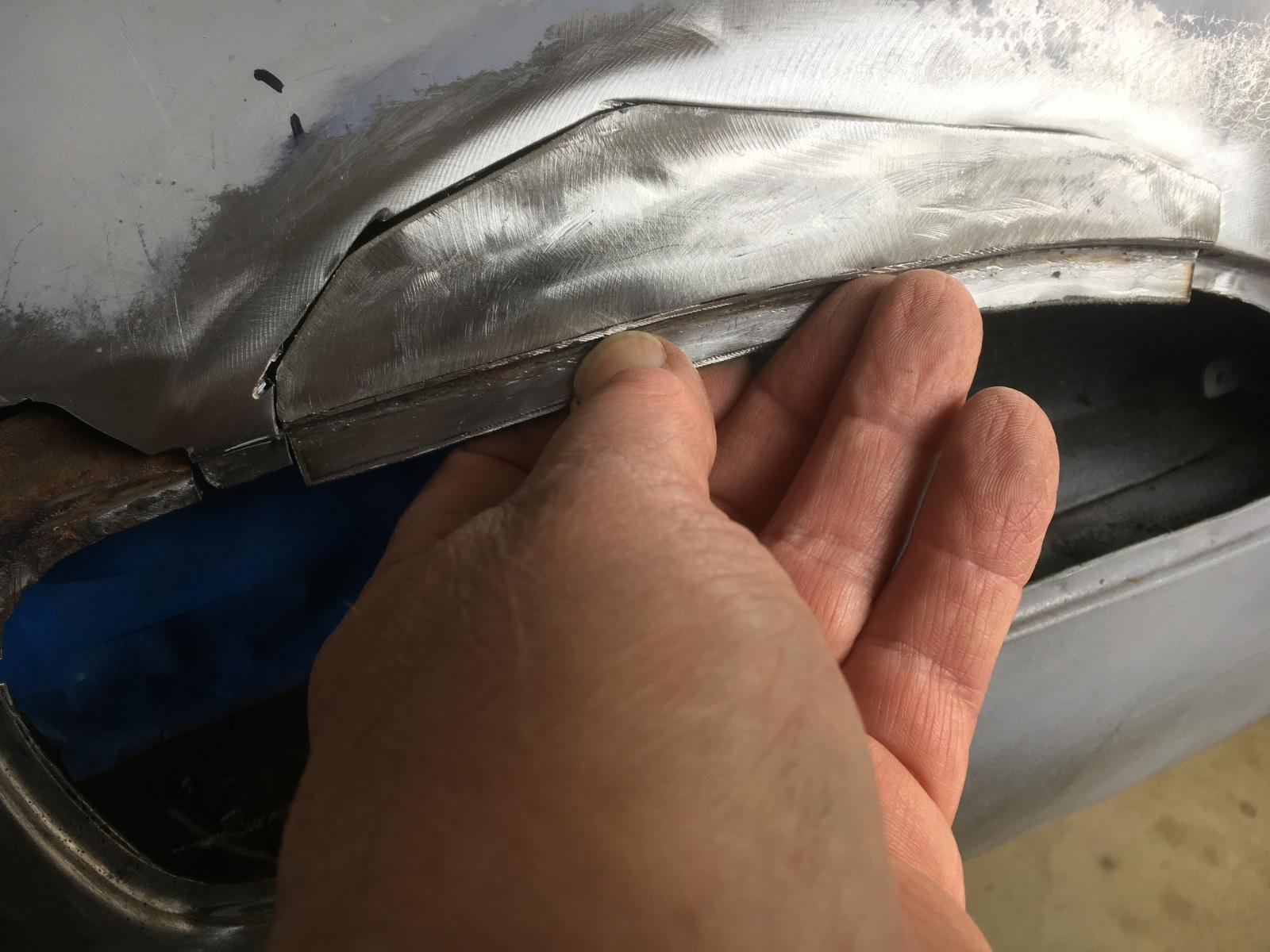

Pictures of the repair to the left fresh air vent:
Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

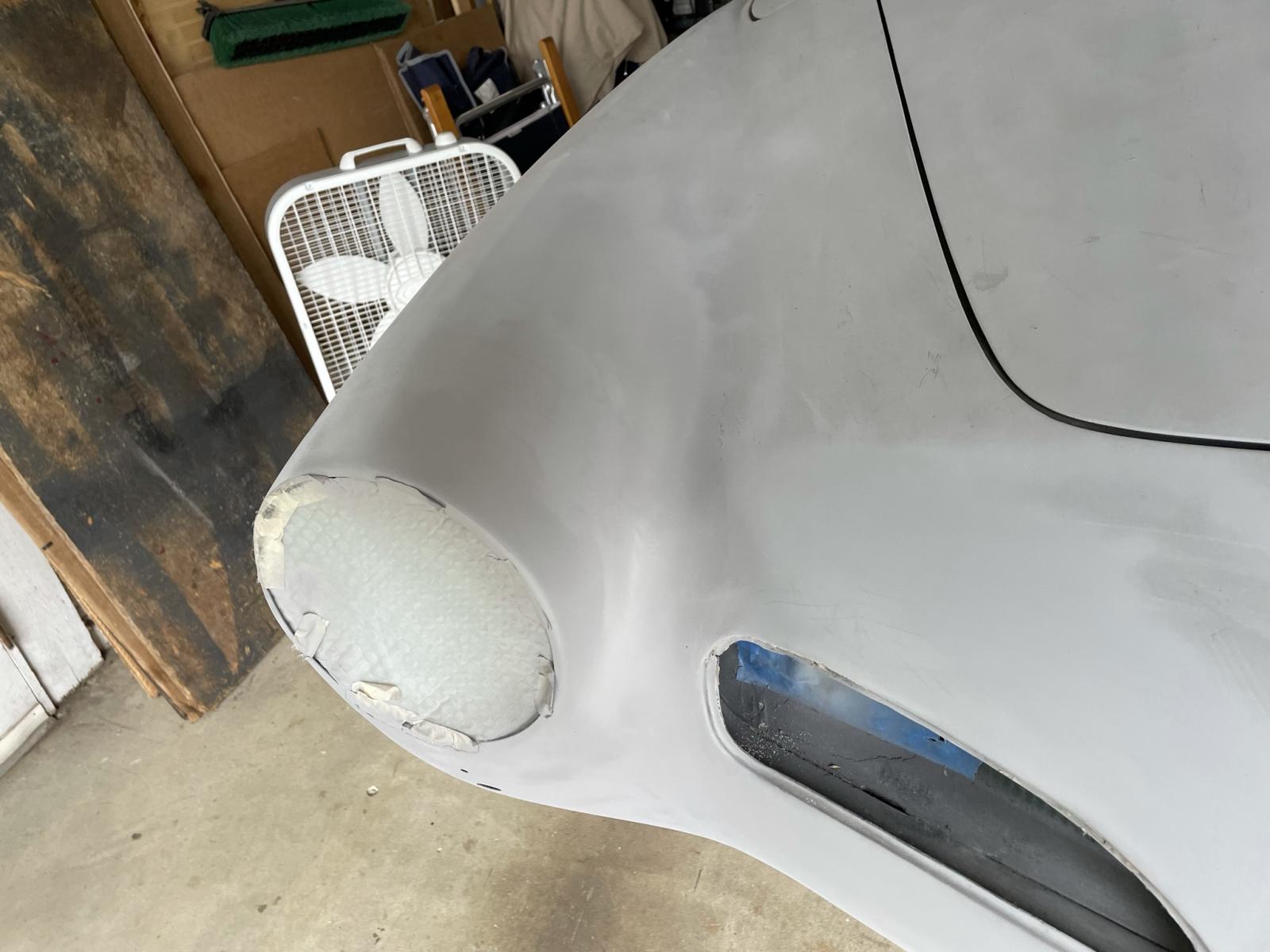

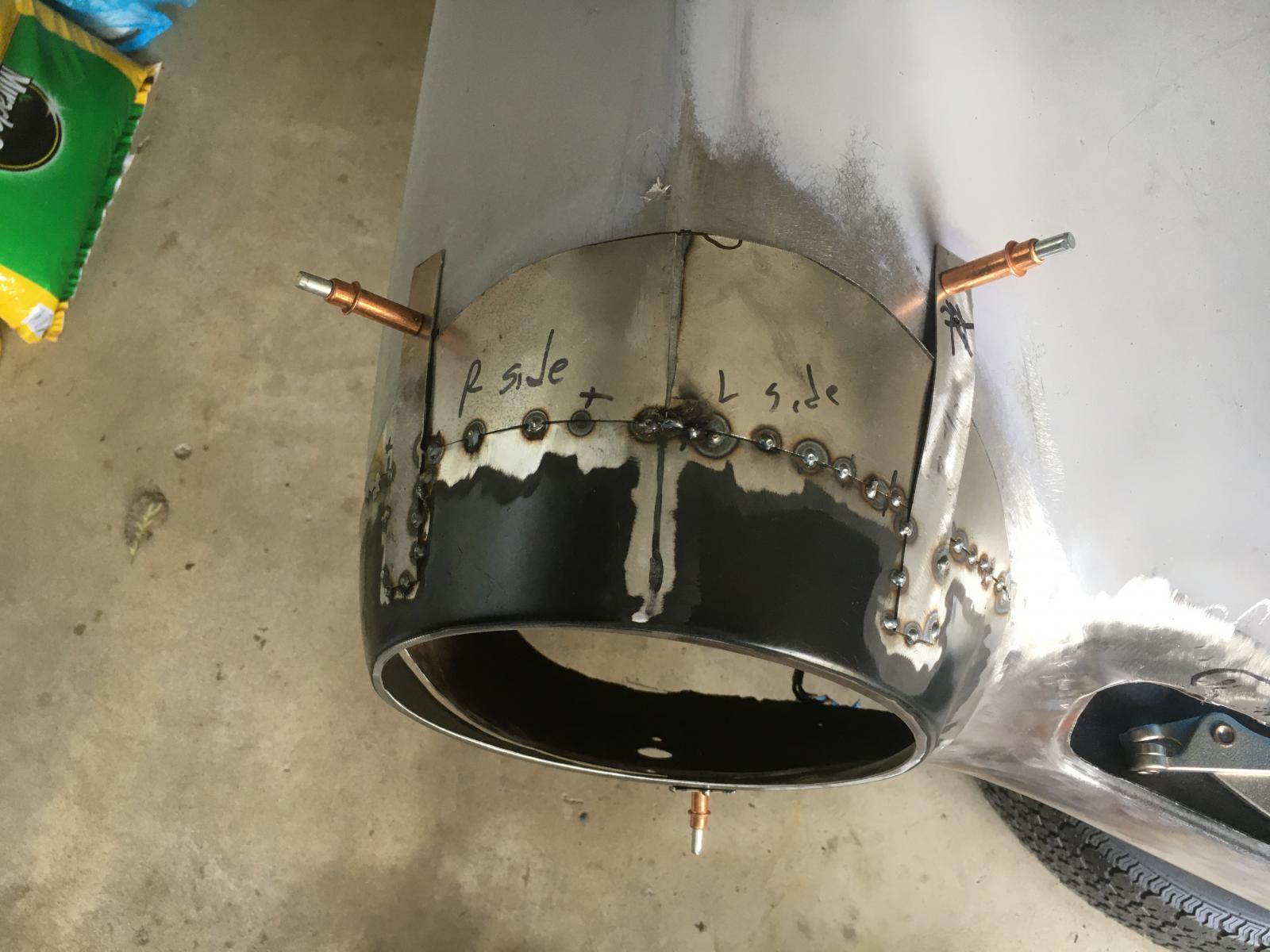

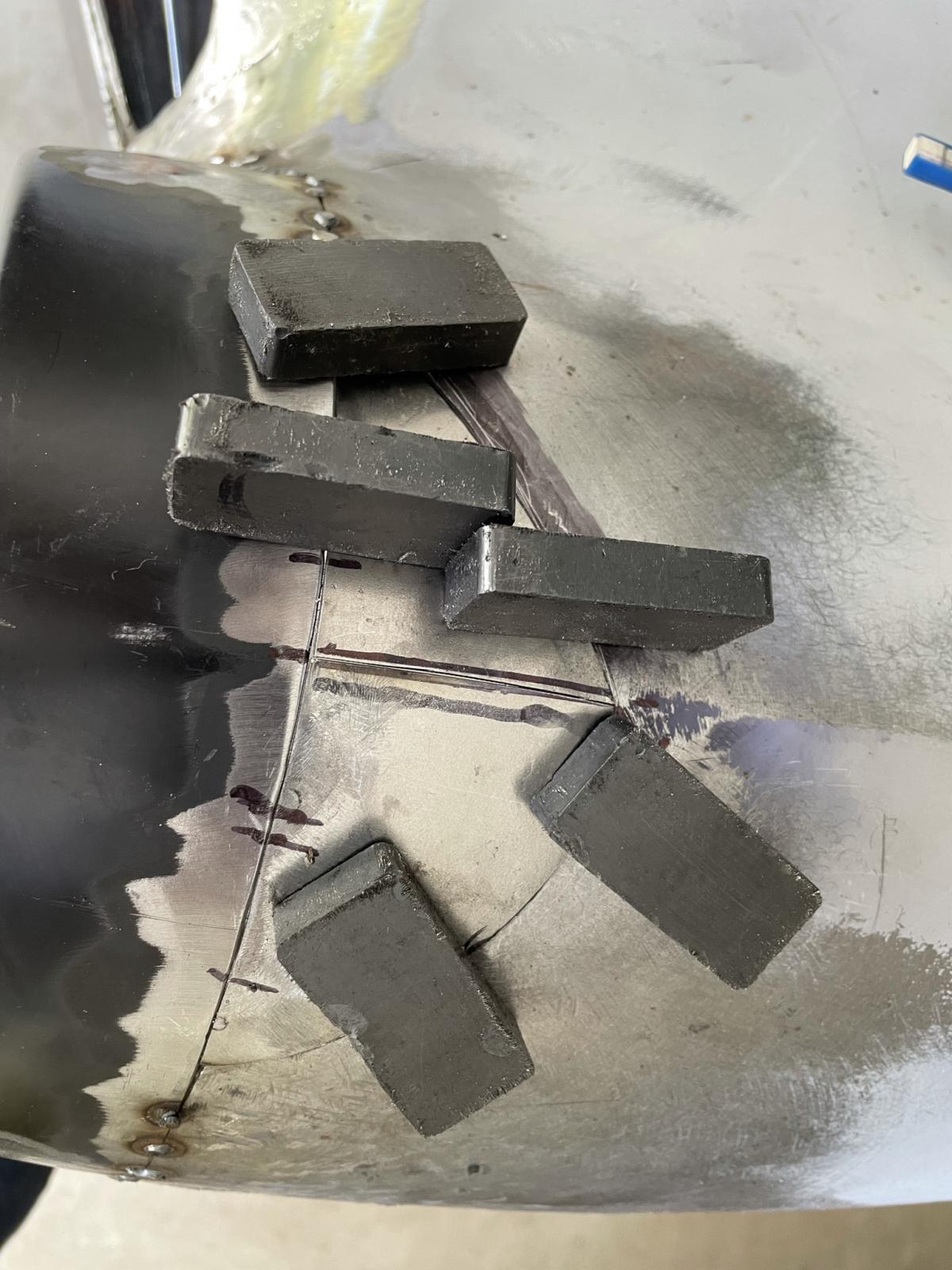

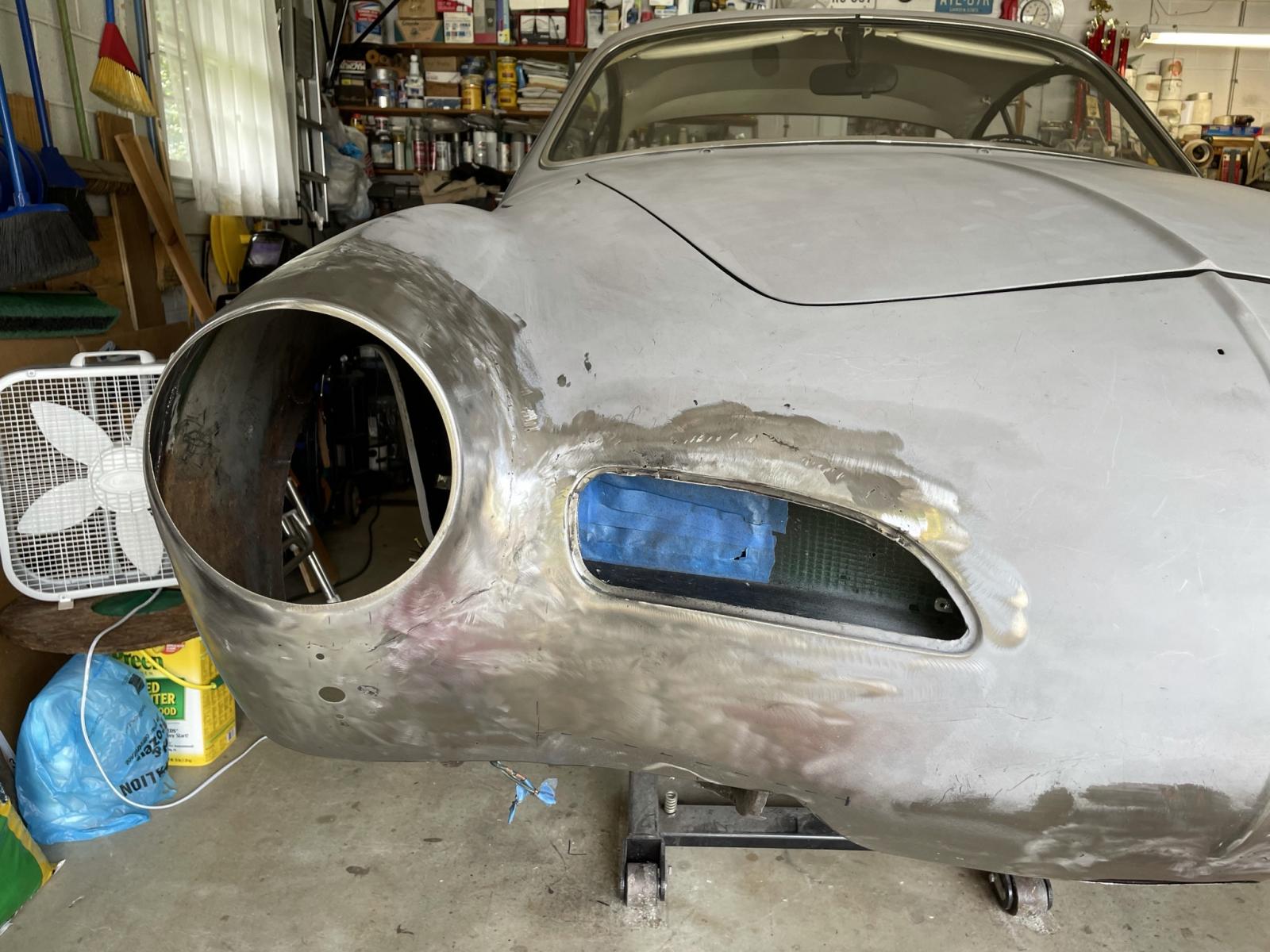

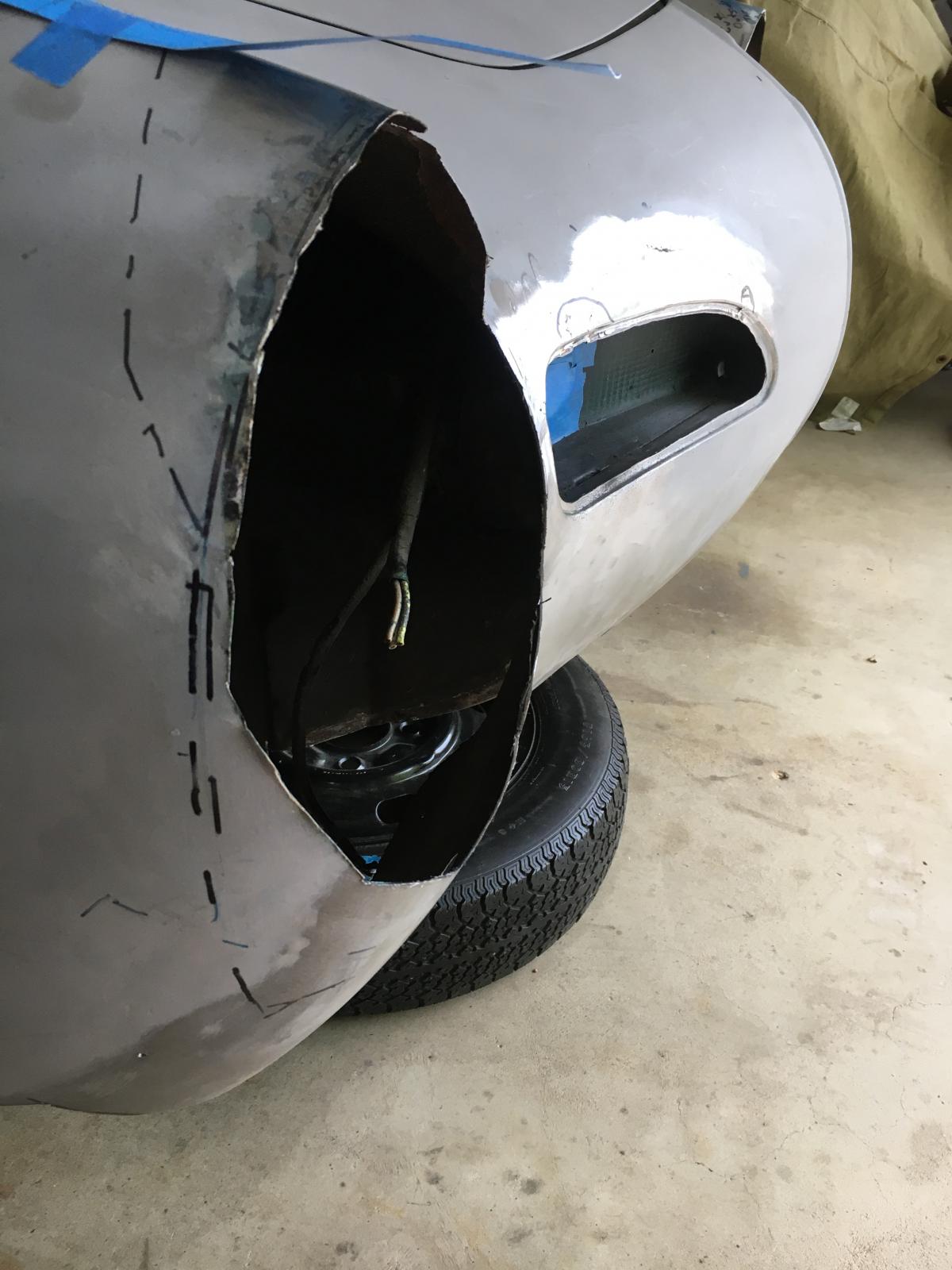

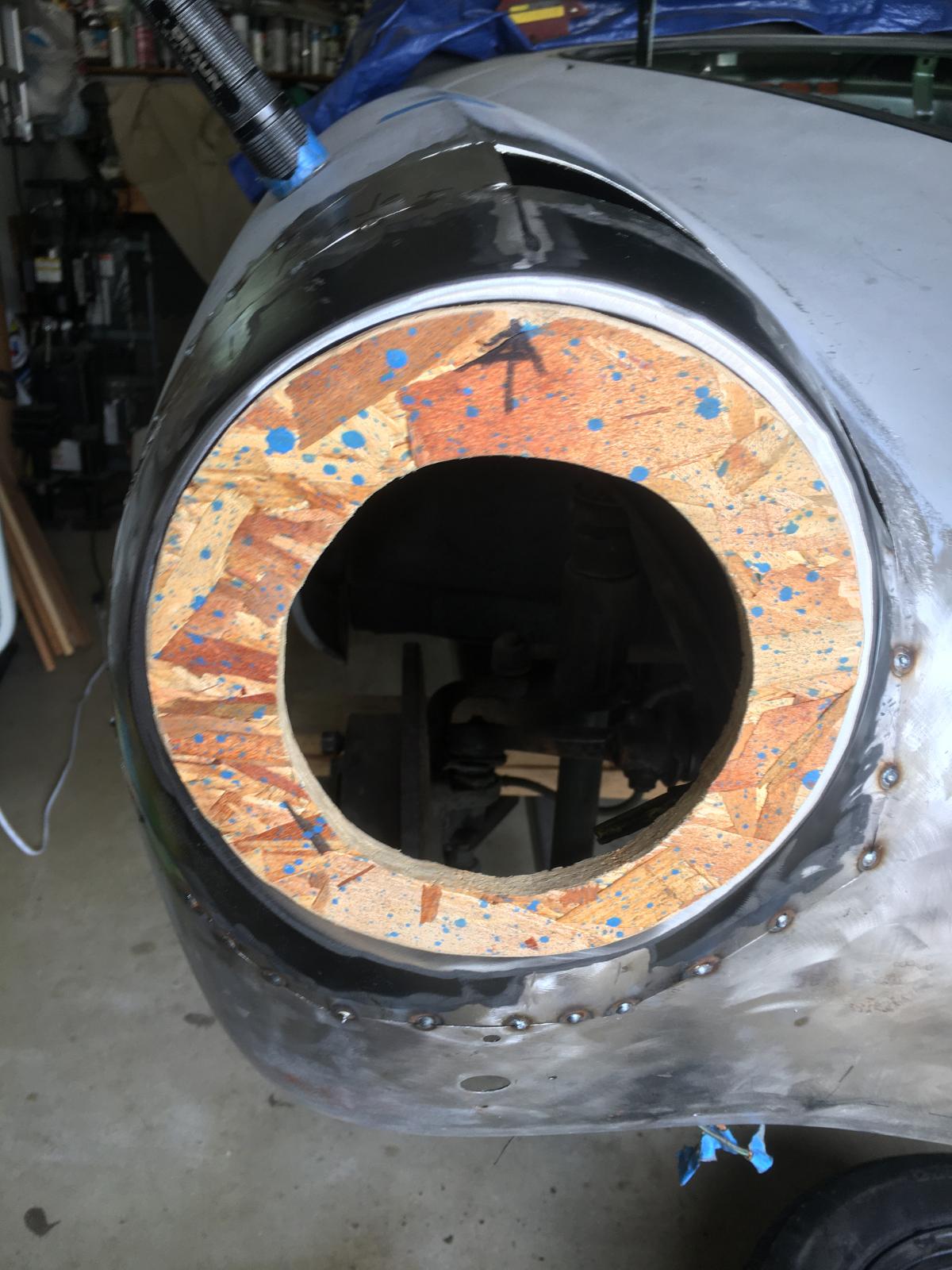

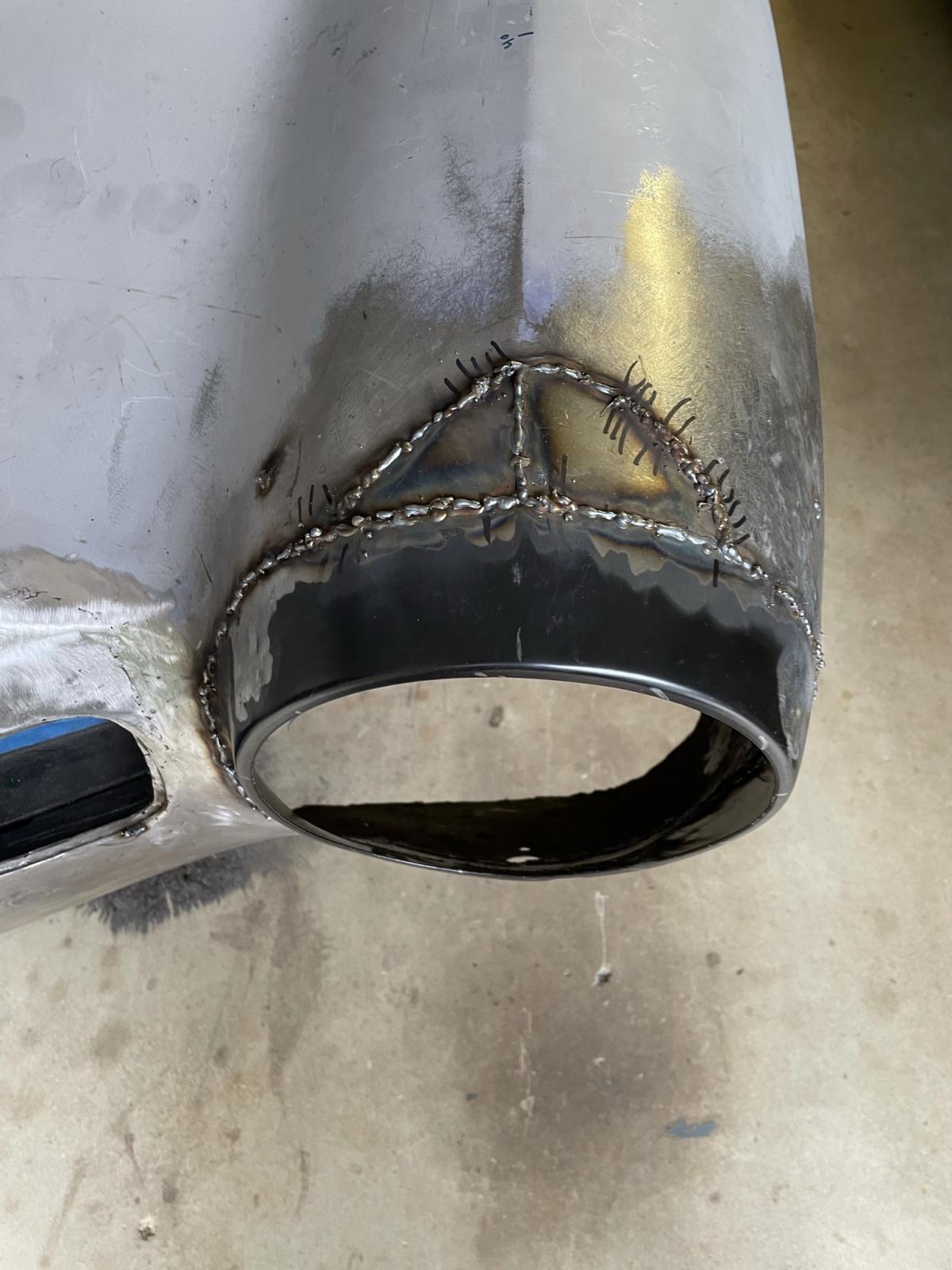

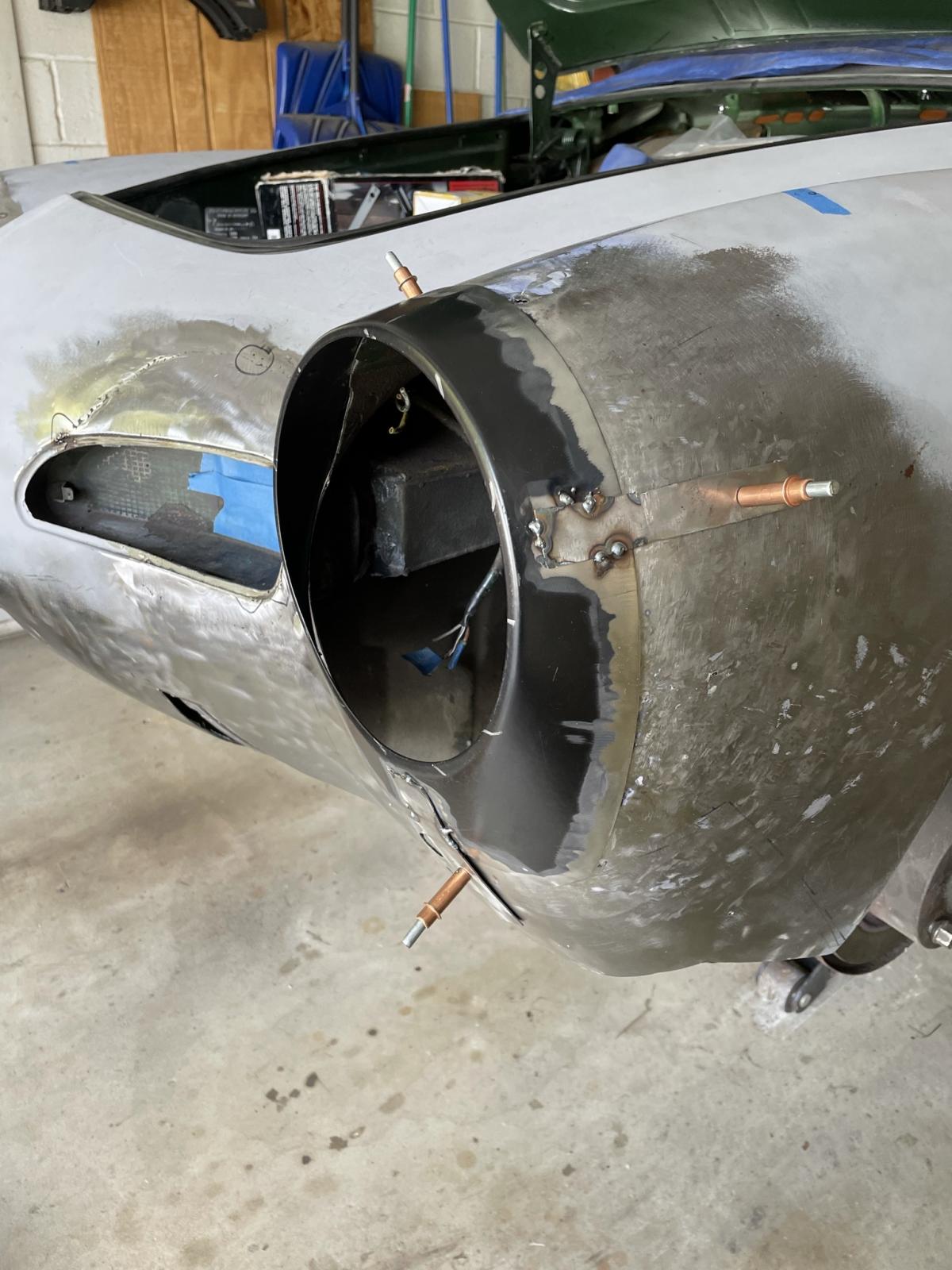

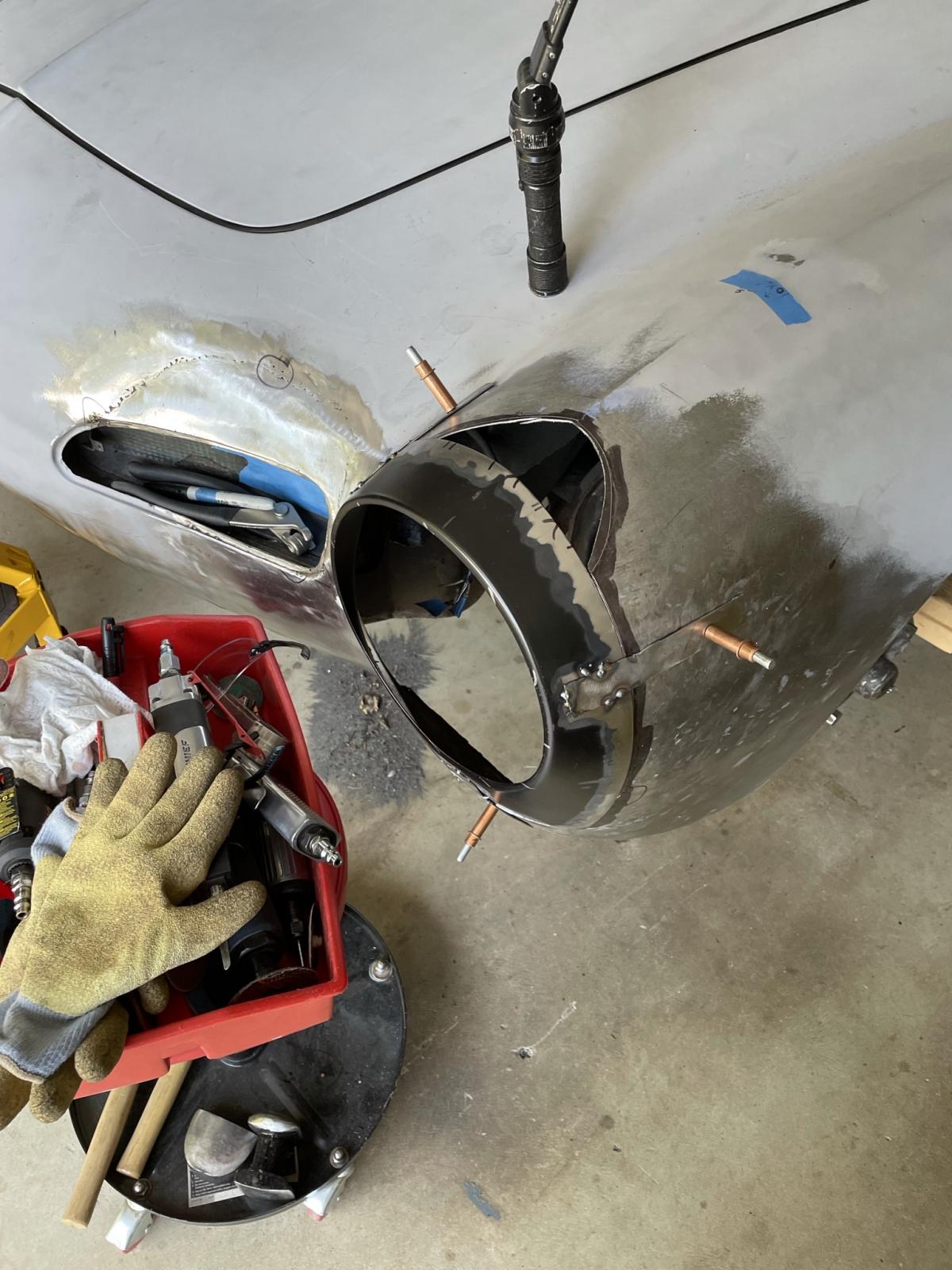

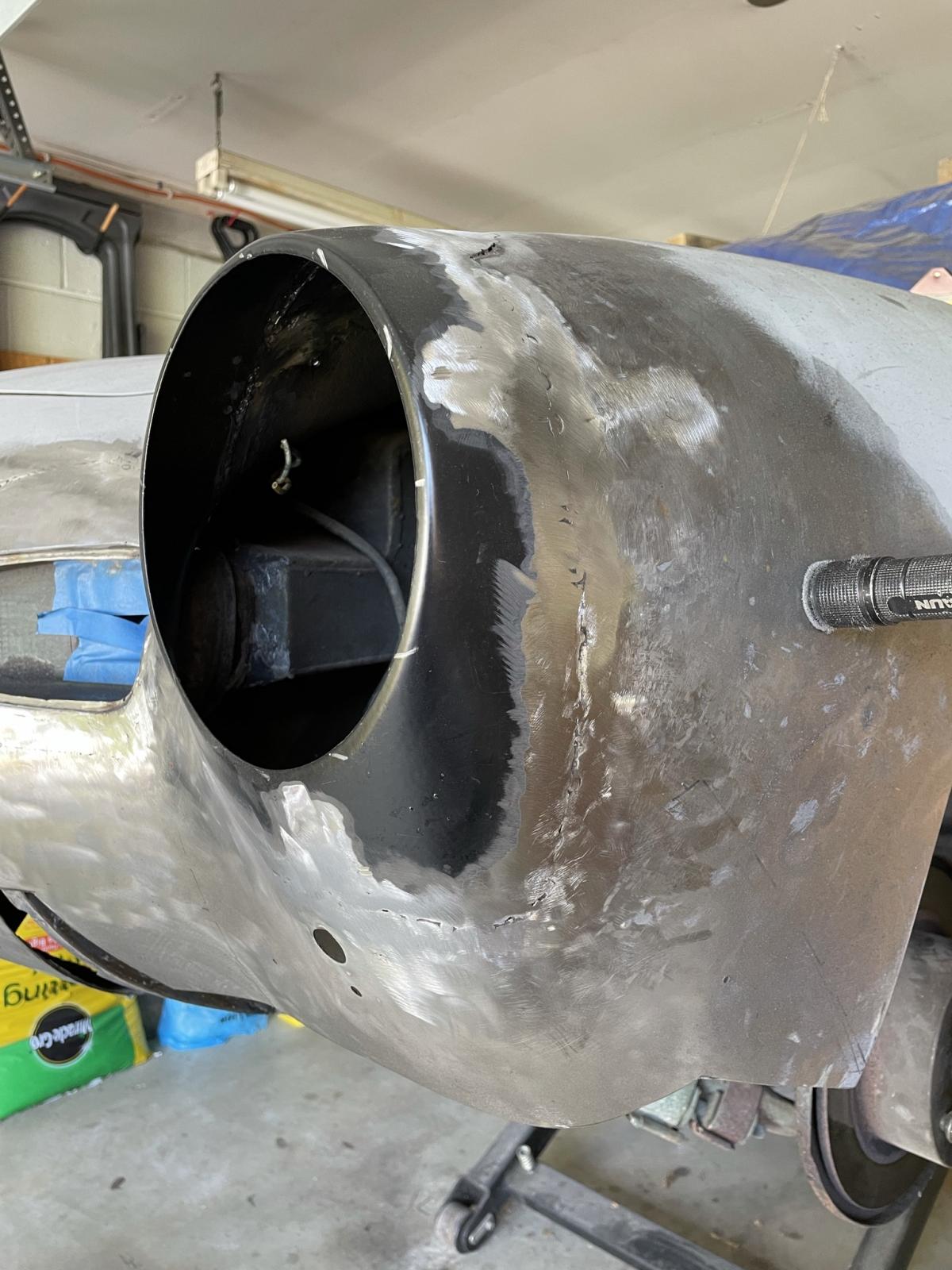

Pictures of left headlight surround area repair:
Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

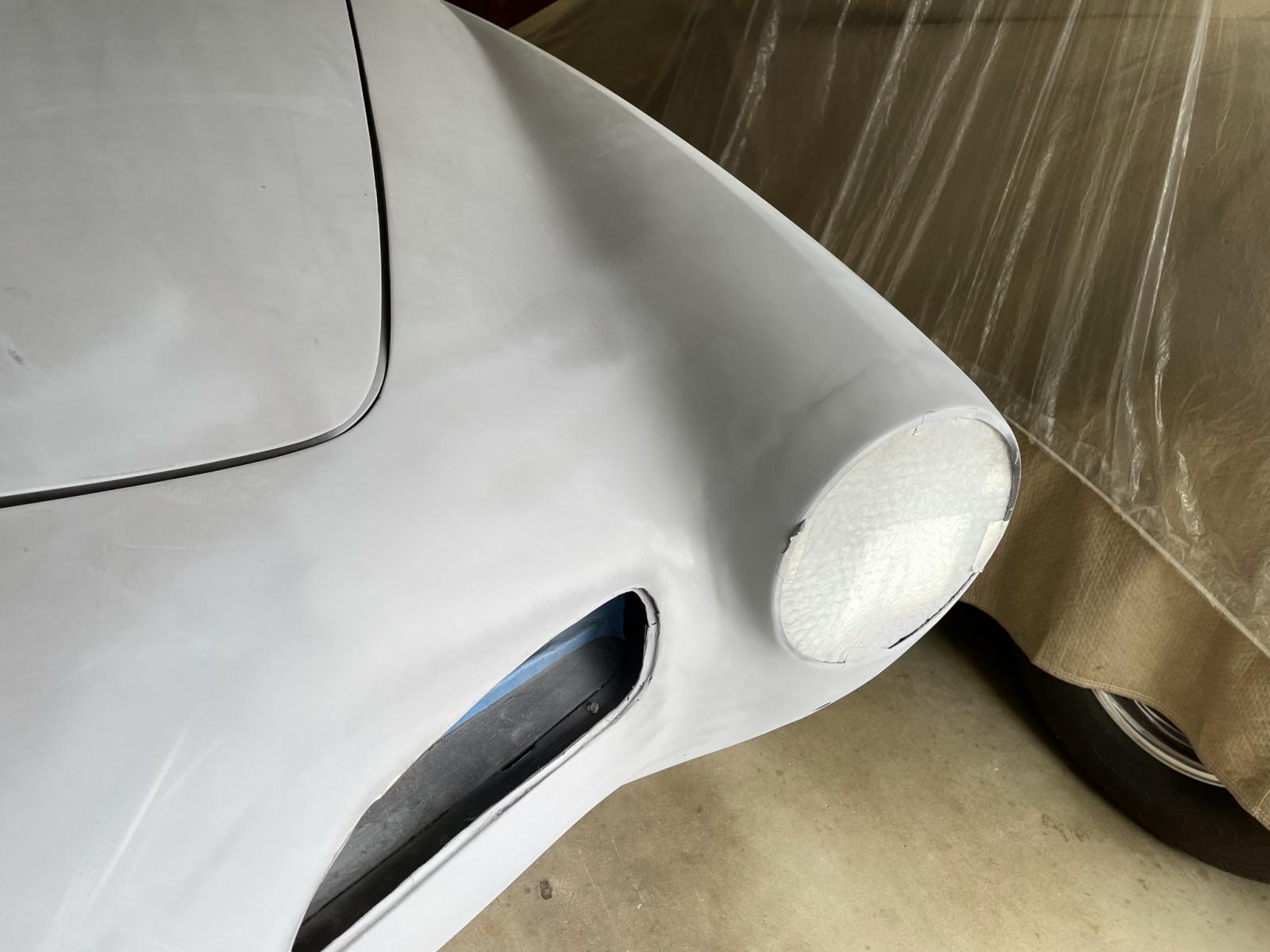

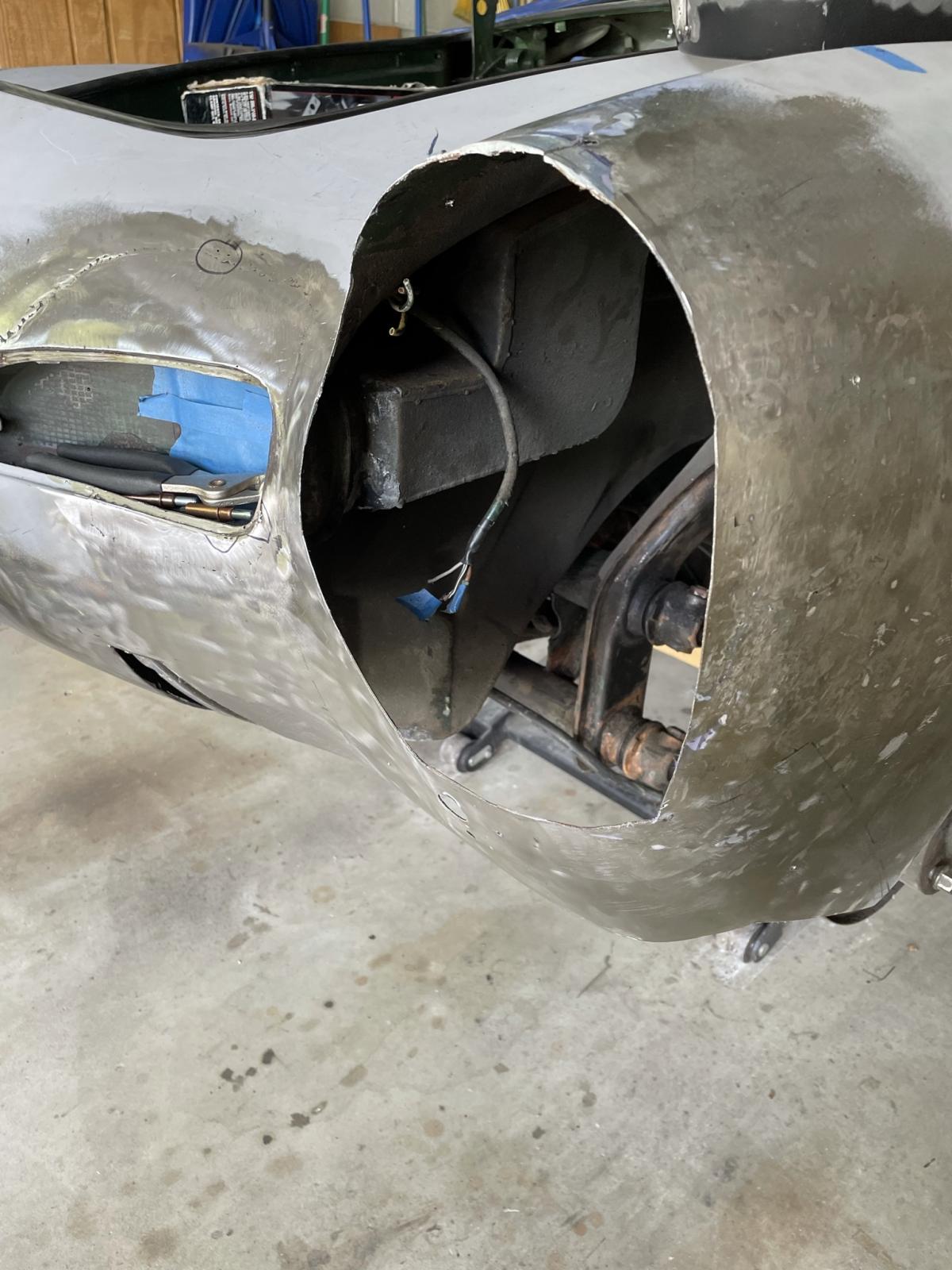

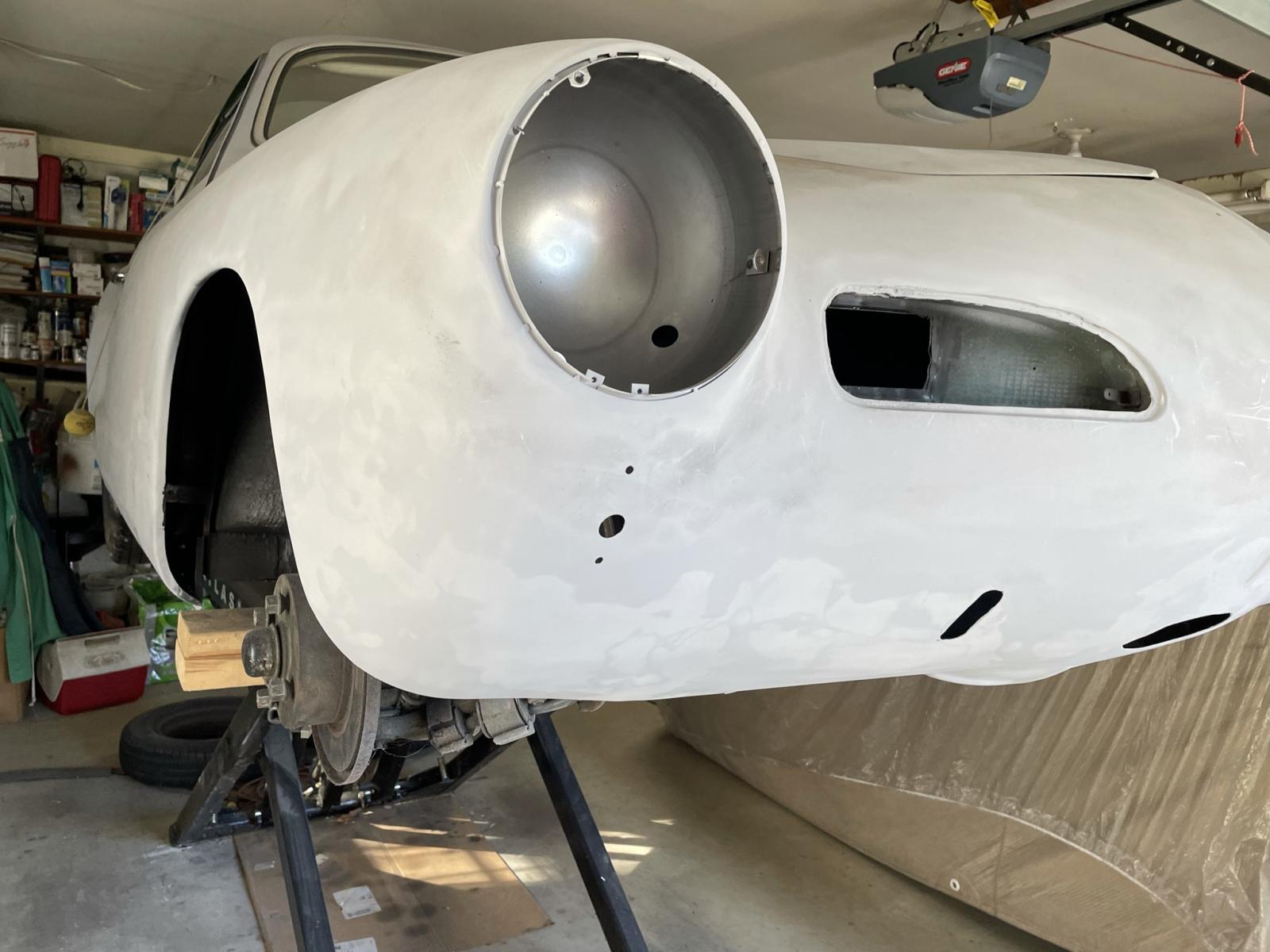

Pictures of right headlight surround area repair:
Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.


Next repairs will be to the lower sections of the nose and fender. Need to replace the lower apron / tire well sheet metal area and the bottom section of each fender below the headlight.
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
Marcdeb Premium Member
Samba Member


Joined: May 22, 2019
Posts: 2713
Location: Vermont
Marcdeb is offline

PostPosted: Thu Aug 26, 2021 3:50 pm    Post subject: Re: 1969 Karmann Ghia Auto Stick Restoration Reply with quote

You make it look easy, but I'm sure you have many hours invested. The work looks great.
_________________
Marc
68 Karmann Ghia Cabrio Autostick
71 Karmann Ghia Cabrio

Previously Owned:
2011 VW EOS Hard Top Conv
2008 Saab 9-3 2.0T Conv
2003 Saab 9-3 SE Conv
2001 Saab 9-3 Conv
1998 BMW 3 Series Conv
1997 Saab 900 Conv
1997 Mazda Miata

68 Ghia Vert Survivor with 22,350 miles: https://www.thesamba.com/vw/forum/viewtopic.php?t=768107&highlight=
71 Ghia Vert Restoration: https://www.thesamba.com/vw/forum/viewtopic.php?t=726710&postorder=asc
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
Legacy
Samba Member


Joined: October 26, 2008
Posts: 203
Location: Charlotte Hall, MD
Legacy is offline

PostPosted: Thu Aug 26, 2021 3:54 pm    Post subject: Re: 1969 Karmann Ghia Auto Stick Restoration Reply with quote

Marcdeb wrote:
You make it look easy, but I'm sure you have many hours invested. The work looks great.


Thanks for the kind words but as my wife has heard me say numerous times "nothing is easy when it comes to restoring her car".
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
Zack1978
Samba Member


Joined: June 07, 2006
Posts: 538
Location: NJ
Zack1978 is offline

PostPosted: Thu Aug 26, 2021 6:48 pm    Post subject: Re: 1969 Karmann Ghia Auto Stick Restoration Reply with quote

Amazing work!! You should be very impressed with all that you have done.
_________________
1972 Coupe
Back to top
View user's profile Send private message Gallery Classifieds Feedback
sputnick60
Samba Moderator


Joined: July 22, 2007
Posts: 3779
Location: Near Rectilinear Halo Orbit
sputnick60 is offline

PostPosted: Fri Aug 27, 2021 2:10 am    Post subject: Re: 1969 Karmann Ghia Auto Stick Restoration Reply with quote

My Karmann built 356C was just like yours.... rust in all the wrong places
You're doing a fine job with yours
Nicholas
_________________
'66 Karmann Ghia Cabriolet...
'65 Porsche 356C Coupe...
2005 Mecedes Benz C180 Kompressor Estate
Stop dead photo links! Post your photos to The Samba Gallery!


Last edited by sputnick60 on Fri Aug 27, 2021 4:25 pm; edited 1 time in total
Back to top
View user's profile Send private message Gallery Classifieds Feedback
kingkarmann Premium Member
Samba Member


Joined: November 05, 2003
Posts: 4062

kingkarmann is offline

PostPosted: Fri Aug 27, 2021 7:14 am    Post subject: Re: 1969 Karmann Ghia Auto Stick Restoration Reply with quote

There are few real metalsmiths around. You are part of a rare breed.
Very nice Cool
_________________
"Who died and made you king of anything?"
Sara Bareilles

"Ego is the anesthesia that deadens the pain of Stupidity."
Rick Rigsby

Life is what we pay attention to...
Samba retirement is near, how does your story end?
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Legacy
Samba Member


Joined: October 26, 2008
Posts: 203
Location: Charlotte Hall, MD
Legacy is offline

PostPosted: Wed Sep 22, 2021 5:30 am    Post subject: Re: 1969 Karmann Ghia Auto Stick Restoration Reply with quote

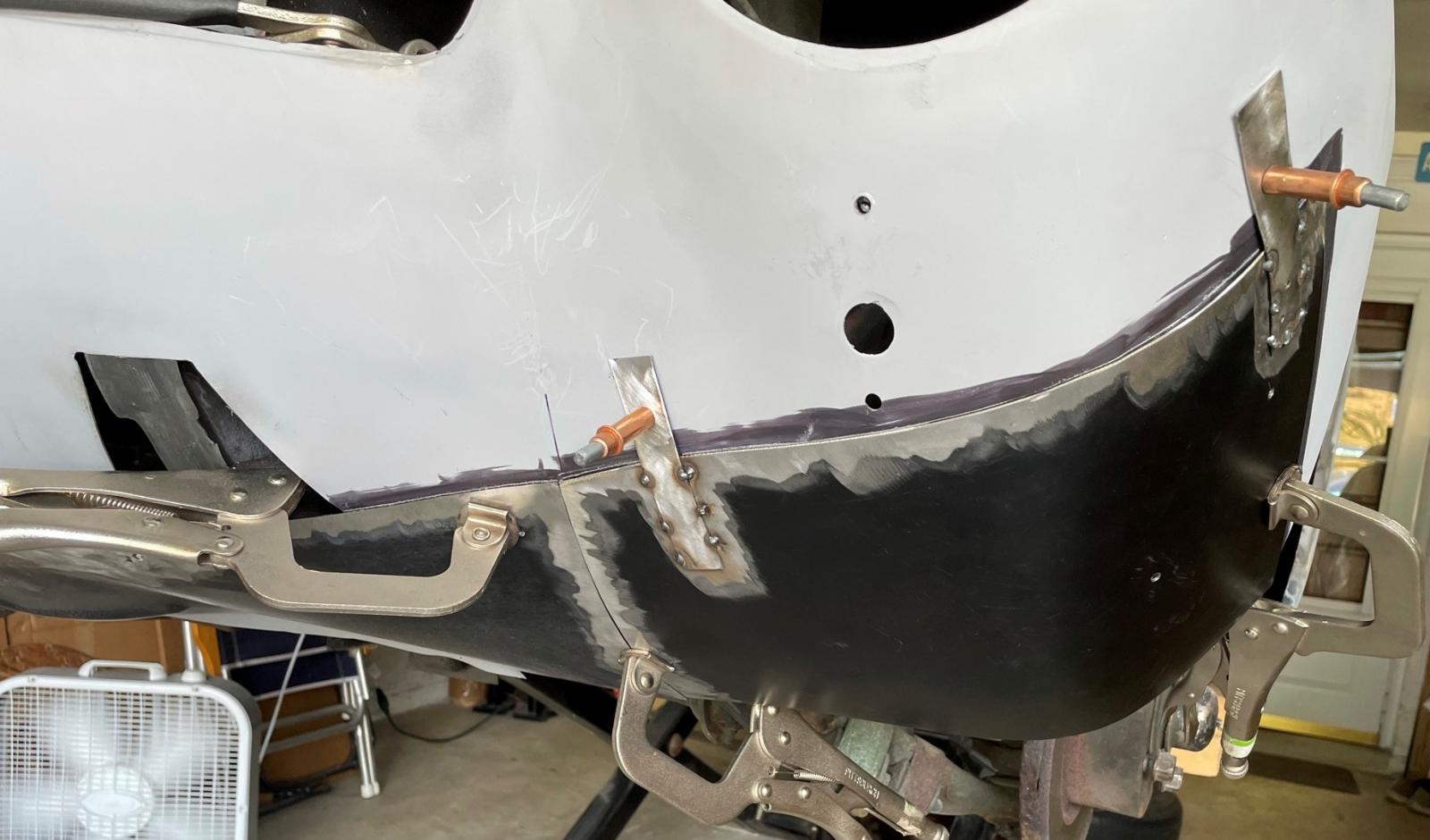

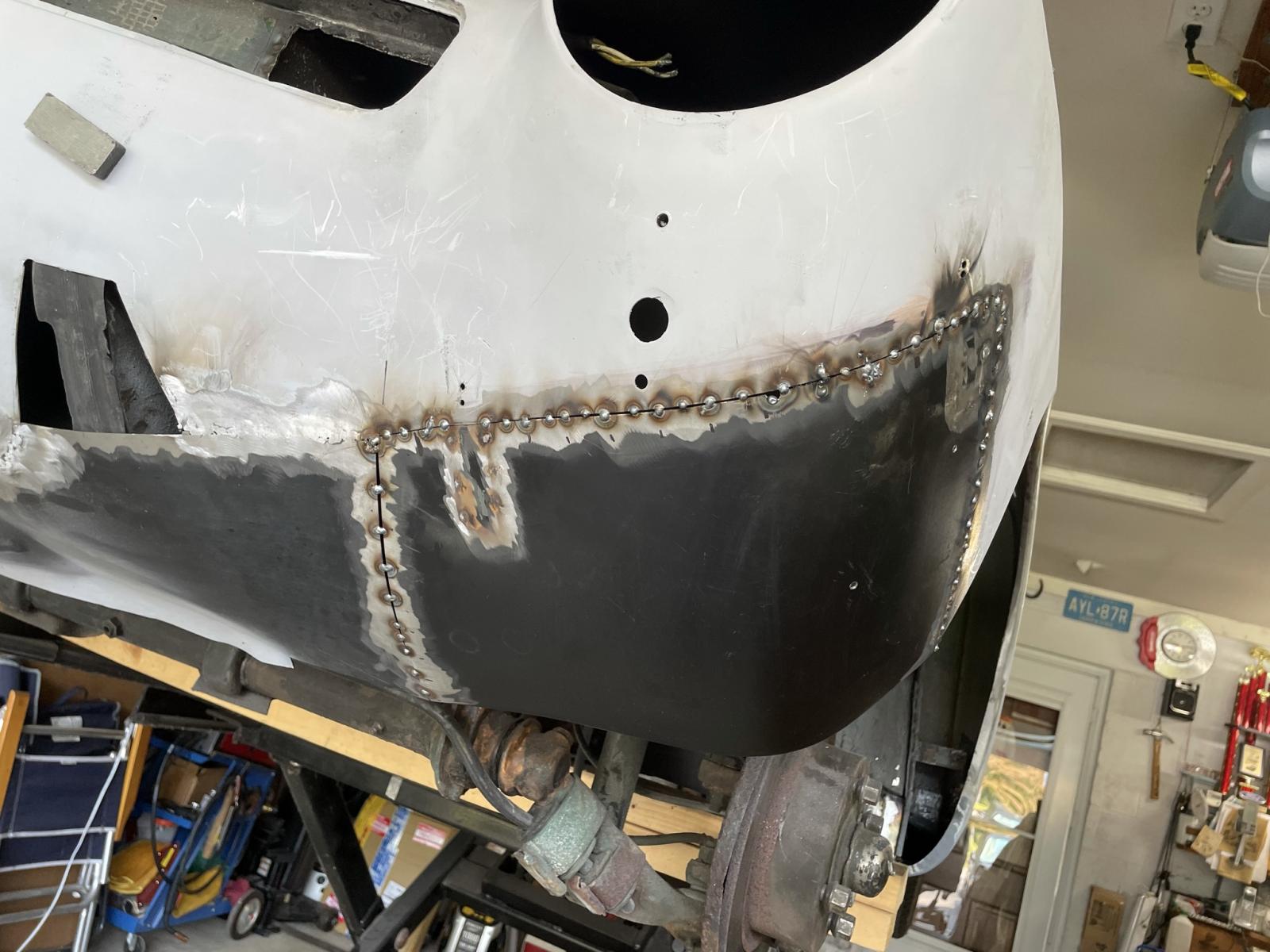

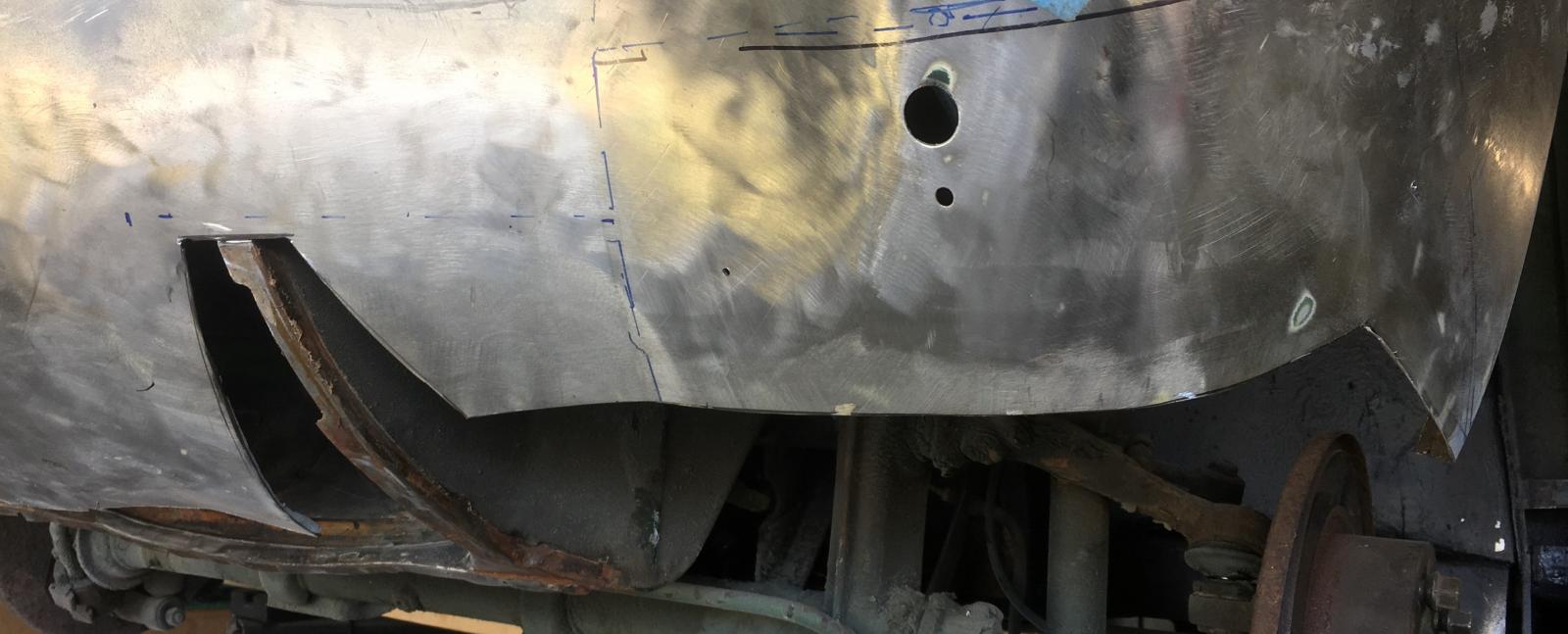

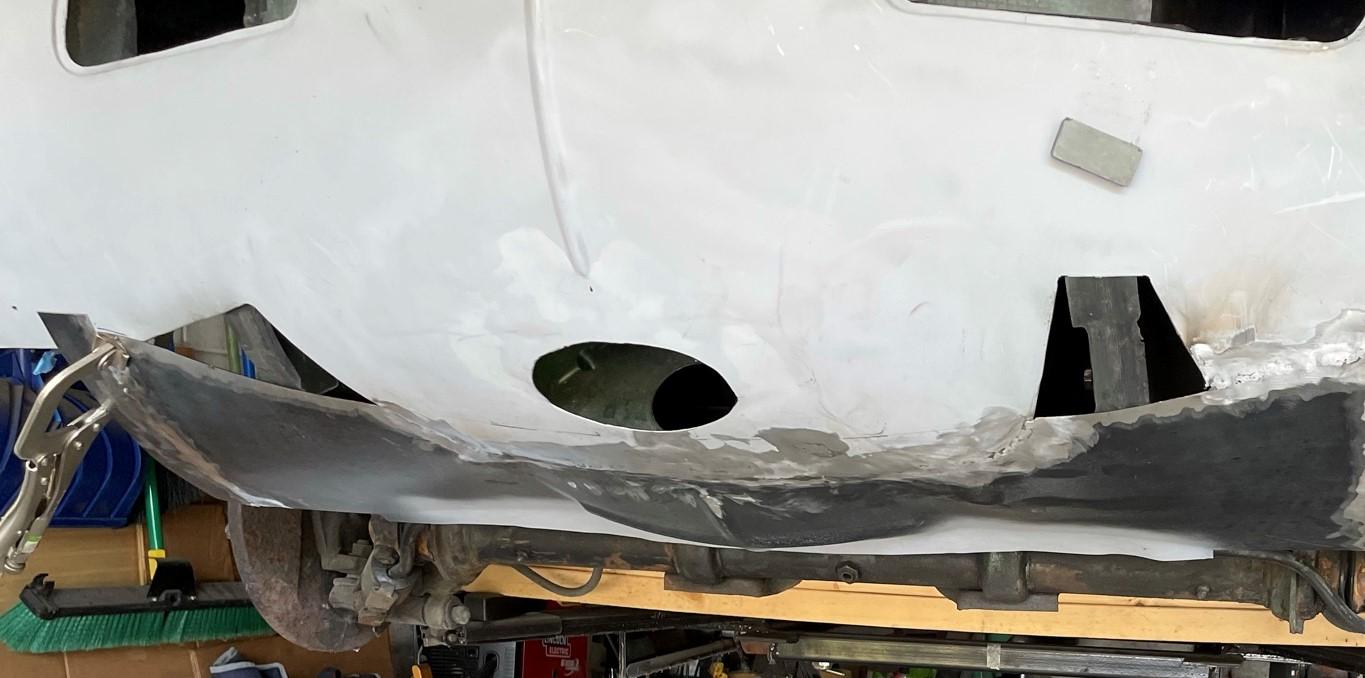

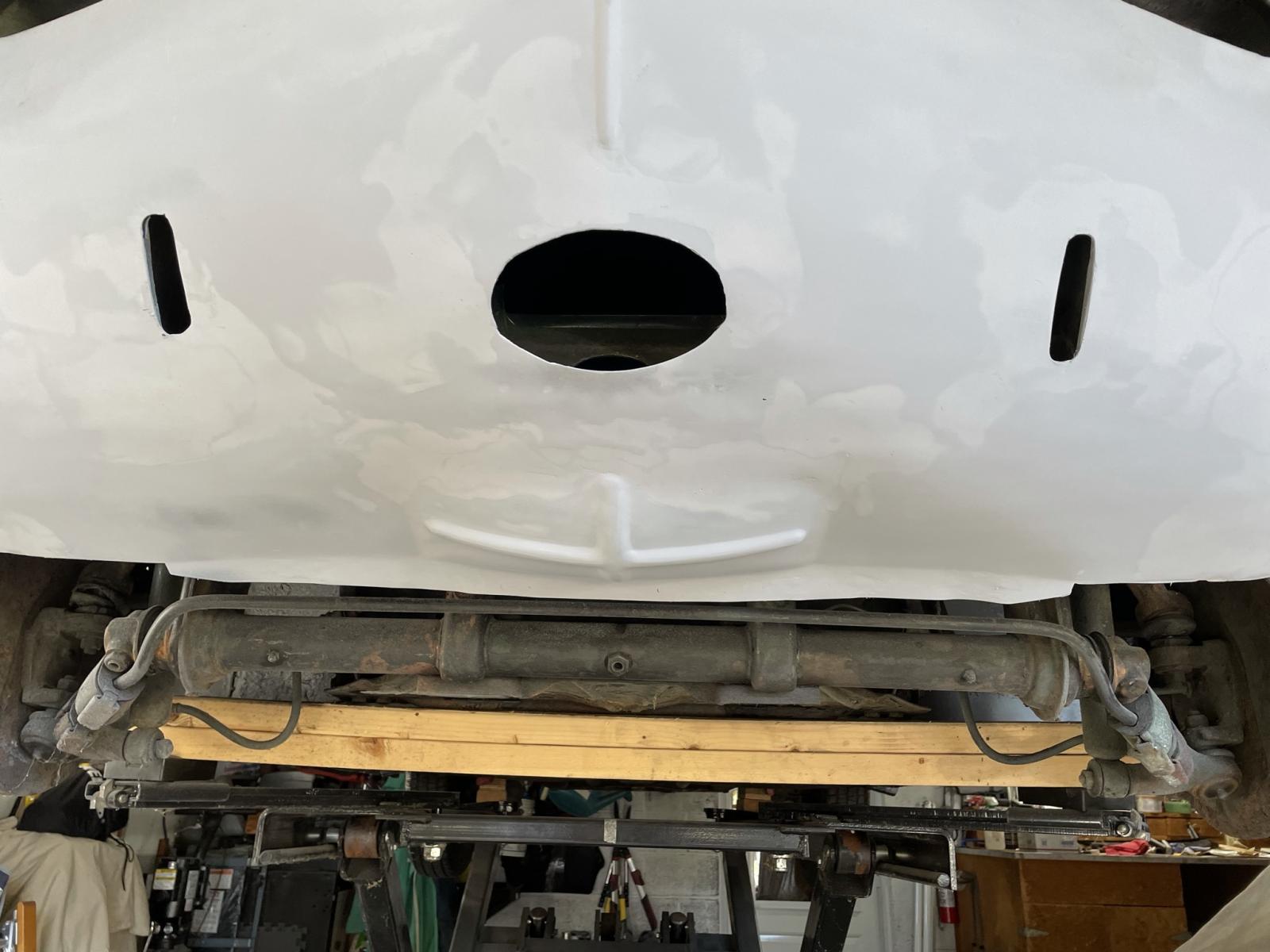

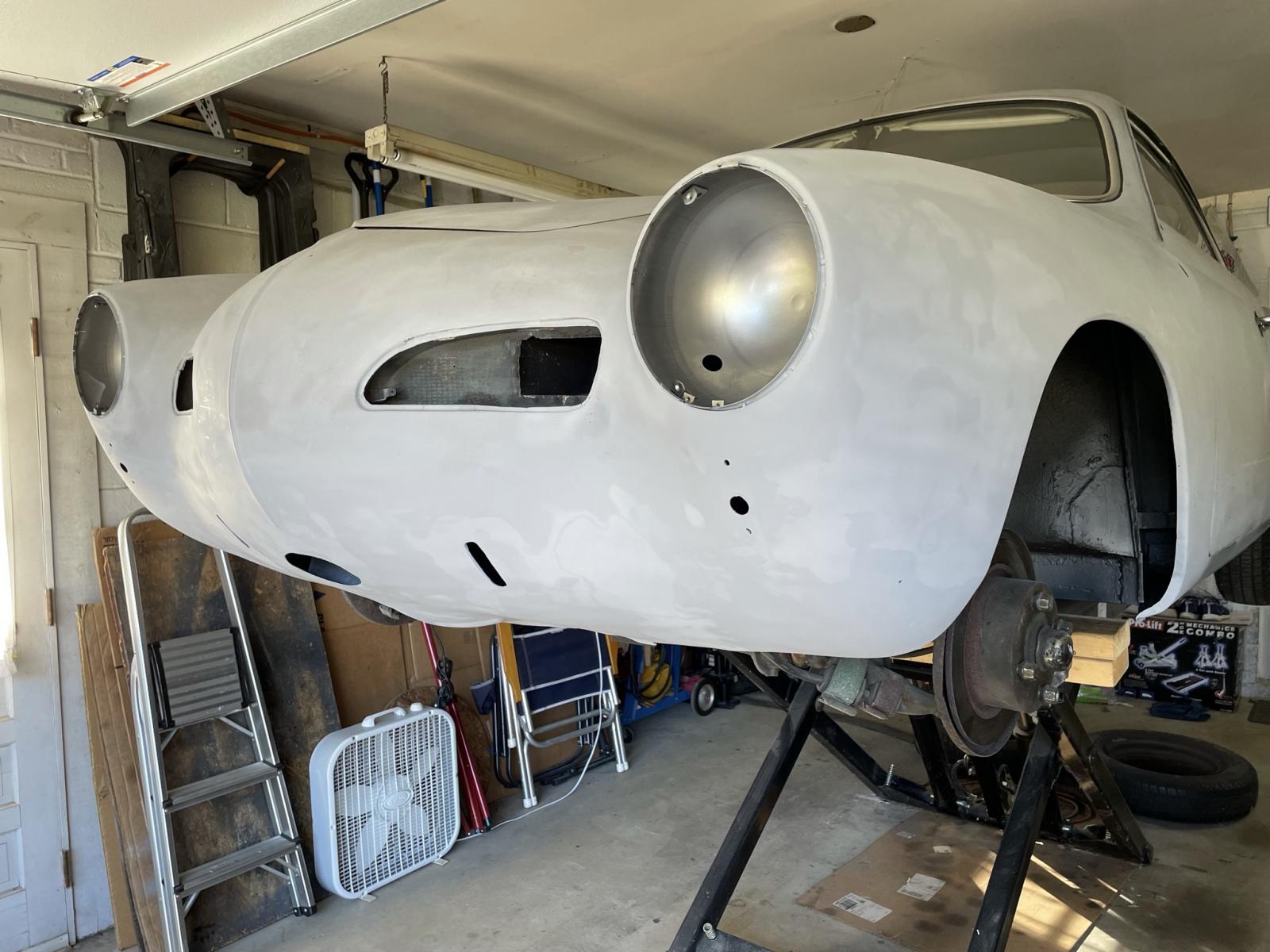

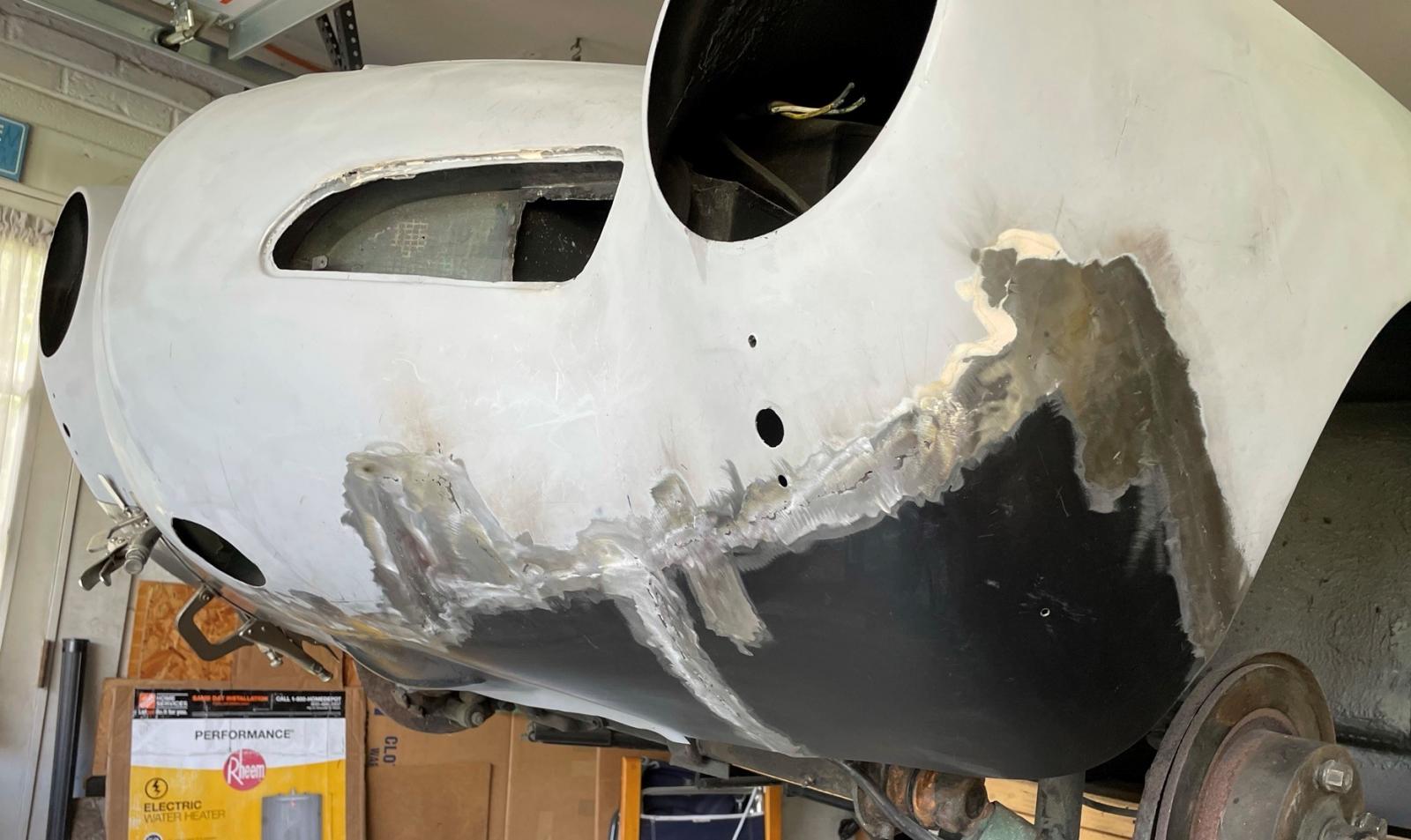

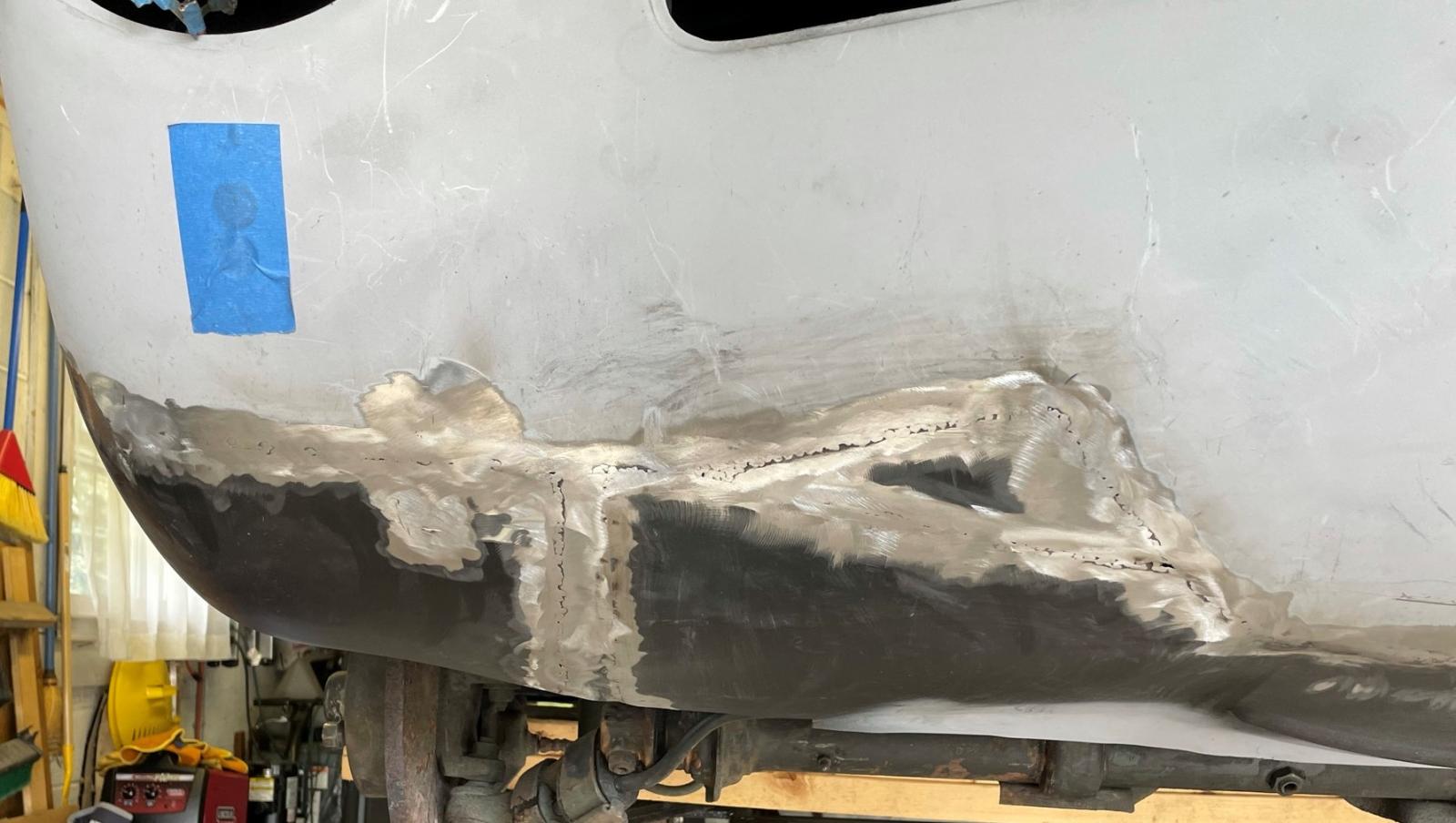

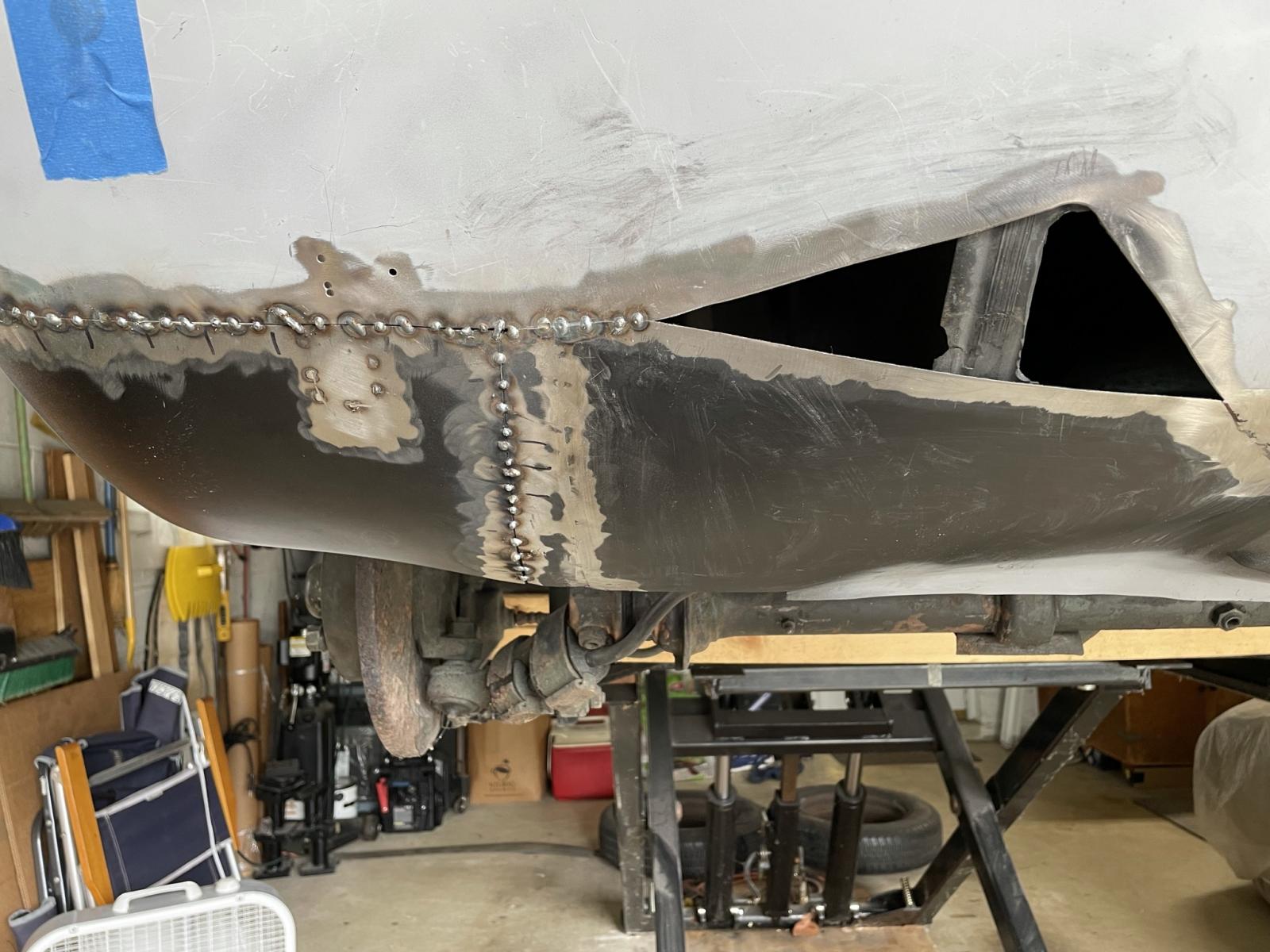

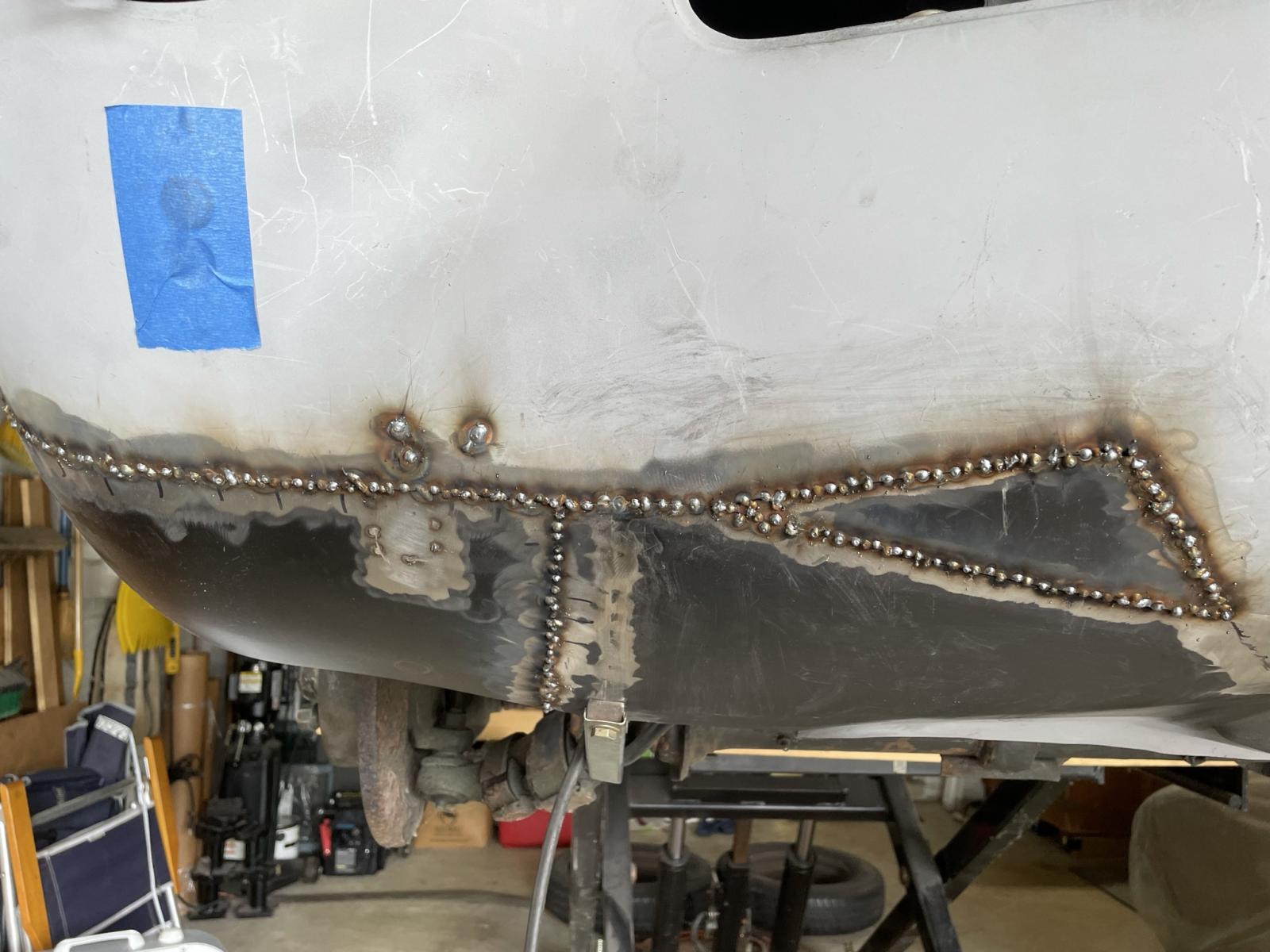

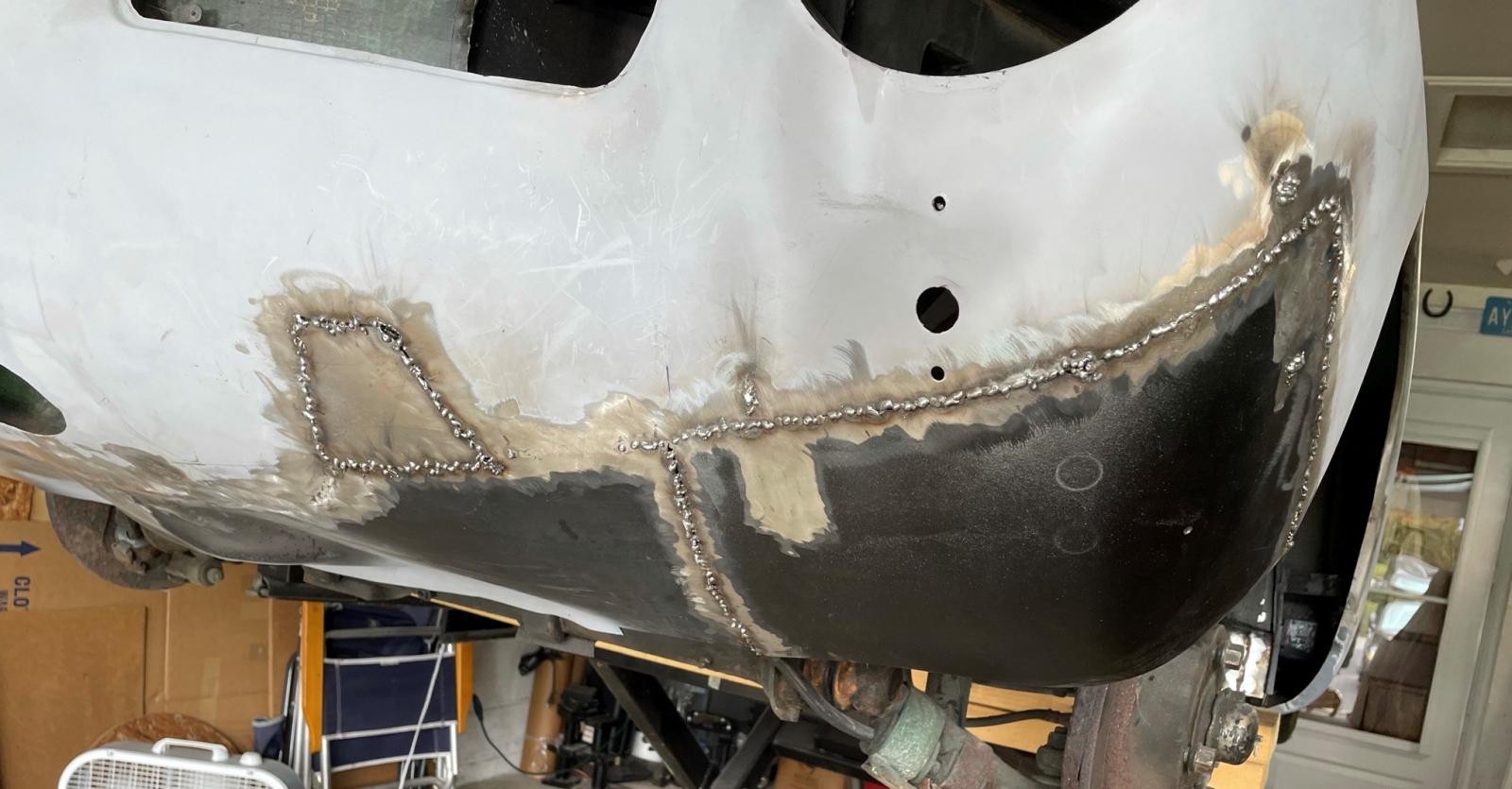

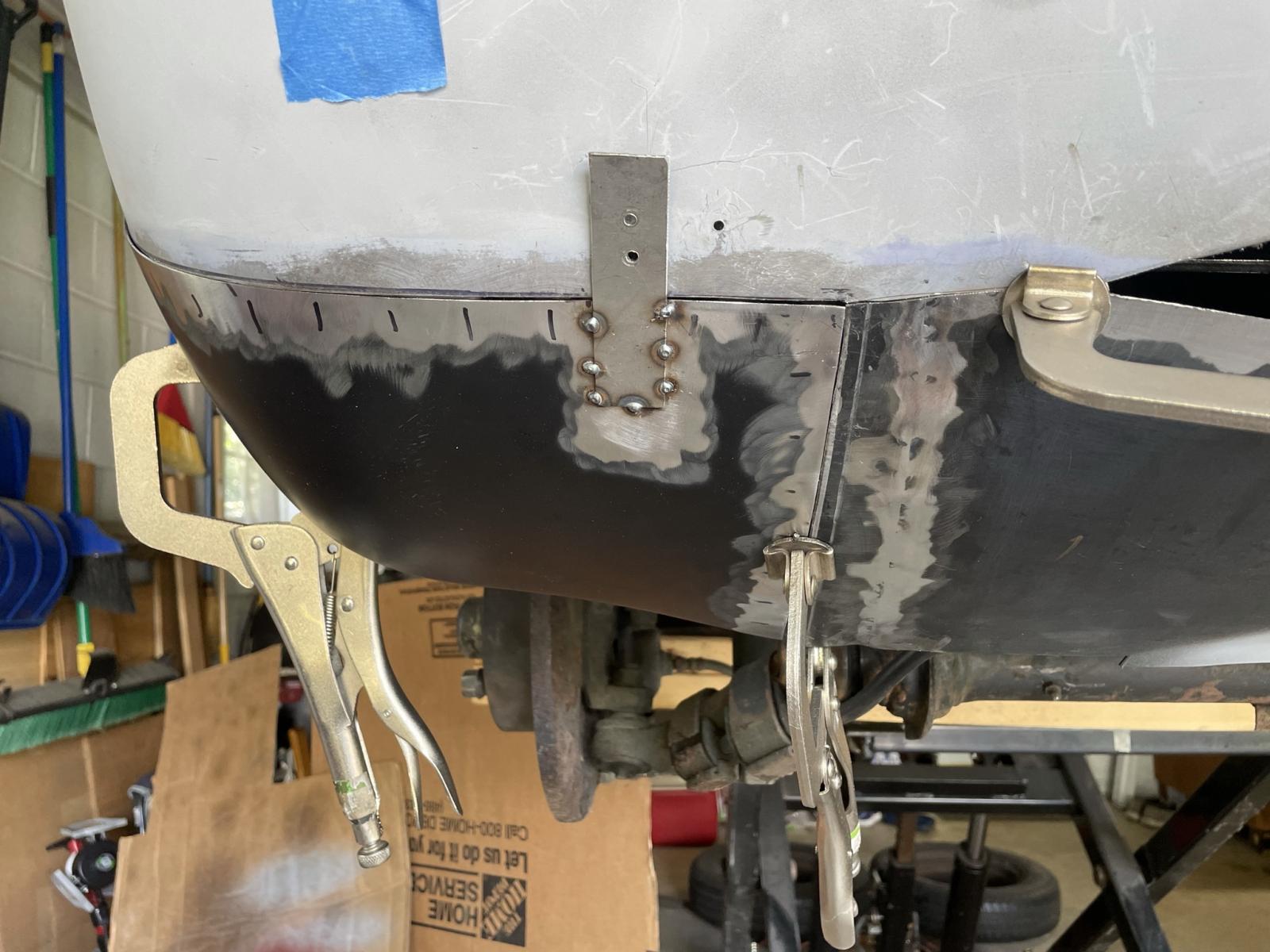

Started working on the lower section of the nose. The lower apron was toast so everything (what was left of the original metal and thick bondo) were removed and replaced with a front apron aftermarket repair panel. Needed to do some adjusting to the repair panel but finally got it to fit fairly well.

Took some time positioning the repair panel to ensure it was properly aligned with the nose ridge of the car and the apron indent was centered in the spare tire wheel well.

Plug welded the back edge of the apron lip to the lower lip of the spare tire well inner panel to match the original installation. Applied seam sealer where the two panels are welded together. I butt welded the front edge of the repair panel to good nose metal.

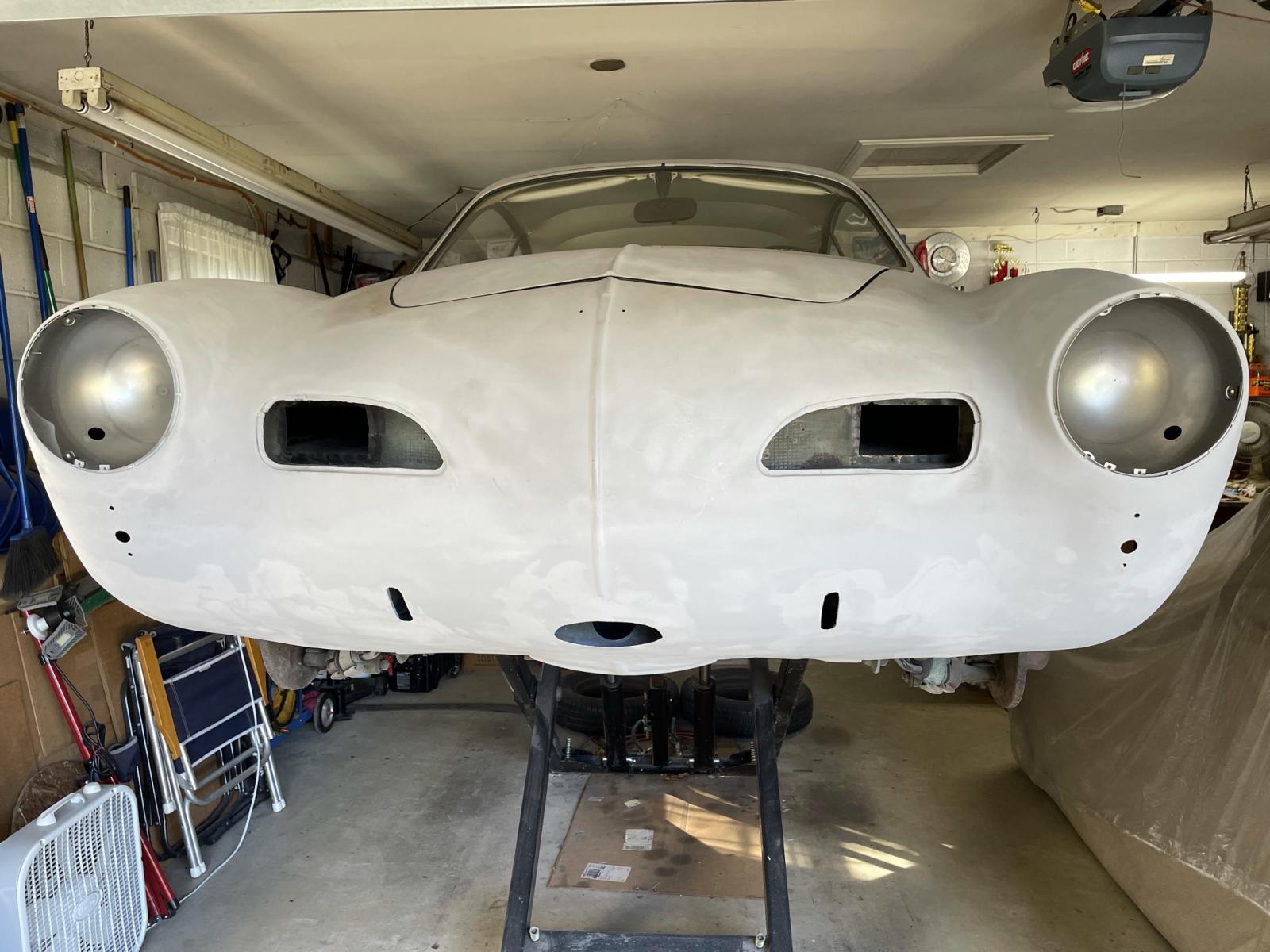

Here are some pictures of the repair:

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
kingkarmann Premium Member
Samba Member


Joined: November 05, 2003
Posts: 4062

kingkarmann is offline

PostPosted: Thu Sep 23, 2021 8:25 am    Post subject: Re: 1969 Karmann Ghia Auto Stick Restoration Reply with quote

I can lose myself in photo's like this.
Very daunting but oh so impressive! Cool
_________________
"Who died and made you king of anything?"
Sara Bareilles

"Ego is the anesthesia that deadens the pain of Stupidity."
Rick Rigsby

Life is what we pay attention to...
Samba retirement is near, how does your story end?
Back to top
View user's profile Send private message Gallery Classifieds Feedback
obus Premium Member
Samba Member


Joined: March 08, 2001
Posts: 10732
Location: just off Garden State Parkway Exit 81
obus is offline

PostPosted: Thu Sep 23, 2021 9:21 am    Post subject: Re: 1969 Karmann Ghia Auto Stick Restoration Reply with quote

Great work! That lower nose on mine is a hot mess as well with bondo and who knows what else.
_________________
July 1959 Mango Standard Bus aka Obus L346 L347 https://www.thesamba.com/vw/forum/viewtopic.php?t=256592&highlight=
June 1973 Pumpkin Orange Thing aka Othing L30H
https://www.thesamba.com/vw/forum/viewtopic.php?t=711775&highlight=
1960 Paprika Red Karmann Ghia Convertible aka Schatze L452 built 5/20/60
https://www.thesamba.com/vw/forum/viewtopic.php?t=...highlight=
66 21 window bus built 8/31/65 https://www.thesamba.com/vw/forum/viewtopic.php?t=777273
Back to top
View user's profile Send private message Facebook Instagram Gallery Classifieds Feedback
Marcdeb Premium Member
Samba Member


Joined: May 22, 2019
Posts: 2713
Location: Vermont
Marcdeb is offline

PostPosted: Thu Sep 23, 2021 9:26 am    Post subject: Re: 1969 Karmann Ghia Auto Stick Restoration Reply with quote

I'm impressed. Do it right and do it once! Smile
_________________
Marc
68 Karmann Ghia Cabrio Autostick
71 Karmann Ghia Cabrio

Previously Owned:
2011 VW EOS Hard Top Conv
2008 Saab 9-3 2.0T Conv
2003 Saab 9-3 SE Conv
2001 Saab 9-3 Conv
1998 BMW 3 Series Conv
1997 Saab 900 Conv
1997 Mazda Miata

68 Ghia Vert Survivor with 22,350 miles: https://www.thesamba.com/vw/forum/viewtopic.php?t=768107&highlight=
71 Ghia Vert Restoration: https://www.thesamba.com/vw/forum/viewtopic.php?t=726710&postorder=asc
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
Legacy
Samba Member


Joined: October 26, 2008
Posts: 203
Location: Charlotte Hall, MD
Legacy is offline

PostPosted: Thu Sep 23, 2021 12:47 pm    Post subject: Re: 1969 Karmann Ghia Auto Stick Restoration Reply with quote

kingkarmann wrote:
I can lose myself in photo's like this.
Very daunting but oh so impressive! Cool


obus wrote:
Great work! That lower nose on mine is a hot mess as well with bondo and who knows what else.


Marcdeb wrote:
I'm impressed. Do it right and do it once! Smile


Thanks to all for the kind words. Hoping to get to the repair of the lower front left fender over the next few days. Will post more pictures when that section of the front of the car is done.
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
Legacy
Samba Member


Joined: October 26, 2008
Posts: 203
Location: Charlotte Hall, MD
Legacy is offline

PostPosted: Sun Sep 26, 2021 2:08 pm    Post subject: Re: 1969 Karmann Ghia Auto Stick Restoration Reply with quote

Was able to spend time repairing the lower left front fender. Using a left below headlight aftermarket repair panel and a home-made repair panel was able to finish work on the left front fender. Iím happy to say the aftermarket repair panel fit pretty good, only needing trimming and minor tweaking.

Below are some pictures showing the repair.
Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.


Next job will be to attack the repair of the lower right front fender. That is the last section of the car that needs to have rusted sections / bondo removed and repair panels installed.
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
Legacy
Samba Member


Joined: October 26, 2008
Posts: 203
Location: Charlotte Hall, MD
Legacy is offline

PostPosted: Thu Sep 30, 2021 3:13 pm    Post subject: Re: 1969 Karmann Ghia Auto Stick Restoration Reply with quote

Spent time completing the repair of the lower right front fender. Basically followed the same procedure I used to repair the lower left front fender. Similar need to do some trimming and tweaking to the aftermarket right below headlight repair panel.

Not sure why, but there was a gap between the lower headlight repair panel and lower apron repair panel when I did a test fit of the headlight repair panel. I spent a lot of time making sure the apron repair panel was centered so it wasnít that the panel was mispositioned. In any case, I just welded in a strip of 18 gauge steel sheet to fill the gap. Also had to make a repair panel for the cut out rusted area just above the apron repair panel.

Pictures follow:
Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.


Next will be to weld in the headlight buckets. That should be the last welding of repair/replacement panels.
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
Marcdeb Premium Member
Samba Member


Joined: May 22, 2019
Posts: 2713
Location: Vermont
Marcdeb is offline

PostPosted: Thu Sep 30, 2021 4:34 pm    Post subject: Re: 1969 Karmann Ghia Auto Stick Restoration Reply with quote

Wow! Amazing.
_________________
Marc
68 Karmann Ghia Cabrio Autostick
71 Karmann Ghia Cabrio

Previously Owned:
2011 VW EOS Hard Top Conv
2008 Saab 9-3 2.0T Conv
2003 Saab 9-3 SE Conv
2001 Saab 9-3 Conv
1998 BMW 3 Series Conv
1997 Saab 900 Conv
1997 Mazda Miata

68 Ghia Vert Survivor with 22,350 miles: https://www.thesamba.com/vw/forum/viewtopic.php?t=768107&highlight=
71 Ghia Vert Restoration: https://www.thesamba.com/vw/forum/viewtopic.php?t=726710&postorder=asc
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
Legacy
Samba Member


Joined: October 26, 2008
Posts: 203
Location: Charlotte Hall, MD
Legacy is offline

PostPosted: Sun Oct 03, 2021 3:03 pm    Post subject: Re: 1969 Karmann Ghia Auto Stick Restoration Reply with quote

Welded in the headlight buckets and primed the front repaired sections. See pictures below.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.


Iíve reached a milestone today. I have now repaired all the rust on the front/sides/back of the car. Next, I plan to remove the rattle can primer and take car back to bare metal and spray the car in epoxy primer. Donít think Iíll be able to put color on the car until the spring due to the weather changing here in Maryland and other projects that need attention.
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
Display posts from previous:
Reply to topic    Forum Index -> Ghia All times are Mountain Standard Time/Pacific Daylight Savings Time
Page: Previous  1, 2, 3, 4, 5, 6, 7  Next
Page 5 of 7


Jump to:
You cannot post new topics in this forum
You cannot reply to topics in this forum
You cannot edit your posts in this forum
You cannot delete your posts in this forum
You cannot vote in polls in this forum

About | Help! | Advertise | Donate | Premium Membership | Privacy/Terms of Use | Contact Us | Site Map
Copyright © 1996-2020, Everett Barnes. All Rights Reserved.
Not affiliated with or sponsored by Volkswagen of America | Forum powered by phpBB
