I recently discovered that I needed to replace my alternator wiring harness after diagnosing a no start issue.
I found lots of information on harness' for sale but no specs on materials to build your own. Since I had to do it anyway as I live in the great white north not down the street from GW here are the necessary materials.

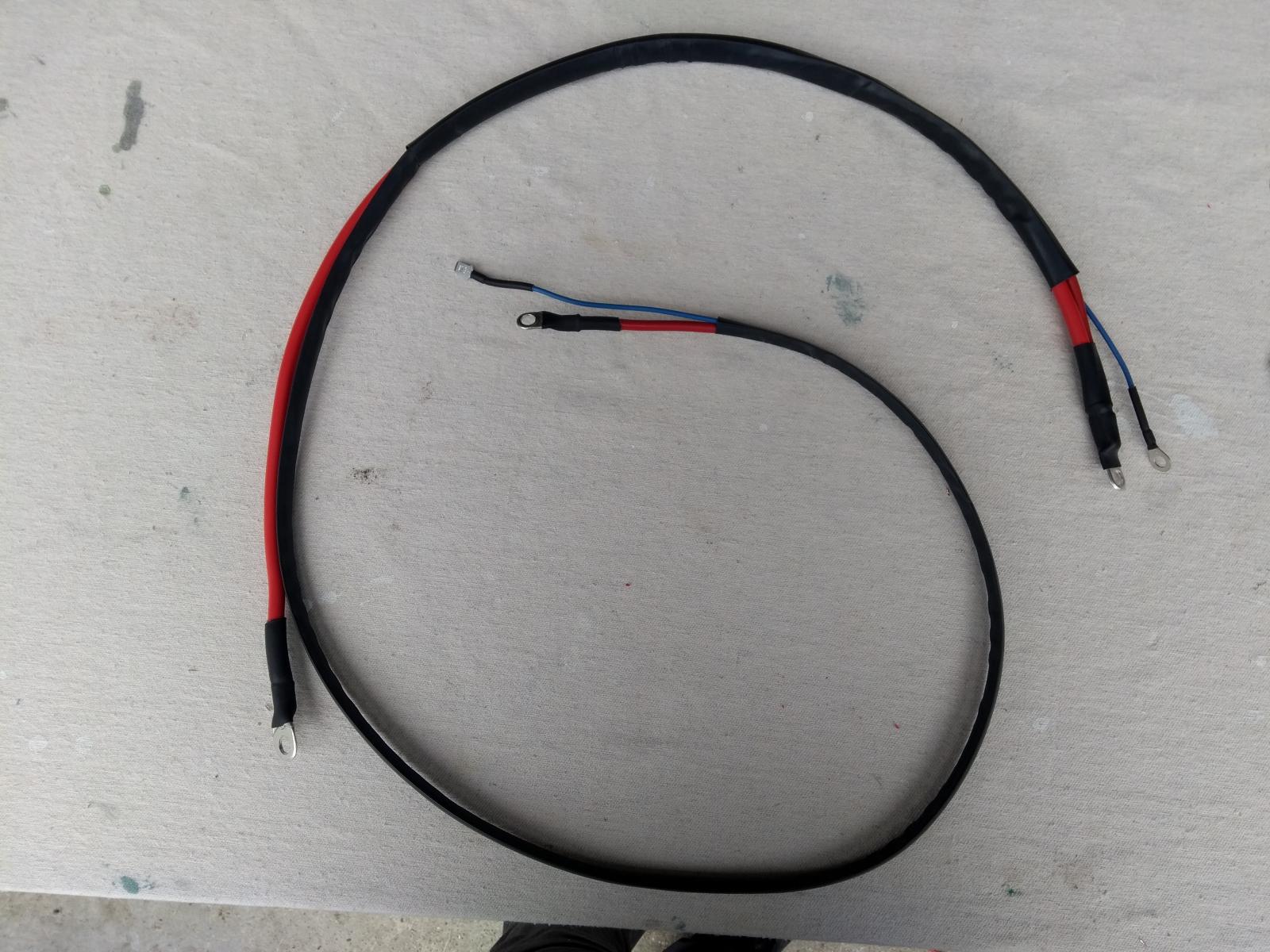

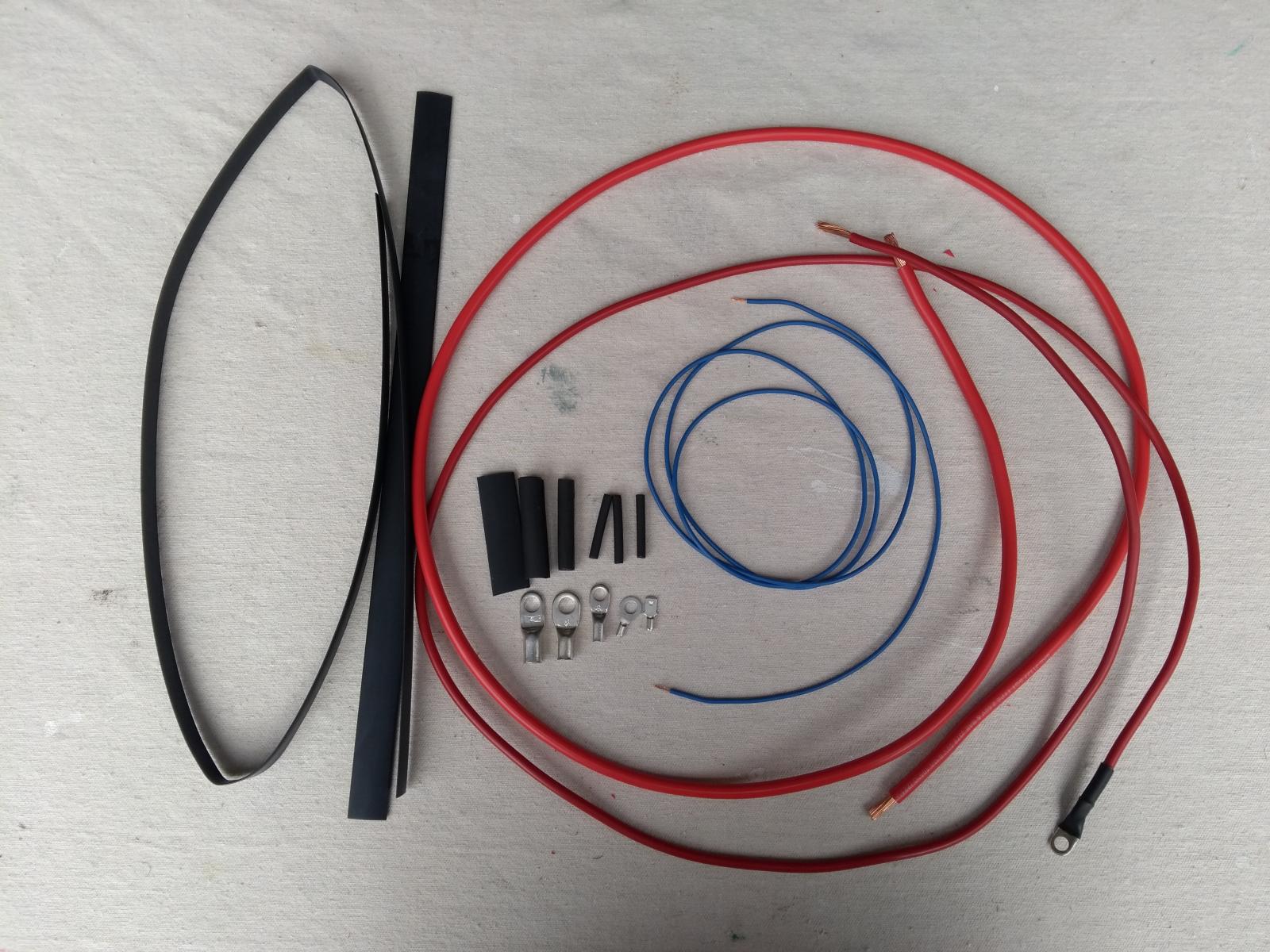

30" 6 ga. red wire
60" 10 ga. red wire
60" 16 ga. blue wire
1@6 ga. 5/16" ring terminal
1@4 ga. 5/16" ring terminal
1@10ga. 1/4" ring terminal (I used an 8 ga, as they work great and are way beefier)
1@16ga. Male spade terminal
1@16ga. ~3/16" Ring terminal
Heat Shrink Tubing:
16"@1/2"
48"@3/8"
2"@1/4"
2x1.5"@1/8"
Other than that all you need is a GOOD set of crimpers, and a heatgun. I just pull the vinyl off of the typical red/blue/yellow crimpers so I can do a proper two step crimp. I your crimpers aren't big enough for the 4ga. terminal: crease the crimp with a steel chisel then squeeze it closed in the vise.

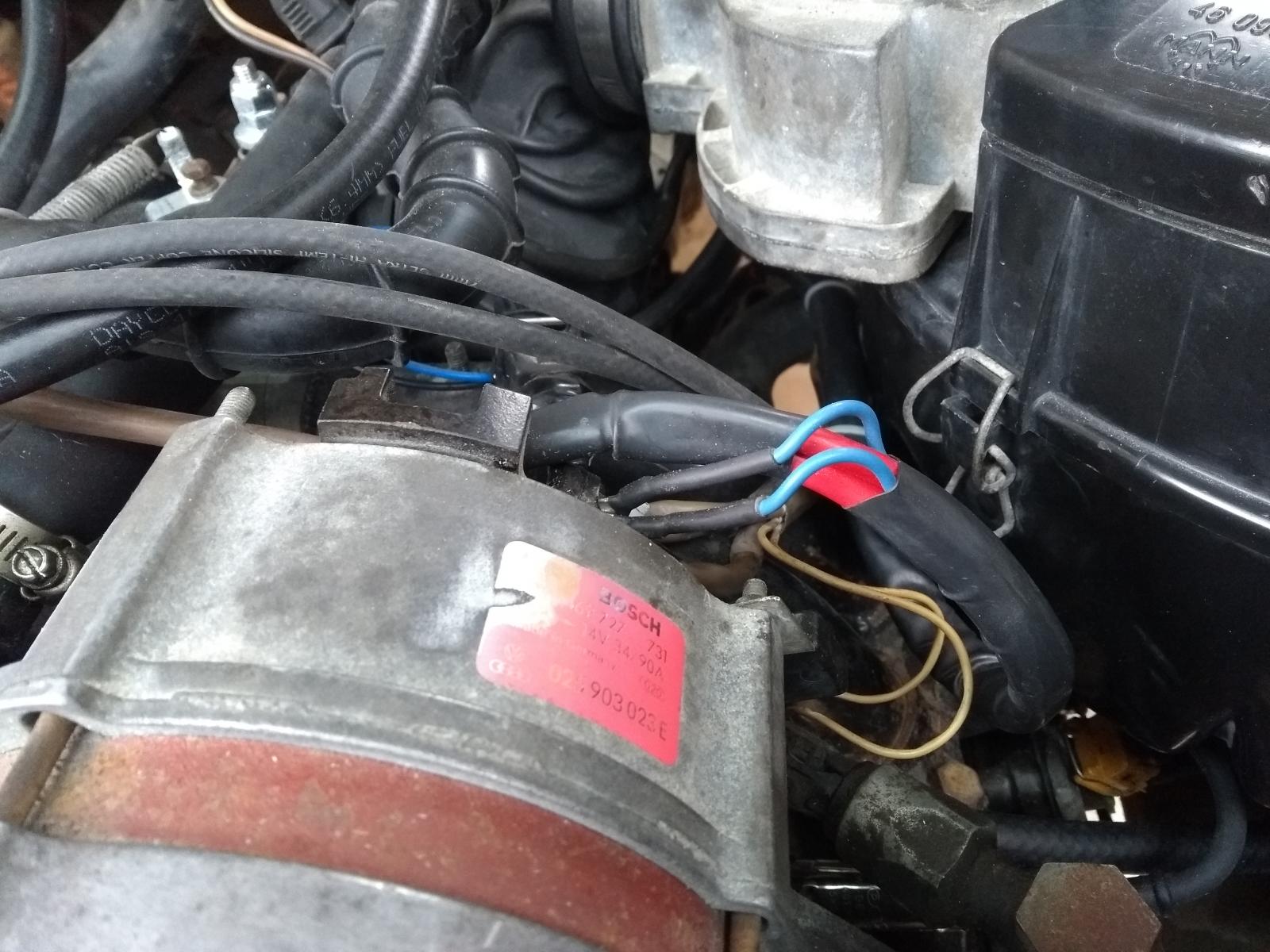

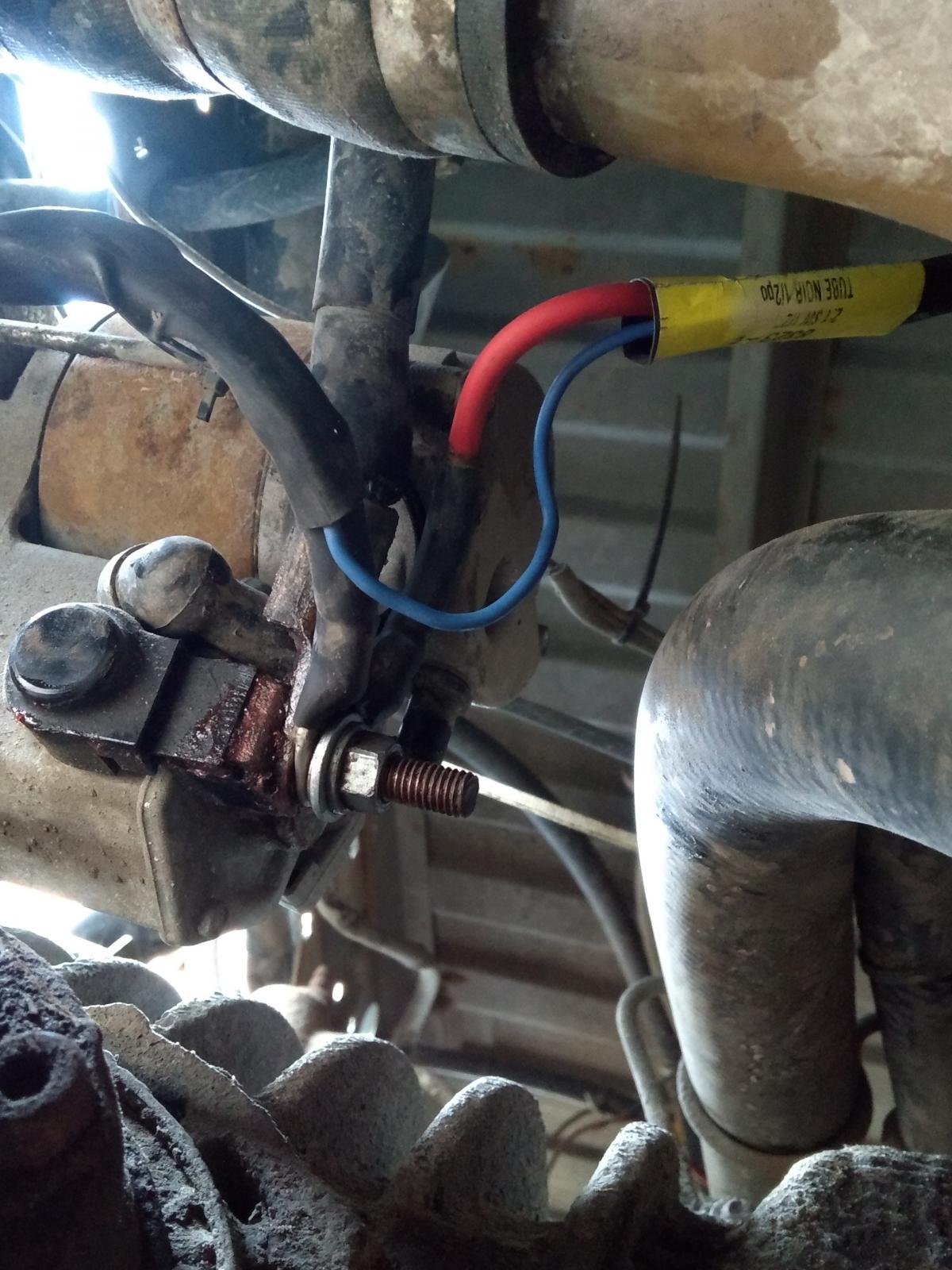

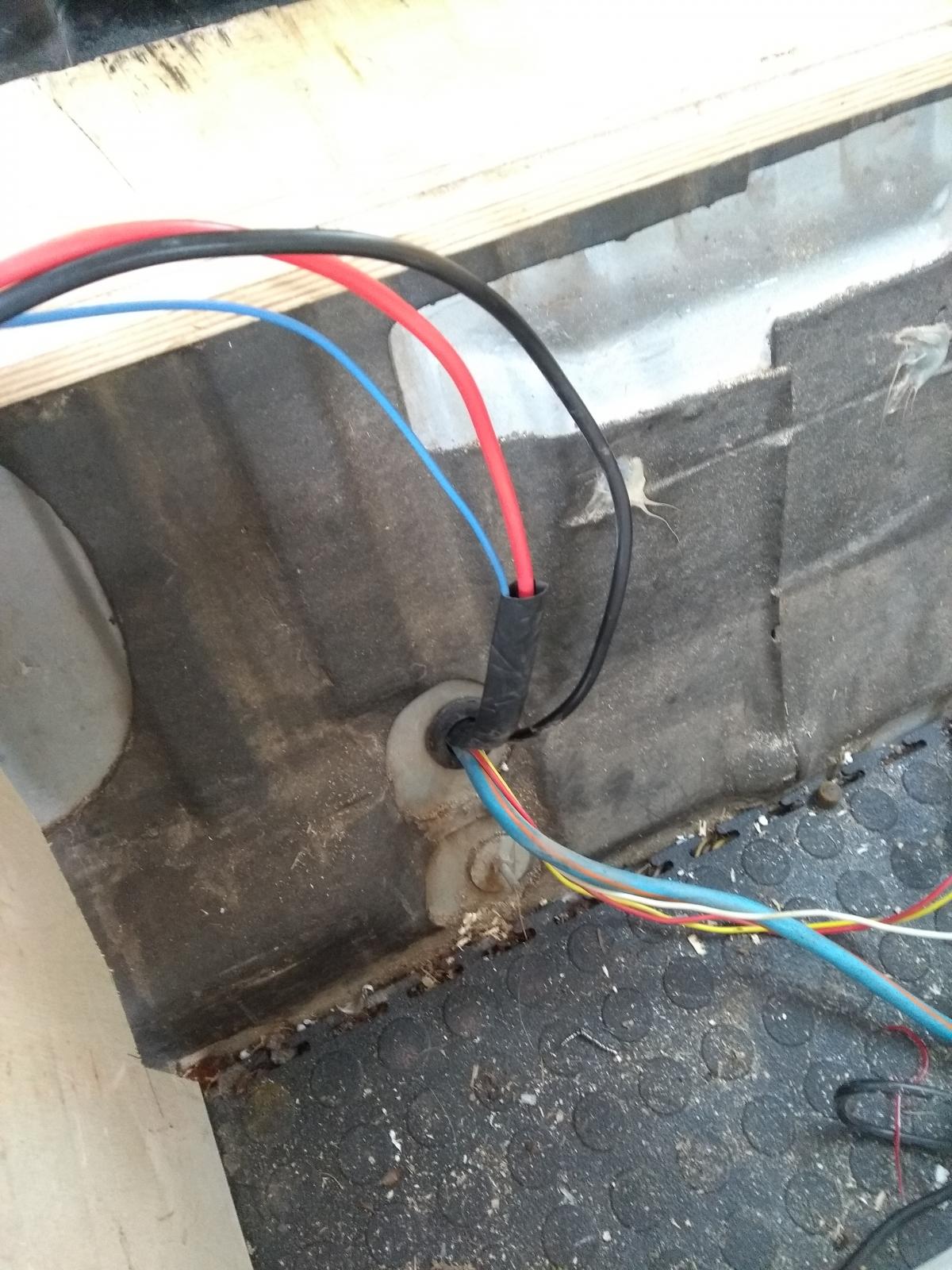

I added a second wire on the trigger post to feed a relay for my aux battery which is under the bed in the back of my van, just forward of the ECU. So I continued the harness through the grommet from the rear heater that I removed ages ago.
|
|
