Front Beam Center adjuster replacement
Forum Index -> Thing/Type 181 Share: Facebook Twitter
Reply to topic
Print View
Quick sort: Show newest posts on top | Show oldest posts on top View previous topic :: View next topic
Author Message
red64chevelle
Samba Member


Joined: February 13, 2016
Posts: 12
Location: East Greenwich, RI
red64chevelle is offline

PostPosted: Mon Jan 18, 2021 2:25 pm    Post subject: Front Beam Center adjuster replacement Reply with quote

Question for the hive.

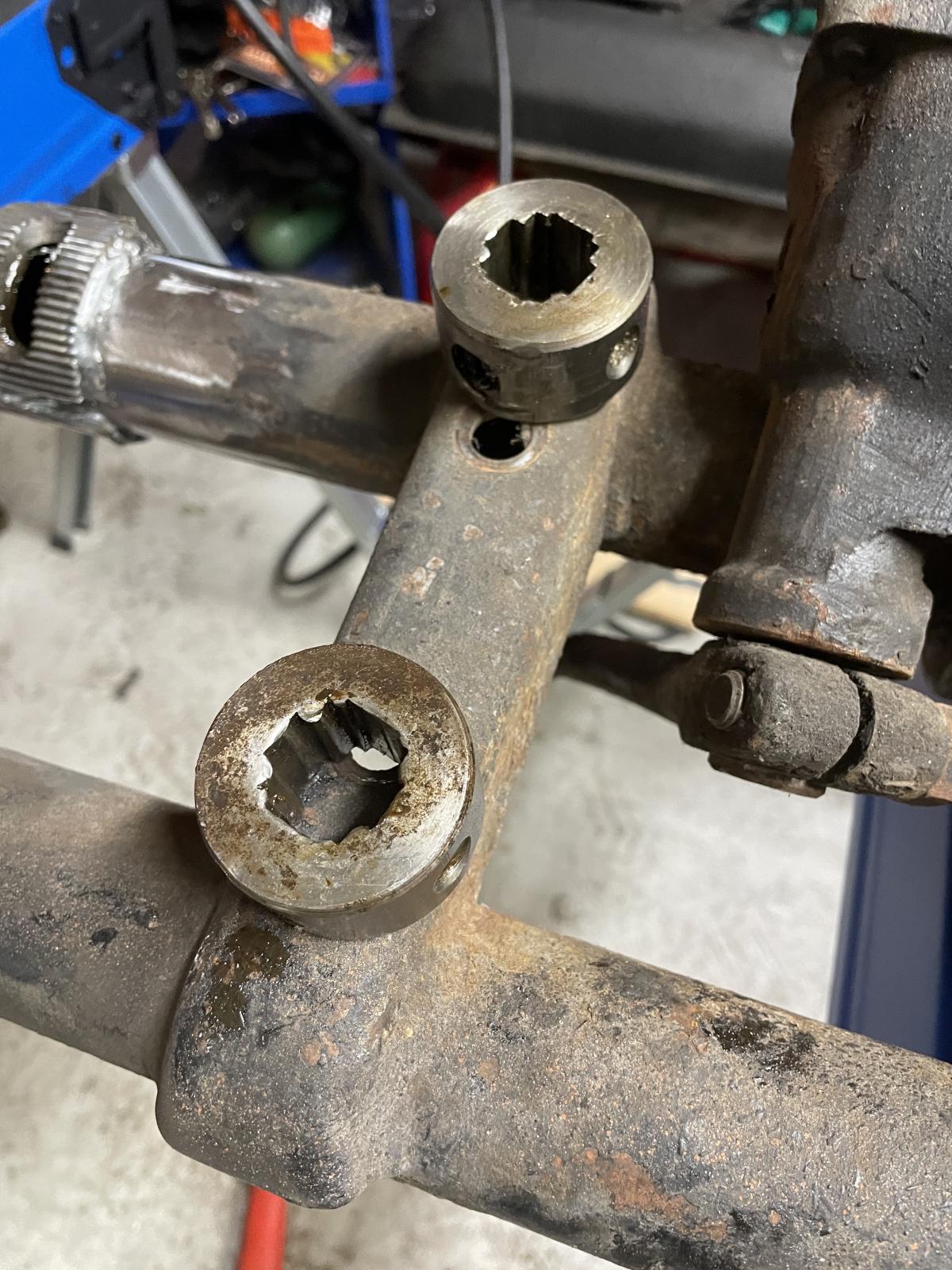

I need to replace one of the center torsion bar holders because Iím a dumb%$# and stripped the threads on it. Iím thinking about buying one of the cheap EMPI Avis style kits, just for that part.

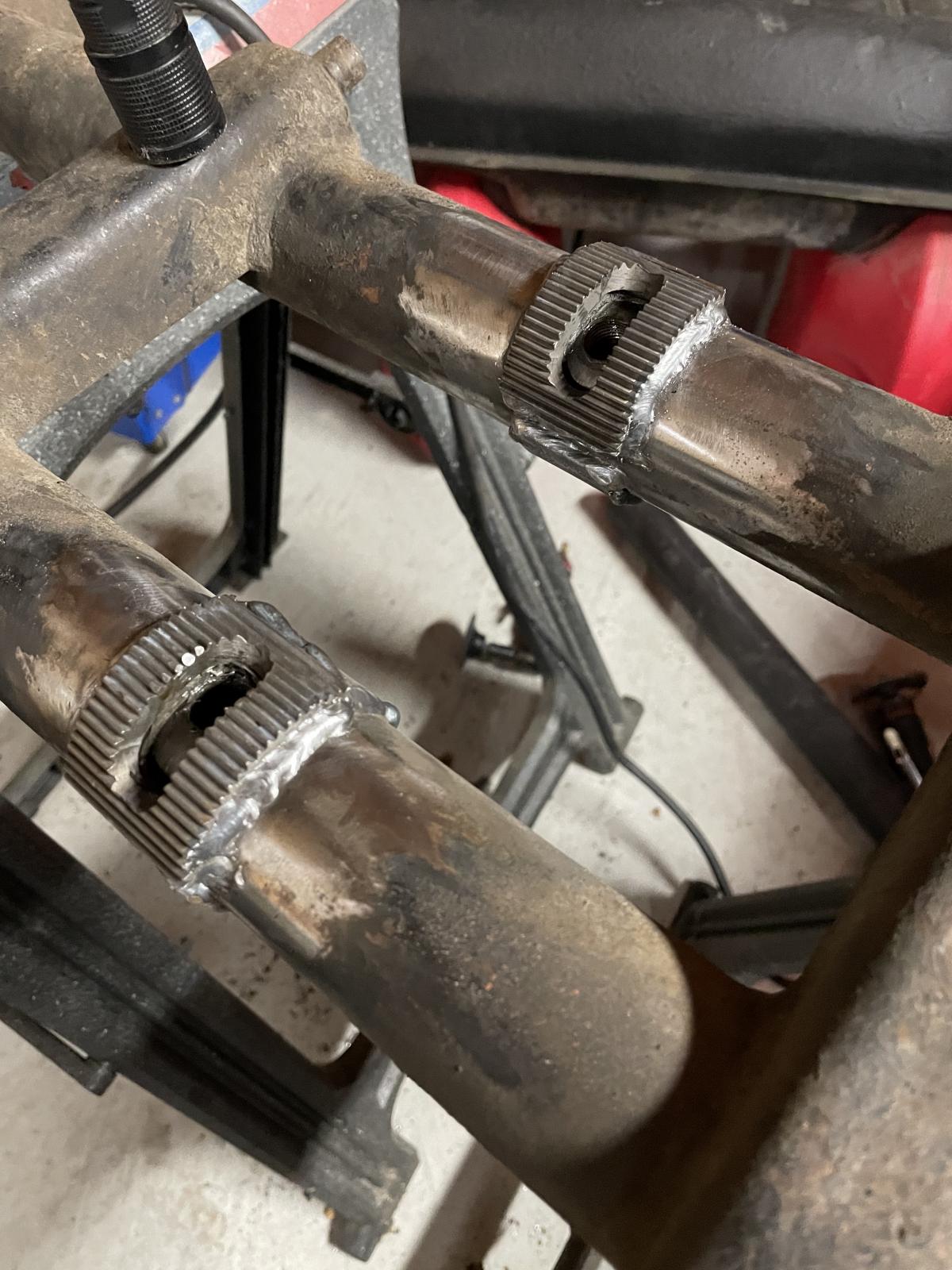

Now when I look at the kits, the one for ball joint front ends uses a grub screw to hold the torsion bars, and a long one for adjusting. The link pin kit only uses the one long screw. Although I have a ball joint front end, I think I need the link pin kit because I already welded in the adjusters where I want them.

Any thoughts about this?


Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

_________________
1966 Beetle, European delivery
1975 Type 181
2012 Golf R
Back to top
View user's profile Send private message Gallery Classifieds Feedback
jakokombi
Samba Member


Joined: August 15, 2010
Posts: 648
Location: Milwaukee
jakokombi is offline

PostPosted: Mon Jan 18, 2021 2:34 pm    Post subject: Re: Front Beam Center adjuster replacement Reply with quote

Why not drill and tap one size larger?
_________________
70' Sunroof Kombi
69' Tin Top, still in pieces since I bought a '73 Thing.
Back to top
View user's profile Send private message Facebook Gallery Classifieds Feedback
red64chevelle
Samba Member


Joined: February 13, 2016
Posts: 12
Location: East Greenwich, RI
red64chevelle is offline

PostPosted: Mon Jan 18, 2021 4:42 pm    Post subject: Re: Front Beam Center adjuster replacement Reply with quote

jakokombi wrote:
Why not drill and tap one size larger?


I thought about that, but the slot would have to be widened also. Doing that would reduce the amount of "teeth" contact to keep the torsions from moving.

I could possibly drill it out and tap it larger, then use a screw in insert or heli-coil.
_________________
1966 Beetle, European delivery
1975 Type 181
2012 Golf R
Back to top
View user's profile Send private message Gallery Classifieds Feedback
KAmes
Samba Member


Joined: February 16, 2014
Posts: 726
Location: Illinois
KAmes is offline

PostPosted: Mon Jan 18, 2021 5:19 pm    Post subject: Re: Front Beam Center adjuster replacement Reply with quote

Can it be drilled and tapped the correct size on the exact opposite side, then put in backwards?
Back to top
View user's profile Send private message Gallery Classifieds Feedback
red64chevelle
Samba Member


Joined: February 13, 2016
Posts: 12
Location: East Greenwich, RI
red64chevelle is offline

PostPosted: Mon Jan 18, 2021 6:39 pm    Post subject: Re: Front Beam Center adjuster replacement Reply with quote

KAmes wrote:
Can it be drilled and tapped the correct size on the exact opposite side, then put in backwards?


Now that I had not thought of. It's worth a shot I guess.
_________________
1966 Beetle, European delivery
1975 Type 181
2012 Golf R
Back to top
View user's profile Send private message Gallery Classifieds Feedback
jakokombi
Samba Member


Joined: August 15, 2010
Posts: 648
Location: Milwaukee
jakokombi is offline

PostPosted: Wed Jan 20, 2021 9:37 am    Post subject: Re: Front Beam Center adjuster replacement Reply with quote

Or, could you weld up the existing hole and redrill it?
I don't like the sound of a helicoil in this application.
_________________
70' Sunroof Kombi
69' Tin Top, still in pieces since I bought a '73 Thing.
Back to top
View user's profile Send private message Facebook Gallery Classifieds Feedback
TDCTDI
Samba Advocatus Diaboli


Joined: August 31, 2013
Posts: 10666
Location: North Carolina
TDCTDI is online now

PostPosted: Fri Jan 29, 2021 7:14 am    Post subject: Re: Front Beam Center adjuster replacement Reply with quote

Cut the adjusters out & replace with new ones. Use adjusters for a balljoint beam as the profile of the spring packs are different from those in a kingpin beam.


I also suggest using Sway-a-way style adjusters, they are infinitely adjustable & far easier to adjust if there is any preload on the spring packs.
_________________
Everybody born before 1975 has a story, good, bad, or indifferent, about a VW.


GOFUNDYOURSELF, quit asking everyone to do it for you!
Back to top
View user's profile Send private message Gallery Classifieds Feedback
