 Posted: Tue Dec 07, 2021 11:21 am Post subject: Front Door Install Help! |
 |
|
Finally got around to putting my door handles back on but I'm an idiot and having difficulty with two things.
First, I'm pretty sure I have the correct key. It goes in smoothly and I've never had any other door handles or key.
One, the doors don't seem to lock. When I close the doors, the passenger door engages and closes. I cannot seem to figure out how to lock it however. The key only rotates about one quarter clockwise and slightly less counter-clockwise. Did I do something wrong during install??
Second, the driver's side door does the same thing as above until I did something, when turning the key in the lock, and now it will not engage and just stays open.
_________________
1966 Bus https://www.thesamba.com/vw/forum/viewtopic.php?t=678279
Follow me on Instagram, where I post a lot of bus progress. https://www.instagram.com/quietlyscheming/
===============================
“Don't be a dick.” --Wheaton's Law, Wil Wheaton |
|
| Back to top |
|
 |
Lind
Samba Member
Joined: November 06, 2000
Posts: 10278
Location: idaho
|
| Posted: Tue Dec 07, 2021 12:52 pm Post subject: Re: Front Door Install Help! |
|
|
Spray some lube on your door latch mechanism. I use LPS1 and/or other spray greases. DO NOT use wd-40, it will certainly make it worse when it dries down all sticky.
https://www.itwprobrands.com/product/lps-1
_________________
.
Wanted:
Idaho VW license plate frames or other dealership items.
VWoA literature and early dealership or distributor literature/pictures/information
. |
|
| Back to top |
|
|
Alan Brase
Samba Member
Joined: March 28, 2004
Posts: 4570
Location: Cedar Falls, Iowa
|
| Posted: Mon Dec 13, 2021 12:30 pm Post subject: Re: Front Door Install Help! |
|
|
It's been a while since I thought about this... but doesn't the lock act in kinda a funny way? Like when locked the handle still moves, but it just does not operate the release? The only splittie I have now is a December 1955 Wolfsburg so maybe that is different?
_________________
Al Brase
Projects: 67 sunroof bug, 67 Porsche 912 Targa, 70 Westy
Dec 1955 Single Cab pickup WANT 15" BUS RIMS dated 8/55, thru 12/55
To New owners: 1969 doublecab, 1971 Dormobile
Vanagons:
80 P27 Westy JUL 1979, 3rd oldest known US
83 1.6TD Vanagon, 87 Wolfie Westy daily driver, swap meet home |
|
| Back to top |
|
|
EverettB
Administrator
Joined: April 11, 2000
Posts: 71966
Location: Phoenix 602
|
| Posted: Mon Dec 13, 2021 5:56 pm Post subject: Re: Front Door Install Help! |
|
|
| Alan Brase wrote: |
| It's been a while since I thought about this... but doesn't the lock act in kinda a funny way? Like when locked the handle still moves, but it just does not operate the release? The only splittie I have now is a December 1955 Wolfsburg so maybe that is different? |
Yes, it's different than a later Bus.
On ice pick handles:
The driver's outside handle still pulls out when locked but it won't open the door.
The pin on the handle that connects things from the handle to the "finger" that pushes on the internal door mechanism is moved out of the way when locked so the "finger" is not moved on the handle

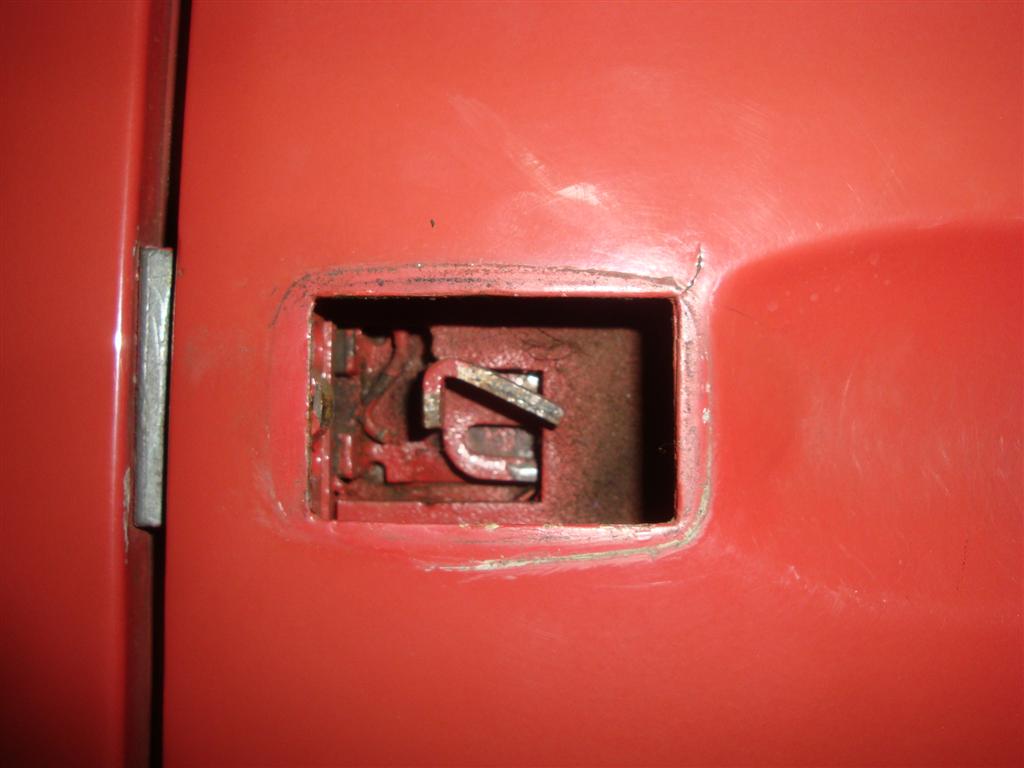

On the passenger side when the door is locked from the inside, the actual door mechanism moves out of the way of the handle so pulling on the handle would open the door except what gets pushed inside the door is moved out of the way
Passenger side:
Unlocked
Locked
It pushes on the piece in the center, you can see it moves down and out of the way when locked
_________________
How to Post Photos
Everett Barnes - [email protected] | My wanted ads
"Water is the only drink for a wise man" | "Communication prevents complaints"
Stop dead photo links! Post your photos to The Samba Gallery!
Last edited by EverettB on Mon Dec 13, 2021 10:57 pm; edited 2 times in total |
|
| Back to top |
|
|
Lind
Samba Member
Joined: November 06, 2000
Posts: 10278
Location: idaho
|
| Posted: Mon Dec 13, 2021 6:14 pm Post subject: Re: Front Door Install Help! |
|
|
The original poster has a '66 bus, which has late door mechanisms/handles.
