2003 Eurovan MV VR6 24V manual swap notes
Page: 1, 2, 3  Next
Forum Index -> Eurovan Share: Facebook Twitter
Reply to topic
Print View
Quick sort: Show newest posts on top | Show oldest posts on top View previous topic :: View next topic
Author Message
EuroTec
Samba Member


Joined: August 24, 2020
Posts: 204
Location: Asheville, North Carolina
EuroTec is offline

PostPosted: Sun Feb 20, 2022 6:03 am    Post subject: 2003 Eurovan MV VR6 24V manual swap notes Reply with quote

I completed the manual transmission swap on my Eurovan and I have to say I'm very pleased with it. Cool

I thought I'd document a few notes on the conversion here for others interested in doing this.

It started when my 01P automatic started acting up in hot weather. It wouldn't shift out of first gear due to overheating. I installed a transmission cooler in front of the radiator which helped but then one day as I was leaving work it tried to go into two gears at once, made some crunchy noises and started to bind up.

I parked it and decided to go for the manual swap. I hate automatic transmissions anyway. Rolling Eyes

I contacted Thomas at Quality German Auto Parts in Victorville CA.
http://www.qualitygermanautoparts.com
He set me up with everything I needed to do the swap for less than $5000 shipped.

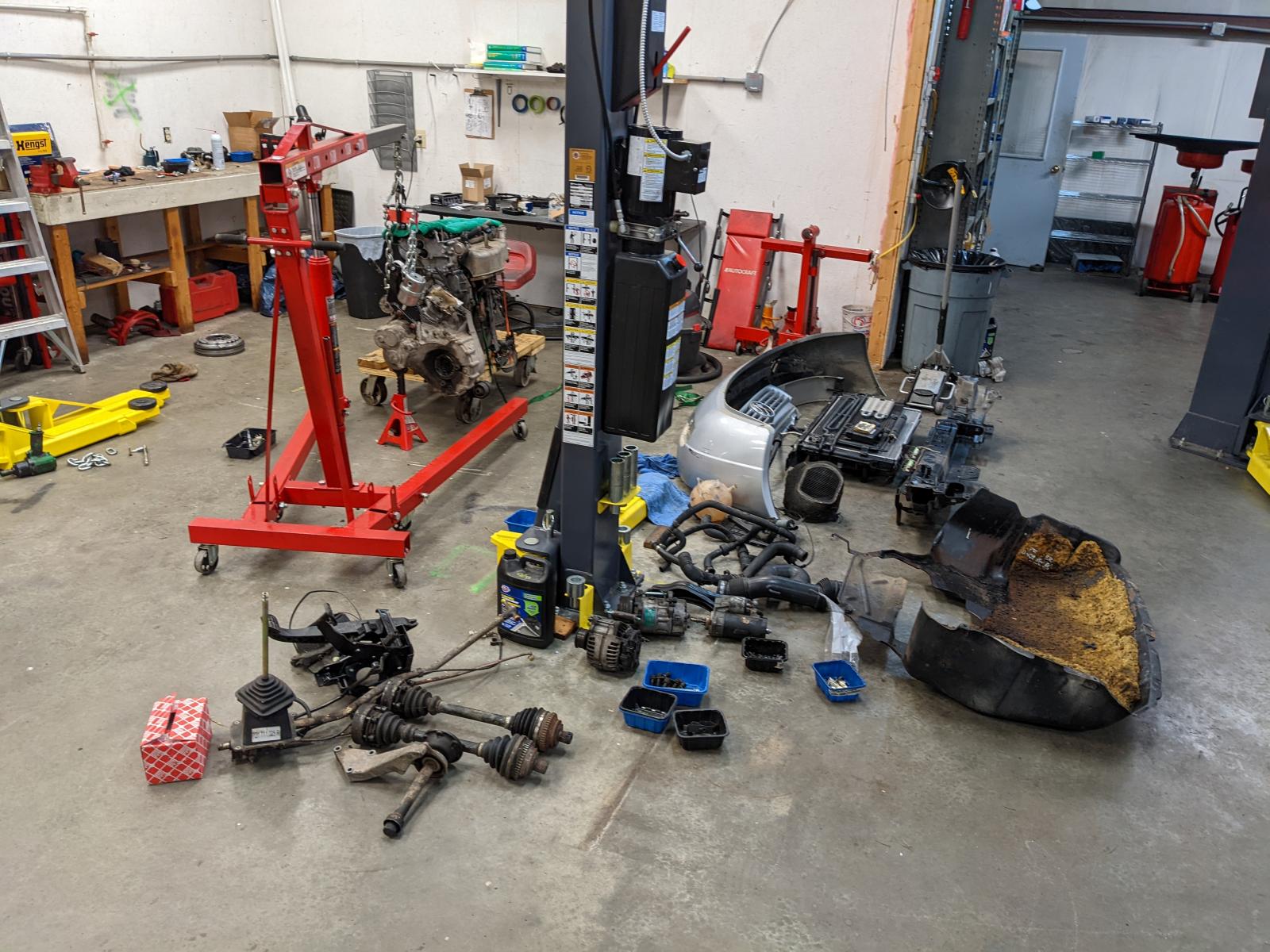

This is what I got:
02G AFL 5 speed manual transmission
Pedal assembly
Shifter mechanism
Flywheel clutch disc and pressure plate
Axles and stub axle
Misc hardware

Image may have been reduced in size. Click image to view fullscreen.

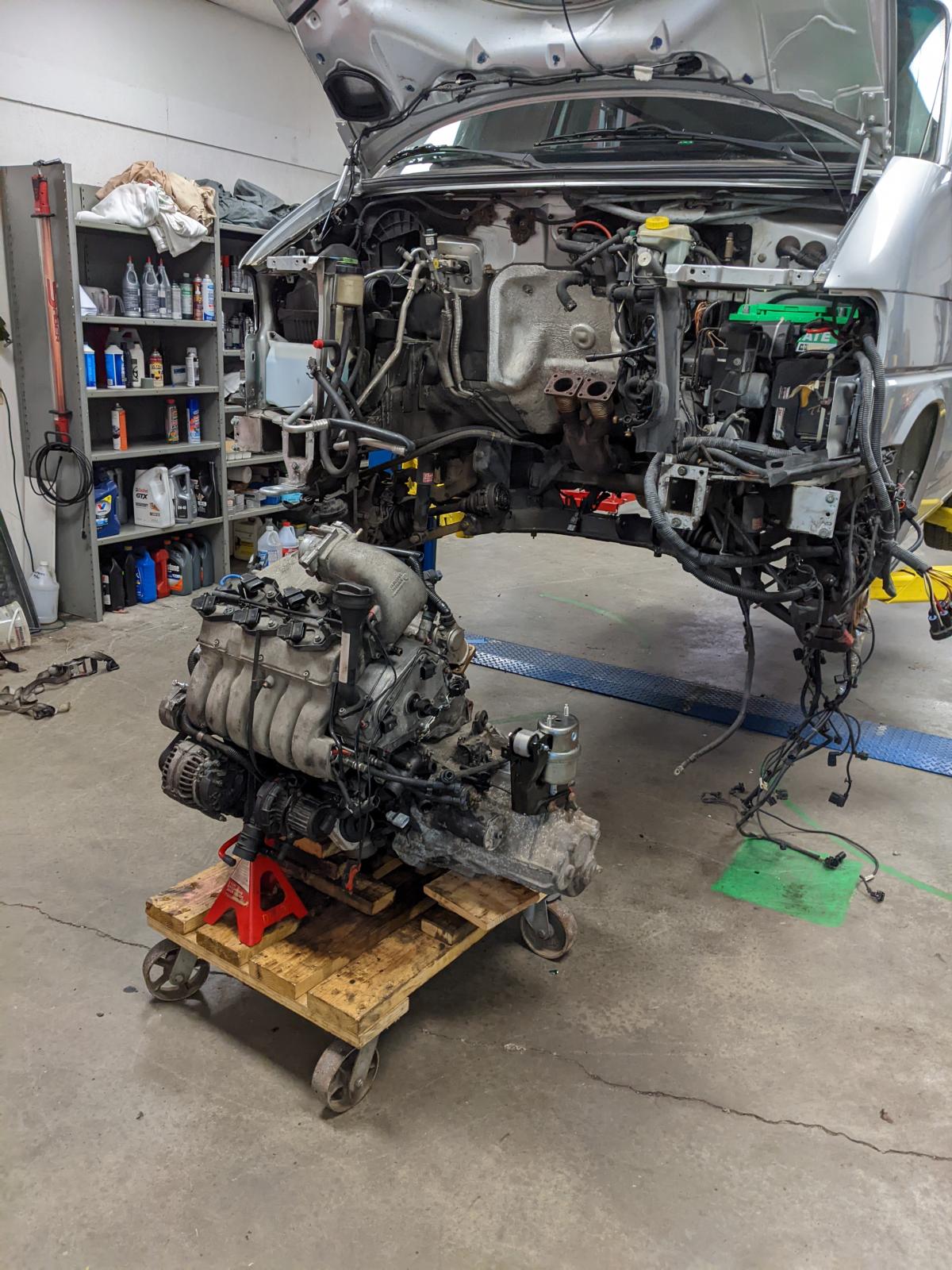

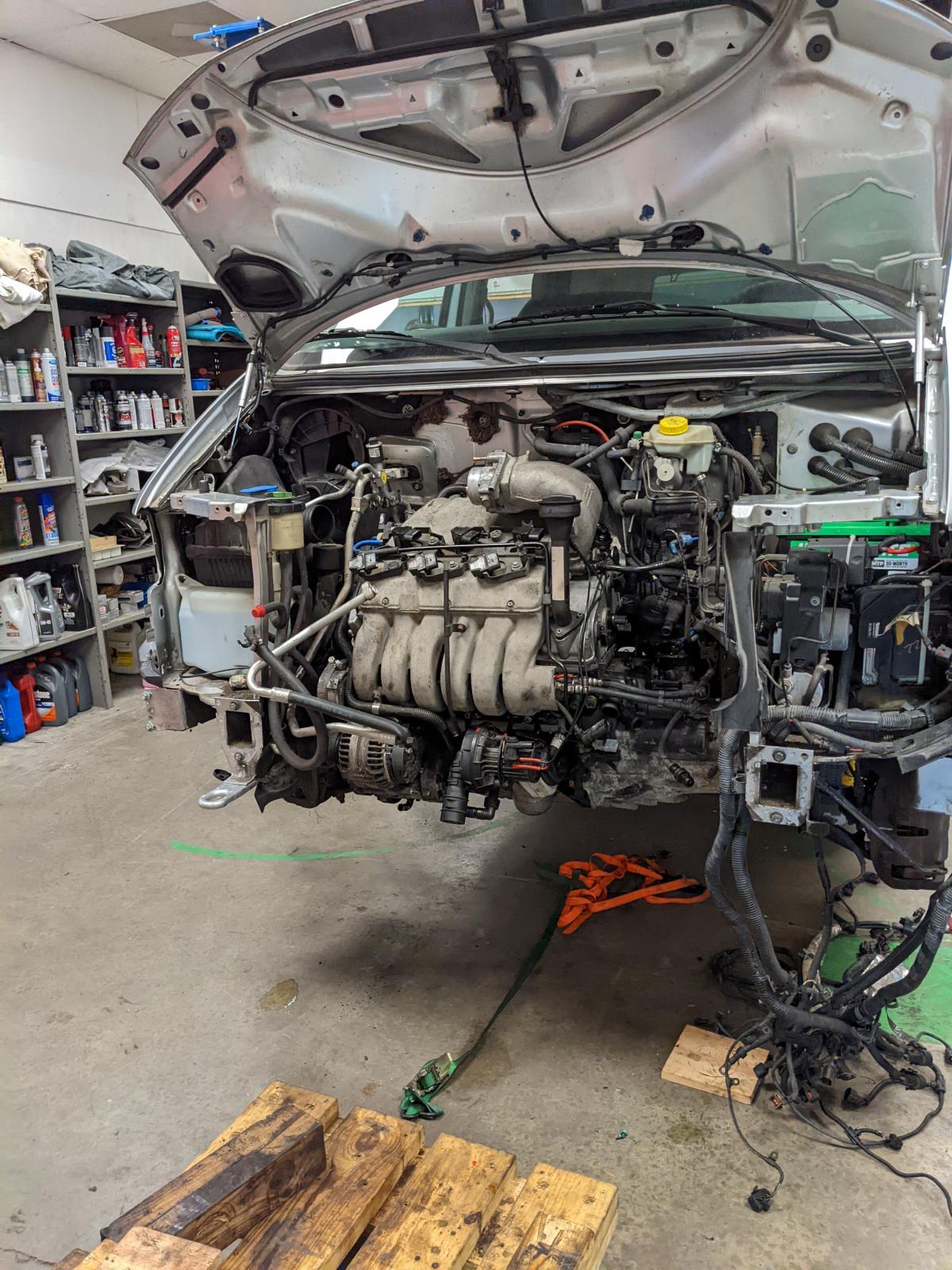

Since I had the engine out I decided to replace the timing chain, rear main seal, water pump, aluminum coolant pipe, thermostat, oil cooler seals and hoses, valve cover gasket, fuel injectors and spark plugs. I replaced the clutch slave cylinder/throw out bearing with a new unit.

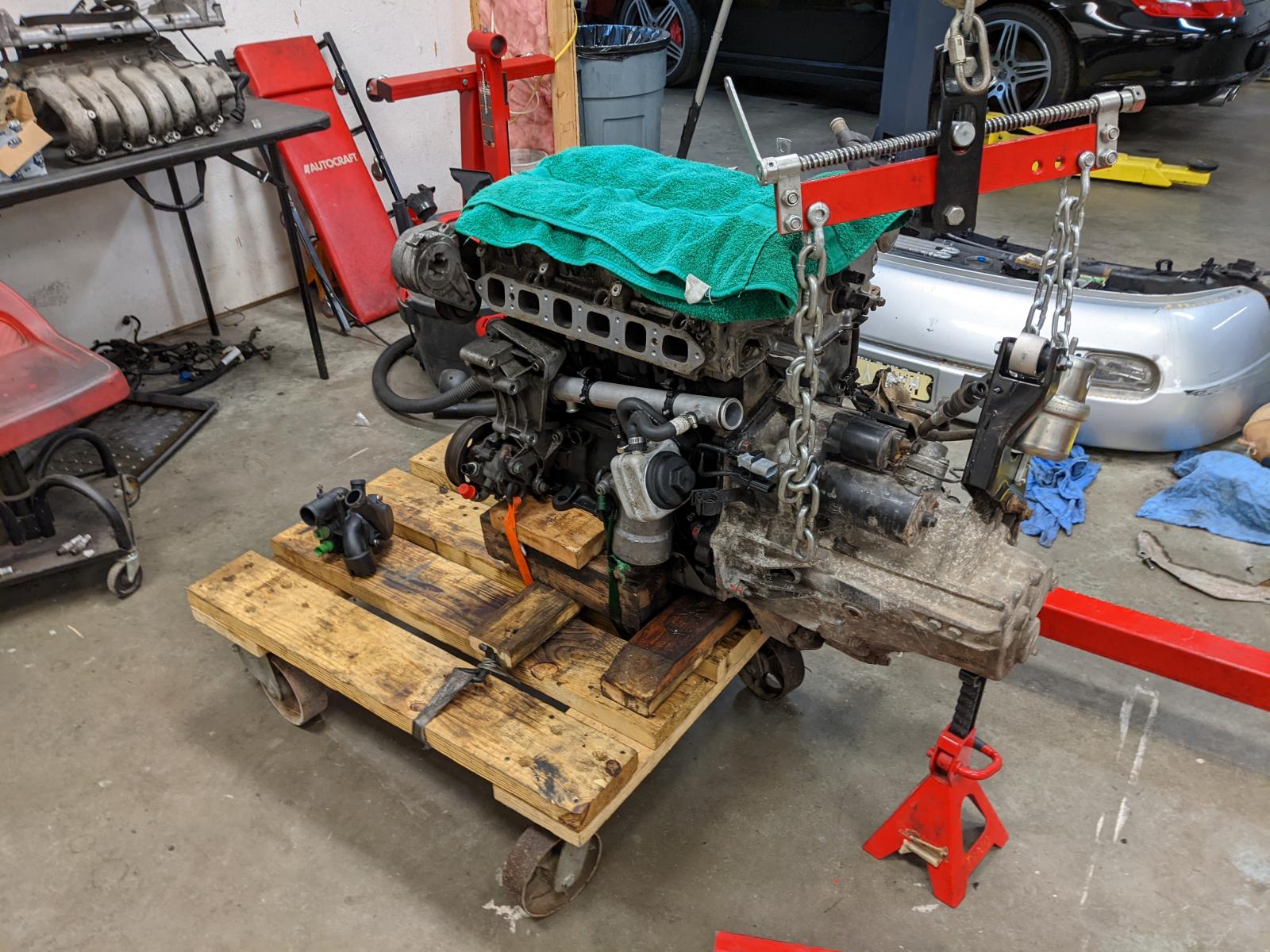

I installed the used clutch & flywheel to the engine without the shim that was under the auto trans flex plate. I then installed the transmission to the engine and rigged it up on a dolly at the proper angle for installation into the van.


Image may have been reduced in size. Click image to view fullscreen.



Image may have been reduced in size. Click image to view fullscreen.


I tested out the clutch master & slave prior to installation just to be sure everything worked.


Image may have been reduced in size. Click image to view fullscreen.

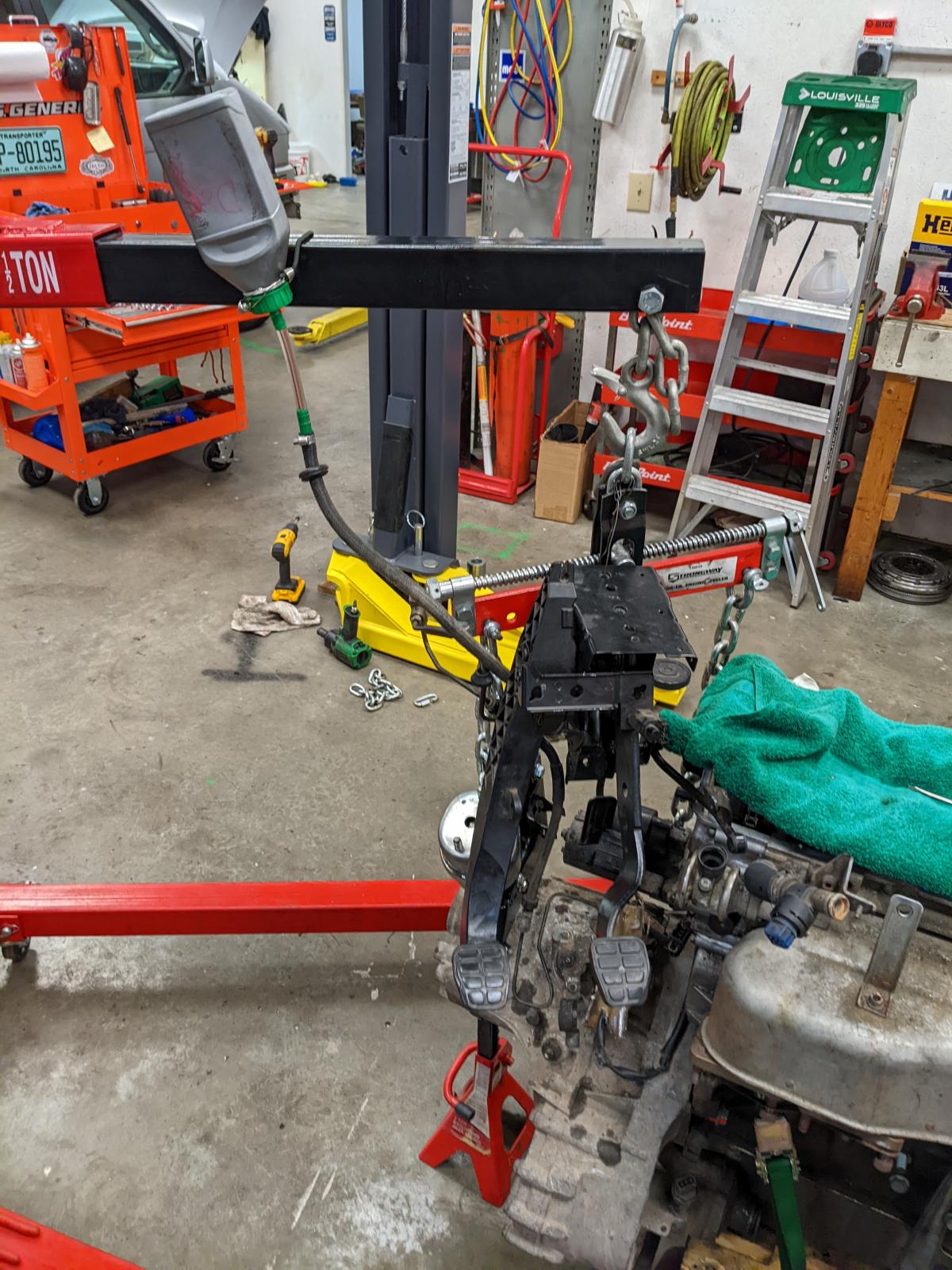

The pedal assembly and shifter were pretty straight forward to install in the van. I did have to replace the shifter ball at the end of the shift rod.


Image may have been reduced in size. Click image to view fullscreen.

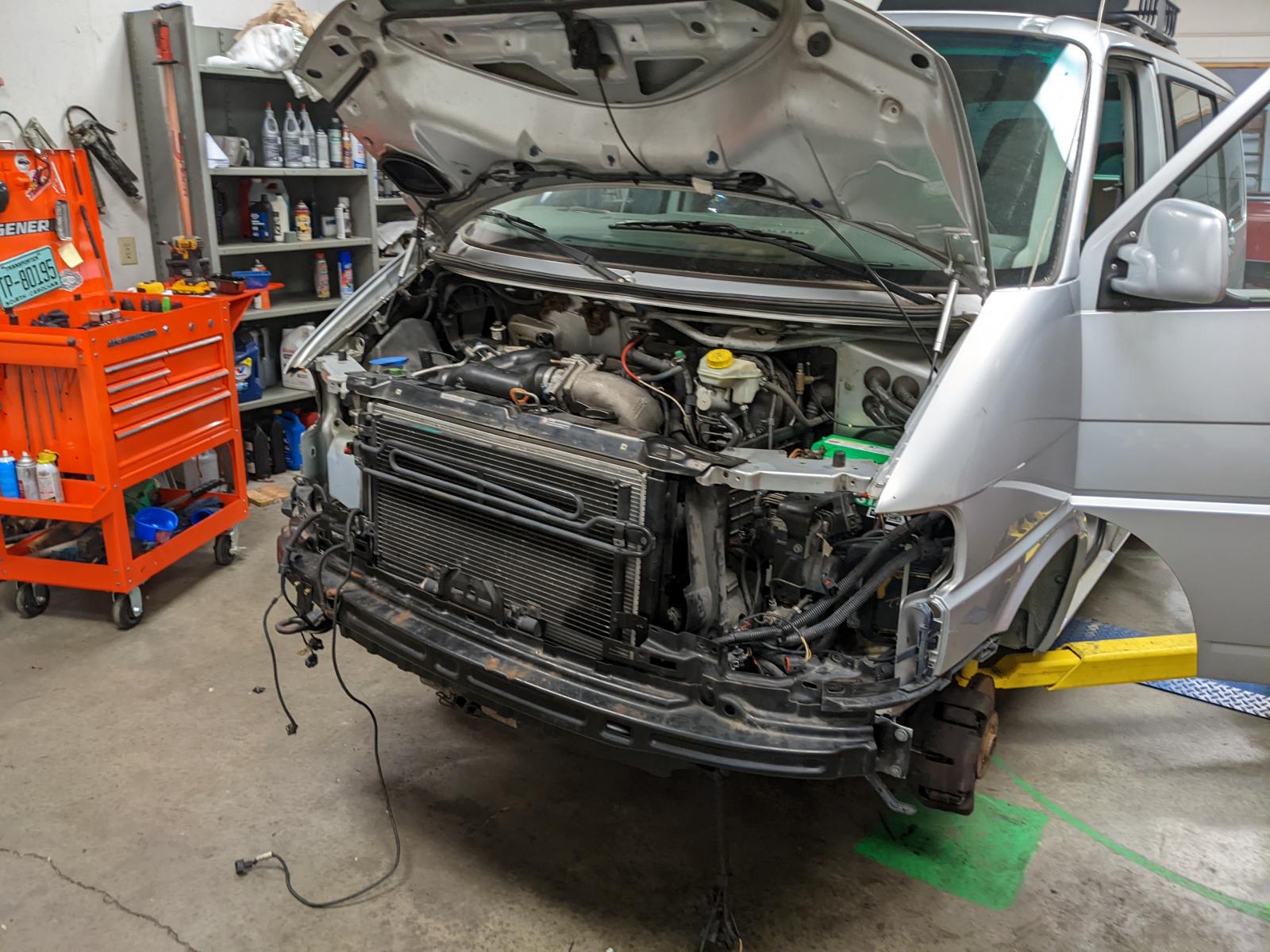

With the van on the lift I removed the axles from the van and installed the manual trans axles, then rolled the dolly with the engine/trans assembly under the van and slowly lowered the van down onto it. Once things were bolted in place I installed the wiring harness. Then all the coolant hoses, shift rods fuel lines and radiator.


Image may have been reduced in size. Click image to view fullscreen.



Image may have been reduced in size. Click image to view fullscreen.


After adding oil and a new filter to the engine I topped off the coolant and fired it up. It ran! I finished installing the rest of the bumper and grille and took it for a test drive. The throttle was definitely not right and I had an ABS and stability control light on as well as a check engine light. I connected my Autel scan tool and performed a throttle adaptation which cleared up the throttle issue but I still had the the three lights on. I had removed the auto trans control unit and suspected it may have had something to do with the lights because the ECU had codes for "missing signal from transmission control module". I installed the TCU, cleared the codes and the ABS/stability control lights went out! I still had a CEL and a code for "intermittent throttle pedal position sensor signal". Doesn't seem to affect drivability.

I've been driving it this way and everything seems to work just fine. As I write this I'm 250 miles from home in our rental house Asheville NC where we're moving to. I used the van to haul a trailer with machine shop equipment and other shop items here. The loaded trailer weight is about 4300 pounds. The rated towing capacity of a 2003 Eurovan with auto trans is 4400 pounds. The clutch did fine and it pulled the trailer over the mountain pass of 4 miles at a 10% grade in second gear at 40 mph with partial throttle. I was able to accelerate to 45 mph and pass slower semi trailers no problem. I averaged 65 mph in 4th gear getting 12 mpg avg. I'm sure those numbers will go up on my way home with an empty trailer.


Image may have been reduced in size. Click image to view fullscreen.


Overall I'm very satisfied with the conversion. Leaving the TCU connected is required to keep the ABS and stability control working. It's ok to remove all the wiring that connected to the transmission. The 3 wire speed sensor plug for the speedometer plugged right in to the sensor on the manual trans. The 5 speed manual bolted to the VR6 24V block with six bolts. There was a dust plate included that would not go on but it's not really necessary anyway.

As time and miles go by I'll come back to this post and update. If you're thinking about doing this to your van, go for it but be ready for a challenge on the removal and install of that engine that sits at and angle. It's a bear.

_________________
If it ain't broke, don't fix it!
Back to top
View user's profile Send private message Twitter Instagram Gallery Classifieds Feedback
generic_ork
Samba Member


Joined: January 04, 2022
Posts: 20
Location: west coast
generic_ork is offline

PostPosted: Sun Feb 20, 2022 8:10 am    Post subject: Re: 2003 Eurovan MV VR6 24V manual swap notes Reply with quote

Very nice job and cataloging the swap & info. You've got a pretty clean work area too! Are you in WA?
Back to top
View user's profile Send private message Classifieds Feedback
Endopotential
Samba Member


Joined: February 13, 2012
Posts: 158
Location: Pacifica, California
Endopotential is offline

PostPosted: Sun Feb 20, 2022 10:08 am    Post subject: Re: 2003 Eurovan MV VR6 24V manual swap notes Reply with quote

Thanks for posting this along with all the nice pics. This will be a tremendous resource for a lot of us. Though crossing my fingers that my '02 will last for quite a bit longer.

Did you have to do any other fancy reprogramming in VCDS? I think my local guy could figure out the mechanical bits, but not as sure he could handle any computerized reboots.

At first I thought you were in Aberdeen, Scotland and that this fix would only work for lucky Europeans who can get the parts. Happy to hear about availability of things from SoCal.

Good luck with the move to NC. Though bummed as I'm in SF. It would have been nice to have an excuse to visit you and Mono Lake.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
gesoffen
Samba Member


Joined: August 22, 2009
Posts: 81
Location: NoVA, USA
gesoffen is offline

PostPosted: Sun Feb 20, 2022 12:05 pm    Post subject: Re: 2003 Eurovan MV VR6 24V manual swap notes Reply with quote

Excellent news - especially on the ABS/ESP front! Please keep the forum updated as if ABS/ESP is indeed fully functional and no other issues, this will likely move up to the top of my list of mods!

I have a fleet of 6 cars and the EVW is the only autotragic transmission I have and the only one I've ever owned. Getting my fleet back to 100% manual trans would be ideal!
Back to top
View user's profile Send private message Gallery Classifieds Feedback
EuroTec
Samba Member


Joined: August 24, 2020
Posts: 204
Location: Asheville, North Carolina
EuroTec is offline

PostPosted: Sun Feb 20, 2022 4:11 pm    Post subject: Re: 2003 Eurovan MV VR6 24V manual swap notes Reply with quote

generic_ork wrote:
Very nice job and cataloging the swap & info. You've got a pretty clean work area too! Are you in WA?


North Carolina. This is my shop that was Euro Auto Service. I closed the business Dec 31 2020. I'm moving out of the building by March 1st. Glad I had it for this project.
_________________
If it ain't broke, don't fix it!
Back to top
View user's profile Send private message Twitter Instagram Gallery Classifieds Feedback
EuroTec
Samba Member


Joined: August 24, 2020
Posts: 204
Location: Asheville, North Carolina
EuroTec is offline

PostPosted: Sun Feb 20, 2022 4:12 pm    Post subject: Re: 2003 Eurovan MV VR6 24V manual swap notes Reply with quote

Endopotential wrote:
Thanks for posting this along with all the nice pics. This will be a tremendous resource for a lot of us. Though crossing my fingers that my '02 will last for quite a bit longer.

Did you have to do any other fancy reprogramming in VCDS? I think my local guy could figure out the mechanical bits, but not as sure he could handle any computerized reboots.

At first I thought you were in Aberdeen, Scotland and that this fix would only work for lucky Europeans who can get the parts. Happy to hear about availability of things from SoCal.

Good luck with the move to NC. Though bummed as I'm in SF. It would have been nice to have an excuse to visit you and Mono Lake.


Nothing to program, just the throttle adaptation reset.
_________________
If it ain't broke, don't fix it!
Back to top
View user's profile Send private message Twitter Instagram Gallery Classifieds Feedback
volkybus
Samba Member


Joined: November 03, 2013
Posts: 417
Location: CASTLETON VT USA
volkybus is offline

PostPosted: Mon Feb 21, 2022 5:28 am    Post subject: Re: 2003 Eurovan MV VR6 24V manual swap notes Reply with quote

Good job. Thanks for the nice to to pics and info.I like u hate auto trans so when I buy a newer EV I will have to convert it. A auto transmission is a built in oblosence,always a problem down the road if u keep a car or van a long time.200k+ How long did it take u to complete.? We thought we were living large when we upgraded to a Porsche engine I
In a split bus.Good Luck and Driveem till they drop.Bill in PR
Oh
Back to top
View user's profile Send private message Classifieds Feedback
Stripped66
Samba Member


Joined: May 31, 2005
Posts: 3438
Location: Charleston, SC
Stripped66 is offline

PostPosted: Mon Feb 21, 2022 7:02 am    Post subject: Re: 2003 Eurovan MV VR6 24V manual swap notes Reply with quote

Endopotential wrote:

Did you have to do any other fancy reprogramming in VCDS?


VCDS cannot reprogram an ECU.



Euro Auto, nice write up and great job discovering the TCU was critical for maintaining ABS and stability functionality on the 2001+ EVs.
_________________
66brm wrote:
Bodacious wrote:
Why not just make a custom set of wires with a Y splice in them. Then you could just run one distributor.

I don't think electrickery works that way
Back to top
View user's profile Send private message Gallery Classifieds Feedback
EuroTec
Samba Member


Joined: August 24, 2020
Posts: 204
Location: Asheville, North Carolina
EuroTec is offline

PostPosted: Mon Feb 21, 2022 7:03 am    Post subject: Re: 2003 Eurovan MV VR6 24V manual swap notes Reply with quote

volkybus wrote:
Good job. Thanks for the nice to to pics and info.I like u hate auto trans so when I buy a newer EV I will have to convert it. A auto transmission is a built in oblosence,always a problem down the road if u keep a car or van a long time.200k+ How long did it take u to complete.? We thought we were living large when we upgraded to a Porsche engine I
In a split bus.Good Luck and Driveem till they drop.Bill in PR
Oh


I had a former employee pull the engine for me which took her about a day's work. Putting it all back together I spent a solid 5 days on it.
_________________
If it ain't broke, don't fix it!
Back to top
View user's profile Send private message Twitter Instagram Gallery Classifieds Feedback
Tuzserhu
Samba Member


Joined: September 03, 2019
Posts: 2
Location: Ojai
Tuzserhu is offline

PostPosted: Tue Feb 22, 2022 3:54 pm    Post subject: Re: 2003 Eurovan MV VR6 24V manual swap notes Reply with quote

Please let me know if you will be offering this 5 speed manual swap. I would like to have you do it for me. Thank you!
Back to top
View user's profile Send private message Gallery Classifieds Feedback
EuroTec
Samba Member


Joined: August 24, 2020
Posts: 204
Location: Asheville, North Carolina
EuroTec is offline

PostPosted: Tue Feb 22, 2022 4:48 pm    Post subject: Re: 2003 Eurovan MV VR6 24V manual swap notes Reply with quote

Tuzserhu wrote:
Please let me know if you will be offering this 5 speed manual swap. I would like to have you do it for me. Thank you!


I closed the shop Dec 31st. Sad
_________________
If it ain't broke, don't fix it!
Back to top
View user's profile Send private message Twitter Instagram Gallery Classifieds Feedback
Tuzserhu
Samba Member


Joined: September 03, 2019
Posts: 2
Location: Ojai
Tuzserhu is offline

PostPosted: Tue Feb 22, 2022 4:55 pm    Post subject: Re: 2003 Eurovan MV VR6 24V manual swap notes Reply with quote

I would think just doing the manual swap could keep you in business!
There are so many of us who would want this:)
Back to top
View user's profile Send private message Gallery Classifieds Feedback
YOGIVW
Samba Member


Joined: February 04, 2005
Posts: 257
Location: Olsztyn/POLAND
YOGIVW is offline

PostPosted: Wed Feb 23, 2022 2:34 am    Post subject: Re: 2003 Eurovan MV VR6 24V manual swap notes Reply with quote

Tuzserhu wrote:
Please let me know if you will be offering this 5 speed manual swap. I would like to have you do it for me. Thank you!


when you convince Dean (Euro Auto )to do the conversion I have all parts needed for it.

Dean thanks for posting it. I was "fighting wit ABS/ESP lights ON on my eurovan for almost 3 years and solution was so simple.
_________________
Pawel
Vw 1303 1979 Black&Beige convertible
VW T4 2001 Caravelle Business 2.8 V6
Westfalia James Cook 2.9TD
Back to top
View user's profile Send private message Send e-mail Visit poster's website Facebook Gallery Classifieds Feedback
shirk
Samba Member


Joined: September 29, 2010
Posts: 66

shirk is offline

PostPosted: Wed Feb 23, 2022 5:46 pm    Post subject: Re: 2003 Eurovan MV VR6 24V manual swap notes Reply with quote

With the 02G being a rare tranmission and the expense of shipping from overseas it would be good to look at an NA source for something.

The first gen Tiguan was sold for a limited time with a 6spd manual in North America. This is the 0A6 MQ500 transmission and able to handle high torque.

Obviously it won't be a direct bolt up but an adapter plate would solve that.

Here it is milled down to fit the adapter ring for a VR6 in the non van rearward tilt, a different ring would be needed to tilt it forward.

https://racingcustomparts.com/produkt/mq500-to-vr6-r32-r36-adapter/

Anyway some food for thought as I am sure there are a bunch of people that would want an updated transmission as it's the known weak spot on the vans.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
EuroTec
Samba Member


Joined: August 24, 2020
Posts: 204
Location: Asheville, North Carolina
EuroTec is offline

PostPosted: Wed Feb 23, 2022 7:52 pm    Post subject: Re: 2003 Eurovan MV VR6 24V manual swap notes Reply with quote

YOGIVW wrote:
Tuzserhu wrote:
Please let me know if you will be offering this 5 speed manual swap. I would like to have you do it for me. Thank you!


when you convince Dean (Euro Auto )to do the conversion I have all parts needed for it.

Dean thanks for posting it. I was "fighting wit ABS/ESP lights ON on my eurovan for almost 3 years and solution was so simple.


You're welcome. Glad it worked for you too!
_________________
If it ain't broke, don't fix it!
Back to top
View user's profile Send private message Twitter Instagram Gallery Classifieds Feedback
shirk
Samba Member


Joined: September 29, 2010
Posts: 66

shirk is offline

PostPosted: Thu Jun 09, 2022 2:21 pm    Post subject: Re: 2003 Eurovan MV VR6 24V manual swap notes Reply with quote

Got digging around for some info after going down a bit of a rabbit hole.

I was chatting with a German T4 owner on IG and he mentioned that a friend of his did a Syncro manual trans swap on a long nose with the DHR gearbox. He didn't have much for details and while waiting for him to reply I started digging.

The DHR was fitted to the later 2.5 TDI engines. This engine is an Audi derived engine. VAG has mated a VR6 to versions of Audi gearboxes...but how. A factory adapter plate.

Enter 071103551A adapter plate.

From some reading I believe Audi has been consistent with their engine mount pattern so this adapter should allow the VR6 to mount up to the later model T4 gearboxes opening up a much bigger list than the elusive AFL.

More digging needed to confirm, but thought I would share. A 24v VR6 manual syncro would be mighty fine project.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Joshwa
Samba Member


Joined: November 18, 2015
Posts: 789
Location: North Seattle WA
Joshwa is offline

PostPosted: Thu Jun 09, 2022 4:48 pm    Post subject: Re: 2003 Eurovan MV VR6 24V manual swap notes Reply with quote

Just adding to your spacer plate info.

This part is a spacer plate for Volkswagen cars. It fits for Volkswagen Passat, 4Motion, Passat, 4Motion, Santana, Passat syncro, and Passat, Variant, 4Motion for Brazil, China, Mexico, Argentina, Local Market, Shanghai, USA, and South Africa from 1997 to 2005. It's a genuine VAG part with an OEM part number 071103551A, part of individual engine parts. Please keep in mind that this spacer plate was replaced with 022103551 for Volkswagen on June 1, 2007, and was replaced with 022103551 for Audi on June 1, 2007.
_________________
93 Weekender TDI conversion (AHU)
93 MV TDI conversion (1Z)
Weekender rear cot
Late model cabin air filter on 93
Euro spec bumper install on 93
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
EuroTec
Samba Member


Joined: August 24, 2020
Posts: 204
Location: Asheville, North Carolina
EuroTec is offline

PostPosted: Sun Jun 19, 2022 7:46 pm    Post subject: Re: 2003 Eurovan MV VR6 24V manual swap notes Reply with quote

Just an update on "Evelyn". A little over 5K miles on her since the swap, did an oil change the other day. ZERO leaks! Everything still working fine. I use it every day as my handyman work van.
_________________
If it ain't broke, don't fix it!
Back to top
View user's profile Send private message Twitter Instagram Gallery Classifieds Feedback
gesoffen
Samba Member


Joined: August 22, 2009
Posts: 81
Location: NoVA, USA
gesoffen is offline

PostPosted: Tue Jun 28, 2022 4:15 am    Post subject: Re: 2003 Eurovan MV VR6 24V manual swap notes Reply with quote

Thanks for the update ET - glad to hear all appears well. I'm starting to look into parts sources for the conversion but as I have no urgent need (i.e. van isn't broken right now), I don't have a timetable - so basically window shopping at the moment.

Last a remember, you still hadn't sorted the clutch/ignition and clutch/cruise control interlocks. Any updates on those?
Back to top
View user's profile Send private message Gallery Classifieds Feedback
generic_ork
Samba Member


Joined: January 04, 2022
Posts: 20
Location: west coast
generic_ork is offline

PostPosted: Tue Jun 28, 2022 6:52 am    Post subject: Re: 2003 Eurovan MV VR6 24V manual swap notes Reply with quote

I've got a '99 with some issues and have been reading your swap out for some time. I mentioned it to the folks at German Transaxle and they were quite curious. They currently have my EVC in pieces. I'm looking to either do full transmission swap or a band-aid repair on the Ring and Pinion. Any suggestions for help would be highly appreciated! I'm waiting to hear back from the shop you got the manual from, apparently he is in Germany sourcing parts.
Back to top
View user's profile Send private message Classifieds Feedback
