Oil relief valve screw on 36HP
Forum Index -> Beetle - Oval-Window - 1953-57 Share: Facebook Twitter
Reply to topic
Print View
Quick sort: Show newest posts on top | Show oldest posts on top View previous topic :: View next topic
Author Message
paf
Samba Member


Joined: February 24, 2015
Posts: 138
Location: France
paf is offline

PostPosted: Wed Mar 15, 2017 12:53 am    Post subject: Oil relief valve screw on 36HP Reply with quote

Hello, I am posting here as there is more activity than in the vintage speed forum.

I am wandering where I can find this item in subject, as I am struggling to have a new one. Mine has been damaged during dismantling as it was stuck. I am wandering if it exists in hex or Allen version. If someone as one spare I would be interested as well.

Thanks

PS : I am located in Europe...
_________________
Fred
Euro '58 L334 bug
http://www.thesamba.com/vw/forum/viewtopic.php?t=657333
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Ovally
Samba Member


Joined: June 14, 2014
Posts: 497
Location: Belgium
Ovally is offline

PostPosted: Wed Mar 15, 2017 4:39 am    Post subject: Re: Oil relief valve screw on 36HP Reply with quote

What is your engine number and what is the size of the screw M14 x 1,5 or M16 x 1,5 ?

Regards.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
paf
Samba Member


Joined: February 24, 2015
Posts: 138
Location: France
paf is offline

PostPosted: Wed Mar 15, 2017 5:14 am    Post subject: Re: Oil relief valve screw on 36HP Reply with quote

Hello,

Thanks for your reply, the engine number is 2284634, size of the plug is M14 x 1.5.
_________________
Fred
Euro '58 L334 bug
http://www.thesamba.com/vw/forum/viewtopic.php?t=657333
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Ovally
Samba Member


Joined: June 14, 2014
Posts: 497
Location: Belgium
Ovally is offline

PostPosted: Wed Mar 15, 2017 6:27 am    Post subject: Re: Oil relief valve screw on 36HP Reply with quote

1958 Type 1
31.12.1957 / 31.12.1958
1,2 L
22 kW / 30 PK

Screw M14 x 1,5
VW part number is 111 115 431A

If you can't locate it, there was an oversize screw available with part number 111 115 431B (=M16 x 1,5)
Seems still available but no picture, you can ask if it is the correct screw http://www.volkswagen-classic-parts.de/en/verschlussschraube-9b921f.html

Regards.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
paf
Samba Member


Joined: February 24, 2015
Posts: 138
Location: France
paf is offline

PostPosted: Wed Mar 15, 2017 6:43 am    Post subject: Re: Oil relief valve screw on 36HP Reply with quote

Hello, again,

I contacted several supplier and they told me that this part is no more produced and available from VW, only used parts can be found. But sometimes alternative supplier can manufacture parts no more available and this is why I asked if there is somewhere someone with this part that can help me. I do not want to thread my case to M16x1.5, but would prefer to have a used part of M14.

Thanks.
_________________
Fred
Euro '58 L334 bug
http://www.thesamba.com/vw/forum/viewtopic.php?t=657333
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Ovally
Samba Member


Joined: June 14, 2014
Posts: 497
Location: Belgium
Ovally is offline

PostPosted: Wed Mar 15, 2017 12:54 pm    Post subject: Re: Oil relief valve screw on 36HP Reply with quote

"" I do not want to thread my case to M16x1.5, but would prefer to have a used part of M14""

I understand.
How bad is your plug? Post a picture.
A machine shop can make one for you.

Regards.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Snort
Samba Member


Joined: April 02, 2005
Posts: 1964
Location: Seattle, WA
Snort is offline

PostPosted: Wed Mar 15, 2017 1:54 pm    Post subject: Re: Oil relief valve screw on 36HP Reply with quote

I remember not too long ago there was a person advertising new ones that he makes and I think they were allen head but I can't seem to find the ad now.

Perhaps you could contact one of the people here that advertise complete 36hp engine rebuilding services and see if they will help you out.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
paf
Samba Member


Joined: February 24, 2015
Posts: 138
Location: France
paf is offline

PostPosted: Wed Mar 15, 2017 2:18 pm    Post subject: Re: Oil relief valve screw on 36HP Reply with quote

Hello,

Ovally wrote:
"" I do not want to thread my case to M16x1.5, but would prefer to have a used part of M14""

I understand.
How bad is your plug? Post a picture.
A machine shop can make one for you.

Regards.

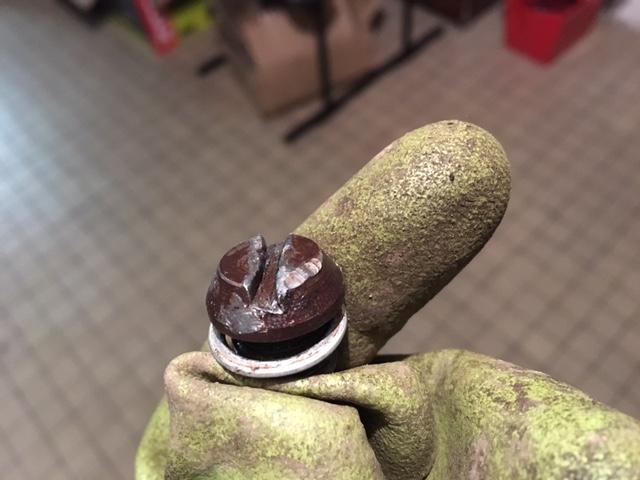

Well I do not know for Belgium but in France the knowhow of those machine shop are really limited... not to say inexistent. Here are pictures of my plug :
Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.


Snort wrote:
"" Perhaps you could contact one of the people here that advertise complete 36hp engine rebuilding services and see if they will help you out."


That's a good idea, I saw several advertiser for 36HP, I will try to contact them.

Thanks.
_________________
Fred
Euro '58 L334 bug
http://www.thesamba.com/vw/forum/viewtopic.php?t=657333
Back to top
View user's profile Send private message Gallery Classifieds Feedback
tasb Premium Member
The Distributor Distributor


Joined: April 27, 2002
Posts: 6676
Location: Pentwater, Michigan
tasb is offline

PostPosted: Wed Mar 15, 2017 8:03 pm    Post subject: Re: Oil relief valve screw on 36HP Reply with quote

Try contacting Mathew, he specializes in 36 hp parts.
http://www.thesamba.com/vw/classifieds/search.php?username=Mr.+Motorhead
_________________
Roads Scholar
1957 Kombi low mileage 36 hp governor equipped M 178 Slow Drag Winner 2014, 2015, 2018

1965 hardtop Deluxe Microbus owned since 1990 M 620 factory 12 v 1500cc

1961 (October)Single Cab- Road Trip Workhorse

Member# 2059
Back to top
View user's profile Send private message Send e-mail Visit poster's website Gallery Classifieds Feedback
Loren Premium Member
Samba Member


Joined: January 10, 2004
Posts: 1811

Loren is offline

PostPosted: Wed Mar 15, 2017 8:05 pm    Post subject: Re: Oil relief valve screw on 36HP Reply with quote

Why not have someone weld the top and cut a new slot?
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
paf
Samba Member


Joined: February 24, 2015
Posts: 138
Location: France
paf is offline

PostPosted: Thu Mar 16, 2017 5:03 am    Post subject: Re: Oil relief valve screw on 36HP Reply with quote

If I do not find the part, that's a good idea. I would weld a nut in this case to be able to dismantle it without damaging it anymore.
_________________
Fred
Euro '58 L334 bug
http://www.thesamba.com/vw/forum/viewtopic.php?t=657333
Back to top
View user's profile Send private message Gallery Classifieds Feedback
txoval
Samba Member


Joined: January 23, 2004
Posts: 3820
Location: The Woodlands, TX
txoval is offline

PostPosted: Thu Mar 16, 2017 6:28 pm    Post subject: Re: Oil relief valve screw on 36HP Reply with quote

I have an extra you can have, but shipping price would stink
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
paf
Samba Member


Joined: February 24, 2015
Posts: 138
Location: France
paf is offline

PostPosted: Fri Mar 17, 2017 1:16 am    Post subject: Re: Oil relief valve screw on 36HP Reply with quote

Hello,

Let me know by PM, how much shipping included, but I do not think it will be too high for such a small part.
_________________
Fred
Euro '58 L334 bug
http://www.thesamba.com/vw/forum/viewtopic.php?t=657333
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Snort
Samba Member


Joined: April 02, 2005
Posts: 1964
Location: Seattle, WA
Snort is offline

PostPosted: Fri Mar 17, 2017 7:42 am    Post subject: Re: Oil relief valve screw on 36HP Reply with quote

Before you get too far with buying another one of these screws, you should know that there are two styles one for the early cases with a hollow center that the spring fits into and one for the later cases that are solid with the spring sitting on the top.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
txoval
Samba Member


Joined: January 23, 2004
Posts: 3820
Location: The Woodlands, TX
txoval is offline

PostPosted: Fri Mar 17, 2017 8:12 am    Post subject: Re: Oil relief valve screw on 36HP Reply with quote

I just sent you pictures of the later 36hp style that I have. Let me know if yours is the same

Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
grailoc
Samba Member


Joined: March 25, 2004
Posts: 1470
Location: FRANCE and now QUEBEC city
grailoc is offline

PostPosted: Sat Mar 18, 2017 5:23 am    Post subject: Re: Oil relief valve screw on 36HP Reply with quote

ask this seller he made an improved design with hexagonal head.
He might still have some for sale.
https://www.thesamba.com/vw/classifieds/detail.php?id=1197280
_________________
My 59 low light ghia: https://www.thesamba.com/vw/forum/viewtopic.php?t=452128
My 56 beetle convertible: http://www.thesamba.com/vw/forum/viewtopic.php?p=7796259
My 60 SO23 westy: http://www.thesamba.com/vw/forum/viewtopic.php?t=341539
My oldspeed 36hp autotechnik express build: https://www.thesamba.com/vw/forum/viewtopic.php?t=670827
My garage build: http://www.garagejournal.com/forum/showthread.php?t=199438
Back to top
View user's profile Send private message Visit poster's website Facebook Gallery Classifieds Feedback
paf
Samba Member


Joined: February 24, 2015
Posts: 138
Location: France
paf is offline

PostPosted: Tue Mar 21, 2017 6:42 am    Post subject: Re: Oil relief valve screw on 36HP Reply with quote

Yep, this ad is back in the classified.
_________________
Fred
Euro '58 L334 bug
http://www.thesamba.com/vw/forum/viewtopic.php?t=657333
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Ovally
Samba Member


Joined: June 14, 2014
Posts: 497
Location: Belgium
Ovally is offline

PostPosted: Wed Mar 22, 2017 11:11 pm    Post subject: Re: Oil relief valve screw on 36HP Reply with quote

https://www.thesamba.com/vw/classifieds/detail.php?id=1197280

It is an improved design although there is nothing wrong with the original VW oil pressure plug as long as you use the right tool.


Image may have been reduced in size. Click image to view fullscreen.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
RichOakley
Samba Member


Joined: August 30, 2004
Posts: 1118
Location: Midlands, UK
RichOakley is offline

PostPosted: Tue May 06, 2025 8:38 am    Post subject: Re: Oil relief valve screw on 36HP Reply with quote

Does anybody at which engine number these changed from early to late style? The ‘58 Volkswagen parts manual lists 111 115 431 (M16 x 1.5) and then 111 115 431A (M14 x 1.5)

Are early ones M16 and then the ones with ‘A’ suffix 14mm? If so, when did the change take place?
_________________
1947 Beetle
1956 RHD Karmann Cabrio
1956 RHD Beetle
1957 RHD Pitt-Moto Type 2 Camper
1959 RHD Beetle
1966 RHD Type 3 Fastback
1976 RHD Sun Beetle
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
