Engine and transmission mounts

KevinBug · Posted: Tue Aug 28, 2007 5:36 am Post subject: Engine and transmission mounts

Does anyone know where I can find #18, #8, #16 on this schematic? I got it from Ratwell. I know it sounds stupid but what is it called? motor mount? transmission mount? While I have the engine out I want to change all the mounting rubber but can't find this stuff at the online retailers.

Image may have been reduced in size. Click image to view fullscreen.

_________________
'74 Super

germansupplyscott · Posted: Tue Aug 28, 2007 5:39 am Post subject:

none of those are available new any more.

we have #18 good used.

i have never seen a #16. not sure what year/model that was supposed to some on.
_________________
SL

KevinBug · Posted: Tue Aug 28, 2007 5:47 am Post subject:

WOW! Scott that was fast. I just sent you an email to your shop! My mounts are no torn or anything I thought since everything was out... I guess if they're NLA I'll use what I've got.

thanks
_________________
'74 Super

miweis · Posted: Sat Aug 16, 2008 10:54 am Post subject:

sorry to take it off topic, but do you know what size bolt goes into #18?

Karl · Posted: Sat Aug 16, 2008 1:02 pm Post subject:

#23 is part number N 0100583 and is M10 x 15mm long

pwilson · Posted: Tue Jan 06, 2009 5:40 pm Post subject:

I am not sure which number it is on the schematic but, what size is the engine to transmission bolt on the top, opposite of the alternator? The other day I noticed I am missing it. Shocked

Phil

61Ragster · Posted: Tue Jan 06, 2009 7:12 pm Post subject:

Phil: Not sure what you mean by "opposite the alternator" but if you mean the passenger side upper engine mounting bolt (that would be immediately in FRONT of the alternator), then you want this:

http://www.thesamba.com/vw/classifieds/detail.php?id=509127

and you may want it kinda quick since it also holds the starter in place. I believe the size is M10 x 122mm.
If you need the driver's side bolt it is also M10 but shorter: ~70mm +/-.
_________________
[url=http://www.vw-mplate.com/mplate2-12938.png]Click to view image[/URL]

vw76westy · Posted: Wed Jan 07, 2009 12:39 am Post subject:

one mans junk is another mans treasure

i sold a pair of the #16
thinking why would anyone want to buy used bushing
now i realize i made someones day !!!

pwilson · Posted: Wed Jan 07, 2009 5:45 pm Post subject:

Ragster, I mean the driver side. By 'alternator' I meant starter. Embarassed

Guess I should have just said driver side in the first place. Thanks for the help.

Phil

vw76westy · Posted: Thu Jan 22, 2009 1:06 am Post subject:

well i got some pics for you guys

i did list in classifieds & i will lower asking price for you guys
with a pm from someone here

77VWBusDude · Posted: Thu Mar 05, 2009 6:30 pm Post subject:

So #10 and #9 are for an automatic, right? And that part you have there vw76westy is for the manual? I have what looks like #9 on my auto, but I'm missing #10(and #3). My mechanic described that U shaped thing when I asked him what part I was missing, but I think he didn't know what he was talking about. Argh. I wonder if #10 is the same on a Vanagon, that would help my search out a lot.
_________________
'77 Bus auto EFI(stock)

XXX/Rx/RnR · Posted: Fri Mar 06, 2009 12:41 am Post subject:

I got #18 new (transmission carrier bushing) from West Coast Meric. 78 auto. Old pair were split and hard as rock. The heat and dry air in Phoenix great for metal, but the dry rot or the rubber getting hard big problem. My m/c's get the garage,and the bus gets the sun. O'well!

magnus0328 · Posted: Mon Jul 02, 2012 10:13 am Post subject:

I know this is an old thread, buy has anyone been able to find these rubbers new?

I have checked all major vendors with no luck
_________________
Matthew 6:19-21

jjrose110 · Posted: Tue Jul 03, 2012 11:24 am Post subject:

http://www.wolfsburgwest.com/cart/DetailsList.cfm?ID=211599431

WW makes a reproduction of # 18 in the drawing. I have not seen the others being made.

magnus0328 · Posted: Tue Jul 03, 2012 11:32 am Post subject:

Same here. My # 18's are good. Its just that the ones in the pics are not.

Does # 16 act as a bumper for up and down transmission movement or does it serve as a bumper for when the transmission shifts front to back?
_________________
Matthew 6:19-21

jjrose110 · Posted: Tue Jul 03, 2012 11:46 am Post subject:

Up and down height is set with the slotted holes in # 12. So # 16 would stop any significant movement forward and back. My experience is that once everything is tightened back up, there isn't lot of movement though.

See if anyone else chimes in.

magnus0328 · Posted: Tue Jul 03, 2012 12:12 pm Post subject:

Im trying to find some material to make # 16. I was going to use a rubber roller for a boat trailer. Unless anyone else had made one with different material??
_________________
Matthew 6:19-21

thewalrus · Posted: Fri Jul 06, 2012 12:02 pm Post subject:

Figured I'd just add to this rather the make a new topic. I don't have a transmission mount at all and don't know which mount I need in the schematic:

http://bustedbus.com/groot/w/OtherAssets2/t204600.gif
(I'm guessing #15, #16, #25 & #24?)

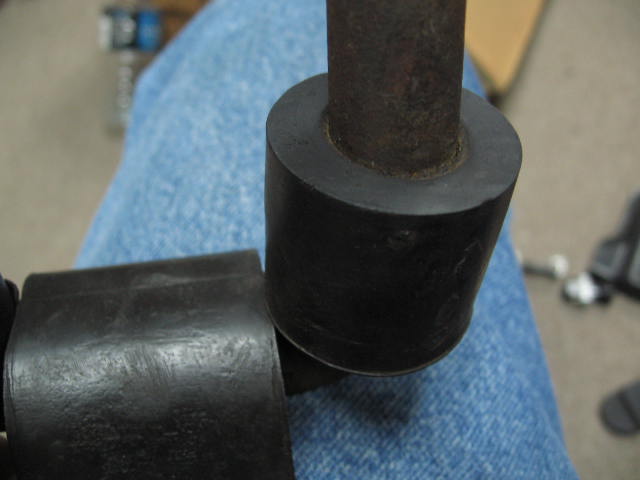

'75 bus, 6 rib manual trans. Here are some pictures of what I have (Yes I replaced the coupler bushing already. That's how I noticed the missing mount)

_________________
'73 Transporter 1.7L Dual Carb

Manfreds78bay · Posted: Fri Jul 06, 2012 12:38 pm Post subject:

Here you go. Item "I" half way down the page.

http://www.bughaus.com/type263.htm
_________________
1985 VANAGON GL Digijet

There is no spoon.

my59 · Posted: Mon Aug 11, 2014 7:24 am Post subject:

Dredged up because of the schematic on first post-
Item 24- bolt - anyone know size and length? I am missing one.

Also FYI with a missing bolt and the other one loose it affects shifting such that you will start grinding about every gear... and you may start thinking the tranny or shifter is fubar'd
_________________
my59: Well son, my grandfather died before I got to drive it, so does that answer your question?
our79: sunroof bus w/camper interior and 2.0 FI
Other:'12 Jetta, '77 Benz 300D, and a 74 MG Midget.
