 Posted: Sat Jul 12, 2025 7:23 am Post subject: HELP! Oil in Fuel Pump base |
 |
|

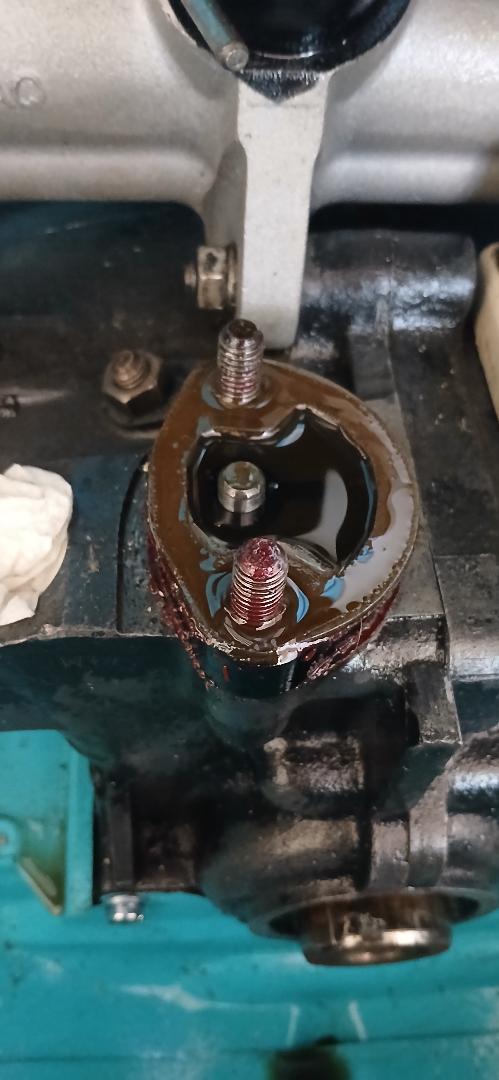

I am new to working on beetles. I bought a 72 super and replaced the heads, intake, carb, fuel pump and other things. The engine is running great, but I noticed oil slung all over the engine bay. My initial thought was from the crank pully. Pulled it off and the back was very clean. My next guess is the alternator stand. I removed the carb, distributor, and fuel pump to access the stand bolts better. When I removed the fuel pump I noticed the base is full of oil. Is this normal,(see Pic). Also any advice on where else to look for the source of the leak would be appetited. I am using an oils breather from jbugs. I have seen some picks where the breather hose is ran to the bottom of the air filter. Could the breather be causing the oil leak?
Last edited by mrminicoop on Sat Jul 12, 2025 11:37 am; edited 1 time in total |
|
| Back to top |
|
 |
Bobs67vwagen
Samba Member
Joined: March 27, 2005
Posts: 457
Location: Eastern north carolina
|
| Posted: Sat Jul 12, 2025 9:01 am Post subject: Re: Oil in Fuel Pump base |
|
|
| On the oil fill stand there is a smaller pipe that runs down thru the engine tin. Check to make sure this is not clogged. If it is clogged it will cause excessive crankcase pressure and force leaks. |
|
| Back to top |
|
|
mrminicoop
Samba Member
Joined: April 14, 2025
Posts: 6
Location: 38225
|
| Posted: Sat Jul 12, 2025 9:21 am Post subject: Re: Oil in Fuel Pump base |
|
|
| I have an aftermarket alt stand and it has a nipple fitting off the side. That is where I have the breather attached |
|
