Steering box frame notch and support

sgellis · Last edited by sgellis on Thu Apr 13, 2023 10:40 am; edited 1 time in total

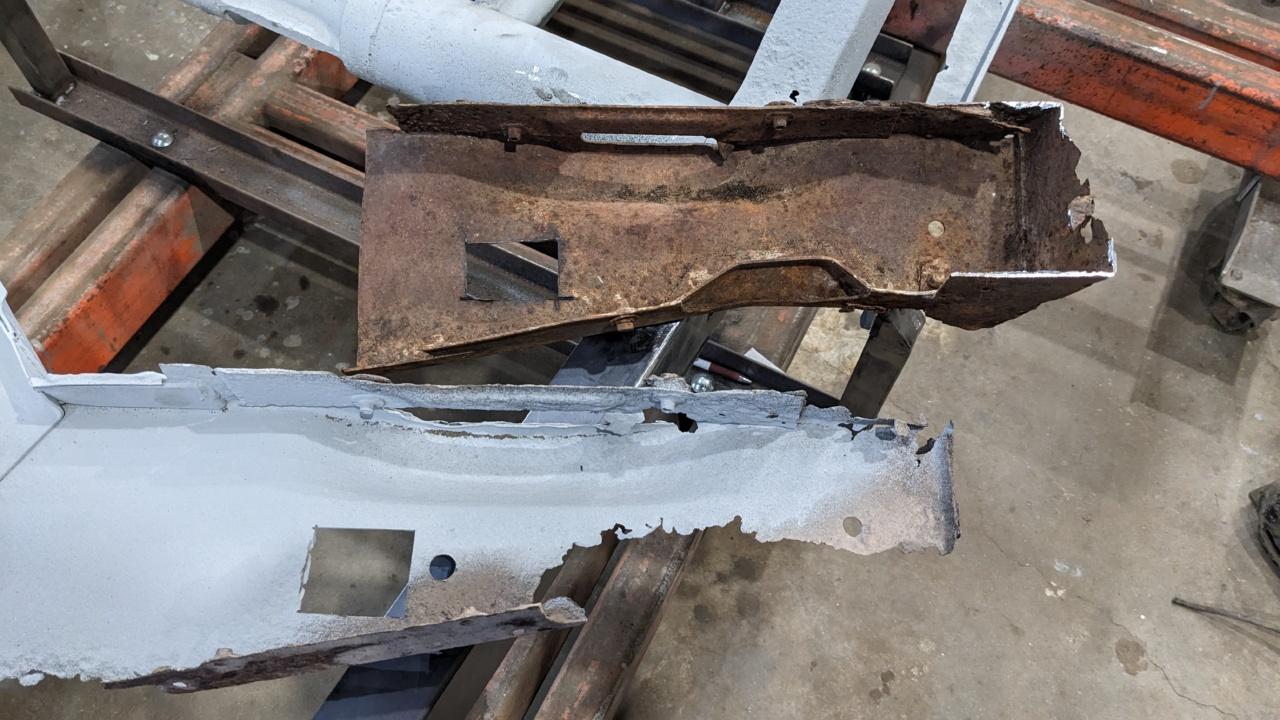

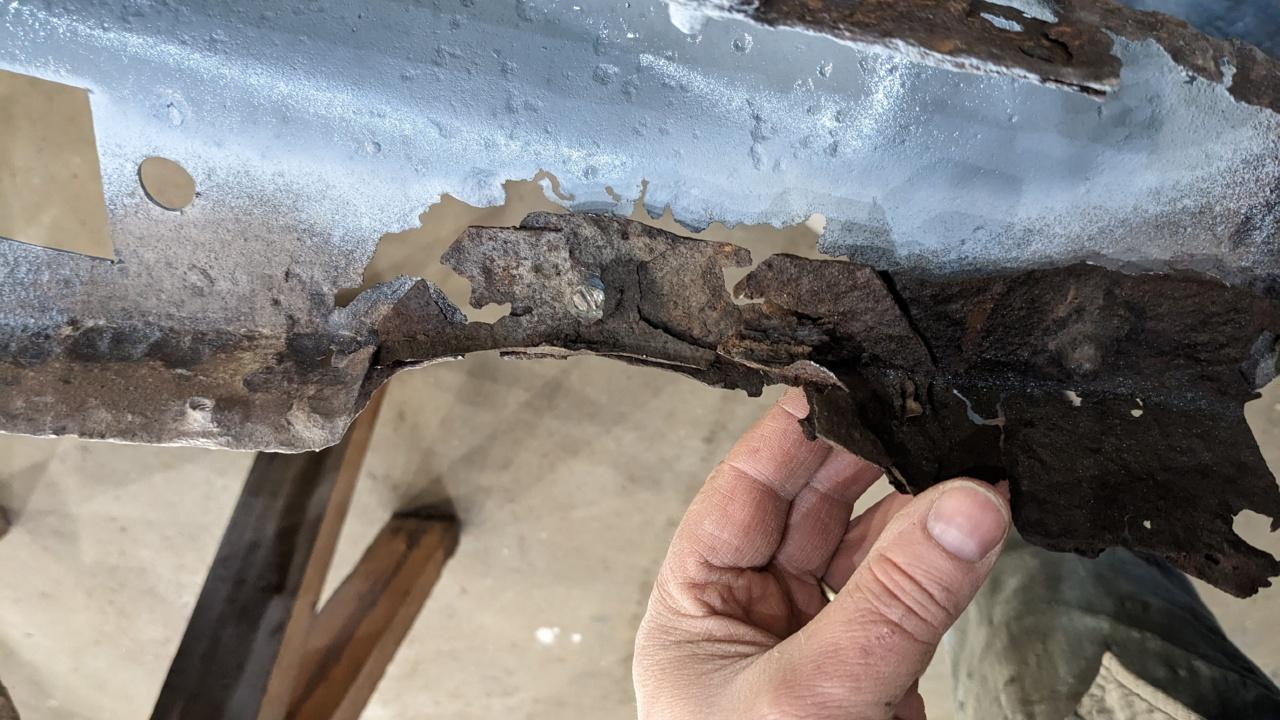

My 54 left front frame is in bad condition and I am trying to workout some details. The frame notch for steering box and support above it are mostly gone.

I have searched for photos but haven't found any that show this area very well.

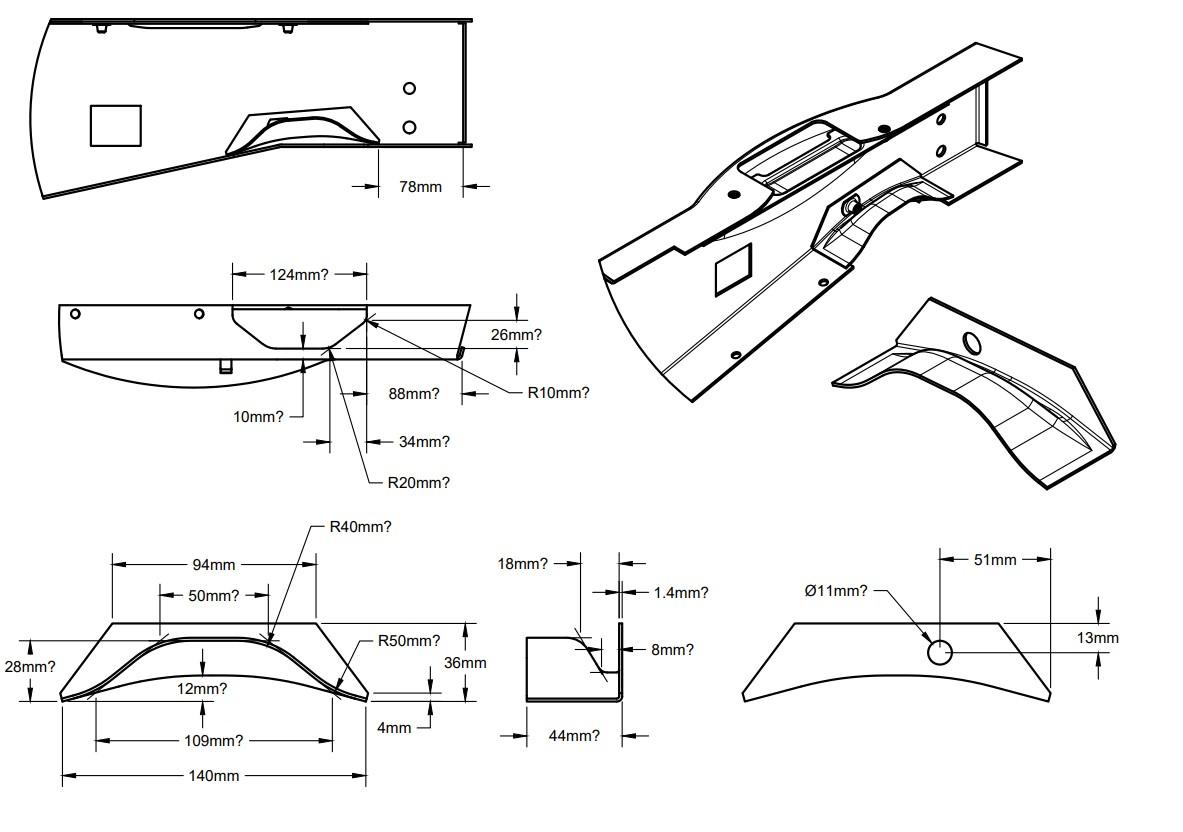

Made a drawing of the area but unsure of the details and dimensions. Hoping someone can can help me out with some measurements or photos.

Thanks

Image may have been reduced in size. Click image to view fullscreen.

Edit: updated drawing to match new info

_________________
My 64 Kombi restoration
My camper interior build
My 54 standard restoration
The Nova Scotian Barndoor (YouTube)
The Nova Scotian Barndoor (CAD drawings)

DSweinhagen

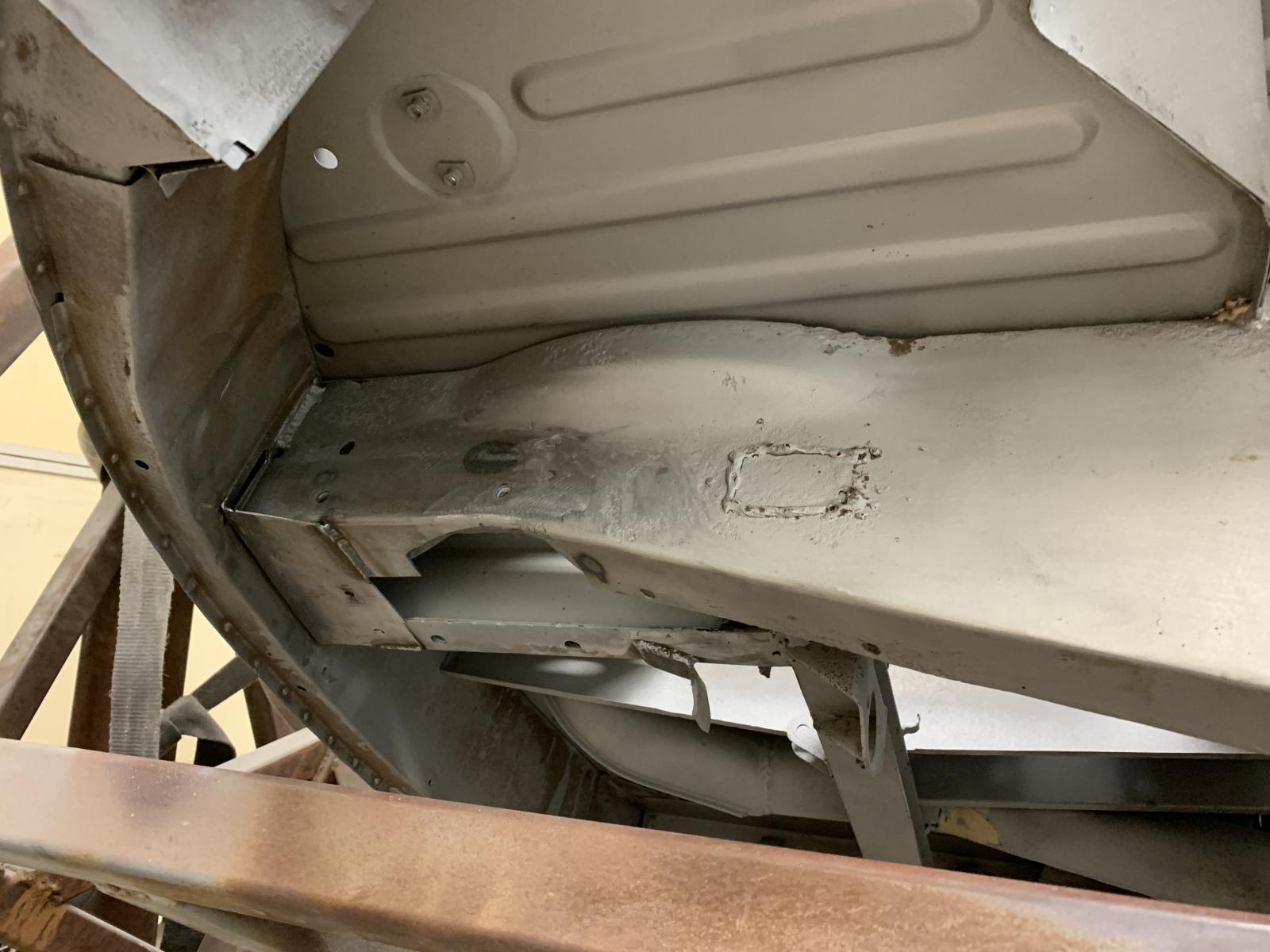

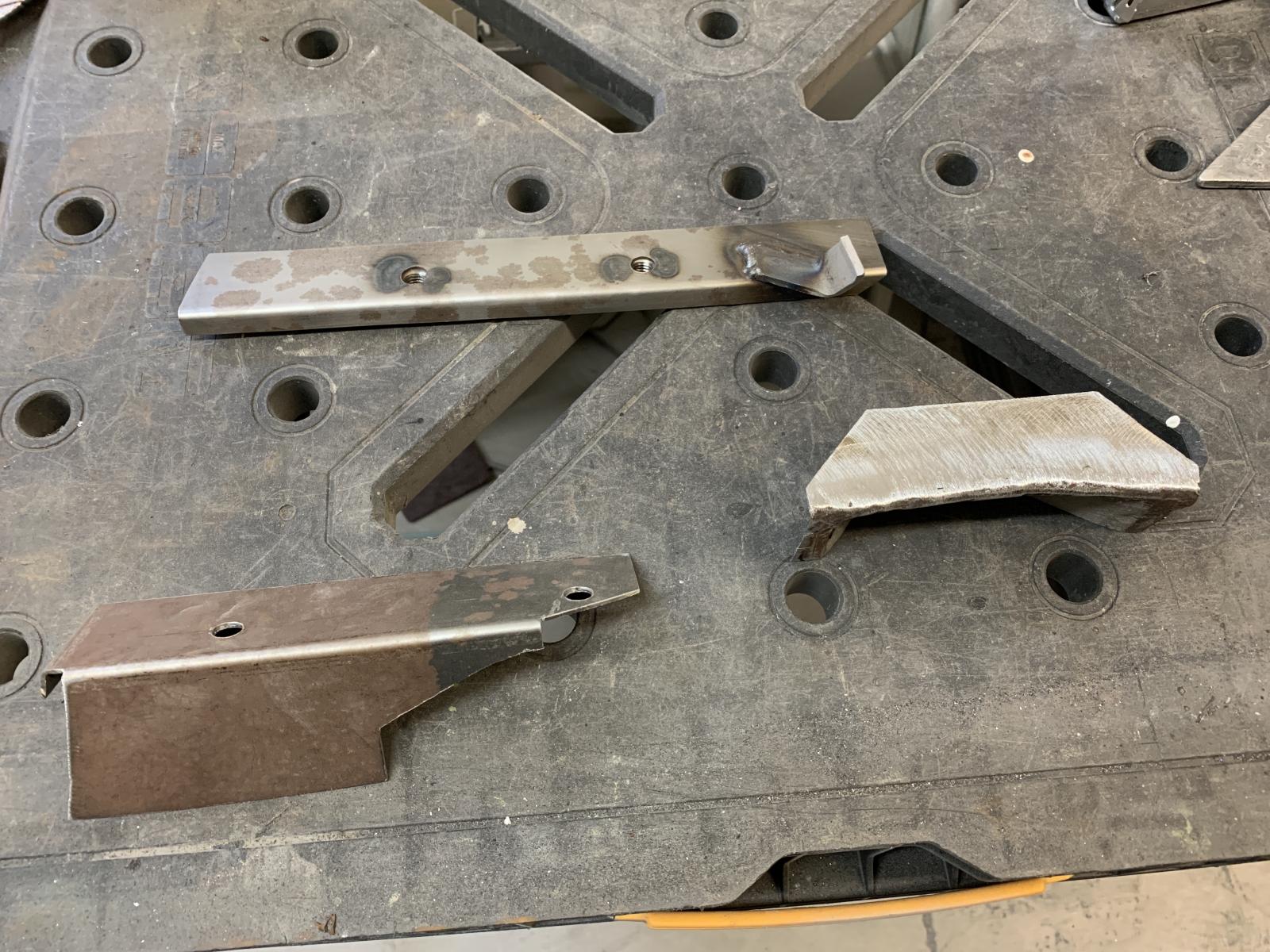

I just had to repair this area, though I was able to reuse the cup as I just had to replace the flat side where it rusted against the frame. Not sure if these pics are helpful? I do have an NOS frame and will try to dig it out and get some pics.
